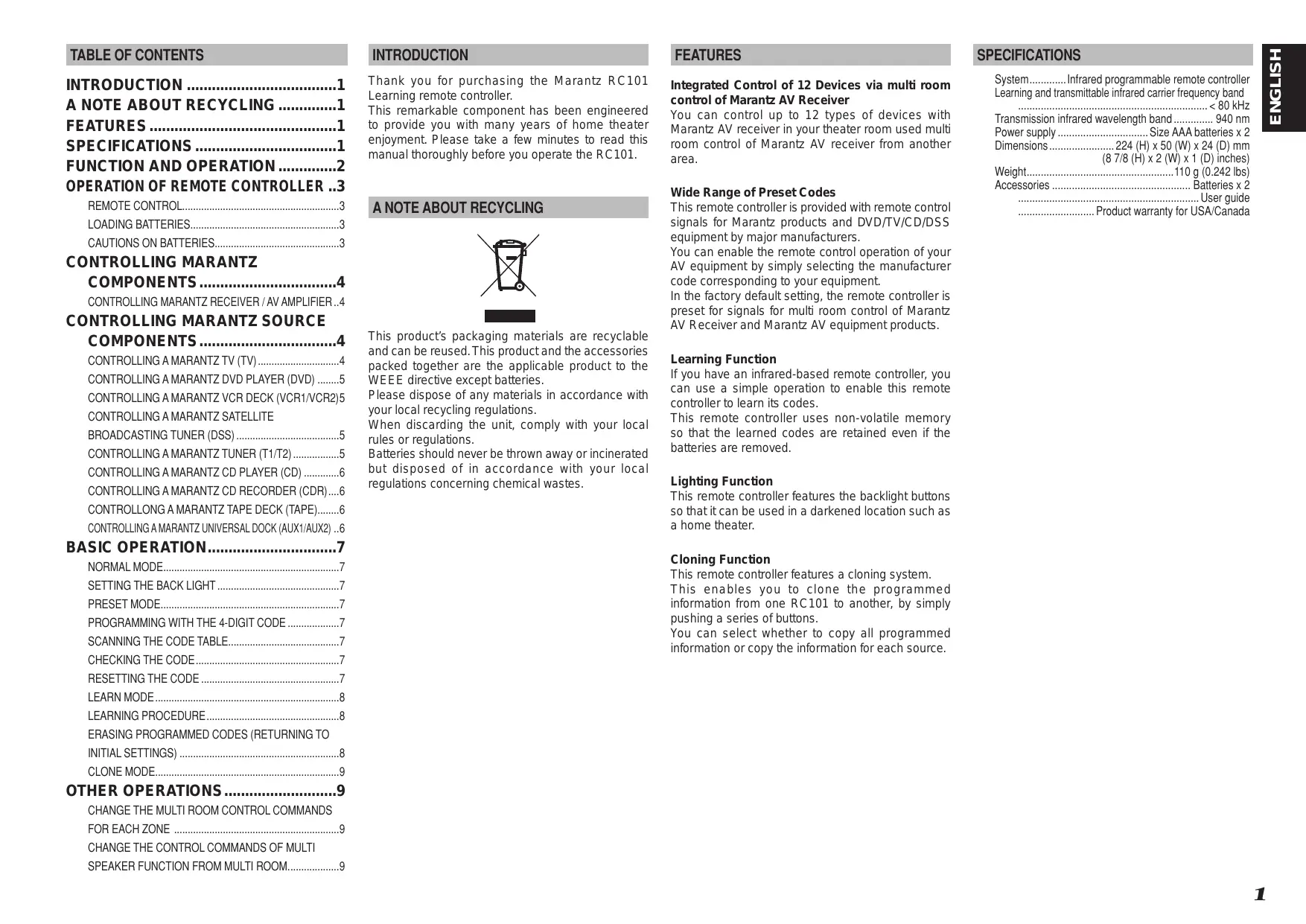

INTRODUCTION

Thank you for purchasing the Marantz RC101 Learning remote controller.

This remarkable component has been engineered to provide you with many years of home theater enjoyment. Please take a few minutes to read this manual thoroughly before you operate the RC101.

A NOTE ABOUT RECYCLING

This product's packaging materials are recyclable and can be reused. This product and the accessories packed together are the applicable product to the WEEE directive except batteries.

Please dispose of any materials in accordance with your local recycling regulations.

When discarding the unit, comply with your local rules or regulations.

Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes.

FEATURES

Integrated Control of 12 Devices via multi room control of Marantz AV Receiver

You can control up to 12 types of devices with Marantz AV receiver in your theater room used multi room control of Marantz AV receiver from another area.

Wide Range of Preset Codes

This remote controller is provided with remote control signals for Marantz products and DVD/TV/CD/DSS equipment by major manufacturers.

You can enable the remote control operation of your AV equipment by simply selecting the manufacturer code corresponding to your equipment.

In the factory default setting, the remote controller is preset for signals for multi room control of Marantz AV Receiver and Marantz AV equipment products.

Learning Function

If you have an infrared-based remote controller, you can use a simple operation to enable this remote controller to learn its codes.

This remote controller uses non-volatile memory so that the learned codes are retained even if the batteries are removed.

Lighting Function

This remote controller features the backlight buttons so that it can be used in a darkened location such as a home theater.

Cloning Function

This remote controller features a cloning system.

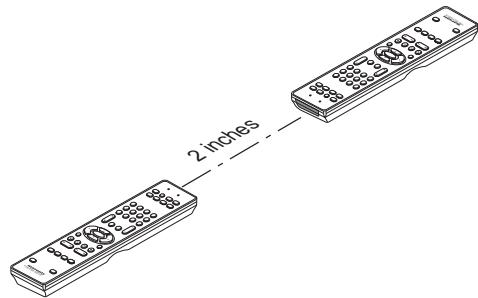

This enables you to clone the programmed information from one RC101 to another, by simply pushing a series of buttons.

You can select whether to copy all programmed information or copy the information for each source.

SPECIFICATIONS

System. Infrared programmable remote controller Learning and transmittable infrared carrier frequency band .. < 80kHz

Transmission infrared wavelength band. 940 nm

Power supply Size AAA batteries x 2

Dimensions. 224 (H) x 50 (W) x 24 (D) mm

(87/8 (H) x 2 (W) x 1 (D) inches)

Weight. 110 g (0.242 lbs)

Accessories Batteries x 2

User guide

Product warranty for USA/Canada

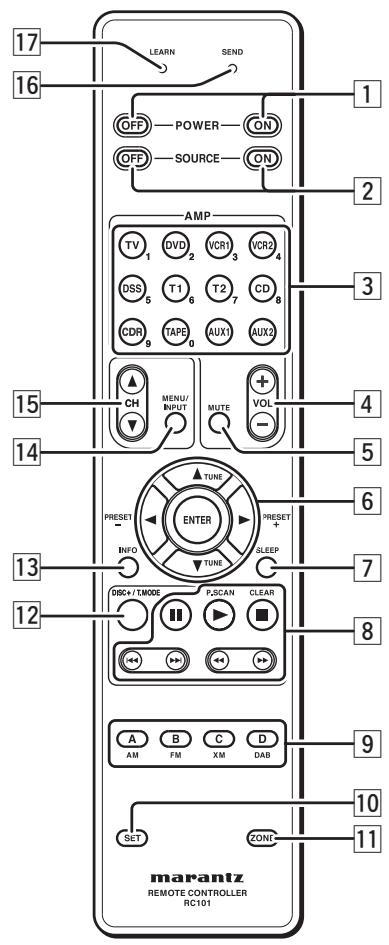

The remote controller is a universal remote controller. The SOURCE ON/OFF button and control buttons are used in common across different input source components.

The input source controlled with the remote controller changes when one of the input selector buttons is pressed.

1 POWER ON and OFF buttons

(When Zone A/B/C mode is selected)

These buttons are used to turn on or off, for the multi room control or multi speaker control of Marantz AV receiver.

(When Zone D mode is selected)

These buttons are used to turn on or off, for the Marantz AV receiver in main room.

2 SOURCE ON and OFF buttons

These buttons are used to turn on or off a specific source (such as a DVD player) independently from the rest of the system.

3 AMP - SOURCE /Numeric buttons

SOURCE buttons

These buttons are used to switch the source of your A/V Receiver / amplifier. Each time a source button is pressed, the remote control changes to the source which was pressed.

This remote controller can control 12 types of equipment. To change the A/V Receiver / amplifier source, press this button twice within two seconds. The signal is sent when it is pressed the second time.

(When Zone A/B/C mode is selected)

These buttons are used to select the source for the multi room/multi speaker control of Marantz AV receiver.

(When Zone D mode is selected)

These buttons are used to select the source for the Marantz AV receiver in main room.

Numeric buttons

Use these buttons only for preset setting.

4 AMP-VOL+/-buttons

(When Zone A/B/C mode is selected)

These buttons are used to adjust the volume for the multi room control or multi speaker.

(When Zone D mode is selected)

These buttons are used to adjust the volume for the Marantz AV receiver in main room.

5 AMP-MUTE button

(When Zone A/B/C mode is selected)

This button is used to mute the audio for the multi room control or multi speaker control of Marantz AV receiver.

(When Zone D mode is selected)

These buttons are used to mute the audio for the Marantz AV receiver in main room.

6 ▲,▼,▲,▶ (CURSOR) / ENTER buttons

These buttons are used when operating cursor of a source.

(When Tuner mode (T1 or T2) mode is selected)

PRESET+/PRESET - buttons

Used to select a preset station up and down.

TUNE TUNE buttons

Used to tune a frequency station up and down.

7 SLEEP button

(When Zone A/B/C mode is selected)

This button is used for setting the sleep timer of multi room control mode.

(When Zone D mode is selected)

This button is used for setting the sleep timer of Marantz AV receiver in main room.

8 CONTROL buttons

These buttons are used when operating PLAY, STOP, PAUSE and other commands of a source.

(When TUNER mode (T1 or T2) is selected)

P.SCAN button

Used to start preset scan.

CLEAR button

Used to stop preset scan.

9 A/B/C/D buttons

(When TUNER mode (T1 or T2) is selected)

Used to select the band of tuner (AM/FM/XM/DAB).

(When the other source is selected)

Reserve key for the learning commands.

10 SET button

This button is used to enter learn mode, preset mode and clone mode.

11 ZONE button

This button is used to set the zone area.

DISC+/T.MODE

(When TUNER mode (T1 or T2) is selected)

Used to select auto stereo mode or mono mode when the FM band is selected.

The "AUTO" indicator lights in the auto stereo mode.

(When CD/DVD/CDR mode is selected)

Used to change the disc for the CD/DVD/CDR changer.

13 INFO button

(When Zone A/B/C mode is selected)

When this button is pressed, the current setting for selected multi room control of AV receiver is displayed on the TV monitor.

(When Zone D mode is selected)

When this button is pressed, the current setting for AV receiver are displayed on the TV monitor.

14 MENU/INPUT button

(When DVD mode is selected)

Used to menu command.

(When TV mode is selected)

Used to select the TV video input.

15 CH buttons

These buttons are used to change channels in TV mode and DSS mode.

16 SENDindicator

Indicates when the remote controller is transmitting a signal.

17 LEARN indicator

Indicates when the remote controller is in the LEARN mode.

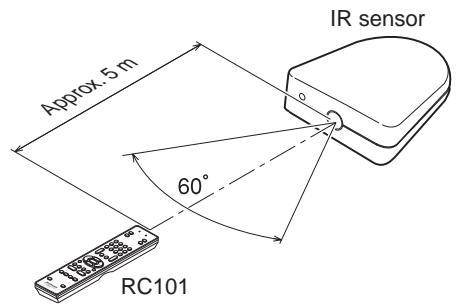

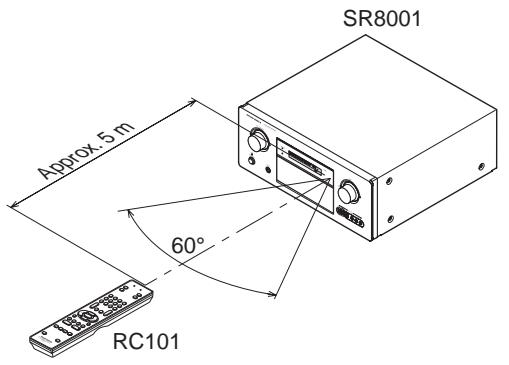

The distance between the transmitter of the remote controller and the IR SENSOR of the AV Receiver/IR Receiver should be less than 5 meters. If the remote controller is pointed in a direction other than the IR SENSOR or if there is an obstacle between them, use of the remote controller may not be possible.

Remote-controllable range

LOADING BATTERIES

The life of the batteries used with the remote controller is about 4 months with normal use. Also be sure to replace batteries earlier when you notice that they are getting weak.

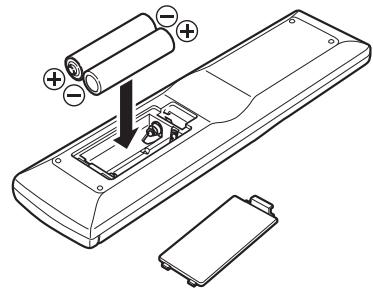

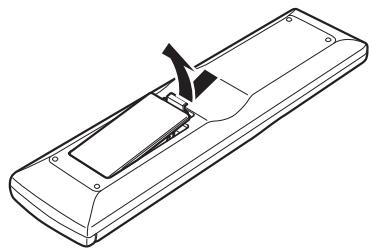

1. Remove the back cover.

1. Insert the new batteries (AAA type) with correct and polarity.

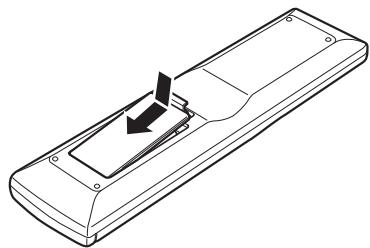

1. Close the cover until it clicks.

Notes:

• Do not mix alkaline and manganese batteries.
• Do not mix old and new batteries.

CAUTIONS ON BATTERIES

• Use "AAA" type batteries in this remote controller.
  We recommend that you use alkali batteries.
• If the remote controller does not operate from close to the main unit, replace the batteries with new ones, even if less than a year has passed.
• The included battery is only for verifying operation. Replace it with a new battery as soon as possible.
• When inserting the batteries, be careful to do so in the proper direction, following the + and - marks in the remote controller's battery compartment.

• To prevent damage or battery fluid leakage:

• Do not use a new battery with an old one.

• Do not use two different types of batteries.

• Do not short-circuit, disassemble, heat or dispose of batteries in flames.

• Remove the batteries when not planning to use the remote controller for a long period of time.

• If the batteries should leak, carefully wipe off the fluid from the inside of the battery compartment, then insert new batteries.
• When disposing of used batteries, please comply with governmental regulations or environmental public instruction's rules that apply in your country or area.

CONTROLLING MARANTZ COMPONENTS

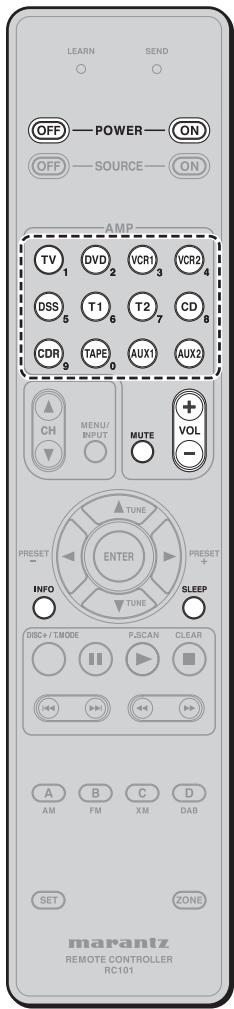

CONTROLLING MARANTZ RECEIVER / AV AMPLIFIER

(Refer to p. 9)

Zone A: Multi room A control

Zone B: Multi room B control

Zone C: Multi room C control

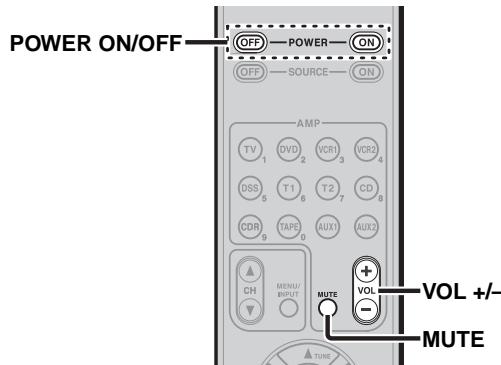

POWER ON/OFF	Turns on or off for each multi zone of Marantz AV receiver / amplifier.
SOURCE	Selects a particular source component for each multi zone.
VOL +/-	Adjusts the over all sound level for each multi zone.
MUTE	Decreases the sound temporarily.
SLEEP	Sets the sleep timer function.
INFO	Turns on or off the “On Screen Display” for the multi zone.

Zone D: Main room control

POWER ON/OFF	Turns on or off for main room of Marantz AV receiver.
SOURCE	Selects a particular source component for main zone.
VOL +/-	Adjusts the over all sound level for Main room.
MUTE	Decreases the sound temporarily.
SLEEP	Sets the sleep timer function.
INFO	Turns on or off the “On Screen Display” for the main room.

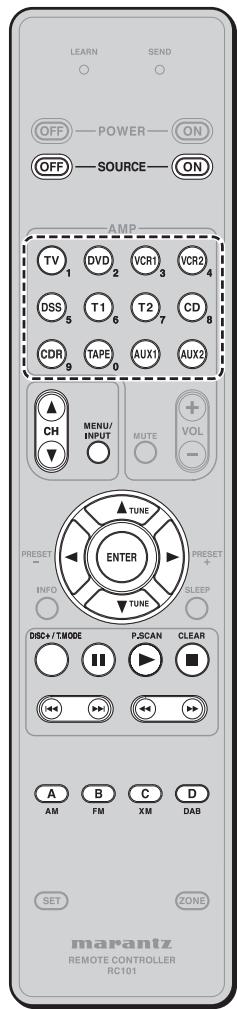

CONTROLLING MARANTZ SOURCE COMPONENTS

1. Press the desired SOURCE button.

2. Press the desired operation buttons to play the selected component.

3. For details, refer to the component's user guide.
   It may not be possible to operate some models.

CONTROLLING A MARANTZ TV (TV)

SOURCE ON/OFF	Turns the TV on and off
MENU/INPUT	Select the TV video input
CH▲/▼	Selects TV channel up or down
ENTER	Moves the cursor for setting in TV menu
▲(CURSOR)
▼(CURSOR)
►(CURSOR)
▲(CURSOR)
►	-
■	-
■	-
►■	-
■	-
►■	-
■	-
DISC+/T.MODE	-
A	Reserve for learning
B	Reserve for learning
C	Reserve for learning
D	Reserve for learning

CONTROLLING A MARANTZ DVD PLAYER (DVD)

• (^*) RC101 dose not have the PRESET code library for this key.

SOURCE ON/OFF	Turns the DVD Player on and off
MENU/INPUT	Select the DVD menu
CH▲/▼	-
ENTER	Moves the cursor for setting in DVD menu
▲(CURSOR)
▼(CURSOR)
►(CURSOR)
▲(CURSOR)
►	Play
■	Stop
■	Pause
►	Skipping to forward chapter/track
←	Skipping to previous chapter/track
►	Searches forward
←	Searchs backward
DISC+/T.MODE	DVD changer next disc (*)
A	Reserve for leorning
B	Reserve for leorning
C	Reserve for leorning
D	Reserve for leorning

CONTROLLING A MARANTZ VCR DECK (VCR1/ VCR2)

• RC101 dose not have the PRESET code library for this device.

SOURCE ON/OFF	Turns the VCR deck on and off
MENU/INPUT	-
CH▲/▼	-
ENTER	Moves the cursor for setting in VCR menu
▲(CURSOR)
▼(CURSOR)
►(CURSOR)
▲(CURSOR)
►	Play
■	Stop
■	Pause
►	Skipping to forward track
←	Skipping to previous track
►	Searches forward
←	Searches backward
DISC+/T.MODE	-
A	Reserve for leacinig
B	Reserve for leacinig
C	Reserve for leacinig
D	Reserve for leacinig

CONTROLLING A MARANTZ SATELLITE BROADCASTING TUNER (DSS)

• (^*) RC101 dose not have the PRESET code library for this key.

SOURCE ON/OFF	Turns the satellite broadcasting tuner on and off
MENU/INPUT	Select the satellite tuner menu
CH▲▼	Selects satellite tuner channel up or down
ENTER	Moves the cursor for setting in SATELLITE Broadcasting TUNER menu
▲(CURSOR)
▼(CURSOR)
▲(CURSOR)
▲(CURSOR)
▲	Play (*)
■	Stop (*)
II	PAUSE (*)
▶	-
↓	-
▶	Searchs forward (*)
←	Searchs backward (*)
DISC+/T.MODE	-
A	Reserve for learning
B	Reserve for learning
C	Reserve for learning
D	Reserve for learning

CONTROLLING AMARANTZ TUNER (T1/T2)

• RC101 dose not have the PRESET code library for this device.

SOURCE ON/OFF	Turns the Tuner on and off
MENU/INPUT	-
CH▲/▼	-
ENTER	-
▲(CURSOR)	Tunes a frequency station up and down
▼(CURSOR)	Tunes a frequency station up and down
►(CURSOR)	Selects a preset station up and down
►(CURSOR)	Selects a preset station up and down
►	Starts preset scan
■	Stop preset scan
■	-
►	-
←	-
►	-
←	-
DISC+/T.MODE	Selects the auto stereo mode or mono mode
A	Selects AM mode
B	Selects FM mode
C	Selects XM mode
D	Selects DAB mode

CONTROLLING A MARANTZ CD PLAYER (CD)

• (*) RC101 dose not have the PRESET code library for this key.

CONTROLLING A MARANTZ CD REORDER (CDR)

• RC101 dose not have the PRESET code library for this device.

CONTROLLONG A MARANTZ TAPE DECK (TAPE)

• RC101 dose not have the PRESET code library for this device.

CONTROLLING A MARANTZ UNIVERSAL DOCK (AUX1/AUX2)

• RC101 dose not have the PRESET code library for this device.

SOURCE ON/OFF	Turns the CD Player on and off
MENU/INPUT	-
CH▲/▼	-
ENTER	-
▲(CURSOR)	-
▼(CURSOR)	-
►(CURSOR)	-
▲(CURSOR)	-
►	Play
■	Stop
II	Pause
►	Skipping to forward track
←	Skipping to previous track
►	Searches forward
←	Searches backward
DISC+/T.MODE	CD changer next disc (*)
A	Reserve for learning
B	Reserve for learning
C	Reserve for learning
D	Reserve for learning

SOURCE ON/OFF	Turns the CD Recorder on and off
MENU/INPUT	-
CH▲/▼	-
ENTER	-
▲(CURSOR)	-
▼(CURSOR)	-
►(CURSOR)	-
▲(CURSOR)	-
►	Play
■	Stop
■	Pause
►	Skips to forward track
←	Skips to previous track
►	Searchs forward
←	Searchs backward
DISC+/T.MODE	CDR changer next disc
A	Reserve for learning
B	Reserve for learning
C	Reserve for learning
D	Reserve for learning

SOURCE ON/OFF	Turns the tape deck on and off
MENU/INPUT	-
CH▲▼	-
ENTER	-
▲(CURSOR)	-
▼(CURSOR)	-
►(CURSOR)	-
▲(CURSOR)	-
►	Play
■	Stop
II	Pause
►	Skipping to forward track
←	Skipping to previous track
►	Searches forward
←	Searches backward
DISC+/T.MODE	-
A	Reserve for learning
B	Reserve for learning
C	Reserve for learning
D	Reserve for learning

SOURCE ON/OFF	Turns the Universal Dock on and off
MENU/INPUT	Call up the menu
CH▲▼	-
ENTER	Moves the cursor for setting in Universal dock menu
▲(CURSOR)
▼(CURSOR)
►(CURSOR)
▲(CURSOR)
►	Play
■	Stop
II	Pause
►H	Skipping to forward track
←←	Skipping to previous track
►	Searches forward
←←	Searches backward
DISC+/T.MODE	Change the userinterface mode
A	Reserve for learning
B	Reserve for learning
C	Reserve for learning
D	Reserve for learning

BASIC OPERATION

NORMAL MODE

(When operating Marantz AV equipment products) This remote controller is preset with a total of 12 types of remote codes, including Marantz TV (television), DVD, VCR (VCR deck), DSS (satellite broadcasting tuner), TUNER 1, TUNER 2, CD, CD-R, TAPE (tape deck), AUX1 and AUX2.

Learning is not necessary for Marantz products. You can use these products without setting any codes.

1. Press the SOURCE button.

For this example, press DVD.

Pressing the SOURCE button once changes the remote control to the settings for the source that was pressed.

To change the amplifier on other source, press the SOURCE button twice (double-click). The code is sent, and then the amplifier source changes to DVD.

SETTING THE BACK LIGHT

Each time press the buttons, illuminate button 2 seconds.

To turn off back light, press and hold down the SET and button until SEND indicator blinks twice.

To turn on it again, press and hold down the SET and

▶按钮 until SEND indicator blinks twice.

Initial is back light ON.

PRESET MODE

(When operating non-Marantz AV equipment products)

This remote controller is preset with remote control codes from AV equipment by other manufacturers. The preset codes are TV, DVD, CD and DSS. Settings can be made in one of two ways.

When the preset codes are set, the following codes are contained in the source button of the remote controller.

See the attached manufacturer number list for the preset manufacturers, devices, preset numbers, and other settings.

Remote control source name	Corresponding preset code	Device name
TV	TV	Television
DVD	DVD	DVD player
CD	CD	CD player
DSS	SATELLITE	Satellite broadcasting tuner equipment

Importants:

• Some codes may be not match your equipment. In this case, you can use LEARN mode to store these codes.
• The preset codes do not cover full functions. If you need extra function, use LEARN mode to store extra function.
• When the batteries are getting weak, the preset procedure is not successful.

PROGRAMMING WITH THE 4-DIGIT CODE

1. Press and hold down the SOURCE button (ex TV) for the appliance which should be controlled and press SET button until the SEND indicator blinks twice. Then back light flushes.
2. Press the 4-digit code by numeric keys for appliance (code table at the end of this book) When the procedure is successful, the SEND indicator will blink twice.

Note:

If the indicator did not blink twice, then repeat steps 1 through 2 and try entering the same code again.

SCANNING THE CODE TABLE

1. Switch on the appliance which should be controlled.
2. Press and hold down the SOURCE button for appliance which should be controlled and press SET button until the SEND indicator blinking twice. Then back light flushes.

3. Aim the remote controller at the appliance and alternately press the CH+ and SOURCE ON buttons slowly.

4. Stop when the appliance turns off.

5. Press ENTER button once to lock in the code.

CHECKING THE CODE

1. Press and hold down the SOURCE button for appliance which should be controlled and press SET button until the SEND indicator blinking twice then back light flushes.
2. Press the INFO button.

The SEND indicator will blink twice.

1. To view the code for first digit, press 1 once. Count the SEND indicator blinks (e.g. 3 blinks = 3) and write down the number.

Note:

If a code digit is "0", the SEND indicator will not blink.
4. Repeat step 3 three more times for remaining digits. Use 2 for the second digit, 3 for the third digit, and 4 for the fourth digit.

RESETTING THE CODE

1. Press and hold down the SOURCE button for appliance which should be controlled and press SET button until the SEND indicator blinking twice. Then back light flushes.
2. Press the below codes to reset.

TV :1000

DVD:2000

CD :3000

DSS:4000

The indicator will blink twice.

Note:

After this procedure, the selected SOURCE button is set initial code.

LEARN MODE

This remote controller is capable of learning and storing codes used by other remote controls that you already own.

For codes which are not learned, the remote controller will transmit either the Marantz preset codes from the initial settings, or remote codes from another manufacturer's AV equipment which is set by the customer.

The receiver sensor for the remote control signals is located at the top of the remote controller.

Notes:

• This remote controller is capable to learn around 60 codes.
• When the batteries are getting weak, the learing procedure is not successful.

LEARNING PROCEDURE

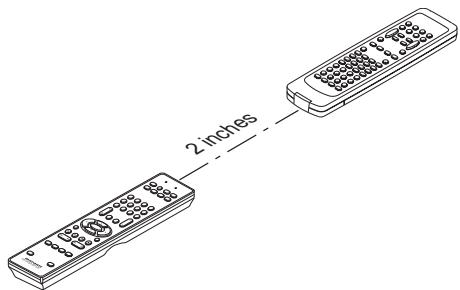

1. Place the remote controller so that its infrared signal transmitter is facing the infrared signal receiver on the Marantz remote controller at a distance of about 2 inches (0.05 m).

1. Press and hold down the SET and MENU/INPUT buttons until LEARN indicator blinks.

1. Select the SOURCE button to select the SOURCE.

1. Select the button to be learned.

2. LEARN indicator lights up.

When the following key learned

• SOURCE buttons

The learning function is unavailable for all SOURCE buttons in any mode.

• POWER ON button
• POWER OFF button
  VOL +/- button
  MUTE button
• INFO button
• SLEEP button

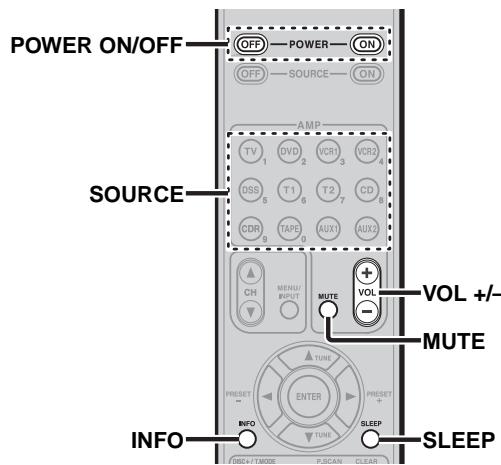

The above keys are common use in each device mode. It can be learned in TV mode.

1. Press and hold the button of the original remote controller to learn until the SEND indicator blinks twice.

2. When the SEND indicator blinks once, repeat this step.

3. When the memory of the RC101 is full, the LEARN and SEND indicators blink once. If you want to learn the code, you should erase other learned button.

4. Repeat steps 4 and 5 to learn other buttons in same SOURCE.

5. Repeat steps 3 to 6 to learn other SOURCE.
6. When you have finished programming the remote controller, press the SET button, then LEARN indicator stops blinking and exits from the LEARN mode.

Notes:

• When the SEND indicator blinks once again, the transmitting code is unavailable for RC101, or the transmitting signal is intercepted by noise.
• If no buttons are pressed for approximately 1 minutes while in the LEARN mode, the remote controller automatically exits from the LEARN mode.

ERASING PROGRAMMED CODES (RETURNING TO INITIAL SETTINGS)

Codes can be erased in three ways: by buttons, sources, and by all memory contents.

Erasing the code by buttons

1. Press and hold down the SET and MENU/INPUT buttons until LEARN indicator blinks.

1. Select the SOURCE button to select the button to be erased.

1. Press and hold down the SLEEP button and press the learned button twice to be erased.

2. SEND indicator blinks twice and the mode returns to LEARN mode.

1. To return the NORMAL mode, press the SET button.

Erasing the code by SOURCE

1. Press and hold down the SET and MENU/INPUT buttons until LEARN indicator blinks.

1. Press and hold down the SLEEP button and press the learned SOURCE button twice to be erased.

2. LEARN indicator lights.

1. Press ENTER button to continue erasing.

2. The SEND indicator blinks twice and the mode returns to LEARN mode.

3. To cancel the erasing operation, do not press ENTER button and simply touch any other button.

1. To return the NORMAL mode, press the SET button.

Erasing the all SOURCES

1. Press and hold down the SET and MENU/INPUT buttons until LEARN indicator blinks.

1. Press and hold down the SLEEP button and press POWER ON and POWER OFF button.

2. LEARN indicator lights.

1. Press ENTER button to continue erasing.

2. The SEND indicator blinks twice and the mode returns to LEARN mode.

3. To cancel the erasing operation, do not press ENTER button and simply touch any other button.

1. To return the NORMAL mode, press the SET button.

Note:

Erasing codes will return to the factory preset code, or there will leave empty if the button has no factory preset code.

Creating copies using clone mode

All of the codes programmed to the RC101 remote controller can be copied to another RC101 using a few simple operations.

• The remote controller can copy the entire contents.
• When copying the entire contents, all programmed codes are copied.

Note:

The clone function can only be used for copying when using the same model (RC101) for both the transmitting and receiving remote controller.

Copying entire contents

1. Place the receiver sensor of the receiving remote controller (top) so that it is facing the transmitter of the transmitting remote controller (top) at a distance of about 2 inches (5 cm).

1. Press SET button and PLAY button of the transmitting remote controller until the SEND indicator blinks twice.

Then backlight flushes

The transmitting side is now ready.

1. Press SET button and STOP button of the receiving remote controller until the LEARN indicator blinks twice.

Then backlight flushes.

The receiving side is now ready.

1. Press the ENTER cursor button on the receiving remote controller.

Then back lights tune off.

1. Press the ENTER cursor button on the transmitting remote controller.

Then backlights tune off.

1. When copying is started, the SEND indicator of transmitting remote controller and the LEARN indicator of receiving remote controller start to blink.

When the copying operation is completed, the back lights of transmitting remote controller and receiving remote controller are turned on.

Do not touch either of the remote controls during the copying operation. Doing so could cause copying to fail.

If the copying fails in the middle of the copying process, back light of receiving remote are flush. Press the SET button to return the normal mode. Check and perform steps 1 to 5 again.

Copying takes about 30 seconds to complete when the transmitting remote controller has been programmed to 100% capacity.

1. Once copying is completed, press the SET button on both remote controls.

OTHER OPERATIONS

CHANGE THE MULTI ROOM CONTROL COMMANDS FOR EACH ZONE

(When operating Marantz AV Receiver by Multi Zone connected)

Zone A: Multi room A control (Default)
Zone B: Multi room B control
Zone C: Multi room C control
Zone D: Main room control

Change the control commands for each zone.

1. Press SET button and ZONE button until the SEND indicator blinks twice.

Then backlight flushes.

1. Press each zone button(A/B/C/D button)

When the procedure is successful, the SEND indicator will blink twice.

These buttons change a special code of each zone.

Tuner mode operation remote code (Refer to p.5)

CHANGE THE CONTROL COMMANDS OF MULTI SPEAKER FUNCTION FROM MULTI ROOM.

1. Press SET button and POWER ON button until the SEND indicator blinks twice. Then backlight flushes.

2. Press the 1-digit code by numeric keys.

3. Multi room mode: 1 (Default)

4. Multi speaker mode: 2

Note

In case of Zone D, only control for main room is possible.
3. Press ENTER button once to lock in the code.

When the procedure is successful, the SEND indicator will blink twice.

These buttons change a special code of multi room mode or multi speaker mode.

Note

The control commands can be set independently in ZONE A/B/C.

SETUP CODES

TV

Acer 1141

Admiral 1002, 1009, 1089

Aiko 1059

Aiwa. 1117, 1118

Akai 1001

Amtron. 1023

Anam 1113

Anam National. 1023, 1069, 1092

AOC. 1003, 1024, 1049, 1127

Audiovox. 1023

Bell & Howell 1009, 1025

Beng. 1104, 1142

Broksonic 1003, 1097, 1098, 1113

Celebrity 1001

Citizen 1003, 1013, 1023 1026, 1059, 1063

Colortyme 1003, 1043

Contec. 1113

Contec/Cony 1023, 1045, 1047

Craig. 1020, 1022, 1023, 1113

Crown. 1023, 1067

Curtis Mathes. 1003, 1013, 1025 1026, 1062, 1103, 1110

Daewoo 1003, 1013, 1024, 1035
1036, 1059, 1084, 1101

JC Penney 1003, 1013, 1018

1019, 1024, 1026

1046, 1047, 1054

1063, 1083, 1085

1100, 1103, 1110

1112, 1133, 1154

Jensen 1003

JVC. 1028, 1029, 1045
1047, 1050, 1060, 1065

Kawasho. 1001, 1003

Kenwood 1003

Kloss Novabeam..... 1023, 1056, 1057, 1134

KTV 1013, 1023, 1033 1034, 1073, 1099, 1113

LG. 1024, 1030

M.Wards. 1002, 1009, 1038

Magnavox. 1003, 1052, 1053

1056, 1057, 1063

1067, 1081, 1106

Marantz 1003, 1031, 1067, 1122

Mitsubishi 1003, 1024, 1051 1115, 1122, 1133

Motorola 1014, 1069

NEC. 1003, 1012, 1024, 1043, 1069

NET-TV 1137, 1150

Orion. 1020, 1096

Panasonic. 1017, 1067, 1069, 1095, 1111

Philips. 1003, 1011, 1045, 1052

1054, 1056, 1057, 1058

1063, 1067, 1069, 1106

Pioneer. 1003, 1018, 1037

1070, 1071, 1094

1145, 1147, 1149

Plasmsync. 1135

Portland 1003, 1013, 1024, 1059

Price Club. 1026

Prism 1018

Proscan 1004, 1005, 1006, 1007 1008, 1085, 1103, 1110

Proton. 1003, 1045

Quasar 1010, 1069, 1073, 1111, 1153

Radio Shack. 1003, 1013, 1015

1023, 1024, 1025, 1045

1100, 1103, 1110, 1113

RCA. 1003, 1004, 1005

1006, 1007, 1008

1014, 1024, 1049, 1069

1075, 1079, 1085, 1087

1088, 1093, 1094, 1101

1103, 1110, 1113, 1153

Realistic. 1013, 1015, 1023, 1025

1045, 1100, 1103, 1110

Runco. 1010, 1153

Sampo. 1150

Samsung 1003, 1013, 1024, 1026

1040, 1045, 1062, 1078

1083, 1090, 1100, 11051114

1120, 1121, 1146, 1148, 1157

Sansui 1119

Sanyo 1003, 1025, 1051, 1072

1077, 1091, 1156, 1157, 1158

Sharp. 1003, 1013, 1014

1015, 1045, 1055, 1064

1066, 1076, 1089, 1123

Signature 1009

Sony 1001, 1102, 1108

Sounddesign.....1003,1023,1038,1063,1113

Starlite 1023

Supre-Macy 1134

Sylvania. 1003, 1039, 1042

1052, 1053, 1056, 1057

1063, 1067, 1089, 1151

Symphonic 1023, 1039, 1044

Tandy. 1014

Tatung. 1069

Technics 1018

Techwood 1003, 1018

Teknika 1003, 1009, 1013, 1023

1024, 1026, 1038, 1045

1047, 1059, 1063, 1111, 1113

Telecaption 1074

Toshiba 1003, 1019, 1025

1026, 1042, 1074, 1098

1107, 1111, 1135, 1136

Totevision 1013

Universal 1046, 1054

Video Concepts. 1113

Viewsonic. 1006, 1022, 1109

1128, 1129, 1130, 1131

1138, 1143, 1145, 1150

Wards. 1003, 1009, 1015

1024, 1038, 1044, 1046

1052, 1054, 1056, 1057

1067, 1086, 1103, 1110

White Westinghouse 1001, 1101

Yamaha 1003, 1024

Zenith 1003, 1009, 1010

1132, 1144, 1153

CD

AIWA 3001, 3002, 3003

AKAI 3004, 3005, 3006

AUDIO 3007

AUDIO LABS. 3008

CALIFORNIA 3008

CARVER 3010, 3011, 3009

CASIO 3012, 3020

CURTIS. 3020, 3012

DENON 3013

EMERSON 3014

FISHER 3011, 3015, 3016, 3017, 3018

GE 3019

GENEXXA. 3014, 3021, 3020

HARMON 3022, 3023, 3051

HITACHI 3020

INKEL 3024

JC PENNEY 3012,3020,3025

JVC. 3026, 3027

KARDON. 3022, 3051, 3023

KENWOOD 3028, 3029, 3030, 3031

3032, 3033

KRELL. 3010

LUXMAN 3035, 3036, 3037, 3038

LXI 3012, 3020, 3014

MAGNAVOX. 3010, 3039, 3040

MARANTZ. 3010, 3041, 3042, 3043

MATHES. 3012, 3020

MCS 3012, 3020

MGA 3023

MISSION 3010

PIONEER.....3020,3021,3062,3063,3064

QUASAR 3008

RCA. 3011, 3014, 3065, 3066, 3067 3068, 3069

REALISTIC. 3011, 3014, 3020, 3042 3054, 3057

ROTEL 3010

RS ORIGINAL 3070

SAE 3010, 3083

SAMSUNG 3071

SANSUI. 3014, 3068, 3072, 3073

SANYO. 3011, 3018, 3074, 3075, 3076

SCOTT 3014

SEARS. 3012, 3014, 3020, 3028, 3042

SHARP. 3028, 3042, 3077

SHERWOOD... 3042, 3056, 3070, 3078, 3024

SHURE 3025

SONY....3039,3079,3080,3081,3082,3097

SYLVANIA 3010

SYMPHONIC 3083

TEAC. 3016, 3042, 3057, 3083, 3084 3085, 3086

TECHNICA.... 3007, 3008, 3061, 3087, 3088

THETA DIGITAL 3040

TOSHIBA 3045

VICTOR 3026

YAMAHA 3007, 3089, 3090, 3091, 3092

ZENITH 3016, 3093, 3094, 3095, 3096

DVD

Aiwa. 2036, 2037

Apex.....2012,2017,2018,2019,2021,2034

BOSE 2038,2039

Denon. 2047, 2048

Funai 2049

GE 2009, 2020, 2029, 2033

Harman Kardon. 2061

Hitachi 2008, 2012, 2031

JVC. 2006, 2010, 2040
2041, 2042, 2043

Kenwood 2053, 2054

Koss. 2058

Magnavox. 2007, 2011, 2023, 2025

Marantz 2025

Mitsubishi 2011, 2015

Onkyo 2062

Oritron 2009, 2030

Panasonic. 2003, 2015, 2016, 2055

Philips. 2007, 2011, 2058

Pioneer. 2002, 2014, 2056

Proscan 2009, 2020, 2032

RCA. 2005, 2009, 2020, 2035, 2057

Sampo 2041

Samsung. 2008, 2012, 2022, 2024, 2027

Sanyo 2050, 2052

Sharp. 2044, 2045

Sherwood 2051

Sony 2001, 2013, 2059

Toshiba 2004, 2008, 2026, 2028

Yamaha 2046, 2060

Zenith 2010

DSS

Alphastar 4027

BSB 4021

Chaparral 4039

DIRECTV 4001, 4016

DISH Network 4030

Drake. 4026

Echostar 4007, 4017, 4018, 4019, 4020

Express Vu 4017

Fujitsu. 4025

GE 4002, 4008, 4009

General Instruments 4036, 4037

Hitachi 4001, 4015

Hughes 4001, 4016

Janeil 4025

JVC. 4017

Mitsubishi 4001

Panasonic. 4004, 4010

Philips. 4031, 4035

Proscan 4002, 4008, 4009, 4011

Radio Shack. 4036, 4037

RCA. 4002, 4008, 4009, 4029

Realistic. 4040

Rural Cable 4036

Samsung 4022, 4027

Sony 4003, 4012, 4014

Star Choice 4032

StarTrak 4024

STS 4038

SuperDish 4028

Toshiba 4001, 4034

Uniden. 4005, 4006, 4013

Video Pall 4025

Zenith 4025, 4033

www.marantz.com

You can find your nearest authorized distributor or dealer on our website.

marantz® is a registered trademark.
