Leica ST5020 Multistainer… with unmatched flexibility for better results

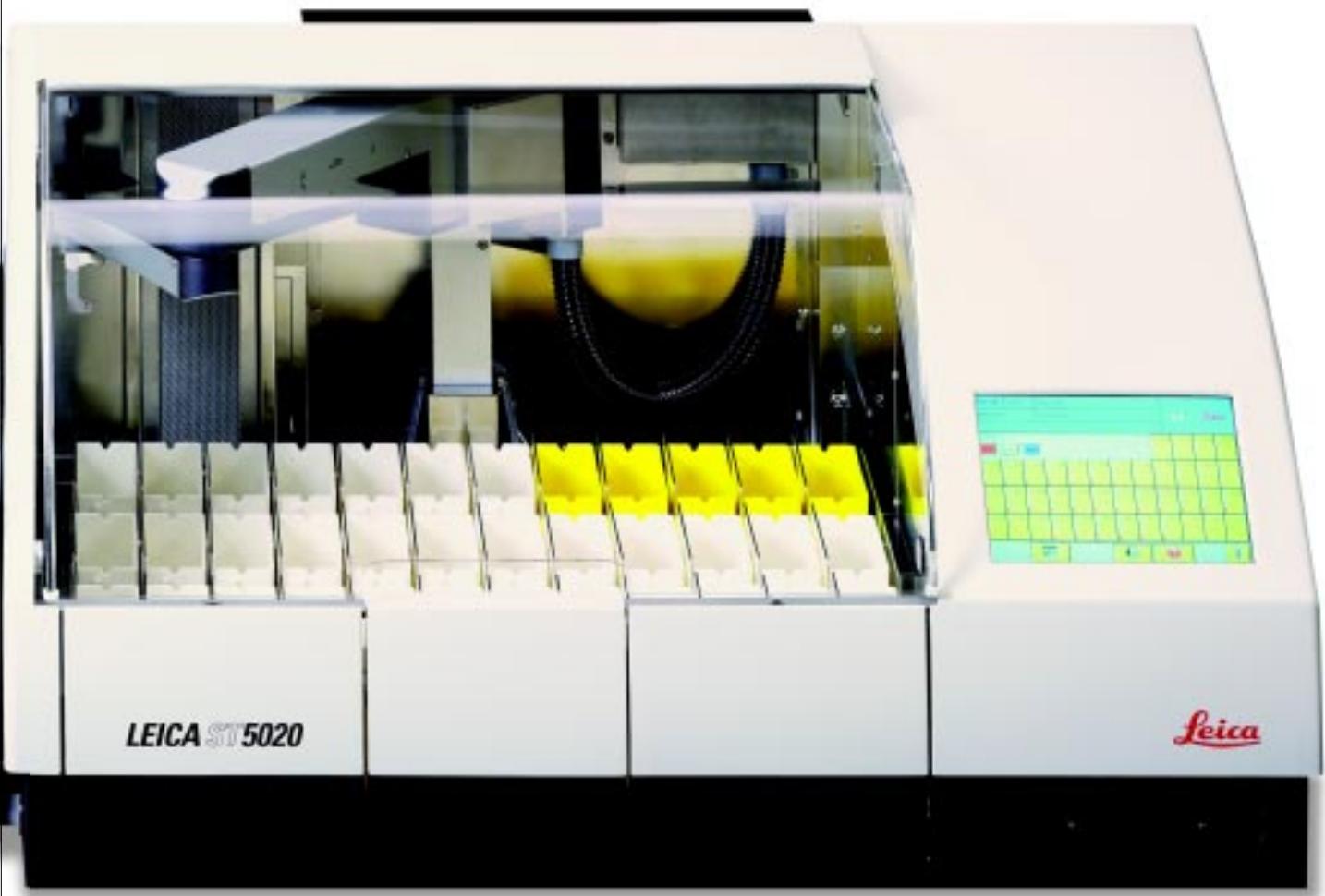

The Leica ST5020 Multistainer with a new level of flexibility to achieve perfect staining results is the instrument of choice for modern histology and cytology laboratories.
Based on a modular design principle, the Leica ST5020 Multistainer can be easily set up to meet individual laboratory needs. Both routine and special staining protocols can be performed alone or in combination to produce consistent and high-quality staining results.
Programs can be started automatically with the innovative CodeRack™ based on a color code, which significantly reduces potential user errors.

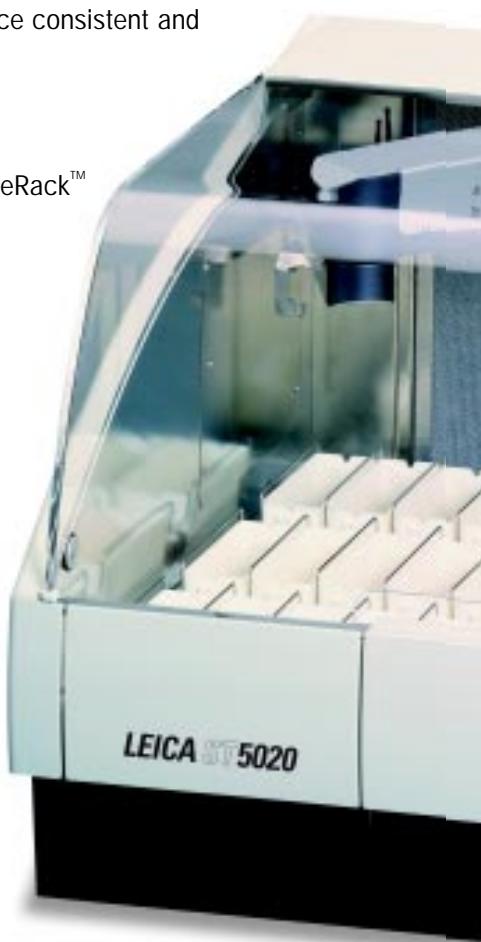

Smart software features optimize staining quality and provide an easy-to-use interface:
Real-time process representation on a color touch-screen
- Fast and direct data entry and retrieval
- Multilingual software with graphical user interface
- Context-sensitive on-line help
- Simple and effective parameter settings
Leica Design by Werner Holbl

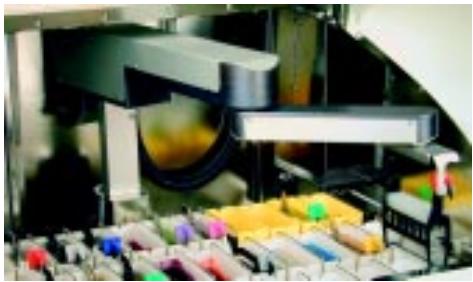

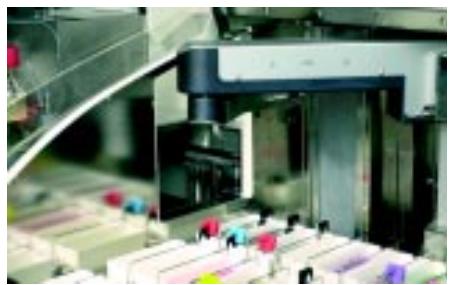

The innovative and patented robotic arm moves the slides through the staining cabinet precisely according to the staining protocol. It is possible to process up to 12 racks simultaneously with multiple staining applications.
Racks are inserted and removed through an ergonomic 2-drawer system. The drawer capacity can be customized to provide either increased staining flexibility or access for up to 4 racks at any one time.

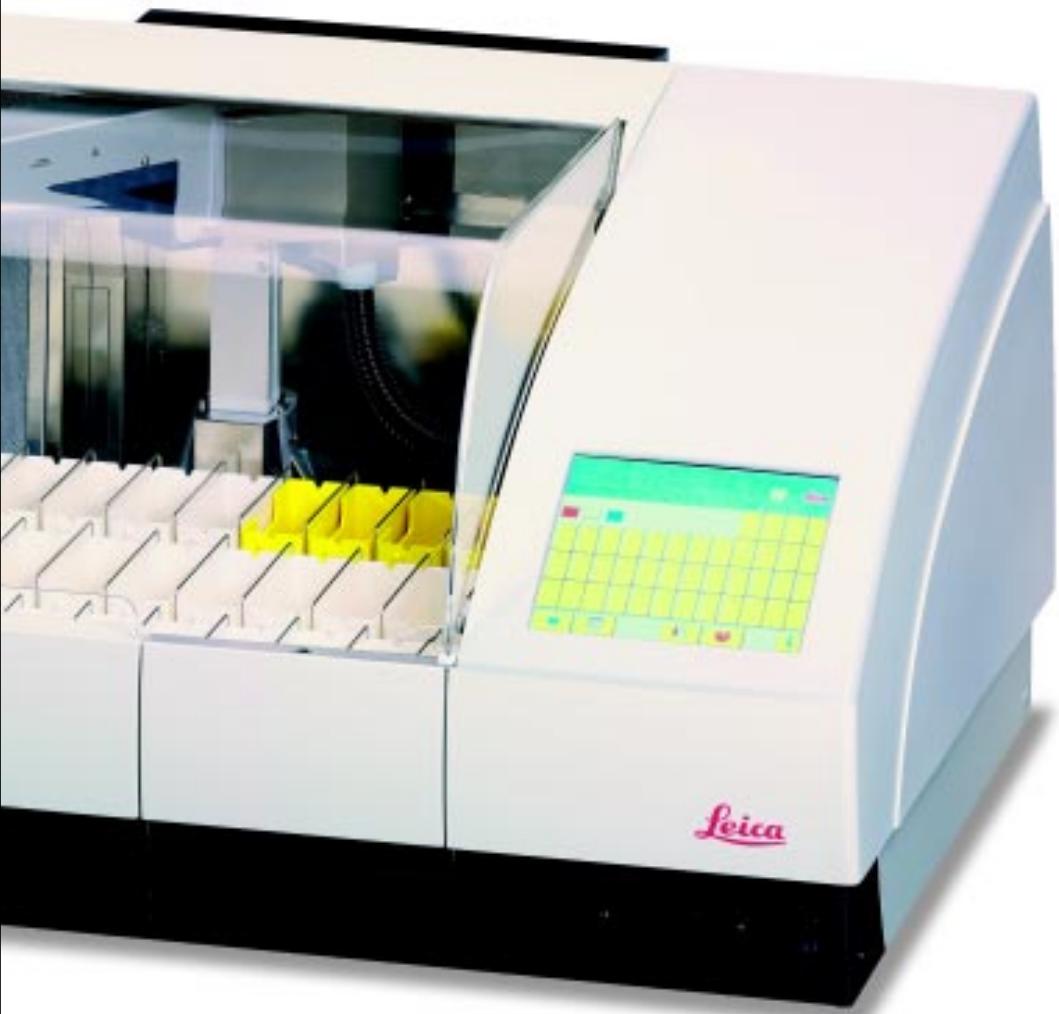

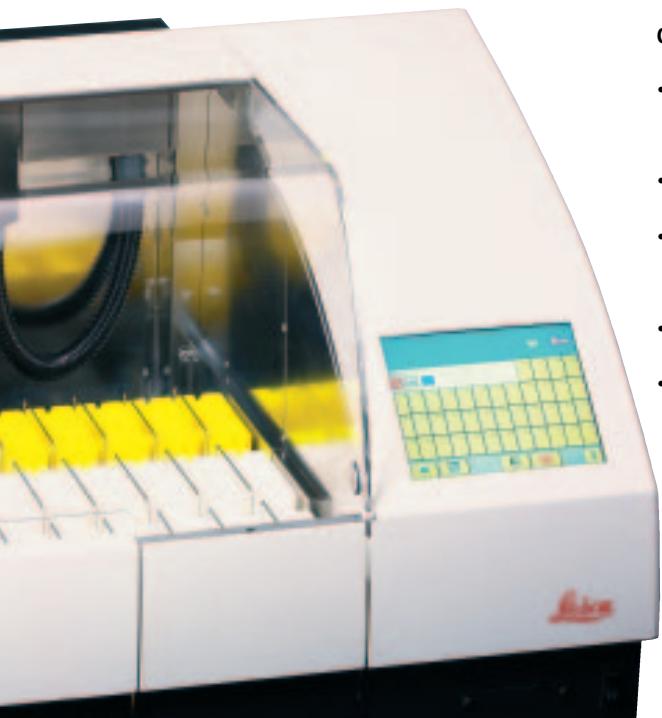

Data entry and retrieval are particularly easy with the large, solvent-resistant color touch-screen. The instrument and staining process can be closely monitored using the graphical process representation on screen. The new Reagent Management System (RMS) checks the use of reagents and helps to improve staining quality and economy.
Racks are automatically assigned to the correct staining protocol by means of a patented CodeRackTM technology based on a transponder and color-code system.
Optional oven modules with up to 4 racks allow slide drying and dewaxing for completely automated slide processing. A unique, multiple-valve design activates water flow only when it is really needed - thus reducing water consumption significantly.
An optional special staining module with 2 heated reagent stations and an accessory kit enables the automation of common special staining protocols.
Leica CV5030 Glass Coverslipper
A glass coverslipper flexible enough to meet the needs of your laboratory?
The Leica CV5030 Glass Coverslipper easily adapts to the specific requirements of varying samples such as histology sections, cytology smears, and monolayers. Accepting staining racks of virtually all routine slide stainers, the CV5030 easily adapts to your current and future laboratory requirements.
The CV5030 economically produces slides of superior optical quality and reliable long-term storage. The acceptance of common brands of mounting media and different sizes of coverglass allows the CV5030 to conform to your current laboratory environment. The simple operation and advanced engineering of the CV5030 will provide years of reliable use.
The Leica CV5030 Glass Coverslipper in your laboratory today prepares you for the laboratory of tomorrow. Capable of being integrated with the Leica ST5020 Multistainer, the
Leica CV5030 will eliminate the traditionally manual
process of transferring stained slides from stainer to coverslipper, and create a truly consolidated workstation.
The glass coverslipper that adapts to the needs of your laboratory... FINALLY!

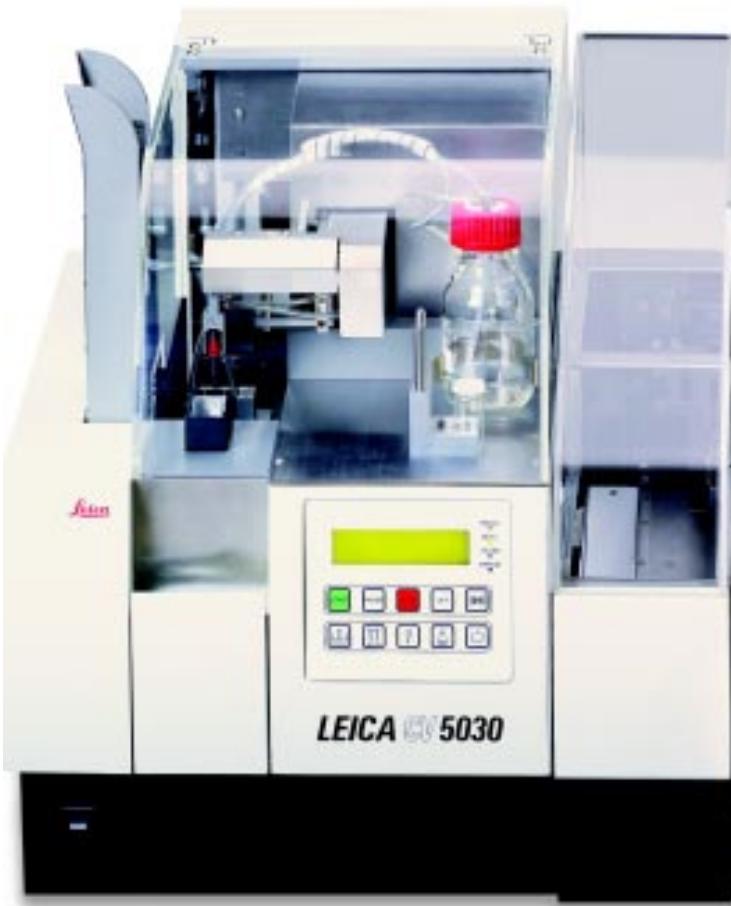

… with the ability to adapt

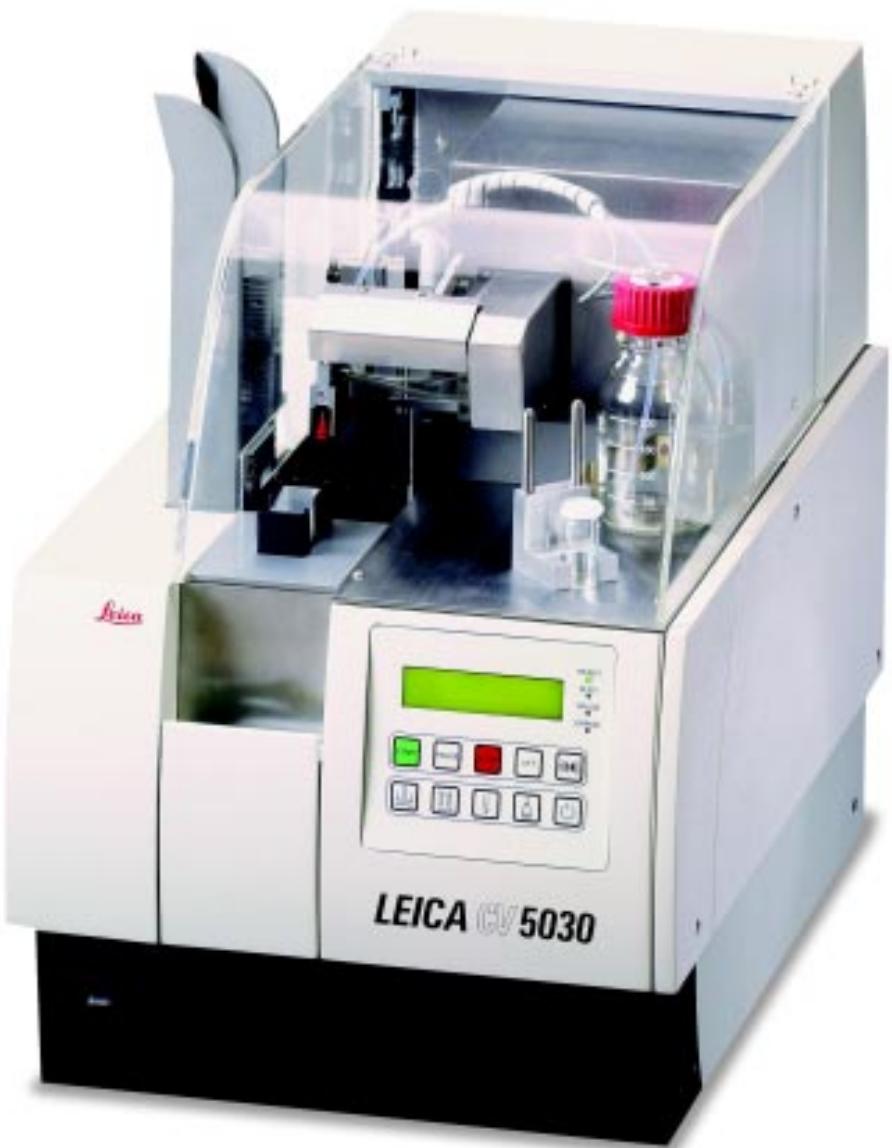

The easy-to-use control panel enables settings to be customized to meet your specific laboratory requirements. Simply select the ideal set-up for different samples.
The coverslip station accepts different sizes of coverglass and automatically discards broken ones. Samples are safely and permanently covered to assure consistent, high quality coverslipping.

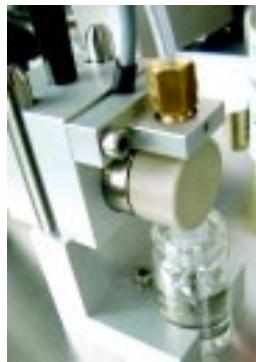

The dispenser parking station stores the nozzle in reagent and safely maintains mountain dispensing integrity.
The load vessel accepts up to 60 slides and can be filled with reagent, which increases throughput and allows wet or dry coverslipping
The Leica ST5020 Multistainer and the CV5030 Coverslipper in combination ...the first truly integrated, fully automated staining/coverslipping workstation!
...see how it works!
Recommended system components for use of CD-ROM:
Processor:
Intel Pentium 3 or equivalent processor
RAM memory: Color monitor:
128 MB
Resolution of 800× 600 pixels with a
color depth of 18.7/24 speed or faster
CD-ROM drive
24 speed of faster Soundcard + loudspeakers
Operating system
. AudioCard and loudspeaker .Windows 05 / 08 / 2000 / xp
Operating System: Additional drivers:
Windows 97, 98, 2007 xpQuicktime for Windows 4.0
Additional drivers: Quicktime 40 Vibration 10 (Quicktime 5.0 on CD-ROM)
Start of presentation:
If the demo does not start automatically after the CD-ROM is
inserted, please run the file from the main directory of the CD-ROM.
Experience a new
level of automation in
staining and coverslipping.
For the first time ever a routine stainer and glass
coverslipper can be combined to set up an
integrated, fully automated staining / cover
slipping workstation. Together, the Leica ST5020
Multistainer and the CV5030 Coverslipper create
a highly flexible system featuring walk-away
convenience.
After a staining process is finished, the slide
racks are transported by the innovative robotic
arm from the stainer into the coverslipper.
The manual handling of racks between stainer
and coverslipper is no longer necessary.
Technical Specifications
Leica ST5020 Multistainer
Instrument type:
Sample types:
Throughput:
Number of programs:
Incubation times:
Number of stations:
Staining stations:
Container volume:
Water stations:
Oven stations:
Oven temperatures:
Load stations:
Unload stations:
Automated Stainer
Histology and Cytology specimens
Depending on protocol, loading schedule and instrument set-up, up to 12 racks in parallel
Max. 50 with up to 40 steps each
Up to 59 min., 59 sec. per step
Max. 40
Max. 34
450 ml
Max. 6 (including DI water feed)
Max. 4, optional
40^ to 70^ (104°F to 158°F)
Max. 4, custom set-up
Max. 4, custom set-up
Fume handling:
Activated carbon filter and fume extraction hose system
Supply voltage:
100-240 VAC / 50-60 Hz
Dimensions (L x D x H) (mm)
1060 x 720 (550 from rear end to front feet) x 550
(in.)
42 x 28 (22 from rear end to front feet) x 22
Dry weight:
approx. 95 kg
approx. 209 lbs
Additional features include graphical user interface with color touch-screen, graphical process representation with detailed rack and station information, Reagent Management System, automated program assignment and start with CodeRack™ technology, data logging, on-line help, Printer port, optional special stain kit (incl. heated staining stations plus accessories), optional transfer module for integration with CV5030 Coverslipper.
Designed and manufactured according to CE and CSA regulations.
Leica CV5030 Glass Coverslipper
Instrument type:
Sample types:
Throughput:
Coverslip sizes:
Coverslip magazine capacity:
Mounting media:
Mounting media volume:
Mounting media bottle volume:
Input racks:
Output racks:
Automated Glass Coverslipper
Histology sections, Cytology smears, Monolayer preparations
approx. 400 slides/hour (approx. 9 sec./slide)
22-24 x 40-60 mm
120-160 coverslips (depending on size)
Commercially available types accepted
Individual setting based on volume, type and coverslip size
250 ml
Most commercially available types accepted (up to 60 slides)
20 or 30 slide capacity (up to 60 slides)
Fume handling:
Activated carbon filter and fume extraction hose system
Supply voltage:
100-250 VAC / 50-60 Hz
Dimensions (L x D x H) (mm)
Additional features include optional wet or dry coverslipping, dispenser nozzle protection through wet parking position, memory function for up to four custom settings, Multisize™ coverslip magazine, glass sensor for automated handling of broken coverslips, optional transfer module for integration with ST5020 Multistainer. Designed and manufactured according to CE and CSA regulations.
Leica MultistainerWorkstation
Instrument type:
Sample types:
Fume handling:
Supply voltage:
Automated Stainer (ST5020) and Coverslipper (CV5030), modular, connected through Leica TS5025 Transfer Station
Histology and Cytology specimens
Activated carbon filter and fume extraction hose system
See individual instruments (TS5025 Transfer Station is fully dependent on CV5030, electrical and control)
Dimensions (L x D x H) (mm) (in.)
1620 × 720 × 550
64× 28× 22
Dry weight:
approx. 164kg
approx. 361 lbs.
For details on individual module characteristics please refer to the instrument data information.
Leica Multistainer Workstation™
