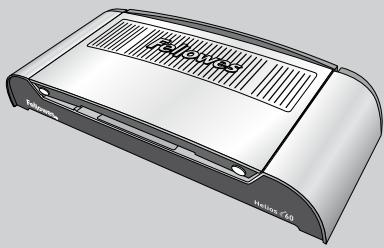

USER MANUAL HELIOS 60 FELLOWES

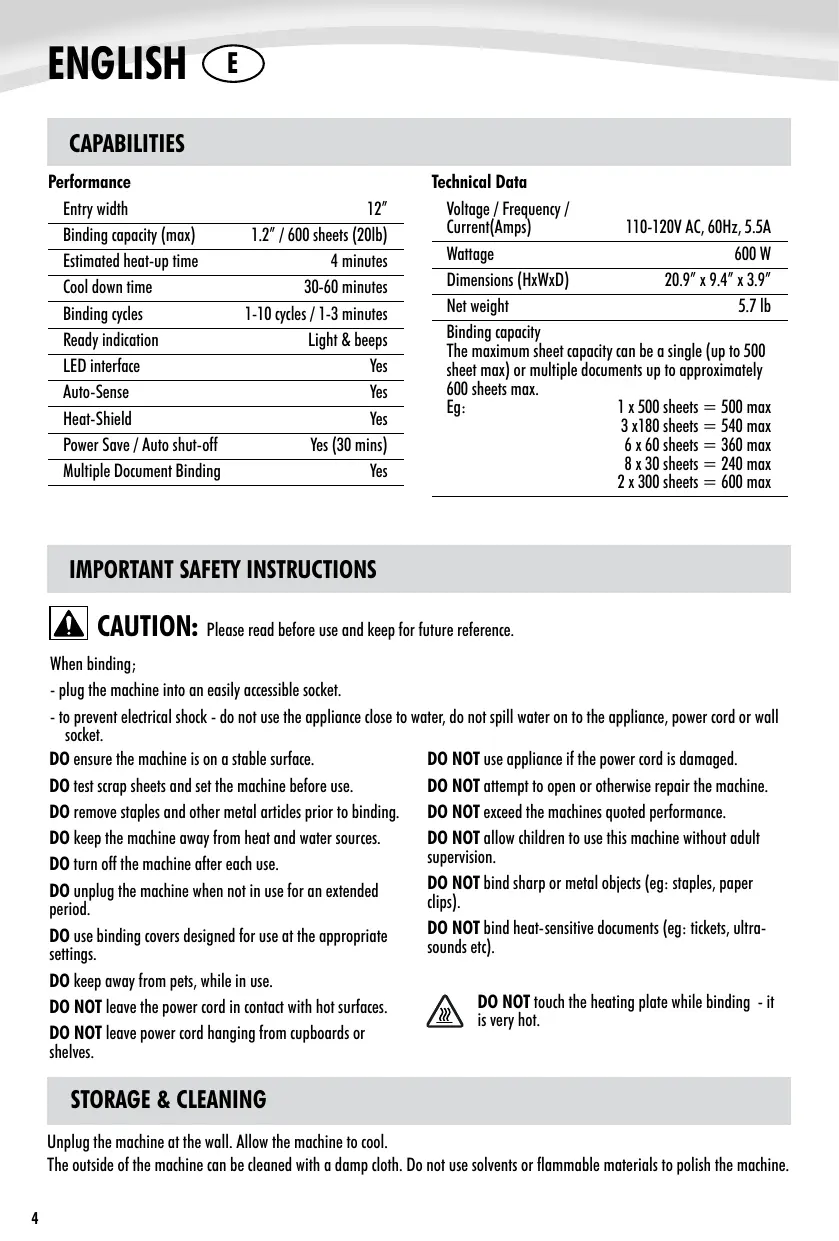

Technical Data Voltage / Frequency / Curent{Amp) 110-120V AC, 60Hz, 5.5A Wattage 600W Dimensions (HxWxD} 209" x94"x39" Net weight 571b Binding capacity The maximum sheet capacity can be a single (up to 500 sheet max) or multiple documents up to approximately 600 sheets max. Eg: 1 x.500 sheets = 500 max 3x180 sheets = 540 max 6x 60 sheets — 360 mox 8 x 30 sheets — 240 max 2 x 300 sheets = 600 max CAUTION: Plense read before use and keep for future reference. When binding; - plug the machine into an easily accessible socket. - to prevent electrical shock - do not use the appliance close to water, do not spill water on to the appliance, power cord or wall socket. DO ensure the machine is on a stable surface. DO test scrap sheets and set the machine before use. DO remove staples and other metal articles prior to binding. DO keep the machine away from heat and water sources. DO turn off the machine after each use. DO unplug the machine when not in us for an extended period. DO use binding covers designed for use at the appropriate sehtings. DO keep away from pets, wie in use. DO NOT leave the power cord in contact with hot surfaces. DO NOT leave pouer cord hanging from eupboards or shees. STORAGE & CLEANING Unplug the machine at the wall. Allow the machine to cool. DO NOT use applianee if the power cord is damaged. DO NOT aïtempt to open or otherwise repair the machine. DO NOT exceed the machines quoted performante. DO NOT allow children to use this machine without adult supervision. po or bind sharp or metal objects (eg: staples, paper dips). DO NOT bind heat-sensitive documents (eg: tickets, ultra- sounds etc).

DO NOT touch the heating plate while binding - it is very hot. The outside of the machine can be cleaned with a damp doth. Do not use solvents or flammable materials to polish the machine.

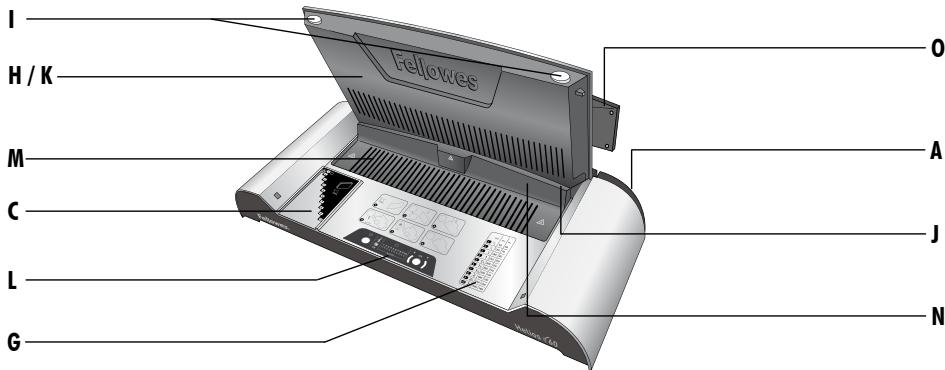

A | On/off switch (rear side) 1 |Lid lock (2) B |PowerOnbutton&LED () J | Binding channel © | Binding thickness guide K | Document support D | Timer selection (increase) B>- L__ | Illuminated user interface E | Timer selection (decrease) @{ M | Cooling vents F | Select / OK button Ô N | Document clamp (binding) G | Thickness setting / timer selection O | Cooling rack H |Lid FEATURES & TIPS ones #System-Check’ function When suitched on, he machine performs a “System-Check' function. The control panel illuminates LED neons in sequence to check their operation. “Thermo Sense’ function When opening the document damp and loading documents for binding, the machine calculates the optimum binding cyde period. There is no need to manually input the cycle period. “Heat-Shield’ function The document dump operates as a ‘Heat Shield’ to prevent operators from accidentally touching the heating plate. ‘Auto-Off' function Ifthe machine is not active for 30 minutes, the “Auto-Off' function will place the machine into standby mode. The ‘Power-On' LED will flash red and green. To operate the machine, press the ‘Power-On' button. Always put the document into the appropriate sized binding cover. For better results, consider including blank sheets to fill the thermal cover to capacity. Always test bind with a similar size and thickness of thermal covers before final process. Helios has an angled heater mechanism to ensure correct document alignment with the document support during the binding process. For best results, use Fellowes® brand supplies. Thermal binding covers work best with thin and uncoated types of paper. Care should be taken with thick and coated papers to ensure satisfactory results. Ithe sheets have not been glued completely to the cover, the document can be re-processed to improve the result. Ensure the sheets are well aligned and touching the glued spine of the thermal cover by tapping the collated document in the cover onto a flat surface. This can be done before and after the binding process.

EURE BEFORE BINDING Ensure the machine is on a stable surface. Check there is enough clear space around the machine to operaie safely. Insert the power lead into the power socket [located at the rear of the machine).

Switch the power on (located at the rear side). The ‘Power-On’ button will be red. To activate the machine, press the ‘Power-On' button on the control panel. The machine will warm-up, the red LED vil flash, The machine will ‘beep' (3x) and the LED turns green when the machine is ready to bind. Prepare the documents by loading the sheets into the thermal covers. For best results, do not to place 100 many or too few sheets into the cover. Use the binding thickness scale as a guide. The guide is cali- brated in 0.25” widths. Helios 60 will accept single or multiple documents up to a combined total thickness of2.5” [approximately 600 sheets / 20Ib). The ‘Auto-Sense’ function calculates the optimum binding cycle based upon the total binding hickness. Pull open the document camp (Heat-Shield fea- ture), insert the documents into the binding channel. Ensure the binding covers spine touches the heating element. NEED HELP?

Plug the machine into an ensily accessible main socket. Switch the main supply on. Open and lift he ld by releasing the soety catches on the front of the id. The selected binding cycle is shown with blue LED. Use the timer selection buttons to navigate up or down the scale, required. The seale has 10 settings. Eg: 0.25" document thickness = setting 1 (up to 60 sheets), 1.25" document = setting 5 (up to 300 sheets). Start the binding cycle by pressing the ‘Select / OK' bution. The blue LED will start flashing and counting down, in sequence. When the cyde is complete, the machine will beep (3). The blue LED will switch of. The machine has an integral cooling tray. It can be extended from the back of the machine and can also be pulled upwardis to accept larger documents. When the binding cyde is complete, immediately remove the documents and place in the cooling tray or on a flat surface to allow the document to cool. The document can be removed from the machine mid-cyde if required, take care — the glue may be hot and melted. Let our experts help you with a solution. Customer Senie. www.fellowes.com Always call Fellowes before contading your place of purchase, see the rear cover for contact details.

TROUBLESHOOTING Problem Possible cause Solution No ‘red' power on LED Machine is not switched on Switch on machine at rear next to plug inlet and at the wall socket No green” ready light after along period Machine is in a hot or humid area Move the machine to a cooler and dry area Loose and unglued sheets Binding cover may be too thick to bind Process the documents again, ensure sheets are in contact with the glued spine by tapping gently on a flat surface Timer setting may be incorrect Check timer setting is correct and process the document again Loose and glued sheets The cover size is too small for the number of sheets Check the number of sheets is appropri- aie for the cover width. Select larger spine width if necessary Extended heoting cycle Timer setting may be incorrect Documents left on the heater plate after the cyde is complete Check timer setting is correct. Ensure prompt document removal WORLDWIDE WARRANTY Fellowes warrants all parts of the binder to be free of defects in material and workmanship for 2 years from the date of purchase by he original consumer. 1 any part is found to be defective during warranty period, your sole and exclusive remedy will be repair or replacement, at Fellowes’ option and expense, of the defective part. This warranty does not apply in cases of abuse, mishandling or unauthorised repair. Any implied warranty, induding that of merchantability or fitness for particular purpose, is hereby limited in duration to the appropriate warranty period set forth above. In no event shall Fellowes be liable for any consequential damages attributable to this product. This warranty gives you specific legal rights. You may have other legal rights that vary from this warranty. The duration, terms and conditions of this warranty are valid worldwide, except where different limitations, restrictions or conditions may be required by local law. For more details or to obtain services under this warranty, please contact Fellowes or your dealer. PRODUCT REGISTRATION Thank you for purchasing a Fellowes product. Please visit www fellowes.com/register to register your product and benefit from product news, feedback and offers. Product details can be found listed on the rating plate positioned on the rear side or underside of the machine.

Useful Phone Numbers FCC CLASS B NOTICE - NOTIFICATION POUR LES ETATS-UNIS Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 ofthe FCC Rules. These limits are designed to provide reasonable protection against harmfulinterference in a residential installation. This equipment generates, uses and can radite radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not our in a particular installation. W this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: + Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. + Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. + Consult the dealer or an experienced radio/TV technician for help. CANADA CLASS B NOTICE - AVIS CANADA, CLASSE B This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la casse B est conforme à la norme NMB-003 du Canada. MODIFICATIONS Any modifications made to his device that are not approved by Fellowes may void the authority granted to the user by the FCC and/or by Industry Canada to operate this equipment. Toutes modifications apportées à ce dispositif et non approuvées par Fellowes annuleront le droit accordé à l'utilisateur par le FCCet/ou par Industrie Canada de faire fonctionner cet équipement. Fellowes Australia +61:3:83369700 Korea +82-(0)-2-3462-2844 Benelux +314(0)-76-523-2090 Malaysia +6040)-35122-1231 Canada +1-9054756320 Polska +48-(22).771-47.40 Deutschland +4940)5131-49770 Russia +74495)-228-1403 España / Portugal + 34902 33 55 69 Singapore +65.6221-3811 France +330)-1-78-6491-00 United Kingdom +44.0)-1302-836836 lialia +39-71-730041 United States +1-680:893-1600 Japan +81-(0)-3-5496:2401 ellowes. | 1789 Norwood Avenue, ltasca, Illinois 60143-1095 + USA + 630-893-1600 D fellowes.com France Benelux China F Halia 2008 Fellowes, Inc. Part No. 403840
