Product Type	Pool ladder
Brand	Uniprodo
Model	UNI_POOL_LADDER_1600
Number of Steps	3
Rung Spacing	250 mm
Maximum Load Capacity	180 kg
Dimensions (Width x Depth x Height)	600 x 500 x 1600 mm
Weight	7.5 kg
Application	Entering and exiting swimming pools
Assembly	Required, includes assembly parts
Maintenance	Clean regularly and inspect for damage
Safety Compliance	Meets relevant safety standards
Repair	Only by manufacturer's authorized service center
Spare Parts	Use original spare parts only
Recycling	Dispose according to local regulations
Storage	Keep away from children when not in use
Included Items	Pool ladder, mounting hardware, user manual
Compatibility	Compatible with Uniprodo UNI_LADDER_SUPPORT_42
Material	High-quality corrosion-resistant materials
Warranty	Manufacturer warranty applies

Frequently Asked Questions - UNI_POOL_LADDER_1600 Uniprodo

How do I assemble the Uniprodo UNI_POOL_LADDER_1600 pool ladder?

Follow the step-by-step instructions provided in the user manual. Lay out all components, attach the steps to the side rails using the included mounting hardware, and ensure all screws are tightened securely before use.

What is the maximum weight capacity of this ladder?

The ladder supports a maximum load of 180 kg, suitable for most adults. Always ensure even weight distribution and do not exceed this limit.

Can I use this ladder for in-ground pools?

Yes, the ladder is designed for both above-ground and in-ground pools, provided the pool wall height is compatible with the ladder's 1600 mm height.

How do I maintain the pool ladder?

Regularly rinse with fresh water, remove chlorine residue, and periodically check for loose screws or corrosion. Store in a dry place when not in use.

Is the ladder corrosion-resistant?

It is made from corrosion-resistant materials suited for pool environments, but prolonged exposure to chemicals should be minimized to extend its lifespan.

Can I replace the steps individually?

Spare parts are available. Contact the manufacturer's service center or use original Uniprodo spare parts to ensure compatibility and safety.

What safety precautions should I take while using the ladder?

Ensure the ladder is on a stable, level surface, and supervise children at all times. Do not use the ladder if damaged or when under the influence of alcohol or drugs.

Does the ladder require professional installation?

No, assembly can be done by a single person using the included manual. However, for safety, verify all connections are tightly secured before first use.

Can this ladder be used with a pool ladder support?

Yes, it is compatible with the Uniprodo UNI_LADDER_SUPPORT_42 for additional stability, especially on soft or uneven ground.

What is the warranty period for this ladder?

The manufacturer provides a standard warranty against manufacturing defects. Contact Uniprodo customer service for details specific to your purchase.

USER MANUAL UNI_POOL_LADDER_1600 Uniprodo

This User Manual has been translated using machine translation. We have made every effort to ensure the translation is accurate, but please note that automated translations are not perfect and are not meant to replace human translators. The official version of the User Manual is in English. Any differences between the translated version and the original English are not legally binding. If you have any questions about the accuracy of the translation, please refer to the English version, which is the official reference. More language versions are available upon request via [e-mail].

Technical data

Parameter description	Parameter value
Product name	Pool ladder				Pool ladder support
Model	UNI_POOL_LA DDER_1320	UNI_POOL_LA DDER_1570	UNI_POOL_LA DDER_1820	UNI_POOL_LA DDER_1600	UNI_LADDE R_SUPPORT 42
Number of steps	3	4	4	3	-
Spacing between rungs [mm]	250				-
Maximum load [kg]	180
Dimensions [width x depth x height; mm]	270x545x1320	265x500x1570	620x500x1820	600x500x1600	-
Weight [kg]	5.45	7.2	9	7.5	0.4

1. General description

The user manual is designed to assist in the safe and trouble-free use of the device. The product is designed and manufactured in accordance with strict technical guidelines, using state-of-the-art technologies and components. Additionally, it is produced in compliance with the most stringent quality standards.

DO NOT USE THE DEVICE UNLESS YOU HAVE THOROUGHLY READ AND UNDERSTOOD THIS USER MANUAL.

To increase the product life of the device and to ensure trouble-free operation, use it in accordance with this user manual and regularly perform maintenance tasks. The technical data and specifications in this user manual are up to date. The manufacturer reserves the right to make changes associated with quality improvement. The device is designed to reduce noise emission risks to a minimum, taking into account technological progress and noise reduction opportunities.

Legend

The product satisfies the relevant safety standards.

Read instructions before use.

The product must be recycled.

WARNING! or CAUTION! or REMEMBER! Applicable to the given situation.

(general warning sign)

PLEASE NOTE! Drawings in this manual are for illustration purposes only and in some details may differ from the actual product.

2. Usage safety

ATTENTION! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in serious injury or even death.

The terms "device" or "product" are used in the warnings and instructions to refer to:

Pool ladder / Pool ladder support

2.1. Safety in the workplace

a) Make sure the workplace is clean and well lit. A messy or poorly lit workplace may lead to accidents. Try to think ahead, observe what is going on and use common sense when working with the device.
b) If you discover damage or irregular operation, immediately switch the device off and report it to a supervisor without delay.
c) If you are unsure about whether the product is operating correctly or if you find damage, please contact the manufacturer's service centre.
d) Only the manufacturer's service centre may make repairs to the product. Do not attempt to make repairs yourself!
e) Use the device in a well-ventilated space.
f) Please keep this manual available for future reference. If this device is passed on to a third party, the manual must be passed on with it.
g) Keep packaging elements and small assembly parts in a place not available to children.

Remember! When using the device, protect children and other bystanders.

2.2. Personal safety

a) Do not use the device when tired, ill or under the influence of alcohol, narcotics or medication which can significantly impair the ability to operate the device.
b) The machine may be operated by physically fit persons who are able to handle the machine, are properly trained, who have reviewed this operating manual and have received training in occupational health and safety.
c) Do not overestimate your abilities. When using the device, keep your balance and remain stable at all times. This will ensure better control over the device in unexpected situations.
d) The device is not a toy. Children must be supervised to ensure that they do not play with the device.

2.3. Safe device use

a) Do not overload the device. Use the appropriate tools for the given task. A correctly-selected device will perform the task for which it was designed better and in a safer manner.
b) When not in use, store in a safe place, away from children and people not familiar with the device who have not read the user manual. The device may pose a hazard in the hands of inexperienced users.
c) Keep the device in perfect technical condition. Before each use check for general damage, especially check moving components for cracked parts or elements, and for any other conditions which may impact the safe operation of the device. If damage is discovered, hand over the device for repair before use.
d) Keep the device out of the reach of children.
e) Device repair or maintenance should be carried out by qualified persons, only using original spare parts. This will ensure safe use.
f) To ensure the operational integrity of the device, do not remove factory-fitted guards and do not loosen any screws.
g) When transporting and handling the device between the warehouse and the destination, observe the occupational health and safety principles for manual transport operations which apply in the country where the device will be used.

ATTENTION! Despite the safe design of the device and its protective features, and despite the use of additional elements protecting the operator, there is still a slight risk of accident or injury when using the device. Stay alert and use common sense when using the device.

3. Use guidelines

The product provides a safe and sturdy way to enter and exit swimming pools. The user is liable for any damage resulting from unintended use of the device.

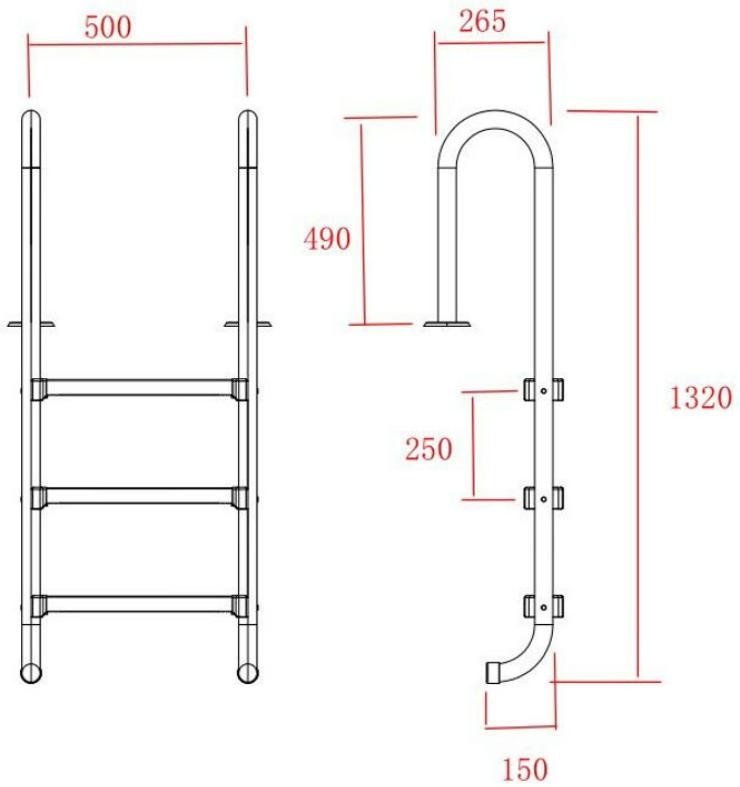

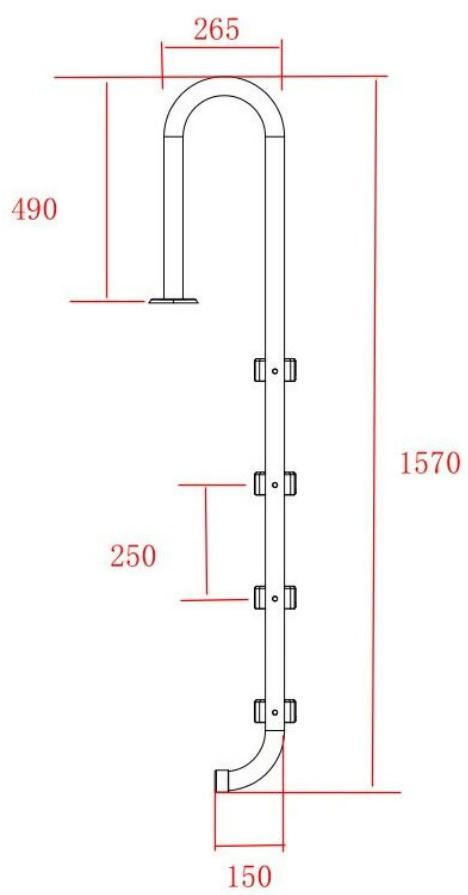

3.1. Technical drawing

UNI_POOL_LADDER_1320

UNI_POOL_LADDER_1570

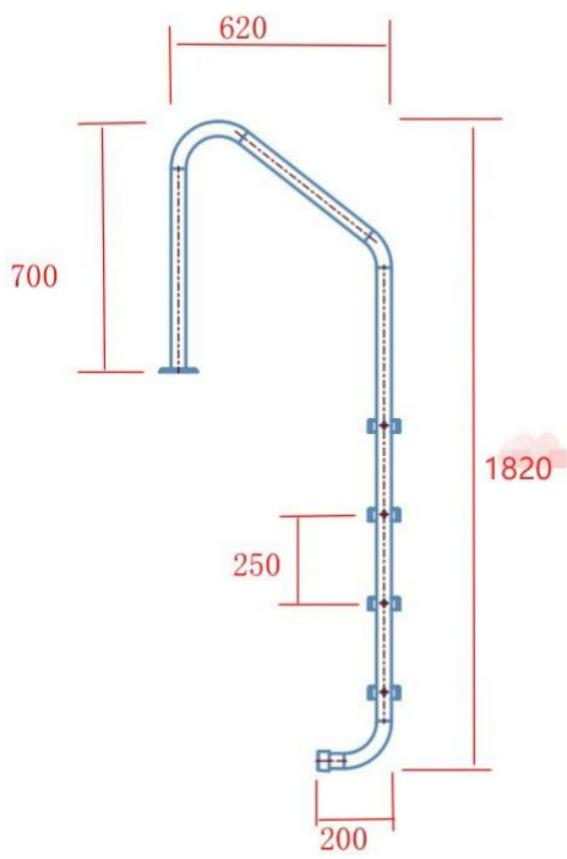

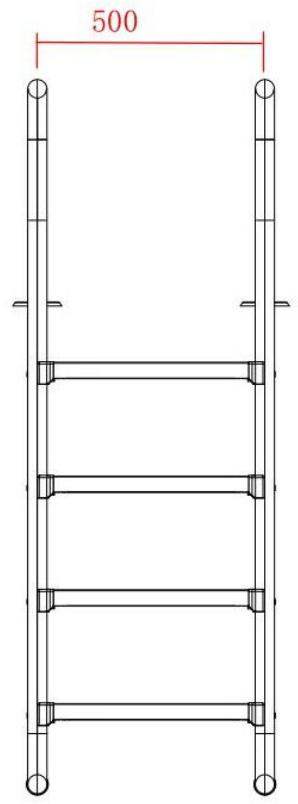

UNI_POOL_LADDER_1820

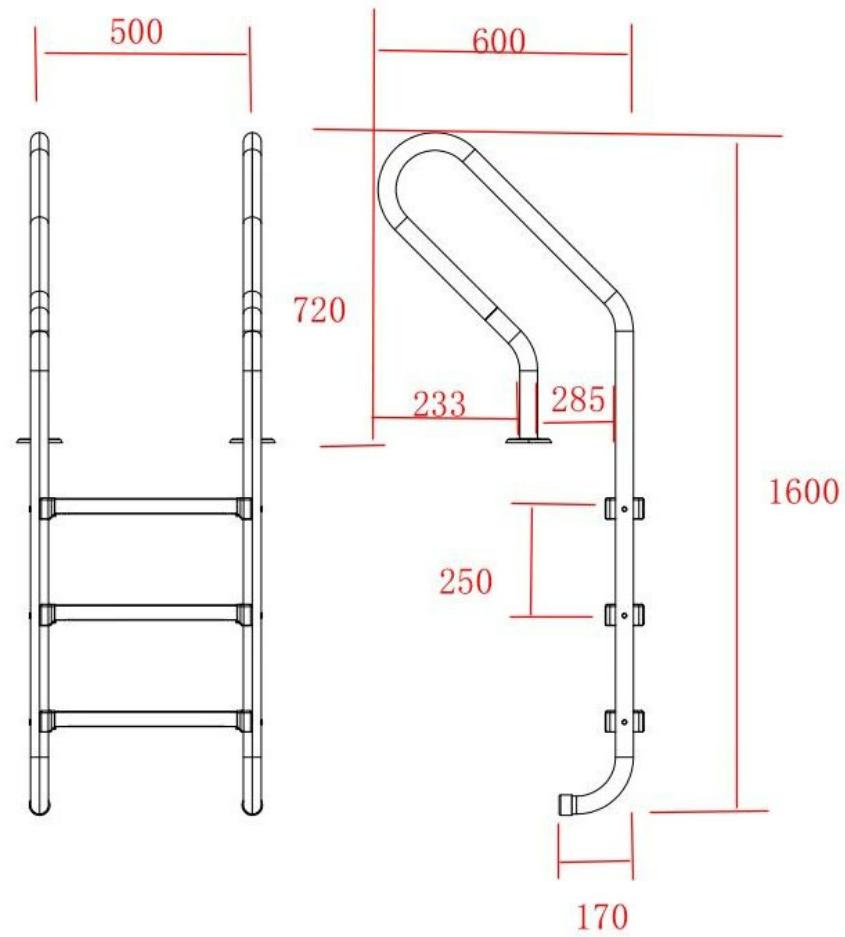

UNI_POOL_LADDER_1600

UNI_LADDER_SUPPORT_42

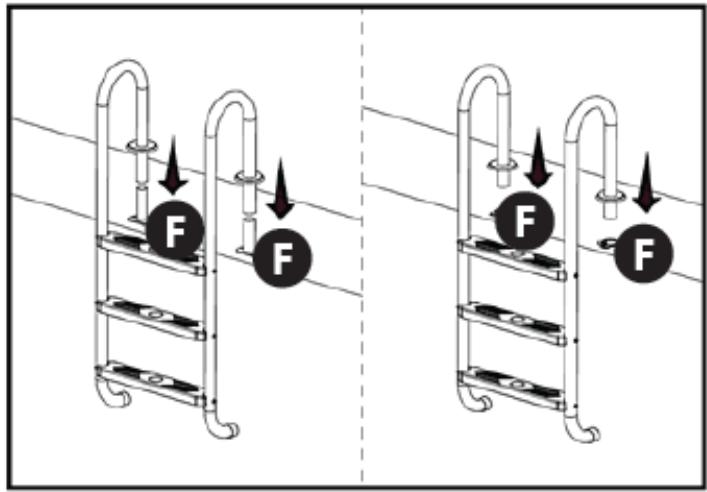

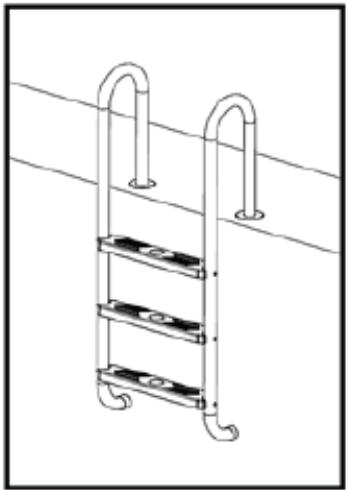

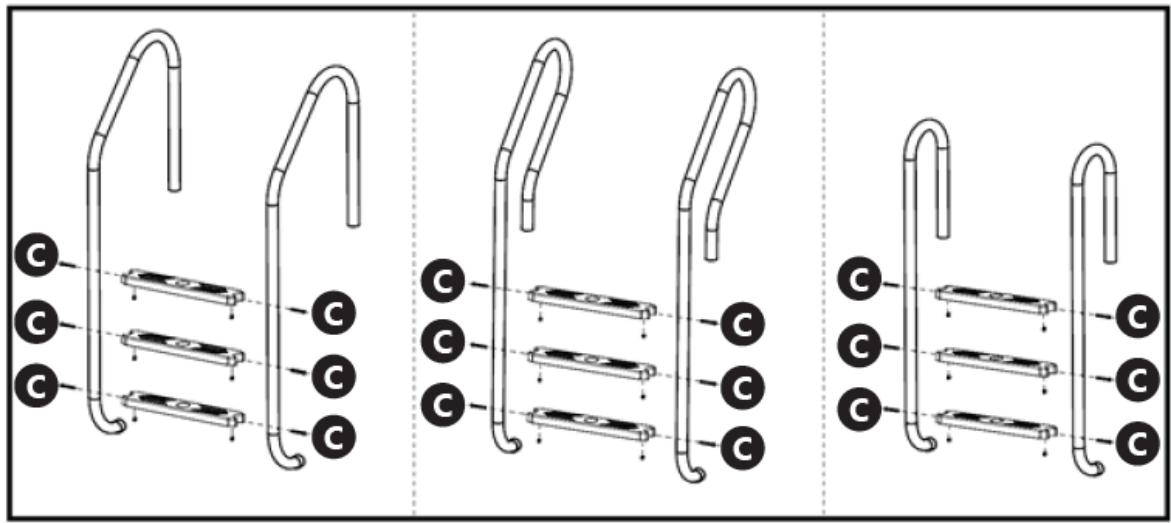

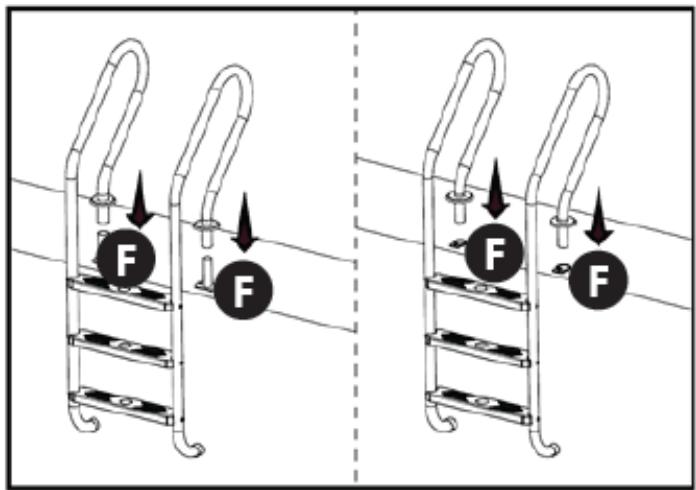

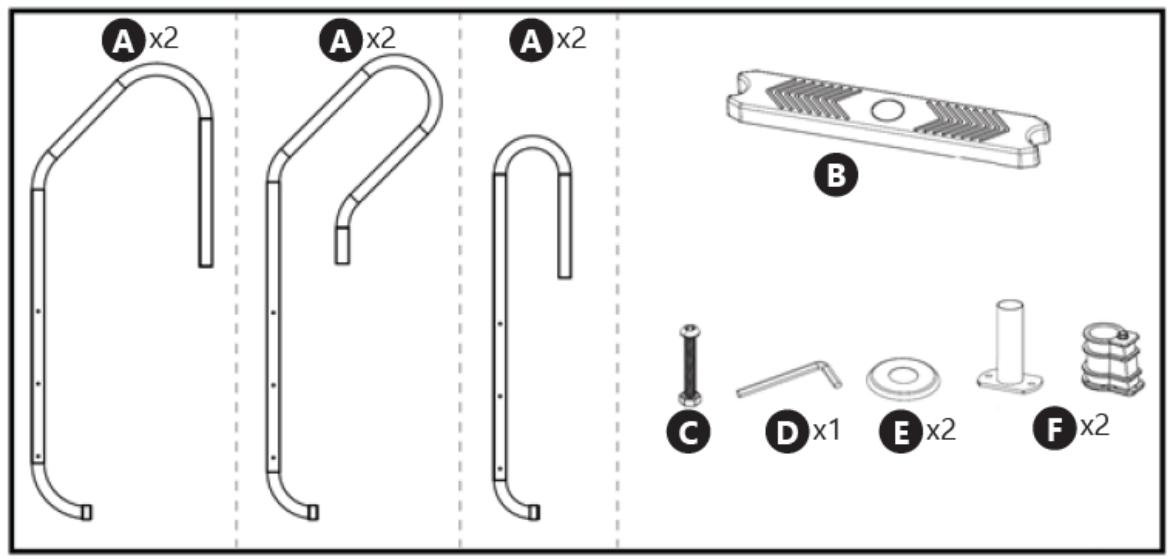

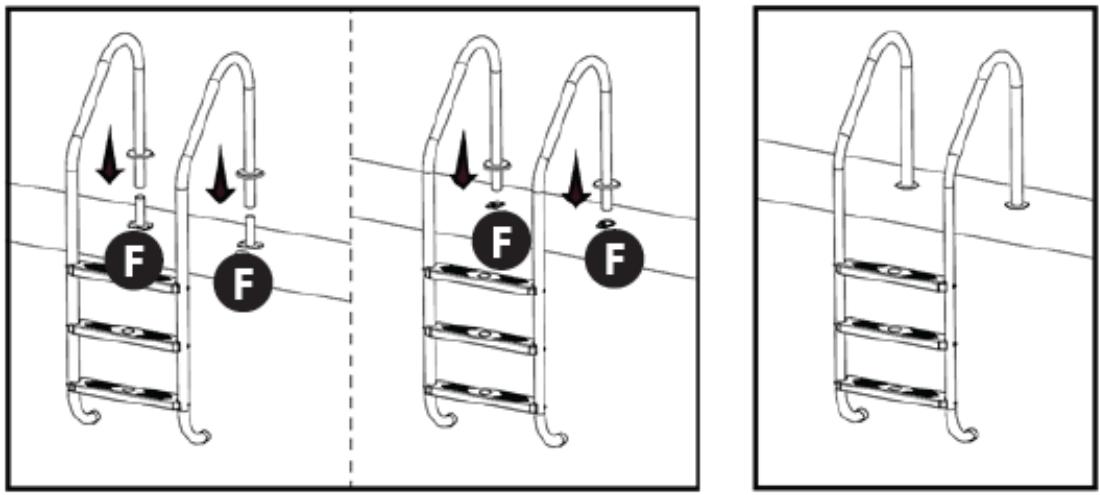

3.2. Assembling the device

UNI_POOL_LADDER_1820 / UNI_POOL_LADDER_1600 / UNI_POOL_LADDER_1320 / UNI_POOL_LADDER_1570

UNI_POOL_LADDER_1820 / UNI_POOL_LADDER_1600 / UNI_POOL_LADDER_1320 / UNI_POOL_LADDER_1570

UNI_POOL_LADDER_1820

UNI_POOL_LADDER_1600

UNI_POOL_LADDER_1320 / UNI_POOL_LADDER_1570

For the disposal of the device please consider and act according to the national and local rules and regulations.
