Product Type	Firewood Rack
Brand	Hillvert
Model	HI-FWR-16
Intended Use	Outdoor and indoor storage of split firewood
Overall Dimensions	Approx. 1290 x 700 x 1650 mm (width x depth x height)
Material	Steel frame with optional PE cover
Weight	Approx. 25 kg
Assembly Required	Yes, with included hardware (bolts, nuts, etc.)
Capacity	Approx. 1.5 cubic meters of firewood
Power Supply	None, manual use only
Maintenance	Clean regularly to prevent grime build-up
Safety Features	Stable construction; do not overload; keep balance
Spare Parts Availability	Yes, parts list provided in the manual
Manual	Free PDF download (11 pages)
Warranty	Check with seller/manufacturer

Frequently Asked Questions - HI-FWR-16 Hillvert

How do I assemble the Hillvert HI-FWR-16 firewood rack?

The assembly requires following the included instruction manual. Use the numbered parts list to identify each component. Start by connecting the base beams (parts 1 and 2) using the bolts (B1, B2, B3). Then attach the vertical supports (parts 3 and 4) and secure the crossbars. Make sure all connections are tightened. The optional PE cover (G) can be placed on top after assembly.

What is the maximum capacity of this firewood rack?

The HI-FWR-16 is designed to hold approximately 1.5 cubic meters of split firewood. However, the manual emphasizes to not overload the device. Overloading can compromise stability and safety.

Can the firewood rack be used outdoors?

Yes, the steel frame is suitable for outdoor use, but the manual recommends cleaning regularly to prevent grime and corrosion. The optional PE cover provides protection against rain and snow, extending the life of the rack and keeping wood dry.

Is the PE cover included?

According to the parts list, the PE cover (G) is listed as optional. Check the product packaging or contact the seller to confirm whether it is included with your purchase.

What tools are needed for assembly?

The rack comes with all necessary hardware (bolts, nuts). You will typically need a wrench or socket set and possibly a screwdriver. Detailed assembly instructions are provided in the manual.

How should I maintain and clean the firewood rack?

The manual states that the device should be cleaned regularly to prevent stubborn grime from accumulating. Wipe the frame with a damp cloth and mild detergent, then dry thoroughly. Inspect all connections periodically and tighten any loose bolts.

Can I store items other than firewood on this rack?

While it is designed for firewood, the sturdy steel frame can support other heavy items. However, always respect the maximum load and ensure the rack is on stable ground. Avoid uneven weight distribution to prevent tipping.

How stable is the rack on uneven ground?

The rack is designed to be stable when placed on a flat surface. On uneven ground, it may become unstable. The manual advises to keep balance and remain stable at all times. Use leveling blocks or choose a flat location.

Are spare parts available for the HI-FWR-16?

Yes, the manual includes a detailed parts list with reference numbers. Spare parts are available from Hillvert or authorized dealers. You can also contact customer support for assistance.

What safety precautions should I follow when using this rack?

The manual provides general safety warnings: keep the workplace clean and well lit, supervise children, do not overload, maintain balance, and use common sense. Also, ensure the rack is assembled correctly before use and check for stability regularly.

USER MANUAL HI-FWR-16 Hillvert

Read instructions before use.

WARNING! or CAUTION! or REMEMBER! Applicable to the given situation (general warning sign).

NOTE! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in serious injury or even death.

The terms "device" or "product" are used in the warnings and instructions to refer to: FIREWOOD RACK.

a) Make sure the workplace is clean and well lit. A messy or poorly lit workplace may lead to accidents. Try to think ahead, observe what is going on and use common sense when working with the device.
b) Please keep this manual available for future reference. If this device is passed on to a third party, the manual must be passed on with it.
c) Keep packaging elements and small assembly parts in a place not available to children.
d) When working with the device, use common sense and stay alert. Temporary loss of concentration while using the device may lead to serious injuries.
e) Do not overestimate your abilities. When using the device, keep your balance and remain stable at all times. This will ensure better control over the device in unexpected situations.
f) The device is not a toy. Children must be supervised to ensure that they do not play with the device.
g) When transporting and handling the device between the warehouse and the destination, observe the occupational health and safety principles for manual transport operations which apply in the country where the device will be used.
h) Clean the device regularly to prevent stubborn grime from accumulating.
i) It is forbidden to interfere with the structure of the device in order to change its parameters or construction.
j) Do not overload the device.

ATTENTION! Despite the safe design of the device and its protective features, and despite the use of additional elements protecting the operator, there is still a slight risk of accident or injury when using the device. Stay alert and use common sense when using the device.

INSTRUKCJA OBSŁUGI

OBJAŚNIENIE SYMBOLI

VI

VII

VIII

HI-FWR-17

1	1290		2
2	700		2
3	1500		2
4	1650		2
5	640		4
6	1275		4
7	1290		2
8	840		2
9	1350		2
10	1290		2
A			4
B1	40		4
B2	60		28
B3	40		4
C			12
D			-

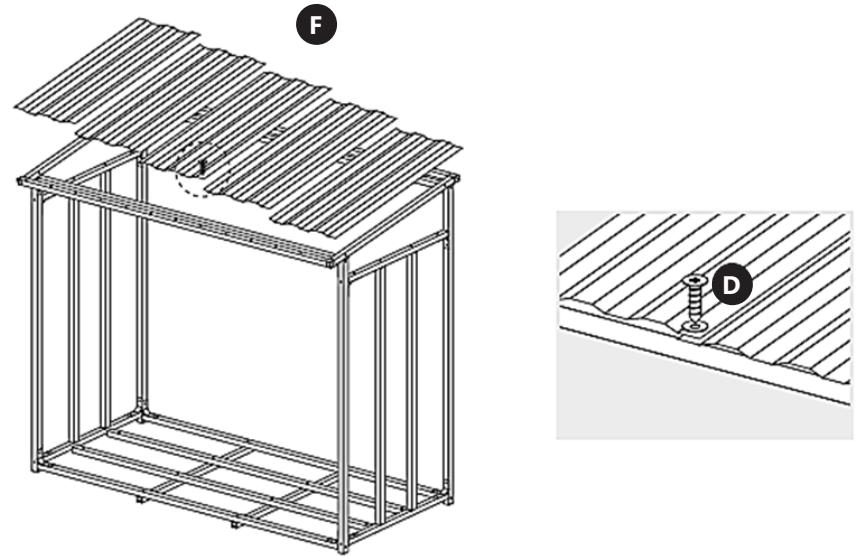

F	300 x 900		5

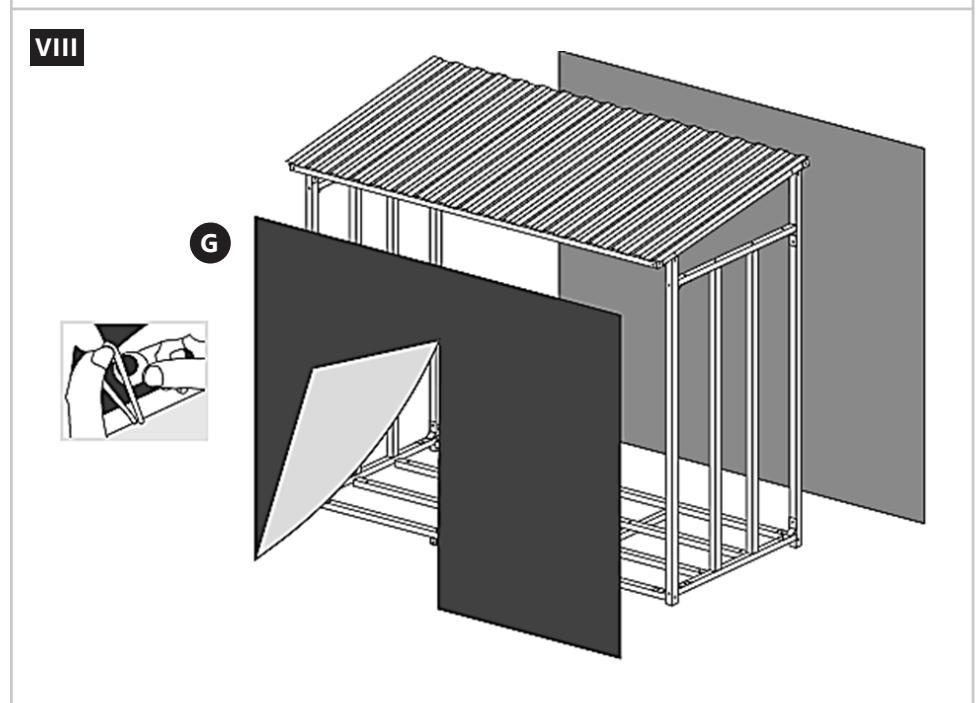

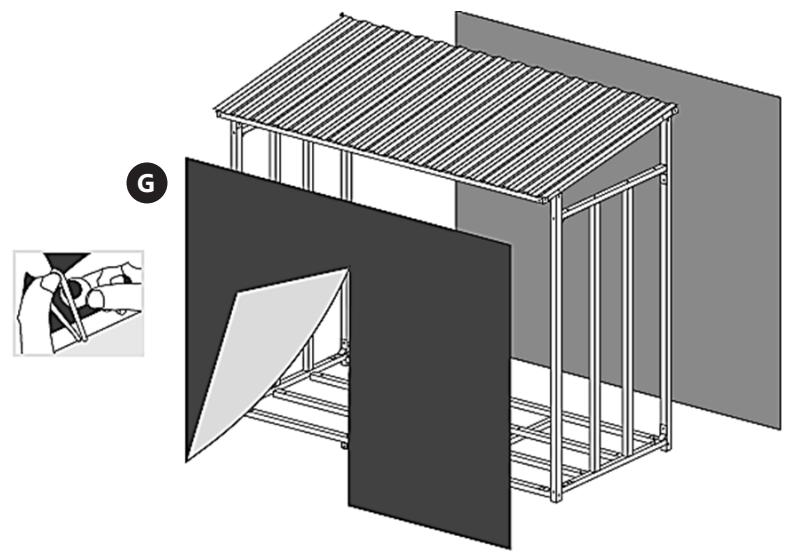

G	PE cover (optional)		-
