USER MANUAL PHYSA VITERBO Physa

This User Manual has been translated using machine translation. We have made every effort to ensure the translation is accurate, but please note that automated translations are not perfect and are not meant to replace human translators. The official version of the User Manual is in English. Any differences between the translated version and the original English are not legally binding. If you have any questions about the accuracy of the translation, please refer to the English version, which is the official reference. More language versions are available upon request via [e-mail].

Technical data

Parameter description	Parameter value
Product name	Beauty Bed
Model	PHYSA VITERBO BLACK	PHYSA VITERBO POWDER PINK	PHYSA VITERBO CREAM	PHYSA VITERBO BEIGE
Rated voltage [V~] / frequency [Hz]	230/50
Rated power [W]	300
Maximum load [kg]	200
Overall dimensions (width x depth x height) [cm]	190x65x60	190x64x60	190x64x61	190x65x60
Weight [kg]	61.5	64.8	60	60.5

Before use

Please read these instructions carefully before using the beauty bed. This manual provides detailed guidance for both the operation and maintenance of the device. Familiarize yourself with all instructions before using the device to ensure its proper and safe operation. Keep this manual for future reference to ensure that all users are familiar with the device's functions.

Specifications

• Maximum load (overall): 150 kg
• Maximum backrest/ leg rest load: 50 kg

Important: Do not exceed the specified load capacity. Avoid jumping on the backrest, as this may damage the product's structure.

Receiving and unpacking the product

When receiving the beauty bed:

• The product is packed in reinforced packaging with 10 layers of protection. We recommend keeping the original packaging for future use, especially for returns during the warranty period.
• For safety, two people should lift the bed—one standing at the head and the other at the foot. Do not lift the bed by its armrests.

• Inspect the packaging for any damage caused during transportation. Report any issues to the carrier or after-sales service within 2 days of receipt.
• Ensure that all parts are included. Contact after-sales service immediately if any parts are missing.

Operating conditions

• Temperature range: +10°C to 40°C
• Relative humidity: 30% to 75%
- If the beauty bed has been exposed to temperatures below 0° C, allow it to acclimatize to a suitable indoor temperature for at least 5 hours before use.

Setup and preparation

Before using the beauty bed:

1. Remove all packaging materials.
2. Ensure that the bed can move freely up and down.
3. Position the beauty bed in its designated location.
4. Plug the power cord into a socket that matches the voltage displayed on the motor.

Important: Children or inexperienced individuals must not operate the beauty bed. Supervise children to ensure they do not play near it. Always lock the bed and unplug the power cord when not in use.

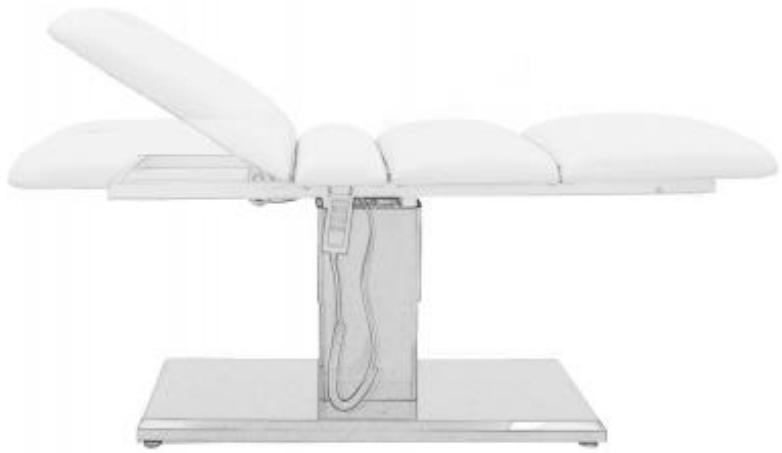

Product overview

The beauty bed is designed for professional treatments, including massage and physiotherapy. It features three sections and two pairs of armrests. The bed is adjustable from various positions to suit users who are at least 12 years old and 146 cm tall.

A - Breathing hole
B - Backrest
C - Armrest
D - Legrest
E - Lifting mechanism
F - Remote control
G - Adjustable column

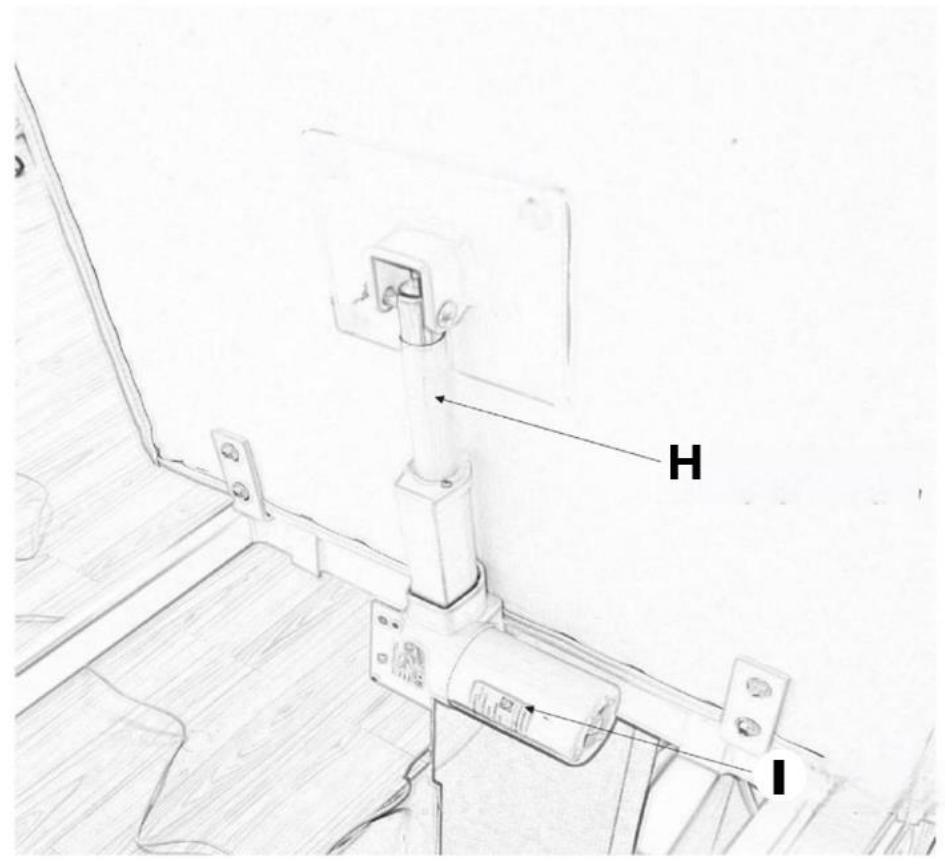

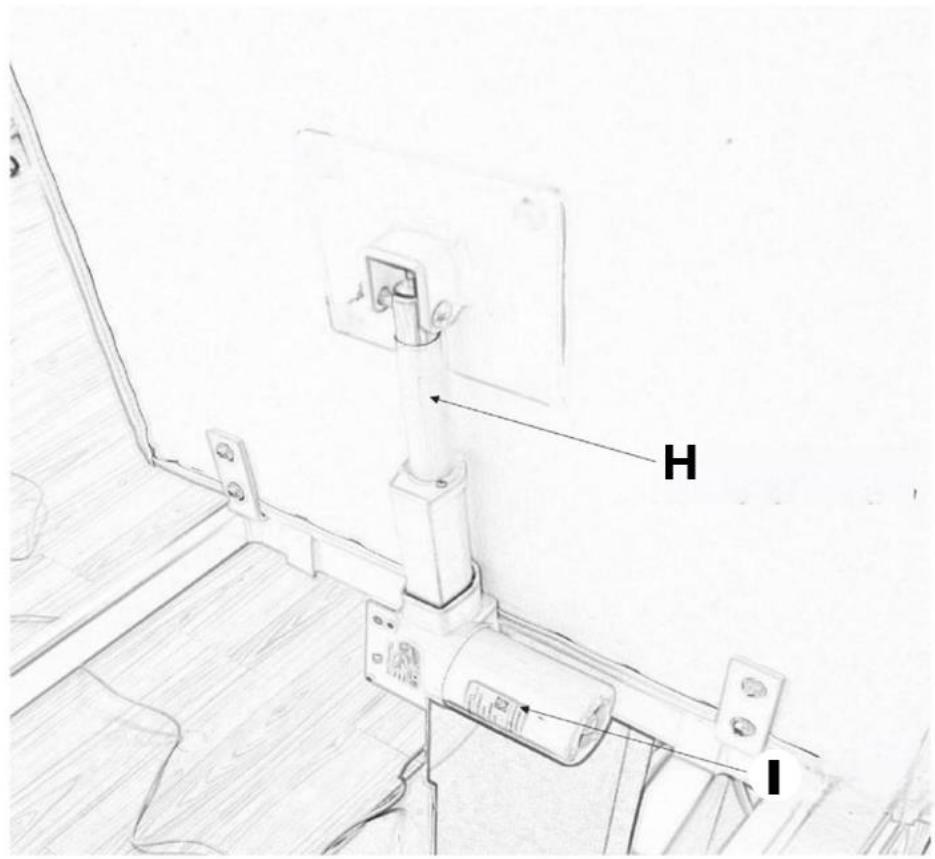

H - Stainless steel surface
I - Actuator
J - Electric motor

Safety warnings

1. The headrest is not designed to support an adult's full weight.
2. Do not jump onto the bed.
3. Do not allow adults to sit on the headrest.
4. Do not use the bed near flammable gases.
5. Check for obstacles on or under the bed before adjusting its position.
6. Do not exceed the bed's weight limit.
7. Ensure that the power socket is within 2 meters of the bed.

Important precautions

1. Always plug the power cord into an appropriate outlet.
2. Avoid tying the power cord to the bed, as this may damage the cord during bed movement.
3. Disconnect the power cord before moving the bed.
4. If the power cord is damaged, unplug the bed immediately and contact customer service. Only use the original power cable.
5. Prevent unintentional operation by ensuring control buttons are not accidentally pressed.
6. Do not place items under the bed.
7. Maintain a clear and safe space around the bed.
8. Do not modify the bed's structure or add any unauthorized parts. If the bed malfunctions, stop using it and contact customer service.
9. Avoid placing the bed near doorways or other obstacles.

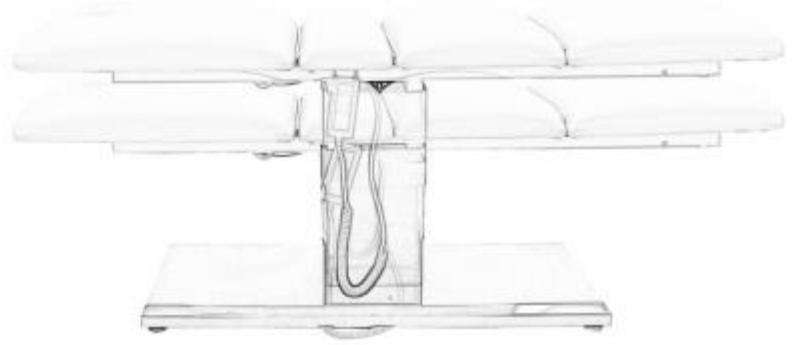

Control panel

Bed height adjustment (58-78 cm)

Backrest angle adjustment (0-45°)

Adjusting the angle of the footrest (0-30°)

Cleaning and disinfection

IMPORTANT: Always unplug the power cord before cleaning.

To maintain the beauty bed in good condition, clean it regularly. Ensure you disinfect the bed thoroughly at least once a month and before use by different clients.

1. Cleaning metal and plastic surfaces

• Use a damp cloth and a mild, alkaline cleaning solution to clean metal and plastic surfaces, including hand controllers. Use small brushes to clean corners and hard-to-reach areas.
• After cleaning, rinse the surfaces with water and dry them thoroughly. Avoid using excessive liquid. Follow the disinfectant manufacturer's instructions for proper use, and allow the surfaces to air dry at room temperature.

2. Cleaning stainless steel surfaces

• Stainless steel is highly resistant to chemicals and can be cleaned with a mild detergent solution. You can use ammonia or most solvents to remove tough stains. Avoid using sprays or chrome-plated surface cleaners.
• Ensure all surfaces are completely dry before reconnecting the bed to the power supply.
• Do not use water sprays, such as showers or pressure water guns, for cleaning.
• Avoid cleaning in environments with high temperatures or humidity, and do not expose the equipment to conditions that may cause liquid contamination. Do not use acid-based cleaners or solvents.
• Disinfecting will gradually wear off the surface. After disinfecting, wipe the surface again with a clean, damp cloth.

3. Cleaning the bed surface

• Wipe the bed surface with a clean, soft cloth. Apply a special leather cleaner evenly over the surface, and then wipe the surface clean with a soft, dry cloth.
• Avoid using wet cloths, abrasive materials, or harsh chemicals such as acidic or alkaline substances, as these can affect the surface quality and shorten the product's lifespan.

Maintenance and servicing

1. Read and follow the user manual.
2. Only authorized personnel should carry out repairs. Using unauthorized personnel may result in damage for which the manufacturer is not responsible.
3. Use only original parts approved by the manufacturer.
4. If the bed malfunctions, unplug the power cord and stop using the bed. Contact customer service.
5. Document all maintenance activities.

Regular maintenance schedule

Professional users must implement monthly and biannual inspections:

• Check the power cord, motor wiring, and control box.
• Verify that all accessories are secure.
• Ensure the lock system functions properly.

If defects such as unusual noise or malfunctions are found, stop using the bed and contact customer service. Only authorized personnel should open or replace parts.

Troubleshooting guide

Issue	Solution
Hand control not responding	Check the connection to the control box.
Motor not responding	Switch the motor plug and check connections

Przed użyciem

Před použitím

Avant utilisation

Prima dell'uso

Antes de su uso

Használat előtt

Før brug

Ennen käyttöä

Voor gebruik

Før bruk

A - Pustehull
B - Ryggstøtte
C - Armlene
D - Benstøtte
E - Løftemekanisme
F - Fjernkontroll
G - Justerbar søyle
H - Overflate i rustfritt stål
I - Aktuator
J - Elektrisk motor

Sikkerhetsadvarsler

Före användning

Justering av fotstödets vinkel (0–30°)

Antes da utilização

Ajuste do ângulo do encosto (0-45°)

Pred použitím

Nastavenie uhla operadla (0–45°)

Nastavenie uhla opierky nôh (0–30°)

Čistenie a dezinfekcia

Преди употреба

Πριν από τη χρήση

Prije upotrebe

A - Otvor za disanje

B - Naslon za leđa

C - Naslon za ruke

D - Naslon za noge

E - Mehanizam za podizanje

Čišćenje i dezinfekcija

Prieš naudojimą

A - Oro angos

B - Atlošas

C - Porankiai

D - Kojų atrama

E - Pakélimo mechanizmas

F - Nuotolinio valdymo pultas

Atlošo kampo reguliavimas (0–45°)

Pred uporabo

Nastavitev naklona naslona (0–45°)

ENVIRONMENTAL AND DISPOSAL INSTRUCTIONS: For the disposal of the device please consider and act according to the national and local rules and regulations.
