Instructions for use

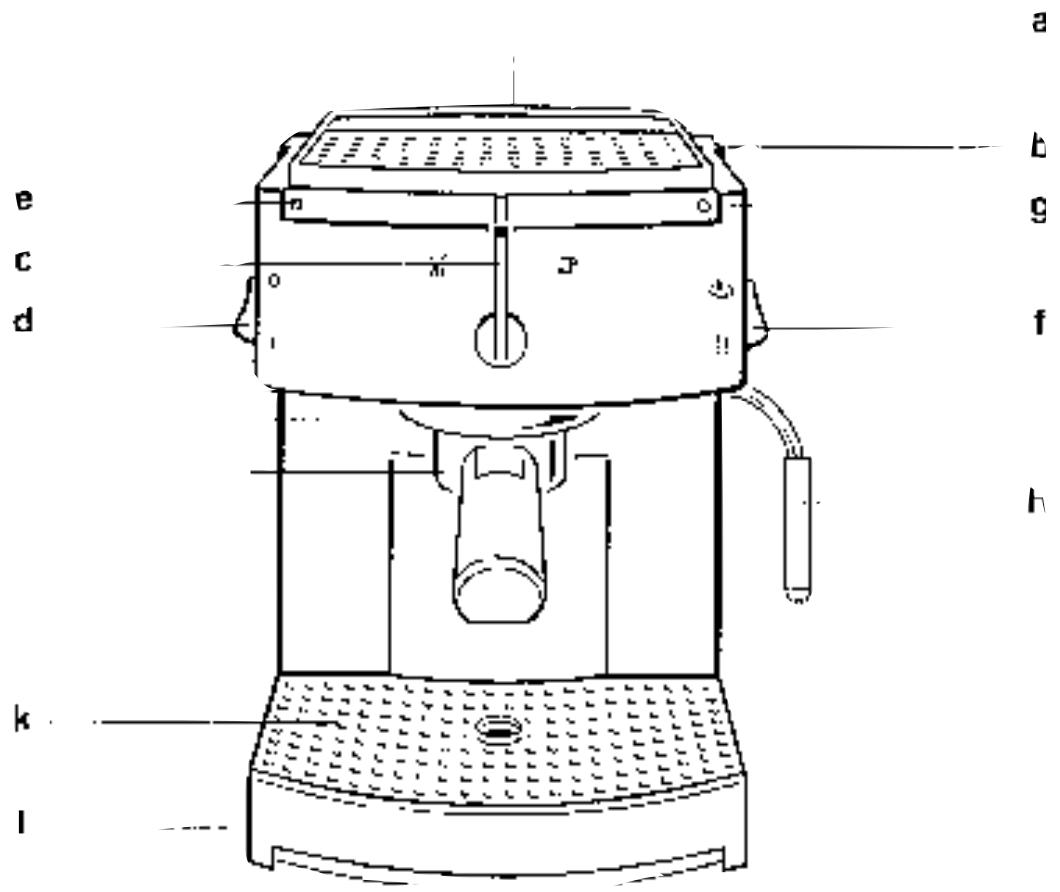

Removable water tank Cup heating plate Function knob On/Off switch Function control light (red) Steam / hot water switch Temperature control light (yellow) Pivotal steam / hot water nozzle with integrated frothing attachment

Capsule holder Spout ring Grill Drip tray Hexagonal key (for removal of the capsule cage) n : Cleaning tool ENGLISH

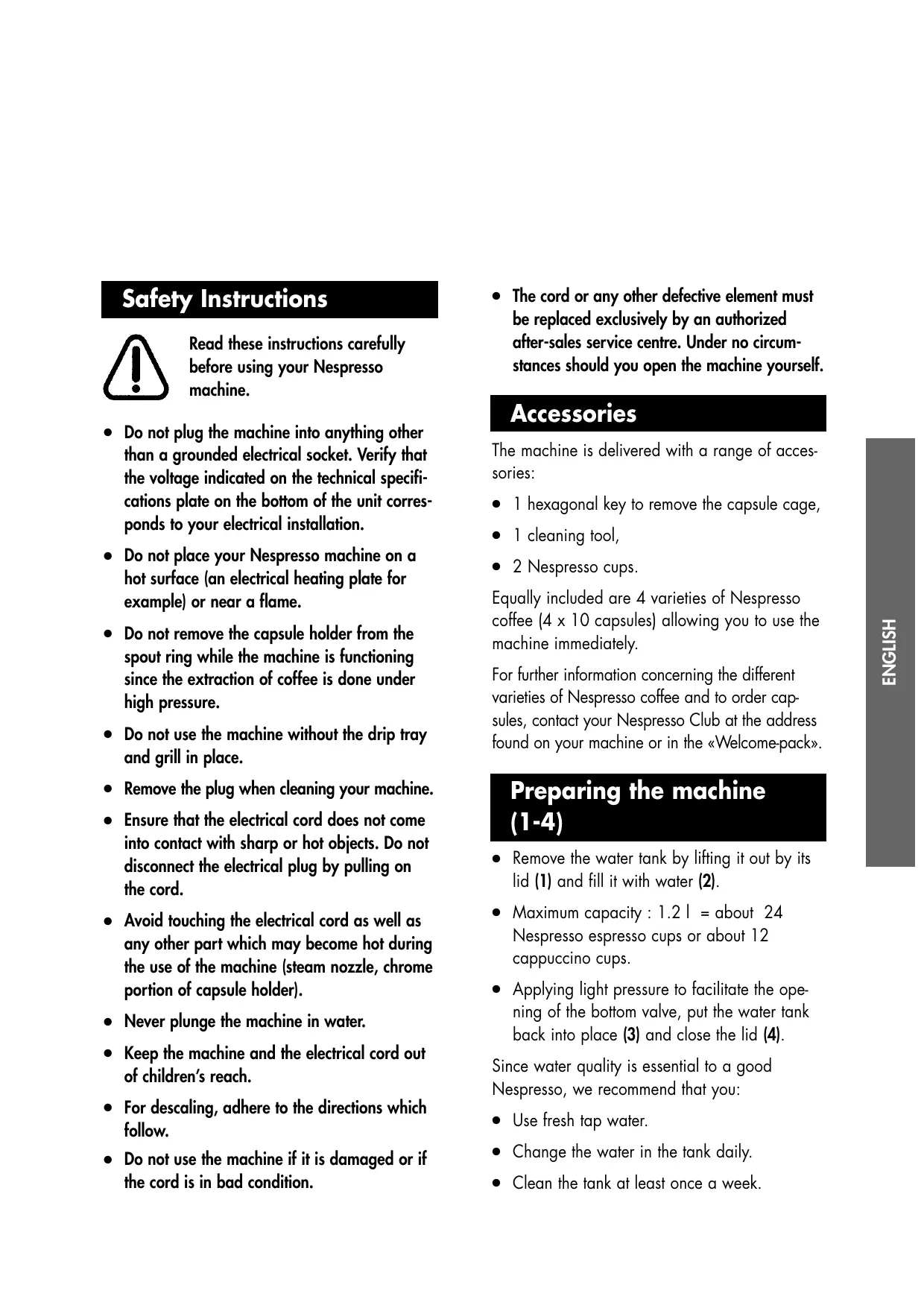

Read these instructions carefully before using your Nespresso machine.

Do not plug the machine into anything other than a grounded electrical socket. Verify that the voltage indicated on the technical specifications plate on the bottom of the unit corresponds to your electrical installation. Do not place your Nespresso machine on a hot surface (an electrical heating plate for example) or near a flame. Do not remove the capsule holder from the spout ring while the machine is functioning since the extraction of coffee is done under high pressure.

Do not use the machine without the drip tray and grill in place.

Remove the plug when cleaning your machine.

Ensure that the electrical cord does not come into contact with sharp or hot objects. Do not disconnect the electrical plug by pulling on the cord.

Avoid touching the electrical cord as well as any other part which may become hot during the use of the machine (steam nozzle, chrome portion of capsule holder).

Never plunge the machine in water.

Keep the machine and the electrical cord out of children’s reach.

For descaling, adhere to the directions which follow.

Do not use the machine if it is damaged or if the cord is in bad condition. The cord or any other defective element must be replaced exclusively by an authorized after-sales service centre. Under no circumstances should you open the machine yourself. Accessories The machine is delivered with a range of accessories:

1 hexagonal key to remove the capsule cage,

2 Nespresso cups. Equally included are 4 varieties of Nespresso coffee (4 x 10 capsules) allowing you to use the machine immediately. For further information concerning the different varieties of Nespresso coffee and to order capsules, contact your Nespresso Club at the address found on your machine or in the «Welcome-pack». Preparing the machine (1-4)

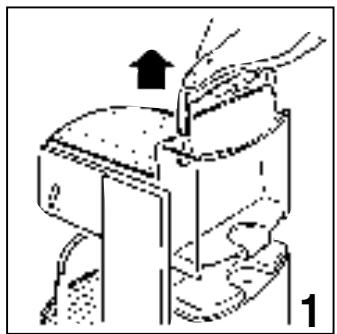

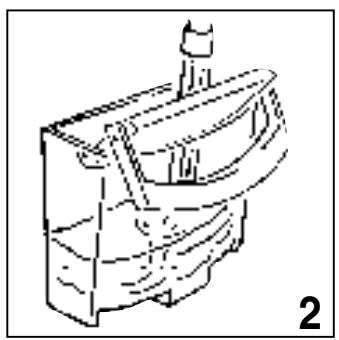

Remove the water tank by lifting it out by its lid (1) and fill it with water (2).

Maximum capacity : 1.2 l = about 24 Nespresso espresso cups or about 12 cappuccino cups.

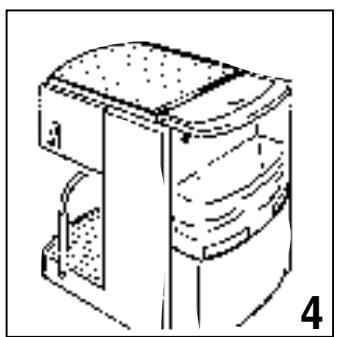

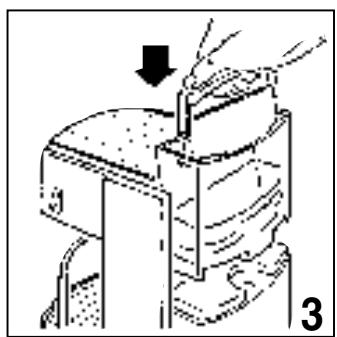

Applying light pressure to facilitate the opening of the bottom valve, put the water tank back into place (3) and close the lid (4). Since water quality is essential to a good Nespresso, we recommend that you:

Use fresh tap water.

Change the water in the tank daily.

Clean the tank at least once a week. ENGLISH Safety Instructions Preparing a Nespresso (10-14) We advise you not to use distilled or mineral water. Start Up (5-9) ENGLISH When starting up your machine for the first time, it is advisable to first rinse the water circuit :

Plug in the machine.

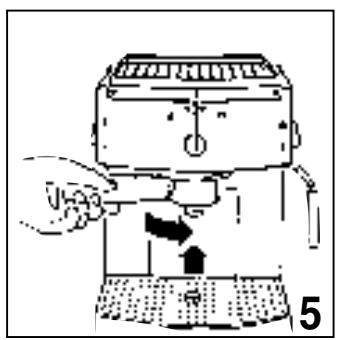

Insert the empty capsule holder in the spout ring by turning it from left to right. It is not necessary to tighten with great force to obtain a perfect seal (5).

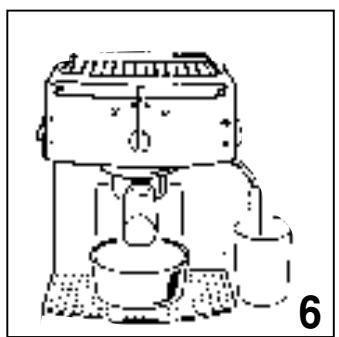

Place a sufficiently large container under the capsule holder and a second one under the steam / hot water nozzle (6). The function knob should be on the «0» position. Turn on your machine by pressing the On/Off Switch to (7). The steam / hot water switch should be on the position. Both the red function control light and the yellow temperature control light will go on (7).

Once the yellow temperature control light goes off, your machine is warmed up and ready for use.

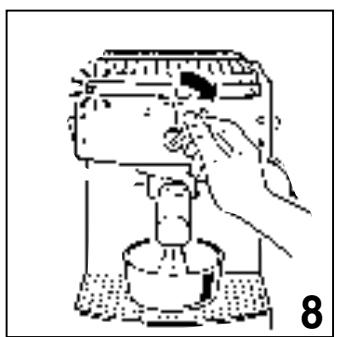

Turn the function knob to the position on the right and let approximately half of the water in the tank run through (8). Return the function knob to the «0» position.

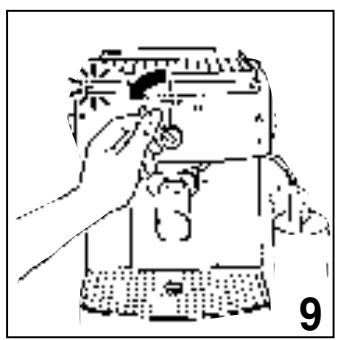

Turn the function knob to the position on the left and let the rest of the water in the tank run through to rinse the steam / hot water circuit (9). Return the function knob to the «0» position. To obtain optimal coffee quality, preheat the machine daily with the empty capsule holder and rinse the system before making the first and after the last Nespresso of the day. Do this by turning the function knob to the position on the right for about 5 seconds.

Fill the water tank with fresh water (1-4).

Insert the capsule holder in the spout ring in order to preheat it (5).

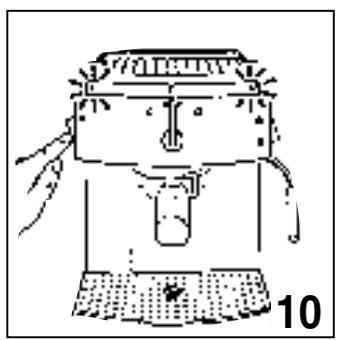

Turn on your machine by pressing the On/Off Switch to (10). Both the red light and the yellow control light will go on.

Once the yellow temperature control light goes off, your machine is warmed up and ready for use.

Remove the capsule holder from the spout ring and insert a capsule with the largest part towards the base (11). 1 capsule = 1 cup of Nespresso.

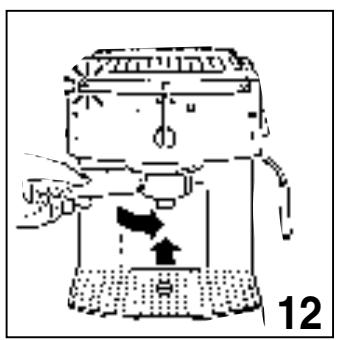

Reinsert the capsule holder in the spout ring by turning it from left to right without tightening with great force (12).

Place a preheated cup under the capsule holder (see the section on “Preheating Cups”).

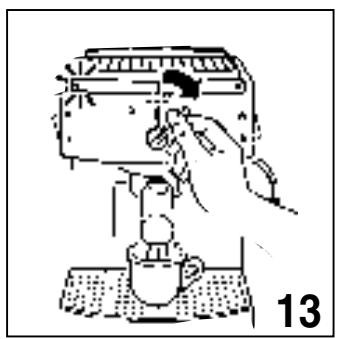

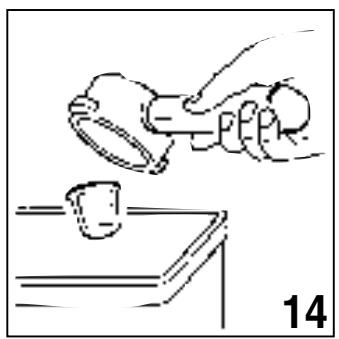

Once your Nespresso is prepared, return the function knob to the «0» position. Remove the capsule holder from the spout ring and discard the used capsule (14). position on To ensure that your next Nespresso will be prepared at optimal temperature, reinsert the capsule holder in the spout ring and turn it from left to right. Important ! Before making steam, verify that the capsule holder inserted in the spout ring is empty in order to avoid that coffee becomes encrusted and blocks the coffee spout opening. Preparing Hot Water (15) This machine equally allows you to prepare hot water for tea or soup.

Fill the water tank with fresh water (1-4).

Turn on your machine by pressing the On/Off Switch to (7).

Once the yellow temperature control light goes off, your machine is warmed up and ready for use.

Press the steam / hot water switch to the position (7).

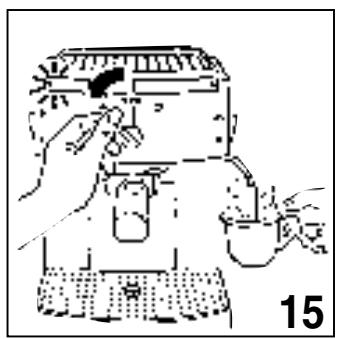

Plunge the steam nozzle into a receptacle and turn the function knob to the position on the left (15).

Once the desired quantity of water is obtained, return the function knob to the «0» position. Making milk froth for a cappuccino (16-17) Your machine is equipped with an integrated frothing attachment specially designed to froth milk with optimal results when making a cappuccino. To do this :

Pour approximately 1 dl of cold whole milk into a sufficiently high pot (of not more than

0.5 l maximum capacity) that can be inserted

under the steam / hot water nozzle.

First prepare a Nespresso in a cappuccino cup filling it only one-third full.

Remove the capsule holder from the spout ring, discard the used capsule and reinsert the empty capsule holder in the spout ring.

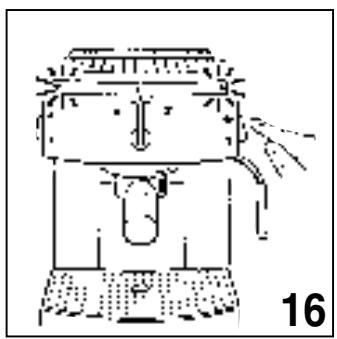

Press the steam / hot water switch to the position (16). Once the yellow temperature control light goes off, the machine is ready for use.

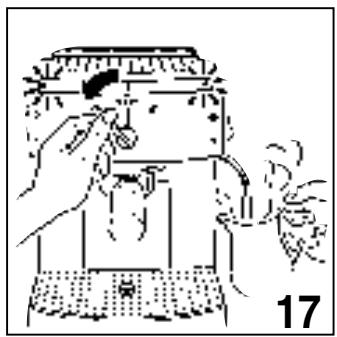

Plunge the steam nozzle into the receptacle and turn the function knob to the position on the left (17). The yellow temperature control light will go on.

Maintain the end of the nozzle under the surface of the milk during the entire procedure ensuring that it does not touch the base of the receptacle.

Stop the steam by turning the function knob to the «0» position. The yellow temperature control light will go off.

Remove the receptacle and pivot the steam nozzle over the drip tray. Remove the receptacle and pivot the steam / hot water nozzle over the drip tray. Warning ! The steam / hot water nozzle can become burning hot. Using the steam nozzle The steam nozzle is useful in making frothed milk for a cappuccino, or for heating a liquid. The water pump then works in an intermittent cycle. ENGLISH

Turn the function knob again to the position on the left for just a second in order to eliminate any residual milk that otherwise can block the steam nozzle. Wipe the integrated frothing attachment with a clean damp cloth. Important: To extract a Nespresso after having used the steam, let the machine cool down. To do this, insert the empty capsule holder into the spout ring, place a receptacle under the coffee spout and run the equivalent of one or two large cups of water by turning the function knob to the position on the right. Return the function knob to the «0» position. Once the yellow temperature control light goes off, the machine is ready for use. Heating liquids (18)

Stop the steam by turning the function knob to the «0» position. The yellow temperature control light will go off.

Remove the receptacle and pivot the steam nozzle over the drip tray.

Wipe the steam / hot water nozzle with a clean damp cloth immediately after its use. Important: To extract a Nespresso after having used the steam, let the machine cool down. To do this, insert the empty capsule holder in the spout ring, place a receptacle under the coffee spout and run the equivalent of one or two large cups of water by turning the function knob to the position on the right. . Return the function knob to the «0» position. Once the yellow temperature control light goes off, the machine is ready for use. You can also heat liquids thanks to the steam / hot water nozzle on this machine.

Turn on your machine by pressing the On/Off Switch to .

Press the steam / hot water switch to the position. Once the yellow temperature control light goes off, the machine is ready for use.

Slide the tube of the frothing attachment up 3-5 mm.

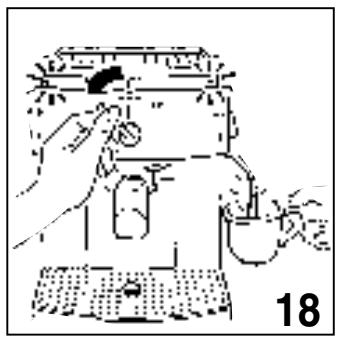

Plunge the steam nozzle into the receptacle containing the liquid to be heated and turn the function knob to the position on the left (18). The yellow temperature control light will go on.

Maintain the end of the nozzle under the surface of the liquid during the entire procedure ensuring that it does not touch the base of the receptacle. Preheating Cups It is highly recommended that you preheat the cups with very hot water before making the first Nespresso of the day. Subsequent cups can be preheated by stocking them on the cup heating plate.

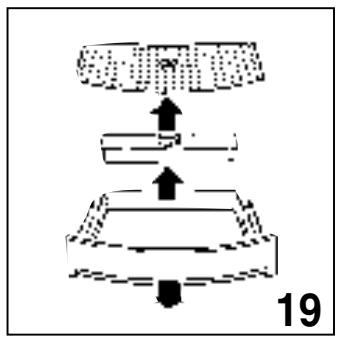

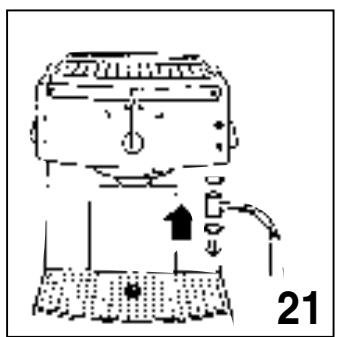

To preheat cups with the steam / hot water nozzle, follow the instructions given under the section on: “Preparing Hot Water”. Cleaning (19-21)

After the extraction of each Nespresso or the use of the steam / hot water nozzle, residual water in the thermoblock is discharged into the drip tray provoking a light hissing noise. It is therefore necessary to remove the grill and empty the drip tray (19) after about 20 coffees and, at same time, to clean them with a non-abrasive, dish washing liquid. Before reinserting the drip tray and grill, ensure that the back cover of the drip tray is properly in place (20).

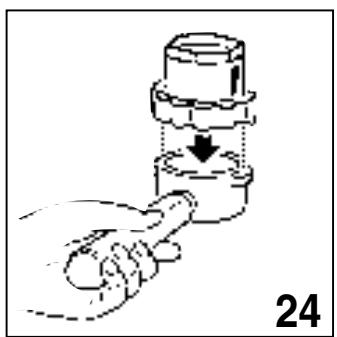

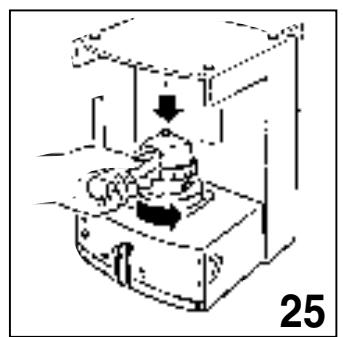

Put the hexagonal key on the capsule holder (24) and unscrew the capsule cage by turning the handle counterclockwise (25).

The capsule holder must be rinsed frequently. Either run hot tap water through it or simply insert the empty capsule holder in the spout ring and let water run through it while slightly loosening and re-tightening the capsuleholder to vary the pressure flow. Cleaning the capsule holder in the dishwasher is not recommended.

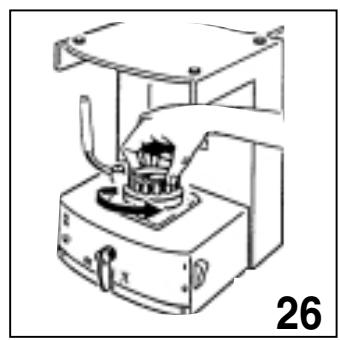

Finish unscrewing the capsule cage by hand (26).

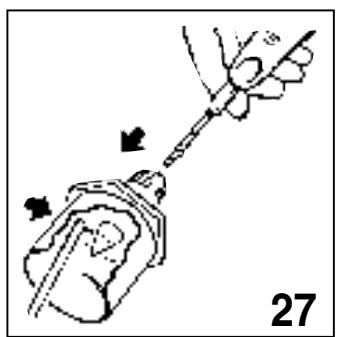

Rinse the capsule cage under running water. With the cleaning tool delivered with the machine, clean the two holes on either side of the water spout (27) as well as the water entry point of the capsule cage using the spiral end of the cleaning tool (27).

For optimal cleaning of your capsule holder, a specially conceived cleaning product is also available from your Nespresso Club. Clean the steam / hot water nozzle with a clean, damp cloth after each use. If the nozzle is blocked, unscrew it with the aid of a coin and remove the residue causing the blockage with a needle. Take this occasion to remove the integrated frothing attachment from the bottom part of the steam nozzle by unscrewing it with the help of a coin if necessary. Rinse all of the parts in hot water. When reconnecting the nozzle, ensure that the O-ring joints are put back properly into place (21) ! Cleaning the Capsule Cage (22-30) Warning ! Use the cleaning tool with care since improper handling can cause injury.

Blow through the capsule cage in the direction of the arrow (28) in order to remove any deposits.

Clean the two holes of the water spout with the cleaning tool a second time and blow through the capsule cage once again.

Coat the threads of the capsule cage with lubricant and ensure that the O-ring joint is put back properly into place (29).

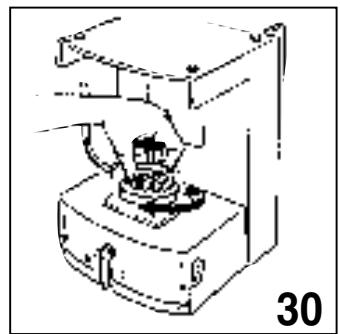

Manually screw the capsule cage back into the spout ring with the help of the hexagonal key (30). No not use the capsule holder to handle this procedure! The capsule cage is screwed into the bottom part of the thermoblock inside the spout ring. In order to clean it, follow the instructions below.

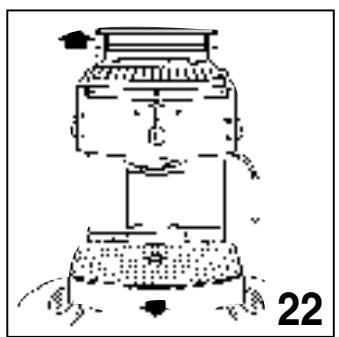

Turn off the machine and remove the water tank, the drip tray and the capsule holder (22).

Let the machine cool down.

For the perfect functioning of your machine and to maintain the optimum quality of your Nespresso, we recommend that you descale your machine regularly depending on the water hardness of your region. ENGLISH

For further information, contact your Nespresso Club who has products specially conceived for this purpose available to you.

The machine is delivered with a hexagonal key and cleaning tool that will be useful to you in descaling your machine. ENGLISH Warning! Never use vinegar.

Verify that the capsule cage is not blocked. To do this, remove the capsule holder from the spout ring, place a receptacle under the coffee spout and turn the function knob to the position on the right. If water does not flow freely (with two clearly visible water jets), clean and unblock the capsule cage (see the section on “Cleaning the Capsule Cage”).

Descale your machine (see the section on “Descaling”). Problem: Your Nespresso is not hot enough. Solution :

See the section on “Preheating Cups”.

Preheat the capsule holder by inserting it empty into the spout ring and running hot water through it (8). Problem: Problem: Coffee runs down the sides of the capsule holder. The pump makes a loud noise. Solution : Solution :

Ensure that the capsule holder is properly in place in the spout ring (12).

Clean the capsule holder preferably with the product specially conceived for this purpose (see the section on “Cleaning”).

Ensure that there is water in the water tank.

Verify that the water tank is properly in place. Problem: The milk for a cappuccino is not frothy enough. Solution :

Clean the steam nozzle and the integrated frothing attachment.

Only use cold, whole milk. For more detailed information, contact your Nespresso Club. Environment Problem: Coffee does not flow out. Solution :

Ensure that the capsule holder is properly in place in the spout ring (12).

Ensure that the water tank is properly in place and filled (4). Our packaging is made exclusively of recyclable materials. Check with your local authorities on how best to dispose of old machines. ENGLISH Solutions to Occasional Problems Lisez attentivement ce mode d’emploi avant d’utiliser votre machine Nespresso.
