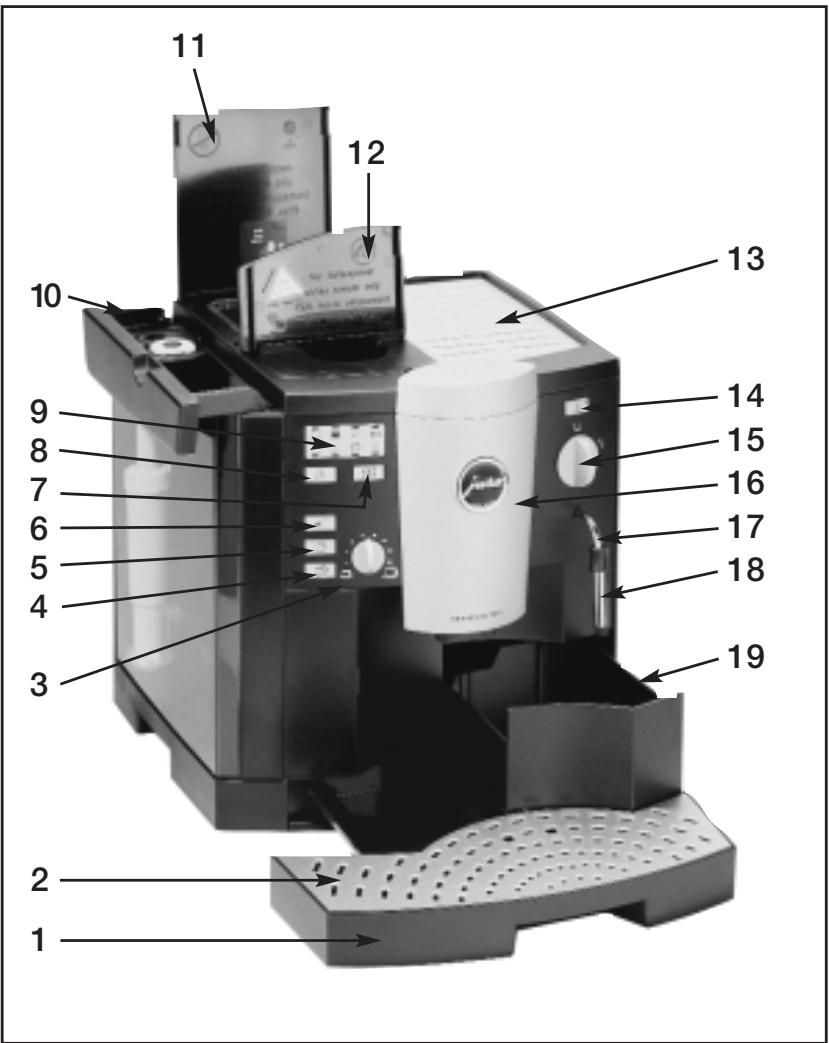

Operating elements Jura Impressa M30 1. Drip tray / Residual water container 2. Drip tray cover 3. Water volume selector switch 4. Draw-off button 2 cups 5. Draw-off button 1 cup 6. Selector switch powder coffee 7. Rinsing button 8. ON/OFF switch 9. Symbol field with warning lamps 10. Water tank with handle 11. Cover of bean container with aroma-protection lid 12. Cover of funnel for pre-ground coffee powder 13. Cup support 14. Steam selector switch 15. Selector switch for steam/hot water 16. Coffee spout

Contents Jura Impressa M30

1. Description... page 6 10. Switching off machine... page 11 1.1 Meaning of symbols in the display page 6 11. Care and maintenance …. page 11 2. Safety instructions... page 6 11.1 Fill waterpage 1l 2.1 Warnings .…. ere page 6 11.2 Empty ground container .…page 11 2.2 Safety precautions… page 7 11.3 Drip tray is missingpage ll 3. Check before use. . page 7 11.4 Removing foreign objects. . …page 11 3.1 Checking mains voltage. page 7 11.5 Clean machine page 12 3.2 Checking fuse page 7 11.6 Machine furred page 12 3.3 Filing water tank... page 7 11.7 Use of Claris filter cartridges .…page 12 3.4 Adding coffee beans .…page 7 11.8 General cleaning instructions..…page 12 3.5 Caramelised coffee beans..…..… page 7 11.9 Regular servicing page 12 3.6 Adjusting grinder page 8 11.10 Emptying the system. page 12 3.7 Adjusting for water hardness..….… page 8 12. Cleaning page 13 3.8 Adjustable automatic close-down . page 9 13. Descaling page 13 4. Preparing machine... page 9 14. Disposal Den a page 14 5. Rinsing the machine. page 9 15. Tips of a perfect coffee page 14 6. Adjusting water volume page 9 16. Reports .… page 15 7. Drawing off espresso/normal coffee ..…page 10 17. Problems.… page 16 7.1 Drawing off espresso/strong coffee. page 10 18. Legal information page 17 7.2 Drawing off powder coffee... page 10 19. Technical data page 17 8. Using steam... a page 10 8.1 Resetting to stand-l by status... page 11 9. Drawing off hot-water .…page 11

Important information for the user

Thank you for choosing this Jura product.

Please study these instructions carefully before using your new machine and keep them in a safe place for easy reference in the future.

Should you require further information or should particular pro- blems oceur that are not dealt with in these operating instructions in sufficient detail for you, then please ask you local dealer for the information you require or contact us directly.

This fully automatic espresso/coffee machine can prepare 1 or 2 eups of espresso/coffee of an excellent, professional quality with guaranteed froth. The unique Jura Pre Brew Aroma System/ P.B.A.S" also ensures complete use of the coffee aroma. The machine functions fully automatically at the press of a button. You have the choice of normal, strong or extra strong coffee to suit your personal preference. The integrated 6-phase grinder grinds the beans to precisely the fineness you require. À separate filler funnel also enables you to use additional sorts of pre-ground coffee. The amount water volume is individually adjustable. Electronic moni- toring of levels in the water tank and the ground container simplify operations. The integrated rinsing, cleaning and de-scaling pro- grammes facilitate care and maintenance.

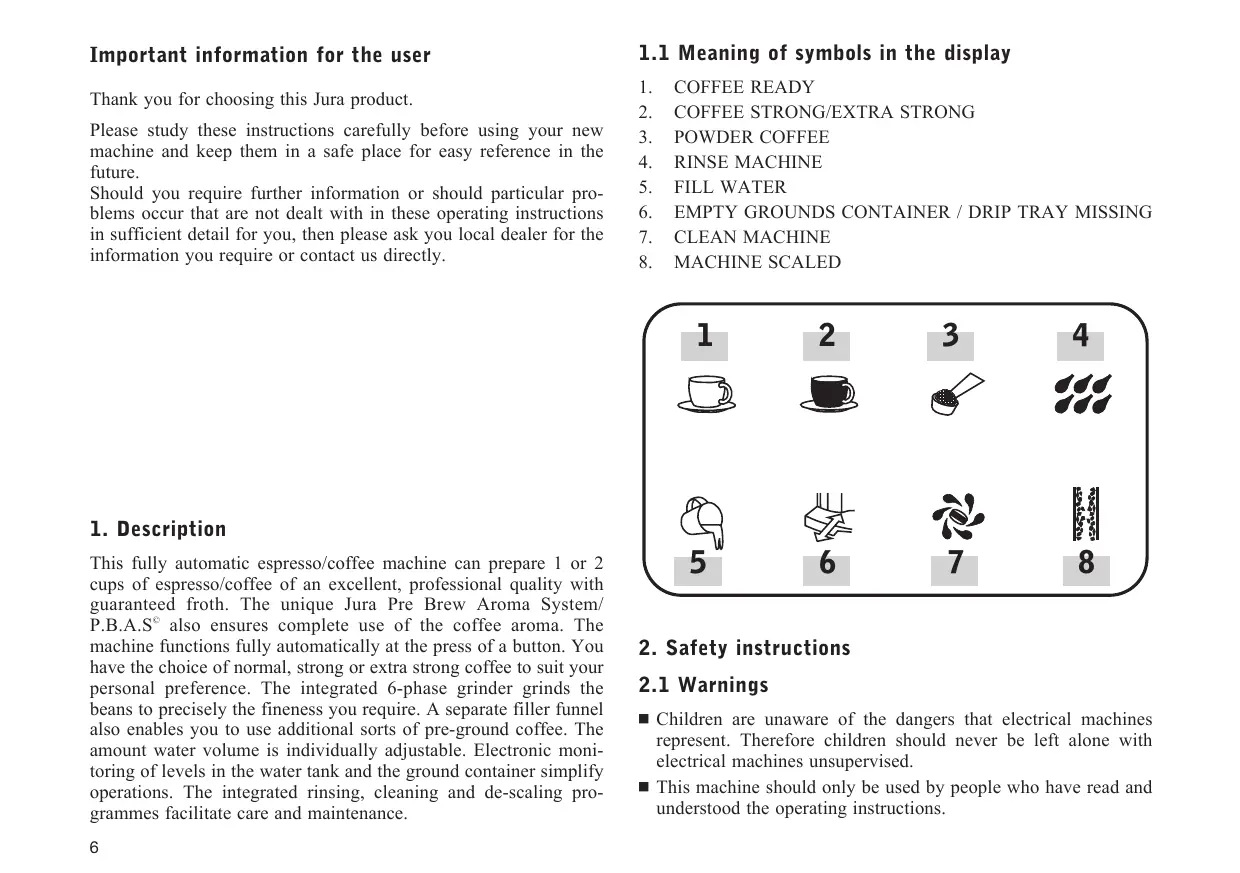

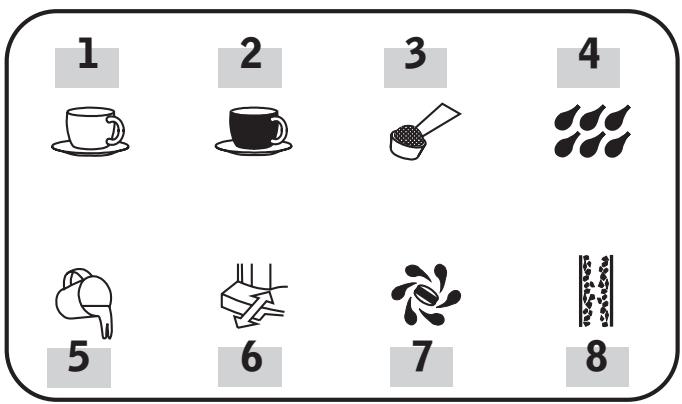

1.1 Meaning of symbols in the display

# Children are unaware of the dangers that electrical machines represent. Therefore children should never be left alone with electrical machines unsupervised.

m This machine should only be used by people who have read and understood the operating instructions.

m Never use a faulty machine or one with a damaged power cable. m Never immerse the machine in water.

2.2 Safety precautions

m Never expose the machine to the effects of rain, snow or frost and never operate it with wet hands.

m Place your espresso/coffee machine on a solid level surface. Never leave it on a surface that is warm or hot (hob etc.). Choose a location that is inaccessible for children or pets.

m Remove plug from power socket if an absence for a longer period of time (holidays etc.) is planned.

Always remove plug from power socket before cleaning. When removing plug from power socket, never tug on the cord or on the machine itself.

m Never repair or open the machine yourself. AII repairs should be performed only by authorised service centres using original Jura spare parts and accessories.

m The machine is connected to the mains power socket via an

electric cable. Ensure that no one trips over this cable and

pulls down the machine. Keep children and animals away.

Never put the machine or even parts of it in the dishwasher.

To prevent overheating put the machine in an airy place.

If you are using an acid-based descaling agent, it is important to

avoid any splashed or drips on sensitive kitchen surfaces, parti-

cularly those in natural stone or wood. If they do occur, they should be removed immediately.

3.1 Checking mains voltage

The machine is set for the correct voltage before leaving our factory. Ensure that your mains voltage corresponds to the details quoted on the rating plate attached to the bottom of the machine.

The machine is designed for a current of 10 amps. Check that an appropriate fuse is fitted.

# Remove water tank and rinse well with cold clean tap water.

m Fill the tank and replace it in the machine. Ensure that the tank clicks correctly into place.

Use only clean cold water. Never fill the tank with milk, mineral Water or any other liquid. You can also top the tank up with water without removing it from the machine. Simply pull up cover and pour water into the tank from above. Put cover back in its original position.

3.4 Adding coffee beans

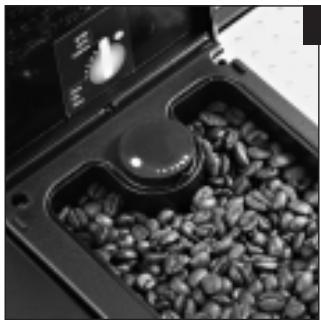

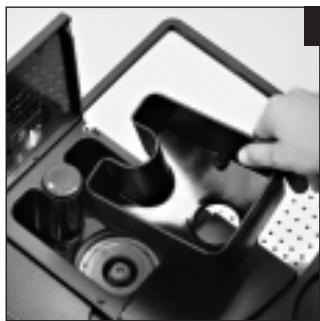

# Lift up the cover of the bean container (11) and remove the aroma-protection lid.

# Clean out any dirt or alien elements from the bean container.

# Fill the bean container with coffee beans, put the aroma-protec- tion lid back on and close the cover.

3.5 Caramelised coffee beans

Please remember that the grinder of your Jura coffee ma- chine is not suited for coffee beans which have been treated with additives (e.g. sugar) during or after roasting. Using such coffee mixtures can lead to damage to the grinder.

3.6 Adjusting grinder You can adjust the grinder to the roast of your coffee. We recom- mend the following:

for a light roast for a dark roast

— à finer adjustment — a coarser adjustment

m Open the cover of the bean container (11).

m To adjust grinding tum selector switch (Fig. 1) to the desired position.

m You have the following possibiliti

the smaller the dots, the finer the grinding the bigger the dots, the coarser the grinding

The grinding grade should only be adjusted while the grinder is working.

3.7 Adjusting for water hardness

The water is heated inside the machine. With use, this leads to calcium deposits (furring) forming on the machine. This is automa- tically indicated in the display. For this reason, it is necessary to adjust the machine to the hardness of your local water before you use it for the first time. Use the enclosed test-sticks for this purpose.

1° water hardness on the German scale represents 1.79° on the French scale.

The machine has got 5 hardness settings to choose from. The chosen grade is shown on the display

Level 0 = Setting for Claris filter cartridges The warning lamp H flashes. The display for automatic de-scaling is switched off.

Level 1 The warning lamp flashes. The warning lamp 4 lights up.

German water hardness 1 — 7° French water hardness 1.79 — 12.53°

Level 2 The warning lamp flashes. The warning lamps 4, & light up.

German water hardness 8 — 15° French water hardness 14,32 — 26.85°

Level 3 The warning lamp H flashes. The warning lamps 4, &, € light up.

German water hardness 16 — 23° French water hardness 28.64 — 41.14°

Level 4 The warning lamp H flashes. The warning lamps 8, &, &, & light up.

German water hardness 24 — 30° French water hardness 42.96 — 53.7°

In the factory, the machine is set to level 3. You can amend this setting. Please proceed as follows:

# Remove the mains plug with the cable from the cable box on the back of the machine.

2 Plug into the mains. # Do not switch the machine on.

draw-off button for about 3 seconds. a The H warning lamp flashes.

aThe Æ, &, & waming lamps light up.

# Now select the corresponding level with the #1 selector switch and press the Æ] switch to store the setting. The warning lamps go off.

It is only necessary to adjust the water hardness before the machine is used for the first time or when a different quality of water is used.

If no water hardness level is changed within 60 seconds, the display goes out and the last value programmed remains unchanged.

3.8 Adjustable automatic close-down

You can adjust the automatic close-down of 2 hours set by Jura to your own requirements. The machine provides 3 different levels:

1st Level Warning lamp £££ flashes. The automatic close-down is not activated.

2nd Level Warning lamp £££ flashes, warning lamps &, 4 light up. Automatic close-down is set to 2 hours.

3rd Level Warning lamp 45 flashes, warning lamps @, #, &, 4, & light up.

Automatic close-down is set to 5 hours.

To set or alter the automatic close-down follow the instructions below:

m Put the mains plug into the wall socket. æ Leave the machine switched off.

m Press ES draw-off button for about 3 seconds and choose the required setting by pressing 1 selector switch.

# Push button to store level in memory EÆ].

If no change to the setting level is made within 60 seconds, the warning lamps go out and the last level stored remains effective.

4. Preparing machine

# Switch your machine on with the switch.

m The warning lamp 2 and the small light in the steam selector switch (14) flash.

m Place an empty cup under the pivoting nozzle (17).

m Turn the selector switch for steam/hot water (15) to the V po- sition.

m Now the machine produce steam followed by water. The water flow is stopped automatically.

m Tum the selector switch for steam/hot water (15) back to the Li position.

5. Rinsing the machine

If warning lamp %££ light up, the machine needs rinsing.

m Place an empty cup under the coffee-spout (16). m Press FA rinsing button. The rinsing is stopped automatically.

If the machine has been switched off and has already cooled down it will be necessary to carry out this rinsing function when the machine is switched on again. After switching off the machine, the rinsing sets off automatically.

6. Adjusting water volume

Water volume is infinitely adjustable by means of the selector switch (3). The small cup means a small volume of water for espresso, the big cup means a larger volume of water for coffee. Il cup means a small volume of water for espresso, the big cup means à larger volume of water for coffee.

You can also change the water volume while coffee is being drawn off, Simply turn the selector switch for steam/hot water (3) to give more or less water.

If you press draw-of buttonthe machine automatically doubles the amount of water and divides it between two cups.

7. Drawing off espresso/normal coffee

Switch on the machine by pressing button. The machine is ready as

soon as the warning lamp C2 lights up.

m Place 1 or 2 cups under the coffee-spout (16) and press the appropriate button. The pre-brew function (P.B.A.S*) moistens the coffee powder, briefly interrupts the flow and then the real brewing process begins.

You can interrupt the flow of coffee at any time by simply pressing any one of the coffee buttons.

7.1 Drawing off espresso/strong coffee

m Place 1 cup under coffee-spout (16) and press the required button until the warning lamp 4 lighis up.

You can only draw off 1 cup of strong coffee at a time.

7.2 Drawing off powder coffee

m Press F1 selector switch.Warning lamps & and 3 light up.

æ Now put 1 or 2 levelled spoons of pre-ground coffee powder into the filling funnel for pregrownd coffee powder (12) (Fig. 2).

m Place 1 or 2 cups under coffee-spout (16) and press the coffee button required.

Never use soluble instant coffee or quick coffee. Only use coffee powder from freshly ground beans or pre-ground va- cuum-packed coffee. Never fill the funnel with more than L'or 2 portions at a time. The powder funnel is not in- tended as a storage container.

If 1 selector switch is pressed by mistake, this can be cor- rected by pressing FI draw-off button. The machine rinses. We recommend a regular cleaning of the funnel with a bottle-brush after drawing off powder coffee.

Steam can be used for heating up liquids as well as for frothing up milk for cappuccinos. To heat up liquids remember to push the frothing nozzle (18) up. For frothing up liquids push the nozzle down (Fig. 3).

m Press the selector switch (14) for about 1 second. The small light in the [5] selector switch lights up. The warning lamp L flashes.

= Immerse the frothing nozzle (18) into the milk you want to froth or the liquid you want to heat up and turn the selector switch for steam/hot water (15) to the Ÿ position.

= The machine gives off hot steam.

M In order to end the removal of steam, put the selector switch for Steam/hot water (15) back to the 41 position.

The max. drawing off time for steam is about 8 minutes. Due to the start frothing. This water should be drawn off before drawing off steam. However the perfect result (e.g. of froth- ing milk) is not influence.

[| When steam is first drawn off, there is a possibility of spat- tering. The pivoting nozzle becomes hot. Avoid direct contact with the skin.

8.1 Resetting to stand-by status

selector switch (14) once more. The small light in selector switch (14) goes off.

m The machine now goes into stand-by. This process is automatic and takes a few seconds.

Clean the pivoting nozzle with a moist cloth afier every draw-off of steam.

9. Drawing off hot water

m Place a cup under the pivoting nozzle (17) and turn the selector switch for steam/hot water (15) to the \ position. The machine now gives off hot water.

m During the draw-off of hot water, the warning lamp à flashes.

M In order to end the process, turn the selector switch for steam/hot water (15) back to the 41 position.

When hot water is first drawn off, there is a possibility of spattering and the risk of scolding. The pivoting nozzle becomes hot, Avoid direct contact with the skin.

10. Switching off machine

When the machine is switched off, the rinsing program is auto- matically run again. Place an empty cup under the coffee-spout (16) and press the F1 switch.

When the rinsing water has run into the cup, the machine powers down. Discard the water.

11. Care and maintenance 11.1 Fill water

When warning lamp & lights up no more coffee can be drawn off. Top up water as described in chapter 3.3.

11.2 Empty grounds container

The coffee grounds are collected in the grounds container. When the warning lamp € lights up, the draw-off buttons are blocked and you must empty the grounds container.

m Remove the drip tray (1). Be careful, as there is water in it.

M Empty and clean the drip tray and the grounds container, Put the drip tray and the grounds container back in again.

CE | Whenever grounds container is emptied, empty drip tray 100.

11.3 Drip tray is missing

If the drip tray is not replaced correctly, warning lamp 4 flashes.

When the drip tray is outside the machine you can take the opportunity to clean the inside of the machine. Wipe off any of coffee powder with a damp cloth. Then replace clean drip tray.

11.4 Removing foreign objects

# Switch your machine off with theÆ] switch. m Disconnect your machine from the mains.

M Open the bean container (11) and remove the beans. You can remove the rest of the beans with a vacuum cleaner.

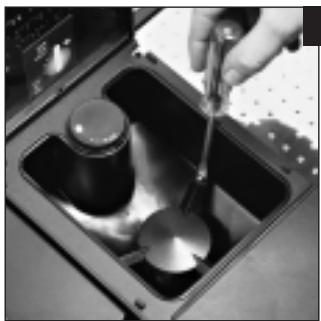

# Loosen the two screws in the bean container (Fig. 4) and then remove the bean container (Fig. 5).

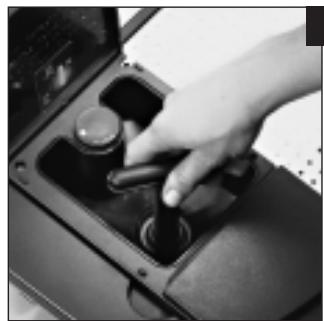

m Remove any more beans with a vacuum cleaner. æ Position the wrench (Fig. 6).

m Now turn the wrench in an anti-clockwise direction until the jammed foreign body comes loose.

æ Remove residue of powder with a vacuum cleaner. m Reposition the bean container and serew the screws back in

After 250 draw-offs or 180 rinse programme, the machine must be cleaned. The warning & will remind you. You can still draw off coffee and hot water/steam. However, we recommend that you clean the machine (point 12) within the next few days. The warn- ing lamp 2 then goes off after the complete cleaning process has been carried out.

Your machine will become furred in the course of normal use. The amount of furring depends on the hardness of your water. The ma- chine registers when descalcifying becomes necessary and signals this via warning lamp H. You can still draw off coffee and hot- water/ steam. However we recommend that you decalcify the machine (as described in chapter 13) within the next few days. Warning lamp H does not go out until the complete decalcifying process has been carried out.

11.7 Use of Claris filter cartridges

With the correct use of the Claris filter cartridges, de-scaling the machine becomes unnecessary. For further information, please read the instructions for use for the Claris filter cartridges. Insert the filter (Fig, 7).

Furring display must be switched off (as described in chapter 3.7) before using Claris filter cartridges.

11.8 General cleaning instructions

m Never use sharp or abrasive articles or corrosive chemicals to clean your machine.

æ Wipe down the casing inside and out using a soft damp cloth.

æ Clean the pivoting nozzle every time it is used.

M Afñer warming milk, draw off a little hot-water to clean the pivoting nozzle inside.

M For thorough cleaning, you can dismantle the frothing nozzle (Fig. 8).

m The water tank should be rinsed out and filed with clean water daily.

If you notice any furring in the water tank, this can be des- calcified separately with a customary decalcifying product. Remove the tank from the machine in order to do this.

E If a Claris filter cartridge is used, remove it beforehand.

Regular Jura services ensure your machine’s reliability and longer life. Keep the original packaging to protect the machine when it is transported.

11.10 Emptying the system

This process is necessary to protect the machine from frost damage while being transported.

# Switch the machine off with the [Æ] switch. m Place a container under the pivoting nozzle (17).

m Turn the selector switch for steam/hot water (15) to the position.

# Switch the machine on with the Æ] switch.

m Press the 14) selector switch for about 3 sec. After a short time, steam comes out.

= Draw off steam until the flow of steam is automatically inter- rupted.

= Turn the selector switch for steam/hot water (15) back to the 1: position and switch the machine off.

The machine has an integrated cleaning programme. It takes about 15 minutes.

Whenever the machine needs cleaning, warning lamp # lights up. You can still draw off coffee and hot water/steam and run the cleaning programme later.

Only use Jura cleaning tablets. They are available from your Jura dealer.

Once the cleaning process has started, it must not be inter- rupted.

# Switch the machine on with the FA switch.

m Press the F1 rinsing button for about 3 seconds. The warning lamps Q, &, & light up.

m Fill the water tank.

m Empty the drip tray and the grounds container and put them back again. The warning lamp 4 goes off.

m Place a container under the coffee spout (16) and press the rinsing button.

The flashing of the warning lamp tels you that the cleansing programme is activated.

The cleaning process is interrupted after some minutes. The war- ning lamp æ lights up on the symbol field.

# Now put a Jura cleaning tablet into the filling funnel for pre-gro- und coffee powder (12) (fig. 9) and press the E rinsing button.

The cleaning process is continued.

mifthe warning lamp {2 flashes and if the warning lamp & lights up, empty the drip tray and the grounds container and wait

for about 10 seconds before you put them back in again. The warning lamp & goes off. The cleaning process is completed.

After each cleaning process, the filling funnel for powder coffee should be cleaned. For this, remove it from the machine, Rinse it under hot running water and replace it after drying it well.

The machine has an integrated de-scaling programme. The process takes about 40 minutes.

If a Claris filter cartridge is used, your machine does not need to be de-scaled.

If the machine needs de-scaling, the warning lamp M lights up. You can continue to draw off coffee or hot water and run the de-scaling programme later.

Only use Jura cleaning tablets. They are available from your Jura dealer.

Only de-scale the machine when it has been switched off for at least 2 hours and has cooled down properly. The de-scal- ing programme is started with the machine switched off. Once it has started, the de-scaling process must not be inter- rupted.

[| If you use descaling agents containing acid, immediately

remove any splashes and drips on sensitive work surfaces, in particular natural rock and wooden surfaces, or take the cor- responding precautionary measures.

In any case, wait until the descaling agent has been used up and the tank is empty. Never top up with descaling agent.

# Switch the machine off with the switch and let it cool down for 2 hours.

m Press the FA rinsing button for about 3 seconds. The warning lamps &, &, H light up.

# Completely dissolve the contents of one blister (2 tablets) in 0.5 litres of water in a container and pour the mixture into the water tank.

2 Empty the drip tray and put it back in again. The warning lamp & goes off.

The flashing of the warning lamps M reminds you that the de-scal- ing process is activated. The de-scaling solution is guided into the drip tray in the inside of the machine.

m The small light in the lamp flash.

m Place a container under the pivoting nozzle (17).

# Turn the selector switch for steam/hot water (15) to the position.

m The warning lamp H flashes.

selector switch (14) and the À warning

The de-scaling process is continued.

= The warning lamps &, & light up. M Empty the drip tray and put it back in again. M Rinse the water tank thoroughly and fill it with fresh tap water.

æ Place a container under the pivoting nozzle (17) and press the F4 rinsing button.

m The warning lamp H flashes. The descaling process is continued.

m The small light in the lamp flash.

selector switch and the H warning

m Remove and empty the container.

2 Turn the selector switch for steam/hot water (15) to the 41 posi- tion.

The de-scaling process is continued. The de-scaling solution is guided into the drip tray in the inside of the machine.

a The warning lamp Là flashes, the warning lamp 45%, &E light up. M Empty the drip tray and the grounds container and put both of

them back in again, The warning lamp 457 lights up.

m Place a cup under the coffee spout (16). Then press the Æ4 rinsing button. Your machine rinses and is now ready for the next draw-off of coffee.

For correct disposal, you should return your coffee machine to your dealer, Jura service centre or Jura Elektroapparate AG.

15. Tips for a perfect coffee Grinding Please see chapter 3.6.

You should warm eups in advance with hot water or steam. The smaller the quantity of coffee, the more important warming the cups is.

Warmth is lost by stirring the contents of the cup. Adding milk or cream from the refrigerator considerably lowers the temperature of the coffee.

& lights up Grounds container full Empty grounds container Drawer replaced too early after Only insert drawer after 10 seconds emptying

Machine too cold (under +10°C)

Leave temperature for 1 hours

Switch machine off, remove plug, insert plug again, start machine again

Carry out cleaning according to Section 12

De-scaling necessary

Carry out de-scaling according to Section 13

Coffee flow is stopped after = pre-brewing _

Beans container is empty Not enough coffee powder

Fill in beans Measure powder correctly

Grinder is extremely noisy =

Alien element in grinder

Remove alien elements (Section 11.4) Drawing off powder coffee is still possible

Unsuitable milk-type Frothing nozzle blocked Frothing nozzle in wrong

Use full cream milk Clean frothing nozzle Drawing off steam (see chapter 8)

If none of the remedies listed above help, please contact your dealer or get in touch with Jura Elektroapparate AG.

18. Legal information

These operating instructions contain all the information necessary for the correct use, operation and maintenance of your espresso/ coffee machine.

Understanding and complying with the directions contained in these operating instructions are essential to ensure that the machi- ne is utilised without risk and to ensure safety during operation and maintenance.

These operating instructions cannot cover all the possible ways in which this machine may be used. This machine has been designed for private use in households.

We would further point out that the contents of these operating instructions in no way constitute a part of, or alter, any previous or existing contract, agreement or legal relationship. AII obligations on the part of Jura Élektroapparate AG result solely from the rele- vant sales agreement which also contains full details of the only warranty terms valid in respect of this machine. The contractual terms of this warranty are neither extended not limited in any form by the information in these operating instructions.

These operating instructions contain information that is protected by copyright. The photocopying or translation into any other language of these instructions without prior written authorisation from Jura Elektroapparate AG is strictly prohibited.

Voltage: Output: Fuse: Weight:

Dimensions (B x D x H): 41

Water tank: Safety directives:
