USER MANUAL WQ45G202GB SIEMENS

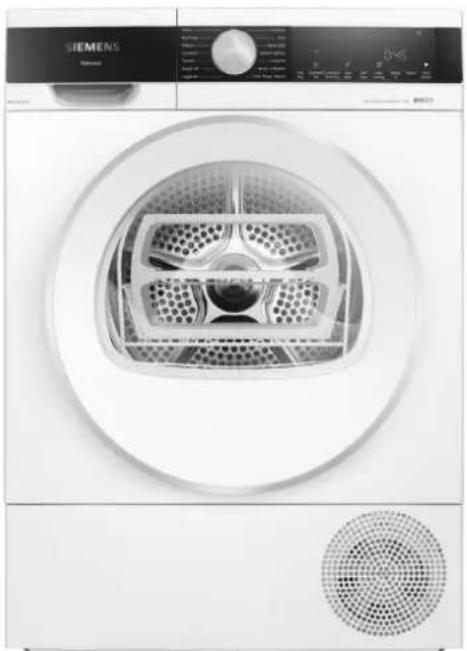

iQ500, Heat pump tumble dryer, 9 kg WQ45G202GB

Optional accessories

WZ27400 Stacking kit with pull-out shelf WZ27410 Stacking kit

Outstanding laundry performance with A+++, selfCleaning condenser and autoDry for gentle and even drying of your garment.

√ Energy label A+++ energy-efficient drying,
√ selfCleaning condenser: removes fluff to save you time and effort.
√ Reversible drum – prevents large laundry items from tangling by alternating the drum rotation.
√ speedPack – Save time with our fast and highly efficient dryers.
√ autoDry – gentle and precise drying that protects your clothes.

Features

Technical Data

Removable top: No

Built-in / Free-standing: ......Freestanding

Door opening: Right

Length electrical supply cord: 180 cm

Dimensions: 842x598x613 mm

Weight: 55.6 kg

Fluorinated greenhouse gases:....R290

Hermetically sealed equipment: Yes

EAN code: 4242003972748

Connection Rating: 600 W

Fuse protection: 10 A

Nominal power: 220-240 V

Frequency: 50 Hz

Capacity: 9.0 kg

Energy efficiency rating: A+++

Energy consumption electric dryer, full load - NEW (2010/30/EC): 1.60 kWh

Energy consumption electric dryer, partial load - NEW (2010/30/EC): 0.89 kWh

Condensation efficiency class - NEW (2010/30/EC): ......B

Average condensation efficiency full load (%): 88%

Average condensation efficiency partial load (%): 88%

iQ500, Heat pump tumble dryer, 9

kg

WQ45G202GB

Features

Performance

• Energy Efficiency Class ¹ : A+++
- Energy ² : 193 kWh
- Capacity: 1 - 9 kg
- Programme time ³ : 195 min
- Noise level: 61 dB (A) re 1 pW
- Condensation efficiency class ⁴ : B
• Condensation efficiency ⁵ : 88 %

Programmes/functions

• Standard programmes: cotton, easy care
• Bed Linen Program: reduces tangling of big items thanks to reversible drum
• Special programmes: cotton, shirts, Cotton Eco, lingerie, towels, pillows, mixed fabrics, outdoor, rapid 40, easy-care, wool drying in basket, timed programme warm

Key features

• Anti crease cycle 120 min at the end of the programme
  • Half Load option: optimises drying for smaller loads
• Touch control buttons: Iron dry, Cupboard dry, Cupboard dry+, end time delay, less ironing, low heat, buzzer, Start / Reload / Pause, 24 h end time delay

Additional features

• SC1R
- Speed
- Fully electronic control dial for sensor and timed programmes
- Large LED display for remaining time and 24 hours time delay, programme progress indication and special functions
- Load recommendation
• Usage meter: counts completed programmes
- soft dial
- Sensitive drying: large softDry stainless steel drum system and revolution drying system
• AntiVibration design: for greater stability and quietness
- Wool drying basket
- Drum interior light
- Container for condensed water
- Child lock
• End of cycle buzzer
- NewValue door with cover glass, Alu-Look, white
- Door hinge: right-hand
- Metal door catch

Technical Information

• Slide-under installation
  • Dimensions (H x W): 84.2 cm x 59.8 cm
  • Appliance depth: 61.3 cm
  • Appliance depth incl. door: 64.8 cm
  • Appliance depth with open door: 109.6 cm

• Heat pump technology with climate friendly cooling agent
¹ At a range of energy efficiency classes from A+++ to D
² Energy consumption kWh per year, based on 160 drying cycles of the standard cotton programme at full and partial load, and the consumption of the low power modes
³ Programme time of the standard cotton programme at full load
⁴ On a condensation efficiency class scale from A to G
⁵ Weighted condensation efficiency for the standard cotton programme at full and partial load

iQ500, Heat pump tumble dryer, 9

kg

WQ45G202GB

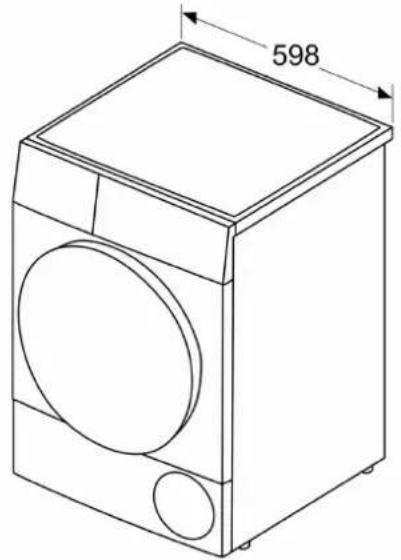

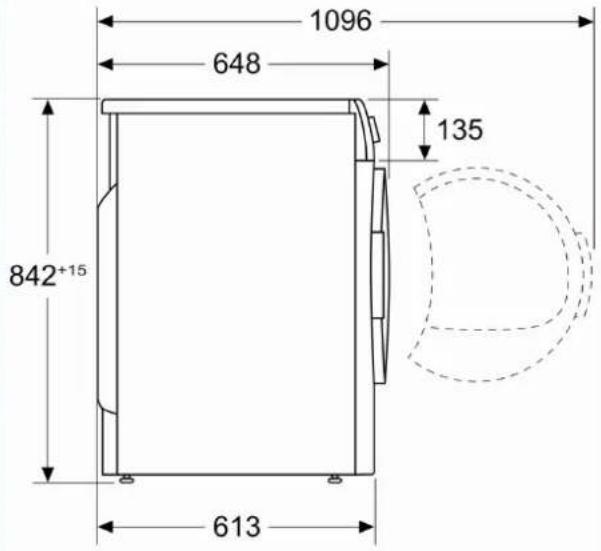

Dimensioned drawings

Measurements in mm

Measurements in mm
