WPN94A1SW - Washing machine GORENJE - Free user manual and instructions

Product Type	Freestanding washing machine
Brand	Gorenje
Model	WPN94A1SW
Color	White
Load Capacity	9 kg
Maximum Spin Speed	1400 rpm
Energy Class	A+++
Number of Programs	16
Display	LED Display
Drum Volume	62 L
Noise Level (Wash/Spin)	56 / 76 dB
Water Consumption per Cycle	55 L
Dimensions (W x H x D)	60 x 85 x 60 cm
Weight	66 kg
Power Supply	220-240 V, 50 Hz
Rated Power	2200 W
Key Functions	Delay Start, Child Lock, Rapid Wash
Drum Material	Stainless Steel
Maintenance	Clean detergent drawer and pump filter periodically
Safety Features	Overflow protection, child lock
Spare Parts Availability	10 years after purchase

Frequently Asked Questions - WPN94A1SW GORENJE

What is the maximum load capacity of the Gorenje WPN94A1SW?

The maximum load capacity is 9 kilograms. Make sure not to overload the drum to ensure optimal washing results and to protect the machine's components.

Can I adjust the spin speed?

Yes, the washing machine offers variable spin speeds up to 1400 rpm. You can select a lower speed for delicate fabrics to reduce creasing.

How do I clean the detergent drawer?

Remove the detergent drawer by pulling it out firmly and pressing the release button. Rinse it under warm water and clean the compartments with a soft brush. Dry it before reinserting.

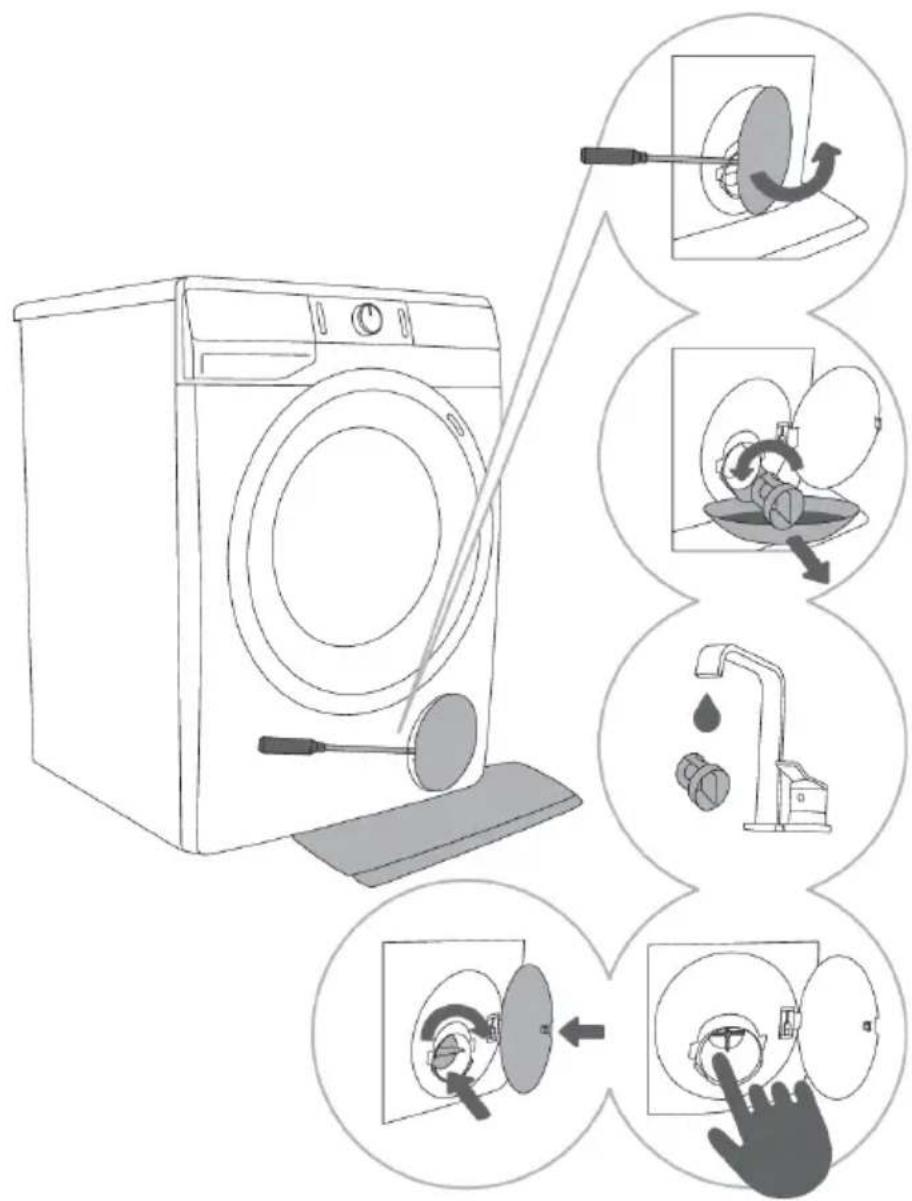

How do I clean the drain pump filter?

Open the lower cover at the front with a screwdriver or coin, place a shallow container underneath, and unscrew the pump filter clockwise. Remove any debris and rinse it. Replace and secure it properly.

What should I do if the machine vibrates during operation?

Check if the transport bolts are removed (if still present). Then adjust the levelling feet to ensure the machine is stable on the floor. Also avoid overloading the drum.

Does this washing machine have a child lock?

Yes, it is equipped with a child lock function. Activate it via the control panel to lock the buttons and prevent accidental setting changes during a wash cycle.

How can I use the delay start function?

Press the Delay Start button repeatedly to set a delay from 1 to 24 hours. The machine will start the wash cycle after the selected delay, allowing you to time your laundry.

What is the energy efficiency class?

This model is rated energy class A+++ for its excellent efficiency. This means lower electricity consumption and reduced environmental impact compared to lower-rated machines.

Can I wash a duvet or large bedding items?

Yes, there is a duvet/bulky program specifically designed for large items. Make sure the duvet is placed evenly in the drum and do not exceed the recommended maximum load.

What should I check if the machine does not start?

First, make sure the power cord is plugged in and the water tap is open. Check that the door is closed correctly. Also ensure that the child lock is not activated. If the problem persists, consult the troubleshooting section.

USER MANUAL WPN94A1SW GORENJE

Lifeiscomplicatedtoday. Let'smakelaundrycaresimple! Yournewwashing machine uses innovativetechnology and latest achievements in laundry care to help you simplify your daily household chores.

Thelatesttechnologyusedinourwashingmachineensuresthegentlestcareforeach garmentwithminimumcreasing.Atthesametime,yourwashingmachinewillbeeasy ontheenvironment,owingtoitshighlyefficientuseofpower,wateranddetergent.

This washing machine is intended solely for household use. Pleased on to use it for any laundry labelled as not suitable for machine washing.

The following symbols are used throughout the manual and they have the following meanings:

INFORMATION!

Information, advice, tip, or recommendation

WARNING!

Warning-general danger

ELECTRICSHOCK!

Warning-dangerofelectricshock

HOTSURFACE!

Warning-dangerofhotsurface

DANGEROFFIRE!

Warning-dangeroffire

It is important that you carefully read the instructions.

Contents

SAFETY PRECAUTIONS 5

Child safety 8

Danger of hot surface 9

10WASHIN

Technical data 11

Compliance information 12

Control unit 13

Removing the blocking rods 16

Moving and transport after installation 16

Selecting the room 17

Adjusting the washing machine feet 18

Positioning the washing machine 19

Connection to water supply 21

Connecting to the power mains 24

WASHING PROCESS, STEP BY STEP (1-7) 28

Step 1: Heed the labels on the laundry 28

Step 2: Preparing the washing process 29

Program chart 33

Remote control of wash using the app 39

Step 4: Selecting extra functions .... 40

Step 5: Selecting additional functions .... 45

Extra function table 46

Step 6: Starting the washing programme 48

Step 7: End of the washing programme .... 48

Manual interruption 49

Personal settings 49

Personal settings menu 49

Pause button 49

Errors 50

Power supply failure 50

50Opening1

51Displayin

Cleaning the dispenser tray 52

Cleaning the pump filter 54

Cleaning the washing machine exterior 55

TROUBLE-SHOOTING 56

What to do ...? 56

Troubleshooting and error table 56

Service 62

RECOMMENDATIONSFORWASHINGANDECONOMICUSEYOURWASHING

MACHINE 64

Stain removal tips 67

Low standby mode 68

69TYPICAL

LABEL 72

73PRODUC

DISPOSAL 75

Carefullyreadtheinstructionsforusebeforeusing washingmachine.

Please, donotusethewashingmachinewithoutreading and understanding these instructions or use first.

Theseinstructionsforuseofawashingmachineare suppliedwithdifferenttypesormodelsofwashing machines.Therefore,theymayincludedescriptionsof settingsorequipmentthatarenotavailableinyourwashing machine.

Failuretoobservetheinstructionsforuseorinappropriate useofthewashingmachinemayresultindamagetothelaundry ortheappliance,orinjurytotheuser.Keeptheinstruction manualhandy,nearthewashingmachine.

This appliance is intended to be used in household and similar applications, such as:

• staffkitchenareasinshops, officesandotherworking environments;
• farmhouses;
• byclientsinhotels, motelsandotherresidentialtype environments;
  • bedandbreakfasttypeenvironments.

Thisappliancemustnotbeusedin:

- areasforcommunaluseinblocksofflatsorlaunderettes.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by person responsible for their safety.

WARNING!

Thewashingmachinemayonlybeusedwiththe suppliedpowercord.

ELECTRICSHOCK!

Toavoddanger, adamagedpowercord may only be replaced by the manufacturer, aservicetechnician, or an authorized person.

WARNING!

Donotconnectthewashingmachinetopowermainsusing anexternalswitchingdevicesuchasaprogrammetimer, orconnectittopowermainsthatisregularlyswitchedon andoffbythepowersupplyprovider.

Instructionsforuseareavailableonourwebsiteat www.gorenje.com.

FollowtheinstructionsforcorrectinstallationoftheGorenje washingmachineandconnectiontothewaterandpowermains (seechapter»INSTALLATIONANDCONNECTION«).

Connection to water and powers supply hast to be executed by an adequately trained technician expert.

Anyrepairandmaintenancepertainingtosafetyorperformance shouldbedonebytrainedexperts.

Donotinstallthewashingmachineinaroomwherethe temperaturecandroptobelow5°C,aswashingmachine partsmaybedamagedincaseofwaterfreezing.

Theventilationopeningsinthebaseofwashingmachinemust notbeobstructedbyacarpet.

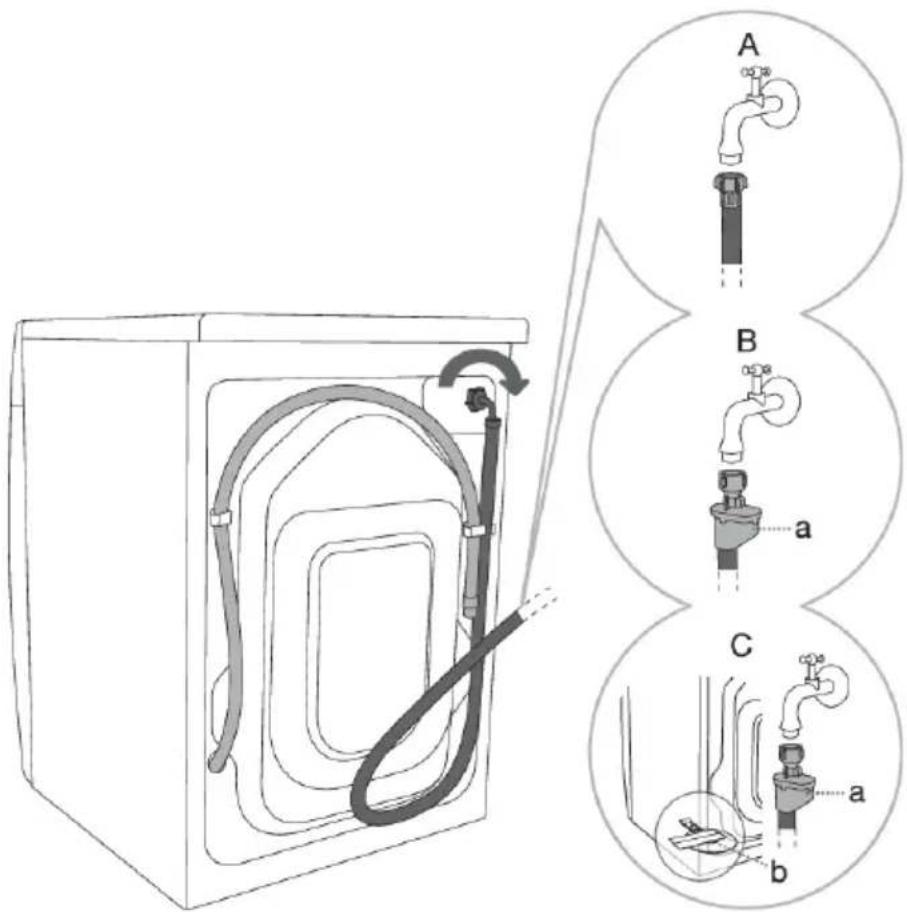

Toconnectthewashingmachinetowatersupply, make suretousethesuppliedwatersupplyhoseandgaskets. Water pressuremustbebetween0.05and0.8MPa(0.5–8bar).

Alwaysuseanewwatersupplyhosetoconnectthewashing machinetowatersupply;donotreuseanoldwatersupply hose.

The end of the water discharge hoses should reach into a water drain line.

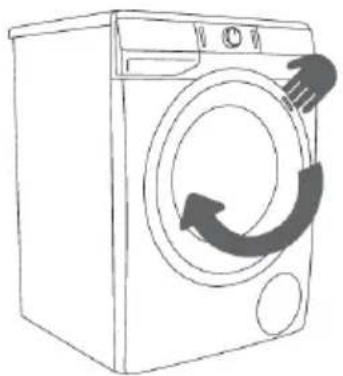

Beforethestartofthewashingcycle,pressthedooronthe indicatedspotuntilillocksintoplace.Thedoorcannotbe openedduringwashingmachineoperation.

Werecommendremovinganyimpuritiesfromthewashing machinedrumbeforethefirstwashusingtheCotton90°C programme(seePROGRAMMETABLE).

Afterthewashingcycle,closethewatertapandpullout thewashingmachineplugfromthepowersocket.

Onlyusethewashingmachineforwashinglaundry,as describedintheinstructionmanual. Themachineisnot intendedfordrycleaning.

Nosilverionsarereleasedduringthewashingprogramme.

Onlyuseagentsformachinewashingandcareoflaundry.We shallnotberesponsibleforanydamagesordiscolourationof gasketsandplasticpartsresultingfromincorrectuseof bleachingorcolouringagents.

Whendescaling,onlyusedescalingagentswithadded anti-corrosionprotection.(Onlyusenon-corrosivedescaling agents.)Followthemanufacturer'sinstructions.Finishthe descalingprocesswithseveralrinsecyclesorbyrunningthe Drumclean(Self-cleaningprogramme)inordertoremoveany residualacid(e.g.vinegaretc.).

DANGEROFFIRE!

Donotusedetergentsthatcontainsolventsasthiscould leadtoreleaseofpoisonousgases,damagetothewashing machine,andriskoffireandexplosion.

Childsafety

WARNING!

Childrenoflessthan3yearsshouldbekeptawayunless continuouslysupervised.

Childrenshouldbesupervisedtoensurethattheydo notplaywiththeappliance.

Keepthedetergentandconditioneroutofreachof children.

Activatethechildlock.Seechapter»CHOOSINGTHE SETTINGS/Childlock«.

Beforeclosingthewashingmachinedoorandrunningthe programme,makesurethereisnothingexceptlaundryinthe drum(e.g.ifachildclimbedintothewashingmachinedrum andclosedthedoorfromtheinside).

Thewashingmachineismadeincompliancewithall relevantsafetystandards.

Thisappliancecanbeusedbychildrenagedfrom8yearsandaboveandpersonswithreducedphysical,sensoryormentalcapabilitiesorlackofexperienceandknowledgeiftheyhavebeingivensupervisionorinstructionconcerninguseoftheapplianceinasafewayandunderstandthehazardsinvolved.

Childrenshallnotplaywiththeappliance.

Cleaningandusermaintenance, shall not be made by children without supervision.

Dangerofhotsurface

HOTSURFACE!

Athigherwashingtemperatures,thedoorglasswillheat up.Becarefultoavoidburns.Makesurechildrendonot playnearthedoorglass.

WASHINGMACHINEDESCRIPTION

2.Start/pausebutton2.Powercord
4. On/offbutton4. Adjustablefeet
5. Detergentcompartment
6. Door
7.Ratingplate
8.Pumpfilter

BACKFRONT

1.Watersupplyhose1.Controlunit
3. Waterdischargehose3. Programselectorknob

Technicaldata

(dependingonthemodel)

Ratingplatewithbasicinformationaboutthewashingmachineislocatedontheinnersideofthe washingmachinedoor(seechapter»WASHINGMACHINEDESCRIPTION«).

	SeeratingplateMaximumload
			600mm600mm600mm
			850mm850mm850mm
			610mm545mm465mm
			640mm577mm495mm
			1125mm1062mm980mm
	Xkg(dependingonthemodel)Washingmachineweiglt
	SeeratingplateRatedvoltage
	SeeratingplateNominalpower
	SeeratingplateConnection
	SeeratingplateWaterpressure
	SeeratingplateCurrent
	SeeratingplateFrequency
	SeeratingplateMaximumload

Ratingplate

LinktotheEUEPRELdatabase

From1March2021, informationonenergylabellingandecodesignrequirementsisavailableinthe EUEPRELproductdatabase.

TheQRcodeontheenergylabelsuppliedwiththeappliancecontainsaweblinkthroughwhichyou canfindyourregisteredapplianceintheEUEPRELdatabase.

InformationregardingtheperformanceoftheproductcanalsobefoundintheEUEPRELdatabase, whichisaccessibleviathelinkhttps://eprel.ec.europa.euwhereyouhavetoenterthemodeland productnumber;bothareindicatedontheratingplateontheappliance.Onthewebsite www.theenergylabel.euyoucanfindmoredetailedinformationabouttheenergylabel.

Keeptheenergylabelincaseitisneededinthefuture,togetherwiththeusermanualandother documentssuppliedwiththisappliance.

Complianceinformation

	HL3215STGRadioequipmenttypeHLW3215-TG(dependingonthemodel)HLW3215-TG01
Wi-Fi
	2.4000GHz-2.4835GHzOperatingfrequencyrange
	≤10dBm/MHz(EIRP)(Antennagain<10dBi)Maximumoutputpower
	Gain:0dBiMaximumantennagain
Bluetooth
	2.400GHz-2.4835GHzOperatingfrequencyrange
	6dBm(≤10dBm)Carrieroutput
	F1DEmissiontype

Declarationofconformity

The company declares that the device with the function Connect Life complies with the essential requirements and other relevant provisions of Directive 2014/53/EU. The detailed Declaration of Conformity can be found at the web address https://auid.connectlife.io on the page of your device among the additional documents.

Controlunit

1	ON/OFFBUTTONUsethisbuttontoturnthewashingmachineonandoff,andtoresetthewashingprogramme.

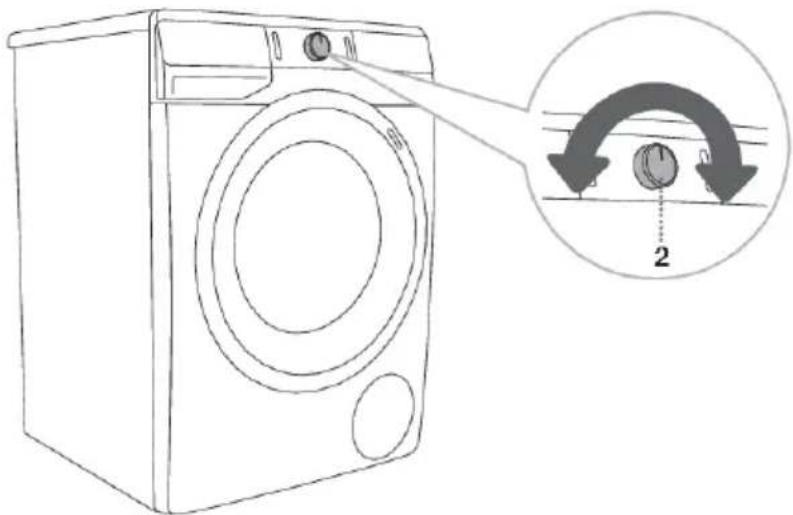

	PROGRAMMESELECTORKNOB2
3	START/PAUSEBUTTONUsethisbuttontostartorpauseaprogramme.Uponstart-uporduringpause,thebuttonlightwillflash;whentheprogrammeisstarted andinprogress,itwillbelitcontinuously.
4	WASHINGTEMPERATURE °COptiontosetwashingtemperature
4+5	PREWASHON/OFPressthepositions4+5andholdthemfor3seconds.
5	SPIN(SPINNINGRATEMAX/DRAIN/PUMPSTOP) Optiontosetthespinningrate.
5+6	ChildlockON/OFPressthepositions5+6andholdthemfor3seconds.
6	OPTIONS(EXTRAFUNCTIONS):ANTICREASE(CREASEPREVENTION)Optiontoactivatethegentlewashfunction.WATER+(EXTRAWATER)Optiontosetahigherwaterlevel.STEAM Optiontoactivatethelaundryrefreshfunction.
	SoundON/OFF6+7Pressthepositions6+7andholdthemfor3seconds.
7	FAST(FAST)Optiontosetashorterwashingprogrammetime.
8	DELAYEND(DELAYINGTHEENDOFTHEWASHINGPROGRAM)Optiontosetthetimeofwashingprogrammecompletion.
7+8	SWITCHINGON/OFFtheWi-Ficonnection Pressthepositions7+8.
9	SymbollightingANTICREASE(CREASEPREVENTION)
10	SymbollightingSTEAM
11	SymbollightingWATER+(EXTRAWATER)
12	SymbollightingPREWASH(PREWASH)
13	SymbollightingFAST(FASTWASH)
14	ThefollowingisdisplayedontheDISPLAYUNIT:•Availablefunctions;•Timeremainingtoprogrammecompletion;•Informationfortheuser.
15	LightingofthesymbolCONNECT(CONNECTION)
16	LightingoftheREMOTESTARTsymbol(REMOTESTART)

INFORMATION!

Formodelswithspinningspeedshigherthan1200rpm,theinscriptionmaxwilllightuponthe display.

Formodelswiththehighestspinningspeedof1200rpm,theinscriptionmaxonthedisplaywill neverlightup.

INSTALLATIONANDCONNECTION

INFORMATION!

Removeallpackaging.Whenremovingthepackaging,makesurenottodamagethedryerwith asharpobject.

Removingtheblockingrods

WARNING!

Before the first use of the appliance, transport rod must be removed. A blocked washing machine may be damaged when it is switched on for the first time. Warranty shall be void in cases of such damage!

1 Movethehosesand undothescrewsontheback ofthewashingmachine. Removethetwoangular pieces.

2Slidetheangularpieces ontothegroveinthe blockingrod;beforedoing so,rotatetherightangular piecetotheoppositeside.

3 Usetheangularpieces torotatetheblockingrods by90°andpullthemout.

4 Coverthetwoholes throughwhichtheblocking rodswereinsertedwith plasticplugs,andredothe screwsthatyouundidin step1.

5 Inserttheplugintothe holelocatedatthelower left-handsideofthebackof thewashingmachine.

Theplasticplugsaresuppliedinthebagwiththewashingmachineinstructionmanual.

Movingandtransportafterinstallation

INFORMATION!

If you wishtomovethewashing machine after ithas been installed, the angular pieces and at least one blocking rod shavetobere - installed to prevent vibration damage to the washing machineduring transport (see chapter »INSTALLATIONANDCONNECTION/Removing the blocking rods«). If you lost the angular pieces and the blocking rods, they can be ordered from the manufacturer.

Selectingtheroom

INFORMATION!

Flooronwhichthewashingmachineisplacedmusthaveaconcretebase.Itshouldbeclean anddry;otherwise,thewashingmachinemayslide.Also,cleanthebottomsurfaceofadjustable feet.

INFORMATION!

Thewashingmachinemuststandlevelandstableonasolidbase.

INFORMATION!

If the washing machine is placed on an elevated stable base, the washing machine has to be additionally secured against tipping.

Adjustingthewashingmachinefeet

UseawaterscaleandspannerNo.32(forfeet)and17(forthenut).Thespannersarenotsupplied.

1 Levelthewashing machineinlongitudinaland traversedirectionbyrotating theadjustablefeet.

2 Afteradjustingtheheight ofthefeet, firmlytightenthe jamnuts(counternuts)using aspannerNo17, byturning themtowardsthebottomof thewashingmachine(see figure).

INFORMATION!

Incorrectlevellingofthewashingmachinewiththeadjustablelegsmaycausevibration, appliance slidingacrosstheroom,andloudoperation.Incorrectlevellingofthewashingmachineisnot subjecttowarranty.

INFORMATION!

Sometimesunusualorloudernoisemayappearduringapplianceoperation;thesearemostly theresultofimproperinstallation.

Positioningthewashingmachine

If you also have a Gorenjedryer of corresponding (same) dimensions, it can be placed on top of the Gorenjewashing machine (in this case, vacuum feet must be used) or next to it (figures 1 and 3).

If your Gorenjewashing machine is smaller (minimum depth 545mm), than your Gorenjedryer, then the dryersupport hastobepurchased extra (figure 2). The supplied vacuum feet must be used; they are designed to prevent the dryer from slipping.

Additionalequipment(dryersupport(a), vacuumfeet(b) and wallfixingbracket(c)) can be purchased at the service centre.

Thesurfaceonwhichtheapplianceisplacedshouldbecleanandlevel.

GorenjewashingmachineontowhichyouintendtoplacetheGorenjedryershouldholdtheweight oftheGorenjedryer(seechapter»WASHINGMACHINEDESCRIPTION/Technicalinformation«).

Washingmachineinstallationclearances

1

2

INFORMATION!

Thewashingmachinemaynotbeincontactwithawalloradjacentfurniture. Foroptimum washingmachineoperation, were recommend observing the clearances from the walls as indicated in the figure. In case off failure to observ the minimum required clearances, safe and correct washing machine operation cannot be ensured. Moreover, overheating can also occur (figures 1 and 2).

INFORMATION!

Installingthewashingmachineunderacountertopisnotrecommended.

Openingthewashingmachinedoor(bird's-eyeview)

Seechapter»WASHINGMACHINE

DESCRIPTION/Technicalinformation«).

a=washingmachinedepth

b=depthwithdooropen

Connectiontowatersupply

Attachthehosetothewatertapbyscrewingitontothethread.

A STANDARD CONNECTION

BAQUA-STOP CONNECTION

C TOTALAQUA-STOP CONNECTION(WITHA FLOAT)

INFORMATION!

Fornormalwashingmachineoperation, the pressure in the water main should be between 0.05 and 0.8 MPa (0.5–8 bar). Minimum dynamic water pressure can be determined by measuring the waterfall.

In30seconds,1.2litresofwatershouldflowfromafullyopentap.

INFORMATION!

Tightenthewatersupplyhosebyhand, firmlyenoughforthehosetohaveagoodseal(max.2Nm). Afterconnectingthehose, thesealmustbecheckedforanyleaks. Donotusepliersor similartoolswhenconnectingthehoseasthiscoulddamagethenutthread.

INFORMATION!

Onlyusethewatersupplyhosesuppliedwiththeappliance.Donotuseanyusedorotherhoses.

INFORMATION!

When connecting the watersupply hose, makes sure to connect it in a way that allows adequate and unobstructed watersupply.

AQUA-STOPconnection

(dependingonthemodel)

Ifaninternaltubeorhoseisdamaged,ashut-offsystemisactivatedthatcutsthowatersupplytothe washingmachine.Insuchcase,thecontrolglass(a)willturnred.Replaceewatersupplyhose.

TOTALAQUA-STOPconnection(withafloat)

(dependingonthemodel)

Ifaninternaltubeorhoseisdamaged,ashut-offsystemisactivatedthatcutsthowatersupplytothe washingmachine.Insuchcase,thecontrolglass(a)willturnred.Replaceewatersupplyhose.

Ifthereiswateronthebottomofthewashingmachine,thefloat(b)willriseandtriggerashut-off systemtocutthewatersupplytothewashingmachine;washingprocessisstopped,watersupply isshutoff,theapplianceengagesthepump,andsignalsanerror.

Connectingandsecuringthewaterdischargehose

Feedthewaterdischargehoseintoawashbasinorabathtub,orconnectitdirectlytoadrain(minimum drainconnectiondiameteris4cm).Theverticaldistancefromthefloortotheendofthedischarge hosemaybenomorethan100cmandnolessthan60cm.Itcanbeattachedinthreeways(A,B,C).

A Dischargehoseend maybeplacedovera washbasinorabathtub.B Useastringfedthroughthe openingintheelbow supporttoattachthehose andpreventitfromslipping tothefloor.

B Dischargehosemay alsobeattacheddirectly to thewashbasindrain.

C Dischargehosecan also be attached to a wall drain with atrap; such trap should be properly installed to allow cleaning.

D Thedischargehosehas tobeattachedandaffixed tothepinonthebackofthe washingmachine,asshown inthefigure.

INFORMATION!

If the rainhose is not correctly attached, safe and correct washing machine operation cannot be ensured.

Connectingtothepowermains

ELECTRICSHOCK!

Beforeconnectingthewashingmachinetothepowermains, waitforatleast2hoursuntil itreachesroomtemperature.

Connectthewashingmachinetoagroundedpoweroutlet. After installation, the wall outlet should be freely accessible. The outlet should be fitted with an earth contact (in compliance with therelevant regulations).

Informationonyourwashingmachineisindicatedontheratingplate(seechapter»WASHINGMACHINE DESCRIPTION/Technicalinformation«).

ELECTRICSHOCK!

Werecommendusingover-voltageprotectiontoprotecttheapplianceincaseofalightning strike.

WARNING!

Thewashingmachinemaynotbeconnectedtothepowermainsusinganextensioncord.

INFORMATION!

Donotconnectthewashingmachinetoanelectricaloutletintendedforanelectricshaverorhair dryer.

INFORMATION!

Anyrepairandmaintenancepertainingtosafetyorperformanceshouldbedonebytrained experts.

BEFOREUSINGTHEAPPLIANCEFORTHE FIRSTTIME

Makesurethewashingmachineisdisconnectedfromthepowermains;then,openthedoortowards you(figures1and2).

Beforefirstuse,cleanthewashingmachinedrumwithasoftmoistcottonclothandwater,orusethe Cotton90°Cprogramme. Thereshouldbenolaundryinthewashingmachinedrum;thedrumshould beempty(figures3and4).

WARNING!

Donotuseanysolventsorcleaningagentsthatcoulddamagethewashingmachine(please observetherecommendationsandwarningsprovidedbythecleaningagentmanufacturers).

ConnectingtheappliancetotheConnectLifeapplication

ConnectLife is a smart home platform that connects people, devices and services. The ConnectLife application includes advanced digitalservices and carefreesolution that allow userstomonitor and control appliances, receiving notifications from a smartphone, and updates software (supported features may vary depending on your appliance and theregion/country in which you are located).

Toconnectyoursmartdevice,youneedahomeWi-Finetwork(only2.4GHznetworksaresupported) andasmartphoneequippedwiththeapplicationConnectLife.

TodownloadtheConnectLifeapplication,scantheQRcodeorsearch forConnectLifeinyourfavouriteappstore.

1. InstalltheConnectLifeapplicationandcreateanaccount.
2. In the ConnectLife application, go to the »Add device« menu and select the appropriate type of device.ThenscantheQRcode(itcanbefoundonthenameplateoftheappliance;youcanalso entertheAUID/SNnumbermanually).
3. The application thenguidesyouthroughtheentireprocessofconnectingtheapplianceto your smartphone.
4. Afterasuccessfulconnection, the appliance can be operated remotely via themobile application.

Usefultipsforyoursmartdevice

WheretofindtheQRcodeforthedevicesrequiredbytheAppduringtheinstallation process?

TheQRcodecanbefoundonthewarrantycardorontheratingplateoftheappliance.

HowtoenableWi-Fionthedevice?

Check that the appliance is switched on; the programmeselection button can be in any position. Thendo the following:

• IntheConnectLifeapp, opentheadddevicemenu.
• FollowtheinstructionsintheapplicationConnectLife,whereyou willpairyourphoneandapplianceandaddtheappliancetoyour homeWi-Finetwork.
  -Selectthetypeofappliance.
  -ScantheQRcode(itcanbefoundonthewarrantycardoron theratingplateoftheappliance).

- Simultaneouslypressandholdthepositions(7+8)ontheappliance untilthedisplayshows. The 5-minutecountdownwillbegin.

- IntheConnectLifeapp, instructions will guide you through the process of entering the appropriate data for your appliance to connect to your home network.

Howtoenableremotestartoftheappliance?

Move the programme selection button to ConnectLife/REMOTE CONTROL (remote control).

Pressthe(3)START/PAUSEbutton(thedoormustbeclosed).

Howtoaddauser?

Check that the appliance is switched on; the programmeselection button can be in any position. Then do the following:

- IntheConnectLifeapp, opentheadddevicemenu.

- Follow the instructions in the application ConnectLife where you will pair the phone and the appliance.

-Selectthetypeofappliance.

- Scan the QR code (it can be found on the warranty card or on the rating plate of the appliance).

• Simultaneouslypressandholdthepositions(7+8)ontheapplianceuntilthedisplayshows.

The3-minutecountdownwillbegin.

- Youcanthencompleteandconfirmthesettingintheapp.

Howtoremovetheusers(UnPair)?

Toremoveallusers, do this by holding down the (7+8) keys until the display shows; confirm your selection by pressing (3) the START/PAUSE button.

INFORMATION!

Thisstepwillremoveallactiveusersoftheappliance.Ifyouwanttooperatetheappliance

remotelyagain, you will need to repeat the process of adding a user.

WhichWi-Firoutercanbeused?

Only 2,4 GHz networks are supported. If the ConnectLife app cannot find your local network during the connection set-up process, check the following:

• yourrouterisoperatingatthefrequencyof2.4GHz,
• yournetworkishidden, and
  •yoursignalisstrongenough.

Doyouhavemorequestions?

Please visit us at www.connectlife.io or contact us at [e-mail].

Remotelyupgradingthesoftware

CheckthesoftwareupdateoptionsintheappConnectLife.

WASHINGPROCESS,STEPBYSTEP(1-7)

Step1:Heedthelabelsonthelaundry

Normalwash;Sensitivelaundry
	Max.washingtemp.95°C		Max.washingtemp.40°C			Handwashonly
	Max.washingtemp.60°C		Max.washingtemp.30°C			Donotwash
Bleaching
					BleachingnotallowedBleachingincoolwater
Drycleaning
					PetroleumsolventR11,R113Drycleaningwithallage
	Drycleaninginkerosene,purealcohol,andR113				Drycleaningnotallowed
Ironing
					Hotironing,max.110°CHotironing,max.200°C
					IroningnotallowedHotironing,max.150°C
Drying
					HightemperatureDryflat(placeonaflatsurface)
					LowtemperatureDripdry
[A8DS]					TumbledryingnotallowedLinedry

Step2:Preparingthewashingprocess

1. Sortthelaundrybytypeoffabric, colour, soiling, and allowed washing temperature (see PROGRAMMETABLE).
   2.Washthelaundrythatshedsalotoffibreorlintseparatelyfromotherlaundry.
2. Emptythepockets. Coins, nailsetc. could damage them machine and the fabric.
   4.Closethebuttonsandzippers,tieanyribbons,andturnthepocketsinsideout;removeanymetalclipsthatcoulddamagethelaundryandwashingmachineinterior,orclogthedrain.
3. Placevery sensitive clothes and small items in a special-purpose laundry washing bag. (Thespecial-purpose laundry bag is available as an optional accessory.)

Beforeusingthewashingmachine, carefully remove an solid objects and particles from the textiles you intend to wash top prevent damage to the appliance or clogging of the pump filter. This includes (also check all pockets and flaps):

• solidobjects(e.g.,screws,clips,smallstones,hay,etc.),
• foodresidues(e.g.,bones,drieddough,etc.),
  •driedparticlesofconstructionmaterials(e.g.,mortar,sand,mud,etc.).

WARNING!

Themanufacturerassumesnoresponsibilityformalfunctionsresultingfromfailuretofollowthese instructions,whichmayalsoaffectthevalidityofthewarranty.Furthermore,themanufacturer doesnotcoverservicecostsintheeventofforeignobjectsinthepumporpumpcleaning.

Switchingonthewashingmachine

Usethepowercordtoconnectthewashingmachinetopowermains,andconnectthewashing machinetowatersupply.

Pressthe(1)ON/OFFbuttontoswitchonthewashingmachine(figures1and2).

Loadingthewashingmachine

Openthewashingmachinedoorbypullingthehandletowardsyou(figure1).

Insertthelaundryintothedrum(aftermakingsurethedrumisempty)(figure2).

Makesurethatnogarmentisstuckbetweenthedoorandtherubbergasket.

Closethewashingmachinedoor(figure3).

1

2

3

Donotoverloadthedrum!SeePROGRAMMETABLEandobserveyournominalloadasindicatedontheratingplate.

If the washing machined rumisto full, the laundry will not bewashed ast thoroughly.

Step3: Choosing the washing programme

Choosetheprogrammebyrotatingtheprogrammeselectorknob(2)totheleftortotheright (dependingonthetypeoflaundryandhowheavilysoileditis).SeePROGRAMMETABLE.

INFORMATION!

Duringoperation, theprogramselectorknob(2) will not rotate automatically.

INFORMATION!

Washingprogrammesarecomprehensiveprogrammesthatincludeallwashingstages,including softeningandspinning(thisdoesnotapplytoPartialprogrammes).

INFORMATION!

Partialprogrammesareindependentprogrammes. Use them when you feel you don't need the entire washing programme.

Programchart

Program		Max. load	Max. 3)	Programmedescription
	Cottonwhite (Cottonwhite)40°C-90°C	*MAX	MAX1)	Programmeforwashingwhitecottonlaundry,towels,bedlinen,T-shirts...Thetemperaturecanbesetseparately;therefore,observetheinstructionsindicatedontheclothing.Spinningspeedcanbesettoyourpreference.Programmedurationandamountofwaterwillbeadjustedtotheamountoflaundry.Toreducecreasing,pressthe(6)OPTIONS(EXTRAFUNCTIONS)buttonbefoethestartofthewashingprogramme,andselecttheANTICREASE(CREASEPREVENTION)and/orSTEAMfunction.
	(Colour)*-60°C	*MAXColoMAX1)		Programmeforcolouredlaundrymadeofcotton.Thetemperaturecanbesetseparately;therefore,observetheinstructionsindicatedontheclothing.Spinningspeedcanbesettoyourpreference.Programmedurationandamountofwaterwillbeadjustedtotheamountoflaundry.
	(Mixedlaundry/-Synthetics)*-60°C	3,5kgMix	12002)	Washingprogrammefordelicateclothingmadeofsyntheticandmixedfibresorviscose,andforsimplecareofcotton.Observetheinstructionsindicatedontheclothing.
	(Wool&Hand)*-40°C		8002kg	Welicatewashingprogrammeforwashingwoollens,silk,andclothesthatrequiremanualwashing.Maximumtemperatureis40°C.Thisprogrammehasashortspinningcycle.Topspinningspeedavailableis800rpm.
∅	4)	*MAXEco	40A601)	Normallysoiledcottonlaundrythatcanbewashedatboth40°Cand60°Ctogetherinthesamecycle.TheprogrammeisusedtoassesscompliancewithEUecodesignlegislation.
	40°C	4kgPower	120132)	Programmeforsmalleramountsoflightlysoiledlaundry.Thewashingprogrammeincludesintensivetumblingandmaximumspinningrate.Theprogrammelasts59minutes.WhenusingtheFAST(FAST)function,theprogrammelasts32minutes.
	(Speed20')30°CDrumclean (Self-cleaning programme)	2,5kgSpeed0 kg	1202)	Quickwashingprogrammeforlightlysoiledlaundrythatonlyneedsrefreshing.Thisprogrammeisusedforcleaningthedrum andremovingtheresidueofdetergentand bacteria.Toselecttheprogramme,rotatethe programselectorknobtotheleftortotheright totheDrumclean(Cleaningprogramme) position.Otherextrafunctionscannot be selected.Thedrummustbeempty.Donotadd detergentorsoftener!Youcanaddsomespirit vinegar(approx.2dl)orsodiumbicarbonate(1 tablespoonor15g)foreffectivedescaling.We recommendthatyouusetheprogrammeatleast onceamonth.Youcanaddtheagentstothemainwash compartmentortothedrum.
	(Spinningrate|Drain)(Partialprogramme)	/Spin|DMAX1)		Usetheprogrammewhenyouonlywishtospin thelaundry.Ifyouwishtoonlydrainthewater fromthewashingmachine,withoutspinning, pressthe(5)SPINmultipletimes,untilno indicator(light)ison.Thedisplayshows0:01.
	(Rinse&Softening)(Partialprogramme)	/Rinse&SOX1)		Forsoftening,starching,orimpregnatingthe washedlaundry.Itcanalsobeusedasarinse programme,butwithoutaddedsoftener.Itis completedwithanadditionalrinse.YoucanalsochooseWATER+(EXTRAWATER) byselectingtheextrafunction(pressthe (6)OPTIONS(EXTRAFUNCTIONS)button beforethestartofthewashingprogramme).
[XHGA]	(Feathers/Down)20°C-40°C		800**(1/2)	Rishowprogrammeissuitableforpillowsand jacketsstuffedorpaddedwithdown.Thewash takesplaceatalowtemperature,withalarge amountofwater,withgentletumbling,anda gentlespincycle.
	Shirts (Shirtswithsteam)*-40°C	3,5kg	12002)	Thisprogrammisintendedforwashinggarments madeofcotton,microfibresandsynthetics;for washingcollarsandcuffs.Thewashtakesplace atalowtemperature,withagreateramountof waterandgentletumbling.Presetspinning speedis800rpm.Totreatlaundrywithsteam,pressthe (6)OPTIONS(EXTRAFUNCTIONS)buttonand selecttheSTEAMfunction.
[8242]	Pets (Pethairremoval)30°C-60°C	*MAX	MAX1)	Duringthisprogramme,pethairisremovedfrom yourgarments.Thewashingprogramme includesanautomaticprewashandadditional rinses.Totreatlaundrywithsteam,pressthe(6)OPTIONS(EXTRAFUNCTIONS)buttonand selecttheSTEAMfunction.Afterthewashingprogrammecompletion,clean theglassonthewashingmachinedoorandthe pumpfilterinwhichpethaircouldbetrapped.WerecommendrunningtheDrumclean(Self-cleaningprogramme)programmeafterthe wash,inordertothoroughlyremoveanypethair fromthewashingmachine.
	Baby (Babyclothes)40°C-90°C	*MAX	MAX1)	Forwashingclothesrequiringspecialcare,such asinfantgarments.Werecommendturningthegarmentsinsideout asthiswillalsothoroughlywashouttheskin scalesorresiduesofskintreatmentproducts.Theprogrammeisacombinationofaprolonged heatingandanextrarinsethatremovesany detergentresidue.Thewashingprogramme includesanautomaticprewashandadditional rinses.Totreatlaundrywithsteam,pressthe(6)OPTIONS(EXTRAFUNCTIONS)buttonand selecttheSTEAMfunction.
	Extrahygiene 40°C-90°CRemotecontrol (Remotecontrol)	*MAX	MAX1)	Thiswashingprogrammeisusedforwashing cottongarmentsthatrequirespecialcare,such asclothesforpeoplewithhighlysensitiveskin orallergies.Werecommendturningthe garmentsinsideout,asthiswillalsothoroughly washouttheskinandotherresidues.Totreatlaundrywithsteam,pressthe(6)OPTIONS(EXTRAFUNCTIONS)buttonand selecttheSTEAMfunction.UsetheRemotecontrolprogrammetoremotely controyourappliance(usingyourphone).You canselectallprogrammesavailableonyour appliance(seechapters»BEFOREUSINGTHE APPLIANCEFORTHEFIRSTTIME/Connecting theappliancewiththeConnectLifeapp«and »WASHINGPROCESS,STEPBYSTEP (1-7)/Step3:Remotecontrolofwashusingthe app«). Youcanalsoselectadditionalprogramsinthe app.

Maximumdeclaredload(MAX)-seeratingplate*

Halfload(1/2)**

Anyload(0kg-MAXkg)/

* Coldwash

¹⁾ Maximumspinningrate(MAX)-seeratingplate
2) Dependingonthemodel
3) Maximumspinningrate
⁴⁾ TestprogrammeforcompliancewiththeCommissionRegulation(EU)No.2019/2023onecodesign andRegulationNo.2019/2014onenergylabelling.

RecommendationsfordetergentsunderRegulation(EU)No.1015/2010

Program		Detergent
		Universal	Forcoloured laundry	Fordelicate laundryand wool	Special
	Cottonwhite (Cottonwhite)	√	√	—	—
	Colour (Colour)	√	√	—	—
	Mix (Mixedlaundry/-Synthetics)	—	√	—	—
	Wool (Wool&Handwash)	—	—	√	√
	Eco40-60	√	√	—	—
	Power59'32'	—	√	√	—
	Speed20' (Speed20')	—	√	—	—
	Drumclean (Self-cleaning programme)	—	—	—	—
	Spin|Drain (Spinningrate|Drain)	—	—	—	—
	Rinse&Soft. (Rinse&Softening)	—	—	—	—
	Pillow (Feathers/Down)	√	√	√	—
	Shirts (Shirtswithsteam)	√	√	√	√
	Pets (Pethairremoval)	√	√	√	—
	Baby (Babyclothes)	√	√	√	√
	Extrahygiene	√	√	√	—

√ Recommendation
—Norecommendation

INFORMATION!

Intermsofenergyandwaterconsumption,programmesthatoperateatlowertemperaturesand lastlongeraregenerallythemostefficient.

INFORMATION!

Noise and residual moisture content are affected by the spinning rate: the higher the spinning rate in the spincycle, the higher thenoise and the lower the residual moisture content.

INFORMATION!

Addpowderorliquiddetergentsaccordingtothemanufacturer'sinstructions,consideringthe washingtemperature,washingprogram,howsoiledthelaundryis,andwaterhardness.

Whenexcessivefoamingoccursinthewashingmachineorfoamspillsthroughthedosing container,thewashedlaundrymustbethoroughlyrinsed.Chooseawashingprogrammewith alargeamountofwaterwithoutusingdetergent.

INFORMATION!

Maximumamountoflaundryinkg(fortheCottonprogramme)isindicatedonthewashing machineratingplate(seechapter»WASHINGMACHINEDESCRIPTION/Technicalinformation«).

INFORMATION!

MaximumornominalloadappliestolaundrypreparedpursuanttotheIEC60456standard.

INFORMATION!

Forbetterwashingeffect, were recommend loading the drum to 2/3 when using the cotton programmes.

INFORMATION!

Lowwatertemperature, lowmainsvoltage and different washing loads may affect the washing time; theremaining timed displayed is adjusted accordingly during the washing process.

Timeoptimizationduringtheprogrammeprogress

In the early stage of the washing programme, the washing machine uses advanced technology to detect the amount of laundry. After load detection, the washing machine adjusts the programme duration.

Washingprogramswithsteam

Addingsteam during the last washing step loosen sthe laundry, slightly disinfect sit and eliminates some allergens. After using such program, the laundry will be soft, supple and fresh, and it will require less ironing.

Useofsteam(pressthe10button)alsoallowsomittingorreducingtheamountofconditioner.

Fortbettereffectofsteamonthelaundry, were recommend and halfload.

Remotecontrolofwashusingtheapp

INFORMATION!

SeechapterWASHINGPROCESS,STEPBYSTEP(1-7)andobservesteps1and2.

Ontheappliance:

1. Closethewashingmachinedoorandclosethedetergent compartment.
2. Rotate the program selector knob to position ConnectLife/REMOTE CONTROL(Remotecontrol)
3. Press(3) the START/PAUSE button. Theremote control symbol REMOTESTART(REMOTESTART) switches on.

Remotecontrolisavailableforthenext24hours,evenwhentheapplianceentersstandbymode.The doorislockedduringthistime,soitcannotbeopened.Remotecontrolcanbecancelledbypressing (3)START/PAUSE.

Continue operating the appliance in the ConnectLife app, where you can choose from several options (selection, launch, and monitoring and stopping of the programme, amongst other additional settings)

INFORMATION!

Thewashingprocesscanbecontrolled/monitoredfromtheapp.

INFORMATION!

WashingmachineoperationcanbepausedorstoppedbychoosingSTOP/ADDCLOTHES/PAUSE ...

Someoptionscanbeimplementedremotelyinfull,andsomerequireyourphysicalpresence, suchasaddinglaundryduringawashingcycle(ADDCLOTHES).

INFORMATION!

YoucanalsocontrolyourappliancefromyourphoneifyouarenotconnectedtothesameWi-Fi networkasyourappliance(thephoneonlyneedsanactiveinternetconnection).Thismeansyou canalsocontrolyourappliancewhenyouareawayfromhome.

INFORMATION!

Youcanoperatetheappliancewithmultipledevices.Youcanalsocontrolandmonitorthe operationoftheappliancewithanyphoneconnectedtotheappliance,regardlessofwhichuser hasinitiatedthewashingcycle.Theappliancecanbeconnectedto/controlledsimultaneously withseveralConnectLifeuseraccounts.

INFORMATION!

After you have started the appliance from your phone, a person located next to the appliance can takeover and manually turn off for control the appliance; the app will notify you in such case. In such case, controlling the appliance remotely from your phone is no longer possible. If you wish to control the appliance from your phone again, all required steps must be repeated.

Step4:Selectingextrafunctions

Settingsusingasinglebuttonpress

Mostprogrammesfeaturebasicsettings, butthesesettingscanbechanged.

Adjust the settings by pressing therelevant function button (just before pressing the (3) START/PAUSE button).

Functionsthatcannotbechangedwiththeselectedwashingprogrammearepartlylit(dimmed).

Certainsettingscannotbeselectedwithsomeprogrammes.Suchsettingswillnotbelit,andthe buttonwillflashwhenpressed(seeFUNCTIONTABLE).

Descriptionoffunctionindicatorsforselectedwashingprogramme:

-lit(Basic/presetsetting);

-dimmed(Functionsthatcanbeadjusted)and

-unlit(Functionsthatcannotbeselected).

Changing the temperature for these selected programs.

Eachprogramhasapresettemperaturethatcanbechangedbypressing theposition(4)TEMP.(WASHINGTEMPERATURE).

Theselectedtemperatureislit.

SPIN(SPINNINGRATE/PUMPSTOP/DRAIN)

Toadjustthespinningrate. Everyprogramme(exceptforDrumClean(Self-cleaningprogramme))hasapresetspinningratethatcanbe adjustedbypassingonposition(5)SPIN(SPINNINGRATE/PUMP STOP/DRAIN)

If you select the Drain function without spinning, then no indicator (light) will belitonthed display unit. Washing time will be accordingly shorter.

If you select draining without spinning, 0:01 will appear on the display unit.

Ifyouselect»Pumpstop«,thesymbolwillappearonthedisplayunit.

Selectthe»Pumpstop«functionwhenyouwishthelaundrytostay soakedinthewaterfromthelastrinsecycleinordertopreventitfrom creasingwhenyouareunabletotakeitfromthewashingmachine immediatelyafterthewashingprogrammeiscomplete.Youmaysetthe desiredspinningrate.Tocontinuetheprogram,pressthe(3)

START/PAUSEbuttonthatislit.Waterwillbedrained(pumpedout)and thefinalspincyclewillberun.

FAST(FAST)

When the FAST(FAST) function is activated, the washing programme will be carried out with a shorter washing duration. There are two available choices (depending on these selected washing programme).

Afterpressingtheposition(7)FAST(FAST),theindicator(light)will >> turnfromapartlylittofullylitsymbol,andthetotalprogrammetimeon thedisplayunitwillbeadjustedaccordingly.

Tofurthershortenthewashingprogramme, presstheposition(7)FAST (FAST)onemoretime, and the total program metimewill be adjusted oncemore.

If you press the button once again, these setting is reset back to default.

Firstpress-FAST(FAST)

Secondpress-SUPERFAST(SUPERFAST)

Thirdpress-DEFAULT(DEFAULT)

Werecommendahalf-loadfortheCottonprogramme.

DELAYEND(DELAYINGTHEENDOFTHEWASHINGPROGRAM)

Pressontheposition(8)DELAYEND(DELAYINGTHEENDOFTHE WASHINGPROGRAM)todelaytheprogrammecompletiontimebyup to24hours.

Settingsprocedure:

• Selectthedesiredprogrammeandextrafunctions.
• Presstheposition(8)DELAYEND(DELAYINGTHEENDOFTHE WASHINGPROGRAM)toactivatethefunction.
  •Repeatedlypressthispositiontosetthedesiredprogramme completiontime(with30-minuteincrementsupto6hours,and1-hour incrementsthereafter,upto24hours.)
• Toactivatethefunction, pressthe(3)START/PAUSEbutton.

Washingmachinestartscountingdownthesetime.Whenthecountdown reachestheprogrammeduration(e.g.2:30),thewashingprogramme startsautomatically.

Toresetorchangethedelayedendofthewashingprogramme, press theON/OFFbutton(1)foratleast3seconds.

To quickly reset the delayed end of the washing programme, press the position(8) DELAYEND (DELAYING THE ENDOFTHEWASHING PROGRAM) for 3 seconds. The washing program will resume.

Exampleoffunctionsetting:

Itisnow9PM, and you wish the washing program met to be completed at 6 AM then next morning then set the DELAYEND (DELAYEND) time to 9 hours.

INFORMATION!

Somesettingscannotbeselectedwithcertainprogrammes.Suchfunctionswillnotbelitonthe displayunit,andwhenthecorrespondingbuttonispressed,anacousticsignalwillbeemitted andthelightonthebuttonwillflash(seeFUNCTIONTABLE).

INFORMATION!

Activate/deactivatethefunctionsbypassingthedesiredfunction(beforepressingthe(3)START/PAUSEbutton).Anindicatorwilllightupnexttotheselectedfunctions.

INFORMATION!

If you have set the DELAYEND (DELAYING THE ENDOFTHEWASHING PROGRAM) function and you are using liquiddetergent, wedonot recommend setting a program without a pre-wash.

Settingsusingacombinationoftwobuttonspressedsimultaneously

PREWASH

Washingheavilysoiledlaundry, particularlywithstubbornsuperficial stains. Theprewashfunctioncanonlybeactivatedafterthewashing programhasbeenselected.Turnitonbysimultaneouslypressing (4)TEMP.(WASHINGTEMPERATURE)and(5)SPIN(SPINNING RATE/PUMPSTOP/DRAIN)foratleast3seconds.Thedisplayshows thechanged(extended)durationoftheprogramme.

Thesymbollightsuponthedisplay(12).

INFORMATION!

If you select PREWASH, add the detergent into the prewash compartment.

CHILDLOCK

Toensuresafety.Turnitonbysimultaneouslypressing(5)SPIN (SPINNINGRATE—DRAIN/PUMPSTOP/PUMP)and(6)OPTIONS (EXTRAFUNCTIONS)foratleast3seconds.Thedisplaywillshowthe timecountdown.Theselectionwillbeconfirmedbyanacousticsignal (ifitisnotswitchedoff).Youcanalsodeactivatethechildlockusingthe sameprocedure.Aslongasthechildlockisactivated,youcannotchange theprogramme,settingsoradditionalfunctions.

Childlockremainsactiveevenafterthewashingmachineisswitched off.Whenbotharepressed,thedisplay(14)startstheanimation»Loc On«whenswitchedon,or»LocOFF«whenthechildlockisswitched off.

SOUNDOFF

Toturnoffthesounds,simultaneouslypressthepositions(6)OPTIONS

+(EXTRAFUNCTIONS)and(7)FAST(FAST)andholdthemforat least3seconds.

Theselectionwillbeconfirmedbyanacousticsignal.

Toturnthesoundbackon, hold(6) and (7) for at least 3 seconds. If you turn off the sound, there will be no acoustic warning at the end of the washing programme.

Wi-FiMENU

TheWi-Fimenuisusedforconnectingtheapplianceandforremote control.

Theprogrammeselectionbuttoncanbeinanyposition.

Simultaneouslypressthepositions(7)FAST(FAST)and(8)DELAY END(DELAYINGTHEENDOFTHEWASHINGPROGRAM)andhold themuntilthedesiredsettingappearsonthedisplay.

Possiblesettings(dependingonthedurationforwhichthekeys (7+8)areheld):

• 0-3seconds-turnsapplianceconnectivityofforon.
  •3-6seconds-Con
  [on] -theappliancecanbeconnectedtoaWi-Finetworkfor5 minutes.
• 6-9seconds-PAr
• theappliancecanbeconnectedtotheConnectLifeappfor 3minutes. Thefunctionwillonlybeactiveifyouhavealready connectedtheappliancetoyourWi-Finetwork.

•9-12seconds-UnP

UnP -removesallusers.

- 12seconds-ormore Theappliancereturnstoitsoriginalstate.

INFORMATION!

Whenthewashingmachineisswitchedoff,alleextrafunctionsreturntotheirbasicorcustom settings,exceptfortheacousticsignalsettingandWi-Fisettings.

Step5:Selectingadditionalfunctions

INFORMATION!

Activate/deactivatethefunctionsbypassingthedesiredfunction(beforepressingthe(3)START/PAUSEbutton).

Somesettingscannotbeselectedwithcertainprogrammes.Suchfunctionswillnotbelitonthe displayunit,andwhenthecorrespondingbuttonispressed,anacousticsignalwillbeemitted andthelightonthebuttonwillflash(seeFUNCTIONTABLE).Thefunctionstheareavailablewill bedimly(partially)lit.

OPTIONS(EXTRAFUNCTIONS)

Byrepeatedlypressingthe(6)OPTIONS(ADDITIONALFUNCTIONS) buttonfortheselectionofadditionalfunctions,youcanchoosebetween threefunctionsandeightdifferentfunctioncombinations(dependingon theselectedprogramme):

Whenthefunctionisselected, thecorrespondingsymbolisilluminated:

• ANTICREASE(CREASEPREVENTION).
Topreventcreasing,selectthefunctionANTICREASE(CREASE PREVENTION).Gentletumblingwillcontinueaftertheendofthe washingprogramme.Thisfunctionisrecommendedfordelicate laundry.Thedisplayunit(14)displays.Thefunctioncanbe terminatedatanytimebypressing(3)theSTART/PAUSEbutton.
• WATER+(EXTRAWATER)
Use this function to wash with a larger amount of water on some programmes.
• STEAM(STEAM).
Addinga20-minutesteamcycleattheendoftheprogramwillsoften anddisinfectyourgarments,andreduceordoawaywiththeneed forironingandusingsoftener/conditionerforyourlaundry.

Extrafunctiontable

Programmes		FAST	SUPERFAST	DELAYEND	PREWASH	ANTICREASE	WATER+	STEAM	SPIN	RINSE&HOLD
	Cottonwhite(Cottonwhite)40°C-90°C									......
	Colour(Colour)*-60°C									......
	Mix(Mixedlaundry/-Synthetics)*-60°C									......
	Wool(Wool&Hand)*-40°C									......
	Eco40-60			•					•	•
	Power59'32'40°C									......
	Speed20'(Speed20')30°C			•		•			•	•
	Drumclean(Self-cleaningprogramme)			•				•
	Spin|Drain(Spinningrate|Drain)(Partialprogramme)			•					•
	Rinse&Soft.(Rinse&Softening)(Partialprogramme)									......
	Pillow(Feathers/Down)20°C-40°C									......
	Shirts(Shirtswithsteam)*-40°C									......
	Pets(Pethairremoval)30°C-60°C									......
	Baby(Babyclothes)40°C-90°C									......
	Extrahygiene40°C-90°C									......

Additionalfunctionscanbeused•

Step6: Starting the washing programme

Pressthebutton(3)START/PAUSE.

TIMEREMAININGTOPROGRAMMECOMPLETIONorDELAYEND

time(ifset)willappearonthedisplay.

Symbolswillbelitontheselectedfunctions.

Afterpressingthe(3)START/PAUSEbutton,youcanchoosethespinning rateSPIN(SPINNINGRATE/DRAIN/PUMPSTOP)(exceptinthecase of theDrumclean(Self-cleaning)programme))andCHILDLOCK;you cannotchangetheothersettings.

INFORMATION!

If the TIMEREMAININGUNTILPROGRAMMECOMPLETION flashestreetimesonthedisplayunit, and thereisanaudiblesignal, thismeansthatthewashingmachinedoorisopenornotclosed tightly. Closethewashingmachinedoorandpressthe(3)button START/PAUSEagaintoresumethewashingprogramme.

Step7: Endofthewashingprogramme

Thewashingmachinewillindicatetheendofthewashingprogramme withanacousticsignalandwillappearonthedisplayuntilthe washingmachineswitchesintolowstandbymodeorswitchesoff.After 5minutes,thesignwillnolongerbedisplayed.

1. Openthewashingmachinedoor.
2. Takethelaundryfromthedrum.
3. Wipetherubberdoorgasketandthedoorglass.
   4.Closethedoor!
   5.Shutoffthewatersupplytap.
   6.Switchoffthewashingmachine(pressthe(1)ON/OFFbutton).
4. Unplugthepowercordfromtheoutlet.

INTERRUPTIONSANDCHANGINGTHE PROGRAMME

Manualinterruption

To pause and cancel the washing programme, press the (1) ON/OFF button. Signal lights will flash onthedisplay.Atthesametime,thewashingmachinepumpsthewateroutofthewashingmachine drum.Whenthewaterispumpedout,washingmachinedoorwillbeunlocked.Ifthewaterinthe washingmachineishot,thewashingmachinewillautomaticallycoolitandpump/drainitout.

Personalsettings

Basicordefaultsettingsforeachwashingprogrammecanalsobechanged.Whenyouselectthe washingprogrammeandAdditionalfunctions,thecombinationcanbestoredbypassingthe(3) START/PAUSEbuttonandholdingitfor3seconds(thetimeiscounteddownonthedisplayunit). willappearonthedisplay.

Theprogrammewillremainstoreduntilitischangedusingthesameprocedure.

Personalsettingscanalsoberesettofactorysettingsintheusermenu.

Personalsettingsmenu

Switchonthewashingmachinebypassingthe(1)ON/OFFbutton.Simultaneouslypressthe(1) TEMP. °C (WASHING TEMPERATURE) and (6) OPTIONS + (EXTRA FUNCTIONS) positions to open the Personal Settings Menu. Signal lights for ANTI CREASE ⏻ (CREASE PREVENTION), WATER+ ⏻ (EXTRAWATER)andSTEAMwilllightuponthedisplayunit.

Number1 will appear on the LED display, which also indicates the settings function. Rotatethe programmeselectorknob(2) to the left to other right to choose the function to change. Number1 indicates soundsettings and number 2 indicates resetting of Personal programmes setting factory defaults. If the desired settings are not selected in 20 seconds, the programmewill automatically return to main menu.

Pressthe(5)SPIN(SPINNINGRATE/PUMPSTOP/DRAIN)positiontoconfirmthedesiredfunctions and theirsettings; pressthe(4)TEMP.(WASHINGTEMPERATURE)positiontogobackonestep.

Acousticsignalvolumecanbesetatfourlevels(0meansthesoundisoff;1meansthatthebutton soundisactivated;2meanslowvolume,and3meanhighvolume).Choosethevolumelevelby rotatingtheprogrammeselectorknob(2)totheleftortotheright. Thelowestsettingmeansthatthe acousticsignalisswitchedoff.

Pausebutton

Thewashingprogrammecanalwaysbepausedusingthe(3)START/PAUSEbutton. Thewashing programmeistemporarilypausedwhenthetimeremaininguntilprogrammecompletionisflashing onthedisplayunit.Ifthereisnowaterinthedrumandwatertemperatureisnottoohigh,thedoor willunlockafteracertainperiodoftime,andtheycanbeopened.Youcancontinuethewashing programmebypassingthe(3)START/PAUSEbutton;butyoufirsthavetoclosethedoor.

Adding/removinglaundryduringwashingmachineoperation

Afteracertainperiodoftime, the washingmachinedoorcanbeopenedifthewaterleveland temperaturearebelowapredefinedthreshold.

If the conditions below are met, then the electronic door lock is released and the washing machine door can be opened; will appear on the display unit:

• watertemperatureinthedrumhastobesuitable,
• waterlevelinthedrumhastobebelowacertainvalue.

Inordertoaddorremovelaundryfromthewashingmachineduringprogrammeoperation,proceed asfollows:

1. Pressthe(3)START/PAUSEbutton.
2. If all conditions for release of electronic door lock are met, then you can open the washing machine door and addor removal laundry from the drum.
   3.Closethewashingmachinedoor!
3. Pressthebutton(3) START/PAUSE.

Thewashingprogramwillresume.

INFORMATION!

If you add a considerable amount of laundry during the wash, the laundry could be washed less effectively, since the washing machine initially sensed lower weight of the load of laundry and added a smaller amount of water. Insufficient amount of water relative to the amount of laundry could also cause damage to the laundry (rubbing of dry laundry), and washing time can be longer.

INFORMATION!

Washingtimewillresumefromthepointatwhichthewashingprogrammewasinterrupted.

Errors

Incaseofanerrororfault, theprogrammewillbeinterrupted.

Anacousticsignalwillwarnaboutsuchoccurrence(seeTROUBLESHOOTINGANDERRORTABLE), andtheerrorwillbeindicatedonthedisplayunit(E:XX).

Powersupplyfailure

In case of a powersupply failure, the washing programme is interrupted. When powersupply is restored, the washing programme is resumed from the point at which it was interrupted. Upon completion of the washing cycle, /w alternate on the display unit. This informs the user about powersupply failure and the effect on the execution of the washing programme.

Washingtimewillresumefromthepointatwhichthewashingprogrammewasinterrupted.

Openingthedoor(pause/cancel/changeprogramme)

Washingmachinedoorcanbeopened,ifthewaterlevelinthemachineislowenoughandifthewater temperatureisnotexcessivelyhigh.

INFORMATION!

If the washing machine is not connected to the power mains or in case of a powers supply failure during the programme execution, then the washing machine cannot be opened. In such case, the washing machine has to be properly connected, or as servicetechnicians should be contacted.

Displayingthenumberofcompletedwashcycles

(dependingonthemodel)

If you disconnect the appliance from the powersupply, wait for 10 seconds, and then reconnect the power cord, information on the number of completed wash cycles is displayed on the display unit for 3 seconds. After 3 seconds, the appliances switch to standby by mode.

CLEANINGANDMAINTENANCE

ELECTRICSHOCK!

Beforecleaning, unplugthewashingmachine from the power mains.

Cleaningthedispensertray

INFORMATION!

Thedispensertrayshouldbecleanedatleasttwicepermonth.

1 Toremovethedispenser trayfromthehousing,press thesmalltab.

2 Cleanthedispensertray underrunningwaterusinga brush, and dry it. Also, remove any detergent residue from the bottom of the housing.

3 If required, remove and clean the plug cap.

4Cleantheplugcapunder runningwaterandreplaceit.

INFORMATION!

Donotwashthedetergentcompartmentinthedishwasher!

Cleaningthewatersupplyhose,detergentdispenser housing,andrubberdoorgasket

1 Cleanthenetfilteroften underrunningwater.
2 Useabrushtocleanthe entirewashingmachine rinsingsection,especially thenozzlesontheupper sideoftherinsingchamber.
3 After every wash, wipe therubber doorgasket and remove any object that may have become stuck in the gasketto extend its useful life.

Cleaningthepumpfilter

INFORMATION!

Duringcleaning, somewhat may be spilled. It is therefore recommended to place an absorbent cloth on the floor.

1 Openthepumpfiltercap usingasuitabletool(flat screwdriverorasimilartool).

2 Pulloutthewateroutlet funnelbeforecleaningthe pumpfilter. Rotatethepumpfilterslowly inthecounter-clockwise direction.Pulloutand removethepumpfilterto allowthewatertoslowly drain.

3Cleanthepumpfilter thoroughlyunderrunning water.

4,5 Removealobjects and impurities from the filter housing and the impeller. Replacethepumpfilter as shown in the figure and fastenit by rotating in the clockwise direction. Foragoodseal, the filter gasketsurfaces should be clean.

INFORMATION!

Werecommendregularcleaningofthepumpfilteronceamonth.Whenwashingveryfleecy, verydirtyoroldlaundry,doitmoreoften.

Cleaningthewashingmachineexterior

ELECTRICSHOCK!

Always disconnect the washing machine from the power mains before cleaning.

Cleanthewashingmachineexterioranddisplayunitusingasoftdampcottonclothandwater.

WARNING!

Donotuseanysolventsorcleaningagentsthatcoulddamagethewashingmachine(please observetherecommendationsandwarningsprovidedbythecleaningagentmanufacturers).

INFORMATION!

Donotcleanthewashingmachinewithajetofwater!

TROUBLE-SHOOTING

Whattodo...?

Thewashingmachineshallautomaticallycontroltheoperationofparticularfunctionsduringthe washingcycle.Ifanyirregularityisidentified,thiswillbeindicatedbyreporting(E:XX)onthedisplay. Thewashingmachinewillreporttheerroruntilitisswitchedoff.Disturbancesfromtheenvironment (e.g.thepowergrid)mayresultinvariouserrorreports(seeTROUBLESHOOTINGTABLE).

Insuchcase:

• Switchoffthewashingmachineandwaitforafewseconds.
• Switchonthewashingmachineandrepeatthewashingprogramme.
• Mosterrorsduringoperationcanberesolvedbytheuser(seeTROUBLESHOOTINGTABLE).
• If the error occurs again, call an authorized service unit.
• Repairsmayonlybecarriedoutbyanadequatelytrainedperson.

The following lists all the error that the user can see on the user interface.

Troubleshootinganderrortable

Errorsindicatedonthedisplayunitmayincludethefollowing:

Problem/Error	problemdescription	Whattodo?Indicationonthedisplayunitand
	Incorrectsettings	Restarttheprogram;iftheerrorreoccurs,call aservicetechnician.
	Temperaturesensorerror	Inletwatertoocold.Repeatthewashing program.Ifthewashingmachinereportsthiserroragain, callaservicetechnician.
	Doorlockerror	Makesurethewashingmachinedooris closed.Ifyouhearanacousticsignalafterpressing the(3)START/PAUSEbutton,itmeansthat thedoorofthewashingmachineisnotclosed.Closethewashingmachinedoor.Unplugthepowercordfromtheoutlet;then, plugthepowercordbackintotheoutletand switchonthewashingmachine.Iftheerrorreoccurscallaservicetechnician.
Problem/Error	problemdescription	Whatodo?Indicationonthedisplayunitand
		Checkthefollowing:Waterfillingerroristhewaterinletvalveopen,isthefilteronthewaterinlethoseclean,isthwatersupplyhosedeformed(clipped,cloggedetc.),isthepressureinthewatermainsbetween0.05and0.8MPa(0.5-8bar)pressthe(3)START/PAUSEbuttontoresumetheprogramme.Iftheerrorreoccurscallaservicetechnician.
	Waterheatingerror	Restarttheprogram;iftheerrorreoccurs,callaservicetechnician.
		Checkthefollowing:Waterdrainingerroristhepumpfilterclean,isthedrainhoseclogged,isthedrainclogged,ifthedischargehoseplacedisplacedbelowthemaximumandabovetheminimumheight(seechapter»INSTALLATIONANDCONNECTION/Connectingandsecuringthewaterdischargehose«);pressthe(3)START/PAUSEbuttonagain.Iftheerrorreoccurscallaservicetechnician.
	Excessiveamountofdetergent	Toomuchdetergentmaycauseexcessivefoaminginthedrum.Seedescriptionfor
	Waterleakdetectedinthewashingmachinearea	Turnoffthewashingmachineandturnitbackon.Inspecttheexterioroftheappliance.Ifyoudonotobserveanyleaks,youcancontinuetousethewashingmachine.
	Waterlevelsensorerror	Unplugthepowercordfromtheoutlet;then,plugthepowercordbackintotheoutletandswitchonthewashingmachine.Venttheappliance.Dothisbydrainingandcleaningthewashingmachinefilterandcleaningthewall-mountedtrap.Iftheerrorreoccurscallaservicetechnician.
	Wateroverflow	Ifthereiswaterinthedrumthatexceedsacertainlevel,andanerrorisreportedonthedisplayunit,thewashingprogramwillbeinterruptedandwaterwillbepumpedoutofthewashingmachine.Restarttheprogram;iftheerrorreoccurs,callaservicetechnician.Ifthereiswaterinthedrumthatexceedsacertainlevel,andanerrorisreportedonthedisplayunit,whilethewashingmachinecontinuestoaddwater,closethewatertapandcallaservicetechnician.
	Excessiveamountofdetergent	Toomuchdetergentmaycauseexcessivefoaminginthedrum.Seedescriptionfor. Fd
	Motorcontrolerror	Manuallyredistributethelaundry(stuckortangledlaundry)andrepeatthewashingprogramme.
	Errorwhilelockingthedoor	Doorisclosed,butitcannotbelocked.Switchoffthewashingmachine.Switchitbackonandrestartthewashingprogram.Iftheerrorreoccurscallaservicetechnician.
	Errorwhileunlockingthedoor	Doorisclosed,butitcannotbeunlocked.Turnoffthewashingmachine,thenturnitbackon.Iftheerrorreoccurs,callaservicetechnician.Toopenthedor,seechapter»INTERRUPTIONSANDCHANGINGTHEPROGRAMME/Openingthedoor(Pause/Cancel/ChangeProgramme)«.
	Warningfromthesystemfordetectingincorrectpowermainsfrequency(50/60Hz)	Whentewashingmachinewasswitchedon,thesystemdetectedincorrectsupplypowerfrequency,whichcouldaffectwashingmachinefunctionality.Anyproblemsonthepowernetworkshouldbecheckedandcorrected.
	Appliancecannotbeconnectedtothenetwork.	Theerroronlyaffectstheoptiontoremotelycontrol(Remotecontrol)yourwashingprogramme.itdoesnotaffectthewashingprocessonotherprogrammes.Callaservicetechnician.
Information		Errorcauseanddescription,whattodo?Indicat
	ANTICREASE(CREASE PREVENTION)functionthatyou haveselectedasapartofthe washingprogrammeisactivated andinprogress	TostoptheANTICREASE(CREASE PREVENTION)function,pressthe(1)ON/OFF button.
	Waterdrainsystemalert Displayofwarning. [CLF]	Alertaboutreducedwaterflowinthepumping stage.Checkthefollowing:isthepumpfilterclean,isthedrainhoseclogged,isthedrainclogged,ifthedischargehoseplacedisplaced belowthemaximumandabovethe minimumheight(seechapter»INSTALLATIONAND CONNECTION/Connectingandsecuring thewaterdischargehose«).
	SystemwarningtoruntheDrum clean(Self-cleaningprogramme)Afterthewashingprogrammeis complete,thesignsanwill End alternateonthedisplayunit.	Incaseofawaringonthedisplayafter washing,proceedasfollows:cleanthedosingcontainer,cleanthewatersupplyhose,detergent dispenser,andrubberdoorgasket,cleanthepumpfilter(seechapter»CLEANINGANDMAINTENANCE«)andruntheself-cleaningprogrammeDrum clean(seechapter»WASHINGSTEPS (1-7)/3.Step:Programmetable«).Self-cleaningprogrammeisusedtocleanthe drumandtoremovedetergentresiduesand bacteria.Thedrummustbeempty.Donotadd detergentorsoftener!Youcanaddsomespirit vinegar(approx.2dl)orsodiumbicarbonate (1tablespoonor15g)foreffectivedescaling.Werecommendthatyouusetheprogramme atleastonceamonthorwheneverwarning appears.[Cln]
	Warningbythesystemfor detectingexcessivefoaming duringthewashingprogramme	Incaseofexcessivefoaminginthewashing machineorleakoffoamthroughthedetergent dispensertray,thewashedlaundryhastobe rinsedthoroughlywithalargeamountofwater.Chooseawashingprogramme,butdonotadd anydetergent.Werecommendchoosingthe Rinse&Softeningprogramme.Decreasetheamountofdetergentadded.
	Powersupplyfailurewarning(»PF«/PowerFailure)	Thesystemdetectedapowersupplyfailure duringthewashingprogrammeprogress, whichaffectedfunctionalexecutionofthe washingprogramme.Checkthepowersupplynetworktowwhichyour washingmachineisconnected.
	Powersupplyfailurewarning(»PF/End«)	Uponcompletionofthewashingcycle, end and will alternateonthedisplayunit.This informstheuseraboutpowersupplyfailure andontheeffectontheexecutionofthe washingprogramme.Thewashingprogram continueswhereitwasinterruptedandthen endssuccessfully.
	Warning-U:Lo (voltagebelow180V)	Aprolongeddropofvoltagetobelow180V wasdetected,whichcanaffectthewashing machineoperation.Checkthepowersupplynetworktowwhichyour washingmachineisconnected.
	Unresponsivedisplayunitandall buttons	Unplugthepowercordfromtheoutlet.Check ifthesupplyvoltageissuitableforthewashing machine(220-240V);then,plugthepower cordbackintotheoutletandswitchonthe washingmachine.
	Warning-U:Hi (voltageover260V)	Aprolongedvoltagesurgetoover260Vwas detected,whichcanaffectthewashing machineoperation.Checkthepowersupplynetworktowwhichyour washingmachineisconnected.
	Washingmachinestandingby, readytoresumethewashing programmeThetimeremaininguntil programmecompletionis alternatelylitandoffonthedisplay unit.	Toresumethewashingprogramme,pressthe button(3)START/PAUSE.
	Preparationforunlockingthe doorSignallightswillflashonthe displayunit.	Waitfortheprocesstofinish.Ifnoerrorsare shownaftertheprocess,anewcyclecanbe run.Waterhastobedrained.Waitforthedoorto unlock.
	Theappliancecannotbe controlledremotely	Applianceremotecontrolisnotactivatedor enabled.CheckiftheWi-Fisymbolontheappliance islit,andsettheprogramselectorknob(1)topositionREMOTECONTROL(ConnectLife) (Remotecontrol).
Information		Errorcauseanddescription,whattodo?Indicationonth
	Theappliancewillnotconnect totheWi-Finetwork	TheappliancecannotfindyourWi-Finetwork. Checkwhether2.4GHznetworkisactivated onyourrouterandwhethertheWi-Fisignalat theapplianceisstrongenough.

INFORMATION!

Noise and vibration – make sure the appliance is levelled using the adjustable legs and that the jamnutsaresecurelytightened.

Unevenlydistributedlaundryorlumpsoflaundryinthewashingmachinedrumcancauseproblems suchasvibrationandnoisyoperation. ThewashingmachinedetectssuchproblemsandtheUKS* (*stabilitycontrolsystem)willbeactivated.

Smallerloads(e.g.onetowel,onesweater,onebathrobeetc.)orclothesmadeofmaterialswithspecial geometricalpropertiesarevirtuallyimpossibletodistributeevenlyacrossthewashingmachinedrum (slippers,largeitemsetc.).Thisresultsinseveralattemptstoredistributethelaundry,whichinturn leadstolongerprogrammeduration.Inextremecasesofunfavourableconditions,theprogramme canbecompletedwithoutthespinningcycle.

TheUKS ^* (*stabilitycontrolsystem) allows stable operation and longer washing machine useful life.

If the problem spersist despite observing the advice above, call an authorized servicetechnician.

Service

Beforecallingaservicecenter

Whenyoucontactaservicecentre, pleasestateyourwashingmachine'stype(1),code/ID(2),model number(3),andserialnumber(4).

Washingmachinetype,code,model,andserialnumbercanbefoundontherating(type)plateonthe innersideofthewashingmachinedoor.

WARNING!

Incaseofafailure,onlyuseapprovedsparepartsbyauthorizedmanufacturers.

WARNING!

Repairoranywarrantyclaimresultingfromincorrectconnectionoruseofthewashingmachine shallnotbecoveredbythewarranty.Insuchcases,thecostsofrepairshallbechargedtothe user.

INFORMATION!

Thewarrantydoesnotcoverconsumables,minordeviationsincolour,increasednoisethat resultsfromapplianceageandwhichdoesnotaffectthefunctionalityoftheappliance,and aestheticdefectsoncomponents,whichdonotaffectthefunctionalityandsafetyoftheappliance.

Thewarrantydoesnotcovertheerrorsorfailuresresultingfromdisturbancesfromtheenvironment (lightningstrike,powergridfailures,naturaldisastersetc.).

INFORMATION!

Reportanymalfunctiontoyourlocalcallcentreorwebaddress;allinformationcanbefoundin theenclosedwarrantystatement.Contactdetailsofyourauthorisedservicecentreareavailable inthewarrantystatementsuppliedwiththeapplianceandonthewebsitebyscanningtheQR codeontheratingplate.

INFORMATION!

Somesimplefaultsdescribedinthechapter»TROUBLESHOOTING/Troubleshootinganderror table«canbefixedbytheuserhimselfbytakingintoaccounttheinstructionswithoutriskto theirownsafetyandwithoutaffectingthewarrantyconditions.

INFORMATION!

Functionalsparepartsforthewashingmachineyoupurchasedwillbeavailablefor10years. Duringthistime,originalsparepartswillbeavailabletoensurethecorrectoperationofyour appliance.

AlistofsparepartsandrepairtipsinaccordancewiththecurrentEcodesignDirectivecanbe foundbyscanningtheQRcodelocatedontheinsideofthedoorofthewashingmachine.Or onthefollowinglink:https://auid.connectlife.io.

RECOMMENDATIONSFORWASHINGAND ECONOMICUSEYOURWASHINGMACHINE

Washnewcolouredgarmentsseparatelythefirsttime.

Washheavilysoiledlaundryinsmalleramounts, withmorepowderdetergentorwithapre-washcycle.

Withslightlysoiledlaundry, were recommendaprogrammewithoutapre-washcycle, useofshorter programmes(e.g.FAST) andalowerwashingtemperature.

Applyaspecialstainremoveronstubbornstainsbeforethewash.

Useofchlorine-basedbleachesisnotrecommendedastheycandamagetheheater.

If you wash at low temperatures and/or with liquiddetergents, there is a risk of developing microorganisms and an unpleasant todour in the washing machine. Leavethewashing machinedoor open after each was to allow the appliance today. If you detect an unpleasant todour, run the Drum clean programme.

Topreventandremovelimescaledepositsonlyuseagentswithaddedanti-corrosionprotection. Observethecleaningagentmanufacturer'sinstructions.Toremovelimescaledeposits,werecommend startingtheDRUMCLEANprogramme.Addspiritvinegar(2dl).

Werecommendavoidingwashingverysmallamountsoflaundryasthiswillleadtoexcessiveuseof energyandpoorerwashingmachineperformance.

Youcansaveenergyandwaterbyfillingupthewashingmachinetothecapacityspecifiedbythe manufacturerforeachprogramme.

INFORMATION!

The following information is accessible via the QRAUIDcode on the rating plate (see chapter »WASHINGMACHINEDESCRIPTION/Technical data«):

• ratedcapacityinkg;
  •durationoftheprogrammeinhoursandminutes;
  •energyconsumptioninkWhpercycle;
  •waterconsumption;
  • maximum temperature reached in the washing machine drum;
• residualmoisturecontentafterwashingcycleandspinningrate.

Athigherspinningrates, therewillbelessresidualmoistureinthelaundry. Asaresult, dryinga tumbledryerwillbemoreeconomicalandfaster.

Loosenanyfoldedlaundrybeforeputtingitintothedrum.

Ifwaterhardnessexceeds14°dH,watersoftenershouldbeused.Heaterdamageresultingfrom incorrectuseofwatersoftenersshallnotbecoveredbythewarranty.Checktheinformationonwater hardnesswithyourlocalwatersupplycompanyorauthority.

Detergentcompartment

Donotaddhardenedlumpsofpowderdetergentintothedetergentdispenserasthismayclogthe pipinginthewashingmachine.

1 Aseparator/dividertab issuppliedwiththewashing machine,whichallows addingliquiddetergentto themainwashcompartment

(leftcompartment).

2 Powderandliquid detergentlevelindicator

3 When using powder detergent, the separator/dividertab should be lifted.

4 When using liquid detergent, the separator/dividertab should be lowered.

Symbolsofdetergentdispensercompartments
	prewash
	mainwash
	softening

Detergents

INFORMATION!

Detergentscarryingtheenvironmentprotectionlabelarelessharmfultotheenvironment.

Onlyaddthedetergentsincompliancewiththerecommendationsbydetergentmanufacturers. Recommendedamountofwashingdetergentatcertainloadsandwaterhardnesslevelsarespecified onthedetergentpackaging.

Tocorrectlydosedetergents,especiallyliquidones,usetheaccessoriesprovidedbythedetergent manufacturer.

INFORMATION!

Werecommendaddingpowderdetergentimmediatelybeforethewashingcycle.Ifyouaddit sooner,makesurethedetergentcompartmentinthedispensertrayiscompletelydrybefore addingthepowderdetergent:otherwise,thepowderdetergentmaycakebeforethestartofthe washingprocess.

Suitabledetergents

Only used detergents form machinewashing.

When using thick liquid laundry care products, were recommend diluting them with watertoprevent clogging the dispenser tray drain.

Liquiddetergentsareintendedforwashingprogrammeswithoutaprewashcycle.

Seechapter»WASHINGPROCESS,STEPBYSTEP(1-7)/3.Step:Recommendationsfordetergents underRegulation(EU)No.1015/2010«.

You can use all modern detergents intended for household washing machines. The detergent packaging contains instructions for use and dosing, which apply to the maximum amount of filling.

Thedetergentdosagedependson:

•howheavilysoiledthelaundryis;
•theamountoflaundryand
- waterhardness.

Waterhardness	Hardnesslevels
				p.p.m.°fH(°F)mmol/l
				<150<15<15<8,41-s
2 – normal	8,4–14	1,5–2,5	15–25	150–250
				>250>25>25>143-h

INFORMATION!

Checktheinformationonwaterhardnesswithyourlocalwatersupplycompanyorauthority.

Dosingaccessories

Tocorrectlydosedetergents,especiallyliquidones,usetheaccessoriesprovidedbythedetergent manufacturer.

Softeners

INFORMATION!

Pourtheconditionerintothedispensertray, into the compartment with the symbol. Observe therecommendation on the conditioner packaging.

INFORMATION!

Donotfilltheconditionercompartmentoverthemax.indication(maximumindicatedlevel). Otherwise, theconditionerwillbeaddedtothelaundrytoosoon, leadingtopoorerwashing effect.

Stainremovaltips

Beforeusingspecial-purposestainremovers, try using thenaturalmethodsthatdonotharmthe environmentlessstubbornstains.

However, promptactionisrequired! Soakthestainwithanabsorbentspongeorapapertowel; then, rinsewithcold(lukewarm)water-butneverwithhotwater!

When using bleaches or stain removal agents, there is danger of trust (corrosion) and discolouration.

WARNING!

Toprotecttheenvironment,weadviseagainstusingpowerfulchemicals.

	StainremovalStains
Mud	Whenthestainisdry,firstscrapeitoffthegarmentbeforewashingitinthe washingmachine.Ifthestainisstubborn,soakitwithanenzyme-basedstain removerbeforethewash.Ifthestainisnotstubborn,washthelaundrywith liquiddetergentorpowderdetergentandwaterbeforethewash.
Antiperspirant	Beforewashinginthewashingmachine,applyliquiddetergentontothelaundry. Applystainremoversonanystubbornstains.Alternatively,useoxygen-based bleachforthewash.
	Soakorrinsethelaundryincoldwaterandaddstainremoverifnecessary.Tea
Chocolate	Soakorrinsethelaundrywithlukewarmsoapywater.Then,applylemonjuice andrinse.
Ink	Beforewashinginthewashingmachine,applystainremoversonthestain.You mayalsousedenaturedalcohol.Turnthegarmentinsideoutandplaceapaper towelunderthestain.Usethealcoholonthebacksideofthestain.Attheend oftheprocess,thoroughlyrinsethegarment.
Felttippens	Dilutesomestarchinwaterandapplyittothestain.Whenitdries,scrapeitoff withabrush;then,washthegarmentinthewashingmachine.
Babyfood(urine, mud,foodstains)	Beforewashinginthewashingmachine,soakthestainsinlukewarmwaterfor atleasthalfanhour.Foreasierstainre-moval,addanenzyme-basedstain remover.
Grass	Beforewashinginthewashingmachine,soakthelaundryinanenzyme-based stainremover.Grassstainscanalsobere-movedbysoaking(forapprox.1 hour)indilutedlemonjuiceordistilledvinegar.
Eggs	Soakthegarmentinanenzyme-basedstainremover.Soakincoldwaterforat least30minutesorafewhoursifthestainsarestubborn.Then,washinthe washingmachine.
Coffee	Soakthegarmentinsaltwater.Ifthestainisnotfresh,soakitwithamixtureof glycerine,ammoniaandalcohol.
	Applycookingoiltothestainandrinse.Shoepolish
Blood	Freshstain-rinsethegarmentwithcoolwaterandwashitinthewashing machine.Driedstain-soakthegarmentinanenzyme-basedstainremover.Then,wash inthewashingmachine.Ifthestaindoesnotvanish,trytoremoveitwitha bleachsuitableforyourgarment.
Glue,chewing gum	Placethegarmentinabagandputitinthefreezeruntilthestainhardens.Then,removeitwithabluntknife.Then,dilutethestainwithaprewashstainremover andrinsethoroughly.Then,washtelaundryasusual.
	Useastainremoverfortheprewash;then,washinthewashingmachine.Makeup
Butter	Beforewashinginthewashingmachine,applystainremovertothestain.Then,rinsewithhotwater(ashotasthefabricwillal-low).
Milk	Soakthegarmentinanenzyme-basedstainremover.Soakforatleast30 minutesorafewhoursifthestainsarestubborn.Then,washinthewashing machine.
Fruitjuice	Applyamixtureofsaltandwateronthestain.Leavetotakeeffectforawhile, thenrinse.Youcanapplysodiumbicarbonate,distilledvinegarorlemonjuice onthestainbeforewashinginthewashingmachine.Foroldstains,useglycerine.After20minutes,rinsewithcoldwater,thenwashthelaundryinthewashing machine.
Wine	Soakthelaundryincoldwaterforatleast30minutes.Also,useastainremover.Then,washinthewashingmachine.
Wax	Putthegarmentintothefreezeruntilthewaxhardens.Then,scrapeitoff.Removetheremainingwaxbyplacingapapertowelontothestain,andthenheatitwithanironuntilthepaperabsorbsthewax.
Sweat	Beforewashinginthewashingmachine,rubliquiddetergentthoroughlyinto thestain.

Lowstandbymode

If you do not run any program or choose any settings after switching on the washing machine (ON/OFFbutton(1)), the display unit will be switched off after 5 minutes and switched to stand - by mode inordertosave energy.

Thedisplayunitwillbereactivatedifyourotatetheprogrammeselectorknob(2)orpresstheON/OFFbutton(1).Ifyoudonotdoanythingfor5minutesaftertheendofaprogramme,thedisplayunit willbeswitchedofftosavepower.

	<0,5Po=weightedpowerwhenoff[W]
	<0,5PI=weightedpowerwheninstand
	5,00TI=standbytime[min]

INFORMATION!

Appliancewithawirelessconnectionuseslessthan2Wofelectricenergyinstandbymode.

TYPICALCONSUMPTIONTABLE

(dependingonthemodel)

INFORMATION!

The provided information is in accordance with EUR Regulation 2019/2023. The values indicated for programmes other than Eco40-60 have been determined in accordance with the applicable standard EN60456.

Explanation of symbols used below:
Ratedcapacity(kg)	Maximumtemperature(°C)5min (1)
Programmeduration(h:min) (1)	Remainingmoisturecontent(%) (1)
Energyconsumption(kWhpercycle) (1)	Spinspeed(rpm) (1)
(1)	EnergyefficiencyclassWaterconsumption(Lpercycle)
i the eco 40-60 programme at the rated capacity, half of the rated capacity and a quarter of the rated capacity; the20°Cprogrammeattheratedcapacityforthisprogramme;ii
iii onecottonprogrammeatnominaltemperaturehigherthanorequalto60°C(ifpresent)attheratedcapacity forthisprogramme;
iv oneprogrammeforothertextilesthancottonoramixoftextiles(ifpresent)attheratedcapacityforthis programme;
v one programme for the quick washing of lightly soiled laundry (if present) at the rated capacity for this programme;
vi one programme for heavily soiled textiles (if present) at the rated capacity for this programme;
(1) Duetotheinfluenceofwaterpressure,hardness,andinlettemperature,thetype,quantity,andsoilingofthe laundry,thedetergentused,powersupply,andselectedfunctions,theactualvaluesmaydifferfromthespecified values.
(2) Testprogramwithcoldwater(15°C)inaccordancewiththeEUDirectiveonEco-designandtheEURegulation onEnergyLabeling.
(3) Washingmachinetype,code,model,andserialnumbercanbefoundontherating(type)plateontheinner sideofthewashingmachinedoor. Fullload(FullLoad)FL

49cm/7kg,8kg:
	Program
i	(2)	Eco40-60				3050	0,6200	3:277,0
						23450	53/2000	1400/2:333,5	A-10
						23330	55	1200
						23330	1800	2:312,0
						4360	1,1000	3:388,0
						26440	53/2100	1400/2:334,0	B
						24350	55	1200
						24350	1800	2:312,5
ii	Colour20°C(Colour)					20830	55	80	2:200L
iii	Cottonwhite60°C(Cottonwhite)							12005560831,70303:0
iv	Mix40°C(Mixedlaundry/Synthetics)							10004242590,57402:2
v	Speed20'(Speed20')							10008129320,04500:2
vi	Cottonwhite60°C+waterplus(Cottonwhite&water+)							12005560932,00003:0
(3)Dataappliesto:[PS22/62120] [PS22/67120] [PS22/62121] [PS22/67121] [PS22/62122] [PS22/67122] [PS22/62123] [PS22/67123] [PS22/62124] [PS22/67124] [PS22/62140][PS22/67140][PS22/62141][PS22/67141][PS22/62142][PS22/67142][PS22/62143][PS22/67143][PS22/62144][PS22/67144]

49cm/JET/8kg:

	Program
i	(2)					37620,8750	3:388,0	Eco40-60
						20460,2000	2:334,0	A140053
						20350,1800	2:312,5
ii	Colour20°C(Colour)							12005520880	19602::
iii	Cottonwhite60°C(Cottonwhite)							12005560881	73603::
iv	Mix40°C(Mixedlaundry/Synthetics)							10003542630	52602::
v	Speed20'(Speed20')							10007929320	04100::
vi	Cottonwhite60°C+waterplus(Cottonwhite&water+)							12005560942	00003::
(3)Dataappliesto:[PS22/67145][PS22/67146][PS22/67147][PS22/67148]

54cm/7kg,8kg:

	Program
i	(2)					3360	0,7600	3:328,0	Eco40-60
						53/20450	1900	1400/2:454,0	A-10
						5520350	1850	12002:452,5
						20350	1850	2:452,5
						35/600,83003	328,033	44/53	1600/1400

54cm/7kg,8kg:

	Program
					450,25002	454,0
					350,22002	452,5
						31520,6800	3:017,0
						25430,1850	1400/
						24350,1800	2:333.5 A-10
						24350,1800	2:312,0
ii	Colour20°C(Colour)							12005520850,18302::
iii	Cottonwhite60°C(Cottonwhite)							12005560871,80203::
iv	Mix40°C(Mixedlaundry/Synthetics)							10004342570,49702::
v	Speed20'(Speed20')							10007529320,04400::
vi	Cottonwhite60°C+waterplus(Cottonwhite&water+)							120055601002,10003
(3)Dataappliesto:[PS22/63120] [PS22/64120] [PS22/63121] [PS22/64121] [PS22/63122] [PS22/64142] [PS22/63123] [PS22/64123] [PS22/63124 [PS22/64124] [PS22/63140][PS22/64140] [PS22/63141] [PS22/64141] [PS22/63142] [PS22/64142] [PS22/63143] [PS22/64143] [PS22/63144 [PS22/64144] [PS22/63160] [PS22/64160][PS22/63161][PS22/64161][PS22/63162][PS22/64162][PS22/63163][PS22/64163][PS22/63164[PS22/64164]

54cm/JET/9kg:

	Program
i	(2)					3258	0,7300	3:329,0	Eco40-60
						2245	0,2300	2:454,5	A-10140053
						2342	0,2700	2:452,5
ii	Colour20°C(Colour)							120055	20850,22402::
iii	Cottonwhite60°C(Cottonwhite)							120055	60841,99003::
iv	Mix40°C(Mixedlaundry/Synthetics)							10004	142650,64102::
v	Speed20'(Speed20')							10006	529330,04300::
vi	Cottonwhite60°C+waterplus(Cottonwhite&water+)							120055	60992,09603::
(3)Dataappliesto:[PS22/6D145][PS22/6D146][PS22/6D147][PS22/6D148]

LABEL

(accordingtoEU-RegulationNo.2019/2014)

QRcode;-I

Supplier'snameortrademark-II

Supplier'smodelidentifier-III

ScaleofenergyefficiencyclassesfromAtoG-IV

V - The energy efficiency class determined in accordance with point A of Annex II

-VIWeightedenergyconsumptioninkWhper100cycles,roundedtothenearestintegerinaccordancewith AnnexIV Ratedcapacityinkgfortheeco40-60programme-VII

-VIWeightedwaterconsumptionpercycle(WW)inlitres,roundedtothenearestintegerinaccordancewith AnnexIV

IX - Duration of the eco 40-60 programme at rated capacity in h:min, rounded to the nearest minute

X - Spin-drying efficiency class determined in accordance with point B of Annex II

-XAirborneacousticnoiseemissionsduringthespinningphase,expressedindB(A)re1pWandroundedto thenearestinteger,andtheairborneacousticnoiseemissionclassdeterminedinaccordancewithpoint CofAnnexII

XII – The number of this Regulation, that is, '2019/2014'

PRODUCTINFORMATION SHEET

(accordingtoEU-RegulationNo.2019/2014)

Supplier'snameortrademark:
Supplier'sadress( b):
Modelidentifier:
Generalproductparameters:
				ValueParameterValueParameter
Ratedcapacity( a)(kg)	x,x				xHeightDimer
					xWidth
					xDepth
W(a)			a x,x	[A/B/C/D/E/F/G]( °)	Energyeffic
Washingefficiencyindex (a)	x,xxx		Rinsingeffectiveness(g/kg) (a)	x,x
Energyconsumptionin kWhercycle,forthe'eco 40-60'programme.Actual energyconsumptionwill dependonhowthe applianceisused.	x,xxx		Waterconsumptioninlitre percycle,basedonthe 'eco40-60'programme. Actualwaterconsumption willdependonhowthe applianceisusedandon thehardnessofthewater.	x
Maximumtemperature insidethetreatedtextile( a) (°C)	Rated capacity	x	Remainingmoisture content(a)(%) Ratedcapacity	x,x Ratedcapacity
	Half Rated capacity	x
	Quarter Rated capacity	x
Spinspeed( a)(rpm)	Rated capacity	x	Spin-dryingefficiencyclass (a)	[A/B/C/D/E/F/G]( °)
		xHalf
		xQuarter
Programmeduration( a) (h:min)	Rated capacity	x:xx	Type Half Quarter	[built-in/free standing]
		x:xxHalf
		x:xxQ
Airborneacousticalnoise emissionsinthespinning phase( a)(dB(A)re1pW)	x		Airborneacousticalnoise emissionsclass( a) (spinningphase)	[A/B/C/D]( °)
				x,xxStandbymode(W)
Delaystart(W) (ifapplicable)	x,xx		Networkedstandby(W) (ifapplicable)	x,xx
Minimumdurationoftheguaranteeofferedbythesupplier( b):

Thisproducthasbeendesignedtorelease silverionsduringthewashingcycle	[YES/NO]
Additionalinformation:
Weblinktothesupplier'swebsite,wheretheinformationinpoint9ofAnnexIltoCommission Regulation(EU)2019/2023(1)(b)isfound:

(a)Forthe»eco40-60«programme.
(b) Changestotheseitemsshallnotbeconsideredrelevantforthepurposesofparagraph4ofArticle4ofRegulation(EU)2017/1369.
(©)Iftheproductdatabaseautomaticallygeneratesthedefinitivecontentofthiscellthesupplier shallnotenterthesedata.
1) Commission Regulation (EU) 2019/2023 of 1 October 2019 laying downecodesign requirements for household washing machines and household washer-dryerspursuant to Directive 2009/125/EC of the European Parliament and of the Council, amending Commission Regulation (EC) No 1275/2008 andrepealing Commission Regulation (EU) No 1015/2010 (seepage 285 of this Official Journal).

DISPOSAL

Packagingismadeofenvironmentallyfriendlymaterialsthatcanberecycled, disposed of, ordestroyedwithoutanyhazardtotheenvironment. To thisend, packagingmaterials are labelled appropriately.

Thesymbolontheproductoritspackagingindicatesthattheproductshouldnotbetreatedas normalhouseholdwaste.Taketheproducttoanauthorizedcollectioncentreforwasteelectricand electronicequipmentprocessing.

When disposing of the appliance at the end of its useful life, remove all power cords, and destroy thedoorlatchandswitchtopreventthedoorfromlockingorlatching(childsafety).

Correct disposal of the product will help prevent any negative effects on the environment and health of people, which could occur in case of incorrect product removal. Ford detailed information on removal and processing of the product, please contact therelevant municipal body in charge of wastemanagement, your wasted disposalservice, or the store where you bought the product.

gorenje

GORENJEgospodinjskiaparati, d.o.o.Address: Partizanska12, 3320Velenje, Slovenia Phone: [phone]Fax: [phone]www.gorenje.com

PS22B2+SWGOR

920822-a10

CE
