Product Type	Condenser Tumble Dryer
Brand	AEG
Model	TR9T94ABS
Drying Capacity	9 kg
Drying Technology	Heat Pump
Energy Efficiency Class	A++
Dimensions (H x W x D)	85 cm x 60 cm x 64 cm
Weight	50 kg
Power Supply	220-240 V, 50 Hz
Annual Energy Consumption	Approx. 235 kWh
Noise Level	65 dB (A)
Drying Programs	Cotton, Synthetics, Delicates, Wool, MixDry, etc.
Sensor Drying	Yes, adjusts drying time automatically
Anti-Crease Function	120 min anti-crease with reversible drum
Delayed Start	Up to 24 hours
Child Lock	Yes
Condenser Cleaning	Self-cleaning condenser with maintenance service
Lint Filter	Easy-clean filter with included brush
Water Tank	Container with indicator (approx. 3.5 L)
Repairability	Spare parts available for 10 years

Frequently Asked Questions - TR9T94ABS AEG

How do I clean the lint filter?

Clean the lint filter after every drying cycle for efficient operation. Open the door, pull the filter upward, remove lint with hand or the brush provided, replace filter securely.

When should I empty the water tank?

Empty the water container after each drying cycle or when the container indicator lights up. Locate the tank at the bottom right, pull it out, pour water out, reinsert it.

What is a heat pump dryer and how is it different?

A heat pump dryer recycles hot air, using a heat exchanger to condense moisture. It is more energy-efficient than conventional condenser dryers and operates at lower temperatures, protecting fabrics.

How can I prevent creases in my laundry?

Use the anti-crease function, which gently tumbles the load periodically after the cycle ends. Also remove items promptly and follow recommended load sizes.

What is the maximum capacity for different fabrics?

The maximum load is 9 kg for cotton, 4 kg for synthetics, and 3 kg for delicates or wool. Avoid overloading for better results.

Does this dryer need to be vented to the outside?

No, it is a condenser dryer. It collects moisture in a water tank, so it can be placed anywhere with proper ventilation. No external exhaust required.

How do I use the delayed start function?

Load the dryer, select a program, then press the delay start button to set hours up to 24. Press start; the dryer will begin after the set delay.

How often should I clean the condenser?

The dryer features a self-cleaning condenser. However, check and clean the condenser approximately every month or as indicated by the service light to ensure efficiency.

What should I do if the dryer does not start?

Check if the door is fully closed, the plug is connected, and the water tank is empty. Also ensure the filter is clean. If problem persists, contact authorized service.

Are spare parts available for this model?

Yes, AEG provides spare parts for a minimum of 10 years after the purchase date, including filters, heating elements, and drum belts.

USER MANUAL TR9T94ABS AEG

FOR PERFECT RESULTS

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

Visit our website to:

Get usage advice, brochures, trouble shooter, service and repair information:

www.aeg.com/support

Register your product for better service:

www.registeraeg.com

Buy Accessories, Consumables and Original spare parts for your appliance:

www.aeg.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

⚠ Warning / Caution-Safety information

① General information and tips

Environmental information

Subject to change without notice.

CONTENTS

1. SAFETY INFORMATION...... 5

1.1 Children and vulnerable people safety......5
1.2 General Safety ...... 6

1. SAFETY INSTRUCTIONS......8

2.1 Installation....8
2.2 Electrical connection....9
2.3 Use....10
2.4 Internal lighting....11
2.5 Care and cleaning.... 11

2.6 Compressor....11
2.7 Service.... 12
2.8 Disposal.... 12

3. PRODUCT DESCRIPTION....12

4. CONTROL PANEL....14

4.1 Display.... 14

5. PROGRAMMA ....16

5.1 Programma and options selection compatibility.....21
5.2 Consumption data.... 22

6. OPTIONS......24

6.1 Livello Asciugatura 24
6.2 Asciugatura a Tempo 24
6.3 Antipiega 25
6.4 Silent.... 25
6.5 Fine 25
6.6 Termina tra....26

7. STEAM FUNCTION......27

7.1 How to fill water container for steam system....28
7.2 🚙 Vapore 29
7.3 Steam programmes....30
7.4 Vapore chart.... 31

8. BEFORE FIRST USE.... 31

8.1 Unusual smell....32

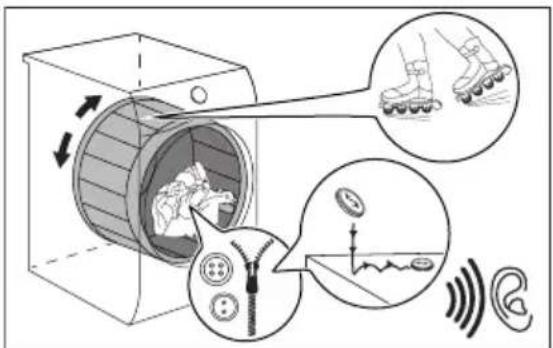

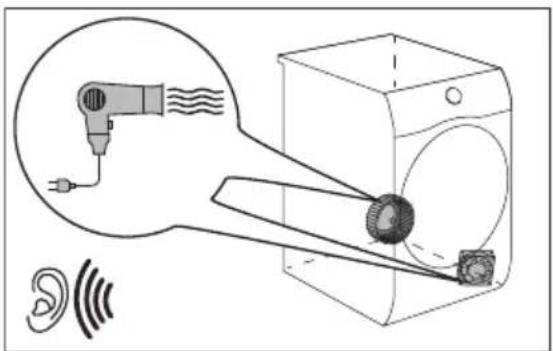

8.2 Noises.... 33

9. DAILY USE......34

9.1 Preparing the laundry....34
9.2 Loading the laundry....36
9.3 Turning on the appliance....36
9.4 Auto Off function.... 37
9.5 Setting a programme....37
9.6 Options....37
9.7 Child lock option....38

9.8 Starting a program.... 39
9.9 The ProSense load detection.... 39
9.10 Program change....40
9.11 Programme end.... 40
9.12 Drum light on....41
9.13 Possible causes of unsatisfactory drying results:....41

10. HINTS AND TIPS.... 41

10.1 Ecological hints.... 41
10.2 Adjustment of default dryness level.... 42
10.3 Deactivating the tank indicator 42
10.4 Operating hours counter 43
10.5 Factory Defaults.... 43

11. CARE AND CLEANING.... 44

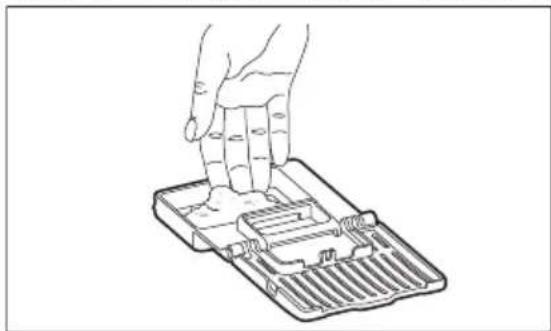

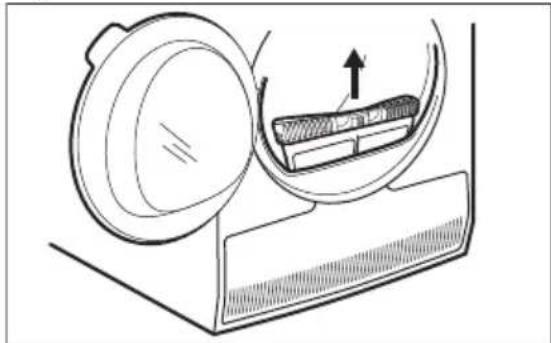

11.1 Cleaning the filter.... 44
11.2 Emptying the water container....46

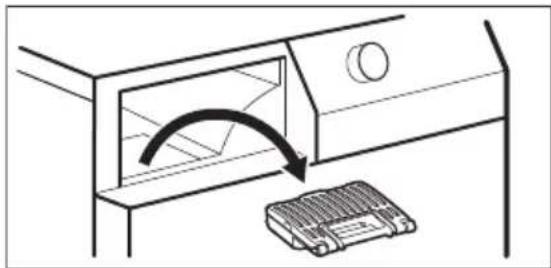

11.3 Cleaning the condenser.... 47
11.4 Cleaning the steam system filter.... 48
11.5 How to drain the water from the steam system container.... 50
11.6 Cleaning the drum....51
11.7 Cleaning the control panel and housing....51
11.8 Cleaning the airflow slots.... 52

12. TROUBLESHOOTING.... 52

12.1 Error Codes....52
12.2 Troubleshooting.... 54
12.3 Possible causes of unsatisfactory drying results:......57

13. TECHNICAL DATA.... 57

14. PRODUCT INFORMATION SHEET IN REFERENCE TO E.U. REGULATION 1369/2017....59

15. ENVIRONMENTAL CONCERNS......61

1. ⚠ SAFETY INFORMATION

Before beginning the installation and use of this ance, carefully read the supplied instructions.

The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

Warning: Risk of fire / Flammable materials.

The appliance contains flammable gas, propane (R290), a gas with a high level of environmental compatibility. Keep fire and ignition sources away from the appliance. Be careful not to cause damage to the refrigerant circuit containing propane.

1.1 Children and vulnerable people safety

WARNING!

Risk of suffocation, injury or permanent disability.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
• Children between 3 and 8 years of age and persons with very extensive and complex disabilities shall be kept away from the appliance unless continuously supervised.
• Children of less than 3 years of age should be kept away from the appliance unless continuously supervised.
• Do not let children play with the appliance.

• Keep all packaging away from children and dispose of it appropriately.

• Keep detergents away from children.

• Keep children and pets away from the appliance when the door is open.
• If the appliance has a child safety device, it should be activated.
• Children shall not carry out cleaning and user maintenance of the appliance without supervision.

1.2 General Safety

• This appliance is for drying domestic-type, machine-dryable laundry only.
• Do not use the dryer function if laundry has been soiled with industrial chemicals.
• This appliance is designed for single household domestic use in an indoor environment.

- This appliance may be used in, offices, hotel guest rooms, bed & breakfast guest rooms, farm guest houses and other similar accommodation where such use does not exceed (average) domestic usage levels.

- Do not change the specification of this appliance.

- If the tumble dryer is put on top of a washing machine, use the stacking kit. The stacking kit, available from your authorized vendor, can be used only with the appliance specified in the instructions supplied with the accessory. Read it carefully before installation (refer to the Installation leaflet).

- The appliance can be installed as freestanding or below a kitchen counter with correct space (refer to the Installation leaflet).

• Do not install the appliance behind a lockable door, a sliding door or a door with a hinge on the opposite side, that would prevent the appliance door from being fully open.
• The ventilation opening in the base must not be covered by a carpet, mat, or any floor covering.
• WARNING: The appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by a utility.
• Connect the mains plug to the mains socket only at the end of the installation process. Make sure that the mains plug is accessible after installation.
• Ensure good air ventilation in the room where the appliance is installed to avoid the backflow of unwanted gases into the room from appliances burning gas or other fuels, including open fires.
• WARNING: Do not install the appliance in an environment with no air exchange.

The appliance contains flammable gas, propane (R290), a gas with a high level of environmental compatibility. Keep fire and ignition sources away from the appliance. Be careful not to cause damage to the refrigerant circuit containing propane.

• WARNING: In the appliance enclosure or in the built -in structure, keep ventilation opening clear of obstruction.
• WARNING: Do not damage the refrigerant circuit.
• WARNING: Fill the water reservoir for steam treatment with distilled water only. Do not use tap water or any additives. It can cause damage to the appliance.

• If the mains power supply cable is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons to avoid an electrical hazard.

• Do not exceed the maximum load of 9,0 kg (refer to the "Programme chart" chapter).

• Wipe away lint or packaging debris that has accumulated around the appliance.
• Do not run the appliance without a filter. Clean the lint filter before or after each use.
• Do not dry unwashed items in the tumble dryer.
• Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.
• Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.
• Fabric softeners, or similar products, should only be used as specified by the product manufacturer's instructions.
• Remove all objects from items that could be a source of fire ignition such as lighters or matches.
• WARNING: Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.
• Before any maintenance operation, deactivate the appliance and disconnect the mains plug from the socket.

2. SAFETY INSTRUCTIONS

2.1 Installation

Warning: Risk of fire / Flammable materials.

- Remove all the packaging.

• Do not install or use a damaged appliance.
• Follow the installation instructions supplied with the appliance.

- Do not install the appliance in an environment with no air exchange The appliance contains flammable gas, propane (R290), a gas with a high level of environmental compatibility. Keep fire and ignition sources away from the appliance. Be careful not to cause damage to the refrigerant circuit containing propane.

• Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.

- Do not install or use the appliance where the temperature can be lower than 5°C or higher than 35°C .

- The floor area on which the appliance is to be installed must be flat, stable, heat resistant and clean.

- Make sure that there is air circulation between the appliance and the floor.

• Always keep the appliance vertical when it is being moved.

- The rear surface of the appliance must be put against a wall.

- When the appliance is in its permanent position, check if it is levelled correctly with the aid of a spirit level. If it is not, adjust the feet accordingly.

2.2 Electrical connection

WARNING!

Risk of fire and electric shock.

• WARNING: This appliance is designed to be installed / connected to a grounding connection in the building.
• Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.
• Always use a correctly installed shockproof socket.

• Do not use multi-plug adapters and extension cables.

• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

• Do not touch the mains cable or the mains plug with wet hands.

2.3 Use

WARNING!

Risk of injury, electric shock, fire, burns or damage to the appliance.

Warning: Risk of fire / Flammable materials. The appliance gains flammable gas, propane (R290), a gas with a high level of environmental compatibility. Keep fire and ignition sources away the appliance. Be careful not to cause damage to the gerant circuit containing propane.

• This appliance is for household (indoors) use only.
• Do not dry damaged (torn, frayed) items that contain padding or fillings.
• If laundry has been washed with a stain remover, carry out an additional rinse cycle before starting a drying cycle.
• Dry only fabrics that are suitable to dry in the appliance. Follow the cleaning instruction on the item label.
• Do not drink or prepare food with the condensed water/distilled water. It can cause health problems to people and pets.
• Do not sit or stand on the open door of the appliance.
• Do not dry dripping wet clothes in the appliance.

WARNING!

Fill the water reservoir for steam treatment with distilled water only. Do not use tap water or any additives. It can cause damage to the appliance.

- The condensed water from this appliance's condensed water container can also be used, if it is filtered first (e.g. with a coffee filter).

• Operate the steam programmes with distilled water only.
• Once the drying cycle or steam programme has been interrupted, the laundry and drum may be hot. Risk of burns! Take care when removing the laundry.
• Be careful when interrupting the steam programme: Do not open the machine door during the steam phase. Hot steam may result in burns. The display shows a message to indicate the steam phase.

2.4 Internal lighting

WARNING!

Risk of injury.

• Visible LED radiation, do not look directly into the beam.
• To replace the internal lighting, contact the Authorised Service Centre.

2.5 Care and cleaning

WARNING!

Risk of injury or damage to the appliance.

Warning: Risk of fire / Flammable materials. The appliance contains flammable gas, propane (R290), a gas with a high level of environmental compatibility. Keep fire and ignition sources away from the appliance. Be careful not to cause damage to the refrigerant circuit containing propane.

• Do not use water spray and steam to clean the appliance.
• Clean the appliance with a moist soft cloth. Use only neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.

2.6 Compressor

WARNING!

Risk of damage to the appliance.

- The compressor and its system in the tumble dryer is filled with a special agent which is free from fluoro-chloro-hydrocarbons. This system must stay tight. The damage of the system can cause a leakage.

2.7 Service

• To repair the appliance contact the Authorised Service Centre.
- Use original spare parts only.
- Concerning the lamp(s) inside this product and spare part lamps sold separately: These lamps are intended to withstand extreme physical conditions in household appliances, such as temperature, vibration, humidity, or are intended to signal information about the operational status of the appliance. They are not intended to be used in other applications and are not suitable for household room illumination.

2.8 Disposal

WARNING!

Risk of injury or suffocation.

Warning: Risk of fire / Risk of material damage and damage to the appliance.

• Disconnect the appliance from the mains electrical and water supplies.
• Cut off the mains electrical cable close to the appliance and dispose of it.
• The appliance contains flammable gas (R290). Contact your municipal authority for information on how to discard the appliance correctly.
• Remove the door catch to prevent children or pets from becoming trapped in the drum.
• Dispose of the appliance in accordance with local requirements for the disposal of Waste Electrical and Electronic Equipment (WEEE).

3. PRODUCT DESCRIPTION

1 Water container
2 Control panel
3 Internal lighting
4 Appliance door
5 Filter
6 Rating plate
7 Airflow slots
8 Condenser lid
9 Condenser cover
10 Adjustable feet
11 Water re-circulation filter

i

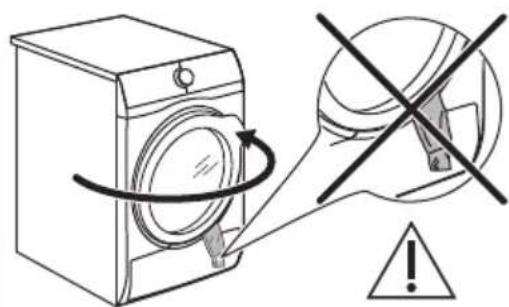

For ease of loading laundry or ease of installation the door is reversible (see the separate leaflet).

The rating plate reports:A. model nameB. product numberC. electrical ratingsD. serial number

4. CONTROL PANEL

1 Programmes
2 Programme dial
3 Display
4 ▷ Avvio/Pausa button
5 Options
6 On/Off button with Auto Off function

4.1 Display

Symbol on the display Symbol description
2:35	cycle time indication
	maximum load
Oh-24h	finish in selection (up to 24h)
	Antipiega option on
	buzzer off
	child lock on
	laundry dryness: iron dry, cupboard dry, extra dry
	Asciugatura a Tempo option on
	indicator: drain the water container
	indicator: clean the filter
	indicator: check the condenser
	indicator: fill the water container for steam system
	indicator: clean the steam system filter
	ECO mode drying
	indicator: drying phase
	indicator: cooling phase
	indicator: crease guard phase
	indicator: steam action phase
	Termina tra option on
ProSense	ProSense indicator
MAX	indicator: maximum load exceeded

5. PROGRAMMA

Programma	Load 1)	Properties / Fabric mark 2)
MixDry 5,0 kg		Designed for routine drying of what you wash without sorting. Dries evenly clothes made of cotton, cotton-synthetic blends and synthetic.	/ [IMAGE]
3)Cotoni Eco	9,0 kg	Cotton fabrics programme designed for maximum energy saving.	/ ☐,☐
Cotoni	9,0 kg	White and coloured cotton fabrics programme. Default setting is for ready to store dryness level.	/ ☐,☐
Sintetici	4,0 kg	Blended garments containing mostly synthetic fibres like polyester, polyamide, etc.	/ ☐,☐☐
Delicati 2,0 kg		Recommended for generic delicate fabrics such as viscose, rayon, acrylic and their blends.	/ ☐,☐☐
	1,0 kg	Gently dries for machine and hand-washable woollens. Remove immediately the items when the programme is completed.The wool drying cycle of this machine has been approved by The Woolmark Company for the drying of wool garments labelled as "hand wash" provided that the garments are dried according to the instructions issued by the manufacturer of this machine.Follow the garment care label for other laundry instructions. M2140The Woolmark symbol is a Certification mark in many countries.
Seta 0,5 kg		Preserves the shape of delicate machine and hand-washable silk clothes, minimizing creases by using gentle warm air and soft movements.	/ [IMAGE]
Biancheria XL 4,5 kg		Dries up to three bed linen sets at once. Minimises twists and tangles of large items to ensure every bed linen reaches a uniform dryness without wet spots.	/ [IMAGE]
Outdoor	2,0 kg	Maintains the functionality of outdoor fabrics made of technical textile and restores water repellency on waterproof jackets and shell jackets with removable linings (suitable for drying in tumble dryer).	/ [IMAGE]
Hygiene	5,0 kg	Dries and sanitizes your garments and other items maintaining the temperature above 60°C over time, removing 99.9% of bacteria and viruses4). Note: This cycle should only be used for wet items. Not suitable for delicate items.	/ [IMAGE]
Piumini	2,0 kg	An automatic programme that precisely dries even the internal insulation of jackets with feather, down, or synthetic filling. Maintains garment appearance and thermal functionality	/ [IMAGE], [IMAGE]
Refresh	2,0 kg	For dry clothes onlyShort low temperature cycle that helps in removing odours from a small amount of garments. Indicated also for dry clothes that were in storage for long time.	/ [IMAGE], [IMAGE]

1) The maximum weight refers to dry items.

2) For fabric mark meaning see chapter DAILY USE: Preparing the laundry.

3) The Cotoni ECO programme in combination with the cupboard dry livello Asciugatura selection is the “Standard cotton programme” according to Commission Regulation EU No. 392/2012. It is suitable for drying normal wet cotton laundry and it is the most efficient programme in terms of energy consumption for drying wet cotton laundry.

4) Tested for Candida albicans, MS2 Bacteriophage and Escherichia coli in external test performed by Swissatest Testmaterialien AG in 2021 (Test Report No. 20212038).

5.1 Programma and options selection compatibility

Options
Programma 1)	Livello Asciugatura	Asciugatura a Tempo	Anti-piega	Va-pore 2)	Silent
MixDry		■	■		■
Cotoni Eco			■
Cotoni		■	■	■	■
Sintetici		■	■	■	■
Delicati	3)		■
Lana		4)
Seta			■
Biancheria XL		■	■
Outdoor			■
Hygiene			■
Piumini			■
Refresh			■	■

1) Aside from the programme, you can set one or more options at the same time.
2) Touch Vapore option to select steam level 1,2,3
3) Set by default
4) See chapter OPTIONS: Asciugatura a Tempo on Lana programme

5.2 Consumption data

i

Stated values are obtained in laboratory conditions with relevant standards. Different parameters can change the data, for example: the quantity of laundry, the type of laundry and the ambient conditions. The initial moisture content of the laundry, the water type, the supply voltage and if you change the default setting of a programme may also affect the energy use and the duration of the drying programme.

Program	Spun at / residual humidity	Drying time 1)	Energy consumption 2)
Cotoni Eco 9,0 kg
normale	1400 rpm / 50% 163 min		1,46 kWh
1000 rpm / 60%	199 min		1,68 kWh
Cotoni 9,0 kg
pronto stiro	1400 rpm / 50% 113 min		0,96 kWh
1000 rpm / 60%	136 min		1,19 kWh
Cotoni Eco 4,5 kg
normale	1400 rpm / 50% 87 min		0,72 kWh
1000 rpm / 60%	110 min		0,86 kWh
Sintetici 4,0 kg
normale	1200 rpm / 40% 68 min		0,53 kWh
800 rpm / 50%	76 min		0,62 kWh

1) For partial loads, the cycle time is shorter and appliance uses less energy.
2) Improper ambient temperature and/or poorly centrifuged laundry can prolong cycle time and increase the energy consumption.

6. OPTIONS

This option helps to achieve requested laundry dryness. You can select the level of dryness:
	ready to iron - iron dry level
	ready to store - cupboard dry level1)
	ready to store - extra dry level

1) Default selection which is related to the programme

For: Cotoni, Biancheria XL, Sintetici and MixDry programs. Lets the user to set drying time from minimum 10 min to maximum of 2 hours (in 10 min steps). When this option is maximum, load indicator disappears.

i

The cycle lasts as long as set drying time regardless of the size of a load and its dryness.

TIME DRYING RECOMMENDATION
up 10 min action of cool air only (no heater).
10 - 40 min	additional drying to improve dryness after previous drying cycle.
>40 min	full drying of the small laundry loads up to 4 kg, well spun (>1200 rpm).

Asciugatura a Tempo on Lana program

Option applicable to Lana program to adjust final dryness level to more dry or less dry.

6.3 Antipiega

Extends up to 120 minutes the anti-crease phase (30 minutes) at the end of the drying cycle. After drying phase drum rotates from time to time to prevent creases. Laundry can be removed during the anti-crease phase.

6.4 Silent

The appliance operates with low noise without effect on the drying quality. The appliance operates slowly with longer cycle time.

6.5 Fine

The acoustic signal sounds at the following:

• cycle end
• start and end of crease guard phase

The acoustic signal is by default always on. You can use this option to activate or deactivate the sound.

Fine option off:

1. Turn the dryer on.
2. Select 1 of the available programs.
3. Touch and hold down Silent button by around 3 seconds.

The symbol appears on the display.

1. To activate the Fine, touch the above button again until the symbol disappears.

6.6 Termina tra

i

This option allows choosing the time at which a programme should terminate. Once activated the machine waits for the right moment to begin the drying process.

Termina tra time is the sum of stand by time and drying time.

1. Set the drying programme and options.

2. Touch Termina tra button.

3. Touch the + or - button until the display shows the desired time within the programme should end (e.g. if the programme has to finish within 12 hours.)

1. Touch the Avvio/Pausa button. The drum starts rotating to perform the ProSense estimation, if foreseen in the selected programme.

2. The appliance starts the countdown to the end of the programme and the programme will start at the right moment for ending.

7. STEAM FUNCTION

Steam helps to remove odours like the outdoor air.

Decreases or removes creases. Makes the pieces of clothing more flexible.

The pieces of clothing after steam programme are easy to iron.

At the end of the steam cycles clothes come out with a residual humidity appropriate for ironing.

If clothes are not ironed immediately hang them until they are completely dry.

i

At the start, because of wide types of fabrics, apply small steam loads. You easily get the experience, which helps you to use the sufficient steam loads.

7.1 How to fill water container for steam system

CAUTION!

Use only distilled or demineralized water.

Always when the container is empty the indicator 📁 is on and you cannot start the steam programmes.

Water container for steam system is automatically refilled if you dry with standard and steam programmes. If the water tank is empty you can fill it manually. The condensed water is also applicable for steam system. The condensate water must be filtered e.g. with a coffee filter to remove small pieces of fluff.

To fill water container:

1. Turn on the appliance.
2. Set 1 of the programmes with steam option to check the water level.
3. Pull the water container. Keep it in horizontal position.

1. Fill the water until it reaches the "max" level.

1. Put the water container.

i

The icon ⚙ alerts you when the steam tank is empty. In this case steam functions can not be activated.

7.2 Vapore

This option is to set the required steam load. It depends on the: type, weight and volume of the laundry.

There are 3 possible selections:

+ | minimum load

+2 moderate load

+3 maximum load

7.3 Steam programmes

Programma	Load 1)	Properties
Cotoni	2,0 kg	Helps to remove the creases from the cottons pieces of clothing. Programme duration is automatically adjusted to dry the load up to the optimal humidity level for steam action. Frequently it is not necessary to iron the clothes after steam programme. In this case clothes must be hang on the clothes hanger or folded.
Sintetici	2,0 kg	Helps to remove the creases from the synthetics pieces of clothing. Pro-gramme duration is automatically ad-justed to dry the load up to the optimal humidity level for steam action. Fre-quently it is not necessary to iron the clothes after steam programme. In this case clothes must be hang on the clothes hanger or folded.
Refresh	2,0 kg	For dry clothes only.Short low temperature cycle that helps in removing odours from a small amount of garments. Indicated also for dry clothes that were in storage for long time.

1) The maximum weight refers to dry items.

7.4 Vapore chart

Programmes / types of the clothes	Vapore	Load 1)
Cotoni	- minimum level 0,5 - 1 kg
	-- moderate level 1 - 1,5 kg
	--- maximum level 1,5 - 2kg
Cotoni shirts	- minimum level 1 - 2 items
	-- moderate level 3 - 4 items
	--- maximum level 5 items
Sintetici	- minimum level 0,5 - 1 kg
	-- moderate level 1 - 1,5 kg
	--- maximum level 1,5 - 2kg
Sintetici shirts	- minimum level 1 - 2 items
	-- moderate level 3 - 4 items
	--- maximum level 5 items
Refresh	- minimum level 0,5 kg
	-- moderate level 1 kg
	--- maximum level 2 kg

1) The maximum weight refers to dry items.

8. BEFORE FIRST USE

i

Rear drum locks are removed automatically when dryer is activated for the first time. Possible to hear some noise.

To unlock the rear drum locks:

1. Switch on the appliance.
2. Set any programme.
3. Press the Start/Pause button.

Drum starts to rotate. Rear drum locks are automatically deactivated.

Before you use the appliance to dry items:

• Clean the tumble dryer drum with a moist cloth.
• Start a 1 hour programme with moist laundry.
• Fill up the steam water container before using a steam programme for the first time (see chapter on "Steam function - How to fill water container for steam system").

i

At the beginning of the drying cycle (first 3-5 min) there could be a slightly higher sound level. This is due to the compressor starting up. This is normal for compressor powered appliances such as refrigerators and freezers.

8.1 Unusual smell

The appliance is tightly packed.

After product unpacking you can feel an unusual smell. This is normal for brand new products.

Appliance is built of several different types of material which all together can generate unusual smell.

Over usage time, after few drying cycles unusual smell gradually disappears.

8.2 Noises

i

Different noises may be heard at different times during the drying cycle. They are perfectly normal operating sounds.

Working compressor.

Rotating drum.

Working fans.

Working pump and transferring condensation to the tank.

9. DAILY USE

9.1 Preparing the laundry

Very often the clothes after washing cycle are kneaded and tangled altogether.

Drying kneaded and tangled clothes is inefficient.

To assure proper air flow and even drying it is recommended to shake and load one by one the clothes to the tumble dryer.

To assure proper drying process:

• Close the zips.
• Close the fasteners of duvet covers.
• Do not dry ties or ribbons loose (e.g. apron ribbons). Tie them before you start a programme.
• Remove all items from pockets.
• Turn items with the internal layer made of cotton inside out. Cotton layer must be faced outwards.
  • Always set the programme suitable for the type of laundry.
• Do not put light and dark colours together.
• Use suitable programme for cottons, jersey and knitwear to reduce shrinkage.

• Do not exceed the maximum load stated in the programmes chapter or shown on the display.

• Dry only the laundry that is suitable for tumble drying. Refer to the fabric label on the items.

• Do not dry large and small items together. Small items can be trapped inside the large items and remain wet.
• Shake the large clothes, fabrics before placing in the tumble dryer. It is to avoid moist places inside the fabric after the drying cycle.

Steam function hints

• Do not use steam programmes for: wool not suitable to dry in the tumble dryers, leather, textiles with large metal, wooden or plastic parts, textiles with rusting metal parts, oilskins or wax cotton garments.
• Sort and dry together textiles with similar size, weight, material and colour.
• Do not dry new, coloured textiles together with light-coloured laundry items. Colours may fade (check colour fastness of fabric when damp in an inconspicuous area).
• Do not use dry cleaning sets in combination with the steam programmes.
• Remove stains by washing or using localised stain removal before the steam programme use.
• For best drying results turn items with double-layered fabrics inside out (e.g. with cotton lined anoraks, the cotton layer should be outermost).

Fabric label	Description
	Laundry is suitable for tumble drying.
	Laundry is suitable for tumble drying at higher temperatures.
	Laundry is suitable for tumble drying at low temperatures only.
[BHT6]	Laundry is not suitable for tumble drying.

9.2 Loading the laundry

CAUTION!

Ensure the laundry is not trapped between the appliance door and the rubber seal.

1. Pull open the appliance door.
2. Load the laundry one item at a time.
3. Close the appliance door.

9.3 Turning on the appliance

To turn on the appliance:

Push the On/Off button.

If the appliance is on, some indicators appear on the display.

9.4 Auto Off function

To decrease the energy consumption, the Auto Off function turns the appliance off automatically:

• if the Avvio/Pausa touch button is not touched within 5 minutes.
• 5 minutes after a cycle ends.

Push the On/Off button to turn on the appliance.

If the appliance is on, some indications appear on the display.

9.5 Setting a programme

Use the programme dial to set the programme.

The approximate programme duration appears on the display.

Real drying time will depend on type of the load (quantity and composition), the room temperature and the humidity of your laundry after spin drying phase.

9.6 Options

Together with the programme you can set 1 or more special options.

To activate or deactivate an option touch the relevant button or a two button combination.

its symbol appears on the display or the led above the corresponding button lights up.

9.7 Child lock option

The child lock can be set to prevent children from playing with the appliance. The child lock option locks all touch buttons and the program dial (this option does not lock the On/Off button).

You can activate the child lock option:

• before you touch the Avvio/Pausa button - the appliance cannot start
  • after you touch the Avvio/Pausa button - programs and option selection is unavailable.

Child lock option activation:

1. Turn the dryer on.
2. Select 1 of the available programs.
3. Touch and hold down Antipiega button by around 3 seconds.

The symbol ☐ appears on the display.

1. To deactivate the child lock, touch the above button again until the symbol disappears.

9.8 Starting a program

To start the program:

Touch the Avvio/Pausa button.

The appliance starts and the LED above the button stops flashing and stays on.

9.9 The ProSense load detection

i

The ProSense The ProSense technology detects the laundry load size defining the programme duration.

After setting a drying programme, the ProSerights up on the display if the programme supports it.

Touching the Avvio/Pausa button, the ProSense starts the laundry load detection:

1. The appliance detects the load in the first minute: the indicator flashes, the bars under the icon move back and forth ProSense and the drum rotates shortly.

2. When the drum stops rotating, the display shows the new programme duration adjusted according to the detected load. The number of bars, from 1 to 4, represents the estimated load amount. 4 bars represent the maximum load amount for the selected programme.

i

In case of drum overload, the maximum declared load indicator comes on again with the indicator blinking. In this case, during these 30 seconds, it is possible to open the door and remove the exceeding garments. Once removed, touch the Avvio/Pausa button to start the programme again. If the laundry amount will not be reduced, the programme starts anyway. In this case, it will be not possible to guarantee the best results.

9.10 Program change

To change a program:

1. Push the On/Off button to turn the appliance off.
2. Push the On/Off button again to turn on the appliance.
3. Set a new program.

9.11 Programme end

i

Clean the filter and drain the water container after each drying cycle. (See chapter CARE AND CLEANING.)

If the drying cycle is finished, the symbol ☐ appears on the display. If the Fine option is activated, the acoustic signal sounds intermittently for 1 minute.

i

If you do not turn off the appliance, the anti-crease phase starts (not active with all programmes). Flashing symbol signals the execution of the anti-crease phase. Laundry can be removed during this phase.

To remove the laundry:

1. Push the On/Off button for 2 seconds to turn the appliance off.
2. Open the appliance door.
3. Remove the laundry.
4. Close the appliance door.

Possible causes of unsatisfactory drying results:

- Inadequate default dryness level settings. See chapter Adjustment of default dryness level

9.12 Drum light on

Touch and hold down Vapore button by around 3 seconds. The light inside the drum is on.

9.13 Possible causes of unsatisfactory drying results:

• The filter is clogged. Clogged filter makes drying inefficient.
• The airflow slots are clogged.
• The drum is dirty.
• Inadequate default dryness level settings. See chapter Adjustment of default dryness level
• Room temperature is too low or too high. Optimal room temperature is between 18° - 25°C .

10. HINTS AND TIPS

10.1 Ecological hints

• Spin the laundry well before drying.
• Do not exceed the load sizes which are specified in the programmes chapter.
• Clean the filter after each drying cycle.
• Do not use fabric softener to wash and then dry. In the tumble dryer laundry becomes soft automatically.

• The water from the water container can be used to iron the clothes. You must first filter the water to eliminate remaining textile fibres (simple coffee filter is suitable).

• Always keep the airflow slots at the bottom of the appliance clear.

• Make sure there is good airflow where the appliance is to be installed.

10.2 Adjustment of default dryness level

To change the default dryness level:

1. Turn the appliance on.
2. Select 1 of the available programmes.
3. Touch and hold down the Asciugatura a Tempo and Antipiega buttons at the same time.

One of the symbols appears on the display:

CO- - Maximum dryness
CO= - Extra dryness
COE - Standard dryness

1. Touch the Avvio/Pausa button repeatedly until you reach the desired dryness level.

Dryness level Display symbol
Maximum dryness	‡	CO-
Extra dryness	+	CO=
Standard dryness	###	CO=

1. To memorise the setting touch and hold down the Asciugatura a Tempo and Antipiega buttons at the same time for approximately 2 seconds.

10.3 Deactivating the tank indicator

The water container indicator is activated by default. It illuminates at the end of the drying cycle or during the cycle if the water reservoir is full. If the draining kit is installed the water container is drained automatically and the indicator can be deactivated.

To deactivate the indicator:

1. Turn the appliance on.
2. Select 1 of the available programmes.
3. Touch and hold down Silent and Vapore buttons at the same time.

One of 2 configurations is possible:

• the tanica indicator: ⇔ is on if the symbol appears - the water container indicator is permanently activated
• the tanica indicator: is off if the symbol appears - the water container indicator is permanently deactivated

10.4 Operating hours counter

This function gives a possibility to display the total operating time of the appliance in hours, which is counted from the moment it is first switched on. The actual operating time of the cycles is shown (does not include pauses or delayed start time).

To visualise this value, proceed as follows:

1. Switch the appliance on by pressing the On/Off button.
2. Press and hold the Asciugatura a Tempo and Livello Asciugatura buttons for some seconds.
3. After 3 seconds the total hours operated by the appliance are shown in the display: e.g. if the operating time is 1276 hours, the display shows the text Hr for 2 seconds then 12 for 2 seconds followed by 76. This value is displayed with a sequence of two digits at a time: the first two digits indicate thousands and hundreds, the second two digits indicate tens and units.

To exit this mode, either press any button, turn the selector knob or switch the appliance off.

10.5 Factory Defaults

This function allows to restore the factory default settings. The saved options and working modes will be reset.

To activate this option follow steps below:

1. Switch the appliance on by pressing On/Off button.

2. Wait approximately 8 seconds.

3. Press and hold the Vapore and Antipiega buttons for some seconds.

4. The appliance will acknowledge the operation by displaying ---.

i

If the procedure does not work (this could be due to timeout or wrong keys combination), switch the appliance off and repeat the sequence from the beginning.

11. CARE AND CLEANING

11.1 Cleaning the filter

At the end of each cycle the ⚙️ filtro symbol comes on the display and you must clean the filter.

i

The filter collects the lint during the drying cycle.

i

To achieve the best drying performances clean the filter regularly, clogged filter lead to longer cycles and energy consumption increase. Use your hand to clean the filter, and if necessary, a vacuum cleaner.

!

CAUTION!

Avoid the use of water to clean the filter. Instead throw away lint in the dustbin ( avoid dispersion of plastic fiber in water ambient).

1. Open the door. Pull the filter up.

1. Push the hook to open the filter.

1. Gather lint with hand from both internal parts of the filter.

Throw the lint in the dustbin.

1. If necessary, clean the filter with a vacuum cleaner. Close the filter.
2. If necessary, remove lint from the filter socket and gasket. You can use a vacuum cleaner. Place the filter back inside the filter socket.

11.2 Emptying the water container

Empty the condensed water container after each drying cycle.

If the condensed water container is full, the programme stops automatically. The 🔊 tanica symbol comes on the display and you must empty the water container.

To empty the water container:

1. Pull the water container out keeping it in a horizontal position.

1. Pull the plastic connection out and drain the water into a basin or equivalent receptacle.

1. Push the plastic connection back in and place the water container back into position.

2. To continue the programme press the Avvio/Pausa button.

11.3 Cleaning the condenser

If the symbol ⇒ condensatore flashes on the display, inspect the condenser and its compartment. If it is dirty, clean it. Do the check not less than once a 6 months.

WARNING!

Do not touch the metal surface with bare hands. Risk of injury. Wear protective gloves. Clean carefully to avoid damaging the metal surface.

To inspect:

1. Open the door. Pull the filter up.

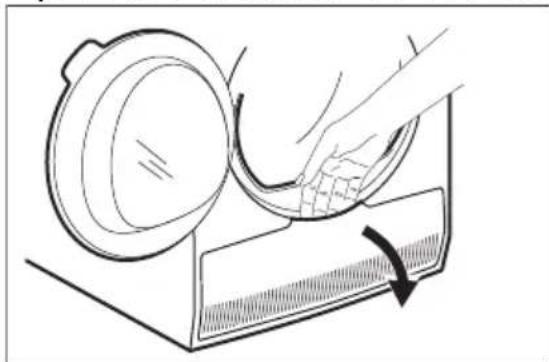

1. Open the condenser cover.

1. Turn the lever to unlock the condenser lid.

1. Lower the condenser lid.

1. If necessary, remove the fluff from the condenser and its compartment. You can use a vacuum cleaner with a brush attachment.

1. Close the condenser lid.
2. Turn the lever until it clicks into position.
3. Put the filter back.

11.4 Cleaning the steam system filter

CAUTION!

Do not use the steam programmes without the steam system filter or with damaged or blocked filter.

If the symbol ⚙ (clean the steam system filter is on the display you must clean the filter.

To clean the steam system filter:

1. Pull the water container. Keep it in horizontal position.

1. Pull the filter.

1. Open the filter.

1. Use a moist hand to clean the filter.

1. Put the filter inside the filter socket.

2. Put the water container.

11.5 How to drain the water from the steam system container

i

The quality of the water in the container can get worse. If you will not use the appliance for long period drain the water from the container.

To drain the water:

1. Open the door.
2. Open the condenser cover.

1. Turn the lever to unlock the condenser lid and lower the condenser lid.

1. Take the pipe placed on the left wall of the compartment. Open the cap to drain the water.

1. Close the cap.
2. Place the pipe back on its seat.
3. Close the condenser lid.
4. Turn the lever to lock the condenser lid.
5. Close the condenser cover.

11.6 Cleaning the drum

WARNING!

Disconnect the appliance before you clean it.

Use a standard neutral soap detergent to clean the inner surface of the drum and drum lifters. Dry the cleaned surfaces with a soft cloth.

CAUTION!

Do not use abrasive materials or steel wool to clean the drum.

11.7 Cleaning the control panel and housing

Use a standard neutral soap detergent to clean the control panel and housing.

Use a moist cloth to clean. Dry the cleaned surfaces with a soft cloth.

CAUTION!

Do not use furniture cleaning agents or cleaning agents which can cause corrosion.

11.8 Cleaning the airflow slots

Use a vacuum cleaner to remove fluff from the airflow slots.

12. TROUBLESHOOTING

WARNING!

Refer to Safety chapters.

12.1 Error Codes

The appliance does not start or it stops during operation.

First try to find a solution to the problem (refer to the table). If the problem persists, contact the Authorised Service Centre.

⚠ WARNING!

Deactivate the appliance before carrying out any check.

In case of major problems, the acoustic signals operate, the display shows an error code and the Avvio/Pausa button may flash continuously:

Error code	Possible cause Remedy
E50	Appliance motor overloaded. Too much laundry or en-trap in the drum.	The programme was not completed. Remove the laundry from the drum, set the programme and restart the cycle.

Error code	Possible cause Remedy
E90 or E91	Internal fail. No communication between electronic elements of the appliance.
EH0	The mains supply is unstable.

If the display shows other error codes, deactivate and activate the appliance. If the problem continues, contact the Authorised Service Centre.

In case of different problem with the tumble dryer check the table below for possible solutions.

12.2 Troubleshooting

Problem Possible solution
You cannot activate the appli-ance.	Make sure that the mains plug is connected to the mains sock-et.
Check fuse in fuse box (do-	mestic installation).
The programme does not start.	Press Avvio/Pausa.
Make sure that the appliance	door is closed.
Steam programme does not start. The steam water contain-er indicator lights up.	Fill water container.
Clean the steam water filter
After a steam programme, clothes are not sufficiently smooth.	Note the composition of the fabric.
Set a higher steam level.
Load the machine with fewer	clothes, or only equivalent ones.
Remove clothes quickly one at	a time from the machine as soon as possible after the start of the anticrease phase.
Hang clothes on clothes hang-ers, do up buttons and tug clothes into shape.
Reshape multilayered clothes	by ironing after they come out of the machine.
After a steam programme, there are wet spots on clothes.	Incorrect steam level selection. Set suitable steam level (see steam guide for reference).
Clean the filter (see chapter	CARE AND CLEANING) before performing the steam cycle.
Even after several drying cycle the steam water tank is empty.	Clean the steam water filter.
The appliance door does not close.	Make sure that the installation of the filter is correct.
Make sure that the laundry is	not caught between the appli-ance door and the rubber seal.
The appliance stops during op-eration.	Make sure that the water con-tainer is empty. Press Avvio/ Pausa to start the programme again.
Load is too small, increase the	load or use the Asciugatura a Tempo programme.
The cycle time is too long or unsatisfactory drying result.1)	Make sure that the weight of the laundry is suitable for the duration of the programme.
Make sure that the filter is	clean.
The laundry is too wet. Spin the	laundry in the washing machine again.
Ensure that the room temperature	ture is higher than +5°C and lower than +35°C. Optimal room temperature is 18°C to 25°C.
Set the Asciugatura a Tempo	or the extra programme.2)
The display shows - - -	If you want to set a new programme, deactivate and activate the appliance.
Make sure that the options are	suitable for the programme.

1) After maximum 6 hours, the programme ends automatically.
2) It can happen that some area remains humid when drying big items (e.g. bed sheets).

12.3 Possible causes of unsatisfactory drying results:

• The filter is clogged. Clogged filter makes drying inefficient.
• The airflow slots are clogged.
• The drum is dirty.
• Inadequate default dryness level settings. See chapter Adjustment of default dryness level
• Room temperature is too low or too high. Optimal room temperature is between 18° - 25°C .

13. TECHNICAL DATA

Height x Width x Depth 850 x 596 x 638 mm (maximal 663 mm)
Max. depth with the appliance door open	1108 mm
Max. width with the appliance door open	958 mm
Adjustable height 850 mm (+ 15 mm - feet regulation)
Drum volume 118 l
Maximum load volume 9,0 kg
Voltage 230 V
Frequency 50 Hz
Sound power level 63 dB
Total power 1600 W
Energy efficiency class A+++
Energy consumption on the standard cotton programme with the full load. 1)	1,68 kWh
Energy consumption on the standard cotton programme with the partial load. 2)	0,86 kWh
Annual energy consumption3)	194,10 kWh
Left-on mode power absorption 4)	0,05 W
Off mode power absorption 4)	0,05 W
Type of use Household
Allowed ambient temperature + 5°C to + 35°C
Level of protection against ingress of solid particles and moisture ensured by the protective cover, except where the low voltage equipment has no protection against moisture	IPX4
Gas designation R290
Weight 0,149 kg

1) With reference to EN 61121. 9,0 kg of cotton centrifuged at 1000 rpm.
2) With reference to EN 61121. 4,5 kg of cotton centrifuged at 1000 rpm.
3) Energy consumption per year in kWh, based on 160 drying cycles of the standard cotton programme at full and partial load, and the consumption of the low-power modes. Actual energy consumption per cycle will depend on how the appliance is used (REGULATION (EU) No. 392/2012).
4) With reference to EN 61121.

The information given in the chart above is compliant with the EU Commission regulation 392/2012 implementing directive 2009/125/EC.

1. PRODUCT INFORMATION SHEET IN REFERENCE TO E.U. REGULATION 1369/2017

Product Information Sheet
Trade Mark AEG
Model TR9T94ABS	PNC916099457
Rated capacity in kg 9,0
Air vented or condenser tumble dryer Condenser
Energy efficiency class A+++
Energy consumption in kWh per year, based on 160 drying cycles of the standard cotton programme at full and partial load, and the consumption of the low-power modes. Actual energy consumption per cycle will depend on how the appliance is used.	194,10
Automatic tumble drier or non-automatic tum-ble drier	Automatic
Energy consumption of the standard cotton programme at full load in kWh	1,68
Energy consumption of the standard cotton programme at partial load in kWh	0,86
Power consumption of the off-mode in W 0,05
Power consumption in left-on mode in W 0,05
Duration of the left on mode in minutes 10
The 'standard cotton programme' used at full and partial load is the standard drying pro-gramme to which the information in the label and the fiche relates, this programme is suitable for drying normal wet cotton laundry and it is the most efficient programme in terms of en-ergy consumption for cotton.
Weighted programme time of the 'standard cotton programme at full and partial load' in minutes	148
Programme time of the 'standard cotton pro-gramme at full load' in minutes	199
Programme time of the 'standard cotton pro-gramme at partial load' in minutes	110
Condensation efficiency class on a scale from G (least efficient) to A (most efficient)	A
Average condensation efficiency of the standard cotton programme at full load as a percentage	91
Average condensation efficiency of the standard cotton programme at partial load as a percentage	91
Weighted condensation efficiency for the 'standard cotton programme at full and partial load'	91
Sound power level in dB 63
Built in appliance Y/N No

The information given in the chart above is compliant with the EU Commission regulation 392/2012 implementing directive 2009/125/EC.

15. ENVIRONMENTAL CONCERNS

Recycle materials with the symbol 🙏 Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of appliances marked with the symbol 🚗 with the household waste. Return the product to your local recycling facility or contact your municipal office.

www.aeg.com/shop

CE
