Product type	Freezer
Brand	ZANKER
Model	ZKC380A
Net volume (litres)	368
Height with/without castors (cm)	87.6 / 88.3
Width (cm)	160
Depth (cm)	66.5
Weight (kg)	68
Electrical power supply	230 V ~ 50 Hz, single phase
Energy consumption (kWh/24h)	0.80
Freezing capacity (kg/24h)	29
Autonomy (rise time) (hours)	55
Power consumption (W)	140
Refrigerant	Isobutane R600a
Main functions	Rapid freezing (Super), adjustable thermostat, visual alarm, lock (depending on model), baskets
Maintenance and cleaning	Manual defrosting, interior cleaning with mild detergent, exterior cleaning with warm soapy water
Safety	Complies with EEC low-voltage directive (73/23/EEC) and electromagnetic compatibility (89/336/EEC)
Spare parts and repairability	Bulb 15 W max, plastic spatula, lock key, baskets (optional accessories)
General information	User manual available in French, 20 pages

Frequently Asked Questions - ZKC380A ZANKER

How to adjust the temperature of my ZKC380A freezer?

Use an adjustable thermostat with a coin. Turn towards MAX for more cold, towards 1 for less cold. The ideal temperature is below or equal to -18°C measured at the center of the cabinet.

What to do if the red light comes on?

The red light indicates an alarm. This may be due to introducing large quantities of fresh food or opening the lid too long. Wait a few hours; if the light does not go out, check the condition of the appliance or contact after-sales service.

How to freeze fresh food quickly?

Press the Super button 6 to 24 hours before introducing the food. Place the food against the walls for faster freezing. After 24 hours, press Super again to return to normal operation.

How to defrost the freezer?

Unplug the appliance and remove the food. Leave the lid open or place containers of hot water (not boiling) to speed up the process. Remove the ice with a plastic spatula (never metal objects). Use the separation plate to collect defrost water.

What to do if the freezer is not cooling enough?

First check that the plug is well inserted and the fuse is in good condition. Check the thermostat setting. If the green light is off, it may be a power cut. Wait 2 hours after introducing fresh products. If the problem persists, defrost the appliance or contact after-sales service.

How to clean the inside of the freezer?

Unplug the appliance and remove the accessories. Wash the cabinet and accessories with a damp sponge and a mild, odorless liquid detergent. Rinse and dry thoroughly. Never use abrasive or caustic products.

Why is the lid difficult to open after closing?

This is due to an air vacuum created by the rapid cooling of the air inside. It is normal. Wait a few minutes, then open normally. Never pull violently on the handle.

How to replace the bulb?

Unplug the appliance. Remove the transparent cover, unscrew the defective bulb and replace it with an identical bulb of 15 W max (available from after-sales service or in stores). Screw the cover back on and plug in.

What is the maximum freezing capacity per 24h?

The maximum freezing capacity is 29 kg per 24 hours, as indicated on the rating plate. In case of successive freezing, reduce this quantity by one third.

What to do in case of power cut?

If the cut lasts less than the rise time (55 hours for this model), the food remains frozen if you do not open the lid. Beyond that, consume the thawed food quickly or refreeze it after cooking.

USER MANUAL ZKC380A ZANKER

OPERATING AND INSTALLATION MANUAL

NL

F

D

GB

SOMMAIRE

CHARACTERISTIQUES TECHNIQUES 12 page

INSTRUCTIONS DE SECURITE 13 page

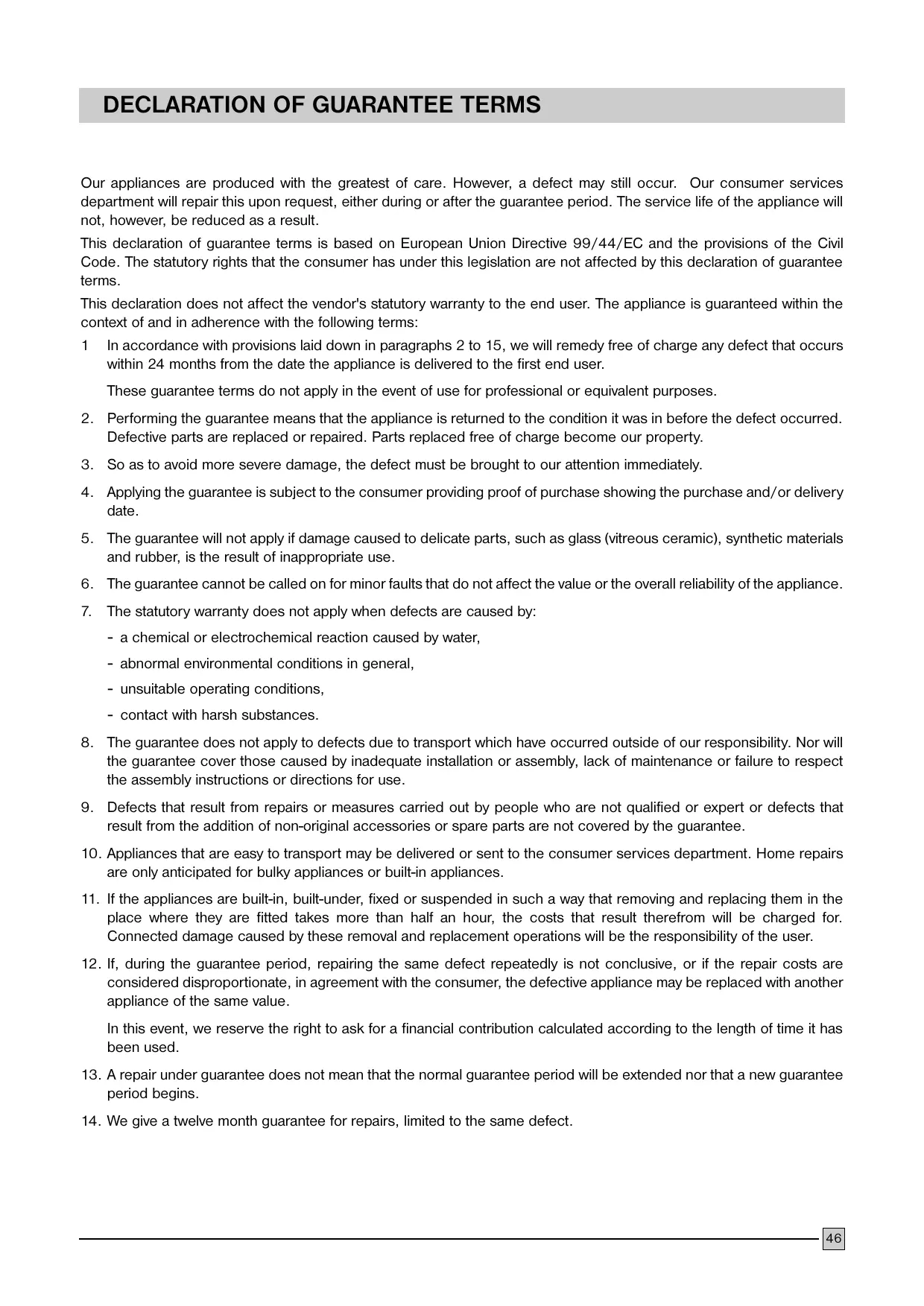

Our appliances are produced with the greatest of care. However, a defect may still occur. Our consumer services department will repair this upon request, either during or after the guarantee period. The service life of the appliance will not, however, be reduced as a result.

This declaration of guarantee terms is based on European Union Directive 99/44/EC and the provisions of the Civil Code. The statutory rights that the consumer has under this legislation are not affected by this declaration of guarantee terms.

This declaration does not affect the vendor's statutory warranty to the end user. The appliance is guaranteed within the context of and in adherence with the following terms:

1 In accordance with provisions laid down in paragraphs 2 to 15, we will remedy free of charge any defect that occurs within 24 months from the date the appliance is delivered to the first end user.
These guarantee terms do not apply in the event of use for professional or equivalent purposes.
2. Performing the guarantee means that the appliance is returned to the condition it was in before the defect occurred. Defective parts are replaced or repaired. Parts replaced free of charge become our property.
3. So as to avoid more severe damage, the defect must be brought to our attention immediately.
4. Applying the guarantee is subject to the consumer providing proof of purchase showing the purchase and/or delivery date.
5. The guarantee will not apply if damage caused to delicate parts, such as glass (vitreous ceramic), synthetic materials and rubber, is the result of inappropriate use.
6. The guarantee cannot be called on for minor faults that do not affect the value or the overall reliability of the appliance.
7. The statutory warranty does not apply when defects are caused by:

• a chemical or electrochemical reaction caused by water,
• abnormal environmental conditions in general,
• unsuitable operating conditions,

• contact with harsh substances.

• The guarantee does not apply to defects due to transport which have occurred outside of our responsibility. Nor will the guarantee cover those caused by inadequate installation or assembly, lack of maintenance or failure to respect the assembly instructions or directions for use.

• Defects that result from repairs or measures carried out by people who are not qualified or expert or defects that result from the addition of non-original accessories or spare parts are not covered by the guarantee.
• Appliances that are easy to transport may be delivered or sent to the consumer services department. Home repairs are only anticipated for bulky appliances or built-in appliances.
• If the appliances are built-in, built-under, fixed or suspended in such a way that removing and replacing them in the place where they are fitted takes more than half an hour, the costs that result therefrom will be charged for. Connected damage caused by these removal and replacement operations will be the responsibility of the user.
• If, during the guarantee period, repairing the same defect repeatedly is not conclusive, or if the repair costs are considered disproportionate, in agreement with the consumer, the defective appliance may be replaced with another appliance of the same value.

In this event, we reserve the right to ask for a financial contribution calculated according to the length of time it has been used.

1. A repair under guarantee does not mean that the normal guarantee period will be extended nor that a new guarantee period begins.

2. We give a twelve month guarantee for repairs, limited to the same defect.

3. Except in the event where liability is legally imposed, this declaration of guarantee terms excludes any compensation for damage outside the appliance for which the consumer wishes to assert his rights. In the event of legally admitted liability, compensation will not exceed the purchase price paid for the appliance.

These guarantee terms are only valid for appliances purchased and used in Belgium. For exported appliances, the user must first make sure that they satisfy the technical conditions (e.g.: voltage, frequency, installation instructions, type of gas, etc.) for the country concerned and that they can withstand the local climatic and environmental conditions. For appliances purchased abroad, the user must first ensure that they meet the qualifications required in Belgium. Non-essential or requested adjustments are not covered by the guarantee and are not possible in all cases.

Our consumer services department is always at your disposal, even after the guarantee period has expired.

Address for our consumer services department:

ELECTROLUX HOME PRODUCTS BELGIUM
Bergensesteenweg, 719 - 1502 LEMBEEK
Tel. [phone]
