ZKC220A - Freezer ZANKER - Free user manual and instructions

Product type	Freezer
Brand	ZANKER
Model	ZKC220A
Dimensions (H x W x D)	87.6/88.3 x 105 x 66.5 cm
Weight	52 kg
Net volume	216 liters
Energy consumption	0.58 kWh/24h
Freezing capacity	24 kg/24h
Temperature rise time	46 hours (from -18°C to -9°C)
Power consumption	80 W
Power supply	230 V single-phase, 10/16 A
Refrigerant	R600a (isobutane)
Climate class	N-ST (16°C to 32°C)
Thermostat	Adjustable from 1 to MAX
Super freeze function	Yes, with button and yellow indicator
Indicator lights	Green (power on), yellow (Super), red (alarm)
Lock	Yes (depending on model)
Storage baskets	Yes, removable with reversible handles
Defrosting	Manual, with water collection tray
Interior cleaning	Damp sponge and mild detergent
Interior bulb	15 W max, accessible through transparent cover
Warranty	24 months

Frequently Asked Questions - ZKC220A ZANKER

How to adjust the temperature of the ZKC220A freezer?

Use a coin to turn the thermostat dial. Turn to MAX for colder, turn to 1 for less cold. The internal temperature should be at or below -18°C.

What to do if the red indicator lights up on the control panel?

The red light indicates an abnormal temperature. This may be due to adding fresh food, opening the lid too frequently, or a malfunction. Wait a few hours; if it stays on, consult the manual.

How to freeze large quantities of food?

Press the Super button (yellow indicator on) 6 to 24 hours before adding food. Place food in contact with the walls and leave Super mode active for 24 hours, then deactivate it to save energy.

How to defrost the freezer?

Unplug the appliance, remove food and keep it cool. Leave the lid open. To speed up, place containers of hot (not boiling) water inside and close the lid. Remove ice with the plastic spatula provided. Use the separation plate to collect water.

Why is the freezer lid difficult to open right after closing it?

This is normal due to air vacuum. Wait a few minutes; the lid will open easily. Never pull sharply on the handle.

What type of packaging to use for freezing food?

Use polyethylene bags or sheets, special freezer aluminum, waxed cardboard or plastic containers. Packaging must be airtight to prevent freezer burn.

Can you refreeze thawed food?

No, thawed food should never be refrozen unless it is raw food that has been cooked in between. Follow this rule to avoid health risks.

How to clean the inside of the freezer?

Unplug the appliance and remove all accessories. Wash the interior with a sponge or damp cloth and a mild, odorless liquid detergent. Rinse and dry thoroughly. Never use abrasive products or metal scrapers.

What to do in case of a power outage?

If the stop does not exceed the temperature rise time (46 hours for this model), food remains frozen. Do not open the lid. If the outage lasts longer, check food condition and consume quickly or refreeze after cooking.

How to change the freezer's interior bulb?

Unplug the appliance. Remove the transparent cover by unclipping it. Unscrew the bulb and replace it with an identical 15 W max bulb. Reclip the cover and plug back in.

USER MANUAL ZKC220A ZANKER

OPERATING AND INSTALLATION MANUAL

NL

F

D

GB

SOMMAIRE

CHARACTERISTIQUES TECHNIQUES 12 page

INSTRUCTIONS DE SECURITE 13 page

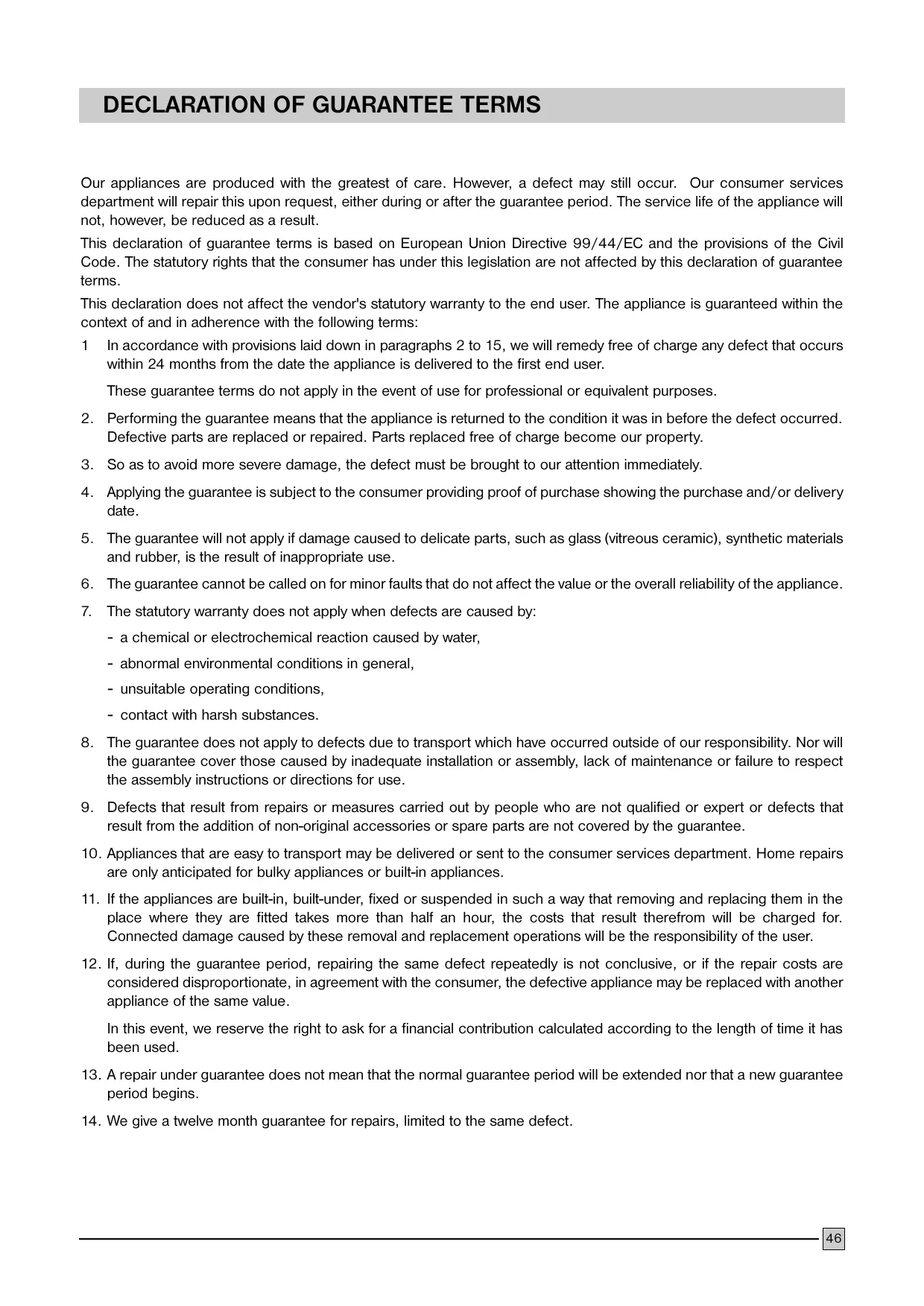

Our appliances are produced with the greatest of care. However, a defect may still occur. Our consumer services department will repair this upon request, either during or after the guarantee period. The service life of the appliance will not, however, be reduced as a result.

This declaration of guarantee terms is based on European Union Directive 99/44/EC and the provisions of the Civil Code. The statutory rights that the consumer has under this legislation are not affected by this declaration of guarantee terms.

This declaration does not affect the vendor's statutory warranty to the end user. The appliance is guaranteed within the context of and in adherence with the following terms:

1 In accordance with provisions laid down in paragraphs 2 to 15, we will remedy free of charge any defect that occurs within 24 months from the date the appliance is delivered to the first end user.
These guarantee terms do not apply in the event of use for professional or equivalent purposes.
2. Performing the guarantee means that the appliance is returned to the condition it was in before the defect occurred. Defective parts are replaced or repaired. Parts replaced free of charge become our property.
3. So as to avoid more severe damage, the defect must be brought to our attention immediately.
4. Applying the guarantee is subject to the consumer providing proof of purchase showing the purchase and/or delivery date.
5. The guarantee will not apply if damage caused to delicate parts, such as glass (vitreous ceramic), synthetic materials and rubber, is the result of inappropriate use.
6. The guarantee cannot be called on for minor faults that do not affect the value or the overall reliability of the appliance.
7. The statutory warranty does not apply when defects are caused by:

• a chemical or electrochemical reaction caused by water,
• abnormal environmental conditions in general,
• unsuitable operating conditions,

• contact with harsh substances.

• The guarantee does not apply to defects due to transport which have occurred outside of our responsibility. Nor will the guarantee cover those caused by inadequate installation or assembly, lack of maintenance or failure to respect the assembly instructions or directions for use.

• Defects that result from repairs or measures carried out by people who are not qualified or expert or defects that result from the addition of non-original accessories or spare parts are not covered by the guarantee.
• Appliances that are easy to transport may be delivered or sent to the consumer services department. Home repairs are only anticipated for bulky appliances or built-in appliances.
• If the appliances are built-in, built-under, fixed or suspended in such a way that removing and replacing them in the place where they are fitted takes more than half an hour, the costs that result therefrom will be charged for. Connected damage caused by these removal and replacement operations will be the responsibility of the user.
• If, during the guarantee period, repairing the same defect repeatedly is not conclusive, or if the repair costs are considered disproportionate, in agreement with the consumer, the defective appliance may be replaced with another appliance of the same value.

In this event, we reserve the right to ask for a financial contribution calculated according to the length of time it has been used.

1. A repair under guarantee does not mean that the normal guarantee period will be extended nor that a new guarantee period begins.

2. We give a twelve month guarantee for repairs, limited to the same defect.

3. Except in the event where liability is legally imposed, this declaration of guarantee terms excludes any compensation for damage outside the appliance for which the consumer wishes to assert his rights. In the event of legally admitted liability, compensation will not exceed the purchase price paid for the appliance.

These guarantee terms are only valid for appliances purchased and used in Belgium. For exported appliances, the user must first make sure that they satisfy the technical conditions (e.g.: voltage, frequency, installation instructions, type of gas, etc.) for the country concerned and that they can withstand the local climatic and environmental conditions. For appliances purchased abroad, the user must first ensure that they meet the qualifications required in Belgium. Non-essential or requested adjustments are not covered by the guarantee and are not possible in all cases.

Our consumer services department is always at your disposal, even after the guarantee period has expired.

Address for our consumer services department:

ELECTROLUX HOME PRODUCTS BELGIUM
Bergensesteenweg, 719 - 1502 LEMBEEK
Tel. [phone]
