S83820KMW3 - Refrigerator AEG - Free user manual and instructions

Product type	Refrigerator-freezer
Brand	AEG
Model	S83820KMW3
Energy efficiency class	E (on a scale from A to G)
Annual energy consumption	260 kWh/year
Total net capacity	320 litres
Fridge net capacity	220 litres
Freezer net capacity	100 litres
Freezing capacity	8 kg in 24 hours
Noise level	38 dB(A)
Climate class	SN-T (extended temperate to tropical)
Cooling technology	Total No Frost (frost-free)
Defrosting	Automatic in both compartments
Control type	Electronic with touch buttons
Display	External digital display (LED)
Shelving material	Tempered glass shelves
Door hinge	Right side, reversible
Dimensions (H × W × D)	1850 × 595 × 650 mm
Weight	72 kg
Power supply	220–240 V, 50 Hz
Refrigerant	R600a (isobutane)
Safety features	Door open alarm, temperature alarm
Maintenance	Self-cleaning condenser, washable door seals
Repairability index	8.2 out of 10

Frequently Asked Questions - S83820KMW3 AEG

What is the recommended temperature settings for the fridge and freezer?

For optimal food preservation, set the fridge compartment to 4°C and the freezer to -18°C. Adjust via the electronic control panel if needed.

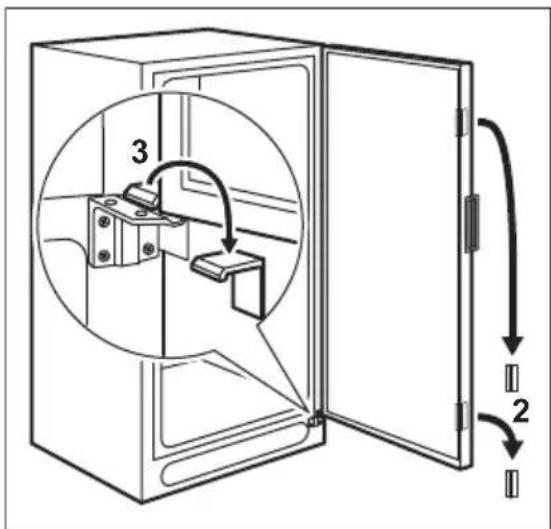

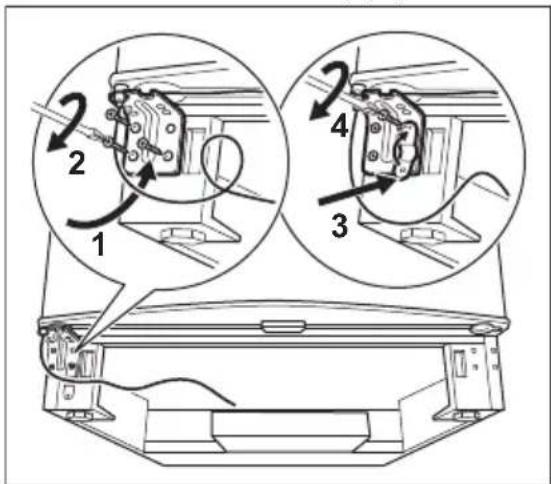

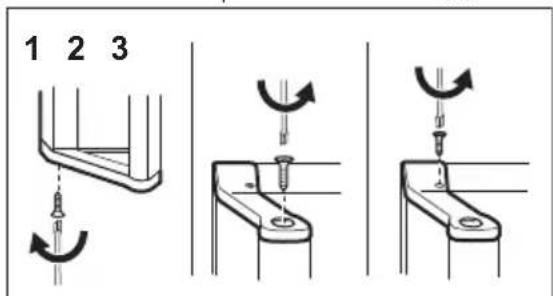

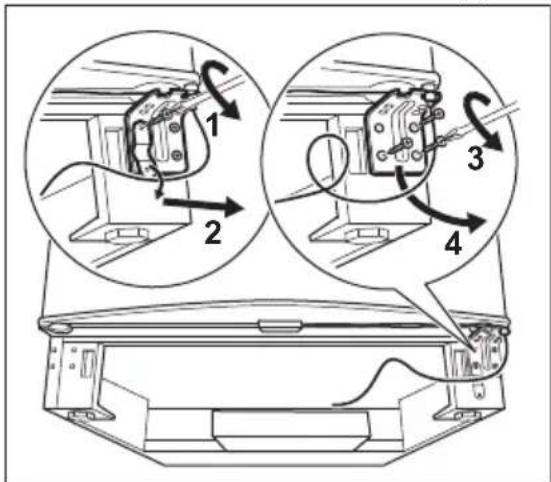

How do I reverse the door opening direction?

The door is reversible. Unscrew the hinges at the top and bottom, move the door to the opposite side, and reattach. Refer to the manual for precise steps.

Why is my refrigerator making unusual noises?

Common noises come from the compressor, cooling fan, or refrigerant flow. Ensure the appliance is level and not touching surrounding cabinets. A slight hum is normal.

How often should I clean the interior and the condenser?

Clean the interior every 2-3 months using a mild detergent and warm water. The condenser is self-cleaning, but check the back panel periodically for dust buildup.

What does the temperature alarm signal and how do I stop it?

The alarm activates when the door is left open or if the internal temperature rises too high. Close the door properly; press the alarm reset button on the control panel to silence it.

Can I install this refrigerator in a non-heated garage during winter?

The climate class SN-T means it can operate in ambient temperatures from +10°C to +43°C. If the garage drops below +10°C, the fridge may not function correctly.

How do I defrost the freezer compartment?

This model features Total No Frost, so automatic defrosting occurs. No manual defrosting is needed; any frost is melted periodically and evaporated.

What should I do if the water collection tray overflows?

Overflow usually indicates a blocked drain hole. Clean the drain with a soft pipe cleaner and ensure the tray is correctly positioned. The tray is located at the back of the appliance.

How can I save energy with this refrigerator?

Install the fridge away from heat sources, leave a 10 cm gap around it for ventilation, and avoid opening the door frequently. Also, let hot food cool before placing inside.

Are spare parts available for this model?

Yes, AEG typically offers spare parts such as shelves, door seals, and hinges for up to 10 years after production. Contact AEG customer service or an authorised dealer.

USER MANUAL S83820KMW3 AEG

CONTENTS

1. SAFETY INFORMATION......3
2. SAFETY INSTRUCTIONS......4
3. OPERATION....5
4. DAILY USE....7
5. HINTS AND TIPS....9
6. CARE AND CLEANING.... 10
7. TROUBLESHOOTING....11
8. INSTALLATION.... 14
9. NOISES.... 17
10. TECHNICAL INFORMATION....18

FOR PERFECT RESULTS

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

Visit our website for:

Get usage advice, brochures, trouble shooter, service information:

www.aeg.com

Register your product for better service:

www.registeraeg.com

Buy Accessories, Consumables and Original spare parts for your appliance:

www.aeg.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

Warning / Caution-Safety information

General information and tips

Environmental information

Subject to change without notice.

1. ⚠SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference.

1.1 Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Do not let children play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• Keep all packaging away from children.

1.2 General Safety

- This appliance is intended to be used in household and similar applications such as:

- Farm houses; staff kitchen areas in shops, offices and other working environments - By clients in hotels, motels, bed and breakfast and other residential type environments

• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not damage the refrigerant circuit.

• Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

• Do not use water spray and steam to clean the appliance.

• Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

2. SAFETY INSTRUCTIONS

2.1 Installation

WARNING!

Only a qualified person must install this appliance.

• Remove all the packaging.
• Do not install or use a damaged appliance.
• Obey the installation instruction supplied with the appliance.
  • Always be careful when you move the appliance because it is heavy. Always wear safety gloves.

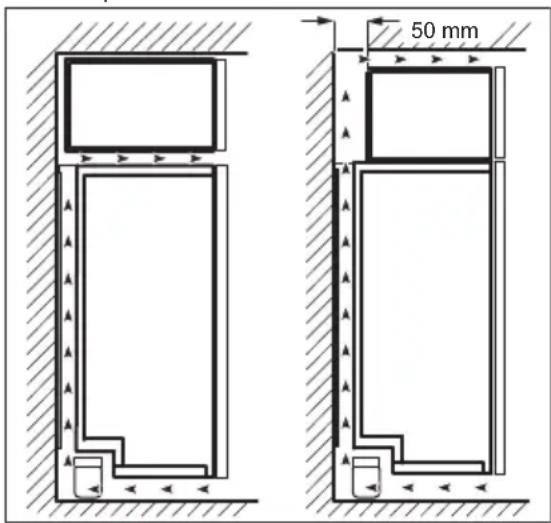

• Make sure the air can circulate around the appliance.
• Wait at least 4 hours before connecting the appliance to the power supply. This is to allow the oil to flow back in the compressor.
• Do not install the appliance close to radiators or cookers, oven or hobs.
• The rear of the appliance must stand against the wall.
• Do not install the appliance where there is direct sunlight.
• Do not install this appliance in areas that are too humid or too colds, such as the construction appendices, garages or wine cellars.
• When you move the appliance, lift it by the front edge to avoid scratching the floor.

2.2 Electrical connection

WARNING!

Risk of fire and electrical shock.

• The appliance must be earthed.
- Make sure that the electrical information on the rating plate agrees with the power supply. If not, contact an electrician.
- Always use a correctly installed shockproof socket.
- Do not use multi-plug adapters and extension cables.
- Make sure not to cause damage to the electrical components (e.g. mains plug, mains cable, compressor). Contact the Service or an electrician to change the electrical components.
- The mains cable must stay below the level of the mains plug.
- Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
- Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

2.3 Use

WARNING!

Risk of injury, burns, electrical shock or fire.

• Do not change the specification of this appliance.
• Do not put electrical appliances (e.g. ice cream makers) in the appliance unless they are stated applicable by the manufacturer.
• Be careful not to cause damage to the refrigerant circuit. It contains isobutane (R600a), a natural gas with a high level of environmental compatibility. This gas is flammable.
• If damage occurs to the refrigerant circuit, make sure that there are no flames and sources of ignition in the room. Ventilate the room.
• Do not let hot items to touch the plastic parts of the appliance.
• Do not store flammable gas and liquid in the appliance.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.
• Do not touch the compressor or the condenser. They are hot.

2.4 Care and cleaning

WARNING!

Risk of injury or damage to the appliance.

- Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.

3. OPERATION

3.1 Control panel

• This appliance contains hydrocarbons in the cooling unit. Only a qualified person must do the maintenance and the recharging of the unit.

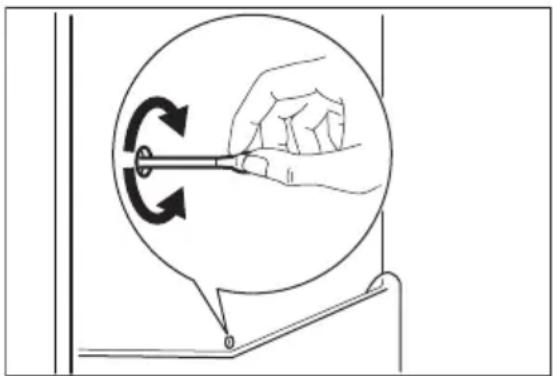

• Regularly examine the drain of the appliance and if necessary, clean it. If the drain is blocked, defrosted water collects in the bottom of the appliance.

2.5 Disposal

WARNING!

Risk of injury or suffocation.

• Disconnect the appliance from the mains supply.
• Cut off the mains cable and discard it.
• Remove the door to prevent children and pets to be closed inside of the appliance.
  • The refrigerant circuit and the insulation materials of this appliance are ozone-friendly.
  • The insulation foam contains flammable gas. Contact your municipal authority for information on how to discard the appliance correctly.
• Do not cause damage to the part of the cooling unit that is near the heat exchanger.

1 ON/OFF button
2 Alarm reset button
3 OK button
4 Temperature warmer button
5 Display
6 Temperature colder button
7 Mode button

It is possible to change the button sound volume by pressing Mode and the temperature colder buttons together for a few seconds. Change is reversible.

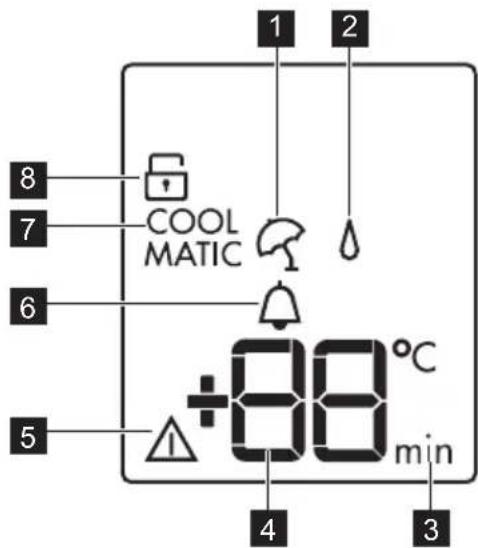

3.2 Display

1 Holiday function
2 ExtraHumidity function
3 Timer
4 Temperature indicator
5 Alarm indicator
6 MinuteMinder function
7 COOLMATIC function
8 ChildLock function

3.3 Switching on

1. Connect the mains plug to the power socket.
2. If the display is off, press ON/OFF. If DEMO appears on the display, the appliance is in demonstration mode. Refer to "What to do if...".

The temperature indicators show the set default temperature.

To select a different set temperature refer to "Temperature regulation".

CAUTION!

If the door remains open for some minutes, the light will turn off automatically. The light is reset by closing and opening the door itself.

3.4 Switching off

1. Press ON/OFF for a few seconds. The display switches off.
2. Disconnect the mains plug from the power socket.

3.5 Temperature regulation

The set temperature of the fridge may be adjusted by pressing the temperature button.

Default temperature:

- +5°C for the fridge

The temperature indicator shows the set temperature.

The set temperature will be reached within 24 hours.

After a power failure the set temperature remains stored.

3.6 MinuteMinder function

The MinuteMinder function is to be used to set an acoustic alarm at the preferred time, useful for example when a recipe requires to cool down food products for a certain length of time.

1. Press Mode until the corresponding icon appears.
   The MinuteMinder indicator flashes. The Timer shows the set value (30 minutes) for a few seconds.
2. Press the Temperature colder or Temperature warmer button to change the Timer set value from 1 to 90 minutes.
3. Press OK to confirm. The MinuteMinder indicator is shown. The Timer starts to flash (min).
   It is possible to change the time at any time during the countdown and at the end by pressing the Temperature colder button and the Temperature warmer button.

At the end of the countdown, the MinuteMinder indicator flashes and an

audible alarm sounds. Press OK to switch off the sound and terminate the function.

It is possible to deactivate the function at any time during the countdown by repeating the function steps, until the indicator turns off.

3.7 ChildLock function

Activate the ChildLock function to lock the buttons from unintentional operation.

1. Press Mode until the corresponding icon appears.
   The ChildLock indicator flashes.
2. Press OK to confirm.
   The ChildLock indicator is shown.
   To deactivate the ChildLock function, repeat the procedure until the ChildLock indicator goes off.

3.8 COOLMATIC function

If you need to insert a large amount of warm food, for example after doing grocery shopping, we suggest activating the COOLMATIC function to chill the products more rapidly and to avoid warming the other food which is already in the refrigerator.

1. Press Mode until the corresponding icon appears.

The COOLMATIC indicator flashes.

1. Press OK to confirm.

The COOLMATIC indicator is shown.

The COOLMATIC function shuts off automatically after 6 hours.

To switch off the function before its automatic end, repeat the steps until the COOLMATIC indicator goes off or select a different fridge set temperature.

4. DAILY USE

WARNING!

Refer to Safety chapters.

4.1 Clean Air Control filter

Your appliance is equipped with a carbon filter behind the air lever flap.

3.9 ExtraHumidity function

To increase humidity in the refrigerator, activate the ExtraHumidity function.

1. Press Mode until the corresponding icon appears.

The ExtraHumidity indicator flashes.

1. Press OK to confirm.

The ExtraHumidity indicator is shown. To deactivate the function, repeat the procedure until the ExtraHumidity indicator turns off.

3.10 Holiday function

This function allows you to keep the refrigerator closed and empty during a long holiday period without the formation of a bad smell.

Empty the fridge compartment before turning the Holiday function on.

1. Press the Mode until the Holiday indicator icon appears.

The Holiday icon flashes.

The fridge temperature indicator shows the set temperature.

1. Press the OK to confirm.

The Holiday icon appears.

To turn off the Holiday function, repeat the procedure until the Holiday indicator icon goes off.

3.11 Door open alarm

An acoustic alarm will sound if the door is left open for a few minutes. The door open alarm conditions are indicated by:

- a flashing Alarm indicator;

- an acoustic buzzer.

When normal conditions are restored (door closed), the alarm will stop. The buzzer can also be switched off by pressing any button.

The filter purifies the air from unwanted odours in the fridge compartment preserving food quality.

On delivery the filter is in a plastic bag. Refer to "Installation of the Clean Air Control filter" for instructions.

Make sure that the air lever flap is closed to obtain proper function.

4.2 Vegetable Drawer

The drawer is suitable for storing fruit and vegetables.

Some models have a separator inside the drawer that can be placed in different positions to allow for the subdivision best suited to personal needs.

All parts inside the drawer can be removed for cleaning purposes.

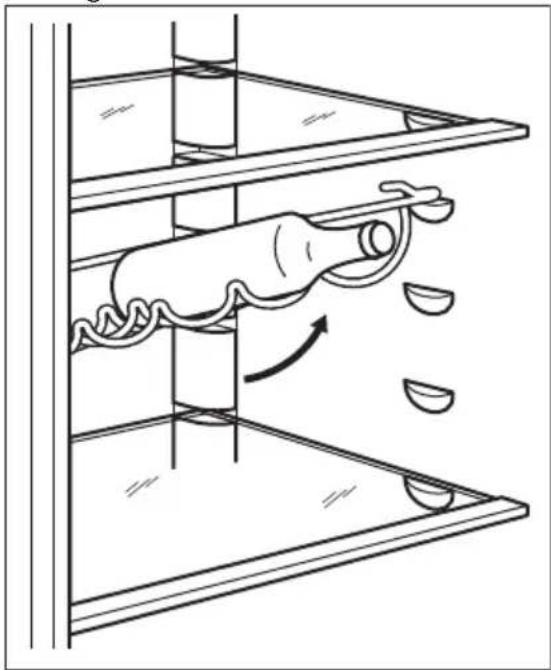

4.3 Movable shelves

The walls of the refrigerator are equipped with a series of shelves support so that the shelves can be positioned as desired.

Some shelves must be lifted up by the rear edge to enable them to be removed.

Do not move the glass shelf above the vegetable drawer to ensure correct air circulation.

4.4 Positioning the door shelves

To permit storage of food packages of various sizes, the door shelves can be placed at different heights.

To make these adjustments proceed as follows:

1. Gradually pull in the direction of the arrows until it comes free.

1. Reposition the shelf as required.

Do not move the big lower door shelf to ensure correct air circulation.

4.5 Bottle rack

1. Place the bottles (with the opening facing front) in the pre-positioned shelf.

If the shelf is positioned horizontally, place only closed bottles.

1. To store previously opened bottles, pull the shelf up so it can rotate upwards and be placed on the next higher level.

4.6 Cleaning the interior

1. Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and neutral soap so as to remove the typical smell of a brand-new product, then dry thoroughly.

2. Check that the drain hose at the rear of the cabinet discharges into the drip tray.

5. HINTS AND TIPS

5.1 Normal operating sounds

The following sounds are normal during operation:

• A faint gurgling and bubbling sound from coils sound when refrigerant is pumped.
• A whirring and pulsating sound from the compressor when refrigerant is pumped.
• A sudden cracking noise from inside appliance caused by thermic dilatation (a natural and not dangerous physical phenomenon).
• A faint click noise from the temperature regulator when the compressor switches on or off.

5.2 Hints for energy saving

- Do not open the door frequently or leave it open longer than absolutely necessary.

5.3 Hints for fresh food refrigeration

To obtain the best performance:

• do not store warm food or evaporating liquids in the refrigerator
- do cover or wrap the food, particularly if it has a strong flavour

CAUTION!

Do not use detergents or abrasive powders, as these will damage the finish.

- position food so that air can circulate freely around it

5.4 Hints for refrigeration

Useful hints:

• Meat (all types) : wrap in polythene bags and place on the glass shelf above the vegetable drawer.
• For safety, store in this way only one or two days at the most.
  • Cooked foods, cold dishes, etc.: these should be covered and may be placed on any shelf.
• Fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer(s) provided.
• Butter and cheese: these should be placed in special airtight containers or wrapped in aluminium foil or polythene bags to exclude as much air as possible.
• Bottles: these need a cap and should be stored on the door bottle shelf, or (if equipped) on the bottle rack.
• Bananas, potatoes, onions and garlic, if not packed, must not be kept in the refrigerator.

5.5 Hints for temperature inside the refrigerator

A suitable temperature inside the refrigerator is approximately +5°C. If the temperature regulator is set to a too cold temperature, the ambient temperature is high or if the appliance is fully loaded the compressor will run for a longer time. If too cold, change to a higher temperature setting.

6. CARE AND CLEANING

WARNING!

Refer to Safety chapters.

6.1 General warnings

CAUTION!

Unplug the appliance before carrying out any maintenance operation.

This appliance contains hydrocarbons in its cooling unit; maintenance and recharging must therefore only be carried out by authorized technicians.

The accessories and parts of the appliance are not suitable for washing in a dishwasher.

6.2 Periodic cleaning

CAUTION!

Do not pull, move or damage any pipes and/or cables inside the cabinet.

CAUTION!

Take care of not to damage the cooling system.

CAUTION!

When moving the cabinet, lift it by the front edge to avoid scratching the floor.

The equipment has to be cleaned regularly:

If you want to check the temperature of food stored in the refrigerator, place a glass of water centrally in the cabinet, and put a proper thermometer with an accuracy of +/- 1°C into it. After 6 hours the temperature can be monitored. The measuring shall be performed under steady-stated conditions (without changing the load).

1. Clean the inside and accessories with lukewarm water and some neutral soap.
2. Regularly check the door seals and wipe clean to ensure they are clean and free from debris.
3. Rinse and dry thoroughly.

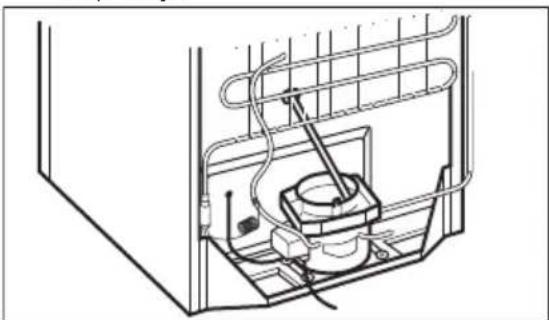

4. If accessible, clean the condenser and the compressor at the back of the appliance with a brush. This operation will improve the performance of the appliance and save electricity consumption.

6.3 Cleaning the ventilation grille

Make sure the door is open.

The ventilation grille can be removed for washing.

1. Loosen the edge of the grille by pulling it according to the figure.

1. Pull the grille straight out to completely remove it.
2. Vacuum clean under the cabinet.

6.4 Defrosting of the refrigerator

Frost is automatically eliminated from the evaporator of the refrigerator compartment every time the motor

compressor stops, during normal use. The defrost water drains out through a trough into a special container at the back of the appliance, over the motor compressor, where it evaporates.

It is important to periodically clean the defrost water drain hole in the middle of the refrigerator compartment channel to prevent the water overflowing and dripping onto the food inside.

6.5 Periods of non-operation

When the appliance is not in use for long periods, take the following precautions:

1. Disconnect the appliance from electricity supply.
2. Remove all food.
3. Clean the appliance and all accessories.
4. Leave the door/doors open to prevent unpleasant smells.

WARNING!

If the cabinet will be kept on, ask somebody to check it once in a while to prevent the food inside from spoiling in case of a power failure.

6.6 Replacing the Clean Air Control filter

To get the best performance the Clean Air Control filter should be replaced once every year.

New active filters can be purchased from your local dealer.

Refer to "Installation of the Clean Air Control filter" for instructions.

7. TROUBLESHOOTING

WARNING!

Refer to Safety chapters.

7.1 What to do if...

Problem Possible cause Solution
The appliance does not operate.	The appliance is switched off.	Switch on the appliance.
The mains plug is not connected to the mains socket correctly.		Connect the mains plug to the mains socket correctly.
There is no voltage in the mains socket.		Connect a different electrical appliance to the mains socket. Contact a qualified electrician.
The appliance is noisy. The appliance is not supported properly.		Check if the appliance stands stable.
Audible or visual alarm is on.	The cabinet has been recently switched on or the temperature is still too high.	Refer to "Door Open Alarm" or "High Temperature Alarm".
	The temperature in the appliance is too high.	Refer to "Door Open Alarm" or "High Temperature Alarm".
	The door is left open. Close the door.
	The temperature in the appliance is too high.	Contact a qualified electrician or contact the nearest Authorized Service Centre.
A rectangular symbol is shown instead of numbers on the Temperature Display.	Temperature sensor problem.	Contact the nearest Authorized Service Centre (the cooling system will continue to keep food products cold, but temperature adjustment will not be possible).
The lamp does not work. The lamp is in stand-by. Close and open the door.
The lamp does not work. The lamp is defective. Contact the nearest Authorized Service Centre.
The compressor operates continually.	Temperature is set incorrectly.	Refer to "Operation" chapter.
Many food products were put in at the same time.		Wait some hours and then check the temperature again.
The room temperature is too high.		Refer to climate class chart on the rating plate.
Food products placed in the appliance were too warm.		Allow food products to cool to room temperature before storing.
	The door is not closed correctly.	Refer to "Closing the door".
	The COOLMATIC function is switched on.	Refer to "COOLMATIC function".
The compressor does not start immediately after pressing the COOLMATIC, or after changing the temperature.	This is normal, no error has occurred.	The compressor starts after a period of time.
Water flows inside the refrigerator.	The water outlet is clogged.	Clean the water outlet.
	Food products prevent that water flows into the water collector.	Make sure that food products do not touch the rear plate.
Water flows on the floor. The melting water outlet is not connected to the evaporative tray above the compressor.		Attach the melting water outlet to the evaporative tray.
Temperature cannot be set. The COOLMATIC function is switched on.		Switch off COOLMATIC manually, or wait until the function resets automatically to set the temperature. Refer to "COOLMATIC function".
DEMO appears on the display.	The appliance is in demonstration mode.	Keep the Mode pressed for approximately 10 seconds until a long sound is heard and display shuts off for a short time.
Door is misaligned or interferes with ventilation grill.	The appliance is not levelled.	Refer to "Levelling".
The temperature in the appliance is too low/too high.	The temperature regulator is not set correctly.	Set a higher/lower temperature.
	The door is not closed correctly.	Refer to "Closing the door".
	Food products placed in the appliance were too warm.	Allow food products to cool to room temperature before storing.
	Many food products were put in at the same time.	Wait some hours and then check the temperature again.
	The door has been opened often.	Open the door only if necessary.
	The COOLMATIC function is switched on.	Refer to "COOLMATIC function".
	There is no cold air circulation in the appliance.	Make sure that there is cold air circulation in the appliance.

If the advice does not lead to the desired result, call the nearest Authorized Service Centre.

1. If necessary, adjust the door. Refer to "Installation".

2. If necessary, replace the defective door gaskets. Contact the Authorised Service Centre.

7.2 Closing the door

1. Clean the door gaskets.

7.3 Replacing the lamp

The appliance is equipped with a longlife LED interior light.

8. INSTALLATION

WARNING!

Refer to Safety chapters.

8.1 Positioning

This appliance can be installed in a dry, well ventilated indoor where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance:

Climate Ambient temperature class

SN +10°C to + 32°C

N +16°C to + 32°C

ST +16°C to +38°C

T +16°C to +43°C

Some functional problems might occur for some types of models when operating outside of that range. The correct operation can only be guaranteed within the specified temperature range. If you have any doubts regarding where to install the appliance, please turn to the vendor, to our customer service or to the nearest Service Centre

8.2 Location

To ensure best performance, if the appliance is positioned below an overhanging wall unit, the minimum distance between the top of the cabinet and the wall unit must be at least 40 mm. Ideally, however, the appliance should not be positioned below overhanging wall units.

The ventilation space can be:

• directly above the appliance

Only service is allowed to replace the lighting device. Contact your Authorised Service Centre.

• behind and above the top cupboard. In this case, the space behind the top cupboard must be at least 50 mm deep.

8.3 Electrical connection

• Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply.
• The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician.
• The manufacturer declines all responsibility if the above safety precautions are not observed.
• This appliance complies with the E.E.C. Directives.

8.4 Removing the transport support

Your appliance is equipped with transport support to secure the door during transportation.

1. Open the door.
2. Remove the transport support from the door sides.
3. Remove the transport support from the lower hinge (some models).

CAUTION!

Some models are fitted with a silencing pad under the cabinet. Do not remove this pad.

8.5 Rear spacers

Install the two spacers and the locking pins provided within the accessory bag as shown in the figure.

8.6 Levelling

When placing the appliance ensure that it stands level. If necessary adjust the feet using the adjustment spanner supplied. Door alignment is dependent on proper levelling.

8.7 Installation of the Clean Air Control filter

CAUTION!

The filter should be handled carefully so fragments do not loosen from the surface. Make sure that the air lever flap is closed to obtain proper function.

The Clean Air Control filter is an active carbon filter which absorbs bad odors maintain the best flavour and aroma for all foodstuffs without risk of odor cross contamination.

On delivery the carbon filter is in a plastic bag to preserve performance.

1. Open the air lever flap.
2. Take the filter out of the plastic bag.

1. Insert the filter in the slot found in the back of the air lever flap.

2. Close the air lever flap.

8.8 Door reversibility

WARNING!

Before carrying out any operations, remove the plug from the power socket.

CAUTION!

To carry out the following operations, we suggest that this be made with another person that will keep a firm hold on the doors of the appliance during the operations.

1. Remove the ventilation grille. Remove the upper filling and install it on the opposite side of the grille.
2. Lay down the appliance back side down on a wooden support.
3. Unscrew the handle from the bottom and the top of the door (1, 3) and the screw on top of the handle (2).

1. Unscrew the hinge (1) and remove the cover plate (2).
2. Remove the support (3) and install the cover plate and hinge on the opposite side. Install the support on the opposite side.

1. Unscrew the cable holder (1). Remove the cable from its position (2).

2. Unscrew the lower hinge (3) and pull the cable out from the door (4).

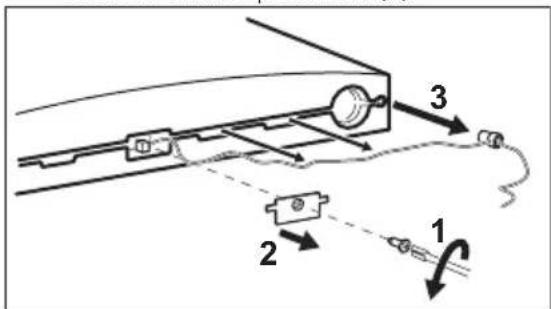

1. Uscrew the cover (1, 2), remove the cable from its position (3).

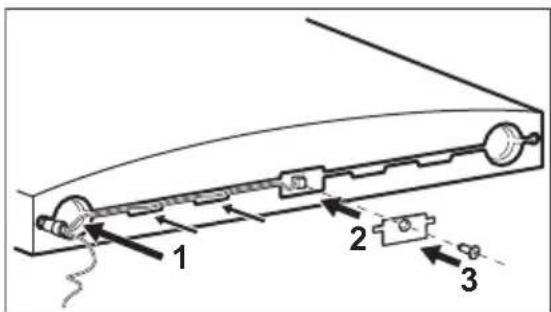

1. Push the cable with bushing into position on the other side (1) and screw on the cover (2, 3).

1. Screw on the lower hinge (1, 2), screw on the cable holder (3, 4).

1. Install the handle on the opposite side.

2. Raise the appliance and install the ventilation grill.

3. Put the cabinet in position.

CAUTION!

Reposition, level the appliance, wait for at least four hours and then connect it to the power socket.

Do a final check to make sure that:

• All screws are tightened.
  • The magnetic seal adheres to the cabinet.
  • The door opens and closes correctly.

If the ambient temperature is cold (i.e. in Winter), the gasket may not fit perfectly to the cabinet. In that case, wait for the natural fitting of the gasket.

In case you do not want to carry out the above mentioned operations, contact the nearest Authorised Service Centre.

The Authorised Service specialist will carry out the reversibility of the doors at your cost.

9. NOISES

There are some sounds during normal running (compressor, refrigerant circulation).

10. TECHNICAL INFORMATION

10.1 Technical data

Height mm 1800

Width mm 595

Depth mm 623

Voltage Volts 230 - 240

Frequency Hz 50

The technical information are situated in the rating plate, on the external or

internal side of the appliance and in the energy label.

11. ENVIRONMENT CONCERNS

Recycle the materials with the symbol Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not dispose appliances

marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

INHALTSVERZEICHNIS

ACHTUNG!

8.6 Ausrichten

8.7 Einsetzen des Clean Air Control Filters

ACHTUNG!

4.6 Limpeza do interior

CUIDADO!

6.5 Períodos de inactividade

8.6 Nivelamento

1. Aperte a dobradiça inferior (1, 2) e aperte o suporte do cabo (3, 4).

PRECAUCIÓN!

8.5 Separadores traseros

8.6 Nivelación
