ZBF 7116 - Freezer ZANUSSI - Free user manual and instructions

Type	Freezer
Brand	Zanussi
Model	ZBF 7116
Installation	Built-in
Energy Efficiency Class	A+
Annual Energy Consumption	182 kWh
Freezer Net Capacity	110 L
Freezing Capacity	5 kg/24h
Storage Time During Power Failure	12 h
Star Rating	4 stars
Climate Class	SN-T
Noise Level	38 dB
Defrost System	Manual
Control Type	Electronic
Thermostat	Adjustable
Fast Freeze Function	Yes
Door Hinge	Reversible
Lock with Key	Yes
Temperature Alarm	Yes
Refrigerant	R600a
Voltage	220-240 V
Frequency	50 Hz
Dimensions (H x W x D)	850 x 600 x 550 mm
Weight	30 kg
Warranty	2 years

Frequently Asked Questions - ZBF 7116 ZANUSSI

How do I adjust the temperature on my Zanussi ZBF 7116?

Use the electronic temperature control inside the freezer. Set the recommended -18°C for optimal food storage.

How often should I defrost the freezer?

When the frost layer reaches 5 mm, perform a manual defrost. Remove all food, unplug the appliance, and allow the ice to melt.

What is the Fast Freeze function used for?

The Fast Freeze lowers the temperature rapidly to freeze fresh food quickly, preserving nutrients and preventing temperature rise in existing items.

How do I clean my freezer?

Clean the interior with a mild cleaning solution and a soft cloth. Dry thoroughly before switching back on. Clean the condenser with a vacuum.

Can I reverse the door?

Yes, the door hinge is reversible. Follow the steps in the manual to move the hinges to the opposite side.

What should I do if my freezer is not cooling?

Check the power cord, the thermostat setting, and that the condenser coils are clean. If the problem persists, contact customer service.

What does climate class SN-T mean?

It means the freezer operates efficiently in ambient temperatures between 10°C and 43°C, suitable for most environments.

How long does food stay frozen during a power failure?

Your freezer can keep food frozen for up to 12 hours if the door remains closed.

Is the freezer noisy?

The noise level is approximately 38 dB, which is similar to a quiet conversation, so it won't disturb you.

What is the energy consumption of this freezer?

The annual energy consumption is about 182 kWh, making it an efficient choice for your home.

USER MANUAL ZBF 7116 ZANUSSI

circa -18°C in de diepvriezer.

Instructions for the User

Important Safety Instructions 15

Use 16

Cleaning the interior 16

Control panel 17

Display 17

Use of the freezer compartment 18

Freezing of fresh foods 18

Storage of commercially frozen food 18

Freezing calendar 19

Thawing 19

Tips for freezing fresh foods 19

Tips for storage of commercially frozen food 19

Maintenance 20

Periodic cleaning 20

Periodios of non-operation 20

Defrosting 20

Customer Service and Spare Part20

Instructions for the Installer

Technical specifications 21

Installation 21

Positioning 21

Electrical connection 21

Door reversal 22

Instructions for totally built-in appliances 22

IMPORTANT SAFETY INSTRUCTIONS

It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is supplied with the appliance in order that the new owner can be acquainted with the functioning of the appliance and the relevant warnings.

These warnings are provided in the interest of safety. You must read them carefully before installing or using the appliance.

General Safety

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
■ It is dangerous to alter the specifications or modify this product in any way.
■ Before any cleaning or maintenance work is carried out, be sure to switch off and unplug the appliance.
■ This appliance is heavy. Care should be taken when moving it.
■ Ice follies can cause frost burns if consumed straight from the appliance.
■ Take utmost care when handling your appliance so as not to cause any damages to the cooling unit with consequent possible fluid leakages.
■ The appliance must not be located close to radiators or gas cookers.
■ Avoid prolonged exposure of the appliance to direct sunlight.
■ There must be adequate ventilation round the back of the appliance and any damage to the refrigerant circuit must be avoided.
■ For freezers only (except built-in models): an ideal location is the cellar or basement.
■ Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances.

Service / Repair

■ Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.
■ This appliance should be serviced by an authorised Service Centre, and only genuine spare parts should be used.

■ Under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or more serious malfunctioning. Refer to your local Service Centre, and always insist on genuine spare parts.
■ This appliance contains hydrocarbons in its cooling unit; maintenance and recharging must therefore only be carried out by authorised technicians.

Use

■ The domestic refrigerators and freezers are designed to be used specifically for the storage of edible foodstuffs only.
■ Frozen food must not be re-frozen once it has been thawed out.
■ Manufacturers' storage recommendations should be strictly adhered to. Refer to relevant instructions.
■ The inner lining of the appliance consists of channels through which the refrigerant passes. If these should be punctured this would damage the appliance beyond repair and cause food loss. DO NOT USE SHARP INSTRUMENTS to scrape off frost or ice. Frost may be removed by using the scraper provided. Under no circumstances should solid ice be forced off the liner. Solid ice should be allowed to thaw when defrosting the appliance. See defrost instructions.
- Do not place carbonated or fizzy drinks in the freezer as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance. Do not use a mechanical device or any artificial means to speed up the thawing process other than those recommended by the manufacturer. Never use metal objects for cleaning your appliance as it may get damaged.

Installation

■ Care must be taken to ensure that the appliance does not stand on the electrical supply cable. Important: if the supply cable is damaged, it must be replaced by authorised service or qualified

personnel using a special cable of the same type.

■ During normal operation, the condenser and compressor at the back of the appliance heat up considerably. For safety reasons, minimum ventilation must be as shown in the relevant paragraph.

Attention: keep ventilation openings clear of obstruction.

If the appliance is transported horizontally, it is possible that the oil contained in the compressor flows in the refrigerant circuit. It is advisable to wait at least two hours before connecting the appliance to allow the oil to flow back in the compressor.
■ There are working parts in this product which heat up. Always ensure that there is adequate ventilation as a failure to do this will result in component failure and possible food loss. See installation instructions.
■ Parts which heat up should not be exposed. Wherever possible the back of the product should be against a wall.
If the appliance has been transported horizontally, it is possible that the oil contained in the compressor flows in the refrigerant circuit. It is advisable to wait at least two hours before connecting the appliance to allow the oil to flow back in the compressor.

Environment Protection

This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. Avoid damaging the cooling unit, especially at the rear near the heat exchanger. Information on your local disposal sites may be obtained from your municipal authorities.
■ The materials used on this appliance marked with the symbol are recyclable.

Disposal of old appliances

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

USE

The freezer is marked with the 🎨book which means that the compartment is suitable for freezing fresie food and long-term storage of frozen food.

Cleaning the interior

Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand-new product, then dry thoroughly.

Do not use detergents or abrasive powders, as these will damage the finish.

Control panel

A - Appliance button ON/OFF
B - Temperature and function indicator
C - Function button
D - Freezer Thermostat control knob

DISPLAY

1. Door open alarm indicator
2. Positive or negative Temperature indicator
3. Temperature indicator
4. If on the fast freeze function is on

Operation

After plugging the plug into the power outlet, if the display is not illuminated, press key (A), appliance on.

As soon as the appliance is turned on, the following signals will appear on the control panel:

• symbol (2) will be positive, indicating that the temperature is positive.
- the temperature flashes, the background of the display is red and you will hear a buzzer. Press key (C) and the buzzer will go off (also see the section on "excessive temperature alarm").

Place the freezer thermostat control knob (D) in a middle position, and the appliance will be set up to provide the following temperature:

roughly -18°C in the freezer.

Activation of functions

Each time key C is pressed, the following functions are activated in a clockwise direction:

Symbol 4 : rapid freezing function.

No Symbol: Normal operation

Switching off

The appliance is shut off by holding down key (A) for more than 1 second. After this, a countdown of the temperature from -3 -2 -1 will be shown.

When the appliance is shut off, display (B) also goes off.

Use of the freezer compartment

Temperature regulation

The temperature is automatically regulated and can be increased to achieve a higher temperature (warmer) by rotating the thermostat knob toward settings or reduced (colder) rotating the knob towards I settings.

However, the exact setting should be chosen keeping in mind that the temperature inside the refrigerator depends on:

• room temperature;
  • how often the door is opened;
  • the quantity of food stored;
• location of appliance.

We suggest setting the knob to the middle position to obtain an internal temperature of approximately -18°C , which guarantees proper freezing and conservation of the frozen foods.

Freezing fresh food

The freezer compartment is suitable for long term storage of commercially frozen food, and for freezing fresh food.

The maximum quantity of foods to freeze in 24 hours is shown on the serial number plate.

To freeze fresh foods, you will need to activate the rapid freezing function. Press key C (several times if

necessary) until the corresponding icon appears

After a pre-cooling period of 24 hours, place the foods in the freezer.

The freezing process takes 24 hours. During this period do not put other foods in the freezer.

This function stops automatically after 52 hours.

Put the foods to be frozen in the two top compartments.

The function can be de-activated at any time by pressing key C (see paragraph "Activation of Functions").

Storage of frozen food

When first starting-up or after a period out of use, before putting the products in the compartment let the appliance run at least 12 hours on the fast freeze setting.

To obtain the best performance from this appliance, you should:

if large quantities of food are to be stored, remove all drawers and baskets from appliance and place food on cooling shelves.

Pay careful attention not to exceed load limit stated on the side of the upper section (where applicable).

Important

In the event of accidental defrosting, for example due to a power failure, if the power has been off for longer that the value shown in the technical characteristics chart under “rising time”, the defrosted food must be consumed quickly or cooked immediately and then refrozen (after cooling).

Excessive temperature alarm

An increase in the temperature in the freezer compartment (for example due to an electricity outage) is indicated by:

• flashing temperature;
• freezer compartment flashing (symbol 2);
• red illumination of display;
• sounding of buzzer.
• alarm symbol.

When normal conditions are restored:

• the acoustic signal shuts off;
• the temperature value continues to flash;
• the display illumination remains red.

When you press key "C" to de-activate the alarm, the highest temperature reached in the compartment appears on indicator 2 for approximately 5 seconds.

At this point the flashing stops and the display illumination changes over from red to white.

Door open acoustic alarm

An acoustic alarm will sound when the door is left open for more than 1 minute.

The door open alarm conditions are indicated by:

• flashing symbol (1);
• red display illumination;
• beeping sound.

Press the button (C) to stop the acoustic alarm.

When normal conditions are restored (door closed):

- the acoustic alarm will stop.

Freezing Calendar

The symbols on the drawers show different types of frozen goods.

i TIPS

Tips for freezing fresh foods

To help you get the best out of the freezing process, here are a few hints:

■Freeze only good-quality, fresh and well-cleaned foods. Split them into small portions to speed up freezing and avoid having to thaw more food than you require. It is in fact important to remember that once the foods have thawed out, they deteriorate fast.
■Another point to remember is that lean foods keep better and longer than fatty foods. Salt too reduces storage times.
■Wrap the foods in foil or polythene 1/2 lm, ensuring that the wrapping adheres closely to the food and is well sealed. In this way, by avoiding contact with air, the colour 3/4 avour and nutritional value of the foods remain intact.
■During the freezing process, do not add further foods for freezing and do not open the freezer door.
■The foods for freezing should not be placed in contact with already frozen foods, but put in the special freezing compartment. This will stop the temperature of already frozen foods from rising.
■Never put ½zzy drinks in the freezer as they might well burst.
■In addition, never put hot foods or liquids in the freezer compartment and take care not to 1/2 ll recipients up to the brim if they are covered with a lid.

The numbers indicate storage times in months for the appropriate types of frozen goods. Whether the upper or lower value of the indicated storage time is valid depends on the quality of the foods and pre-treating before freezing.

Thawing

Deep-frozen or frozen food, prior to being used, can be thawed in the refrigerator or at room temperature, depending on the time available for this operation.

Small pieces may even be cooked still frozen, directly from the freezer: in this case, cooking will take longer.

Ice-cube production

This appliance is equipped with one or more trays for the production of ice-cubes.

Fill these trays with water, then put them in the freezer.

Do not use metallic instruments to remove the trays from the freezer.

■It is a good idea to mark the packs with the date on which freezing started so that you can keep a check on storage periods.

Tips for storage of commercially frozen food

To get the best out of your freezer, in the case of storage of commercially frozen food you should ensure that:

■the products have been correctly stored by the retailer;
■that there is only a very short time between when you purchase the products and when you put them in the freezer;
■you do not store products for longer than the time speci½ed by the food manufacturer;
■Avoid opening the door too frequently and when you do open it, leave it open only for as long as is strictly necessary;
■A word of warning about ice lollies: they should not be eaten straight out of the freezer as this might cause cold burns.

MAINTENANCE

Unplug the appliance before carrying out any maintenance operation.

Warning

This appliance contains hydrocarbons in its cooling unit maintenance and recharging must therefore only be carried out by authorised technicians.

Periodic cleaning

Never use metal objects for clearing your appliance as it may get damaged. Clean the inside with warm water and bicarbonate of soda. Rinse and dry thoroughly. To guarantee a safe operation of the fridge, once a year remove the ventilation grille at the base and clean the air channels with a vacuum cleaner.

Defrosting

The freezer compartment is a "no frost" type. This means that there is no buildup of frost when it is in operation, neither on the internal walls nor on the foods.

The absence of frost is due to the continuous circulation of cold air inside the compartment, driven by an automatically controlled fan.

CUSTOMER SERVICE AND SPARE PARTS

If the appliance is not functioning properly, check that:

• the plug is firmly in the wall socket and the mains power switch is on;
• there is an electricity supply (find out by plugging in another appliance);
• the thermostat knob is in the correct position.
• If there are water drops on the bottom of the cabinet, check that the defrost water drain opening is not obstructed (see “Defrosting” section).

- If your appliance is still not working properly after making the above checks, contact the nearest service centre.

To obtain fast service, it is essential that when you apply for it you specify the model and serial number of your appliance which can be found on the guarantee certificate or on the rating plate located inside the appliance, on the bottom left-hand side.

TECHNICAL INFORMATION

The technical infomation are situated in the rating plate on the internal left side of the appliance.

INSTALLATION

If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lock unusable before you discard the old appliance. This will prevent it from becoming a death-trap for a child.

Positioning

The appliance should be installed well away from sources of heat such as radiators, boilers, direct sunlight etc.

Best performance is obtained with ambient temperature between +18°C and +43°C (class T); +18°C and +38°C (class ST); +16°C and +32°C (class N); +10°C and +32°C (class SN).

The class of your appliance is shown on its rating plate.

For building-in and door reversibility refer to the relevant instructions.

Electrical connection

Before plugging in, ensure that the voltage and frequency shown on the serial number plate correspond to your domestic power supply.

Voltage can vary by ±6% of the rated voltage.

For operation with different voltages, a suitably sized auto-transformer must be used.

Important

The appliance must be earthed.

The power supply cable plug is provided with a contact for this purpose.

If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a specialist technician.

The Manufacturer declines all responsibility if the above safety precautions are not observed.

Attention!

It must be possible to disconnect the appliance from the mains power supply; the plug must therefore be easily accessible after installation.

This appliance complies with the following E.E.C. Directives:

- 87/308 EEC of 2/6/87 relative to radio interference suppression.

- 73/23 EEC of 19.2.73 (Low Voltage Directive) and subsequent modifications;

- 89/336 EEC of 3.5.89 (Electromagnetic Compatibility Directive) and subsequent modifications.

Door Reversibility

The appliance is supplied with the door opening to the right.

For door opening in the opposite direction, perform the following actions prior to installation

1. Unscrew the upper pin and remove the spacer
2. Remove the door.
3. Unscrew with a key the lower pin and replace it on the opposite side.
4. Reinsert the door, refit the spacer and rescrew the upper pin on the opposite side.

Instructions for totally built-in appliances

Building-in instructions

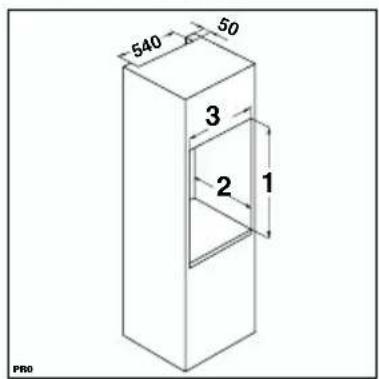

Dimensions of housing

High (1) 1030 mm

Depth (2) 550 mm

Width (3) 560 mm

For safety reasons, minimum ventilation must be as shown in Fig.

Attention: keep ventilation openings clear of obstruction.

It is necessary that the niche is provided with a conduct of ventilation having the following dimensions:

Depth 50 mm

Width 540 mm

Make sure that a distance of 44 mm is maintained in the lower part between the kitchen furniture and the border of the appliance.

The lower hinge cover inserted in the accessories bag, is useful to guarantee the exact position of the kitchen furniture and the appliance.

Also make sure that the appliance does not clamp the mains cable

Fasten the appliance with 4 screws provided in the kit included with the appliance.

Apply the sealing strip pushing it between the refrigerator and the adjacent cabinet.

From the plastic cover (E), which is used to cover the hinge with the pivot pin, you must take away the part as indicated in the drawing.

This operation is made easier since there is, in the internal part of the cover hinge lid a groove that facilitates the removal of this cocomponent.

"Remove the part marked with DX, if the pivot pin is inserted in the right hinge, SX in opposite case."

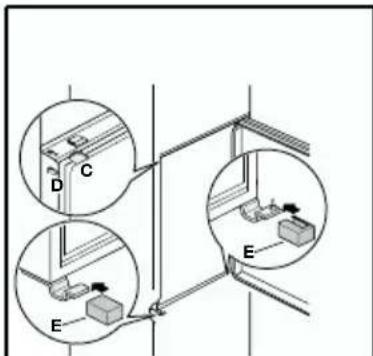

Apply covers (C-D) on joint cover lugs and into hinge holes.

Snap hinge covers (E) into position.

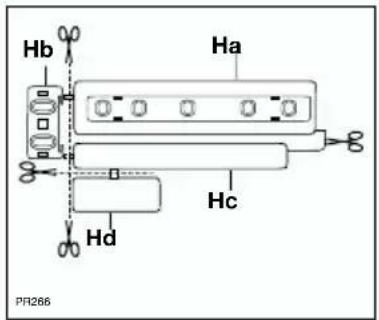

Separate parts Ha, Hb, Hc, Hd as shown in the figure.

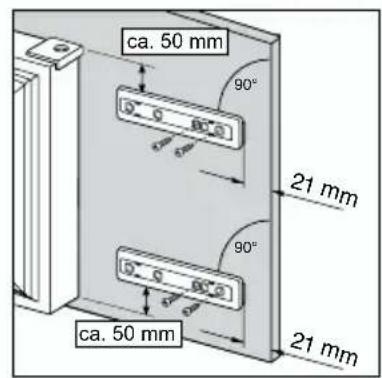

Place guide (Ha) on the inside part of the furniture door, up and down as shown in the figure and mark the position of external holes. After having drilled holes, fix the guide with the screws supplied.

Fix cover (Hc) on guide (Ha) until it clips into place

Open the appliance door and the furniture door at 90°. Insert the small square (Hb) into guide (Ha).

Put together the appliance door and the furniture door and mark the holes as indicated in the figure.

Remove the brackets and mark a distance of 8 mm from the outer edge of the door where the nail must be fitted (K).

Place the small square on the guide again and fix it with the screws supplied.

Should the lining up of the furniture door be necessary, use the clearance of slots.

At the end of operations, it is necessary to check if the door of the furniture closes properly.

Fix cover (Hd) on guide (Hb) until it clips into place.

www.electrolux.com

www.zanussi.nl
