Product type	Video projector
Brand	Samsung
Model	SP-L355
Display technology	DLP
Native resolution	XGA (1024 x 768)
Brightness	3500 ANSI lumens
Contrast ratio	2000:1
Aspect ratio	4:3
Lamp life	3000 hours (Normal mode)
Power supply	AC 100-240V, 50/60Hz
Power consumption	280W (typical)
Dimensions (W x D x H)	280 x 230 x 95 mm
Weight	3.7 kg
Main features	Keystone correction, manual zoom and focus
Connectivity	HDMI, VGA, S-Video, Composite, Audio
Built-in speaker	5W mono
Noise level	29 dB (Eco mode)
Cleaning and maintenance	Clean lens with soft dry cloth; replace air filter
Safety	Auto power off, overheat protection
Reparability	Replacement lamp available; other parts through service
General information	Remote control included

Frequently Asked Questions - SP-L355 SAMSUNG

How do I connect my laptop to the Samsung SP-L355?

Use a VGA or HDMI cable depending on your laptop's outputs. Connect one end to the projector's VGA or HDMI port and the other to your laptop. Then select the correct input source using the Source/Search button on the remote or control panel.

What is the recommended projection distance for a 100-inch screen?

For the SP-L355, a 100-inch diagonal image typically requires a distance of about 3.2 to 3.8 meters. Check the manual's projection distance table for exact values based on your zoom setting.

How often should I replace the lamp?

The lamp is rated for up to 3000 hours in Normal mode and perhaps longer in Eco mode. Samsung recommends replacing the lamp before it fails. When the lamp warning indicator lights up or the picture becomes dim, replace it with a genuine Samsung projector lamp.

How do I clean the projector lens?

Use a soft, dry, lint-free cloth to wipe the lens gently. If necessary, use a lens cleaning solution specifically designed for optics. Do not use harsh chemicals or abrasive materials, as they may damage the coated lens.

Why does the projector turn off unexpectedly?

It may be due to overheating or the auto power off feature being activated. Ensure the air vents are not blocked and the filter is clean. If the problem persists, check the lamp status and replace the lamp if it's near the end of its life.

Can I use this projector in a brightly lit room?

With 3500 ANSI lumens, the SP-L355 is suitable for rooms with some ambient light, but for best image quality, reduce ambient light by closing curtains or dimming lights. Use a high-gain screen if needed.

How do I adjust the keystone correction?

Press the Keystone button on the remote or use the on-screen menu. Use the arrow keys to correct the vertical distortion. For the SP-L355, keystone correction is manual, so adjust until the image is rectangular.

Is there a remote control included with the projector?

Yes, the SP-L355 comes with a remote control that lets you power on/off, change inputs, and adjust settings. Batteries are usually included.

What should I do if the picture is blurry?

First adjust the focus ring on the lens. If still blurry, ensure the projector is at the correct distance from the screen and the resolution is set to the native XGA (1024x768) for sharpest text.

How do I replace the air filter?

The air filter is located on the side or bottom of the projector. Turn off the projector, unplug it, and remove the filter cover. Replace or clean the filter with a vacuum cleaner, and reattach it. Samsung recommends cleaning the filter every 1000 hours of operation.

USER MANUAL SP-L355 SAMSUNG

Owner's Instructions

The color and the appearance may differ depending on the product, and the specifications are subject to change without prior notice to improve the performance.

MAJOR SAFETY PRECAUTIONS

Before You Start 1-1

Care and Maintenance 1-2

Safety Precautions 1-3

INSTALLATION AND CONNECTION

Package Contents 2-1

Installing the Projector 2-2

Leveling with Adjustable Feet 2-3

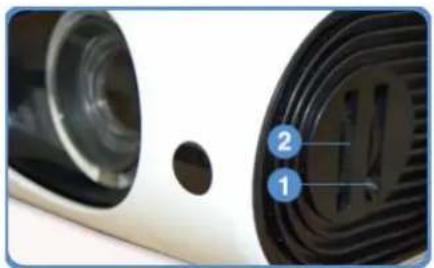

Zoom and Focus Adjustment 2-4

Screen Size and Projection Distance 2-5

Lamp Replacement 2-6

Rear Side 2-7

Setting up the PC Environment 2-8

Supported Display Modes 2-9

Connecting the Power 2-10

Connecting with a PC 2-11

Connecting a PC using an HDMI/DVI cable 2-12

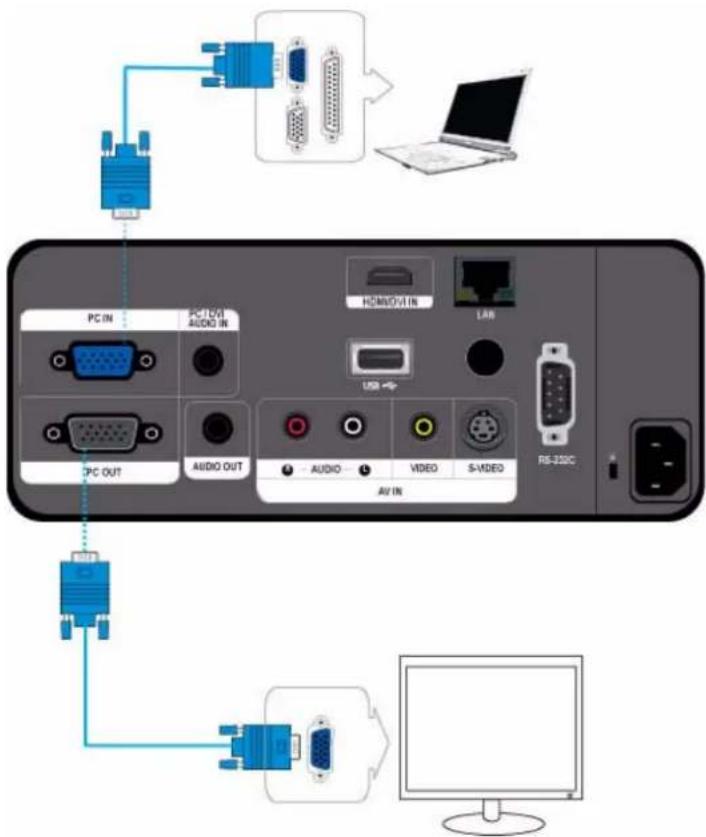

Connecting an External Monitor 2-13

Connecting an HDMI-Compatible Device 2-14

Connecting an AV device using a D-Sub cable 2-15

Connecting an AV device with component output 2-16

Connecting using a Video/S-Video cable 2-17

Connecting an External Speaker 2-18

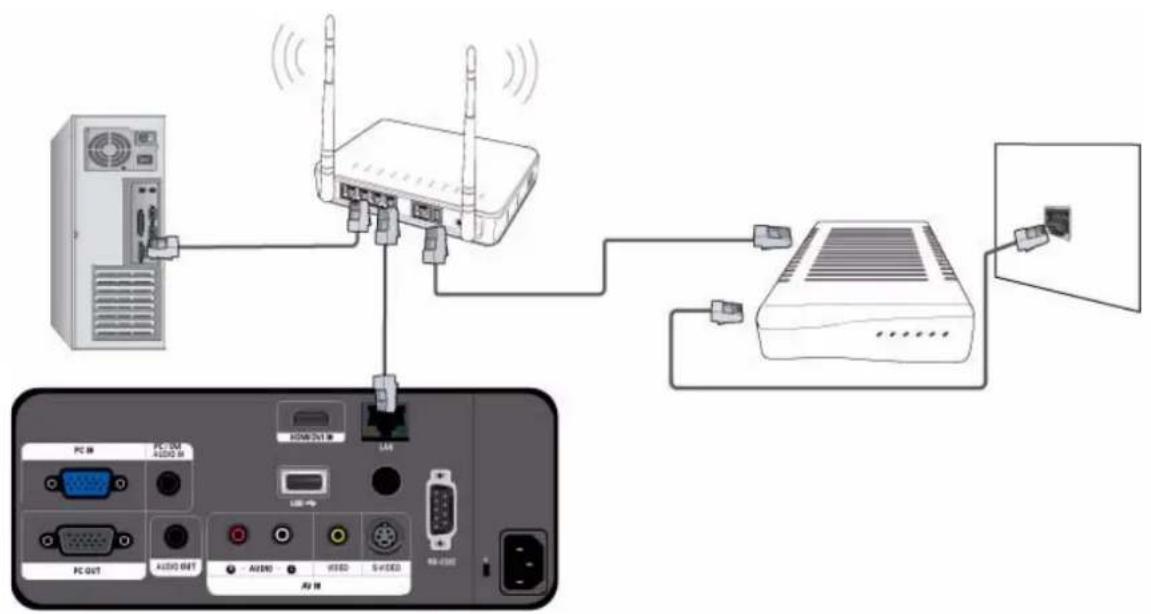

Connecting to a Network 2-19

Kensington Lock 2-20

USING

Product Features 3-1

Front, Upper 3-2

Remote Control 3-3

LED Indications 3-4

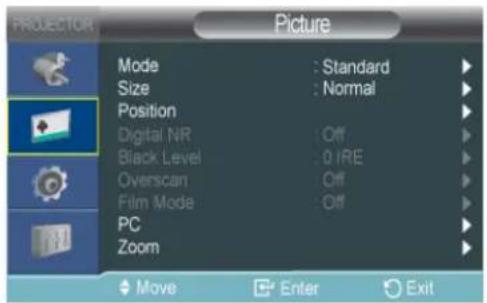

Using the Screen Adjustment Menu (OSD: On Screen Display) .... 3-5

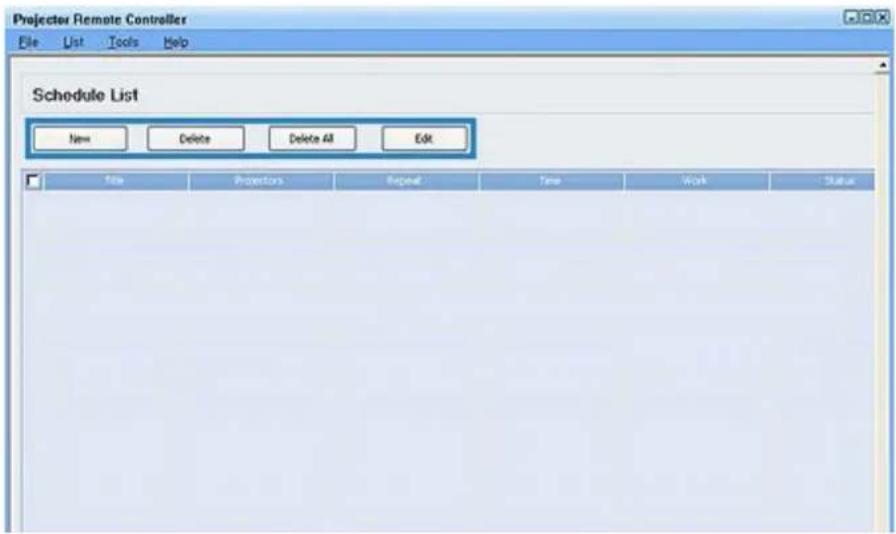

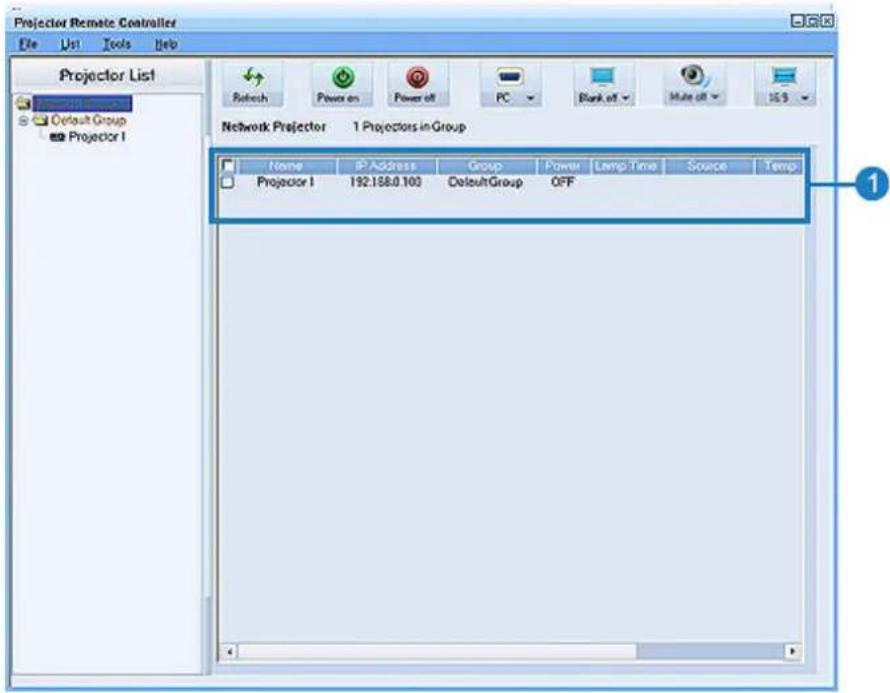

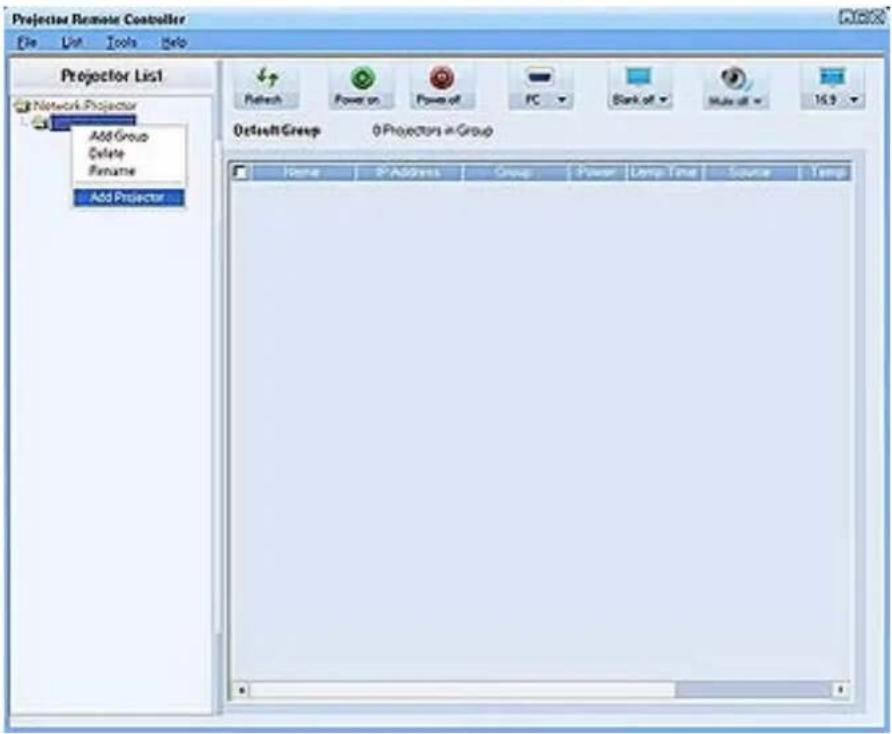

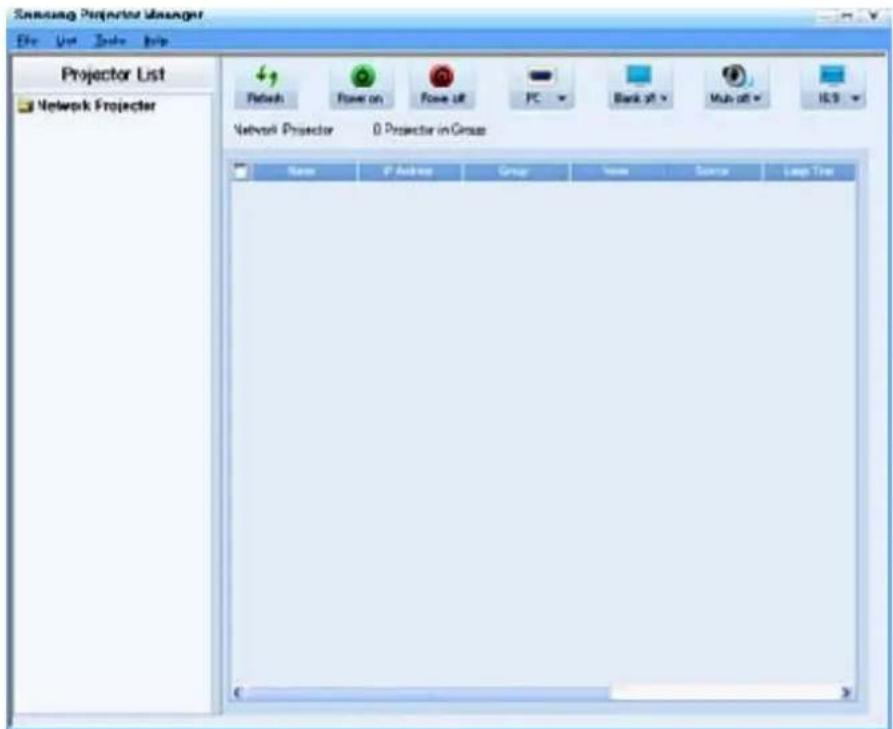

Network Management 3-6

MEDIA PLAY FUNCTION

Connecting a USB Storage Device and Precautions 4-1

Documents 4-2

Photo 4-3

Music 4-4

Movie 4-5

Settings 4-6

Supported File Formats 4-7

TROUBLESHOOTING

Before Requesting Service 5-1

MORE INFORMATION

Specifications 6-1

RS-232C Command Table 6-2

Contact SAMSUNG WORLDWIDE 6-3

Correct Disposal - Europe only 6-4

1 Major Safety Precautions

1-1 Before You Start

Icons used in this manual

ICON NAME MEANING
	Caution Indicates cases where the function may not work or the setting may be canceled.
[V757]	Note Indicates a hint or tip to operate a function.

Using this Manual

• Make yourself fully aware of the safety precautions before using this product.
- If a problem occurs, refer to the 'Troubleshooting' section.
• The contents of this manual are subject to change without prior notice for performance improvement.

Copyright Notice

Copyright © 2010 Samsung Electronics Co., Ltd. All rights reserved.

The copyright of this manual is reserved by Samsung Electronics, Co., Ltd.

The contents of this manual may not be partially or in whole reproduced, distributed or used in any form without the written permission of Samsung Electronics, Co., Ltd.

An administration fee may be charged if either.

(a) An engineer is called out at your request and there is no defect in the product.
(i.e. where you have failed to read this user manual).
(b) You bring the unit to a repair centre and there is no defect in the product.
(i.e. where you have failed to read this user manual).
The amount of such administration charge will be advised to you before any work or home visit is carried out.

Cleaning the Surface and the Lens

Clean the projector using a soft dry cloth.

- Avoid cleaning the product with a flammable substance such as benzene or thinner.

- Avoid scratching the lense with your fingernails or a sharp object.

This may result in scratches or damage to the product.

- Avoid cleaning the product with a wet cloth or by directly spraying water onto the product.

If water enters the product, it may result in fire, electric shock, or a problem with the product.

- A white stain may appear on the surface of the projector if water gets on it.

The appearance and the color may differ depending on models.

Cleaning Inside the Projector

For cleaning the interior of the projector, contact an authorized Samsung Service Center.

- Contact a Service Center if dust or other substances are inside the projector.

Icons used for safety precautions

ICON NAME MEANING
	Warning	Failing to follow the precautions marked with this sign may result in a serious injury or even a fatality.
	Caution	Failing to follow the precautions marked with this sign may result in a personal injury or property damage.

Meaning of Signs

Do not perform. Must be followed.

Do not disassemble.

The power plug must be unplugged from the wall outlet.

Do not touch. Must be grounded to prevent electric shock.

Power Related

The following images are for your reference and may differ depending on models and countries.

Warning

Plug the power plug in firmly.

- Otherwise, it may result in fire.

Avoid using a damaged power cord or plug or a loose power outlet.

- Otherwise, it may result in electric shock or fire.

Avoid plugging in or unplugging the power supply with wet hands.

- Otherwise, it may result in electric shock.

Make sure to connect the power cord to a grounded wall outlet (for insulation class 1 equipment only).

- Otherwise, it may result in electric shock or injury.

Avoid connecting multiple electric appliances to a single wall outlet.

- Otherwise, it may result in fire due to overheating of the wall outlet.

Avoid bending or twisting the power cord excessively and avoid placing heavy objects on the cord.

- Otherwise, it may result in electric shock or fire due to a damaged power cord.

To move the product, turn the power off and unplug the power cord and any other wires connected to the product.

- Otherwise, it may result in electric shock or fire due to the damaged power cord.

Caution

When unplugging the power plug from the wall outlet, make sure to hold the power plug by the plug and not by the cord.

- Failing to do so may result in electric shock or fire.

Do not turn the product on or off by plugging or unplugging the power plug. (Do not use the power plug as a power switch.)

Unplug the power plug before cleaning the product.

• There is a danger of electric shock or fire.

Keep the power cord away from sources of heat.

Connect the power plug to a wall outlet that can be easily reached.

- When a problem occurs with the product, you must unplug the power plug to cut the power off completely. You cannot cut the power off completely using only the power button on the product.

Installation Related

Warning

Avoid installing the product in a location exposed to direct sunlight and installing the product near a heat source such as a fire or heater.

• This may shorten the product life cycle or cause fire.

Avoid installing the product in a badly-ventilated location such as inside a bookshelf or closet.

- Otherwise, it may result in fire due to internal overheating.

When installing the product in a cabinet or shelf, take care so that the front end of the product is completely supported by the cabinet or shelf.

- Failing to do so may result in the product falling and resulting in damage to the product or injury.

• Make sure to use a cabinet or shelf suitable to the size of the product.

When installing the product on a console or shelf, make sure that the front of the product does not protrude out of the console or shelf.

- Otherwise, this may cause the product to fall off and result in a malfunction or injury.

Keep the power cord away from heaters.

• The coating of the power cord may melt and cause electric shock or fire.

When thunder or lighting occurs, unplug the power cord.

- Failing to do so may result in electric shock or fire.

Do not install the product in a location exposed to dust, moisture (sauna), oil, smoke or water (rain drops) and do not install it in a vehicle.

• This may result in electric shock or fire.

Do not install the product in areas with heavy dust.

Caution

Take care not to block the vent with a table cloth or curtain.

- Otherwise, it may result in fire due to internal overheating.

When putting the product down, place it gently.

- Failing to do so may result in a problem with the product or injury.

Do not let the product drop while moving it.

• This may result in a problem with the product or injury.

Do not install the product at a height where children may reach it.

- If a child touches the product, the product may fall and this may result in injury.

Usage Related

Avoid inserting metal objects such as a chopsticks, coins or hairpins, or inflammable objects into the product (the vents, ports, etc).

- If water or an alien substance enters the product, turn the power off, unplug the power cord and contact a service center.

• Otherwise, it may result in a problem with the product, electric shock or fire.

Do not disassemble, or attempt to fix or modify the product.

- When the product requires repairs, contact a Service Center.

Avoid using or placing inflammable spray or objects near the product.

• This may result in an explosion or fire.

Avoid placing a liquid container such as a vase, flowerpot, beverage, cosmetics or drugs, or a metal object over the product.

- If water or an alien substance enters the product, turn the power off, unplug the power cord and contact a service center.

- Otherwise, it may result in a problem with the product, electric shock or fire.

Do not let children place objects such as toys or cookies on the product.

- If a child tries to reach for any of these objects, the product may fall and cause harm.

Do not look directly at the light of the lamp nor project the picture into someone's eyes.

• This is dangerous, especially for children.

When you remove batteries from the remote, be careful that they are not swallowed by children. Keep batteries out of the reach of children.

• If swallowed, see a doctor immediately.

If the product generates a strange noise, a burning smell, or smoke, unplug the power plug immediately and contact a service center.

- Failing to do so may result in electric shock or fire.

If the power plug pin or jack is exposed to dust, water or alien substances, clean it thoroughly.

• There is a danger of electric shock or fire.

When cleaning the product, disconnect the power cord and clean the product with a soft dry cloth.

- Avoid using chemicals such as wax, benzene, alcohol, thinner, mosquito-repellent, fragrance, lubrication or cleansing agent when cleaning the product.

This may result in the exterior being deformed or the print being removed.

When not using the product for a long time, such as leaving your home, unplug the power cord from the wall outlet.

- Otherwise, it may cause dust accumulation and result in fire caused by overheating or a short circuit or result in an electric shock.

If the product is installed in a location where the operating conditions vary considerably, a serious quality problem may occur due to the surrounding environment. In this case, install the product only after consulting our Call Center.

- Places exposed to microscopic dust, chemicals, too high or low temperature, high humidity, such as airports or stations where the product is continuously used for a long time etc.

If you drop the product or the case is damaged, turn the power off and unplug the power cord. Contact a service center.

- Failing to do so may result in fire or electric shock.

Make sure to place your remote control on a table or desk.

• If you step on the remote control, you may fall and hurt yourself or the product may be damaged.

If water or a foreign substance enters the product, turn the product off, unplug the power cord from a wall outlet, and contact a Service Center.

Do not use the product while it indicates a malfunction, such as no sound or no picture.

- Turn the product off immediately, unplug the power cord from a wall outlet, and contact a Service Center.

When a gas leak occurs, do not touch the product or the power plug and ventilate immediately.

• A spark may result in an explosion or fire.

- During a thunder or lighting storm, do not touch the power cord or antenna cable

Do not touch the lens on the product.

• This may cause damage to the lens.

Do not touch any outer part of the product with tools such as a knife or a hammer.

To clean dirt or stains on the front projection lens, use spray or a wet cloth dampened with neutral detergent and water.

Ask a Service Center to clean the interior of the projector at least once per year.

To avoid burning yourself, do not touch the vents or lamp cover while operating or right after turning off the product.

Do not clean the product using water spray or a wet cloth. Avoid using any chemicals such as detergents, industrial or automotive polish, abrasive, wax, benzene, alcohol on any plastic part of the product such as projector case, since this may cause damage.

Do not open any cover on the product.

• This would prove hazardous because of high-voltage current inside the product.

Do not use any undesignated battery.

Be careful not to touch the ventilation hole while the projector is on as hot air comes out.

The ventilation hole is hot for some time though the projector is turned off. Keep you hands or body off the ventilation hole.

Do not place objects vulnerable to heat near the projector.

Be careful to keep your body away from the projector lamp. The lamp is hot.

(Children and those who have sensitive skin should be more careful.)

2 Installation and Connection

2-1 Package Contents

• Unpack the product and check if all of the contents listed below have been included.
• Store the packaging box in case you need to move the product at a later date.

Projector

CONTENTS
Quick Setup Guide Product Warranty(Not available in all locations)		User Manual Power Cord
Remote Control / 2 Battery(Not available in all locations)	Cleaning Cloth D-Sub Cable 4 Screws		(For bracket of ceiling mount.)

A ceiling mount is not included and must be purchased separately. Use the included screws to attach the projector to the ceiling mount bracket.

Install the projector so that the beam from the projector is perpendicular to the screen.

- Place the projector so that the lens aims at the center of the screen. If the screen is not vertical, the picture on the screen may not appear rectangular.

- Do not install the screen in bright surroundings. If the surroundings are too bright, the picture on the screen will be washed out and not display clearly.

- When using the projector in bright surroundings, use curtains to block the light.

- You can install the projector in the following locations relative to the screen: Front-Floor / Front-Ceiling / Rear-Floor / Rear-Ceiling. To view the installation position settings, see below.

To adjust the picture when you install the projector behind the screen

Installing behind a semi-transparent screen.

When you install the projector behind a semi-transparent screen, you can use the menu to adjust the picture so that it displays correctly, depending on where you've located the projector, rearfloor (or low) or rear-ceiling.

1. For rear-floor, press :

Menu > Setup > Install > Rear-Floor

1. For rear-ceiling, press :

Menu > Setup > Install > Rear-Ceiling

To adjust the picture when you install the projector in the front of the screen

Installing the projector in front of the screen.

When you install the projector in front of a screen, you can use the menu to adjust the picture so that it displays correctly, depending on where you've located the projector, front-floor (or low) or front-ceiling.

1. For front-floor, press :

Menu > Setup > Install > Front-Floor

To level the projector, turn the Adjustable Feet of the projector.

The projector can be adjusted to a height of up to 30 mm (about 12 °) from the reference point.

Depending on the position of the projector, Keystone distortion of the image may appear.

If is set to , any keystone will be automatically adjusted. If fine tuning is required after auto-adjustment, tune using .

Zoom Knob : You can adjust the size of the image within the zoom range by manipulating the Zoom Knob.

2 Focus Ring : Focus the picture on the screen using the Focus Ring.

The size of your screen determines the distance you set your projector from the screen.

If you do not install your projector at the projection distance specified in the Screen Size and Projection Distance table in Section 2-5, you will not be able to adjust the focus correctly.

A. Screen / Z. Throw Distance / Y'. Distance from Lens Center to Image Bottom

Install the projector on a flat, even surface and level the projector using the adjustable feet to obtain optimal picture quality. If images are not clear, adjust them using the Zoom Knob or Focus Ring, or move the projector forward and backward.

SCREEN SIZE THROW DISTANCE OFFSET
M (DIAGONAL)		X (HORIZONTAL)		Y (VERTICAL)		Z (TELE)		Z (WIDE)		Y'
INCHES	CM	INCHES	CM	INCHES	CM	INCHES	CM	INCHES	CM	INCHES	CM
40	101.6	32	81.3	24	61.0	54.2	137.6	44.9	114.0	4.0	10.2
50	127.0	40	101.6	30	76.2	68.0	172.7	56.4	143.3	5.0	12.7
60	152.4	48	121.9	36	91.4	81.8	207.8	68.0	172.6	6.0	15.2
70	177.8	56	142.2	42	106.7	95.7	243.0	79.5	202.0	7.0	17.8
80	203.2	64	162.6	48	121.9	109.5	278.1	91.1	231.3	8.0	20.3
90	228.6	72	182.9	54	137.2	123.4	313.3	102.6	260.6	9.0	22.9
100	254.0	80	203.2	60	152.4	137.2	348.4	114.1	289.9	10.0	25.4
110	279.4	88	223.5	66	167.6	151.0	383.5	125.7	319.2	11.0	27.9
120	304.8	96	243.8	72	182.9	164.8	418.7	137.2	348.5	12.0	30.5
130	330.2	104	264.2	78	198.1	178.7	453.8	148.7	377.8	13.0	33.0
140	355.6	112	284.5	84	213.4	192.5	488.9	160.3	407.1	14.0	35.6
150	381.0	120	304.8	90	228.6	206.3	524.1	171.8	436.4	15.0	38.1
160	406.4	128	325.1	96	243.8	220.2	559.2	183.4	465.7	16.0	40.6
170	431.8	136	345.4	102	259.1	234.0	594.4	194.9	495.0	17.0	43.2
180	457.2	144	365.8	108	274.3	247.8	629.5	206.4	524.3	18.0	45.7
190	482.6	152	386.1	114	289.6	261.7	664.6	218.0	553.6	19.0	48.3
200	508.0	160	406.4	120	304.8	275.5	699.8	229.5	582.9	20.0	50.8
210	533.4	168	426.7	126	320.0	289.3	734.9	241.0	612.2	21.0	53.3
220	558.8	176	447.0	132	335.3	303.2	770.1	252.6	641.5	22.0	55.9
230	584.2	184	467.4	138	350.5	317.0	805.2	264.1	670.8	23.0	58.4
240	609.6	192	487.7	144	365.8	330.8	840.3	275.6	700.1	24.0	61.0
250	635.0	200	508.0	150	381.0	344.7	875.5	287.2	729.4	25.0	63.5
260	660.4	208	528.3	156	396.2	358.5	910.6	298.7	758.7	26.0	66.0
270 685	.8 216 54	8.6 162 411.5	372.3 9	45.7 310.2 7	88.0 27.0	68.6
280 711	.2 224 56	9.0 168 426.7	386.2 9	80.9 321.8 8	17.3 28.0	71.1
290 736	.6 232 58	9.3 174 442.0	400.0 1	016.0 333.3	846.6 29.0	73.7
300 762	.0 240 60	9.6 180 457.2	413.9 1	051.2 344.9	875.9 30.0	76.2

This projector is designed to show images optimally on a 80 \~ 120 inches sized screen.

Cautions on Lamp Replacement

• The projector lamp is an expendable item. For best operating performance, replace the lamp according to the usage time. You can view the lamp usage time in the Information Display ([INFO] button).
• Use the recommended lamp when replacing. Replace the lamp with the one specified below.

MODEL SP-L255	SP-L305 SP-L335 SP-	L355
Lamp Model Name DPL3201U DPL3292P DPL		3293P

- For inquiries on lamp purchase, please see 'Contact SAMSUNG WORLDWIDE' in section 6-3.

• Check that the power cord is unplugged before replacing the lamp.
• Because the lamp is a high temperature and high voltage product, wait at least one hour from the time you disconnect the power cord before replacing the lamp.
• The lamp is located on the left side of the projector (when looking from the front).
• Do not leave the old lamp near inflammables or in reach of children. There is a danger of fire, burns, or injury.
• Remove dirt or foreign material around or inside the lamp unit using a proper vacuum device.
• When handling the lamp, avoid touching any part of it except for the handles. If you handle the lamp incorrectly, you can shorten the lamp's lifetime and affect picture quality.
• When you turn the projector over to change the lamp, put the projector on a soft cloth on a flat surface.
• The projector has been designed so that the projector does not work if the lamp cover is not completely assembled after a lamp replacement. If the projector does not work properly, please check the operating status of the indicator LED.

Lamp contains Mercury. Dispose According to Local, State or Federal Laws.

Lamp Replacement Procedure

Because the lamp is a high temperature and high voltage product, wait at least one hour from the time that the power cord is disconnected before replacing it.

The lamp is located on the left side of the projector (when looking from the front).

1. Remove the screw shown in the figure below, and then open the cover.

1. Remove the two (2) screws shown in the figure below.

1. To remove the lamp, hold and then pull the lamp handle as shown in the figure below.

Install a new lamp in the reverse order of removal.

Replacing and Cleaning the Filter

Precautions when replacing the projector filter:

• The filter is located at the bottom of the projector.
- Turn off the power of the projector, and then disconnect the power cord after the projector has cooled sufficiently. Otherwise, its parts may be damaged due to internal heat.
- When you replace the filter, you may release some dust.
• For inquiries on replacement filter purchase, please see 'Contact SAMSUNG WORLDWIDE' in Chapter 6.

To replace or clean the filter, follow these steps:

1. Turn off the power of the projector, and then disconnect the power cord after the projector has cooled sufficiently.

1. Turn the projector over so that its bottom points upward, and then push and remove the filter cover in the direction of the arrow in the illustration below.

* When placing the projector with the bottom facing up, make sure to place a soft cloth under the projector to prevent scratching.

1. Replace or clean the filter.

- When cleaning the filter, use a small vacuum cleaner designed for computers and small electronics products, or wash it under

running water.

• After washing the filter under running water, make sure to dry it completely. The moisture may cause the filter to corrode.
• If dust cannot be separated from the filter or the filter is torn, it must be replaced.
• After cleaning or replacing the filter, and then run → in the menu.

Ventilation openings

The location of the ventilation openings:

• The ventilation openings are located on the right and left sides and at the bottom of the projector.

1. PC IN port 8. PC OUT port
2. PC/DVI AUDIO IN port 9. AUDIO OUT port
3. USB port 10. [AV IN] R-AUDIO-L port
4. HDMI/DVI IN port 11. [AV IN] VIDEO port
5. LAN port 12. [AV IN] S-VIDEO port
6. Remote Control Signal Receiver 13. Kensington Lock slot
7. RS-232C port 14. Power port

Check the following items before connecting your PC to your projector.

1. Click the right mouse button on the Windows desktop, and then click [Properties]. The dialog appears.

1. Click the [Settings] tab, and then set the . The optimal resolution for the projector is 1024 x 768. For other resolutions supported by the projector, see the PC Timing Display Mode table in section 2-9.

You do not have to change the setup.

1. Press the [Advanced] button. Another property window appears.

1. Click the [Monitor] tab and set the . For the refresh rate that matches the resolution you've chosen, see the refresh rate (60 Hz, 70 Hz, etc.) next to your selected resolution in the PC Timing Display Mode table in section 2-9.

Setting the refresh rate sets both the vertical and horizontal frequencies.

1. Click the [OK] button to close the window, and then click the [OK] button on the window to close that window. The computer may restart automatically.
2. Shut down the PC and connect it to the projector.

The setup process might vary depending on your type of computer or version of Windows.

(For example, [Properties] appears instead of [Properties (R)] as shown in 1.)

This projector supports 32 bit color quality (per pixel) when it is used as a PC monitor.

Projected images may differ from the images on your monitor depending on the monitor manufacturer or Windows version.

When connecting the projector to a PC, make sure that the PC setup complies with the display settings supported by this projector. If it does not, you may have signal problems.

PC Timing (D-Sub/HDMI)

FORMAT RESOLUTION			HORIZONTAL FREQUENCY (KHZ)	VERTICAL FREQUENCY (HZ)	PIXEL FREQUENCY (MHZ)
IBM 640 x 350	70Hz 31.469	70.086 25.175
IBM 640 x 480	60Hz 31.469	59.940 25.175
IBM 720 x 400	70Hz 31.469	70.087 28.322
VESA 640 x 480	60Hz 31.469	59.940 25.175
MAC 640 x 480	67Hz 35.000	66.667 30.240
VESA 640 x 480	70Hz 35.000	70.000 28.560
VESA 640 x 480	72Hz 37.861	72.809 31.500
VESA 640 x 480	75Hz 37.500	75.000 31.500
VESA 720 x 576	60Hz 35.910	59.950 32.750
VESA 800 x 600	56Hz 35.156	56.250 36.000
VESA 800 x 600	60Hz 37.879	60.317 40.000
VESA 800 x 600	70Hz 43.750	70.000 45.500
VESA 800 x 600	72Hz 48.077	72.188 50.000
VESA 800 x 600	75Hz 46.875	75.000 49.500
MAC 832 x 624	75Hz 49.726	74.551 57.284
VESA 1024 x	768	60Hz 48.363	60.004 65	000
VESA 1024 x	768	70Hz 56.476	70.069 75	000
VESA 1024 x	768	72Hz 57.672	72.000 78	434
VESA 1024 x	768	75Hz 60.023	75.029 78	750
VESA 1152 x	864	60Hz 53.783	59.959 81	750
VESA 1152 x	864	70Hz 63.000	70.000 96	768
VESA 1152 x	864	72Hz 64.872	72.000 99	643
VESA 1152 x	864	75Hz 67.500	75.000 108	000
VESA 1280 x	720	60Hz 44.772	59.855 74	500
VESA 1280 x	720	70Hz 52.500	70.000 89	040
VESA 1280 x	720	72Hz 54.072	72.000 91	706
VESA 1280 x	720	75Hz 56.456	74.777 95	750
VESA 1280 x	768	60Hz 47.776	59.870 79	500
VESA 1280 x	768	75Hz 60.289	74.893 102	2.250
VESA 1280 x	800	60Hz 49.702	59.810 83	500
VESA 1280 x	800	75Hz 62.795	74.934 106	500
VESA 1280 x	960	60Hz 60.000	60.000 108	000
VESA 1280 x	960	70Hz 69.930	70.000 120	839
FORMAT	RESOLUTION		HORIZONTAL FREQUENCY (KHZ)	VERTICAL FREQUENCY (HZ)	PIXEL FREQUENCY (MHZ)
VESA 1280 x	960 72Hz 72.072 72.000 124.540
VESA 1280 x	960 75Hz 75.231 74.857 130.000
VESA 1280 x	1024 60Hz 63.981 60.020 108.000
VESA 1280 x	1024 70Hz 74.620 70.000 128.943
VESA 1280 x	1024 72Hz 76.824 72.000 132.752
VESA 1280 x	1024 75Hz 79.976 75.025 135.000
VESA 1400 x	1050 60Hz 65.317 59.978 121.750
VESA 1440 x	900 60Hz 55.935 59.887 106.500
VESA 1440 x	900 75Hz 70.635 74.984 136.750
VESA 1600 x	1200 60Hz 75.000 60.000 162.000

All resolutions higher or lower than 1024x768 are converted to 1024x768 by the Scaler chip inside the projector.
If the resolution of the signal output by the PC matches the real resolution (1024x768) of the projector, the screen quality is optimal.

AV Timing (D-Sub)

FORMAT RESOLUTION SCAN
BT.601 SMPTE 267M 480i 59.94Hz Interlaced
BT.1358 SMPTE 293M 480p 59.94Hz		Progressive
BT.601	576i	50Hz	Interlaced
BT.1358	576p	50Hz	Progressive
SMPTE 296M	720p	59.94Hz/60Hz Progressive
	720p	50Hz	Progressive
BT.709 SMPTE 274M	1080i	59.94Hz/60Hz Interlaced
	1080i	50Hz	Interlaced

AV Timing (HDMI)

FORMAT		RESOLUTION	SCAN	HORIZONTAL FREQUENCY (KHZ)	VERTICAL FREQUENCY (HZ)	PIXEL FREQUENCY (MHZ)
EIA-861	Format1	640 x 480	Progressive	59.940	31.469	25.175
EIA-861	Format1	640 x 480	Progressive	60.000	31.500	25.200
EIA-861	Format2,3	720 x 480	Progressive	59.940	31.469	27.000
EIA-861	Format2,3	720 x 480	Progressive	60.000	31.500	27.027
EIA-861	Format4	1280 x 720	Progressive	59.939	44.955	74.175
EIA-861	Format4	1280 x 720	Progressive	60.000	45.000	74.250
EIA-861	Format5	1920 x 1080	Interlaced	59.939	33.716	74.175
FORMAT RESOLUTION		SCAN		HORIZONTAL FREQUENCY (KHZ)	VERTICAL FREQUENCY (HZ)	PIXEL FREQUENCY (MHZ)
EIA-861 Format5 1920 x 1080 Interlaced 60.000			33.750 74.250
EIA-861 Format17,18 720 x 576 Progressive 50.000			31.250 27.000
EIA-861 Format19 1280 x 720 Progressive 50.000			37.500 74.250
EIA-861 Format20 1920 x 1080 Interlaced 50.000			28.125 74.250

AV Timing (VIDEO/S-VIDEO)

NTSC, NTSC 4.43, PAL, PAL60, PAL-N, PAL-M, SECAM

Your projector supports the standard video formats listed above through its video and s-video inputs. No adjustments are necessary.

1. Plug the power cord into the power terminal on the rear side of the projector.

1. Connect the [PC IN] port on the rear side of the projector to the PC video out (D-sub) port of the PC using a PC video cable.
2. Plug in the power cords of the projector and the PC.
3. Connect the [PC/DVI AUDIO IN] input port of the projector to the speaker output ports of the PC using an audio cable.

This product supports Plug and Play. If you use Windows XP, you do not need to set up the driver on your PC.

Using the Projector

1. Turn on the projector, and then press the [SOURCE] button to select .
   If the Mode is not available, make sure the PC video cable is properly connected.
2. Turn on the PC, and then set the PC Environment (screen resolution, etc.) if necessary.
3. Adjust the screen. ().

2-12-1. Connecting a PC using an HDMI/DVI cable

Make sure that your PC and projector are turned off.

1. Connect the [HDMI/DVI IN] terminal of the projector to the HDMI or DVI terminal of your PC using a HDMI/HDMI or HDMI/DVI cable (Not supplied).

For the input signals supported, see "PC Timing (D-Sub/HDMI)" in section 2-9, "Supported Display Modes."

1. If you connected using a HDMI/DVI cable, connect the [PC/DVI AUDIO IN] terminal of the projector to the Audio out terminal of your PC using an audio cable (Not supplied).

- If you connected with a HDMI/HDMI cable, you do not need an audio cable.

2-12-2. Configuring the Audio Settings for Your PC

When the projector is connected to the PC via an HDMI cable, you can change the audio settings as follows:

1. In Category View of Windows XP : Go to Control Panel - [Sounds, Speech and Audio Devices], and select .

In Classic View of Windows XP : Go to Control Panel - [Sound and Audio Devices], and select the

On Windows 7 : Go to Control Panel - [Sound], and select the tab.

1. Specify the default device for sound playback:

You can select the PC speakers or projector speaker.

The aforementioned information may slightly differ from some PCs or versions of Windows.

You can view an image on both your projector and a separate monitor at the same time.

Make sure that your PC and projector are turned off.

1. Connect the [PC IN] terminal at the back of the projector to the D-Sub (PC, VGA) terminal of your PC using a D-Sub cable.

2. Connect the [PC OUT] terminal of the projector to the D-Sub terminal of a monitor using a D-Sub cable.

3. When connecting a monitor using the [PC OUT] function, make sure to connect your PC to the [PC IN] terminal.

4. The picture will display normally on the monitor connected via [PC OUT] even if the projector does not display the picture when you press [Blank] on the remote.
5. The [PC OUT] function will not operate in standby mode.

Make sure that the AV device and your projector are turned off.

1. Connect the [HDMI/DVI IN] terminal at the back of the projector to the HDMI or HDMI/DVI output terminal of the digital output device using an HDMI/DVI or HDMI/HDMI cable.

- If you are connecting to the HDMI output terminal on the digital output device, use an HDMI/HDMI cable.

- For supported input signal formats, resolutions, and frequencies, see AV Timing(HDMI) in Section 2-9, "Supported Display Modes".

1. If you connected using a HDMI/DVI cable, connect the [PC/DVI AUDIO IN] terminal on the projector to the Audio out terminal on your digital output device using an audio cable (Not supplied).

- If you connected with a HDMI/HDMI cable, you do not need an audio cable.

Make sure that the AV device and your projector are turned off.

1. Connect the [PC IN] terminal at the back of the projector to the D-Sub terminal of your AV device using a D-Sub cable.
2. For supported input signal formats, resolutions, and frequencies, see AV Timing (D-Sub) in Section 2-9, "Supported Display Modes".
3. Connect the [PC/DVI AUDIO IN] terminal at the back of the projector to the Audio out terminal of your AV device using an audio cable (Not supplied).

Make sure that the AV device and your projector are turned off.

1. Connect the [PC IN] terminal on the back of the projector to the Component terminal on your AV device using a D-Sub to Component cable (Not supplied). This cable has a D-Sub connector on one end and three RCA jacks on the other.
2. For supported input signal formats, resolutions, and frequencies, see AV Timing (D-Sub) in Section 2-9, "Supported Display Modes".
3. Connect the [PC/DVI AUDIO IN] terminal on the back of the projector and the Audio out terminal on your AV device using an audio cable (Not supplied).

Make sure that the AV device and your projector are turned off.

1. Connect the [VIDEO] or [S-VIDEO] terminal and the AV device using a Video cable (Not supplied) or S-Video cable (Not supplied).

- For supported input signal formats, see AV Timing (VIDEO/S-VIDEO) in Section 2-9, "Supported Display Modes".

1. Connect the [AV IN R-AUDIO-L] terminal on the back of the projector and the Audio out terminal on your AV device using an audio cable (Not supplied).

You can hear sound through an external speaker instead of the internal speakers built into the projector.

1. Obtain an audio cable (Not supplied) suitable for your external speaker.
2. Connect the [AUDIO OUT] terminal of the projector to the external speaker using an audio cable.

- When using an external speaker, the internal speaker does not operate but you can adjust the volume of the external speaker using the Volume button or the remote control of the projector.

- The [AUDIO OUT] terminal can output all audio signals.

This product can use network functions. Refer to the following Network connection method.

2-19-1. Connecting to a Dynamic IP (DHCP) Network

You can attach the projector to your network through a modem that uses DHCP (Dynamic Host Configuration Protocol). When you use a DHCP modem, the modem automatically provides the IP address, subnet mask, gateway, and DNS server values that the projector needs to access the network.

To connect to a DHCP network, follow these steps :

1. Connect the modem cable between the modem port on the wall and the external modem.
2. Connect a LAN cable between the external modem and the wired or wireless IP router.
3. Connect a LAN cable between the [LAN] port on the back of the projector and the wired or wireless IP router.
4. Turn the projector on and press the [MENU] button.
5. Select → → → .
6. The projector automatically acquires the IP address, Subnet mask and Gateway.

To use the network function, must be set to .
If the IP address allotment from the DHCP server fails, turn off the external modem for more than 10 seconds, restart the modem, and then retry the connection.
For instructions on the setup and connection of the external modem and router, refer to the user manual for each product.
You can connect the LAN cable from the modem directly to the projector, You do not need a router.
You can not use a manual connection-type ADSL modem because it is not a DHCP-type device. Make sure to use an automatic connection DHCP ADSL modem.

2-19-2. Connecting to a Static IP Network

You can attach the projector to a network that uses a Static IP address, which corresponds to using a dedicated lease line. If your network uses Static IP addresses, you must get the IP address, subnet mask, gateway, and DNS server values from your Internet Service Provider (ISP), turn on the Network function in the projector's Menu, and then enter the values into the Network function manually.

To connect to a Static IP address network, follow these steps :

1. Connect a LAN cable between the LAN port on the wall and a wired or wireless IP router.
2. Connect a LAN cable between the [LAN] port on the back of the projector and the wired or wireless IP router.
3. Turn on the projector, and then press the [MENU] button.

4. Select → → → .

5. Select and press the [Button. Use the ◀/▶ buttons to navigate between each IP Address entry field and the ▲/▼ buttons to enter values.

6. When done entering all the values for IP Address, press the [Button] and then repeat the steps for Subnet mask and Gateway.

7. When all values have been filled in, press the [MENU] or [RETURN] button to exit the setup menu.

To use the network function, must be set to .
If you use a static IP, your ISP will inform you of your IP address, subnet mask, gateway and DNS values. These values must be entered to complete your network setup. If you do not know your static IP address, consult your network administrator.
For instructions on the setup and connection of the router, refer to the router's user manual.
You can connect the LAN cable directly to the projector without using a router.
If you use an IP Router which supports the DHCP function, you can set the router to either DHCP or static IP.
For instructions on the use of a static IP, consult your Internet service provider.

The Kensington Lock slot allows you to lock your projector, providing a sense of security when you use it in a public place. Because the shape and usage of the lock may differ depending on the model and the manufacturer, see the User Manual supplied with the locking device for more information.

Locking the product

1. Loop the Kensington lock cable around an immovable part of desk or heavy object as directed in the Kensington lock user manual.
2. Insert the locking part of the locking device into the Kensington lock hole in the projector.
3. Insert the Kensington lock key into the locking mechanism and turn it in the locking direction.

You can purchase a locking device from an electronics store or an online shop.

3-1 Product Features

1. An optical engine adopting new LCD technology

2. 1024 x 768 resolution.

3. 3P-LCD panel.

4. SP-L255 : Provides a bright, 2500 ANSI lumen screen.
   SP-L305 : Provides a bright, 3000 ANSI lumen screen.
   SP-L335 : Provides a bright, 3300 ANSI lumen screen.
   SP-L355 : Provides a bright, 3500 ANSI lumen screen.

5. Minimized fan noise

- Minimizes fan noise through optimized internal air flow and the fan installation structure.

1. Multiple input terminals

- Increases the connectivity to peripheral devices such as D-Sub 15P, S-Video, Video, HDMI(DVI PC signal, supported), etc.

1. Audio Output

- Includes stereo speakers on the right and left and a 5-band equalizer.

1. User adjustments

2. Allows adjustment of each input port.

3. Has a test pattern you can use for positioning and adjustment.

4. Compact size, lightweight, and portable.

5. Convenient Network Function

- The projector can be monitored and controlled from a PC using the network function.

1. Multimedia Function

• You can enjoy video, photos, and music, and view documents stored on a USB device, without connecting to a PC.

1. Security Function

• Security password can be set to prevent unauthorized adjustments and access to the projector.

NAME DESCRIPTION
1.Indicators - STAND BY (Blue LED)	LED)- LAMP (Blue LED)- TEMP (Red LED)Refer to the LED Indications.
2. Move / Select / Volume < > VOL VOL button	∧V <> / ☑ Use to move or to select an item within a menu.<> VOL VOL : Use to adjust the volume.
3. MENU button Use to display the Menu Screen.
4. SOURCE button Use to select the external device signal.
5. ⏻ Button	Use to turn the projector on or off.
6. Lens -
7. Remote Control Signal Receiver	-
8. Focus Ring Use for Focus Adjustment.
9. Zoom Knob Use to enlarge or reduce image size.
10. Lens cover -

Using your projector with another remote control device nearby may result in improper functioning due to remote control code (frequency) interference.

POWER (Button) Use this button for turning the product on and off.

2 P.MODE Button Use to select Picture Mode.

3 P.SIZE Button Use to adjust the size of picture screen.

4 Rewind Button Rewind video in mode.

5 Play button Play video in mode.

6 KEYSTONE button Correct a tilted image.

7 Pause button Pause video in mode.

8 VOL (+−) Button Use to control the volume.

9 MENU (Button Use to display the Menu Screen.

10 MEDIA.P Button Go directly to mode. Display the menu items while in mode.

11 HELP Button Display the button information menu at the bottom of the screen when a document is being viewed in mode.

12 Move (▼▲) Buttons Used to move to or select each menu item.

13 INFO Button Use to check source signals, picture setup, PC screen adjustment, and lamp lifespan.

14 Colored buttons (Only available in ) Red : Use to set subtitle while playing a video file. Green : Use to set while playing a photo file. Yellow : Use to set in document view. Blue : Use to move pages using Menu in document view.

Make sure to place your remote control on a table or desk.

15 QUICK Button Use to return to the last menu used quickly.

16 AUTO Button Automatically adjust the screen. (Only enabled in mode.)

17 BLANK Button Use to turn off the screen and sound temporarily. The video and audio will come back on when any button other than the [POWER] button is pressed.

18 Fastforward button Fastforward video in mode.

19 Stop button Stop video in mode.

20 DOCU. ZOOM button Enlarge or reduce a document in the menu under mode.

21 MUTE (按钮) Press to mute the sound temporarily. Press the MUTE button again or the [VOL] button (when the sound is muted to hear sound again.

PAGE Button (^^) Use to move to the previous or next page, one page at a time.

23 SOURCE Button Switch the external input signal.

24 USB SAFELY REMOVE Button Use to remove a [USB] device safely.

25 RETURN (Button Returns to the previous menu.

EXIT (-)Button Use to make the Menu Screen disappear.

27 STILL Button Use to see still images.

INSTALL Button Use to adjust the image so that it is appropriate for the projector's installation location (In front of the screen and hanging from the ceiling, behind the screen and hanging from the ceiling, etc.)

If you step on the remote control, you may fall and hurt yourself or damage the remote.

You can use the remote control up to a distance of about 32.8 feet (10 m) from the product.

Installing Batteries in the Remote Control

1. Lift the cover at the back of the remote control upward as shown in the figure.

1. Insert two AAA size batteries.
2. Close the cover.

LED Indications

●:Light is On Light is Blinking :Light is Off

STAND BY LAMP TEMP STATUS
●	○	○	If you press the [POWER] button on the remote control or projector, the screen appears within 30 seconds.
●	●	○	The projector is operating normally.
●	○	○	The projector is preparing an operation after the [POWER] button on the projector or the remote control has been pressed.
○	○	○	The [POWER] button has been pressed to turn off the projector, and the cooling system is in operation to cool off the inside of the projector. (Operates for about 3 seconds.)
○	○	○	The cooling fan inside the projector is not operating normally. Refer to Action 1 in Clearing Indicator Problems below.
○	○	○	The lamp cover protecting the lamp unit is not closed properly. Refer to Action 2 in Clearing Indicator Problems below.
●	○	○	The lens cover has not opened completely. Refer to Action 3 in Clearing Indicator Problems below.
●	●	○	The projector has changed to Cooling mode because its internal temperature has increased beyond the maintenance limit.Refer to Action 4 in Clearing Indicator Problems below.
○	○	○	The projector has turned itself off automatically because its internal temperature has increased beyond the maintenance limit. Refer to Action 5 in Clearing Indicator Problems below.
○	○	○	A problem has occurred with the operation of the lamp. Refer to Action 6 below.
●	○	●	The lifetime of the lamp has expired. Refer to Action 7.
○	○	●	The power for the product is not operating normally. Contact a service center.

Clearing Indicator Problems

CLASSIFICATION	STATE MEASURES
Action 1	The cooling fan system is not operating normally.	If the symptom remains even after disconnecting and then reconnecting the power cord and turning the projector on again, contact your product provider or our service center.
Action 2	The lamp cover protecting the lamp unit is not properly closed or the sensor system is not operating normally.	Check if the screws on the side of the projector are securely tightened. If they are and the indicators are still lit, contact your product distributor or a service center.
Action 3	The lens cover has not opened completely.	Open the lens cover completely.If the lens cover does not open completely when the projector is operating, both the video and audio turn off automatically.If this status persists for ten minutes, the projector turns off automatically.
Action 4	The projector has changed to the Cooling mode because the internal temperature of the projector has increased beyond the maintenance limit.	If the internal temperature of the projector has increased beyond the maintenance limit, the projector changes to the Cooling mode before turning off automatically.In Cooling mode, the fan speed is increased and the projector's lamp is changed tomode.Check whether the ventilation hole of the projector is blocked.Check the air filter and clean if blocked.Check whether the surrounding temperature of the projector is higher than the standard temperature range of the projector.Cool the projector sufficiently and operate it again.
Action 5	The internal temperature of the projector has risen higher than the limit, and the projector has turned off automatically.	Check whether the ventilation hole of the projector is blocked.Check the air filter and clean if blocked.Check whether the surrounding temperature of the projector is higher than the standard temperature range of the projector.Cool the projector sufficiently and operate it again.If the same problem occurs continually, contact your product distributor or service center.
Action 6	The lamp has malfunctioned after power turns off abnormally or after the projector is powered on right after turning off.	Turn the power off, wait for a sufficient amount of cooling time and then turn the power on to operate. If the same problem occurs continually, contact your product distributor or service center.
Action 7	When the screen becomes darker	Check the lamp usage time on the Information Display screen.If you need to replace the lamp, contact your product distributor or service center.

This Projector uses a cooling fan system to keep the unit from overheating. Operation of the cooling fan may produce noise. This does not affect product performance and is part of normal operation.

3-5 Using the Screen Adjustment Menu (OSD: On Screen Display)

The Screen Adjustment Menu (OSD: On Screen Display) Structure

To access the Menu, press the Menu button on the product or on the remote. To move in the menu, press the arrow buttons. Menu selections with an arrow on the far right have sub-menus. Press the right arrow button to access the sub-menu. Directions for navigating and selecting items in a menu are at the bottom of each menu screen.

MENU SUB-MENU
Input	Source List Edit Name
Picture	Mode Size Position Digital NR Black Level
	Overscan Film Mode PC Zoom
Setup	Install Lamp Mode Auto Keystone V-Keystone Background
	Test Pattern	Video Type	Caption	Network	Reset
Option	Language	Menu Option	Sound	Filter Check Time	Auto Power On
	Sleep Timer	Security	Panel Lock	Information

3-5-1. Input

MENU	DESCRIPTION
Source List	You can select a device connected to the projector to display.·- - - - -
Edit Name	You can edit the names of devices connected to the projector.·- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

3-5-2. Picture

MENU DESCRIPTION
Mode	Select a screen mode to match the environment, the kind of images you are projecting, or select a customized mode you have created based on your requirements.
	• : Selects the picture for increased definition in a bright room.• : Selects the picture for the optimum display in a normal environment.• : This mode is suitable for presentations.• : This mode is suitable for text work.• : This mode is suitable for viewing a movie.• : This picture mode is optimized for playing games.Inmode, the text in still pictures will appear unnatural.; This is a customized mode you create using the→function.Presentation and Text modes are only enabled if the input signal is a PC Timing (D-Sub/HDMI) signal.: Used to adjust the contrast between the object and the background.: Used to adjust the brightness of the entire picture.: Used to adjust the sharpness of the picture.When the input signal is a PC Timing (D-Sub/HDMI) signal, thecannot be adjusted.: Used to adjust color lighter or darker.When the input signal is a PC Timing (D-Sub/HDMI) signal, thecannot be adjusted.: Used to obtain more natural color by enhancing the amount of green or red in images.When the input signal is a PC Timing (D-Sub/HDMI) signal or PAL and SECAM signal in the [S-Video] or [AV] modes, thecannot be adjusted.: You can select the color temperature according to your preferences.Factory defaults: - -You can select the color temperature for the items below according to your preferences.,,: Adjusts the color temperature of the White level.,,: Adjusts the color temperature of the Black level..- - - - - - - : Changes the brightness characteristic for each color tone of an image.The larger (+) the value, the greater the contrast of the bright and dark parts.The smaller (-) the value, the darker the dark parts.Adjustable range: -3 to +3: You can save the status of a screen you adjusted according to your preferences using the→OSD.: Restores the mode settings to the factory defaults.
Size Using this function,	you select a screen size.When the input signal is a PC Timing (D-Sub/HDMI) signal,/is not supported.- - <16 : 9>
Position Using this function,	you can adjust the screen position if it is not aligned.
Digital NR	If dotted lines appear in an image or the screen shakes, enabling Digital NR (Noise Reduction) can improve the quality of the picture.When the input signal is a PC Timing (D-Sub/HDMI) signal,does not operate.
Black Level	If the black level is unsuitable for the input signal, the dark parts of an image may look unclear or dim. Using this function, you can select a black level that can improve the visibility of the dark parts.can be enabled only for-[AV] or [S-Video] mode;- 480i or 576i signals (YPbPr signal) in [AV Timing (D-Sub)] mode;- RGB signals in [HDMI] mode.For [AV], [S-Video], and the 480i and 576i signals of AV Timing (D-Sub).<0 IRE>: Sets the black level to <0 IRE>.<7.5 IRE>: Sets the black level to <7.5 IRE>.For the RGB signal ofmode.: Used in a normal environment.: Used when the dark parts of an image are too bright.
Overscan Using this function, you can cut off the edge of a picture when unnecessary information or images appear on the edge of the picture.Overscan is not supported in [AV] and [S-Video] modes.Overscan is supported only when the input signal is an AV Timing (D-Sub) or AV Timing (HDMI) signal.Ifis turned off, unnecessary extra parts at the edges of an image may be shown.In this case, turnon.
Film Mode Using this function, you can set the display mode so that it is optimized for playing movies.< O f f > -
PC	For PC signals, the four PC functions eliminate or reduce noise that causes unstable screen quality such as screen shaking. If the noise is not removed using Fine Adjustment, adjust the frequency to the maximum and then perform Fine Adjustment again.These functions are only enabled for the PC Timing (D-Sub/HDMI) input of the D-Sub terminal.Refer to PC Timing (D-Sub/HDMI): Used to adjust the frequency and phase of PC screen automatically.: Used to adjust the frequency when vertical lines appear on the PC screen.: Used to fine tune the PC screen.: Using this function, you can reset the PC menu settings to the factory default settings.
Zoom You can magnify the screen to a size you want.- -

MENU DESCRIPTION
Install	To tailor the picture to the installation location (In front of the screen and hanging from the ceiling, behind the screen and hanging from the ceiling, etc.),. You can invert the projected images vertically / horizontally.: Normal Image: Horizontal/Vertical Reversed Image: Horizontally Reversed Image: Vertically Reversed Image
Lamp Mode	Using this function, you can set the image brightness by adjusting the amount of light generated by the lamp.: This mode is optimized for screens smaller than 100 inches.This mode decreases the lamp brightness and power consumption in order to extend the lamp lifetime and reduce noise and power consumption.:This mode is a general mode and works well in most situations.: This mode maximizes the lamp brightness when the ambient illumination is bright. As the brightness of the lamp increases, the lamp lifetime can be reduced and noise and power consumption may increase.
Auto Keystone	If video scenes are distorted or tilted, you can compensate for this by setting thefunction toso that thefunction automatically starts.-
V-Keystone	If video scenes are distorted or tilted, you can compensate for this using the vertical/horizontal Keystone function.The sound output of your projector is temporarily stopped while the keystone is being changed.does not compensate for distortion in the On Screen Display (OSD) menu.
Background	You can select a screen which appears when there is no signal from the external device connected with a projector.-
Test Pattern	A default test pattern built into the projector. You can use it as a reference picture to optimize the installation of the projector and to optimize images.: You can check whether the picture is distorted or not.: You can reference and display picture format sizes such as 1.33 : 1 or 1.78 : 1.
Video Type	If the screen quality is abnormal as a result of the projector not identifying the input signal type automatically inormode,lets you manually set the input signal.Inmode, the menu is only enabled for AV Timing (D-Sub) input signals. For separate H/V sync, it is only enabled for a 1280 x 720p 59.94Hz/60Hz signal.-Inmode, the menu is only enabled for 640x480p 59.94Hz/60Hz and 1280x720p 59.94Hz/60Hz among AV Timing(HDMI) signals.-
	Usage	Color,Sharpness,Tint	PC menu	zoom
	RGB(PC)	When connecting the RGB output of a PC to the D-Sub terminal	Disabled	Enabled
	RGB(AV)	When connecting the RGB output of an AV device (STB, DVD, etc...) to the D-Sub terminal	Enabled	Disabled
	YPbPr(AV)	When connecting the YPbPr output of an AV device (STB, DVD, etc...) to the D-Sub terminal	Enabled	Disabled
	PC	When connecting a PC to the HDMI terminal	Disabled	Disabled
	AV	When connecting an AV device (STB, DVD, etc...) to the HDMI terminal	Enabled	Disabled
	Auto	Auto settings	-	-
Caption	Thefunction is supported when the external analog signal (from either the Video or S-Video terminal) contains subtitles.:-:<2>:<1>- <2>Thefunction will not operate in(including components) ormode.Depending on the external signal, a change to theorsettings may be required.Eachandcontains different information.<2>carries additional information to supplement information contained in.(e.g. If English subtitles are provided on<1>, Spanish subtitles will be provided on<2>.)
Network	By connecting a LAN cable between the PC and projector, you can use the following supplementary functions on your PC.On your PC, you can check the projector's conditions (lifespan of the lamp, operation error, temperature) and remotely control the projector's power On/Off, brightness, and sound On/Off.:.-: Automatically allots the IP address, Subnet mask and Gateway.: Allows you to manually enter the IP address, Subnet mask and Gateway manually.After pressing the [☐] button to enter values, change the values using the ▲/▼ buttons and move using the ◀/► buttons. Once the values are filled in, press the[☐] button.: Allows you to enter the server PC's IP address.To use the network function,must be set to:If the network connection fails, enter the IP address of the server PC under.
Reset	Using this function, you can reset various settings to the factory default settings or recover from amode failure.: Changes the settings to the factory defaults.: Resets the filter time.: The following functions are activated only when the projector fails to enter themode due to amode error.Activated only inMode.When the projector is turned off during a firmware update, use this function to continue the update.-Under normal usage, update by selecting→→in themenu.: When theoperation suddenly freezes, use this function to restart.:-

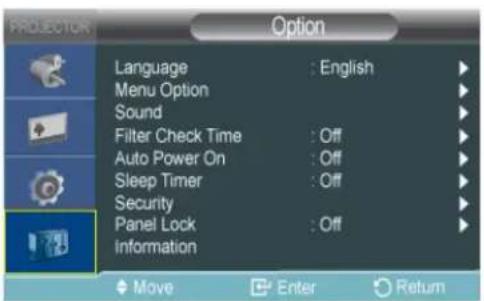

3-5-4. Option

MENU DESCRIPTION
Language Using this function, you can select the language used for the menu screen.
Menu Option: You can move Menu Position up/down/left/right.·: You can set the translucency of the menu.< H -<Medium>-<Low>-<Opaque>·: You can set the display time of the menu.<5 sec>-<10 sec>-<30 sec>-<60 sec>-<90 sec>-<120 sec>-
Sound	Adjusts the right and left audio balance and equalizer of the 3W stereo speakers embedded in the projector.-<100Hz>-<300Hz>-<1kHz>-<3kHz>-<10kHz>
Filter Check Time Sets the check period for the filter. (Unit: hours)·-<100>-<200>-<400>-<800>If the filter usage time is larger than the filter check period, the filter check message is displayed for 1 minute whenever the projector is turned on. Filter check message:
Auto Power On	With, if power is supplied to the projector, it turns on automatically without your pressing the Power button.-
Sleep Timer	Withon, if there is no input signal for the specified time, the projector turns off automatically.(There must be no button input from the remote control or the top of the projector for the specified time)-<10 min>-<20 min>-<30 min>This function does not work inmode.
Security	To deter theft, a password is required once the project powers on. The projector will not be enabled without this password.-<Power On Protection>: Enter your current password and set the protection function to off.-<On>: Enter a new password and set the protection function to on.: Change your current password.Use the displayed number keys to enter or change the password.
Panel Lock	You can disable the buttons on the projector body so that the projector is only operated by the remote control.-
Information You can check external source signals, picture setup, and PC picture adjustment.

3-6-1. Management using the Web Browser

The Web Browser lets you monitor and control one projector from a PC without installing any software. Before you can use the Web Browser, you must connect your projector to your local area network. For directions explaining how to connect to a network, see section 2-19, Connecting to a Network.

To control multiple projectors from a single PC, install and run Samsung Projector Manager.

For information about Samsung Projector Manager, go to 3-6-2.

Check the network connection between the PC and projector before connecting the Web Browser. If the network connection has failed, the Web browser window may not be available for use.

• To use the Web Browser, your PC must meet the following minimum system requirement :

• RAM: More than 10MB

• Hard Disk capacity: More than 10MB

• Display resolution: More than 640 x 480

• Supported OS : Microsoft Windows XP, Windows Vista

- Web browser : Microsoft Internet Explorer 6 or later version, Netscape Navigator 9 or later version, Mozilla Firefox 3.0.x or later version, Google Chrome.

1. Connecting

- Enter the projector's IP address into the web browser address bar.

Find the projector's IP address by pressing the [MENU] button and selecting -> -> .

- The Network Projector window appears. For information about control items in the Network Projector window, refer to the items under Section 3-5, Using the Screen Adjustment Menu.

- Some functions listed in 'Using the Screen Adjustment Menu' cannot be used in the web browser because of limitations in remote control by the network.

3-6-2. Projector Management using PC Software

You can monitor and control more than one projector using Samsung Projector Manager.

• To use Samsung Projector Manager, your PC must meet the following minimum system requirement :

• RAM: More than 10MB
• Hard Disk capacity: More than 10MB
• Display resolution: More than 640 x 480
• Supported OS : Microsoft Windows XP, Windows Vista

1. Installing the Samsung Projector Manager

2. Click 'Samsung Projector Manager' on the CD supplied.

3. Install according to the instructions displayed on the PC screen.

4. Running the Samsung Projector Manager

When the installation of Samsung Projector Manager and the network setup for the projector have been completed, the Samsung Projector Manager will be available for use.

- Click Start > Samsung Projector > Samsung Projector Manager

- Thewindow appears.

1. Using the Samsung Projector Manager

- Projector Grouping and Registering

• To browse projectors connected to the PC automatically, press Tool > Auto Search
• To group or directly register the projectors, select List>Projector, right-click over Network Projector under Projector List. and

then select Add Projector.

- Specify the Projector Name, IP Address and Group Name to register, and then press ADD.

Any group whose name is not specified will automatically be named 'Default Group.' To remove and / or rename a registered projector, right-click and then select Delete and / or Rename respectively.
If a projector is not displayed on the Projector List after registration, check if the network connection and the network settings are properly configured. See section 2-19, Connecting to a Network and section 3-5-3, Setup >Network for information and instructions.
To save or load the registered projector's information, select File → Export Config.

- Projector Management

- You can check a projector's lamp condition, temperature, operation, errors, etc in real time.

1: You can view a projector's Name, IP Address, Group, Power On/Off status, LAMP lifespan, operation errors (represented by icons), etc. in real time.

Samsung Projector Manager displays icons that indicate a projector's status. The icons are listed in the tables below. If the icons indicate a problem with your projector, see "Clearing Indicator Problems" in section 3-4, LED Indications.

Warning and Error status icons

ICONS STATUS STATE ACTION
	Warning The lens cover has not opened completely.		Refer to Action 3 in Clearing Indicator Problems.
	Error	The lamp cover protecting the lamp unit is not properly closed.	Refer to Action 2 in Clearing Indicator Problems.
	Error The lamp is not operating normally.		Refer to Action 6 in Clearing Indicator Problems.
	Error The lamp has reached the end of its life. The lamp needs to be replaced.
	Error The cooling fan 1 is not operating normally.		Refer to Action 1 in Clearing Indicator Problems.
	Error The cooling fan 2 is not operating normally.
	Error The cooling fan 3 is not operating normally.
	Error The cooling fan 4 is not operating normally.
	Error The cooling fan 5 is not operating normally.
	Error The cooling fan 6 is not operating normally.
	Warning	The internal temperature of the projector has risen higher than the limit.	Refer to Action 5 in Clearing Indicator Problems.
	Error	The internal temperature of the projector has risen higher than the limit.	Refer to Action 5 in Clearing Indicator Problems.
	Error	The internal temperature of the projector has risen higher than the limit.	Refer to Action 5 in Clearing Indicator Problems.
	Warning	The air filter has reached the end of its life.	The air filter needs to be replaced.
	Warning The air filter has been blocked by dust. The air filter needs to be cleaned.
	Error The air filter has been blocked by dust. The air filter needs to be cleaned.

Temperature Level Status Icons

ICONS STATUS STATE ACTION
	Temperature status	The projector's internal temperature is normal.(standby mode)	None. It's normal.
	Temperature status	The projector's internal temperature is normal.(low)	None. It's normal.
	Temperature status	The projector's internal temperature is normal.(medium)	None. It's normal.
	Temperature status	The projector's internal temperature is normal.(little bit high)	None. It's normal.
	Temperature status	The projector's internal temperature is higher than the limit.	Refer to Action 4 in Clearing Indicator Problems.
	Temperature status	The projector's internal temperature is too high. The projector is turned off automatically.	Refer to Action 5 in Clearing Indicator Problems.

- Managing the Projectors

1 : Using the icons in the Projector List (only applicable to 'V'-marked projectors in the monitoring window)

(Refresh):

Updates

the

status of the projector.

However, if products do not provide Media Play, MP source is not available.

2: Connecting the Web browser from Samsung Projector Manager By connecting the Web Browser in Samsung Projector Manager, you can use more diverse functions. To perform the Web browser connection, select a Projector to connect to, and then right-click to select "Web browser."

If the Web browser connection fails, check whether the network connection (see section 2-19, Connecting to a Network) and network settings (see 3-5-3, Setup > Network) are correctly configured.

Operating one projector using both Samsung Projector Manager and the Web browser at the same time may cause a slowdown in PC operation or an error.

• Using the Schedule Function

Using the Schedule function, you can manage your projectors more efficiently.

If you select List>Schedule, the following window appears.

The screen has four buttons:

• New: Adds a projector to make a Schedule for.
• Delete : Deletes the Schedule for a selected projector.
• Delete All : Deletes the Schedule for all of the projectors.
• Edit: Edits the Schedule for a selected projector.

- Registering a New Schedule

To register a new schedule, follow these steps:

1. Press the New button. The New Schedule screen appears.

1. Select the projectors to apply the new schedule to from the Select Projectors field. When you select a projector, a check mark appears in the check box to its left.

2. Set the new schedule Title, Repeat, Time, and Work, and enter a Description of the Schedule. Explanations for each of these terms is below.

-Title : Sets the name of a Schedule
-Repeat : Sets the schedule repetition (Once- Executes only once, Every - Specifies a repetition date)
-Time : Determines the time at which a schedule will be executed
-Work : Sets Source switch or Power On/Off
-Description : Shows a detailed description of a Schedule

1. After you have entered all the information, press ADD.

You can view the registration history of a Schedule. You can also view the status of a Schedule. The Status codes are below:

-Complete: Schedule complete.

-Waiting: Schedule still awaiting execution.

-Running: Repetitive schedule is running.

• To save or load the registered schedule, select File → Export Config.
- If you want to operate a Schedule loaded by Import Config, load the projector's information in advance.

- Other settings

The Tools selection in the Menu Bar contains two menu items, Configure monitor items and Option.

- Configure monitor items

Configure monitor items lets you select an item to be displayed in the monitoring window display. After you select the item, you set the display priority of the item by moving it up or down in the list of items you have selected for display.

- Options

Automatically Run – When a PC is turned on, Samsung Projector Manager will be turned on automatically. Minimize to system tray – Samsung Projector Manager will be minimized to system tray.

File contains two selections.

• File> Export Config : Saves all of the configured settings under Samsung Projector Manager in the desired file names to the corresponding folders.
• File> Import Config : Imports a saved Configuration file. Sets the Samsung Projector Manager to the saved settings.

4-1 Connecting a USB Storage Device and Precautions

4-1-1. Connecting a USB Device

1. Connect your USB storage device to the USB port on the back of the projector.

- The main page of the menu appears.

The main page of can also be opened by pressing the [MENU] button and selecting →→

• Supported file systems: FAT, FAT32 (NTFS is not supported.)

• Multi Partition is not supported.

- This projector is not compatible with a multi-card reader or USB hub.

[Selecting a Device]

1. Move to the kind of media you want to view using the ▲/▼ buttons, press the [☐] button.
2. Move to or using the ▲/▼ buttons, and then press the [☐] button.

[Selecting a File]

1. Move to the file or folder you want to view or open using the ▲/▼ buttons, and then press the [☐] button.

For Document, Music, and Movie folders, a number appears next to each folder, indicating the number of document, music, or movie files in the folder. For Photo folders, the screen displays the number of photo files when you move to the folder.

1. Move to the file you want to view using the ▲/▼ buttons, and then press the [☐] button.

4-1-2. Precautions for using a USB storage device

• This product does not support multi-card readers.

•This product does not work if the USB storage device is connected by a USB HUB.

• Some products which do not comply with standard USB specifications might not operate normally.

•A USB storage device with automatic recognition application or its own driver might not operate normally.

- A USB storage device that uses only a designated driver might not be recognized.

- Recognition speed for USB storage device may vary by device.

- Do not turn off the product or pull a connected USB storage device out while a USB storage device is in use. Doing so may result in damage to the USB storage device or stored file.

- Use a USB storage device which contains normal files. Abnormal files can cause a malfunction or the files may not play.

- USB storage devices must be formatted with the FAT or FAT32 (recommended) file systems supported by Windows. may not work normally if the USB storage device is formatted with another file system.

- If the USB storage device uses external power, please connect the USB storage device to its external power source.

- Use the USB cable provided with the USB device when connecting to the projector. (For more information on purchasing cable and external devices, contact the respective manufacturer.)

- We do not guarantee will operate if a malfunction occurs in any external device caused by your using a cable that does not comply with designated standards.

- As the data in USB storage device can be damaged, please back up important data to avoid loss.

- When using a USB storage device with the projector, subfolders with a maximum depth of 4 from the top folder are supported. Also, if the number of files (including folders) in the same folder exceeds 2,900, it will not be recognized. In addition, if there are a large number of files on a USB device, individual files may take a long time to display.

•Multi Partition is not supported.

- If an external memory device does not operate after you've connected it to the projector, try to connect it to a PC. If it still does not operate normally, contact the memory device's manufacturer service center or related customer center.

You can view document files in various formats saved on a USB memory device or in the projector's internal memory.

Menu displayed from the Documents screen

The Documents screen.
The Menu below appears when you press the [MEDIA.P] button while displaying the Documents screen.

• If you are displaying a screen or item, and then press the [MEDIA.P] button, the menu corresponding to the selected item appears.
• Depending on the current language setting, folder names, file names, or text in a document may appear corrupted. If that is the case, press the [MENU] button and change the language setting in under .

MENU ITEM DESCRIPTION
View	View a document.
Copy	If an external memory device (USB memory device) is connected, files on the external memory device can be copied to the projector's internal memory and vice versa.
Copy All Files Copy all files to internal and external memory.
Delete Delete the selected file.
Delete All Files Delete all files in a folder.

Menu displayed when you are viewing a document

Select the file you want using the ▲/▼ buttons on the projector or remote control.

Using the remote control while viewing a document

• MEDIA.P : Open the document menu
• ^ PAGE v : Move to the previous or next page
Move to the previous or next sheet in a Excel file

• ▲/▼// .Direction buttons

• : Enlarge a document

• : Return to the previous stage

• : View information about the available buttons

If you press the [MEDIA.P] button when viewing a document, the following menu appears.

MENU ITEM DESCRIPTION
Zoom	Enlarge or reduce a document.: Enlarge a document (25% basis within the range of 100% ~ 500%).: Reduce a document.: Enlarge or reduce the screen by a specific percentage.<100%> - <200%> - <300%> - <400%> - <500%>Enlarge or reduce a document view using the button on the remote control.
Page Navigation	Go directly to a specific page.Enter a page number using the ▶/▶ and ▲/▼ buttons, check the page number in the preview window on the upper right corner of the screen, and then selectto move to that page.
Page Map	Display the zoom area.-If a page is zoomed in, the enlarged area is displayed in thewindow on the upper right corner.If a page is not zoomed in, thewindow does not appear.
Aspect Ratio	: Display a document to fit the screen size.: Display a document at its original size.: Display a document to fit the screen width.: Display a document to fit the screen height.
Rotate Rotate a document by a specified angle.Select the angle you want using the ▶ buttons, and then press the [] button.<0°> - <90°> - <180°> - <270°>Supported in PDF format only.
Encoding	To view a text (.TXT) file without any character corruption, you must select the original language that was used to create the file.Select the language using the direction keys.--------------------------For some of the European countries whose languages are not found on the list, select.
Video Clip	This feature is used to play a video linked to a PowerPoint document (.ppt). Select the video file you want to play from the presentation slide.Only enabled for presentation slides with a video clip linked to them.The linked video file must be in the same folder as the corresponding document file.For supported file formats, refer to the '4-7 Supported File Formats' section.

• Loading time may be longer for large files.
• This product may not work properly when the file does not comply with the standards or it is damaged.
  • This product may not work when a file has too much data to display on a screen.

For example, too much data on one sheet in a Excel file.

- This product supports only one font. If a screen uses other fonts, the image Media Play displays may be different than the original screen.

(Ex)

- The position of line breaks in a sentence might be dissimilar.

- The position of page breaks in a MS Word document might be changed.

- In this case, the document might be shown incompletely according to the Layout properties for or or

- This product does not support some funtions of the original file. For example, the animation function in a PowerPoint file, 3D, Smart Art, Hyper Link, transparency, Gradation (Color depth : up to 16bit), etc.

- This product does not support encrypted files (DRM).

Enjoy a slideshow of photos saved on a USB memory device or in the projector's internal memory.

Menu displayed from the Photo Thumbnails screen

The Photo Thumbnails screen.
The Menu below appears when you press the [MEDIA.P] while displaying the Photo Thumbnails screen.

• If you are displaying a screen or item, and then press the [MEDIA.P] button, the menu corresponding to that screen or item appears.
• Depending on the current language setting, folder or file names may appear corrupted. If that is the case, press the [MENU] button and change the language setting in under .

MENU ITEM DESCRIPTION
Start Slideshow	Start a slideshow.
Play Mode •Photos>: Play photos in order of file name.•: Play photos in a specific folder in order of file name.•: Play photos found in a specific memory device randomly.•: Play photos in a specific folder randomly.•: Play only one specific photo repeatedly.
Copy	If a USB memory device is connected to the projector, you can copy files from the USB device to the projector's internal memory and from the internal memory to the USB device.
Copy All Files	Copy all files to internal memory or to a USB device.
Delete Deletes	a selected image.
Delete All Files	Deletes all image files in a USB storage device.
Set as Background	Set a specific picture as the background image of the main page of.

To use this function in your presentation, convert general word processor files to image files before saving them to a USB storage device.

For example, convert .ppt (Microsoft Powerpoint) files to → .jpg /.bmp /.gif

Convert .pdf (Adobe Acrobat) files to → .jpg

Caution: Make sure to save image files to your USB storage device in the order of presentation.

Slideshow

Select the file you want using the ▲/▼ buttons on the projector or remote control.

Using the remote control during a slideshow:

• MEDIA.P : Open the photo menu.
• / :View the previous or next photo.
- : Pause or resume a slideshow.
• : Return to the previous stage.
• : Only enabled in the document and movie menu.

If you press the [MEDIA.P] button when viewing a slideshow, the following menu appears.

MENU ITEM DESCRIPTION
Stop Slideshow / Start Slideshow	Stop or start a slideshow.
Slideshow Setting: Selects the slideshow mode.- - - - - - - : Adjusts the slideshow playback rate.- - - : Selects manual (view one by one) or auto (slideshow) play.- -If you selected, move between photos using thebuttons on the projector or the buttons on the remote control.
Play Mode: Plays all available image files.: Plays all image files in a selected folder.: Randomly plays all available image files in a USB storage device.: Randomly plays all image files in a selected folder.: Displays an image file repeatedly.
Rotate Rotate a photo by a specified angle.Select the angle you want using the [button.- <90°> - <180°> - <270°> -
Aspect Ratio: Display a photo smaller than the screen at the original size or reduce a photo larger than the screen in direct proportion to the screen size.: Resize a photo to fit the screen, maintaining the original aspect ratio of the photo (the image may be cut off horizontally or vertically): Resize a photo to fit the screen width.: Enlarge or reduce the size of a photo, regardless of the aspect ratio of the photo, to fit the full screen.
Delete Delete the selected file.
Set as Background	Set a specific picture as the background image of the main page of.
Background Music: Play music defined as background music in file name order.: Stop the background music that is being played.: Define background music for a slideshow.

Enjoy music files saved on a USB memory device or the projector's internal memory.

Menu displayed from the Music List screen.

The Music List screen.
The Menu below appears when you press the [MEDIA.P] button while displaying the Music List screen.
- If you are displaying a screen or item, and then press the [MEDIA.P] button, the menu corresponding to that screen or item appears.
- Depending on the current language setting, folder or file names may appear corrupted. If that is the case, press the [MENU] button and change the language setting in under .

MENU ITEM DESCRIPTION
Play Music Plays music files.
Play Mode •: Play music in file name order.•: Play music in a specific folder in file name order.•: Play music in a specific memory device randomly.•: Play music in a specific folder randomly.•: Play only one specific music file repeatedly.
Copy	If an external USB memory device is connected to the projector, files on the external memory device can be copied to the projector's internal memory and vice versa.
Copy All Files	Copy all files to internal or external memory.
Delete Deletes	a selected music file.
Delete All Files	Deletes all music files in a USB storage device.

Menu displayed when playing music.

Select the file you want using the ▲/▼ buttons on the projector or remote control.

Using the remote control while playing music:

• MEDIA.P : Open the music menu.
• / :Play the previous or next music file.
• : Pause or resume playing music.
• : Return to the previous stage.
• : Only enabled in the document and movie menu.

If you press the [MEDIA.P] button when playing music, the following menu appears.

Depending on the current language setting, the music file information [ ] may appear corrupted. If that is the case, press the [MENU] button and change the language in under .

MENU ITEM DESCRIPTION
Play Mode	: Plays all available music files.: Plays all music files in a selected folder.: Randomly plays all available music files.: Randomly plays all music files in a selected folder.: Plays a selected music file repeatedly.

Enjoy video files saved on a USB memory device or in the projector's internal memory.

Menu displayed from the Movie List screen

The Movie File screen.
The Menu below appears when you press the [MEDIA.P] button while displaying the Movie List screen.

• If you are displaying a screen or item, and then press the [MEDIA.P] button, the menu corresponding to that screen or item appears.
• Depending on the current language setting, folder or file names may appear corrupted. If that is the case, press the [MENU] button and change the language setting in under .

MENU ITEM DESCRIPTION
Play Movie Plays	video files.
Play Mode	: Play video files in order of file name.: Play video files in a specific folder in order of file name.: Play video files in a specific memory device randomly.: Play video files in a specific folder randomly.: Play only one specific video file repeatedly.
Copy	If an external USB memory device is connected to the projector, files on the external memory device can be copied to the projector's internal memory and vice versa.
Copy All Files	Copy all files to internal or external memory.
Delete Delete the selected file.
Delete All Files Delete all files in a folder.

Menu displayed when playing a movie

Select the file you want using the ▲/▼ buttons on the projector or remote control.

Using the remote control while playing video

• MEDIA.P : Open the video menu
• / :Play the previous or next video file
• : Pause or resume playing video
• : Return to the previous stage
• : View information about the available buttons

If you press the [MEDIA.P] button when playing a movie, the following menu appears.

MENU ITEM DESCRIPTION
Play Mode•Movies>: Plays all available video files.•: Plays all video files in a selected folder.•: Randomly plays all available video files.•: Randomly plays all video files in a selected folder.•: Plays a selected video file repeatedly.
Subtitle Setting	•: Switch the subtitle functionor•: Select the subtitle language.•: Change the subtitle background settings.•:-•: Change the subtitle location settings.•:-•:The video must have external subtitles in order to view them with the Caption feature turned on.• See the table for supported subtitle file types. Refer to the "4-7 Supported File Formats".• Subtitle files must be in same directory as the video file.•: Change the, andsettings for subtitles.•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:- •:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-•:-
Aspect Ratio Change the screen aspect ratio settings.•<4:3>-<16:9>-

Use the ▲/▼/☐ buttons to move to and access the Setting menus listed below.

MENU ITEM	DESCRIPTION
Options	: Change the button control sound settings for themenu.-: Change the size of photos you want to copy to internal memory.: Copy photos at the original size to internal memory.: Reduce the size of photos according to the optimal screen resolution and then copy.: To send inquiries and requests for questions regarding open sources, contact Samsung via Email ([e-mail]).
Preference	: Select the image that will be displayed on the main page of the.: Display the default image provided by the projector.: Display the image you selected as background image.: You can view the certified registration code for the projector when you use the VOD (Video on Demand) service provided by DivX.DivX®VODABOUT DIVX VIDEO:DivX®is a digital video format created by DivX, Inc. This is an official DivX Certified device that plays DivX video.Visit www.divx.com for more information and software tools to convert your files into DivX video.DivX Certified®to play DivX®video up to 320x240May play DivX®video up to 720x480ABOUT DIVX VIDEO-ON-DEMAND:This DivX Certified®device must be registered in order to play DivX Video-on-Demand (VOD) content. To generate the registration code, locate the DivX VOD section in the device setup menu. Go to vod.divx.com with this code to complete the registration process and learn more about DivX VOD.Pat. 7,295,673
Update/Reset	: Update the firmware.Please see the '4-6-1 Firmware Update' section.: Initialize the settings customized by the user: Display the firmware version and copyright information of the projector.
Safely Remove USB	Remove your USB device safely.If themessage appears, remove the USB device.

4-6-1. Firmware Update

Download the latest firmware version from the Samsung Electronics website (http://www.samsung.com) and install.

- As data saved in the internal memory can be deleted during an update, always back up your data.

- Do not remove the external memory (USB) device during the update.

- Do not operate any buttons during the update.

- Do not turn the projector off during the update.

- Once the update is complete, turn the projector off, remove the external memory (USB) device and turn the projector on again.

- Select →→ and see if the software version has been updated successfully.

Before Software Upgrade!

1. Prepare a USB memory device.
2. Download the latest firmware version from the Samsung Electronics website onto your PC.
3. Connect the USB memory device to the PC.
4. Copy the downloaded software to the USB memory device.

To upgrade software

1. Connect the USB memory device to the projector.
2. Open the main page of .
3. Move to using the [▲/▼] buttons, and then press the [☐] button.
4. Move to using the [▲/▼] buttons, and then press the [☐] button.
5. Select using the [Button.

- The update will start automatically.

Supported File Formats

ITEM FILE EXTENSION
Document	MS Word 97 ~ 2007 (doc, docx)
	Adobe PDF 1.2 ~1.7 (pdf)
	MS PowerPoint 97 ~ 2007 (ppt, pptx)
	MS Excel 95 ~2007 (xls, xlsx)
	Text (txt)
Photo	JPEGResolution: up to 6M pixelsThe Progressive format is not supported.The CMYK format is displayed in black and white.crop (images with a resolution larger than 1024 x 768 cannot be viewed at the original size)
Music	MP3 (sample rate: 8~320Khz)
	WMA (sample rate: 8~384Khz)

ITEM FILE EXTENSION CODEC			REMARKS (MAXIMUM RESOLUTION/BIT RATE ETC.)	AUDIO CODEC
Movie	AVIASF(WMV)MP4(MPEG, MPG)	Divx 3.11 Resolution: 720	X 480Frame/sec: 30Mbps: 2	MP3AC3ADPCM(MULAW,ALAW)HE_AAC(AAC+)WMASampling rate:800011025120001600022050320004410048000
		Divx 4.x
		Divx 5.1
		Divx 6.0
		XviD
		MPEG-4 SP
		MPEG-4 ASP
		Windows Media Video 9
		MPEG1 Resolution: 720 X	480Frame/sec: 30Mbps: 8
Caption	.smi (SAMI) HTML
	.srt (SubRip) String-based
	.sub (SUB Viewer) String-based
	.sub or .txt (Micro DVD) String-based

5-1 Before Requesting Service

Please check the following before requesting After-Sales service. If the problem continues, please contact your nearest Samsung Electronics Service Center.

	Symptoms Troubleshooting
Installation and Connection	No Power. Check the power cable connections.
	I want to install my projector on the ceiling.	The ceiling installation support is sold separately. Contact your local product distributor.
	Can't select an External Source. Be sure that the video connection cable or cables are properly-connected to the proper port. If the device is not connected properly, it can not be selected.
Menu and Remote Control	Remote control does not work. Be sure that the proper external source is selected.Check the battery in the remote. If there is something wrong with it, replace it with a new battery of the recommended size.Be sure to aim the remote at sensor on the back of the unit and at a distance of no more than approximately 32.8 feet(10 m).Remove any obstacles between your remote control and the product.Direct light from 3-way light bulbs or other lighting devices on the remote sensor of the projector may affect its sensitivity and cause the remote control to malfunction.Check if the remote control battery compartment is empty.Check whether the LED indicator on the top of the projector is turned on.
	I cannot select a menu. Check if the menu is displayed in gray. A gray-colored menu is unavailable.
Screen and External Source	Cannot see picture images. Be sure that the power cord of the projector is connected.Be sure that the proper input source is selected.Check that the connectors are properly connected to the ports at the back of the projector.Check the Remote Control batteries.Be sure that theandsettings are not at their lower limit.
	Poor color. Adjust theand.
	Images are not clear. Adjust the focus.	Check if the projector is too far from or too near to the screen.
	Strange noise. If a strange sound continues, contact our service center.
	An operating LED is lit up.	Refer to Corrective Actions According to LED Indications(3-4).
	Lines appear on screen. On screen noise may occur when using your PC. Adjust the frequency (refresh rate) of the screen.
	No external device screen is displayed. Check the operating status for the external device and check whether the adjustable menu items, such asandhave been changed correctly in thecommand screen of the Projector menu.
	Only a blue screen appears. Be sure to connect the external devices properly. Check the connection cables again.
	Screen appears in black and white or in an odd color or screen is too dark or bright.	As mentioned above, check the adjustable items such as, orin the menu.If you want to restore various settings to their factory defaults, runfrom the menu.
Network	The Web browser will not start up.	Check the system requirements for the PC to connect to the Web browser.
	The Web browser will not connect to the projector.	1. Check whether the power cable is connected to the projector (See Section 2-10, Connecting the Power).2. Check if the network environments for the PC and projector are correct (See Section 2-19, Connecting to a Network).3. Check whether the correct network card in the PC has been selected when the PC (server) has more than two network cards.
	Installation of Samsung Projector Manager has failed.	Check Samsung Projector Manager's system requirements for PCs.
	The projector will not connect to Samsung Projector Manager.	1. Check if theand network connection between the PC and projector are correct.2. Iffor the projector is set to, check whether the PC and projector share the same network. If it is not the same network, configure the IP of the server PC using theoption.3. Check if the projector's network access is blocked by the PC's Windows firewall.4. If Samsung Projector Manager connection's failure persists, remove and retry installation.
	I want to remove Samsung Projector Manager.	Samsung Projector Manager can be removed using the [Add or Remove Programs] option. To remove Samsung Projector Manager in Windows XP, follow these steps:1. Select [Control Panel] from the [Start] menu. (Windows XP)2. Run [Add or Remove Programs].3. Select Samsung Projector Manager under [Add or Remove Programs], and then click [Change/Remove].4. Select "Yes" to start the removal.5. Follow additional directions as they appear on your screen.Other versions of Windows have a similar removal process.
Media Play Function	I hear no sound when playing a video file from my USB storage device.	Check the audio format of the video file.Sound is not available for non-supported formats such as AC3, etc.Convert the audio format into a supported format using a video converter.
	The subtitle is not displayed for video that is being played.	Press the [MEDIA.P] button on the screen where video is being played and check ifis set to.To view video with the subtitle function on, the video file must contain an external subtitle file.For the subtitle file formats supported, please refer to the "4-7 Supported File Formats" section.The subtitle file must be located in the same folder as the video file.
	Thefunction doesn't work.	Reset themode by pressing the [MENU] button and selecting→→→If the problem persists, download the latest version of firmware onto your USB device, connect the USB device to the projector and run→→→→.The latest version of firmware can be downloaded from "http://www.samsung.com/".
	Name of a folder or a file and document contents are distorted.	This can happen when the language of the folder or file differs from the language you selected as the display language for the product.Change to the proper language in→→on the Screen Adjustment menu by pressing [MENU] button.
	A file can not be opened. Files that have a format not supported by the product or that have security settings might not open. Check the file format in "4-7. Supported File Formats" or release the security settings.
	The font of documents look different from the original one.	This product supports one font. Documents written in other fonts are converted into the supported font and displayed.
	The connected USB doesn't work.	Check that USB is connected to USB jack properly. If the connection is good, the USB icon appears at the right upper part ofscreen.Damaged USB devices can not connect and will malfunction.Try the USB again after formatting or other USB device.Refer to "4-1. USB Connecting a USB Storage Device and Precautions" before operating the USB.
	Files are not copied even though there is enough space in the internal memory.	Available space could be smaller than the files you intend to copy, delete other files and try to copy.(Available storage capacity is 59MB)

6-1 Specifications

MODEL		SP-L255	SP-L305	SP-L335	SP-L355
Panel Size 0.63 inches 3P		LCD	0.63 inches 3PLCD	0.63 inches 3PLCD with MLA	0.63 inches 3PLCD with MLA
Resolution XGA (1024 x 768)
Aspect ratio 4:3
Power Power Consumption 265W		(Standby :under 1W)	290W(Standby :under 1W)	290W(Standby :under 1W)	290W(Standby :under 1W)
Voltage		100~240V AC, 50/60Hz
Lamp Power Consumption 202W		(Eco :172W)	220W(Eco : 152W)	220W(Eco : 152W)	220W(Eco : 152W)
Life Time 3,000 Hours		(Eco : 5,000Hours)	2,000 Hours (Eco : 2,500 Hours)
Dimension (Width x Height x Depth)		291 mm x 289 mm x 127 mm / 11.46 x 11.38 x 5 inches
Weight		3.8 Kg / 8.4 lbs
Key Features	Brightness	2500 ANSI	3000 ANSI	3300 ANSI	3500 ANSI
	Contrast	500:1	500:1	400:1	400:1
	Screen Size (Diagonal) Diagonal 40 inches ~ 300 inches
	Projection Range	1 ~ 10 m
	Keystone Auto : Vertical(±20°) / Manual: Vertical (±20°)
	Network	RJ 45, 10Mbps
	Zoom Adjustment	Manual
	Focus Adjustment Manual
	Lens	F=1.65~1.93, f=18.5mm~22.5mm
	Zoom Ratio	1:1.2
Input signal	D-Sub 15p	Analog RGB, analog YPbPr
	HDMI	Digital RGB, digital YCbCr
	Mini DIN x 1	S-Video
	RCA x 1	Composite video
	Media Play	USB supports
Speaker		3W x 2 (Stereo)
User Environment	Temperature and Humidity	Operating : Temperature 41 °F ~ 95 °F (5 °C ~ 35 °C), Humidity 20 % ~80 % (Non-condensing)
		Storage : Temperature 14 °F~140 °F (-10 °C ~ 60 °C), Humidity 10 % ~90 % (Non-condensing)
Noise		Eco : 30dB, Normal : 32dB, Bright : 35dB

Class B (Information Communication equipment for residential use)

This device is registered for EMC requirements for home use (Class B). It can be used in all areas.

(Class B equipment emits less electromagnetic waves than Class A equipment.)

The LCD panel used in the LCD projector consists of hundreds of thousands of fine pixels. Like other video display devices, the LCD panel may contain bad pixels which do not operate. When shipping a product, the conditions for identifying bad pixels and the number of bad pixels that a LCD panel is allowed to contain are strictly managed in accordance with the relevant specified standards by the LCD panel manufacturer and our company. Though a screen may have some dead pixels, this does not affect the overall screen quality and the lifetime of the product.

(USA ONLY)

Dispose unwanted electronics through an approved recycler.

To find the nearest recycling location, go to our website,

www.samsung.com/recyclingdirect, or call (877) 278 - 0799

Communication Format (Complies with the RS232C Standard)

• Baud rate : 9,600 bps
• parity : None
  • Data bits : 8, stop bit : 1
• Flow Control: None

Serial Communication Protocol

1. Command Packet Structure [7bytes]

0x08 0x22 cmd1

cmd2 cmd3 value

CS

• A command packet consists of 7 bytes in total.
• The two bytes 0x08 and 0x22 signify that the packet is for serial communication.
• The following 4 bytes represent a pre-defined command that can be defined by the user.
• The last byte is the checksum which checks the validity of the current packet.
• Header [2 Byte]: Pre-defined values fixed to 0x08 and 0x22.
• Cmd1 [1 Byte]: The first value of the code defined in the command list (Hexadecimal)
• Cmd2 [1 Byte]: The second value of the code defined in the command list (Hexadecimal)
• Cmd3 [1 Byte]: The third value of the code defined in the command list (Hexadecimal)
• Value [1 Byte]: Input parameter for the command (Default: 0) (Decimal)
• CS [1 Byte]: Checksum (the 2's complement of the sum of all the values except for the CS value.)

2. Response Packet Structure [3 Bytes]

1. Success

0x03 0x0C 0xF1

2. Fail

0x03 0x0C 0xFF

• When the received packet from an external device has a valid value, a Success packet is sent. Otherwise, a Fail packet is sent.

• A Fail packet is sent if:

• The received packet length is not equal to 7 bytes.

• The 2 byte packet header value is not equal to 0x08, 0x22.
  • The check sum is incorrect.

- Failure detection by an external device

- An external device classifies the packet as Fail if it does not receive a Success packet within 100ms.

Command Table

CONTROL ITEM CMD1 CMD2 CMD3 VALUE
General Power	Power Display	OSD	/ Power On	0x00 0x00 0x00 0
			OK				1
			Cancel 2
			Direct Power Off				3
	Volume Direct	0x01 0x00 0x00	(0~100)
		Continuous Up	0x01 0
			Down 0x02 0
	Mute On 0x02	0x00 0x00 0
			Off 1
	Blank		On 0x03 0x00	0x00 0
			Off 1
	Still		On 0x04 0x00	0x00 0
			Off 1
	Power On Protection		(0~9) Key-pad	0x05 0x00 0x00 (0-9)
Input	Source List	AV	AV	0x0A	0x00 0x02 0	0x01	0
		S-Video S-Video
		PC	PC			0x03 0
		HDMI	HDMI 0x04 0
		Media Play	Media Play			0x05 0
Picture	Mode	Dynamic		0x0B	0X00	0x00	0
		Standard					1
		Presentation					2
		Text					3
		Movie					4
		Game					5
		User					6
	Contrast	0~100			0X02	0x00 (0~100)
	Brightness	0~100			0X03	0x00 (0~100)
	Sharpness	0~100			0X04	0x00 (0~100)
	Color	0~100			0X05	0x00 (0~100)
	Tint (G/R)	G50 / R50			0x06 0x00 (0~100)
	Color Tone	Cool2			0x0A	0x00 1
		Cool1					2
		Warm1					3
		Warm2					4
CONTROL ITEM				CMD1	CMD2	CMD3	VALUE
Picture WB R offset 0x0B 0x0B	0x00 (0~100)			0x16 0x00
	G offset 0x01 (0~100)
	B offset 0x02 (0~100)
	R gain 0x03 (0~100)
	G gain 0x04 (0~100)
	B gain 0x05 (0~100)
	Gamma -3~3 0x0C 0x00 (0~6)
	Save Display OSD 0x0D 0x00 0
							1
							2
							3
	Reset				0x0E 0x00 0
	Size	Normal			0x0F	0x00 0
		Zoom1					1
		Zoom2					2
		16:9					3
	Digital NR	Off			0x10 0x00 0
		On					1
	Black Level	0 IRE/NOR-MAL			0x11 0x00 0
		7.5 IRE/LOW					1
	Overscan	Off			0x12 0x00 0
		On					1
	Film Mode	Off			0x13 0x00 0
		Auto					1
	PC	Auto adjustment			0x14 0x00 0
		Coarse	UP		0x15 0x00 0
			DOWN				1
		fine Up			0
			DOWN				1
		Reset	Display OSD		0x17 0x00 0
			OK				1
			Cancel				2
			Direct Reset				3
Picture Zoom x 1 0x0B 0x18 0x	00 0
	x2						1
	x4						2
	x8						3
	LEFT 0x19 0x00 0
	RIGHT 1
	Up						2
	Down 3
	Horizontal Position	Continuous LE	FT 0x1A 0x00 0
			RIGHT 1
	Vertical Posi-tion	Continuous DO	OWN 0x1B 0x00 0
			Up				1
Setup	Install	Front-Floor		0x0C	0x00	0x00	0
		Front-Ceiling					1
		Rear-Floor					2
		Rear-Ceiling					3
	Lamp Mode	ECO			0x01 0x00 0
		Normal					1
		Bright					2
	Keystone	V-Keystone	-50~50		0x02	0x00	(0~100)
		Auto Key-stone	Off			0x02 0
			On				1
	Background	Logo			0x03 0x00 0
		Blue					1
		Black					2
	Test Pattern	Crosshatch			0x04 0x00 0
		Screen size					1
		Pattern Off					2
	Video Type Auto				0x05 0x00 0
			RGB(PC)				1
			RGB(AV)				2
			YPbPr(AV)				3
			PC				4
			AV				5
	Reset	Factory Default	Display OSD		0x06 0x00 0
			OK				1
			Cancel 2
			Direct Fac-tory Reset				3
Setup Reset Filter		Time	Display OSD 0x0C 0x06 0x01 0
			OK				1
			Cancel 2
			Direct ResetFilter Time				3
		Recovery Mode	Display OSD 0x02 0
			OK				1
			Cancel 2
			Direct ResetRecovery Mode				3
		System Reset	Display OSD 0x03 0
			OK				1
			Cancel 2
			Direct ResetSystemReset				3
	Caption Caption	Off 0x07 0x00	0
			On				1
		Mode Caption	0x01 0
			Text 1
		Channel 1 0x02	0
			2				1
		Field 1 0x03 0
			2				1
Setup Network	Network Off 0x0	0x01 0x00 0		0x00 0~255
			On				1
		IP Setting Autom	matic 0x02 0x00 0
			Manual 1
			IP Address 0x03 0x00 0~255
						0x01 0~255
						0x02 0~255
						0x03 0~255
			Subnet Mask 0x04 0x00 0~255
						0x01 0~255
						0x02 0~255
						0x03 0~255
			Gateway 0x05 0x00 0~255
						0x01 0~255
						0x02 0~255
						0x03 0~255
		Server IP Setting	Server IP 0x06 0x00 0~255
						0x01 0~255
						0x02 0~255
						0x03 0~255
Option Language English 0x0D		0x00 0x00 0
		Deutsch 1
		Nederlands 2
		Español 3
		Français 4
		Italiano 5
		Svenska 6
		Português 7
		Русский 8
		中国语					9
		한국어					10
		Türkçe 11
		ไทย 12
		Menu Option Position LEFT		0x01 0x00 0
				RIGHT			1
				UP			2
				DOWN			3
		Transparency	High		0x02 0x00 0
			Medium				1
			Low				2
			Opaque				3
		Display Time	5 sec		0x03 0x00 0
			10 sec				1
			30 sec				2
			60 sec				3
			90 sec				4
			120 sec				5
			Stay On				6
Option SOUND	Balance Up 0x0	0D 0x04 0x00 0
			Down 1
		100Hz Up 0x01	0
			Down 1
		300Hz Up 0x02	0
			Down 1
		1KHz Up 0x03	0
			Down 1
		3KHz Up 0x04	0
			Down 1
		10KHz Up 0x05	0
			Down 1
	Filter Check Time	off 0x05 0x00 0
		100 1
		200 2
		400 3
		800 4
	Auto Power ON	Off 0x06 0x00 0
		On					1
	Sleep Timer Off	0x07 0x00 0
		10 min					1
		20 min					2
		30 min					3
	Information				0x08 0x00 0
	Panel Lock	Off 0x0A	0x00 0
		On					1

- If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.

NORTH AMERICA
U.S.A 1-800-SAMSUNG (726-7864) http://www.samsung.com
CANADA 1-800-SAMSUNG (726-7864) http://www.samsung.com
MEXICO 01-800-SAMSUNG (726-7864) http://www.samsung.com
LATIN AMERICA
ARGENTINA 0800-333-3733 http://www.samsung.com
BRAZIL 0800-124-421	4004-0000	http://www.samsung.com
CHILE 800-SAMSUNG (726-7864) http://www.samsung.com
COLOMBIA 01-8000112112 http://www.samsung.com
COSTA RICA 0-800-507-7267	http://www.samsung.com
ECUADOR	1-800-10-7267	http://www.samsung.com
EL SALVADOR	800-6225	http://www.samsung.com
GUATEMALA	1-800-299-0013	http://www.samsung.com
HONDURAS	800-27919267	http://www.samsung.com
JAMAICA	1-800-234-7267	http://www.samsung.com
NICARAGUA	00-1800-5077267	http://www.samsung.com
PANAMA	800-7267	http://www.samsung.com
PERU	0-800-777-08	http://www.samsung.com
PUERTO RICO	1-800-682-3180	http://www.samsung.com
REP. DOMINICA	1-800-751-2676	http://www.samsung.com
TRINIDAD & TOBAGO	1-800-SAMSUNG (726-7864)	http://www.samsung.com
VENEZUELA	0-800-100-5303	http://www.samsung.com
EUROPE
ALBANIA	42 27 5755	-
AUSTRIA	0810 - SAMSUNG (7267864,€ 0.07/min)	http://www.samsung.com
BELGIUM	02-201-24-18	http://www.samsung.com/be (Dutch)http://www.samsung.com/be_fr(French)
BOSNIA	05 133 1999 -
BULGARIA	07001 33 11 http://www.samsung.com
CROATIA	062 SAMSUNG (062 726 7864)	http://www.samsung.com
CZECH	800 - SAMSUNG (800-726786)	http://www.samsung.com
	Samsung Zrt., česká organizační složka, Oasis Florenc,Sokolovská394/17, 180 00, Praha 8
EUROPE
DENMARK 70 70 19 70 http://www.samsung.com
EIRE 0818 717100 http://www.samsung.com
ESTONIA 800-7267 http://www.samsung.com
FINLAND 030 - 6227 515 http://www.samsung.com
FRANCE 01 48 63 00 00 http://www.samsung.com
GERMANY 01805 - SAMSUNG (726-7864, € 0,14/Min)		http://www.samsung.com
GREECE 2106293100 http://www.samsung.com
HUNGARY 06-80-SAMSUNG (726-7864) http://www.samsung.com
ITALIA	800-SAMSUNG (726-7864)	http://www.samsung.com
KOSOVO	[phone]	-
LATVIA	8000-7267 http://www.samsung.com
LITHUANIA	8-800-77777	http://www.samsung.com
LUXEMBURG	261 03 710	http://www.samsung.com
MACEDONIA	023 207 777 -
MONTENEGRO	020 405 888 -
NETHERLANDS	0900 - SAMSUNG (0900-7267864) (€ 0,10/Min)	http://www.samsung.com
NORWAY 815-56 480	http://www.samsung.com
POLAND 0 801 1SAMSUNG (172678)	022 - 607 - 93 - 33	http://www.samsung.com
PORTUGAL	80820 - SAMSUNG (726-7864)	http://www.samsung.com
RUMANIA	08010 SAMSUNG (08010 7267864) – doar din rețeaua Romtelecom, tarif local;021.206.01.10 – din orice rețea, tarif normal	http://www.samsung.com
SERBIA	0700 Samsung (0700 726 7864)	http://www.samsung.com
SLOVAKIA	0800-SAMSUNG (0800-726 786)	http://www.samsung.com/sk
SPAIN	902 - 1 - SAMSUNG (902 172 678)	http://www.samsung.com
SWEDEN 0771 726 7864 (SAMSUNG)	http://www.samsung.com
SWITZERLAND	0848-SAMSUNG (7267864, CHF 0.08/min)	http://www.samsung.com/chhttp://www.samsung.com/ch_fr (French)
Turkey	444 77 11 http://www.samsung.com
U.K	0330 SAMSUNG (7267864)	http://www.samsung.com

CIS
ARMENIA	0-800-05-555	-
AZERBAIJAN	088-55-55-555	-
BELARUS	810-800-500-55-500	-
GEORGIA	8-800-555-555	-
KAZAKHSTAN 8-10-800-500-55-500	(GSM: 7799)	http://www.samsung.com
KYRGYZSTAN 00-800-500-55-500 http://www.samsung.com
MOLDOVA 00-800-500-55-500 -
RUSSIA 8-800-555-55-55 http://www.samsung.com
TADJIKISTAN 8-10-800-500-55-500 http://www.samsung.com
UKRAINE 0-800-502-000 http://www.samsung.com/ua	http://www.samsung.com/ua_ru
UZBEKISTAN 8-10-800-500-55-500 http://www.samsung.com

ASIA PACIFIC
AUSTRALIA 1300 362 603 http://www.samsung.com
NEW ZEALAND 0800 SAMSUNG (0800 726 786) http://www.samsung.com
CHINA	400-810-5858010-6475 1880	http://www.samsung.com
HONG KONG	(852) 3698 - 4698	http://www.samsung.com/hkhttp://www.samsung.com/hk_en/
INDIA	3030 82821800 3000 8282	http://www.samsung.com
INDONESIA	0800-112-8888021-5699-7777	http://www.samsung.com
JAPAN	0120-327-527	http://www.samsung.com
MALAYSIA 1800-88-9999	http://www.samsung.com
PHILIPPINES	1-800-10-SAMSUNG (726-7864)1-800-3-SAMSUNG (726-7864)1-800-8-SAMSUNG (726-7864)02-5805777	http://www.samsung.com
SINGAPORE	1800-SAMSUNG (726-7864)	http://www.samsung.com
TAIWAN	0800-329-999	http://www.samsung.com
THAILAND	1800-29-323202-689-3232	http://www.samsung.com
VIETNAM 1 800 588 889	http://www.samsung.com

MIDDLE EAST
BAHRAIN 8000-4726	http://www.samsung.com
EGYPT	021-8255	http://www.samsung.com
IRAN	08000-726786	http://www.samsung.com
JORDAN	800-22273	http://www.samsung.com
KUWAIT	183-2255	http://www.samsung.com
MOROCCO	080 100 2255 http://www.samsung.com
OMAN	800-SAMSUNG (726-7864)	http://www.samsung.com
SAUDI ARABIA 9200-21230 http://www.samsung.com
U.A.E 800-SAMSUNG (726-7864) http://www.samsung.com
AFRICA
NIGERIA 0800 - SAMSUNG (726-7864) http://www.samsung.com
SOUTH AFRICA	0860 - SAMSUNG (726-7864)	http://www.samsung.com

Correct Disposal of This Product (Waste Electrical & Electronic Equipment) - Europe only

(Applicable in the European Union and other European countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

Correct disposal of batteries in this product - Europe only

(Applicable in the European Union and other European countries with separate battery return systems.)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment.

To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.
