| Product Type | Portable DLP Projector |
| Brand | Samsung |
| Model | SP-L351 |
| Projection Technology | DLP (Digital Light Processing) |
| Brightness | 3500 ANSI Lumens |
| Native Resolution | XGA (1024 x 768 pixels) |
| Contrast Ratio | 2000:1 |
| Lamp Life (Normal Mode) | Up to 4000 hours |
| Keystone Correction | Vertical (±30°) |
| Zoom Ratio | 1.2x manual zoom |
| Input Compatibility | VGA, S-Video, Composite, Component, HDMI |
| Dimensions (W x H x D) | 291 mm x 118 mm x 289 mm |
| Weight | 3.7 kg (8.2 lbs) |
| Power Supply | AC 100–240V, 50/60Hz |
| Power Consumption | 290W (Standby < 1W) |
| Noise Level | 32 dB (Eco mode) |
| Cleaning and Maintenance | Clean the lens with a soft, dry cloth; clean the air filter periodically |
| Safety Features | Automatic shut-off; overheat protection |
| Spare Parts and Repairability | Replacement lamps and filters available; user-replaceable lamp |
| General Information | Designed for presentations in conference rooms and classrooms |
Frequently Asked Questions - SP-L351 SAMSUNG
User questions about SP-L351 SAMSUNG
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Projector in PDF format for free! Find your manual SP-L351 - SAMSUNG and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. SP-L351 by SAMSUNG.
USER MANUAL SP-L351 SAMSUNG
Owner's Instructions
The color and the appearance may differ depending on the product, and the specifications are subject to change without prior notice to improve the performance.
MAJOR SAFETY PRECAUTIONS
Before You Start 1-1
Care and Maintenance 1-2
Safety Precautions 1-3
INSTALLATION AND CONNECTION
Package Contents 2-1
Installing the Projector 2-2
Leveling with Adjustable Feet 2-3
Zoom and Focus Adjustment 2-4
Screen Size and Projection Distance 2-5

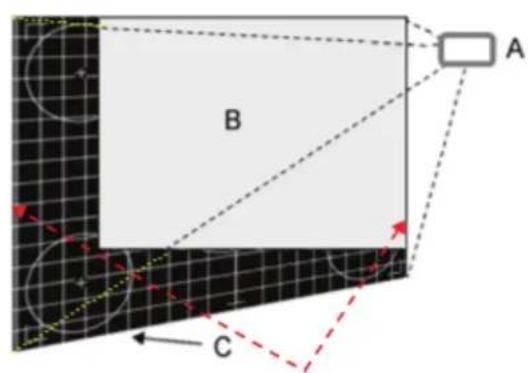

Adjusting the H-Keystone and V-Keystone 2-6
Lamp Replacement 2-7
Rear Side 2-8

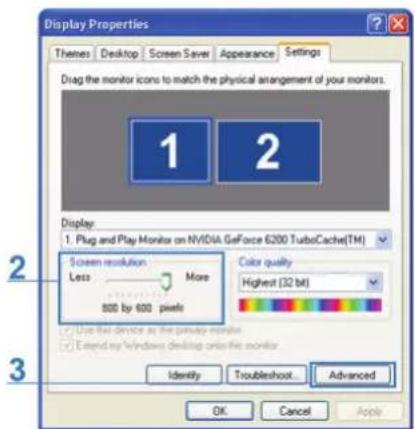

Setting up the PC Environment 2-9
Supported Display Modes 2-10
Connecting the Power 2-11

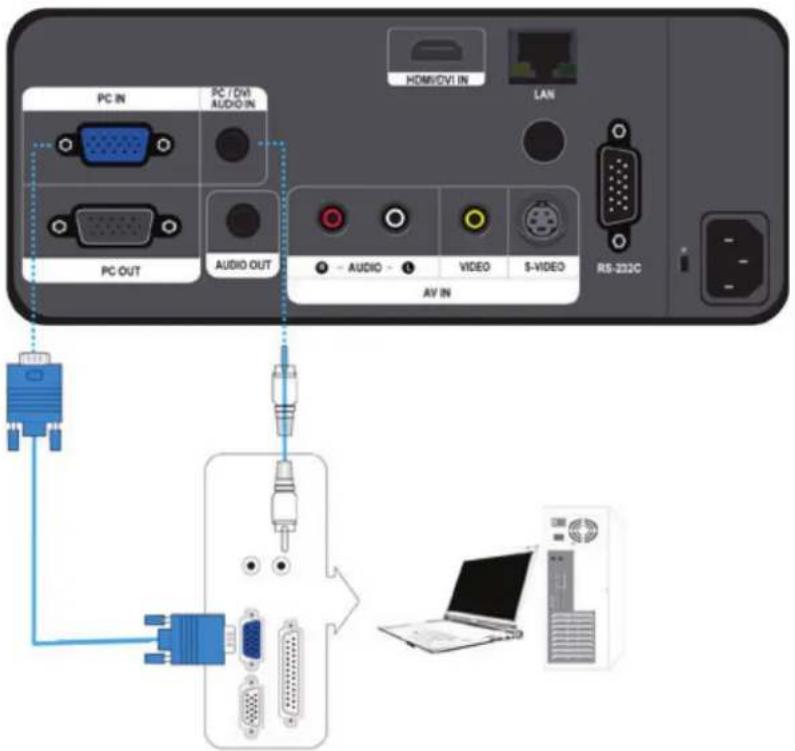

Connecting with a PC 2-12
Connecting a PC using an HDMI/DVI cable 2-13
Connecting an External Monitor 2-14
Connecting an HDMI-Compatible Device 2-15
Connecting an AV device using a D-Sub cable 2-16
Connecting an AV device with component output 2-17
Connecting using a Video/S-Video cable 2-18
Connecting an External Speaker 2-19
Connecting to a Network 2-20
Kensington Lock 2-21
USING
Product Features 3-1
Front, Upper 3-2
Remote Control 3-3
LED Indications 3-4
Using the Screen Adjustment Menu (OSD: On Screen Display) .... 3-5

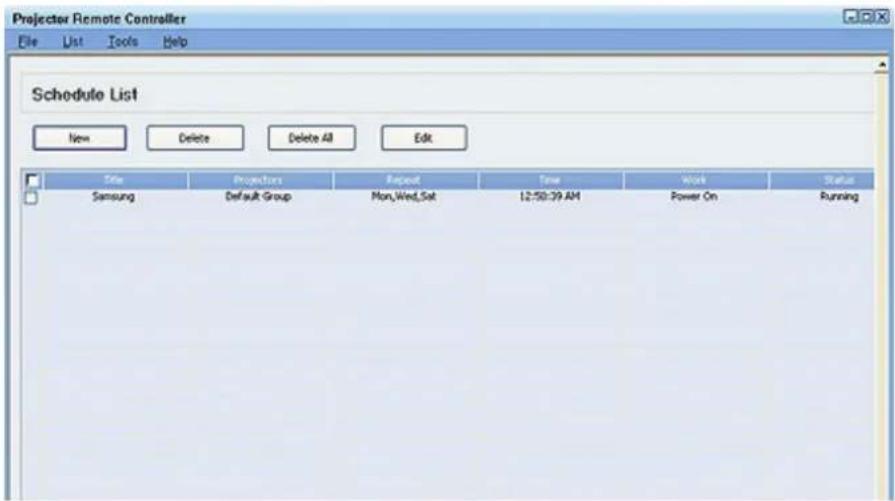

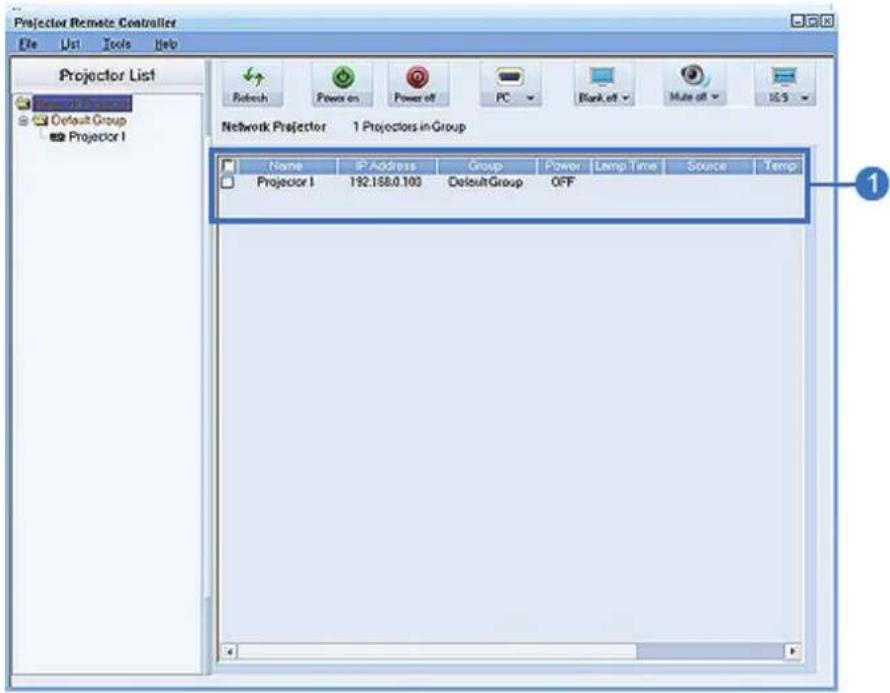

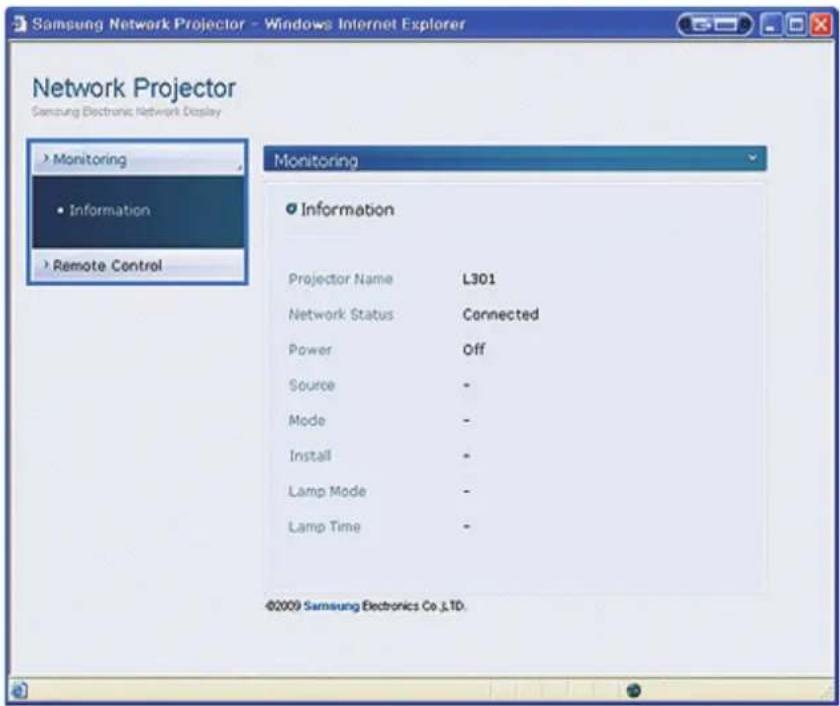

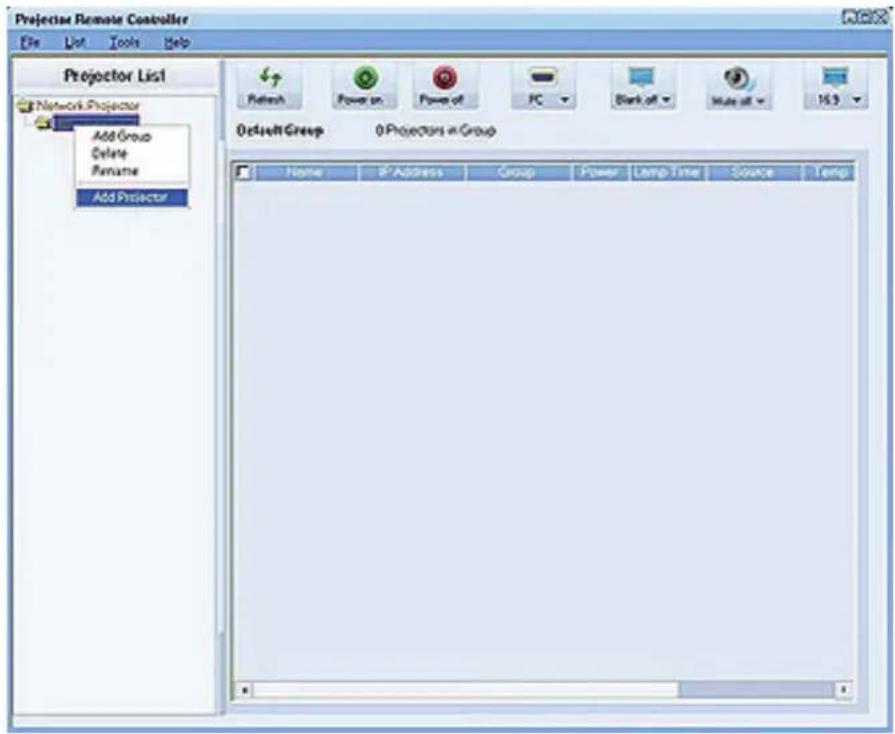

Network Management 3-6
TROUBLESHOOTING
Before Requesting Service 4-1
MORE INFORMATION
Specifications 5-1
RS-232C Command Table 5-2
Contact SAMSUNG WORLDWIDE 5-3
Correct Disposal - Europe only 5-4
1 Major Safety Precautions
1-1 Before You Start
Icons used in this manual
| ICON NAME MEANING | ||
 | Caution Indicates | cases where the function may not work or the setting may be canceled. |
 | Note Indicates a hint or tip to operate a function. | |
Using this Manual
• Make yourself fully aware of the safety precautions before using this product.
- If a problem occurs, refer to the 'Troubleshooting' section.
Copyright Notice
The contents of this manual are subject to change without prior notice for performance improvement.
Copyright © 2009 Samsung Electronics Co., Ltd. All rights reserved.
The copyright of this manual is reserved by Samsung Electronics, Co., Ltd.
The contents of this manual may not be partially or in whole reproduced, distributed or used in any form without the written permission of Samsung Electronics, Co., Ltd.
Cleaning the Surface and the Lens
Clean the projector using a soft dry cloth.
- Avoid cleaning the product with a flammable substance such as benzene or thinner.
- Avoid scratching the lense with your fingernails or a sharp object.
This may result in scratches or damage to the product.
- Avoid cleaning the product with a wet cloth or by directly spraying water onto the product.
If water enters the product, it may result in fire, electric shock, or a problem with the product.
- A white stain may appear on the surface of the projector if water gets on it.
The appearance and the color may differ depending on models.
Cleaning Inside the Projector
For cleaning the interior of the projector, contact a Service Center.
- Contact a Service Center if dust or other substances are inside the projector.
Icons used for safety precautions
| ICON NAME MEANING | ||
 | Warning | Failing to follow the precautions marked with this sign may result in a serious injury or even a fatality. |
 | Caution | Failing to follow the precautions marked with this sign may result in a personal injury or property damage. |
Meaning of Signs
Do not perform. Must be followed.
Do not disassemble.
The power plug must be unplugged from the wall outlet.
Do not touch. Must be grounded to prevent electric shock.
Power Related
The following images are for your reference and may differ depending on models and countries.
Warning
Plug the power plug in firmly.
- Otherwise, it may result in fire.
Avoid using a damaged power cord or plug or a loose power outlet.
- Otherwise, it may result in electric shock or fire.
Avoid plugging in or unplugging the power supply with wet hands.
- Otherwise, it may result in electric shock.
Make sure to connect the power cord to a grounded wall outlet (for insulation class 1 equipment only).
• Otherwise, it may result in electric shock or injury.
Avoid connecting multiple electric appliances to a single wall outlet.
- Otherwise, it may result in fire due to overheating of the wall outlet.
Avoid bending or twisting the power cord excessively and avoid placing heavy objects on the cord.
- Otherwise, it may result in electric shock or fire due to a damaged power cord.
To move the product, turn the power off and unplug the power cord and any other wires connected to the product.
- Otherwise, it may result in electric shock or fire due to the damaged power cord.
Caution
When unplugging the power plug from the wall outlet, make sure to hold the power plug by the plug and not by the cord.
- Failing to do so may result in electric shock or fire.
Do not turn the product on or off by plugging or unplugging the power plug. (Do not use the power plug as a power switch.)
Unplug the power plug before cleaning the product.
• There is a danger of electric shock or fire.
Keep the power cord away from sources of heat.
Connect the power plug to a wall outlet that can be easily reached.
- When a problem occurs with the product, you must unplug the power plug to cut the power off completely. You cannot cut the power off completely using only the power button on the product.
Installation Related
Warning
Avoid installing the product in a location exposed to direct sunlight and installing the product near a heat source such as a fire or heater.
• This may shorten the product life cycle or cause fire.
Avoid installing the product in a badly-ventilated location such as inside a bookshelf or closet.
- Otherwise, it may result in fire due to internal overheating.
When installing the product in a cabinet or shelf, take care so that the front end of the product is completely supported by the cabinet or shelf.
- Failing to do so may result in the product falling and resulting in damage to the product or injury.
• Make sure to use a cabinet or shelf suitable to the size of the product.
When installing the product on a console or shelf, make sure that the front of the product does not protrude out of the console or shelf.
- Otherwise, this may cause the product to fall off and result in a malfunction or injury.
Keep the power cord away from heaters.
• The coating of the power cord may melt and cause electric shock or fire.
When thunder or lighting occurs, unplug the power cord.
- Failing to do so may result in electric shock or fire.
Do not install the product in a location exposed to dust, moisture (sauna), oil, smoke or water (rain drops) and do not install it in a vehicle.
• This may result in electric shock or fire.
Do not install the product in areas with heavy dust.
Caution
Take care not to block the vent with a table cloth or curtain.
- Otherwise, it may result in fire due to internal overheating.
When putting the product down, place it gently.
- Failing to do so may result in a problem with the product or injury.
Do not let the product drop while moving it.
• This may result in a problem with the product or injury.
Do not install the product at a height where children may reach it.
- If a child touches the product, the product may fall and this may result in injury.
Usage Related
Avoid inserting metal objects such as a chopsticks, coins or hairpins, or inflammable objects into the product (the vents, ports, etc).
- If water or an alien substance enters the product, turn the power off, unplug the power cord and contact a service center.
• Otherwise, it may result in a problem with the product, electric shock or fire.
Do not disassemble, or attempt to fix or modify the product.
- When the product requires repairs, contact a Service Center.
Avoid using or placing inflammable spray or objects near the product.
• This may result in an explosion or fire.
Avoid placing a liquid container such as a vase, flowerpot, beverage, cosmetics or drugs, or a metal object over the product.
- If water or an alien substance enters the product, turn the power off, unplug the power cord and contact a service center.
• Otherwise, it may result in a problem with the product, electric shock or fire.
Do not let children place objects such as toys or cookies on the product.
- If a child tries to reach for any of these objects, the product may fall and cause harm.
Do not look directly at the light of the lamp nor project the picture into someone's eyes.
• This is dangerous, especially for children.
When you remove batteries from the remote, be careful that they are not swallowed by children. Keep batteries out of the reach of children.
• If swallowed, see a doctor immediately.
If the product generates a strange noise, a burning smell, or smoke, unplug the power plug immediately and contact a service center.
If water or a foreign substance enters the product, turn the product off, unplug the power cord from a wall outlet, and contact a Service Center.
- Failing to do so may result in electric shock or fire.
Do not use the product while it indicates a malfunction, such as no sound or no picture.
If the power plug pin or jack is exposed to dust, water or alien substances, clean it thoroughly.
- Turn the product off immediately, unplug the power cord from a wall outlet, and contact a Service Center.
• There is a danger of electric shock or fire.
When cleaning the product, disconnect the power cord and clean the product with a soft dry cloth.
- Avoid using chemicals such as wax, benzene, alcohol, thinner, mosquito-repellent, fragrance, lubrication or cleansing agent when cleaning the product.
When a gas leak occurs, do not touch the product or the power plug and ventilate immediately.
This may result in the exterior being deformed or the print being removed.
• A spark may result in an explosion or fire.
When not using the product for a long time, such as leaving your home, unplug the power cord from the wall outlet.
- During a thunder or lighting storm, do not touch the power cord or antenna cable
- Otherwise, it may cause dust accumulation and result in fire caused by overheating or a short circuit or result in an electric shock.
Do not touch the lens on the product.
If the product is installed in a location where the operating conditions vary considerably, a serious quality problem may occur due to the surrounding environment. In this case, install the product only after consulting our Call Center.
Do not touch any outer part of the product with tools such as a knife or a hammer.
- Places exposed to microscopic dust, chemicals, too high or low temperature, high humidity, such as airports or stations where the product is continuously used for a long time etc..
If you drop the product or the case is damaged, turn the power off and unplug the power cord. Contact a service center.
To clean dirt or stains on the front projection lens, use spray or a wet cloth dampened with neutral detergent and water.
- Failing to do so may result in fire or electric shock.
Make sure to place your remote control on a table or desk.
Ask a Service Center to clean the interior of the projector at least once per year.
To avoid burning yourself, do not touch the vents or lamp cover while operating or right after turning off the product.
Do not clean the product using water spray or a wet cloth. Avoid using any chemicals such as detergents, industrial or automotive polish, abrasive, wax, benzene, alcohol on any plastic part of the product such as projector case, since this may cause damage.
Do not open any cover on the product.
• This would prove hazardous because of high-voltage current inside the product.
Do not use any undesignated battery.
Be careful not to touch the ventilation hole while the projector is on as hot air comes out.
The ventilation hole is hot for some time though the projector is turned off. Keep you hands or body off the ventilation hole.
Do not place objects vulnerable to heat near the projector.
Be careful to keep your body away from the projector lamp. The lamp is hot.
(Children and those who have sensitive skin should be more careful.)
2 Installation and Connection
2-1 Package Contents
- Unpack the product and check if all of the contents listed below have been included.
- Store the packaging box in case you need to move the product at a later date.
Projector
| CONTENTS | |||
 |  |  |  |
| Quick Guide Product Warranty(Not available in all locations) | User Manual Power Cord | ||
 |  |  | |
| Remote Control / 1 Battery(CR 2025, Not available in all locations) | Cleaning Cloth D-Sub Cable | ||
Install the projector so that the beam from the projector is perpendicular to the screen.
- Place the projector so that the lens aims at the center of the screen. If the screen is not vertical, the picture on the screen may not appear rectangular.
- Do not install the screen in bright surroundings. If the surroundings are too bright, the picture on the screen will be washed out and not display clearly.
- When using the projector in bright surroundings, use curtains to block the light.
- You can install the projector in the following locations: Front-Floor / Front-Ceiling / Rear-Floor / Rear-Ceiling. To view the installation position settings, see below.
To adjust picture when you install the projector behind the screen
Installing behind a semi-transparent screen.
When you install the projector behind a semi-transparent screen, you can use the menu to adjust the picture so that it displays correctly, depending on where you've located the projector, rear-floor (or low) or rear-ceiling.
- For rear-floor, press :
Menu > Setup > Install > Rear-Floor
- For rear-ceiling, press :
Menu > Setup > Install > Rear-Ceiling
To adjust the picture when you install the projector in the front of the screen
Install the projector on the side where you are watching the screen.
When you install the projector in front of a screen, you can use the menu to adjust the picture so that it displays correctly, depending on where you've located the projector, front-floor (or low) or front-ceiling.
- For front-floor, press :
Menu > Setup > Install > Front-Floor
To level the projector, turn the Adjustable Feet of the projector.
The projector can be adjusted to a height of up to 30 mm (about 12 °) from the reference point.
Depending on the position of the projector, Keystone distortion of the image may appear.
If
Zoom Knob : You can adjust the size of the image within the zoom range by manipulating the Zoom Knob.
② Focus Ring : Focus the picture on the screen using the Focus Ring.
The size of your screen determines the distance you set your projector from the screen.
If you do not install your projector at the projection distance specified in the Screen Size and Projection Distance table, you will not be able to adjust the focus correctly.
A. Screen / Z. Throw Distance / Y'. Distance from Lens Center to Image Bottom
Install the projector on a flat, even surface and level the projector using the adjustable feet to obtain optimal picture quality. If images are not clear, adjust them using the Zoom Knob or Focus Ring, or move the projector forward and backward.
| SCREEN SIZE THROW DISTANCE OFFSET | |||||||||||
| M (DIAGONAL) | X (HORIZONTAL) | Y (VERTICAL) | Z (TELE) | Z (WIDE) | Y' | ||||||
| INCHES | CM | INCHES | CM | INCHES | CM | INCHES | CM | INCHES | CM | INCHES | CM |
| 40 | 101.6 | 32 | 81.3 | 24 | 61.0 | 54.2 | 137.6 | 44.9 | 114.0 | 4.0 | 10.2 |
| 50 | 127.0 | 40 | 101.6 | 30 | 76.2 | 68.0 | 172.7 | 56.4 | 143.3 | 5.0 | 12.7 |
| 60 | 152.4 | 48 | 121.9 | 36 | 91.4 | 81.8 | 207.8 | 68.0 | 172.6 | 6.0 | 15.2 |
| 70 | 177.8 | 56 | 142.2 | 42 | 106.7 | 95.7 | 243.0 | 79.5 | 202.0 | 7.0 | 17.8 |
| 80 | 203.2 | 64 | 162.6 | 48 | 121.9 | 109.5 | 278.1 | 91.1 | 231.3 | 8.0 | 20.3 |
| 90 | 228.6 | 72 | 182.9 | 54 | 137.2 | 123.4 | 313.3 | 102.6 | 260.6 | 9.0 | 22.9 |
| 100 | 254.0 | 80 | 203.2 | 60 | 152.4 | 137.2 | 348.4 | 114.1 | 289.9 | 10.0 | 25.4 |
| 110 | 279.4 | 88 | 223.5 | 66 | 167.6 | 151.0 | 383.5 | 125.7 | 319.2 | 11.0 | 27.9 |
| 120 | 304.8 | 96 | 243.8 | 72 | 182.9 | 164.8 | 418.7 | 137.2 | 348.5 | 12.0 | 30.5 |
| 130 | 330.2 | 104 | 264.2 | 78 | 198.1 | 178.7 | 453.8 | 148.7 | 377.8 | 13.0 | 33.0 |
| 140 | 355.6 | 112 | 284.5 | 84 | 213.4 | 192.5 | 488.9 | 160.3 | 407.1 | 14.0 | 35.6 |
| 150 | 381.0 | 120 | 304.8 | 90 | 228.6 | 206.3 | 524.1 | 171.8 | 436.4 | 15.0 | 38.1 |
| 160 | 406.4 | 128 | 325.1 | 96 | 243.8 | 220.2 | 559.2 | 183.4 | 465.7 | 16.0 | 40.6 |
| 170 | 431.8 | 136 | 345.4 | 102 | 259.1 | 234.0 | 594.4 | 194.9 | 495.0 | 17.0 | 43.2 |
| 180 | 457.2 | 144 | 365.8 | 108 | 274.3 | 247.8 | 629.5 | 206.4 | 524.3 | 18.0 | 45.7 |
| 190 | 482.6 | 152 | 386.1 | 114 | 289.6 | 261.7 | 664.6 | 218.0 | 553.6 | 19.0 | 48.3 |
| 200 | 508.0 | 160 | 406.4 | 120 | 304.8 | 275.5 | 699.8 | 229.5 | 582.9 | 20.0 | 50.8 |
| 210 | 533.4 | 168 | 426.7 | 126 | 320.0 | 289.3 | 734.9 | 241.0 | 612.2 | 21.0 | 53.3 |
| 220 | 558.8 | 176 | 447.0 | 132 | 335.3 | 303.2 | 770.1 | 252.6 | 641.5 | 22.0 | 55.9 |
| 230 | 584.2 | 184 | 467.4 | 138 | 350.5 | 317.0 | 805.2 | 264.1 | 670.8 | 23.0 | 58.4 |
| 240 | 609.6 | 192 | 487.7 | 144 | 365.8 | 330.8 | 840.3 | 275.6 | 700.1 | 24.0 | 61.0 |
| 250 | 635.0 | 200 | 508.0 | 150 | 381.0 | 344.7 | 875.5 | 287.2 | 729.4 | 25.0 | 63.5 |
| 260 | 660.4 | 208 | 528.3 | 156 | 396.2 | 358.5 | 910.6 | 298.7 | 758.7 | 26.0 | 66.0 |
| 270 685 | .8 216 54 | 8.6 162 411.5 | 372.3 9 | 45.7 310.2 7 | 88.0 27.0 | 68.6 | |||||
| 280 711 | .2 224 56 | 9.0 168 426.7 | 386.2 9 | 80.9 321.8 8 | 17.3 28.0 | 71.1 | |||||
| 290 736 | .6 232 58 | 9.3 174 442.0 | 400.0 1 | 016.0 333.3 | 846.6 29.0 | 73.7 | |||||
| 300 762 | .0 240 60 | 9.6 180 457.2 | 413.9 1 | 051.2 344.9 | 875.9 30.0 | 76.2 | |||||
This projector is designed to show images optimally on a 80 \~ 120 inches sized screen.
If you install the projector below the center line of the screen (near the ceiling or on the floor, for example), the angle at which the projector is set to the screen causes the image it projects to be distorted.
To set the the
- Turn on the projector, and then press the Menu button on the projector or the remote control.
- Select Setup, and then press Enter.
- Make sure that Install at the top of the menu is set to the correct installation position:
, , , or . - Select
, and then press Enter. - Select
, and then press Enter. - Press the Left or Right arrow key to set
to 0. - Press the Up or Down arrow key to select
. Set to 0. - Return to the
Menu, select Test Pattern, and then press Enter. - Select Cross Hatch, and then press Enter.
- Attach a string to the screen and make sure it hangs straight down.
- Adjust the location of the projector until the string (1) and the center vertical line(2) in the Cross Hatch image are parallel.
Screen : (1) A virtual vertical line made on the screen using a piece of thread, etc.
Crosshatch Test Pattern : (2) A vertical line in the middle of the Test Pattern
- Adjust the projector's angle so that a corner of the projected picture (which is nearest to the projector) meets that of the screen. In the illustration below, this corner is labeled D.
A : Projector / B : Screen / C : Projected image / D : A corner of the picture nearest to the projector
- Adjust the projector's angle until the projected image covers the entire screen area. The image can overlap.
The projected image may not cover the entire screen depending on the projector's installation height. In this case, adjust the projector's angle so that the entire screen is covered.
- Press the V.KEY-STONE button on the remote control. The
menu appears. Adjust using the + or - button on the remote control.
A : Projector / B : Screen / C : Projected image
Keep adjusting until the vertical line on the
- Press the ▲ or ▼ button to select
. Adjust using the + or - button on the remote control.
A : Projector / B : Screen / C : Projected image
Keep adjusting until the horizontal line on the
- Adjust the screen size using the zoom knob.
- If any part of the projected image is larger than the screen, adjust the size of the projected image using the
option in the menu. For instructions on using the option, see below.
A : Projector / B : Screen / C : Projected image
To use the
• 1. Press the MENU button.
- Select
to move on to the menu. - Select the
option and then select an area to adjust. - Adjust the screen size using the ▲ or ▼ button.
Keystone, which is a feature to calibrate an image skew, may degrade the brightness and resolution once it is activated.
Cautions on Lamp Replacement
- The projector lamp is an expendable item. For best operating performance, replace the lamp according to the usage time. You can view the lamp usage time in the Information Display (INFO button).
-
Use the recommended lamp when replacing. Replace the lamp with the one specified below.
-
Lamp Model Name : 220W UHP E19.5
- Lamp Manufacturer : Philips
-
For inquiries on lamp purchase, please see 'Contact SAMSUNG WORLDWIDE' in section 5-4.
-
Check that the power cord is unplugged before replacing the lamp.
- Because the lamp is a high temperature and high voltage product, wait at least one hour from the time you disconnect the power cord before replacing the lamp.
- The lamp is located on the left side of the projector (when looking from the front).
- Do not leave the old lamp near inflammables or in reach of children. There is a danger of fire, burns or injury.
- Remove dirt or foreign material around or inside the lamp unit using a proper vacuum device.
- When handling the lamp, avoid touching any part of it except for the handles. If you handle the lamp incorrectly, you can shorten the lamp's lifetime and affect picture quality.
- When you turn the projector over to change the lamp, put the projector on a soft cloth on a flat surface.
- The projector has been designed so that the projector does not work if the lamp cover is not completely assembled after a lamp replacement. If the projector does not work properly, please check the operating status of the indicator LED.
Lamp contains Mercury. Dispose According to Local, State or Federal Laws.
Lamp Replacement Procedure
Because the lamp is a high temperature and high voltage product, wait at least one hour from the time that the power cord is disconnected before replacing it.
The lamp is located on the left side of the projector (when looking from the front).
- Remove the screw shown in the figure below and than open the cover.
- Remove the two (2) screws shown in the figure below.
- Hold and pull the lamp handle out of the projector, as shown in the figure below.
Assemble a new lamp in the reverse order of disassembly.
Replacing and Cleaning the Filter
Precautions when replacing the projector filter:
• The filter is located at the bottom of the projector.
- Turn off the power of the projector, and then disconnect the power cord after the projector has cooled sufficiently. Otherwise, its parts may be damaged due to internal heat.
- When you replace the filter, you may release some dust.
- For inquiries on filter purchase, please see 'Contact SAMSUNG WORLDWIDE' in Chapter 5.
The sequence for replacing or cleaning the filter of the projector.
- Turn off the power of the projector, and then disconnect the power cord after the projector has cooled sufficiently.
- Turn the projector over so that its bottom points upward, and then push and remove the filter cover in the direction of the arrow is the illustration below.
* When placing the projector with the bottom facing up, make sure to place a soft cloth under the projector to prevent scratches.
- Replace or clean the filter.
- When cleaning the filter, use a small vacuum cleaner designed for computers and small electronics products, or wash it under
running water.
• After washing the filter under running water, make sure to dry it completely. The moisture may cause the filter to corrode.
• If dust cannot be separated from the filter or the filter is torn, it must be replaced.
• Make sure to select the Reset Filter Time option after replacing or cleaning the filter of the projector
Ventilation openings
The location of the ventilation openings:
• The ventilation openings are located on the right and left sides and at the bottom of the projector.
- PC IN port 8. AUDIO OUT port
- PC/DVI AUDIO IN port 9. [AV IN] R-AUDIO-L port
- HDMI/DVI IN port 10. [AV IN] VIDEO port
- LAN port 11. [AV IN] S-VIDEO port
- Remote Control Signal Receiver 12. Kensington Lock
- RS-232C port 13. Power port
- PC OUT port
Check the following items before connecting your PC to your projector.
- Click the right mouse button on the Windows desktop, and then click [Properties]. The
dialog appears.
- Click the [Settings] tab, and then set the
. The optimal resolution for the projector is 1024 x 768. For other resolutions supported by the projector, see the PC Timing Display Mode table in section 2-10.
You do not have to change the
- Press the [Advanced] button. Another property window appears.
- Click the [Monitor] tab and set the
. For the refresh rate that matches the resolution you've chosen, see the refresh rate (60 Hz, 70 Hz, etc.) next to your selected resolution in the PC Timing Display Mode table in section 2-10.
Setting the refresh rate sets both the vertical and horizontal frequencies.
- Click the [OK] button to close the window, and then click the [OK] button on the
window to close that window. The computer may restart automatically. - Shut down the PC and connect it to the projector.
The setup process might vary depending on your type of computer or version of Windows.
(For example, [Properties] appears instead of [Properties (R)] as shown in 1.)
This projector supports 32 bit color quality (per pixel) when it is used as a PC monitor.
Projected images may differ from the images on your monitor depending on the monitor manufacturer or Windows version.
When connecting the projector to a PC, make sure that the PC setup complies with the display settings supported by this projector. If it does not, you may have signal problems.
PC Timing (D-Sub/HDMI)
| FORMAT RESOLUTION | HORIZONTAL FREQUENCY (KHZ) | VERTICAL FREQUENCY (HZ) | PIXEL FREQUENCY (MHZ) | ||
| IBM 640 x 350 | 70Hz 31.469 | 70.086 25.175 | |||
| IBM 640 x 480 | 60Hz 31.469 | 59.940 25.175 | |||
| IBM 720 x 400 | 70Hz 31.469 | 70.087 28.322 | |||
| VESA 640 x 480 | 60Hz 31.469 | 59.940 25.175 | |||
| MAC 640 x 480 | 67Hz 35.000 | 66.667 30.240 | |||
| VESA 640 x 480 | 70Hz 35.000 | 70.000 28.560 | |||
| VESA 640 x 480 | 72Hz 37.861 | 72.809 31.500 | |||
| VESA 640 x 480 | 75Hz 37.500 | 75.000 31.500 | |||
| VESA 720 x 576 | 60Hz 35.910 | 59.950 32.750 | |||
| VESA 800 x 600 | 56Hz 35.156 | 56.250 36.000 | |||
| VESA 800 x 600 | 60Hz 37.879 | 60.317 40.000 | |||
| VESA 800 x 600 | 70Hz 43.750 | 70.000 45.500 | |||
| VESA 800 x 600 | 72Hz 48.077 | 72.188 50.000 | |||
| VESA 800 x 600 | 75Hz 46.875 | 75.000 49.500 | |||
| MAC 832 x 624 | 75Hz 49.726 | 74.551 57.284 | |||
| VESA 1024 x | 768 | 60Hz 48.363 | 60.004 65 | 000 | |
| VESA 1024 x | 768 | 70Hz 56.476 | 70.069 75 | 000 | |
| VESA 1024 x | 768 | 72Hz 57.672 | 72.000 78 | 434 | |
| VESA 1024 x | 768 | 75Hz 60.023 | 75.029 78 | 750 | |
| VESA 1152 x | 864 | 60Hz 53.783 | 59.959 81 | 750 | |
| VESA 1152 x | 864 | 70Hz 63.000 | 70.000 96 | 768 | |
| VESA 1152 x | 864 | 72Hz 64.872 | 72.000 99 | 643 | |
| VESA 1152 x | 864 | 75Hz 67.500 | 75.000 108 | 000 | |
| VESA 1280 x | 720 | 60Hz 44.772 | 59.855 74 | 500 | |
| VESA 1280 x | 720 | 70Hz 52.500 | 70.000 89 | 040 | |
| VESA 1280 x | 720 | 72Hz 54.072 | 72.000 91 | 706 | |
| VESA 1280 x | 720 | 75Hz 56.456 | 74.777 95 | 750 | |
| VESA 1280 x | 768 | 60Hz 47.776 | 59.870 79 | 500 | |
| VESA 1280 x | 768 | 75Hz 60.289 | 74.893 102 | 2.250 | |
| VESA 1280 x | 800 | 60Hz 49.702 | 59.810 83 | 500 | |
| VESA 1280 x | 800 | 75Hz 62.795 | 74.934 106 | 500 | |
| VESA 1280 x | 960 | 60Hz 60.000 | 60.000 108 | 000 | |
| VESA 1280 x | 960 | 70Hz 69.930 | 70.000 120 | 839 | |
| FORMAT | RESOLUTION | HORIZONTAL FREQUENCY (KHZ) | VERTICAL FREQUENCY (HZ) | PIXEL FREQUENCY (MHZ) | |
| VESA 1280 x | 960 72Hz 72.072 72.000 124.540 | ||||
| VESA 1280 x | 960 75Hz 75.231 74.857 130.000 | ||||
| VESA 1280 x | 1024 60Hz 63.981 60.020 108.000 | ||||
| VESA 1280 x | 1024 70Hz 74.620 70.000 128.943 | ||||
| VESA 1280 x | 1024 72Hz 76.824 72.000 132.752 | ||||
| VESA 1280 x | 1024 75Hz 79.976 75.025 135.000 | ||||
| VESA 1400 x | 1050 60Hz 65.317 59.978 121.750 | ||||
| VESA 1440 x | 900 60Hz 55.935 59.887 106.500 | ||||
| VESA 1440 x | 900 75Hz 70.635 74.984 136.750 | ||||
| VESA 1600 x | 1200 60Hz 75.000 60.000 162.000 | ||||
For the resolutions presented above, if a signal with a resolution lower or higher than 1024x768 is input, it is converted to 1024x768 by the Scaler chip inside the projector.
When the real resolution (1024x768) of the projector and the PC output resolution are the same, the screen quality is optimal.
AV Timing (D-Sub)
| FORMAT RESOLUTION SCAN | |||
| BT.601 SMPTE 267M 480i 59.94Hz Interlaced | |||
| BT.1358 SMPTE 293M 480p 59.94Hz | Progressive | ||
| BT.601 | 576i | 50Hz | Interlaced |
| BT.1358 | 576p | 50Hz | Progressive |
| SMPTE 296M | 720p | 59.94Hz/60Hz Progressive | |
| 720p | 50Hz | Progressive | |
| BT.709 SMPTE 274M | 1080i | 59.94Hz/60Hz Interlaced | |
| 1080i | 50Hz | Interlaced | |
AV Timing (HDMI)
| FORMAT | RESOLUTION | SCAN | HORIZONTAL FREQUENCY (KHZ) | VERTICAL FREQUENCY (HZ) | PIXEL FREQUENCY (MHZ) | |
| EIA-861 | Format1 | 640 x 480 | Progressive | 59.940 | 31.469 | 25.175 |
| EIA-861 | Format1 | 640 x 480 | Progressive | 60.000 | 31.500 | 25.200 |
| EIA-861 | Format2,3 | 720 x 480 | Progressive | 59.940 | 31.469 | 27.000 |
| EIA-861 | Format2,3 | 720 x 480 | Progressive | 60.000 | 31.500 | 27.027 |
| EIA-861 | Format4 | 1280 x 720 | Progressive | 59.939 | 44.955 | 74.175 |
| EIA-861 | Format4 | 1280 x 720 | Progressive | 60.000 | 45.000 | 74.250 |
| FORMAT RESOLUTION | SCAN | HORIZONTAL FREQUENCY (KHZ) | VERTICAL FREQUENCY (HZ) | PIXEL FREQUENCY (MHZ) | ||
| EIA-861 Format5 | 1920 x 1080 | Interlaced 59.939 | 33.716 74.175 | |||
| EIA-861 Format5 | 1920 x 1080 | Interlaced 60.000 | 33.750 74.250 | |||
| EIA-861 Format17,18 | 720 x 576 | Progressive 50.000 | 31.250 27.000 | |||
| EIA-861 Format19 | 1280 x 720 | Progressive 50.000 | 37.500 74.250 | |||
| EIA-861 Format20 | 1920 x 1080 | Interlaced 50.000 | 28.125 74.250 | |||
AV Timing (VIDEO/S-VIDEO)
NTSC, NTSC 4.43, PAL, PAL60, PAL-N, PAL-M, SECAM
- Plug the power cord into the power terminal on the rear side of the projector.
- Connect the [PC IN] port on the rear side of the projector to the monitor output port of the PC using a PC video cable.
- Plug in the power cords of the projector and the PC.
- Connect the [PC/DVI AUDIO IN] input port of the projector to the speaker output ports of the PC using an audio cable.
This product supports Plug and Play. If you use Windows XP, you do not need to set up the driver on your PC.
Using the Projector
- Turn on the projector, and then press the [SOURCE] button to select
.
If theMode is not available, make sure the PC video cable is properly connected. - Turn on the PC, and then set the PC Environment if necessary.
- Adjust the screen. (
)
Make sure that your PC and projector are turned off.
- Connect the [HDMI/DVI IN] terminal of the projector to the HDMI or DVI terminal of your PC using a HDMI/HDMI or HDMI/DVI cable (Not supplied).
- If you are connecting to the HDMI terminal of your PC, use an HDMI/HDMI cable (Not supplied).
- For the supported resolutions and refresh rates, see PC Timing (D-Sub/HDMI) in Section 2-10.
- If you connected using a HDMI/DVI cable, connect the [PC/DVI AUDIO IN] terminal of the projector to the Audio out terminal of your PC using an audio cable (Not supplied).
- If you connected with a HDMI/HDMI cable, you do not need an audio cable.
You can view an image on both your projector and a separate monitor at the same time.
Make sure that your PC and projector are turned off.
- Connect the [PC IN] terminal at the back of the projector to the D-Sub terminal of your PC using a D-Sub cable.
-
Connect the [PC OUT] terminal of the projector to the D-Sub terminal of a monitor using a D-Sub cable.
-
When connecting a monitor using the [PC OUT] function, make sure to connect your PC to the [PC IN] terminal.
- The video on the monitor connected to the [PC OUT] terminal will be normal even if you see a blank screen on your projector.
- The [PC OUT] function will not operate in standby mode.
Make sure that the AV device and your projector are turned off.
- Connect the [HDMI/DVI IN] terminal at the back of the projector to the HDMI or HDMI/DVI output terminal of the digital output device using an HDMI/DVI or HDMI/HDMI cable.
- If you are connecting to the HDMI output terminal on the digital output device, use an HDMI/HDMI cable.
- For supported input signal formats, resolutions, and frequencies, see AV Timing(HDMI) in Section 2-10.
- If you connected using a HDMI/DVI cable, connect the [PC/DVI AUDIO IN] terminal on the projector to the Audio out terminal on your digital output device using an audio cable (Not supplied).
- If you connected with a HDMI/HDMI cable, you do not need an audio cable.
Make sure that the AV device and your projector are turned off.
- Connect the [PC IN] terminal at the back of the projector to the D-Sub terminal of your AV device using a D-Sub cable. - For supported input signal formats, resolutions, and frequencies, see AV Timing (D-Sub) in Section 2-10.
- Connect the [PC/DVI AUDIO IN] terminal at the back of the projector to the Audio out terminal of your AV device using an audio cable (Not supplied).
Make sure that the AV device and your projector are turned off.
- Connect the [PC IN] terminal on the back of the projector to the Component terminal on your AV device using a D-Sub to Component cable (Not supplied). This cable has a D-Sub connector on one end and three RCA jacks on the other.
- For supported input signal formats, resolutions, and frequencies, see AV Timing (D-Sub) in Section 2-10.
- Connect the [PC/DVI AUDIO IN] terminal on the back of the projector and the Audio out terminal on your AV device using an audio cable (Not supplied).
Make sure that the AV device and your projector are turned off.
- Connect the [VIDEO] or [S-VIDEO] terminal and the AV device using a Video cable (Not supplied) or S-Video cable (Not supplied).
- For supported input signal formats, see AV Timing (VIDEO/S-VIDEO) in section 2-10.
- Connect the [AV IN R-AUDIO-L] terminal on the back of the projector and the Audio out terminal on your AV device using an audio cable (Not supplied).
You can hear sound through an external speaker instead of the internal speakers embedded in the projector.
- Obtain an audio cable (Not supplied) suitable for your external speaker.
- Connect the [AUDIO OUT] terminal of the projector to the external speaker using an audio cable.
- When using an external speaker, the internal speaker does not operate but you can adjust the volume of the external speaker using the Volume button of the projector (or remote control).
- The [AUDIO OUT] terminal can output all audio signals.
This product can use network function. Refer to the following Network connection method.
2-20-1. Connecting to a Dynamic IP (DHCP) Network
You can attach the projector to your network by connecting it to the network through a modem that uses DHCP (Dynamic Host Configuration Protocol). When you use a DHCP modem, the modem automatically provides the IP address, subnet mask, gateway, and DNS server values that the projector needs to access the network.
To connect to a DHCP network, follow these steps :
- Connect the modem cable between the modem port on the wall and the external modem.
- Connect a LAN cable between the external modem and the wired or wireless IP router.
- Connect a LAN cable between the [LAN] port on the back of the projector and the wired or wireless IP router.
- Turn on the projector, and then press the Menu button.
- Select
→ → → → . - The projector automatically acquires the IP address, Subnet mask and Gateway.
To use the network function,
If the IP address allotment from the DHCP server fails, turn off the external modem for more than 10 seconds, restart the modem, and then retry the connection.
For instructions on the setup and connection of the external modem and Router, refer to the user manual for each product.
You can connect the LAN cable from the modem directly to the projector, You do not need a router.
You can not use a manual connection-type ADSL modem because it is not a DHCP-type device. Make sure to use an automatic connection DHCP ADSL modem.
2-20-2. Connecting to a Static IP Network
You can attach the projector to a network that uses a Static IP address, which corresponds to using a dedicated lease line. If your network uses Static IP addresses, you must get the IP address, subnet mask, gateway, and DNS server values from your Internet Service Provider (ISP), turn on the Network function in the projector's Menu, and then enter the values into the Network function manually.
To connect to a Static IP address network, follow these steps :
- Connect a LAN cable between the LAN port on the wall and a wired or wireless IP router.
- Connect a LAN cable between the [LAN] port on the back of the projector and the wired or wireless IP router.
- Turn on the projector, and then press the Menu button.
- Select
→ → → → .
To use the network function,
- Press the Enter button. Use the ◀/▶ buttons to navigate between each IP Address entry field and the ▲ / ▼ buttons to enter values.
- When done entering all the values for IP Address, press Enter button and then repeat the steps for Subnet mask and Gateway.
- When done entering all the values, press the Menu button or Return button to exit.
If you use a static IP, your ISP will inform you of your IP address, subnet mask, gateway and DNS values. These values must be entered to complete your network setup. If you do not know your static IP address, consult your network administrator.
For instructions on the setup and connection of the router, refer to the router's user manual.
You can connect the LAN cable directly to the projector without using a router.
If you use an IP Router which supports the DHCP function, you can set the router to either DHCP or static IP.
For instructions on the use of a static IP, consult your Internet service provider.
A Kensington Lock (not supplied) is an anti-theft device that lets users lock the product so that they can safely use it in public locations. Because the shape and usage of the lock may differ depending on the model and the manufacturer, see the User Manual supplied with the locking device for more information.
Locking the product
- Loop the Kensington lock cable around an immovable part of desk or heavy object as directed in the Kensington lock user manual.
- Insert the locking part of the locking device into the Kensington lock hole in the projector.
- Insert the Kensington lock key into the locking mechanism and turn it in the locking direction.
You can purchase the locking device from an electronics store or an online shop.
3-1 Product Features
-
An optical engine adopting new LCD technology
-
1024 x 768 panel has been adapted.
- Utilizes a 3P-LCD panel.
- SP-L301 : Provides a bright screen of 3000 lumen.
SP-L331 : Provides a bright screen of 3300 lumen. SP-L351 : Provides a bright screen of 3500 lumen. -
Compact size, lightweight, and portable.
-
Minimized fan noise
- Minimizes fan noise through optimized internal air flow and the fan installation structure.
- Multiple input terminals
- Increases the connectivity to peripheral devices such as D-Sub 15P (supporting DTV signal), S-Video, Video, HDMI, etc.
- Audio Output
- Includes stereo speakers on the right and left and a 5-band equalizer.
-
User adjustments
-
Allows adjustment of each input port.
-
Has a reference pattern you can use for positioning and adjustment.
-
Convenient Network Function
- The projector can be monitored and controlled from a PC using the network function.
| NAME DESCRIPTION | |
| 1.Indicators - STAND BY (Blue LED)- LAMP (Blue LED)- TEMP (Red LED)Refer to the LED Indications. | |
| 2. Move / Select /Volume < > Vol VOL button | ∧V <> / Use to move to or select an item within a menu.< > Vol VOL : Use to adjust the volume. |
| 3. MENU button Use to display the Menu Screen. | |
| 4. SOURCE button Use to select the external device signal. | |
| 5. ⏻ Button | Use to turn the projector on or off. |
| 6. Lens Use for Focus Adjustment. | |
| 7. Remote Control Signal Receiver | - |
| 8. Zoom Knob Use to enlarge or reduce image size. | |
| 9. Focus Ring Use for Focus Adjustment. | |
| 10. Lens cover - | |
-
POWER ( ) Button Use this button for turning the product on and off.
-
AUTO Button Adjusts the Picture automatically. (Available in
Mode Only) -
MENU ( ) Button Used to display the Menu Screen.
-
Move ( )W(▲) Buttons G Used to display the Menu Screen.
-
V. KEYSTONE Button ( )+- Use this when the screen is displayed in a trapezoid shape.
-
INSTALL Button Used to flip or reverse the projected image.
-
BLANK Button This is used to turn off the screen and sound temporarily. The video and audio will come back on when any button other than the [POWER] button is pressed.
-
P.SIZE Button Used to adjust the size of picture screen.
-
QUICK Button This is used to quickly return to the last menu used.
-
MUTE Button Press to mute the sound temporarily. Press the MUTE button again or the VOL button (when the sound is muted to hear sound again.
-
RETURN (Button Returns to the previous menu.
-
EXIT (*) Button Used to make the Menu Screen disappear.
-
VOL (→) Button Used to control the volume.
-
INFO Button Used to check source signals, picture setup, PC screen adjustment and lamp lifespan.
-
SOURCE Button Used to check or select the connection status of external devices.
-
P.MODE Button Used to select Picture Mode.
-
STILL Button Used to see still images.
Make sure to place your remote control on a table or desk. If you step on the remote control, you may fall and hurt yourself or damage the remote.
You can use the remote control up to a distance of about 23 feet (7 m) from the product.
LED Indications
●:Light is On Light is Blinking :Light is Off
| STAND BY LAMP TEMP STATUS | |||
| ● | ○ | ○ | If you press the [POWER] button on the remote control or projector, the screen appears within 30 seconds. |
| ● | ● | ○ | The projector is operating normally. |
| ● | ○ | ○ | The projector is preparing an operation after the [POWER] button on the projector or the remote control has been pressed. |
| ○ | ○ | ○ | The [POWER] button has been pressed to turn off the projector, and the cooling system is in operation to cool off the inside of the projector. (Operates for about 3 seconds.) |
| ○ | ○ | ○ | The cooling fan inside the projector is not operating normally. Refer to Action 1 in Clearing Indicator Problems below. |
| ○ | ○ | ○ | The lamp cover protecting the lamp unit is not closed properly. Refer to Action 2 in Clearing Indicator Problems below. |
| ● | ○ | ○ | The lens cover has not opened completely. Refer to Action 3 in Clearing Indicator Problems below. |
| ● | ● | ○ | The projector has changed to Cooling mode because its internal temperature has increased beyond the maintenance limit.Refer to Action 4 in Clearing Indicator Problems below. |
| ○ | ○ | ○ | The projector has turned itself off automatically because its internal temperature has increased beyond the maintenance limit. Refer to Action 5 in Clearing Indicator Problems below. |
| ○ | ○ | ○ | A problem has occurred with the operation of the lamp. Refer to Action 6 below. |
| ● | ○ | ● | The lifetime of the lamp has expired. Refer to Action 7. |
| ○ | ○ | ● | The power for the product is not operating normally. Contact a service center. |
Clearing Indicator Problems
| CLASSIFICATION | STATE MEASURES | |
| Action 1 | The cooling fan system is not operating normally. | If the symptom remains even after disconnecting and then reconnecting the power cord and turning the projector on again, contact your product provider or our service center. |
| Action 2 | The lamp cover protecting the lamp unit is not properly closed or the sensor system is not operating normally. | Check if the screws on the side of the projector are securely tightened. If they are and the indicators are still lit, contact your product distributor or a service center. |
| Action 3 | The lens cover has not opened completely. | Open the lens cover completely.If the lens cover does not open completely when the projector is operating, both the video and audio turn off automatically.If this status persists for ten minutes, the projector turns off automatically. |
| Action 4 | The projector has changed to Cooling mode because the internal temperature of the projector has increased beyond the maintenance limit. | If the internal temperature of the projector has increased beyond the maintenance limit, the projector changes to Cooling mode before turning off automatically.In Cooling mode, the fan speed is increased and the projector's lamp is changed tomode.Check whether the ventilation hole of the projector is blocked.Check the air filter and clean if blocked.Check whether the surrounding temperature of the projector is higher than the standard temperature range of the projector.Cool the projector sufficiently and operate it again. |
| Action 5 | The internal temperature of the projector has risen higher than the limit, and the projector has turned off automatically. | Check whether the ventilation hole of the projector is blocked.Check the air filter and clean if blocked.Check whether the surrounding temperature of the projector is higher than the standard temperature range of the projector.Cool the projector sufficiently and operate it again.If the same problem occurs continually, contact your product distributor or service center. |
| Action 6 | The lamp has malfunctioned after power turns off abnormally or after powering on right after turning off the projector. | Turn the power off, wait for a sufficient amount of cooling time and then turn the power on to operate. If the same problem occurs continually, contact your product distributor or service center. |
| Action 7 | When the screen becomes darker | Check the lamp usage time on the Information Display screen.If you need to replace the lamp, contact your product distributor or service center. |
This Projector uses a cooling fan system to keep the unit from overheating. Operation of the cooling fan may cause noise, This does not affect product performance and is part of normal operation.
The Screen Adjustment Menu (OSD: On Screen Display) Structure
| MENU SUB-MENU | |||||
| Input | Source List Edit Name | ||||
| Picture | Mode Size Position Digital NR Black Level | ||||
| Overscan Film Mode PC Zoom | |||||
| Setup | Install Lamp Mode Auto Keystone Keystone Background | ||||
| Test Pattern | Video Type | Caption | Network | Reset | |
| Option | Language | Menu Option | Sound | Filter Check Time | Auto Power On |
| Sleep Timer | Information | ||||
To access the Menu, press the Menu button on the product or on the remote. To move in the menu, press the arrow buttons. Menu selections with an arrow on the far right have sub-menus. Press the right arrow button to access the sub-menu. Directions for navigating and selecting items in a menu are at the bottom of each menu screen.
3-5-1. Input
| MENU | DESCRIPTION |
| Source List | You can select a device connected to the projector to display.·- |
| Edit Name | You can edit the names of devices connected to the projector.·- |
3-5-2. Picture
| MENU DESCRIPTION | |
| Mode | Select a screen state which is customized to your projector or change the screen mode as required.·: This picture mode is the most general mode and works well in most situations.·: This mode is suitable for presentations.·: This mode is suitable for text work.·: This mode is suitable for viewing a movie.·: This picture mode is optimized for playing games.The text in a still picture appears unnatural.: This mode is a customized mode created using the→function.Presentation and Text modes are only enabled if the input signal is a PC Timing (D-Sub/HDMI) signal.Each mode has separate controls for, , , , etc. When you access a mode and change (for example) the, you are changing the contrast for that mode only.: Used to adjust the contrast between the object and the background.: Used to adjust brightness of the entire picture.: Used to adjust the sharpness of the picture.When the input signal is PC Timing (D-Sub/HDMI), thecannot be adjusted.: Used to adjust color lighter or darker.When the input signal is PC Timing (D-Sub/HDMI), thecannot be adjusted.: Used to obtain more natural color of objects using Green or Red enhancement.When the input signal is PC Timing (D-Sub/HDMI) or PAL and SECAM in the [S-Video] or [AV] modes, thecannot be adjusted.: You can select the color temperature according to your preferences.Factory defaults: <9300K>, <8000K>, <6500K>, <5500K>You can select the color temperature for the items below according to your preferences., : Adjusts the color temperature of the White level., : Adjusts the color temperature of the Black level., : Adjusts the color temperature of the Black level.: Changes the brightness characteristic for each color tone of an image.: The larger (+) the value, the greater the contrast of the bright and dark parts.The smaller (-) the value, the darker the dark parts.Adjustable range: -3 to +3: You can save the status of a screen you adjusted according to your preferences using the→OSD.: Restores the mode settings to the factory defaults. |
| Size You can select a screen size according to the type of scene. | When the input signal is PC Timing (D-Sub/HDMI),/is not supported.-<Zoom1>-<Zoom2>-<16:9>- |
| Position Adjust the screen position if it is not aligned. | To adjust, select the direction you want to move the screen, and then press the arrow button pointing in that direction repeatedly. |
| Digital NR | When a dotted line is displayed or the screen shakes, you can view a better visual quality picture by enabling Noise Reduction.When the input signal is PC Timing (D-Sub/HDMI),does not operate. |
| Black Level | You can select the signal black level according to the input signal. If it is unsuitable for the input signal, the dark parts may look unclear or dim.Thecan only be set for the 480i and 576i RGB signals of [AV], [S-Video], and AV Timing (D-Sub) modes.For [AV], [S-Video], and the 480i and 576i signals of AV Timing (D-Sub).<0 IRE>: Sets the black level to <0 IRE>.<7.5 IRE>: Sets the black level to <7.5 IRE>.For the RGB signal ofmode.: Used in a normal environment.: Used when the dark part is shown too bright. |
| Overscan | Using this function, you can cut the edge of the picture when unnecessary information or images appear on the edge of the picture.This is not supported in [AV] and [S-Video] modes.This is supported only when the input signal is AV Timing (D-Sub) or AV Timing (HDMI).Ifis turned off, unnecessary extra parts at the edges of an image may be shown.In this case, turnon. |
| Film Mode Using this function, you can set the display mode so that it is optimized for playing movies.-:is only be supported for the [AV], [S-Video], 480i, and 576i of AV Timing (D-Sub) signals. | |
| PC | Eliminates or reduces noise that causes unstable screen quality, such as screen shaking. If the noise is not removed using Fine Adjustment, adjust the frequency to the maximum and then perform Fine Adjustment again.These functions are only enabled for the PC Timing (D-Sub/HDMI) input of the D-Sub terminal.Refer to PC Timing (D-Sub/HDMI): Used to adjust the frequency and phase of PC screen automatically.: Used to adjust the frequency when vertical lines appear on PC screen.: Used to fine tune the PC screen.: Using this function, you can reset the PC menu settings to the factory default settings. |
| Zoom Enlarges the PC | screen to 2X, 4X, or 8X.This function is only enabled when the input signal is PC Timing (D-Sub/HDMI). |
| MENU DESCRIPTION | |||
| Install | To tailor the picture to the installation location, you can invert the projected images vertically / horizontally.·: Normal Image·: Horizontal/Vertical Reversed Image·: Horizontally Reversed Image·: Vertically Reversed Image | ||
| Lamp Mode | Used to set the image brightness by adjusting the amount of light generated by the lamp.·: This mode is optimized for screens smaller than 100 inches.This mode decreases the lamp brightness and power consumption in order to extend the lamp lifetime and reduce noise and power consumption.·:This mode is te most general mode and works well in most situations.·: This mode maximizes the lamp brightness when the ambient illumination is bright. As the brightness of the lamp increases, the lamp lifetime can be reduced and noise and power consumption may increase. | ||
| Auto Keystone | If video scenes are distorted or tilted, you can compensate for this by setting thefunction toso that thefunction automatically starts.·:- | ||
| Keystone | If video scenes are distorted or tilted, you can compensate for this using the vertical/horizontal Keystone function.·: When the projector image is not displayed vertically on the screen, the image can be calibrated using thefunction.·:When the projector image is not displayed horizontally on the screen, the image can be calibrated using thefunction.The, which is a function for calibrating a skewed image, may degrade image quality when it is activated.The sound output of your projector is temporarily stopped while the keystone is being changed.Thefunction does not adjust the appearance of the On Screen Display (OSD). | ||
| Background | You can set thethe projector displays when there is no signal from the external device connected to the projector.When the projector receives a signal, theyou set disappears and the projector displays a normal screen.·:- | ||
| Test Pattern | Generated by the projector itself. Use to optimize the installation of the projector.·: You can check whether the picture is distorted or not.·: You can refer to picture format sizes such as 1.33 : 1 or 1.78 : 1. | ||
| Video Type | If the screen quality is abnormal as a result of the projector not identifying the input signal type automatically inormode, you can manually set the input signal.Inmode,is only enabled if the input signal is AV Timing (D-Sub). However, for a separate H/V sync.,is only enabled for the 1280 x 720p 59.94 Hz/60 Hz signals.Inmode,is only enabled for the 640x480p 59.94Hz/60 Hz and 1280x720p 59.94Hz/60 Hz signals.--<RGB(AV)>:-<YPbPr(AV)>:mode.-<PC>-:mode | ||
| Usage | Color,Sharpness,Tint | PC menu and zoom | |
| RGB(PC) | When connecting the RGB output of a PC to the D-Sub terminal | Disabled | |
| RGB(AV) | When connecting the RGB output of an AV device (STB, DVD, etc...) to the D-Sub terminal | Enabled | |
| YPbPr(AV) | When connecting the YPbPr output of an AV device (STB, DVD, etc...) to the D-Sub terminal | Enabled | |
| PC | When connecting a PC to the HDMI terminal | Disabled | |
| AV | When connecting an AV device (STB, DVD, etc...) to the HDMI terminal | Enabled | |
| Auto | Auto settings | - | |
| Caption | Thefunction is supported when the external analog signal (from either the Video or S-Video terminal) contains subtitles.Thefunction will not operate in(including components) ormode.Depending on the external signal, a change to the channel orsettings may be required.Eachandcontains different information.<2>carries additional information to supplement information contained in<(e.g. If English subtitles are provided on<1>, Spanish subtitles will be provided on<2).)-:::-<2>-:<-2> | ||
| Network | By connecting a LAN cable between the PC and projector, you can use the following supplementary functions.On your PC, you can check the projector's conditions (lifespan of the lamp, operation error, temperature) and remotely control the projector's power On/Off, brightness, and sound On/Off .•: -•: Automatically allots the IP address, Subnet mask and Gateway.: Allows you to manually enter the IP address, Subnet mask and Gateway manually.: Allows you to enter the server PC's IP address.Remote Control : Navigate between options usingbuttons.Input the values using /▲▼ buttons.To use the network function,must be set to.If the network connection fails, enter the IP address of the server PC under. | ||
| Reset Using this function, you can reset various settings to the factory default settings.•: Changes the settings to the factory defaults.•: Resets the filter time. | |||
3-5-4. Option
| MENU DESCRIPTION | |
| Language You can select the language used for the menu screen. | |
| Menu Option: You can move Menu Position up/down/left/right.·: You can set the translucency of the menu.-:You can set the display time of the menu.-:You can set the display time of the menu.-<5 sec>-<10 sec>-<30 sec>-<60 sec>-<90 sec>-<120 sec>- | : You can move Menu Position up/down/left/right.·: You can set the translucency of the menu.-:You can set the display time of the menu.-<5 sec>-<10 sec>-<30 sec>-<60 sec>-<90 sec>-<120 sec>- |
| SoundFilter Check Time Sets the check period for the filter. (Unit: hour)•-<100>-<200>-<400>-<800>If the filter usage time is larger than the filter check period, the filter check message is displayed for a minute whenever the projector is turned on.< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off>< Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off>< Off>< Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off>< Off></ Off>< Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off>< Off>< Off>< Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off>< Off>< Off>< Off>< Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off>< Off>< Off>< Off></ Off>< Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off>< Off>< Off></ Off>< Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off>< Off>< Off>< Off>< Off>< Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off>< Off>< Off>< Off>< Off>< Off>< Off></ Off>< Off></ Off>< Off></ Off>< Off></ Off>< Off></ Off>< Off></ Off>< Off></ Off>< Off></ Off>< Off></ Off>< Off></ Off>< Off></ Off>< Off></ Off>< Off></ Off>< Off></ Off>< Off></ Off>< Off></ Off>< Off></ Off>< Off></ Off>< Off></ Off>< Off></ Off>< Off></ Off>< Off></ Off>< Off></ Off>< Off></ Off>< Off></ Off>< Off>< Off>< Off>< Off>< Off></ Off>< Off></ Off>< Off></ Off>< Off></ Off>< Off></ Off>< Off></ Off>< Off></ Off>< Off></ Off>< Off></ Off>< Off></ Off>< Off></ Off>< Off></ Off>< Off></ Off>< Off></ Off>< Off></ Off>< Off></ Off>< Off></ Off>< Off></ Off>< Off></ Off>< Off></ Off>< Off></ Off>< Off></ Off>< Off>< Off>< Off>< Off>< Off>< Off></ Off>< Off></ Off>< Off></ Off>< Off></ Off>< Off></ Off>< Off></ Off>< Off></ Off>< Off></ Off>< Off></ Off>< Off></ Off>< Off></ Off>< Off></ Off>< Off></ Off>< Off></ Off>< Off></ Off>< Off></ Off>< Off></ Off>< Off></ Off>< Off></ Off>< Off></ Off>< Off></ Off>< Off>< Off>< Off>< Off>< Off>< Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off></ Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off >< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off>< Off]{Off}{Off}{Off}{Off}{Off}{Off}{Off}{Off}{Off}{Off}{Off}{Off}{Off}{Off}{Off}{Off}{Off}{Off}{Off}{Off}{Off}{Off}{Off}{Off}{Off}{Off}{Off}{Off}{Off}{Off}{Off}{Off}{Off}{Off}{Off}{Off}{Off}{Off}{Off}{Off}{Off}{Off}{Off}{Off}{Off}{Off}{Off}{Off}{Off}{Off}{Off}<|content_end|> | Adjusts the right and left audio balance and equalizer of the 3W stereo speaker embedded in the projector.-<100Hz>-<300Hz>-<1kHz>-<3kHz>-<10kHz> |
3-6-1. Management using the Web Browser
The Web Browser lets you monitor and control one projector from a PC without installing any software. Before you can use the Web Browser, you must connect your projector to your local area network. For directions explaining how to connect to a network, see section 2-20, Connecting to a Network.
To control multiple projectors from a single PC, install and run Samsung Projector Manager.
For information about Samsung Projector Manager, go to 3-6-2.
Check the network connection between the PC and projector before connecting the Web Browser. If the network connection (see section 2-20, Connecting to a Network) has failed, the Web browser window may not be available for use.
• To use the Web Browser, your PC must meet the following minimum system requirement :
: More than 10MB
•capacity: More than 10MB
• Display resolution: More than 640 x 480
• Supported OS : Microsoft Windows XP, Windows Vista
- Web browser : Microsoft Internet Explorer 6 or later version, Netscape Navigator 9 or later version, Mozilla Firefox 3.0.x or later version, Google Chrome.
1. Connecting
- Enter the projector's IP address into the web browser address bar.
You can see the projector's IP address by pressing the Menu button and selecting Setup>Network>IP Setting.
- The Network Projector window appears. For information about control items in the Network Projector window, refer to the items under Section 3-5, Using the Screen Adjustment Menu.
- Some functions listed in 'Using the Screen Adjustment Menu' cannot be used in the web browser because of limitations in remote control by the network.
3-6-2. Projector Management using PC Software
You can monitor and control more than one projector using Samsung Projector Manager.
• To use Samsung Projector Manager, your PC must meet the following minimum system requirement :
-
: More than 10MB
•capacity: More than 10MB
• Display resolution: More than 640 x 480
• Supported OS : Microsoft Windows XP, Windows Vista -
Installing the Samsung Projector Manager
-
Click 'Samsung Projector Manager' on the CD supplied.
-
Install according to the instructions displayed on the PC screen.
-
Running the Samsung Projector Manager
When the installation of Samsung Projector Manager and the network setup for the projector have been completed, the Samsung Projector Manager will be available for use.
- Click Start > Samsung Projector > Samsung Projector Manager
- The
-
Using the Samsung Projector Manager
-
Projector Grouping and Registering
- To browse projectors connected to the PC automatically, press Tool > Auto Search
• To group or directly register the projectors, select List>Projector, right-click over Network Projector under Projector List. and then
select Add Projector.
![Add Projector Projector Name : Projector 1 IP Address : 192 . 168 . 0 . 100 Subnet Mask : 255 . 255 . 255 . 0 Gateway : 192 . 168 . 0 . 1] Group Name : Default Group ADD Exit](/content/2026/08/1622718/images/5384ed9b89f0f36fddcdf6461c4a9c3bf7088f6999b96045db5f45c02cc407a5.jpg)
- Specify the Projector Name, IP Address and Group Name to register and then press ADD.
Any group whose name is not specified will automatically be named 'Default Group.' To remove and / or rename a registered projector, right-click and then select Delete and / or Rename respectively.
If a projector is not displayed on the Projector List after registration, check if the network connection (see section 2-20, Connecting to a Network) and the network settings (see 3-5-3, Setup >Network) are properly configured.
To save or load the registered projector's information, select File → Export Config/Import Config.
- Projector Management
- You can check a projector's lamp condition, temperature, operation, errors, etc in real time.
1: You can view a projector's Name, IP Address, Group, Power On/Off status, LAMP lifespan, operation errors (represented by icons), etc in real time.
Samsung Projector Manager displays icons that indicate a projector's status. The icons are listed in the tables below. If the icons indicate a problem with your projector, see Clearing Indicator Problems in section 3-4, LED Indications.
- Warning and Error status icons
| ICONS STATUS STATE MEASURES | |||
 | Warning The lens cover has not opened completely. | Refer to Action 3 in Clearing Indication Problem. | |
 | Error | The lamp cover protecting the lamp unit is not properly closed. | Refer to Action 2 in Clearing Indication Problem. |
 | Error The lamp is not operating normally. | Refer to Action 6 in Clearing Indication Problem. | |
 | Error The lamp has reached the end of its life. The lamp needs to be replaced. | ||
 | Error The cooling fan 1 is not operating normally. | Refer to Action 1 in Clearing Indication Problem. | |
 | Error The cooling fan 2 is not operating normally. | ||
 | Error The cooling fan 3 is not operating normally. | ||
 | Error The cooling fan 4 is not operating normally. | ||
 | Error The cooling fan 5 is not operating normally. | ||
 | Error The cooling fan 6 is not operating normally. | ||
 | Warning | The internal temperature of the projector has risen higher than the limit. | Refer to Action 5 in Clearing Indication Problem. |
 | Error | The internal temperature of the projector has risen higher than the limit. | Refer to Action 5 in Clearing Indication Problem. |
 | Error | The internal temperature of the projector has risen higher than the limit. | Refer to Action 5 in Clearing Indication Problem. |
 | Warning | The air filter has reached the end of its life. | The air filter needs to be replaced. |
 | Warning The air filter has been blocked by dust. The air filter needs to be cleaned. | ||
 | Error The air filter has been blocked by dust. The air filter needs to be cleaned. | ||
Temperature level status icons
| ICONS STATUS STATE MEASURES | |||
 | Temperature status | The projector's internal temperature is normal.(standby mode) | It's normal. |
 | Temperature status | The projector's internal temperature is normal.(low) | It's normal. |
 | Temperature status | The projector's internal temperature is normal.(medium) | It's normal. |
 | Temperature status | The projector's internal temperature is normal.(little bit high) | It's normal. |
 | Temperature status | The projector's internal temperature is higher than the limit. | Refer to Action 4 in Clearing Indi-cator Problem. |
 | Temperature status | The projector's internal temperature is too high. The projector is turned off automatically. | Refer to Action 5 in Clearing Indi-cator Problem. |
- Managing the Projectors
1 : Using the icons in the Projector List (only applicable to 'V'-marked projectors in the monitoring window)
(Refresh):
Updates
the
status of a projector.
However, if products do not provide Media Play, MP source is not available.
2: Connecting the Web browser from Samsung Projector Manager
By connecting the Web Browser in Samsung Projector Manager, you can use more diverse functions. To perform the Web browser connection, select a Projector to connect to, and then right-click to select "Web browser."
If the Web browser connection fails, check whether the network connection (see section 2-20, Connecting to a Network) and network settings (see 3-5-3, Setup > Network) are correctly configured.
Operating one projector using both Samsung Projector Manager and the Web browser at the same time may cause a slowdown in PC operation or an error.
• Using the Schedule function
Using the Schedule function, you can manage your projectors more efficiently.
If you select List>Schedule, the following window appears.
The screen has four buttons:
- New : Creates a projector to make a Schedule for.
- Delete : Deletes the Schedule for a selected projector.
- Delete All : Deletes the Schedule for all of the projectors.
- Edit : Edits the Schedule for a selected projector.
- Registering a New Schedule
To register a new schedule, follow these steps:
- Press the New button. The New Schedule screen appears.
-
Select the projectors to apply the new schedule to from the Select Projectors field. When you select a projector, a check mark appears in the check box to its left.
-
Set the new schedule Title, Repeat, Time, and Work, and enter a Description of the Schedule. Explanations for each of these terms is below.
-Title : Sets the name of a Schedule
-Repeat : Sets the schedule repetition (Once- Executes only once, Every - Specifies a repetition date)
-Time : Determines the time at which a schedule will be executed
-Work : Sets Source switch or Power On/Off
-Description : Shows a detailed description of a Schedule
- After you have entered all the information, press ADD.
You can view the registration history of a Schedule. You can also view the status of a Schedule. The Status codes are below:
-Complete: Schedule complete.
-Waiting: Schedule still awaiting execution.
-Running: Repetitive schedule is running.
• To save or load the registered schedule, select File → Export Config/Import Config.
- If you want to operate a Schedule loaded by Import Config, load projector's information in advance.
- Other settings
The Tools selection in the Menu Bar contains two menu items, Configure monitor items and Option.
- Configure monitor items
Configure monitor items lets you select an item to be displayed in the monitoring window display. After you select the item, you set the display priority of the item by moving it up or down in the list of item you have selected for display.
- Options
Automatically Run—When a PC is turned on, Samsung Projector Manager will be turned on automatically. Minimize to system tray – Samsung Projector Manager will be minimized to system tray.
File contains two selections.
- File> Export Config : Saves all of the configured settings under Samsung Projector Manager in the desired file names to the corresponding folders.
- File> Import Config : Imports a saved Configuration file. Sets the Samsung Projector Manager to the saved settings.
4-1 Before Requesting Service
Please check the following before requesting After-Sales service. If the problem continues, please contact your nearest Samsung Electronics Service Center.
| Symptoms Troubleshooting | ||
| Installation and Connection | No Power. Check the power cable connections. | |
| I want to install my projector on the ceiling. | The ceiling installation support is sold separately. Contact your local product distributor. | |
| Can't select an External Source. Be sure that the video connection cable or cables are properly-connected to the proper port. If the device is not connected properly, it can not be selected. | ||
| Menu and Remote Control | Remote control does not work. Be sure that the proper external source is selected.Check the battery in the remote. If there is something wrong with it, replace it with a new battery of the recommended size.Be sure to aim the remote at sensor on the back of the unit and at a distance of no more than approximately 23 feet(7 m).Remove any obstacles between your remote control and the product.Direct light from 3-way light bulbs or other lighting devices on the remote sensor of the projector may affect its sensitivity and cause the remote control to malfunction.Check if the remote control battery compartment is empty.Check whether the LED indicator on the top of the projector is turned on. | |
| I cannot select a menu. Check if the menu is displayed in gray. A gray-colored menu is unavailable. | ||
| Screen and External Source | Cannot see picture images. Be sure that the power cord of the projector is connected.Be sure that the proper input source is selected.Check that the connectors are properly connected to the ports at the back of the projector.Check the Remote Control batteries.Be sure that theandsettings are not at their lower limit. | |
| Poor color. Adjust theand. | ||
| Images are not clear. Adjust the focus. | Check if the projector is too far from or too near to the screen. | |
| Strange noise. If a strange sound continues, contact our service center. | ||
| The operating LED is lit up. Refer to Corrective | Actions According to LED Indications(3-4). | |
| Lines appear on screen. On screen noise may occur when using your PC. Adjust the frequency (refresh rate) of the screen. | ||
| No external device screen is displayed. Check the operating status for the external device and check whether the adjustment items, such as theand thehave been changed correctly in thecommand screen of the Projector menu. | ||
| Only a blue screen appears. Be sure to connect the external devices properly. Check the connection cables again. | ||
| Screen appears in black and white or odd color or screen is too dark or bright. | As mentioned above, check the adjustment items such as, orin the menu.If you want to restore various settings to their factory defaults, runfrom the menu. | |
| Network | The Web browser will not start up. | Check the system requirements for the PC to connect to the Web browser. |
| The Web browser will not connect to the projector. | 1. Check whether the power cable is connected to the projector (See Section 2-11, Connecting the Power)2. Check if the network environments for the PC and projector are correct (See Section 2-20, Connecting to a Network)3. Check whether the correct network card to be used for the PC has been selected when the PC (server) has more than two network cards. | |
| Installation of Samsung Projector Manager has failed. | Check Samsung Projector Manager's system requirements for PCs. | |
| The projector will not connect to Samsung Projector Manager. | 1. Check if theand network connection between the PC and projector are correct.2. Iffor the projector is set to, check whether the PC and projector share the same network. If it is not the same network, configure the IP of the server PC using theoption.3. Check if the projector access is blocked by the PC's Windows firewall.4. If Samsung Projector Manager connection's failure persists, remove and retry installation. | |
| I want to remove Samsung Projector Manager. | Samsung Projector Manager can be removed using the [Add or Remove Programs] option. To remove Samsung Projector Manager,follow these steps:1. Select [Control Panel] from the [Start] menu. (Windows XP)2. Run [Add or Remove Programs]3. Select Samsung Projector Manager under [Add or Remove Programs] and click [Change/Remove].4. Select "Yes" to start the removal.5. Follow additional directions as they appear on your screen. | |
5-1 Specifications
| MODEL SP-L301 SP-L331 SP-L351 | ||||
| Panel Size 0.63 | 3P LCD 0.63" 3P LCD with MLA | |||
| Resolution XGA (1024 x 768) | ||||
| Aspect ratio 4:3 | ||||
| Power Power C | Consumption 290 W (Standby : under 1W) | |||
| Voltage | 100~240V AC, 50/60Hz | |||
| Lamp | Power Consumption 220W (Normal : 200W, Eco : 152W) | |||
| Life Time | 2,000 Hours (Eco : 2,500 Hours) | |||
| Dimension | 291 x 289 x 127 mm / 11.5 x 11.4 x 5 inches | |||
| Weight | 3.8 Kg / 8.4 lbs | |||
| Key Features | Brightness | 3,000 ANSI | 3,300 ANSI | 3,500 ANSI |
| Contrast | 500 :1 | 400 :1 | 400 :1 | |
| Screen Size (Diagonal) | Diagonal 40 inches ~ 300 inches | |||
| Projection Range | 1 m ~ 10 m / 39.4 inches ~ 393.7 inches | |||
| Keystone | Auto : Vertical(±30°) / Manual: Vertical (±30°), Horizontal (±30°) | |||
| Network | RJ 45 | |||
| Zoom Adjustment | Manual | |||
| Focus Adjustment | Manual | |||
| Lens | F=1.65~1.93, f=18.5mm~22.5mm | |||
| Zoom Ratio | 1:1.2 | |||
| Input signal | D-Sub 15p | Analog RGB, analog YPbPr | ||
| HDMI Digital RGB, digital YCbCr | ||||
| Mini DIN x 1 | S-Video | |||
| RCA x 1 | Composite video | |||
| Speaker | 3W x 2 (Stereo) | |||
| User Environment | Temperature and Humidity | Operating : Temperature 41 °F ~ 95 °F (5 °C ~ 35 °C), Humidity 20 % ~ 80 % (Non-condensing) | ||
| Storage : Temperature -14 °F~140 °F (-10 °C ~ 60 °C), Humidity 10 % ~ 90 % (Non-condensing) | ||||
| Noise | Eco : 30dB, Normal : 32dB, Bright : 35dB | |||
This Class B equipment is designed for home and office use. The equipment has been registered regarding EMI for residential use. It may be used in all areas. Class A is for office use. Class A is for business while class B emits less electromagnetic waves than class A.
The LCD panel used in the LCD projector consists of hundreds of thousands of fine pixels. Like other video display devices, the LCD panel may contain bad pixels which do not operate. When shipping a product, the conditions for identifying bad pixels and the number of bad pixels that a LCD panel is allowed to contain are strictly managed in accordance with the relevant specified standards by the LCD panel manufacturer and our company. Though a screen may have some dead pixels, this does not affect the overall screen quality and the lifetime of the product.
Communication Format (Complies with the RS232C Standard)
- Baud rate : 9,600 bps
- parity : None
• Data bits : 8, stop bit : 1 - Flow Control : None
Serial Communication Protocol
1. Command Packet Structure [7bytes]
| 0x08 0x22 cmd1 | cmd2 cmd3 value | CS |
- A command packet consists of 7 bytes in total.
- The two bytes 0x08 and 0x22 signify that the packet is for serial communication.
- The following 4 bytes represent a pre-defined command that can be defined by the user.
- The last byte is the checksum which checks the validity of the current packet.
- Header [2 Byte]: Pre-defined values fixed to 0x08 and 0x22.
- Cmd1 [1 Byte]: The first value of the code defined in the command list (Hexadecimal)
- Cmd2 [1 Byte]: The second value of the code defined in the command list (Hexadecimal)
- Cmd3 [1 Byte]: The third value of the code defined in the command list (Hexadecimal)
- Value [1 Byte]: Input parameter for the command (Default: 0) (Decimal)
- CS [1 Byte]: Checksum (the 2's complement of the sum of all the values except for the CS value.)
2. Response Packet Structure [3 Bytes]
1. Success
| 0x03 0x0C 0xF1 |
2. Fail
| 0x03 0x0C 0xFF |
- When the received packet from an external device has a valid value, a Success packet is sent. Otherwise, a Fail packet is sent.
-
A Fail packet is sent if:
-
The received packet length is not equal to 7 bytes.
- The 2 byte packet header value is not equal to 0x08, 0x22.
• The check sum is incorrect.
- Failure detection by an external device
- An external device classifies the packet as Fail if it does not receive a Success packet within 100ms.
Command Table
| CONTROL ITEM CMD1 CMD2 CMD3 VALUE | |||||||
| General Power | Power Display | OSD | / Power On | 0x00 0x00 0x00 0 | |||
| OK | 1 | ||||||
| Cancel 2 | |||||||
| Direct Power Off | 3 | ||||||
| Volume Direct | 0x01 0x00 0x00 | (0~100) | |||||
| Continuous Up | 0x01 0 | ||||||
| Down 0x02 0 | |||||||
| Mute On 0x02 | 0x00 0x00 0 | ||||||
| Off 1 | |||||||
| Blank | On 0x03 0x00 | 0x00 0 | |||||
| Off 1 | |||||||
| Still | On 0x04 0x00 | 0x00 0 | |||||
| Off 1 | |||||||
| Input | Source List | AV | AV | 0x0A | 0x00 | 0x01 | 0 |
| S-Video S-Video | 0x02 0 | ||||||
| PC | PC | 0x03 0 | |||||
| HDMI | HDMI 0x04 0 | ||||||
| CONTROL ITEM | CMD1 | CMD2 | CMD3 | VALUE | |||
| Picture Mode | Standard 0x0B 0x00 0x00 0 | ||||||
| Presentation 1 | |||||||
| Text 2 | |||||||
| Movie 3 | |||||||
| Game 4 | |||||||
| User 5 | |||||||
| Contrast 0~100 | 0X02 0x00 (0~100) | ||||||
| Brightness 0~100 | 0X03 0x00 (0~100) | ||||||
| Sharpness 0~100 | 0X04 0x00 (0~100) | ||||||
| Color | 0~100 0X05 0x00 (0~100) | ||||||
| Tint (G/R) | G50 / R50 | 0x06 0x00 (0~100) | |||||
| Color Temperature | 9300K | 0x0A 0x00 1 | |||||
| 8000K | 2 | ||||||
| 6500K | 3 | ||||||
| 5500K | 4 | ||||||
| WB | R offset | 0x0B 0x00 (0~100) | |||||
| G offset | 0x01 (0~100) | ||||||
| B offset | 0x02 (0~100) | ||||||
| R gain | 0x03 (0~100) | ||||||
| G gain | 0x04 (0~100) | ||||||
| B gain | 0x05 (0~100) | ||||||
| Picture Gamma | -3~3 0x0B 0x0 | C 0x00 (0~6) | |||||
| Save Display | OSD 0x0D 0x00 | 0 | |||||
| OK | 1 | ||||||
| Cancel 2 | |||||||
| Direct Save 3 | |||||||
| Reset 0x0E 0x0 | 00 0 | ||||||
| Size Normal 0x | 0F 0x00 0 | ||||||
| Zoom1 1 | |||||||
| Zoom2 2 | |||||||
| 16:9 | 3 | ||||||
| Custom | 4 | ||||||
| Custom | Top | Decrease | 0x04 0 | 0x01 0 | |||
| Increase | 1 | ||||||
| Bottom | Decrease | 0x02 0 | |||||
| Increase | 1 | ||||||
| Left | Decrease | 0x03 0 | |||||
| Increase | 1 | ||||||
| Right Decrease | |||||||
| Increase | 1 | ||||||
| Digital NR | Off | 0x10 0x00 0 | |||||
| On | 1 | ||||||
| Black Level | 0 IRE/NOR-MAL | 0x11 0x00 0 | |||||
| 7.5 IRE/LOW | 1 | ||||||
| Overscan | Off | 0x12 0x00 0 | |||||
| On | 1 | ||||||
| Film Mode | Off | 0x13 0x00 0 | |||||
| On | 1 | ||||||
| PC | Auto adjustment | 0x14 0x00 0 | |||||
| Coarse | UP | 0x15 0x00 0 | |||||
| DOWN | 1 | ||||||
| fine | Up | 0x16 0x00 0 | |||||
| DOWN | 1 | ||||||
| Reset | Display OSD | 0x17 0x00 0 | |||||
| OK | 1 | ||||||
| Cancel | 2 | ||||||
| Direct Reset | 3 | ||||||
| Picture Zoom x1 0x0B 0x18 0x00 0 | 00 0 | ||||||
| x2 | 1 | ||||||
| x4 | 2 | ||||||
| x8 | 3 | ||||||
| LEFT 0x19 0x00 0 | |||||||
| RIGHT 1 | |||||||
| Up | 2 | ||||||
| Down 3 | |||||||
| Horizontal Position | Continuous LE | FT 0x0B 0x1A 0x00 0 | |||||
| RIGHT 1 | |||||||
| Vertical Position | Continuous DO | WN 0x1B 0x00 0 | |||||
| Up | 1 | ||||||
| CONTROL ITEM | CMD1 | CMD2 | CMD3 | VALUE | ||||
| Setup install F-F | 0x0C 0x00 0x00 0 | |||||||
| F-C 1 | ||||||||
| R-F 2 | ||||||||
| R-C 3 | ||||||||
| Lamp Mode ECO | 0x01 0x00 0 | |||||||
| Normal 1 | ||||||||
| Bright 2 | ||||||||
| Keystone V-Keystone -50~50 0x02 | 0x00 (0~100) | 0x01 | ||||||
| (0~100) | ||||||||
| 0x02 | 0 | |||||||
| 1 | ||||||||
| Background | Logo | 0x03 0x00 0 | ||||||
| Blue | 1 | |||||||
| Black | 2 | |||||||
| Test Pattern | Crosshatch | 0x04 0x00 0 | ||||||
| Screen size | 1 | |||||||
| Pattern Off | 2 | |||||||
| Video Type | Auto | 0x05 0x00 0 | ||||||
| RGB(PC) | 1 | |||||||
| RGB(AV) | 2 | |||||||
| YCbCr(AV) | 3 | |||||||
| PC | 4 | |||||||
| AV | 5 | |||||||
| Reset Factory | Default | Display OSD | 0x06 0x00 0 | |||||
| OK | 1 | |||||||
| Cancel | 2 | |||||||
| Direct Fac-tory Reset | 3 | |||||||
| Reset Filter Time | Display OSD | 0x01 0 | ||||||
| OK | 1 | |||||||
| Cancel | 2 | |||||||
| Direct Reset Filter Time | 3 | |||||||
| Caption | Caption | Off | 0x07 0x00 0 | |||||
| On | 1 | |||||||
| Mode | Caption | 0x01 0 | ||||||
| Text | 1 | |||||||
| Channel | 1 | 0x02 0 | ||||||
| 2 | 1 | |||||||
| Field 1 | 0x03 0 | |||||||
| 2 | 1 | |||||||
| Setup Network | Network Off 0x0 | 0x01 0x00 0 | 0x00 0~255 | |||||
| On | 1 | |||||||
| IP Setting Automatic 0x02 0x00 0 | ||||||||
| Manual 1 | ||||||||
| IP Address 0x03 0x00 0~255 | ||||||||
| 0x01 0~255 | ||||||||
| 0x02 0~255 | ||||||||
| 0x03 0~255 | ||||||||
| Subnet Mask 0x04 0x00 0~255 | ||||||||
| 0x01 0~255 | ||||||||
| 0x02 0~255 | ||||||||
| 0x03 0~255 | ||||||||
| Gateway 0x05 0x00 0~255 | ||||||||
| 0x01 0~255 | ||||||||
| 0x02 0~255 | ||||||||
| 0x03 0~255 | ||||||||
| Server IP Setting | Server IP 0x06 0x00 0~255 | |||||||
| 0x01 0~255 | ||||||||
| 0x02 0~255 | ||||||||
| 0x03 0~255 | ||||||||
| Option Language English 0x0D | 0x00 0x00 0 | |||||||
| Deutsch 1 | ||||||||
| Nederlands 2 | ||||||||
| Español 3 | ||||||||
| Français 4 | ||||||||
| Italiano 5 | ||||||||
| Svenska 6 | ||||||||
| Português 7 | ||||||||
| Русский 8 | ||||||||
| 中国语 | 9 | |||||||
| 한국어 | 10 | |||||||
| Türkçe 11 | ||||||||
| ไทย 12 | ||||||||
| Menu Option Position LEFT | 0x01 0x00 0 | |||||||
| RIGHT | 1 | |||||||
| UP | 2 | |||||||
| DOWN | 3 | |||||||
| Transparency | High | 0x02 0x00 0 | ||||||
| Medium | 1 | |||||||
| Low | 2 | |||||||
| Opaque | 3 | |||||||
| Display Time | 5 sec | 0x03 0x00 0 | ||||||
| 10 sec | 1 | |||||||
| 30 sec | 2 | |||||||
| 60 sec | 3 | |||||||
| 90 sec | 4 | |||||||
| 120 sec | 5 | |||||||
| Stay On | 6 | |||||||
| Option SOUND | Balance Up 0x0 | 0D 0x04 0x00 0 | ||||||
| Down 1 | ||||||||
| 100Hz Up 0x01 | 0 | |||||||
| Down 1 | ||||||||
| 300Hz Up 0x02 | 0 | |||||||
| Down 1 | ||||||||
| 1KHz Up 0x03 | 0 | |||||||
| Down 1 | ||||||||
| 3KHz Up 0x04 | 0 | |||||||
| Down 1 | ||||||||
| 10KHz Up 0x05 | 0 | |||||||
| Down 1 | ||||||||
| Filter Check Time | off 0x05 0x00 0 | |||||||
| 100 1 | ||||||||
| 200 2 | ||||||||
| 400 3 | ||||||||
| 800 4 | ||||||||
| Auto Power ON | OFF 0x06 0x00 0 | |||||||
| ON | 1 | |||||||
| Sleep Timer OFF | FF 0x07 0x00 0 | |||||||
| 10 min | 1 | |||||||
| 20 min | 2 | |||||||
| 30 min | 3 | |||||||
| Information | 0x08 0x00 0 | |||||||
- If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.
| NORTH AMERICA | ||
| U.S.A 1-800-SAMSUNG(726-7864) http://www.samsung.com/us | ||
| CANADA 1-800-SAMSUNG(726-7864) http://www.samsung.com/ca | ||
| MEXICO 01-800-SAMSUNG(726-7864) http://www.samsung.com/mx | ||
| LATIN AMERICA | ||
| ARGENTINA 0800-333-3733 http://www.samsung.com/ar | ||
| BRAZIL 0800-124-421 | 4004-0000 | http://www.samsung.com/br |
| CHILE 800-SAMSUNG(726-7864) http://www.samsung.com/cl | ||
| COLOMBIA 01-8000112112 http://www.samsung.com/co | ||
| COSTA RICA 0-800-507-7267 | http://www.samsung.com/latin | |
| ECUADOR | 1-800-10-7267 | http://www.samsung.com/latin |
| EL SALVADOR | 800-6225 | http://www.samsung.com/latin |
| GUATEMALA | 1-800-299-0013 | http://www.samsung.com/latin |
| HONDURAS | 800-7919267 | http://www.samsung.com/latin |
| JAMAICA | 1-800-234-7267 | http://www.samsung.com/latin |
| NICARAGUA | 00-1800-5077267 | http://www.samsung.com/latin |
| PANAMA | 800-7267 | http://www.samsung.com/latin |
| PUERTO RICO | 1-800-682-3180 | http://www.samsung.com/latin |
| REP. DOMINICA | 1-800-751-2676 | http://www.samsung.com/latin |
| TRINIDAD & TOBAGO | 1-800-SAMSUNG(726-7864) | http://www.samsung.com/latin |
| VENEZUELA | 0-800-100-5303 | http://www.samsung.com/latin |
| EUROPE | ||
| AUSTRIA | 0810 - SAMSUNG(7267864,€ 0.07/min) | http://www.samsung.com/at |
| BELGIUM | 02 201 2418 | http://www.samsung.com/be (Dutch)http://www.samsung.com/be_fr(French) |
| CZECH REPUBLIC | 800 - SAMSUNG (800-726786) | http://www.samsung.com/cz |
| Distributor pro Českou republiku:Samsung Zrt., Česká organizační složka, Oasis Florenc, Sokolov ská394/17, 180 00, Praha 8 | ||
| DENMARK | 8 - SAMSUNG (7267864) | http://www.samsung.com/dk |
| EIRE | 0818 717 100 | http://www.samsung.com/ie |
| FINLAND | 30 - 6227 515 | http://www.samsung.com/fi |
| FRANCE | 01 4863 0000 | http://www.samsung.com/fr |
| EUROPE | ||
| GERMANY 01805 - SAMSUNG (7267864) | € 0.14/Min) | http://www.samsung.de |
| HUNGARY 06-80-SAMSUNG(726-7864) | http://www.samsung.com/hu | |
| ITALIA 800-SAMSUNG(726-7864) http://www.samsung.com/it | ||
| LUXEMBURG 02 261 03 710 http://www.samsung.com/lu | ||
| NETHERLANDS 0900 - SAMSUNG (0900-7267864) (€ 0,10/Min) | http://www.samsung.com/nl | |
| NORWAY 3 - SAMSUNG (7267864) http://www.samsung.com/no | ||
| POLAND 0 801 1SAMSUNG (172678) | 022 - 607 - 93 - 33 | http://www.samsung.com/pl |
| PORTUGAL 808 20 - SAMSUNG (7267864) http://www.samsung.com/pt | ||
| SLOVAKIA | 0800-SAMSUNG(726-7864) | http://www.samsung.com/sk |
| SPAIN | 902 - 1 - SAMSUNG (902 172 678) | http://www.samsung.com/es |
| SWEDEN | 0771 726 7864 (SAMSUNG) | http://www.samsung.com/se |
| SWITZERLAND | 0848-SAMSUNG(7267864, CHF 0.08/min) | http://www.samsung.com/ch |
| U.K | 0845 SAMSUNG (7267864) | http://www.samsung.com/uk |
| CIS | ||
| BELARUS | 810-800-500-55-500 | |
| ESTONIA | 800-7267 http://www.samsung.com/ee | |
| LATVIA | 8000-7267 http://www.samsung.com/lv | |
| LITHUANIA | 8-800-77777 | http://www.samsung.com/lt |
| MOLDOVA 00-800-500-55-500 | ||
| KAZAKHSTAN | 8-10-800-500-55-500 | http://www.samsung.com/kz_ru |
| KYRGYZSTAN | 00-800-500-55-500 | |
| RUSSIA | 8-800-555-55-55 | http://www.samsung.ru |
| TADJIKISTAN | 8-10-800-500-55-500 | |
| UKRAINE | 8-800-502-0000 | http://www.samsung.com/uahttp://www.samsung.com/ua_ru |
| UZBEKISTAN | 8-10-800-500-55-500 | http://www.samsung.com/kz_ru |
| ASIA PACIFIC | ||
| AUSTRALIA | 1300 362 603 http://www.samsung.com/au | |
| CHINA | 400-810-5858010-6475 1880 | http://www.samsung.com/cn |
| HONG KONG | 3698 - 4698 | http://www.samsung.com/hkhttp://www.samsung.com/hk_en/ |
| INDIA | 3030 82821-800-3000-82821800 110011 | http://www.samsung.com/in |
| ASIA PACIFIC | ||
| INDONESIA 0800-112-8888 http://www.samsung.com/id | ||
| JAPAN 0120-327-527 http://www.samsung.com/jp | ||
| MALAYSIA 1800-88-9999 http://www.samsung.com/my | ||
| NEW ZEALAND 0800 SAMSUNG (0800 726 786) http://www.samsung.com/nz | ||
| PHILIPPINES 1-800-10-SAMSUNG(726-7864)1-800-3-SAMSUNG(726-7864)1-800-8-SAMSUNG(726-7864)02-5805777 | http://www.samsung.com/ph | |
| SINGAPORE 1800-SAMSUNG(726-7864) http://www.samsung.com/sg | ||
| THAILAND 1800-29-3232, 02-689-3232 http://www.samsung.com/th | ||
| TAIWAN 0800-329-999 http://www.samsung.com/tw | ||
| VIETNAM 1 800 588 889 http://www.samsung.com/vn | ||
| MIDDLE EAST & AFRICA | ||
| SOUTH AFRICA | 0860-SAMSUNG(726-7864) | http://www.samsung.com/za |
| TURKEY | 444 77 11 | http://www.samsung.com/tr |
| U.A.E | 800-SAMSUNG(726-7864)8000-4726 | http://www.samsung.com/ae |
Correct Disposal of This Product (Waste Electrical & Electronic Equipment) - Europe only
(Applicable in the European Union and other European countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.
Correct disposal of batteries in this product - Europe only
(Applicable in the European Union and other European countries with separate battery return systems.)
This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment.
To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.
- OWNER'S INSTRUCTIONS
- MAJOR SAFETY PRECAUTIONS
- INSTALLATION AND CONNECTION
- USING
- TROUBLESHOOTING
- MORE INFORMATION
- BEFORE YOU START
- USING THIS MANUAL
- COPYRIGHT NOTICE
- CLEANING THE SURFACE AND THE LENS
- CLEANING INSIDE THE PROJECTOR
- ICONS USED FOR SAFETY PRECAUTIONS
- MEANING OF SIGNS
- POWER RELATED
- WARNING
- CAUTION
- INSTALLATION RELATED
- USAGE RELATED
- PACKAGE CONTENTS
- TO ADJUST PICTURE WHEN YOU INSTALL THE PROJECTOR BEHIND THE SCREEN
- TO ADJUST THE PICTURE WHEN YOU INSTALL THE PROJECTOR IN THE FRONT OF THE SCREEN
- CAUTIONS ON LAMP REPLACEMENT
- LAMP REPLACEMENT PROCEDURE
- REPLACING AND CLEANING THE FILTER
- VENTILATION OPENINGS
- AV TIMING (VIDEO/S-VIDEO)
- USING THE PROJECTOR
- CONNECTING TO A DYNAMIC IP (DHCP) NETWORK
- CONNECTING TO A STATIC IP NETWORK
- LOCKING THE PRODUCT
- PRODUCT FEATURES
- LED INDICATIONS
- CLEARING INDICATOR PROBLEMS
- INPUT
- PICTURE
- OPTION
- MANAGEMENT USING THE WEB BROWSER
- CONNECTING
- PROJECTOR MANAGEMENT USING PC SOFTWARE
- OTHER SETTINGS
- BEFORE REQUESTING SERVICE
- COMMUNICATION FORMAT (COMPLIES WITH THE RS232C STANDARD)
- SERIAL COMMUNICATION PROTOCOL
- COMMAND PACKET STRUCTURE [7BYTES]
- RESPONSE PACKET STRUCTURE [3 BYTES]
- SUCCESS
- FAIL
- CORRECT DISPOSAL OF THIS PRODUCT (WASTE ELECTRICAL & ELECTRONIC EQUIPMENT) - EUROPE ONLY
- CORRECT DISPOSAL OF BATTERIES IN THIS PRODUCT - EUROPE ONLY
Brand : SAMSUNG
Model : SP-L351
Category : Projector
