Product Type	Ultrasonic Cleaner
Brand	Beko
Model	UVT 1001
Tank Capacity	0.75 L
Ultrasonic Frequency	40 kHz
Power Consumption	50 W
Heating Power	100 W
Timer Range	0–30 minutes
Tank Material	Stainless steel
Housing Material	ABS plastic
Dimensions (L × W × H)	22 × 13 × 15 cm
Net Weight	1.1 kg
Power Supply	AC 220–240 V, 50/60 Hz
Functions	Cleaning, degassing, heating, timer with digital display
Maintenance	Drain and wipe tank after every session; use mild cleaning agents
Safety Features	Automatic shut-off, overheat protection, low noise operation
Spare Parts	Replacement basket, power cord, fuse
Reparability	User-replaceable fuse; authorized Beko service centers available
Included Accessories	Cleaning basket, watch holder, transparent lid, user manual
General Information	Comprehensive 27-page manual in English and Turkish

Frequently Asked Questions - UVT 1001 BEKO

How does the Beko UVT 1001 ultrasonic cleaner work?

The device generates high-frequency sound waves (40 kHz) that create millions of microscopic bubbles in the cleaning solution. These bubbles implode gently, a process called cavitation, which lifts dirt and grime from surfaces. Simply fill the tank with the recommended solution, place your items in the basket, and run the cycle.

What liquids can I use in the tank?

For general cleaning, you can use warm water mixed with a few drops of mild dish detergent or an ultrasonic cleaning solution designed for the material. Avoid flammable or acidic liquids. For specific items like glasses or jewelry, use a dedicated ultrasonic cleaning concentrate diluted in water.

Can I clean eyeglasses with this ultrasonic cleaner?

Yes, the Beko UVT 1001 is safe for most eyeglasses, provided they are not heat-sensitive or have loose components. Remove any cloth or plastic parts if necessary. Place the glasses in the basket, submerge them in the cleaning solution, and run a 3–5 minute cycle at room temperature. Use a gentle detergent to avoid damaging coatings.

How long should I run the cleaning cycle?

The device has a 0–30 minute timer. For lightly soiled items, 3–5 minutes is usually enough. For heavily soiled tools or parts, 15–20 minutes may be required. Always start with a shorter cycle and repeat if needed, rather than over-cleaning and risking damage.

Can I use the heating function for all items?

Heating speeds up cleaning but can damage heat-sensitive objects such as certain plastics, resin jewelry, or coated lenses. Use the heater only for items that can withstand up to 80°C. When in doubt, run the cleaner at room temperature.

How do I maintain and clean the device itself?

After each use, unplug the unit and empty the tank. Wipe the interior with a soft, damp cloth and let it air dry. Clean the exterior with a mild non-abrasive cleaner. Do not immerse the device in water. Regular maintenance prolongs the lifespan of the transducer.

Is it safe to use with jewelry containing gemstones?

Generally yes, but be cautious with pearls, opals, emeralds, and other porous or softer stones. Using the heating function on such jewelry is not recommended. Place the jewelry in a secure holder and run a short room-temperature cycle with a gentle solution to avoid dislodging stones.

What is the maximum capacity of the tank?

The stainless steel tank holds up to 0.75 liters of liquid. Do not exceed the max fill line marked inside. Overfilling can reduce cleaning performance and damage the unit. For best results, keep the liquid level below the line at all times.

Can I replace the fuse myself if needed?

Yes, the UVT 1001 uses a standard replaceable fuse. Unplug the device, locate the fuse holder near the power cord, and replace the blown fuse with the identical type and rating. If you are unsure, contact a Beko service center for assistance.

Does the device have an automatic shut-off feature?

Yes, the ultrasonic cleaner is equipped with automatic shut-off when the timer completes its cycle. It also shuts off in case of overheating to prevent damage. The transparent lid helps you monitor the process while the unit operates safely.

USER MANUAL UVT 1001 BEKO

Ultraviolet and Ultrasonic Cleaner

User Manual

UVT 1001

EN - TR

CONTENTS

ENGLISH 06-14

TÜRKÇE 15-27

EN	OPERATION CLEANING AND CARE
TR	KULLANIM TEMİZLİK VE BAKIM

Please read this manual first!

Dear Customer,

Thank you for selecting a Beko product. We hope that you get the best results from your appliance which has been manufactured with high quality and state-of-the-art technology. For this reason, please read this user manual and all other provided documents carefully before using the appliance and keep it as a reference for future use. If you hand over the appliance to someone else, give the user manual as well. Follow the instructions by paying attention to all the information and warnings in the user manual.

Meanings of the symbols

Following symbols are used in various sections of this manual:

Important information and useful hints about usage.

WARNING: Warnings against dangerous situations concerning the security of life and property.

Electrical insulation class.

UV radiation hazard.

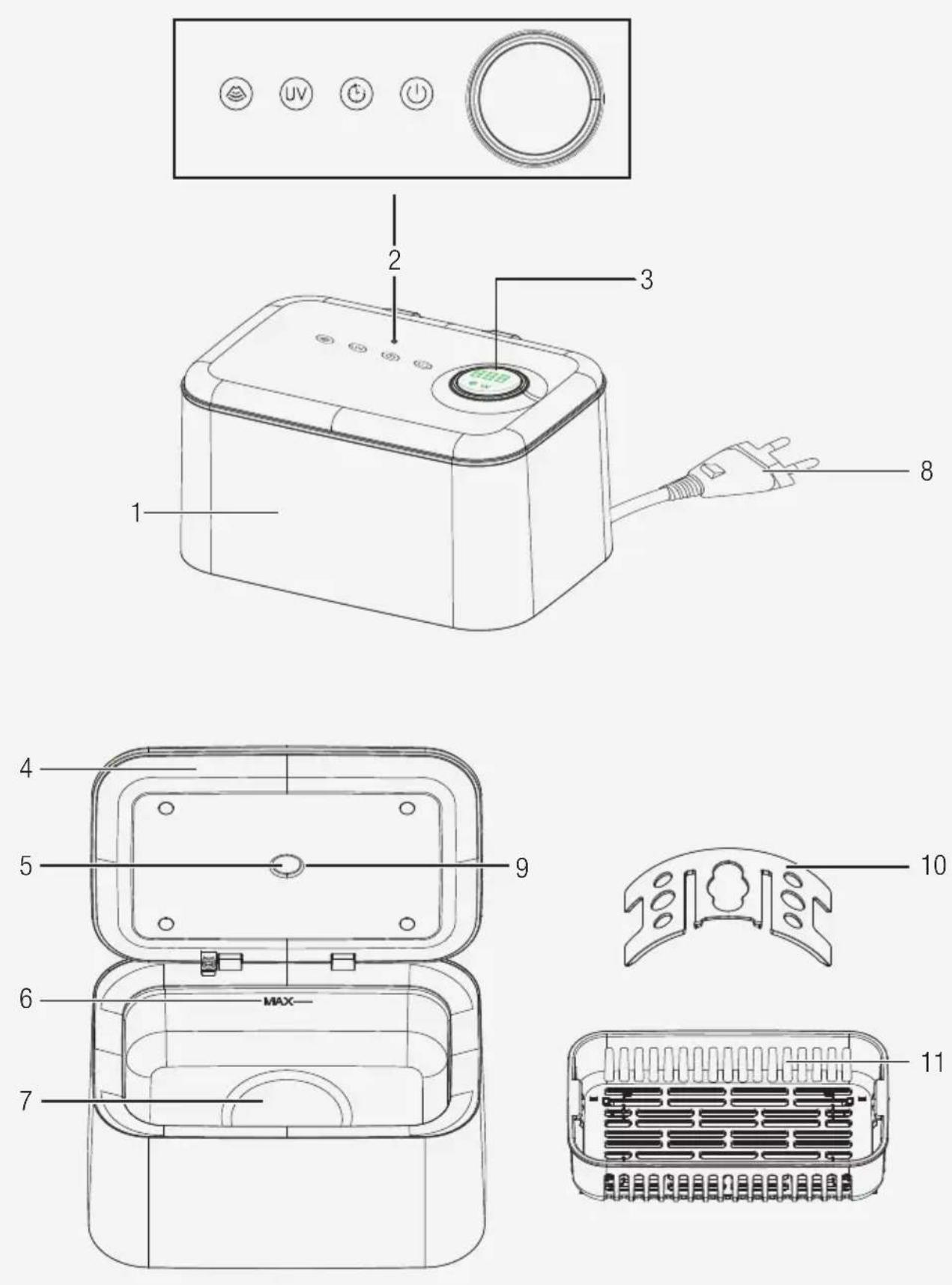

Controls and parts

See the figure on page 3.

1. Body
2. Control panel
3. Digital display
4. Lid
5. UVC
6. Max Line
7. Stainless tank
8. Power cord
9. UVC/Protection glass

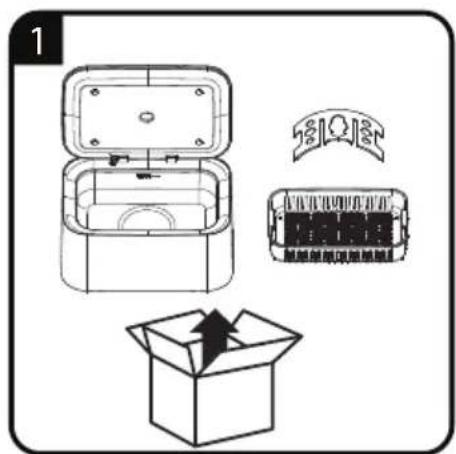

Accessories

1. Watch shelf

2. Basket

Technical data

Power : 220-240 V\~ 50-60 Hz 50 W

Item : UVT 1001

Cleaning

time : 90s-900s

Capacity : Total volume 750ml, MAX line 600ml

Electrical insulation class: ||

Technical data of UV-C Lamp

Peak Wavelength: 260-280Um

Forward Voltage: 5-8 V

Technical and design modifications reserved.

This product has been produced in environmentally-friendly, state-of-the-art facilities.

1 Important safety and environmental instructions

This section contains safety instructions that will help protect from risk of personal injury or property damage.

Failure to follow these instructions invalidates the granted warranty.

1.1 General safety

• This appliance complies with the international safety standards.
  •The appliance is designed for domestic use only.

ot immerse the appliance, power cord or power plug in water or in other liquid.

- Pull out the power plug after using the appliance and before cleaning the appliance. Do not disconnect the plug by pulling on the cord.

- Never use the appliance if it or the power cord is visibly damaged.

- If the power cord is damaged, it must be replaced by the manufacturer, a service centre or a similarly qualified person to avoid any danger of electrical shock.

- Keep the appliance out of the reach of children.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Store the packaging material and the accessories away from children; they may cause danger of life by suffocating and swallowing.

- Never open the appliance under any circumstance. No warranty claims are accepted for damage caused by improper handling.

1 Important safety and environmental instructions

• Check if the mains voltage on the type label corresponds to your local mains supply. The only way to disconnect the appliance from the mains is to pull out the plug.

• Keep the surface of the appliance, control panel and switch always clean and dry.

• To clean the appliance, see the “Cleaning and care” section.

• Do not operate the appliance without filling with water, otherwise it will get damaged.
• Do not let power cord hang over sharp edges or hot surfaces.
• Do not operate or place any part of this appliance on or near any hot surface, such as gas or electric burners.
• Do not use the appliance for any purpose other than its intended use. The appliance is designed for cleaning jewelry, waterproof watches, glasses, etc.; see the “Which objects should be cleaned” section.

• Do not use the appliance with wet hands.

• Use the appliance on a stable work surface.

• Unplug the appliance before filling it. Do not exceed the “MAX” marking when filling with water.
• Do not place sensitive, small objects directly in stainless steel tank, otherwise they will get scratched; use the plastic cleaning basket for them.
• Do not use strong cleansing agents or chemicals, such as caustic, ammonia, bleach, detergents with strong perfumes, in the appliance. Only works with water.
• Do not touch the inside of the appliance and the cleaning liquid while it operates.

- WARNING: UV radiation is dangerous for the eyes and skin. Do not operate the UV-C lamp outside the product.

• Do not operate the UV-C lamp when it is removed from the product enclosure.
• This product contains a lamp that emits UV rays. Do not stare at the light source.

1 Important safety and environmental instructions

- Unintended use of the product or damage to the protective glass of UV-C lamp or its surrounding may result in the escape of dangerous UV-C radiation. UV-C radiation may, even in little doses, cause harm to the eyes and skin. Do not operate the product that is obviously damaged.

- Do not remove the protective glass of UV-C lamp. Do not operate the product without protective glass of UV-C lamp.

- Do not replace the UV-C lamp. Call the manufacturer, the authorized service or a person that the importer company will describe when the UV-C lamp needs to be replaced.

- During service maintenance, the UV-C feature must be disabled on the display control panel.

- The “Ultraviolet Radiation Hazard” label should not be removed.

- May cause allergies, do not breathe directly.

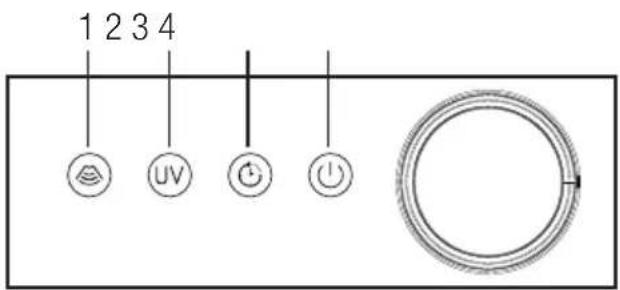

2.1 Function

1. Ultrasonic: the indication light will be on, after pressing "Ultrasonic";
2. UV lighting: the UV lighting will be on after pressing "UV lighting"
3. "Time": the pre-set time is 180s after your selection, you can press the time to select your ideal cleaning time; the time selection circle: 180s-300s-480s-600s-900s-90s-180s.

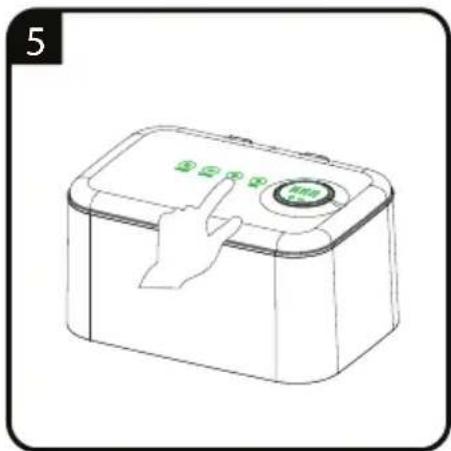

4. Press "on/off" to engine the machine after your selection. And the display starts to count down by seconds until to the end, which shows "000".

3 Operation

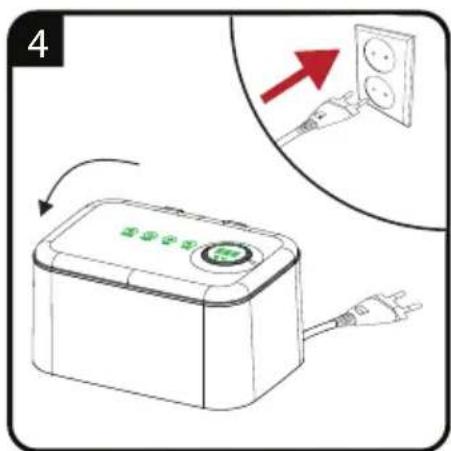

1. Plug the unit, and close the lid, you will find the display shows"---", then off, which means the machine is in standby mode.
2. There are three working mode for your option

3.1 Ultrasonic cleaning mode

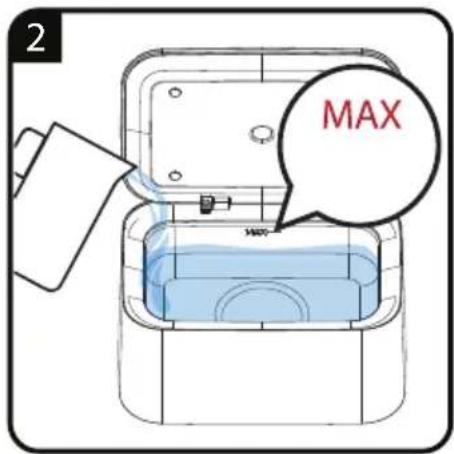

1. Fulfil the tank with tap water, water level should be below the Max line.

It is not allowed to use the ultrasonic function without water, or it will damage the machine.

1. You select the ultrasonic function only. The Ultrasonic button is on, and the display shows 180s. put the item you want to clean into the product and close the lid. You can press time button to select your ideal cleaning time (cleaning time: 180s-300s-480s-600s-900s-90s-180s) Press "on/off" to engine the machine after your selection. And the display starts to count down by seconds until to the end, which shows "000"

You must fulfil the cleaning tank with tap water.

In ultrasonic cleaning mode, you can mechanically clean stubborn dirt on items with the help of water. You can disinfection the following goods by using the machine:

• water proof watches
  -metal, golden and silver jewelry
  -glasses
  -comb, removable denture or the heads and accessories of electrical shavers
  -metal cutlery pack
  -coin

3.2 UVC mode

You select the UV lighting function only, the UV lighting button is on, and the display shows 180s, you can press time button to select your ideal cleaning time (cleaning time: 180s-300s-480s-600s-900s-90s-180s)

Press "on/off" to engine the machine after your selection. And the display starts to count down by seconds until to the end, which shows "000"

Since water is not used in this mode, it is also possible to clean the electronics.

The UV lighting will be off if you open the lid during the working mode, which is in order to protect the user.

In ultraviolet cleaning mode, you can provide hygiene on the surface of your items.

You can disinfection the following goods by using the machine:

• cell phones
• keys
• credit cards
• watches
  -metal, golden and silver jewelry
  -glasses
  -comb, removable denture or the heads and accessories of electrical shavers
  -metal cutlery pack
  -coin

UYARI: When the lid of the product is opened, it closes itself automatically. But in case of possible operation, please do not touch and look at the UV lights inside the product.

3.3 Ultrasonic cleaning with UVC mode

You press ultrasonic and UV lighting button is on, and the display shows 180s, you can press time button to select your ideal cleaning time(cleaning time: 180s-300s-480s-600s-900s-90s-180s)

Press "on/off" to engine the machine after your selection. And the display starts to count down by seconds until to the end, which shows "000".

You can disinfection the following goods by using the machine:

-water proof watches
-metal, golden and silver jewelry
-glasses
-comb, removable denture or the heads and accessories of electrical shavers
-metal cutlery pack
-coin

You must fulfil the cleaning tank with tap water.

Do not use this mode to clean your electronics, as the water tank will be full

Ultrasonic and UV lighting button has no function during the working. But you can press "on/off" button to stop the machine, so that you can re-set the machine.

We recommend the user to use the machine for a maximum of 20 minutes.

The recommended cleaning time for your items varies depending on the contamination rate of your items. The longer the cleaning process takes, the better results are obtained.

4.1 Cleaning and care

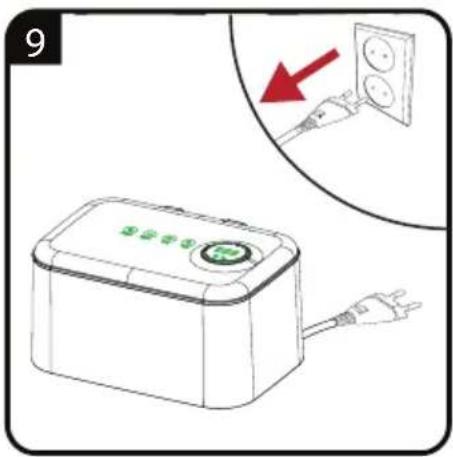

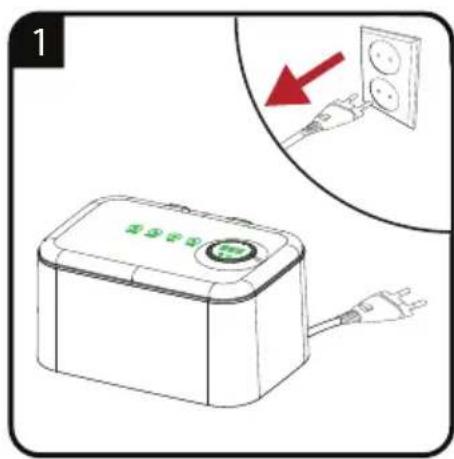

1. Turn the appliance off and unplug it.

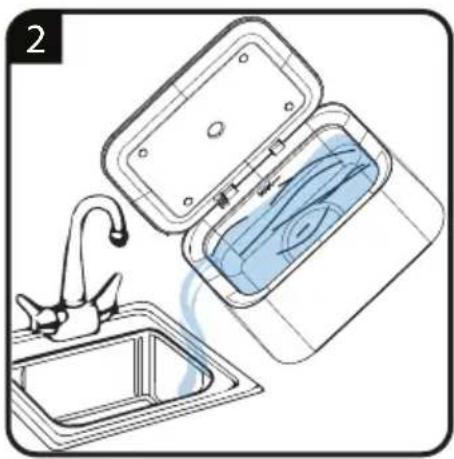

2. Pour out the water in the stainless steel tank (7).

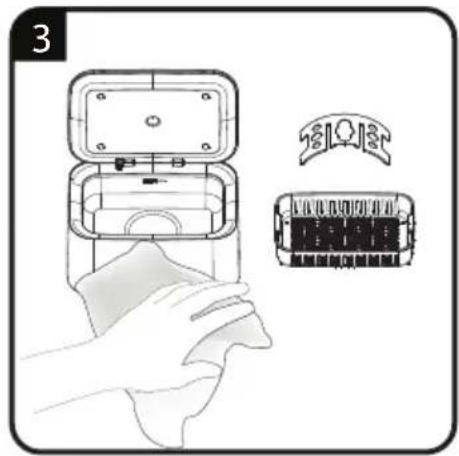

3. Clean and dry stainless steel tank (7) and the exterior of the appliance. Use only damp, soft cloth to clean.

CAUTION: Never put the appliance or power cord in water or any other liquid.

CAUTION: Unplug the product before cleaning.

4.2 Storage

• If you do not plan to use the appliance for a long period of time, please store it carefully.
• Make sure that it is unplugged and is completely dry.
• Do not wrap the power cord around the appliance.
• Store it in a cool and dry place.
• Make sure the appliance is kept out of the reach of children.

4.3 Tips for energy saving

Turn off and unplug the appliance

4.4 Which objects should be cleaned?

4.4.1 Glasses

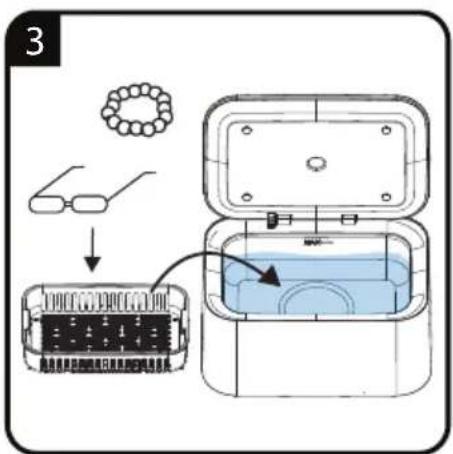

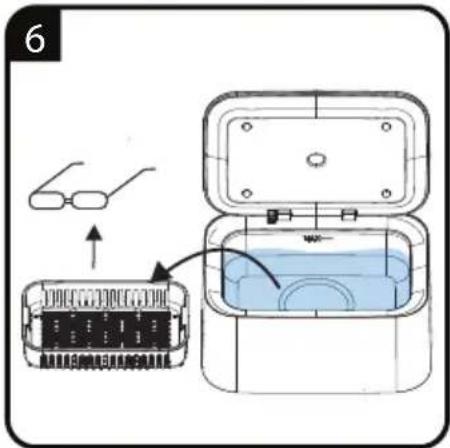

Place your glasses always with the glasses in upward position into the plastic cleaning basket (10).

Glasses or glass frames which have scratches should not be cleaned in the appliance. Ultrasonic technology can deeper the stretches.

Coated glasses can be damaged.

4.4.2 Gold, silver and metal jewelry

The appliance is suitable for cleaning gold, silver and metal jewelry. The jewelry should not contain fragile or porous stones. See also ‘Which objects should not be cleaned? “. To be on the safe side, you should consult the store, where you purchased the jewelry, whether it is suitable for cleaning with the ultrasonic cleaner.

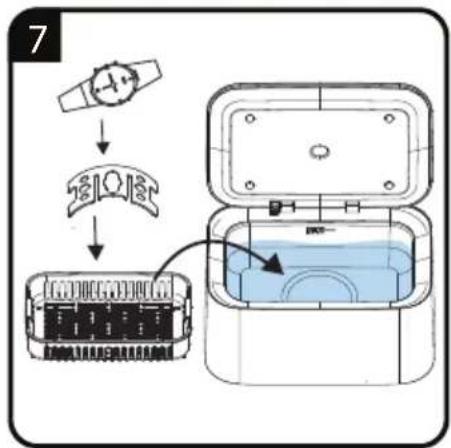

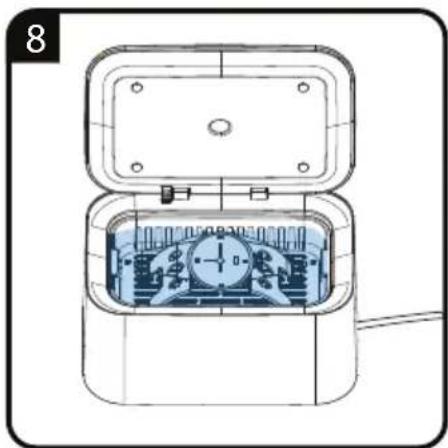

4.4.3 Metal bracelets of waterproof watches

Do not clean watches that are not waterproof.

Do not clean mechanical watches with the appliance. The spiral spring in the watch may be magnetic and the watch would not show the exact time.

4.4.4 Other objects

• Combs, dentures, braces, or heads of electric shavers;
• Nibs, ink jet printer cartridges, seals;
• Metal cutlery, coins, metal nozzles or valves of metal.

4.5 Which objects should not be cleaned?

4.5.1 Jewelry with fragile or porous stones

Do not use the appliance for cleaning fragile or porous stones, such as pearls and mother of pearl, emerald, opal, coral, turquoise, lapis lazuli, malachite, black onyx and tiger eye.

4.5.2 Glasses with frames made of natural materials

Do not use the device for cleaning glasses with frames made of fragile or porous natural materials such as tortoiseshell and horn.

4.5.3 Other objects

• Objects consist of or containing wood, textile or leather
• Contact lenses
• Costume jewelry, especially silver-plated costume jewelry

4.6 Hints and Tips

• Most of the dirt will already be loosened at the first cleaning operation. If there are still some dirt particles at the objects, you can try to remove with a damp, soft cloth before repeating the cleaning operation for a second time.
• Clean one side of large objects first. After finishing please turn the large objects for cleaning the other side and start operation again.
• If you want to have a better cleaning for very dirty objects, you can repeat the cleaning operation for several times. Wait at least 2 minutes before you start the next cleaning operation.
• You can increase the effect of cleaning by adding a few drops of a very soft liquid soap in the water. For your watches and jewelry; ask the specialists where you buy them, whether they are suitable for cleaning with liquid soap.

4.7 Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical and electronic devices.

To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

4.8 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

4.9 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

For commissioning, general use and cleaning, please observe the instructions on pages 4-5 of this operating manual.
