USER MANUAL TR2V120 LA SOMMELIERE
The product is only for wine storage and beverage
Please open the door 5 minutes before powering on to avoid possibility of gas danger
AVERTISSEMENT
- To prevent damaging the door gasket, make sure to have the door all the way opened when pulling shelves out of the rail compartment.
- The appliance must be positioned so that the plug is accessible. Release the electric cord. Move your cabinet to its final location. Do not move your Cabinet while loaded with wine. You might distort the body. The wine cooler should be installed in a suitable place in order to avoid Touching the compressor with the hand.
- If the supply cord is damaged, it must be replaced by manufacturer of its Service agent or a similarly qualified person in order to avoid a hazard.
IMPORTANT SAFETY INSTRUCTIONS
| WARNING | To reduce the risk of fire, electrical shock, or injury when using your appliance, follow these basic precautions: |
| ·Read all instructions before using the Wine cooler.
·DANGER or WARNING: Risk of child entrapment.
Child entrapment and suffocation are not problems of the past. Junked or abandoned appliances are still dangerous . . . even if they will “just sit in the garage a few days”.
·Before you throw away your old Wine cooler: Take off the door. Leave the shelves in place so that children may not easily climb inside.
·Never allow children to operate, play with, or crawl inside the appliance.
·Never clean appliance parts with flammable fluids. The fumes can create a fire hazard or explosion.
·Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.
-Save these instructions- |
INSTALLATION INSTRUCTIONS
> Before Using Your Wine cooler
- Remove the exterior and interior packing.
- Before connecting the Wine cooler to the power source, let it stand upright for approximately 2 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.
- Clean the interior surface with lukewarm water using a soft cloth.
Install the handle on the left side of the door.
- When disposing your appliance, please choose an authorized disposal site.
> Installation of Your Wine cooler
This appliance is designed to be for free standing installation only.
- Place your Wine cooler on a floor that is strong enough to support it when it is fully loaded. To level your Wine cooler, adjust the front leveling leg at the bottom of the Wine cooler.
- Locate the Wine cooler away from direct sunlight and sources of heat (stove, heater, radiator,
etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly.
- Avoid locating the unit in moist areas.
- Plug the Wine cooler into an exclusive, properly installed-grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed toward a certified electrician or an authorized Products service center.

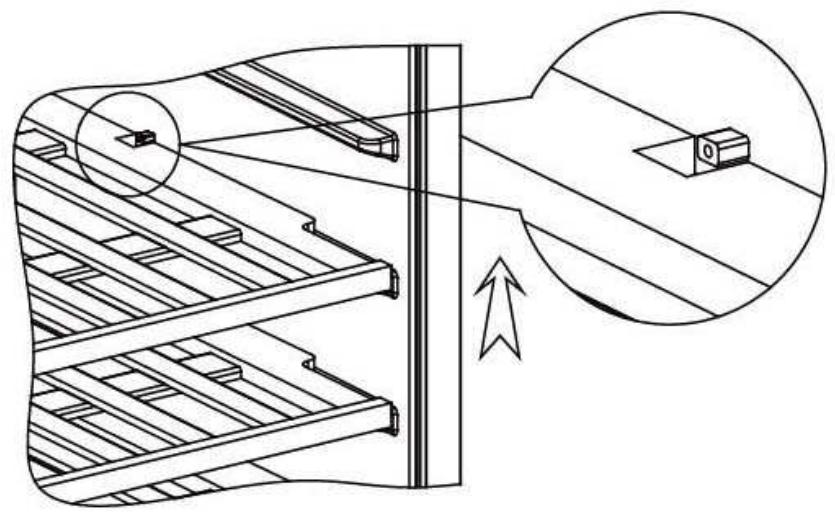

How to remove the shelf
- To prevent damaging the door seal, ensure that the door is fully opened before pulling the shelves out.
- For easy access to the wine bottles, the shelves can be pulled partway out.
- Before removing a shelf please remove all items first. Pull the shelf forward until the notches in the sides of the shelf align with the pegs in the sides of the cabinet. Lift the shelf up over the pegs and remove it.
Handle installation instruction

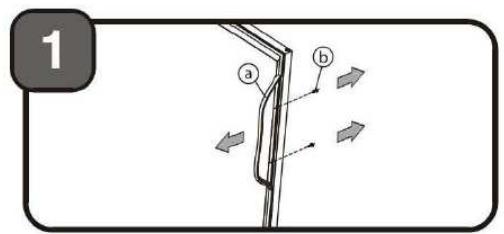

- Pull away the door gasket ,a around the area where the handle is to be installed.(AS INDICATED IN ILLUSTRATION 1) NOTE: The gasket is easily displaced by hand, no tools are necessary.

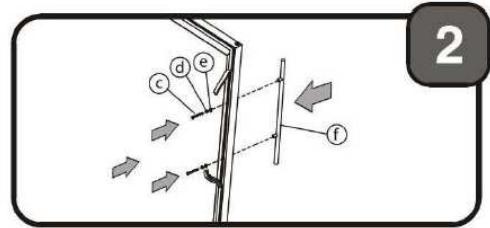

- Insert the two "+" type head screws ,c with the lock washers ,d and flat washers ,e through the gasket side of the door frame until the screws pass right through the door. (AS INDICATED IN ILLUSTRATION 2)
- Align the handle ,f with the screws and tighten them using a ^+ type head screwdriver until the handle sets flush against the door frame. (AS INDICATED IN ILLUSTRATION 2) NOTE: Do not overtighten as this will cause damage to the handle assembly.
Water tray

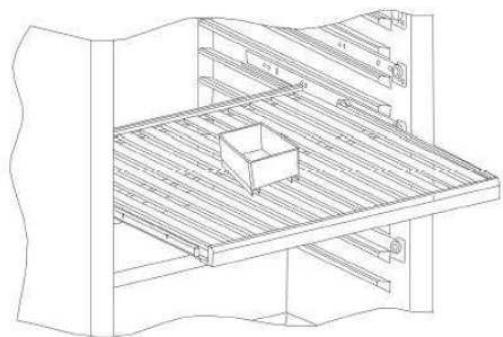

In order to prevent drying up of the wine corks due to low humidity the cabinet is supplied with a water tray which should be placed at the top shelf. See fig.1.3. If end user feels the inside cabinet's humidity is not enough, please put water into this white water tray.
Fig. 1.3

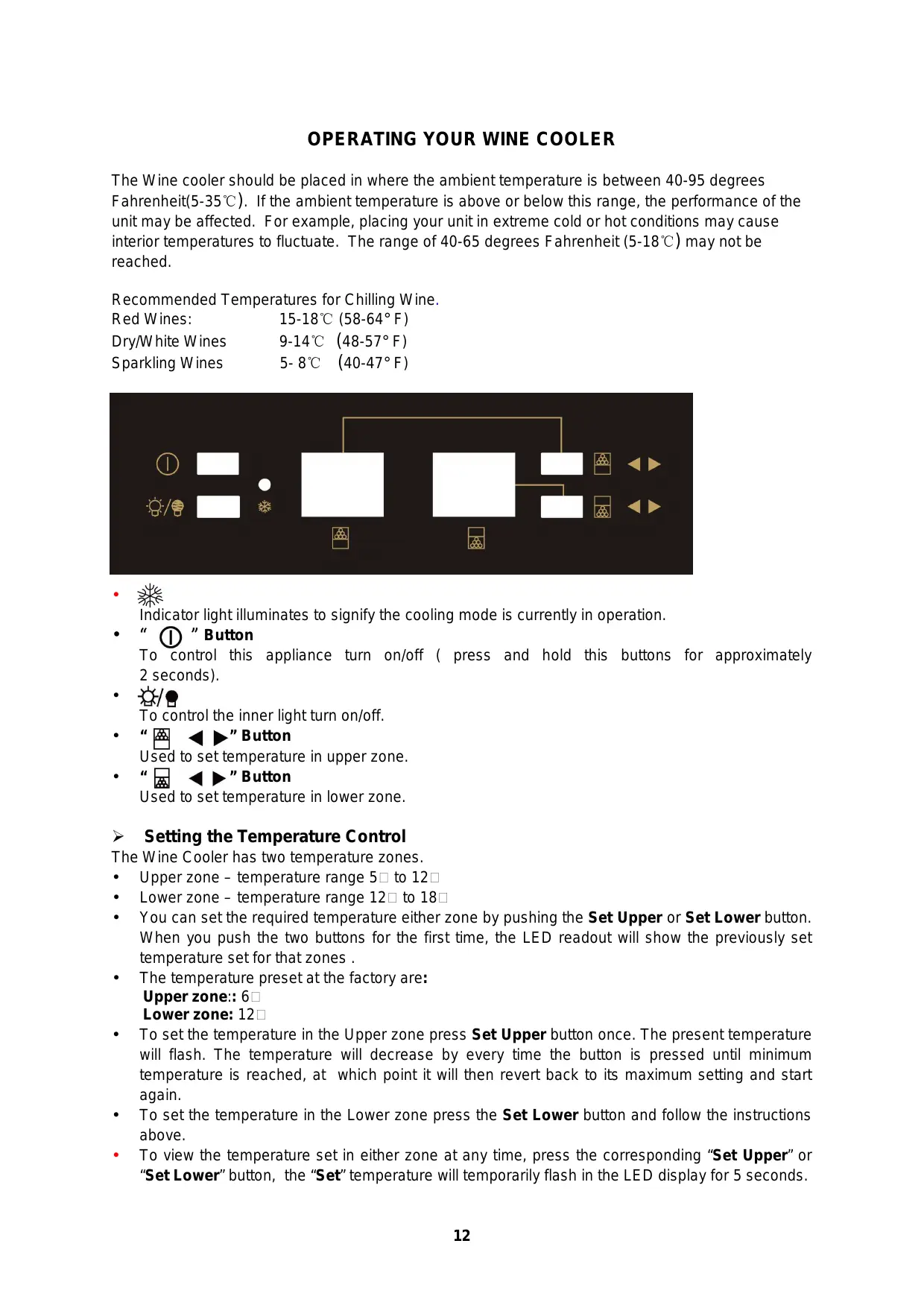

The Wine cooler should be placed in where the ambient temperature is between 40-95 degrees Fahrenheit(5-35°C). If the ambient temperature is above or below this range, the performance of the unit may be affected. For example, placing your unit in extreme cold or hot conditions may cause interior temperatures to fluctuate. The range of 40-65 degrees Fahrenheit (5-18°C) may not be reached.
Recommended Temperatures for Chilling Wine.
Red Wines: 15-18°C (58-64° F)
Dry/White Wines 9-14°C (48-57°F)
Sparkling Wines 5-8°C (40-47°F)
Indicator light illuminates to signify the cooling mode is currently in operation.
To control this appliance turn on/off ( press and hold this buttons for approximately 2 seconds).
-
To control the inner light turn on/off.
Used to set temperature in upper zone.
Used to set temperature in lower zone.
Setting the Temperature Control
The Wine cooler has two temperature zones.
Upper zone - temperature range 5 to 12
Lower zone - temperature range 12 to 18
- You can set the required temperature either zone by pushing the Set Upper or Set Lower button. When you push the two buttons for the first time, the LED readout will show the previously set temperature set for that zones.
The temperature preset at the factory are:
Upper zone:: 6
Lower zone: 12
- To set the temperature in the Upper zone press Set Upper button once. The present temperature will flash. The temperature will decrease by every time the button is pressed until minimum temperature is reached, at which point it will then revert back to its maximum setting and start again.
- To set the temperature in the Lower zone press the Set Lower button and follow the instructions above.
- To view the temperature set in either zone at any time, press the corresponding "Set Upper" or "Set Lower" button, the "Set" temperature will temporarily flash in the LED display for 5 seconds.
NOTE:
- If the unit is unplugged, power lost, or turned off, you must wait 3 to 5 minutes before restarting the unit. If you attempt to restart before this time delay, the Wine cooler will not start.
- When you use the Wine cooler for the first time or restart the Wine cooler after having been shut off for a long time, there could be a few degrees variance between the temperature you select and the one indicated on the LED readout. This is normal and it is due to the length of the activation time. Once the Wine cooler is running for a few hours everything will be back to normal.
> Door Lock
Your unit is provided with a lock and key combination.
The keys are located inside the plastic bag that contains the User's Guide. Insert the key into the lock and turn it counterclockwise to unlock the door. To lock the door do the reverse operation making sure metal pin is engaged completely. Remove the key and place it in a secure place for safekeeping.
> Interior Light
You can turn the interior light ON or OFF by pushing the button marked with the "bulb" symbol.
CARE AND MAINTENANCE
Replacing Your LED Light
NOTE:
- You must cut off electrical power avoid tip-and-run hurt.
- Please remove 2 fixed screws of the top shelf by Philips screwdriver and take out the shelf. (Attention please: LED light is covered by electrical box.)

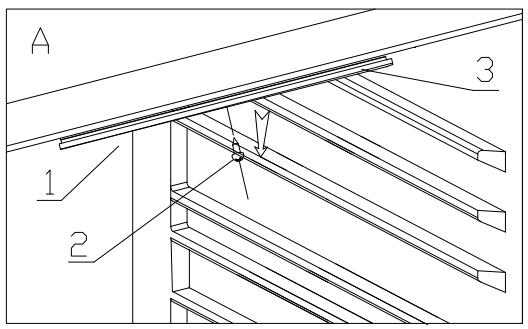

- Please take out lock screw 2 by Philips screwdriver first, then push the light cover to left, you can take out it when light cover set out limited location. (Fig.A)

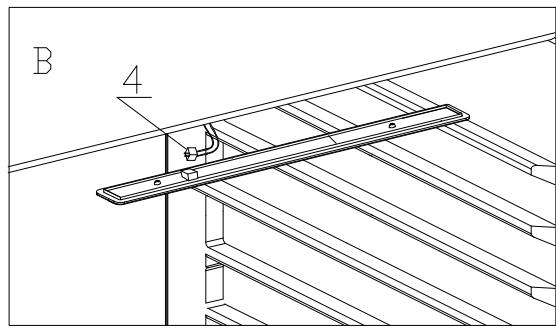

- Please pull out Housing 4 from 6 of LED light board. (Fig. B)

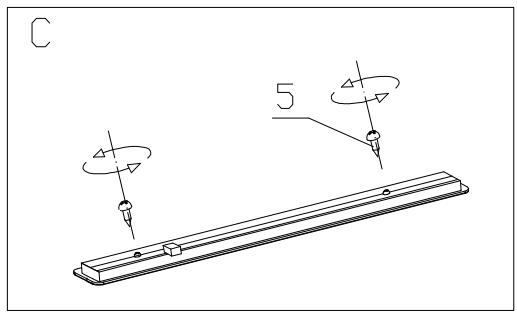

- Please take out 2pcs of screw 5 by Philips screwdriver. (Fig.C)

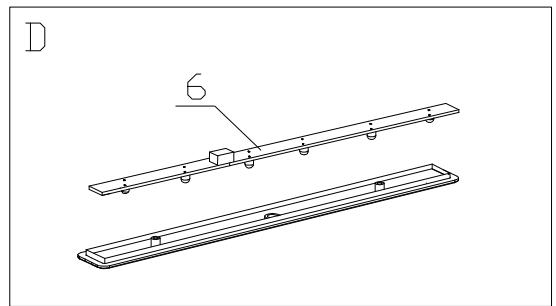

- Please pull out LED light board 6 from light cover. (Fig.D)
- Please replace new LED light according above method.
> Cleaning Your Wine cooler
- Turn off the power, unplug the appliance, and remove all items including shelves and rack.
- Wash the inside surfaces with a warm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to a quart of water.
- Wash the shelves with a mild detergent solution.
- Wring excess water out of the sponge or cloth when cleaning area of the controls, or any electrical parts.
- Wash the outside cabinet with warm water and mild liquid detergent. Rinse well and wipe dry with a clean soft cloth.
Power Failure
- Most power failures are corrected within a few hours and should not affect the temperature of your appliance if you minimize the number of times the door is opened. If the power is going to be off for a longer period of time, you need to take the proper steps to protect your contents.
> Vacation Time
- Short vacations: Leave the Wine cooler operating during vacations of less than three weeks.
- Long vacations: If the appliance will not be used for several months, remove all items and turn off the appliance. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the door open slightly: blocking it open if necessary.
> Moving Your Wine cooler
- Remove all items.
- Securely tape down all loose items (shelves) inside your appliance.
- Turn the adjustable leg up to the base to avoid damage.
- Tape the door shut.
- Be sure the appliance stays secure in the upright position during transportation. Also protect outside of appliance with a blanket, or similar item.
Energy Saving Tips
- The Wine cooler should be located in the coolest area of the room, away from heat producing appliances, and out of the direct sunlight.
> Temperature Alarm
The temperature adjust range is from 5 to 18
When temperature is lower than 0, it will have "Beep" sound, and "LO" will show in display, this is for low temperature alarm. When temperature is higher than 23, it will have "Beep" sound, and "HI" will show in display, this is for high temperature alarm. When alarm happens, please call servicer for maintain.
PROBLEMS WITH YOUR WINE COOLER?
You can solve many common Wine cooler problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the servicer.
TROUBLESHOOTING GUIDE
| PROBLEM | POSSIBLE CAUSE |
| Wine cooler does not operate. | Not plugged in.
The appliance is turned off.
The circuit breaker tripped or a blown fuse. |
| Wine cooler is not cold enough. | Check the temperature control setting.
External environment may require a higher setting.
The door is opened too often.
The door is not closed completely.
The door gasket does not seal properly. |
| Turns on and off frequently. | The room temperature is hotter than normal.
A large amount of contents has been added to the Wine cooler.
The door is opened too often.
The door is not closed completely.
The temperature control is not set correctly.
The door gasket does not seal properly. |
| The light does not work. | Not plugged in.
The circuit breaker tripped or a blown fuse.
The bulb has burned out.
The light button is “OFF”. |
| Vibrations. | Check to assure that the Wine cooler is level. |
| The Wine cooler seems to make too much noise. | The rattling noise may come from the flow of the refrigerant, which is normal.
As each cycle ends, you may hear gurgling sounds caused by the flow of refrigerant in your Wine cooler.
Contraction and expansion of the inside walls may cause popping and crackling noises.
The Wine cooler is not level. |
| The door will not close properly. | The Wine cooler is not level.
The door was reversed and not properly installed.
The gasket is dirty.
The shelves are out of position. |
