BT96DBS - Tumble dryer BEKO - Free user manual and instructions

Product Type	Tumble Dryer
Brand	Beko
Model	BT96DBS
Installation Type	Freestanding
Drying System	Condenser
Energy Efficiency Class	B
Drying Capacity	9 kg
Number of Programs	15
Display Type	LED
Reversible Door	Yes
Noise Level	65 dB
Dimensions (H x W x D)	84.6 x 59.7 x 60.0 cm
Rated Power	2600 W
Voltage / Frequency	220-240 V / 50 Hz
Sensor Drying	Yes
Anti-Crease Function	Yes
Reverse Tumbling	Yes
Time Delay	Up to 24 hours
Child Lock	Yes
Fluff Filter Cleaning	After each cycle

Frequently Asked Questions - BT96DBS BEKO

What is the maximum drying capacity of the Beko BT96DBS?

The maximum drying capacity is 9 kg for cotton items. For synthetic fabrics, the recommended load is reduced to about 4.5 kg.

How often should I clean the lint filter?

You should clean the lint filter after every drying cycle to maintain airflow and efficiency. A clogged filter can extend drying times and increase energy consumption.

Do I need to plumb in the Beko BT96DBS?

No, the BT96DBS is a condenser dryer with a water container that collects the extracted moisture. You simply empty the container after use, though it can also be connected to a drain hose for automatic emptying.

How do I empty the water container?

The water container is located in the lower section of the dryer. Pull it out, empty the water into a sink, and slide it back into place. Do this after each cycle or when the water tank indicator lights up.

Can I stack a washing machine with this dryer?

Yes, the BT96DBS can be installed on top of a compatible Beko washing machine using a stacking kit (available separately). Ensure both appliances are secured to prevent accidents.

What is the energy consumption of this dryer?

The annual energy consumption is approximately 561 kWh based on 160 drying cycles of mixed cottons. The dryer is rated energy class B under the EU energy label.

Does the dryer have a child lock feature?

Yes, the BT96DBS features a child lock to prevent accidental program changes during operation. Activate it by pressing a combination of buttons, as described in the manual.

How do I clean the condenser unit?

The condenser unit should be cleaned regularly, ideally every three months or when the condenser clean indicator appears. Access it from the lower compartment, remove it, and rinse it thoroughly with water.

Why is my dryer taking longer to dry clothes?

Possible reasons include a clogged lint filter, a full water container, a blocked condenser, or overloading the drum. Check these components and adjust the load size according to the program recommendations.

What should I do if the dryer displays an error code?

Consult the troubleshooting section of the user manual. Common errors include water tank full, filter blockage, or overheat. Turn off the dryer, resolve the issue, and restart.

USER MANUAL BT96DBS BEKO

BT96DBS

Caro cliente,

Please read this guide prior to use this product!

Thank you for choosing Beko product. We would like you to achieve the optimal efficiency from this high quality product which been manufactured with state of the art technology. Please make sure you read and understand this guide and supplementary documentation fully before use.

Observe all warnings and information herein. Therefore you can protect both yourself and your product against potential damages.

Keep the manual. Include this guide with the unit if you hand it over to someone else.

Symbols and Remarks

The following symbols are used in the user guide:

Danger that may cause death or injury

Read the manual

Important information or useful usage tips

Warning against hot surfaces

Warning against electric shock

Warning against UV Radiation hazard

Warning against scalding

The product's packaging is made of recyclable materials, in accordance with the National Environment Legislation.

Warning against fire

NOTICE Danger that may cause material damage on the product or surrounding area

RECYCLED & RECYCLABLE PAPER

This product was manufactured using the latest technology in environmentally friendly conditions.

1 Safety Instructions 43

1.1 Intended use 43
1.2 Safety of children, vulnerable persons and pets 43
1.3 Electrical Safety 44
1.4 Transporting safety 45
1.5 Installing safety 45
1.6 Usage safety 47
1.7 Maintenance and cleaning safety....49
1.8 Lighting safety 49

2 Environmental instructions.... 50

2.1 Compliance with the WEEE Regulations and Waste Disposal 50
2.2 Packaging information 50
2.3 Standard conformity and test information / EU declaration of conformity .....50

3 Your drying machine 51

3.1 Technical specifications ....51
3.2 General appearance ....52
3.3 Scope of delivery....52

4 Installation 53

4.1 Right place for installation....53
4.2 Removing the shipping safety group....53
4.3 Connection of water drain hose on products with vapour feature....54
4.4 Adjusting the stands....54
4.5 Moving the drying machine....54
4.6 Warning regarding the noise 54
4.7 Replacing the lighting bulb....54

5 Preparation 55

5.1 Laundry suitable for drying in drying machine 55
5.2 Laundry not suitable for drying in drying machine 55
5.3 Preparing the laundry to be dried....55
5.4 What to do for energy saving....55
5.5 Correct load capacity 56

6 Running the product 57

6.1 Control Panel....57
6.2 Symbols 57
6.3. Preparation of drying machine ....58
6.4 Program selection and consumption chart....59
6.5 Auxiliary functions....63
6.6 Warning indicators....64
6.7 Starting the program....64
6.8 Child Lock....64
6.9 Changing the program after it is started....64
6.10 Cancelling the program....65
6.11 End of program 65
6.12 Odour feature 65
6.13 General Description of Steam Programs 65
6.14 HomeWhiz Function 66

7 Maintenance and cleaning 69

7.1 Fibre filter /Loading Door Inner Surface....69
7.2 Cleaning the sensors 69
7.3 Emptying the water tank....70
7.4 Cleaning the filter drawer 70
7.5 Cleaning the condenser....71

8 Troubleshooting 73

9 Waiver Warning 75

9.1 I want to fix it myself ....75

1 Safety Instructions

This section includes the safety instructions necessary to prevent the risk of personal injury or material damage.

• Our company shall not be held responsible for damages that may occur if these instructions are not observed.
• Installation and repair operations shall always be performed by Authorized Service.
• Use original spare parts and accessories only.
• Do not repair or replace any component of the product unless it is clearly specified in the operation manual.
• Do not modify the product.

1.1 Intended use

• Product is designed only for household use. It is not intended for commercial use.
• The product is not designed for outdoor use.
• Do not install or operate the product where freezing is a possibility and/or vulnerable to external elements. Water frozen in the pump or the hoses may cause damages
• Product can only be used to dry and ventilate laundry which are washed with water and drying machine safe.

1.2 Safety of children, vulnerable persons and pets

- This product may be used by children aged 8 years and older and persons with underdeveloped physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a the product safe way and the hazards involved. Children should not tamper with the device. Cleaning and maintenance should not be carried out by children unless they are supervised.

• Children under 3 years old shall be kept away from the product unless supervised.
• Electrical products are dangerous for children and pets. Children and pets shall not play with the product, climb on or get inside the product.
• Keep the product door closed even when not operated. Children or pets could be locked inside the product and suffocate.
• Cleaning and user maintenance operations must not be performed by children unless supervised.
• Keep the packaging materials away from children. Risk of injury and suffocation.
• Keep all additives used with the product away from children.
• Before disposing of the product, cut the power cord and destroy the loading door.

1.3 Electrical Safety

• The product must not be plugged in during installation, maintenance, cleaning, repair and transporting operations.
• If the power the cord is damaged, it shall be replaced by authorized service to avoid any risk that may occur.
• Do not tuck the power cord under the product or to the rear of the product. Do not put heavy items on the power cord. Power cord shall not be kinked, pinched and shall not come in contact with any heat source.
• Do not use an extension cord, multi-plug or adaptor to operate your product.
• The product shall not be powered via an external switch such as a timer or shall not be connected to a circuit that is regularly opened and closed with a tool.

• The plug shall be easily accessible. If this is not possible, a mechanism that meets the electrical legislation and that disconnects all terminals from the mains (fuse, switch, main switch, etc.) shall be available on the electrical installation.

• Do not touch the plug with wet hands.

• When unplugging the appliance, don’t hold the power cord, but the plug.

1.4 Transporting safety

• Unplug the product prior to transport, empty the water tank and if any, remove the water drain connections.
• This product is heavy, do not handle it by yourself.
• Take required precautions for the product against falling and tipping. Do not crash or drop the product when transporting.
• Do not use the extruding parts of the product (such as the loading door) to move the product.
• Move the product in upright position. If it cannot be moved upright, transport via tilting to the right side when viewed from the front.

1.5 Installing safety

• To prepare the product ready for installation, ensure that the electrical installation and water drain is proper by checking the information in the user manual. If it is not suitable for installation, call a qualified electrician and plumber to arrange the utilities as necessary. These operations shall be undertaken by the customer.
• Check for any damage on the product before installing it. Do not have the product installed if it is damaged.
• Do not remove the adjustable stand.
• Place the product on a level and hard surface and balance with the adjustable legs.
• The gap between the product and the floor shall not be reduced via materials such as rugs, pieces of wood and bands. The ventilation holes under the base of the product shall not be clogged with a rug.
• The product shall be installed not to clog the ventilation holes.

• Install the product in an environment free of dust with good ventilation.
- Do not install the product in close proximity to flammable and explosive materials and do not keep flammable and explosive materials near the product when it is in operation.
- The product shall not be installed against a door, sliding door where the product loading door cannot be completely opened, or behind a hinged door where the product hinge is faced against the door's hinges.
- Install the product where periodic maintenance and cleaning can be done with ease.
- Place the product with its back surface to the wall (for heater models).
- After placing the product, ensure that the back wall does not come in contact with any extrusion (a water tap, electrical outlet etc.).
- Place the product with at least 1 cm space between the product and the furniture edges.
- Follow the flue connection rules specified in the guide (for models with flue).
- The exhaust air shall not be directed to flue which is used to exhaust the smoke of devices that consume gas or other fuels (for models with flue).
- The ventilation hose shall not be connected to a heating stove or a chimney flue (for models with flue).
- Plug the product to a grounded outlet protected with an appropriate fuse in align with the specified type and current rates. Have an expert electrician set grounding equipment. Do not use the product without a grounding conforming with regional/national regulations.
- Plug the product in a grounded socket that conforms with the voltage, current and frequency values specified in the type label.
- Do not plug the product to loose, broken, dirty, greasy sockets or sockets that has come out their seats or sockets with a risk of water contact.
- The new hose sets supplied with the product shall be used. Do not re-use the old hose sets. Do not make attachments to the hoses.

• Place the power cord and hoses not cause a risk of tripping over.
• To use the product on top of a washing machine, a fixing aperture shall be used between two products. Fixing aperture shall be mounted by the authorised service.
• When the product is placed on the washing machine, their combined weight when full could be around 180 kg. Place the products on a sturdy floor that can carry adequate amount of load.
• Washing machine cannot be placed on top of the drying machine.

Installation Table for Washing Machine and Tumble Dryer

Stacking Kit Type Depth Size (TD=Tumble Dryer, WM: Washing Machine)

Plastic - 54/60cm w or w/o belt 60cm TD --> WM≥50cm / 54cm TD --> WM>45cm

Plastic - 46cm w or w/o belt 46cm TD --> WM≥54cm

With Shelf - 60cm 60cm TD --> WM≥50cm

With Shelf - 54cm 54cm TD --> WM>45cm

1.6 Usage safety

• The maximum weight of dry laundry prior to washing is specified in “Technical Specifications” section.
• Do not place the unwashed items in the drying machine.
• Items that are soiled with materials such as cooking oils, acetone, alcohol, petrol, kerosene, stain removers, turpentine, wax or was removers shall be washed in hot water with more amount of detergent prior to drying with the drying machine.
• If chemicals are utilized for cleaning, the drying machine shall not be used.
• Rubber foam (latex foam), shower bonnets, water resistant textiles, rubber supported materials and clothes, pillows with rubber foam pads shall not be dried in a drying machine.
• The items with hair spray, hair product residue or similar materials shall not be dried in a drying machine.
• Empty the pockets of the clothes and remove items such as matches and lighters.

- If all items cannot be removed rapidly and cannot be placed where heat can dissipate, do not stop the drying machine before drying cycle completed.

- The last part of the drying machine cycle is conducted without heating (cooling cycle) in order to ensure that the items are kept at a temperature that will not harm the items.

- Laundry softeners or similar products shall be used in align with the laundry softener instructions.

- Do not use the drying machine without the fibre filter.

- Do not allow fibre accumulation around the drying machine.

- To prevent back draft of gas in the room from the devices that consume other fuels, including open fire, appropriate ventilation shall be provided (for models with flue).

- Do not operate the product together with heaters such as gas heater and a chimney. It may cause the flue to catch fire. (for models with flue)

- Do not lean or sit on the loading door when it is open, the product may tip over.

- Do not get on the product.

- Do not place a source of flame (candles, cigarettes, etc.) on the product or in the vicinity of it. Do not keep flammable/explosive materials.

- Do not touch the drum as it revolves.

- The back wall of the product will be hot during operation. Do not touch the back side of the product during drying or after the drying process is completed. (For models with heating)

- Do not touch the inner surface of the drum while adding or removing clothes during a continuing program. The drum surface is hot.

- Do not press the buttons with sharp objects such as forks, knives, with your nails etc.

- Do not operate the faulty or damaged product. Unplug the product (or shut down the connected fuse) and call the authorized service.

- Unplug the product when not in use.

- Do not place the dryer in the rain or severely wet areas.

1.7 Maintenance and cleaning safety

• Do not wash the product by spraying or pouring water on it. Do not use a pressure cleaner, steam cleaner, hose or pressurised gun to clean the product.
• Do not use sharp or abrasive tools to clean the product.
• Do not use materials such as household cleaning agents, soaps, detergents, gas, gasoline, alcohol, wax, etc. to clean the product.

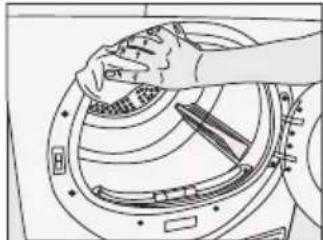

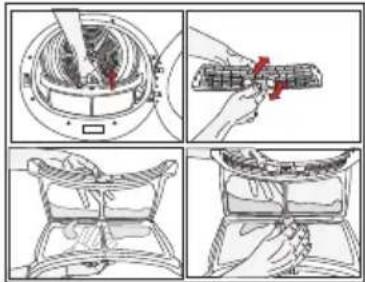

• The fibre filter shall be regularly cleaned. After each drying cycle, clean the fibre filter and the inner surface of the loading door.

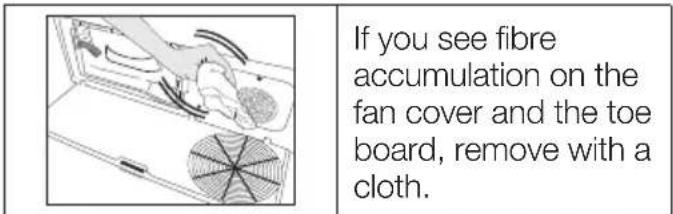

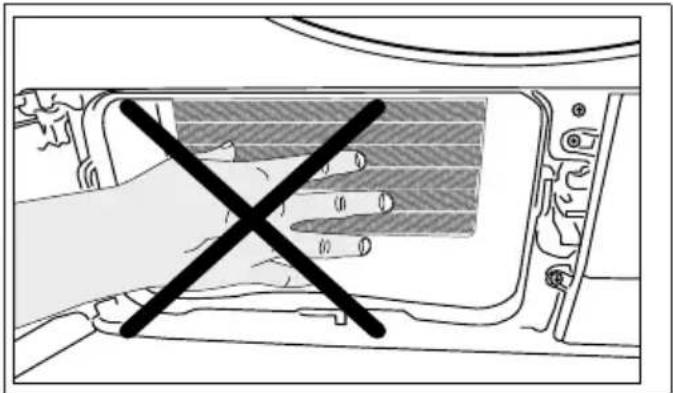

• Clean the fibre accumulation on the fins of the evaporator behind the filter drawer with a vacuum cleaner. You can clean by hand, provided you wear protective gloves. Do not try to clean with bare hands. Evaporator fins may damage your hands. (For products with heat pump)
• Due to fire and explosion hazard, do not use solutions, cleaning materials, steel wool or similar materials and tools to clean sensors.
• Clean the flue. (for models with flue)
• Do not drink the condensed water.

1.8 Lighting safety

- Contact an authorized service when you need to replace the LED/bulb using for lighting (for products with lighting).

2.1 Compliance with the WEEE Regulations and Waste Disposal

This product does not contain the dangerous and prohibited materials indicated in the “Regulation on The Control of Waste Electrical and Electronic Equipment” published by Ministry of Environment and Urbanisation of Republic of Turkey. Complies WEEE Regulations. This product was manufactured from recyclable and reusable high quality parts and materials. Therefore, do not dispose of this product with other domestic wastes at the end of its life cycle. Take it to a collection point for electrical and electronic equipment. You can ask your local administration about these collection points. You can help protect the environment and natural resources by delivering the used products for recycling.

Also R290 is a flammable refrigerant. Therefore ensure that the system and pipes are not damaged during operation and transportation.

Keep the product from heat sources, otherwise it may catch fire if damaged.

Do not dispose of the product by throwing it into fire.

2.2 Packaging information

The product's packaging is made of recyclable materials, in accordance with the National Legislation. Do not dispose the packaging waste with the household waste or other wastes, dispose it to the packaging collection areas specified by local authorities.

2.3 Standard conformity and test information / EU declaration of conformity

The development, manufacturing and sales phases of this product is conducted in conformity with the safety rules specified in all related instructions of the European Union.

3 Your drying machine

3.1 Technical specifications

EN

Height (Min. / Max.) 84,6 cm / 86,6 cm*
Width 59,8 cm
Depth 67,2 cm
Capacity (max.) 9 kg**
Net weight (± %10) 48 kg
Voltage	See type label***Rated power input
Model code

ENERG

SUPPLIER'S NAME

MODEL IDENTIFIER→(*)

The model information as stored in the product database can be reached by entering following website and searching for your model identifier (*) found on energy label. https://eprel.ec.europa.eu/

* Min. height: Height with the adjustable stand closed.
Max. height: Height with the adjustable stand opened at maximum height.
** Weight of dry laundry before washing.
*** Data plate is under the door on the drying machine.

In order to increase the drying machine's quality, the technical specifications may be changed without prior notice.

Figures in this manual are schematic and may not exactly match the product.

The values provided with the drying machine or its accompanying documents are laboratory readings in accordance with the respective standards. These values may differ depending on the use and ambient conditions.

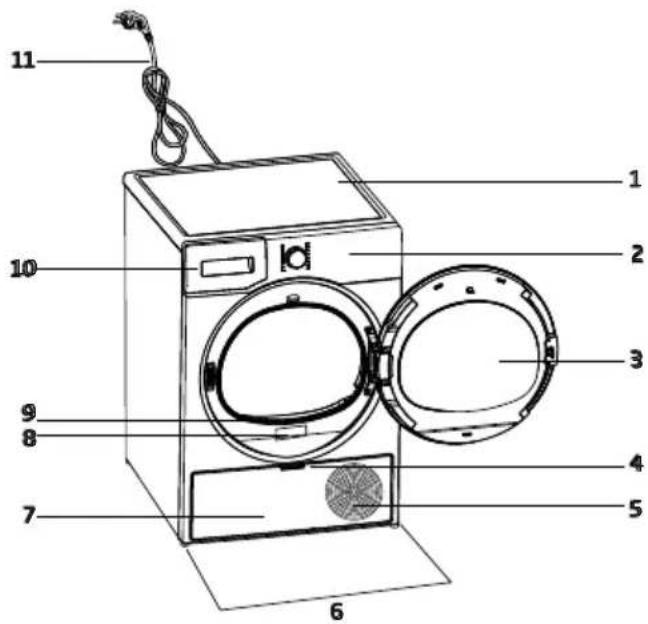

3.2 General appearance

1. Top panel
2. Control panel
3. Loading door
4. Toe board handle
5. Ventilation grids
6. Adjustable feet
7. Toe board
8. Rating plate
9. Lint filter
10. Water tank drawer
11. Power cord

3.3 Scope of delivery

	1. Water discharge hose*		6. Water filling cap*
	2. Filter drawer spare sponge*		7. Pure Water*
	3. User Manual		8. Odour Capsule Group*
	4. Drying basket*		9. Brush*
	5. Drying basket user manual*	[cky3]	10. Filter cloth*

*Optional - may not be included, depends on model.

4 Installation

Read the "Safety Instructions" first!

Before consulting the nearest Authorized Service for installing the drying machine, see the information in the user guide and make sure the electric and water utilities are as required. If not, call an electrician and plumber to arrange the utilities as necessary.

It is customer's responsibility to prepare the location the drying machine shall be placed on and also have power and waste water installation prepared.

Check for any damage on the drying machine before installing it. If drying machine is damaged, do not get it installed. Damaged products cause a risk for your safety. Wait 12 hours prior to operating the drying machine.

NOTICE

The product includes a cooling agent and if the product is operated right after its transported, it may get damaged. After each time the product is moved, it shall be left to rest for 12 hours.

4.1 Right place for installation

• Install the drying machine on a flat and stable surface.
• Dryer machine is heavy. Do not move it by yourself.
• Operate the drying machine in an environment free of dust with good ventilation.
• The gap between the drying machine and the floor shall not be reduced via materials such as rugs, pieces of wood and bands.
• Do not block the ventilation grilles of the drying machine.

• There shall not be doors that can be locked, sliding doors or hinged doors near the installation environment of the drying machine that may block the loading door to be opened.

• Once the drying machine is installed, the connections must stay stable. After placing the drying machine, ensure that the back wall does not come in contact with any extrusion (a water tap, electrical outlet etc.).

• Place the drying machine with at least 1 cm space between the product and the furniture edges.
• Your drying machine is suitable to be operated between +5°C to +35°C. If operated outside this temperature range, your drying machine's operation may be compromised and get damaged.
• The drying machine shall not be placed with the back side against a wall.

Do not place the drying machine on its power cord.

* Ignore following warning if your product's system does not contain R290.

Dryer contains R290 refrigerant.* R290 is an environment-friendly, but flammable refrigerant.* Ensure that the air inlet of the dryer is open and it is well-ventilated.* Keep potential flame sources away from the dryer.*

4.2 Removing the shipping safety group

Remove the shipping safety group prior to first use the product.

4.3 Connection of water drain hose on products with vapour feature

You can directly drain accumulated water through the water drain hose supplied with the product instead of periodically draining the water collected in the water tank

If your dryer has a steam feature, follow the following diagram for the water discharge connection.

1 Remove the clamp attached to the stopper at the back of the dryer by pulling it from the place it is connected with the help of a tool.
2 After removing the clamp, pull the plug under the clamp.
3 Attach the water drain hose supplied with the machine to the pipe under the plug.
4 Your machine is ready for use with direct discharge.

NOTICE

The water discharge hose shall be fixed at maximum 80 cm height.Ensure that the water discharge hose do not get kinked, collapsed or pressed on between the discharge and the drying machine.Hose shall be connected not to be disconnected from its location.Leaked water may cause damage.Do not extend the water drainage hose.Check whether the water runs at an appropriate flow. The drainage line shall not be closed or clogged.

If an accessory package is provided with your product, check the detailed instructions.

4.4 Adjusting the stands

Until the drying machine stands level and sturdy, adjust the stands by turning them left and right.

4.5 Moving the drying machine

• Drain the water in the drying machine completely.
• If the product is connected via direct discharge, remove the hose connections.

The drying machine is recommended to be moved in upright position. Otherwise, tilt it to the right side when viewed from the front and move the drying machine. Wait 12 hours prior to operating the drying machine.

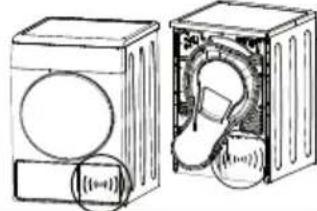

4.6 Warning regarding the noise

		As the product is operated, metallic noises may come from the compressor from time to time, it is normal.

When the product is operated, the accumulated water is pumped to the water tank. It is normal to hear pumping sounds from the appliance during this operation.

4.7 Replacing the lighting bulb

If your drying machine has drum lighting lamp; Consult the authorized service to replace the bulb/LED used in lighting your drying machine. The bulb in this product is not suitable for home lighting. The intended use of this lamp is to ensure safely loading the laundry to the drying machine. The lamps used in this appliance is resistant to heavy physical conditions such as temperatures over 50°C.

5 Preparation

Read the "Safety Instructions" first!

5.1 Laundry suitable for drying in drying machine

NOTICE

Laundry that are not drying machine safe may damage the appliance and the laundry during drying. Follow the instructions on the labels on the laundry to be dried. Only dry the laundry with “drying machine safe” written on their labels.

Do not dry with dryer

5.2 Laundry not suitable for drying in drying machine

NOTICE

Undergarments with metal supports shall not be dried in drying machine. If these metal supports get loose and ripped from the garment, it may damage the machine.Delicate embroidery textiles, cotton and silk garments, garments manufactured from delicate and valuable textiles, non breathing garments and tulle curtains shall not be dried in drying machine.

5.3 Preparing the laundry to be dried

NOTICE

Items such as coins, metal parts, needles, nails, screws, stones etc. may damage the drum group of the product or may cause functional operation issues. Therefore check all laundry that will be loaded to the product.Dry the laundry with metal accessories such as zippers by turning them inside out.Close the zippers, hooks and clasps, button up the covers' buttons, tie textile belts and apron belts.

5.4 What to do for energy saving

• Use the highest possible wringing option as you wash the laundry. Therefore you can reduce the drying period and reduce energy consumption. Sort the laundry based on their types and thickness. Dry same types of laundry together. For instance kitchen towels and table cloths dry faster than bathroom towels.
• Follow the recommendations in the user manual for program selection.
• During drying do not open the loading door unless necessary. If you are required to open the loading door, do not keep it open for too long.
• Do not add wet laundry as the drying machine operates.
• Clean the Fibre Filter before and after each drying session.
• For condensation models, be sure to clean the condenser at least once a month or after each 30 drying sessions.
• Make sure the filters are clean. Refer to maintenance and cleaning for details.
• For models with flue, follow the flue connection rules specified in the guides and clean the flue.
• During drying session, properly ventilate the environment in which the drying machine is in.

• On models with heat pump, check the condenser at least every six months and clean it if it is dirty.

• The Eco program is the most energy-efficient program for drying wet cotton laundry and is used to assess compliance with environmentally conscious design regulations.

• Keep the loading door shut to prevent heat loss.

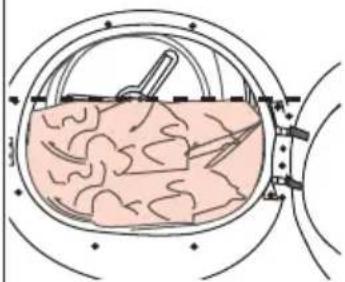

5.5 Correct load capacity

NOTICE

- Loading the domestic drying machine up to the maximum capacity specified by the manufacturer for the relevant programs will help save energy.

The weights below are provided as examples.

Laundry	Approx. weight (g)*	Laundry	Approx. weight (g)*
Cotton bedding (double size)	1500 Cotton dress 500
Bedding (single size)	1000 Dress 350
Bed sheet (double size)	500 Denim 700
Bed sheet (single size)	350	Handkerchief (10 pcs)	100
Large table cloth	700 T-Shirt 125
Small table cloth	250 Blouse 150
Tea napkin	100 Cotton shirt 300
Bath towel	700 Shirt 200
Hand towel	350

*Weight of dry laundry before washing.

6 Running the product

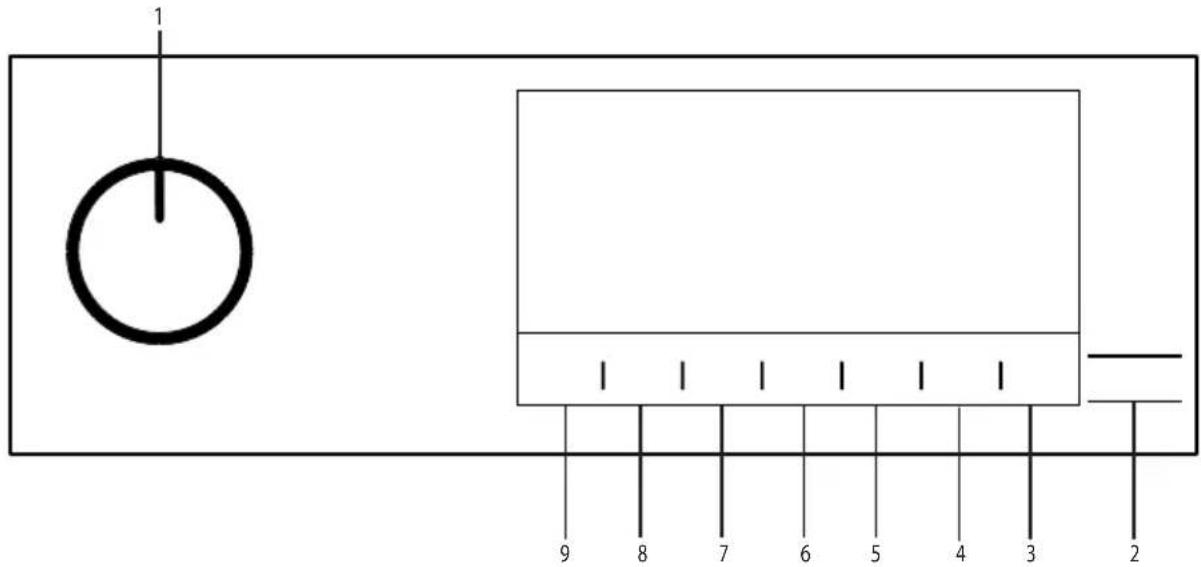

6.1 Control Panel

1. On/Off/Program Selection button.
2. Start / Stand-by button.
3. Remote control button.
4. End time selection button.

5. Steam selection button.

6. Low temperature selection and time program selection button.

7. Audible warning and child lock selection button.
8. Wrinkle prevention selection button / Drum light button.
9. Dryness level selection button.

6.2 Symbols

6.3. Preparation of drying machine

• Plug the drying machine.
• Open the loading door.
• Remove any foreign material inside it.
• Place the laundry to the drying machine without jamming them.
• Push and close the loading door.

NOTICE

Ensure that no laundry is jammed to the loading door. Do not close the loading door with force.

- Select the desired program by using On/Off/Program Selection button, the machine will turn on.

Selecting the program with the On/Off/Program Selection button does not mean that the program started. Press Start / Stand-by button to start the program.

6.4 Program selection and consumption chart

EN
Table of steam functioned cycles
Programmes Programme Description		Capacity (kg)	Spin speed in washing machine (rpm)	Drying Time (minutes)	Steam Drying Time (Min.)
Ready to Wear*	Is a cycle aimed to reduce the wrinkle level on shirts and t-shirts using a steam function. This cycle usually eliminates the need for ironing for casual shirts after drying. Depending on the texture and thickness of the product to be dried, the percentage of wrinkle reducing may vary. It is recommended to use this cycle combining the same types of fabrics.	1,5 (6 pieces)	800 - 90
		1 (3 pieces)	800 - 70
		0,3 (1 pieces)	800 - 50
Steam Refresh	Refreshes clothes with a steam function and removes unwanted odours. Use only with dry clothes.	1,5 (6 pieces)	- 35
		1 (3 pieces)	- 31
		0,3 (1 pieces)	- 23
Mix	Use this programme to dry non-pigmenting synthetic and cotton laundry items together. Sports and fitness clothes may be dried with this program.	6 1000	175 180
Jeans	You may dry denim pants, skirts, shirts or jackets in this program.	4 1200	150 155
Cottons	You can dry your heat-resistant cotton textiles with this programme. A drying setting suitable for the thickness of the products to be dried and the desired level of dryness should be selected.	9 1000	280 285
Cottons Eco	It dries single layer, casual cotton textiles in the most economical way.	9 1000	270 275
Synthetics	You can dry all your synthetic textiles with this programme. A drying setting suitable for the level of dryness you desire should be selected.	4 800	95 100
Table of non-steam functioned cycles
Cottons Iron dry	You may dry your cotton laundry to be ironed in this program to have them slightly damp for ease of ironing. (Shirt, T-shirt, tablecloth, etc.)	8 1000	195 -
Wool protect	Use this programme to dry woolen garments such as jumpers that are washed according to the instructions. It is recommended that garments would be removed at the end of the programme.	1,5 600	148 -
Night (silent)	In this programme the level of noise emitted to the ambient will be the lowest.With this program you can dry your cotton or synthetic blend clothes quietly.	8 1000	225 -
Duvet/Downwear Use it	to dry your feather filled duvet - 800 165 -
Time Programmes	You may select from time programmes between 10 and 160 minutes to achieve the desired drying level at low temperature. In this programme, tumble drier's operation lasts for the set time independently from the dryness of laundry.	- - - -
Hygienic Refresh	You can use this programme for your dry clothes and laundry that you want to provide with hygiene without washing them. It provides high hygiene for your dry textiles via heat effect.	1,5 - 120	-
Hygienic Drying	It is the programme that you can dry your washed products you want to provide with extra hygiene (baby clothes, underwear, towels, etc.). It provides high hygiene for your textiles via heat effect.	5 800 235	-
Express Super Short	Use this program to have 2 shirts ready for ironing.	0,5	1200 50	-
Downloaded Program
Duvet	Use to dry cotton and synthetic bedding sets. Provides drying for up to 2 double bedding sets	3 800 135	-
Underwear	It provides hygienic drying for your underwear via high temperature.	2 1000	70	-
Outdoor/Sports (Goretex)	Use it to dry your clothes made of synthetics, cotton or mixed fabrics or waterproof products such as functional jacket, raincoat etc. Turn them inside out prior to drying.	2 1000	135	-
Fashion	Allows safely drying of your t-shirts, blouses and shirts that include "can be dried" in their washing instructions.	4 1000	125	-
Towel	Drying towels such as kitchen towel, bath towel and hand towel.	5 1000	175	-

Energy consumption values
Programmes Capacity (kg)		Spin speed in washing machine (rpm)	Approximate amount of remaining humidity	Energy consumption value kWh
Cottons Eco** 9 1000 60% 1,22
Cottons Iron dry 9 1000 60% 1,00
Synthetics Cupboard Dry	4 800 40% 0,45
	“If you regularly dry the 9 Kg maximum load of Cottons we suggest to connect the drain hose to prevent the dryer stopping mid-cycle in order to empty the tank” (see Section “Connection to the drain”)
*The ability of Ready to Wear cycle to bring 100% cotton, 100% polyester, 100% viscose and %56 cotton - 44% polyester blend shirts in a wearable state (wrinkle release effect) was approved by the Independent Institute of Textile Testing in Europe. Collar, shirt cuffs or sleeves may be ironed if desired.

** Above values have been specified under standard conditions. Consumption values may vary from the values in the chart depending on laundry type, spin speed, ambient conditions and voltage levels.

EN
General Programs
Programmes Capacity (kg)		Program period (hour:min)	Energy consumption (Kwh)
Cottons Eco 9 4:30 1,22
Cottons Eco 4,5 2:40 0,66
Cottons Iron dry 9 3:15 1,00
Cottons Iron dry 4,5 1:57 0,48
Cottons Cupboard Dry 9 4:40 1,27
Cottons Cupboard Dry 4,5 2:50 0,70
Cottons Cupboard Dry Plus 9 4:50 1,31
Cottons Cupboard Dry Plus 4,5 3:00 0,74
Cotton Cupboard Dry ++ 9 5:00 1,36
Cotton Cupboard Dry ++ 4,5 3 10 0,78
Synthetics Iron Dry 9 1:20 0,38
Synthetics Cupboard Dry 9 1:35 0,45
Synthetic Cupboard Dry +y	9 1:45 0,50
Synthetic Cupboard Dry ++	9	-	-
GentleCare	2	-	-
Wool protect	1,5 2:28 1,30
The values given for the programs other than Eco are only indicative.
Different modes of operation
Power consumption (W)	Power off mode (W) (if present)	Delayed operation mode (W) (if present)	Stand-by mode (W) (if present)	Stand-by mode with connectivity function (W) (if present)
	0,50	4,00	0,50 2,00
Acoustic airborne noise emission of drying cycle dB(A):				60

Allergy UK is the trademark of the British Allergy Foundation. The Seal of Approval has been created to guide people requesting an advice that the product significantly reduces

the amount of the allergens in an environment where allergic people are present or the product restricts/reduces/eliminates the allergens. The purpose is to provide evidence that the products have been scientifically tested or analysed to yield measurable results.

6.5 Auxiliary functions Dryness level

Dryness level button is used for adjusting to desired dryness. Program time may change depending on the selection.

You can activate this function only prior to start of program.

Wrinkle prevention

You can turn on and off the wrinkle prevention function by pressing the wrinkle prevention selection button. If you will not take the laundry out immediately after the program has completed, you may use Wrinkle prevention function to prevent wrinkling of your laundry.

Audible warning

Drying machine makes an audible warning when the program is completed. Press the "Audible Warning" button if you do not want audible warning. When you press the audible warning button, the light goes off and it does not sound when the program is completed.

You can select this function before the program starts or after the program starts.

Low temperature

You can activate this function only prior to start of a program. You can activate this function if you want to dry your laundry at a lower temperature. The program duration will be longer after it becomes activated.

End time

You can delay the end time of the program up to 24 hours with end time function.

1. Open the loading door and place the laundry.
2. Select the drying program.
3. Press the End Time selection button and set the delay time you wish. End time LED turns on. (When pressed and hold the button, End Time proceeds non-stop).
4. Press the Start / Stand-by button. End Time countdown begins. The “:” sign in the middle of displayed delay time flashes.

You can add or remove laundry within end time. Displayed time is the sum of normal drying time and end time. End Time LED turns off at the end of countdown, the drying starts and the drying LED turns on.

Changing the end time

If you want to change the duration during the countdown:

Pause the program and Turn the On/Off/Program Selection button and cancel the program. Select the desired program and repeat the End Time selection.

Cancelling the end time function

If you want to cancel the end time countdown and start the program immediately:

Pause the program and Turn the On/Off/Program Selection button and cancel the program. Select the desired program and press the "Start/Pause" button.

Drum Light

You can turn on and off the drum light by pressing this button. The light turns on when the button is pressed and turns off after certain time.

6.6 Warning indicators

Warning indicators may vary depending on the model of your drying machine.

Filter cleaning

When the program is completed, the warning indicator for filter cleaning turns on.

Water tank

If the water tank fills up while the program continues, the warning indicator starts flashing and the machine goes into stand-by. In this case, empty the water tank and start the program by pressing the Start / Stand-by button. Warning indicator turns off and program resumes.

Cleaning of filter drawer/heat exchanger

Warning symbol flashes periodically to remind that filter drawer must be cleaned.

6.7 Starting the program

Press the Start/Stand-by button to start the program.

Start/Stand-by and Drying indicators turn on to show that program started.

6.8 Child Lock

The drying machine has a child lock which prevents the program flow from being interrupted when the buttons are pressed during a program. When the Child Lock is activated, all buttons on the panel except the On/Off/Program Selection button are deactivated.

Press the Audible Warning button for 3 seconds in order to activate the child lock.

The child lock has to be deactivated to be able to start a new program after the current program is finished or to be able to interfere with the program. To deactivate the child lock, keep the same buttons pressed for 3 seconds.

When the child lock is activated, the child lock warning indicator on the screen turns on.

When the child lock is active:

The drying machine runs, or in stand-by state the indicator symbols will not change upon changing the position of the program selection button.

When the drying machine is operated and the child lock is active, if the program selection button is turned, a double beeping noise will be heard. If the child lock is deactivated before the program selection button is turned to its original place, the program will be terminated since the program selection button is displaced.

6.9 Changing the program after it is started

You can change the program you selected to dry your laundry with a different program after the drying machine starts running.

• For example, Pause the program and turn the On/Off/Program Selection button to select the Extra Dry program in order to select the Extra Dry program instead of Ironing Dryness.
• Press the Start/Stand-by button to start the program.

Adding and removing clothes during stand-by

If you want to add or remove clothes to/from the drying machine after the drying program starts:

• Press the Start/Stand-by button to put the drying machine in Stand-by state. The drying operation stops.
• Open the loading door while in Stand-by state, and close the door after you remove or add laundry.
• Press the Start/Stand-by button to start the program.

Adding laundry after the drying operation starts may cause the dried laundry inside the drying machine to mix with wet laundry and leave the laundry damp at the end of operation.Adding or removing laundry during drying may be repeated as many times as you wish. But this operation continuously interrupts the drying operation, and thus increases program duration and energy consumption. So, it is recommended to add laundry before the program starts.If a new program is selected by turning the program selection button while the drying machine is in stand-by, the running program terminates.

Do not touch the inner surface of the drum while adding or removing clothes during a continuing program. The drum surface is hot.

6.10 Cancelling the program

If you want to cancel the program and terminate the drying operation for any reason after the drying machine starts running, Pause the program and turn the On/Off/Program Selection button; the program terminates.

The inside of the drying machine shall be extremely hot when you cancel the program during machine operation, so run the refreshing program to allow it to cool down.

6.11 End of program

When the program ends, the LED's of End/Wrinkle Prevention and Fibre Filter Cleaning Warning on the program follow-up indicator turn on. Loading door can be opened and drying machine is ready for another operation.

Turn the On/Off/Program Selection button to On/Off position in order to turn off the drying machine.

If the Wrinkle Prevention mode is active and the laundry is not removed after the program is completed, the wrinkle prevention function activates for 2 hours to prevent the laundry inside the machine to get wrinkled. The program tumbles the laundry with 10-minute intervals to prevent them from wrinkling.

6.12 Odour feature

If your drying machine has odour feature, read the ProScent manual to use this feature.

6.13 General Description of Steam Programs

Steam cycles

You may use the steam function in cycles that are marked with a blue line in your machine panel. It is necessary to use the dryer grouping your clothes depending on their types and thicknesses when you use a cycle with the steam function active. Do not dry wool, leather, or clothes that contain metal parts in this cycle. Extra noise may be generated during steam generation in steam cycles. Depending on the type, amount of laundry and the selected cycle, the result of wrinkle release and odour removal processes may differ. Upon completion of steam cycles, laundry should be immediately extracted from the machine and hung on a hanger.

Getting the machine ready

Steam tank must be filled before the initial use of the steam functioned cycles. Therefore, when using the machine for the first time, it is required to dry laundry using a steam-functioned cycle or a cycle with the steam function inactive.

How to activate the steam cycle:

When you turn on the machine and the rotate the cycle navigator to the ‘Ready to Wear’ or ‘Steam Refresh’ cycles, the indicator shown on the image below will turn on.

This symbol indicates that you can run the drying cycle with a maximum load of 1.5 kg (6 pieces). To be able to dry 1 piece or 3 pieces of laundry, you need to tap the ‘Steam’ option on the screen to make the required adjustment in loading level settings.

3 Pieces 1Pieces
Once you have made the required adjustments, you may start the cycle by pressing the Start/Hold button.

You will need to tap on the ‘Steam’ option on the screen to be able to activate the steam function in Blend, Jeans, Cotton, Economic Cotton, and Synthetic cycles. When you tap this button, steam function will be activated, the symbol shown below will be displayed and the cycle duration will change.

You may start the cycle by pressing the Start/Hold button when you see the symbol displayed and the steam function is activated.

If the steam tank is empty, the icon shown below will blink. It is required to dry laundry in a cycle with the steam function inactive to fill the tank.

6.14 HomeWhiz Function

Firstly, the HomeWhiz application should be installed on your phone.

The detailed information regarding the HomeWhiz application is available on https://www.homewhiz.com/

Power consumption may vary depending on whether the network connection is on or off, in accordance with the values listed in the 'Program selection and consumption table'.

Turn on the Bluetooth on your phone.

Switch the unit to Off mode using the program selection button.

Perform the following actions using the application on your mobile device.

Devices->Add Device->Cleaning Devices->Dryer

Scan or type the product barcode into the app. Continue with the installation according to the instructions of the app on your mobile device.

Press the “Dryness level” and “Remote control” buttons on your device simultaneously for 3 seconds according to the app instructions. The screen displays 3-2-1 and the following image appears.

The product screen is closed after the installation is completed and in the application, it is asked to select the room where the product will be added.

Turning Wi-Fi On/Off

If Wi-Fi is off and the icon is not illuminated, press and hold the Remote Control button for 3 seconds to enable Wi-Fi.

If Wi-Fi is active (the icon is either solid or blinking), press and hold the Remote Control button for 3 seconds to disable the Wi-Fi feature.

Using the remote connection:

Switch the product to Download programme mode. If the Wi-Fi is connected, the icon flashes.

If the Wi-Fi is disconnected, the icon does not flash. Press the remote control button for 3 seconds to turn it on.

Press the remote control button to allow remote control to the product while the Wi-Fi is turned on.

When the remote control is turned on, the unit can be controlled remotely using the HomeWhiz app.

The detailed information regarding the HomeWhiz application is available on https://www.homewhiz.com/

Deleting the product from network:

Pressing and holding simultaneously Delay and Wi-Fi buttons for 5 seconds while the product is turned on, it counts down from 5 to appear on the screen. when the beep is heard, the product is deleted from network and the Wifi is turned off.

WARNING!

• When the door is opened, the remote control turns off.
• When the programme button is turned, the remote control turns off.
• If the WIFI icon is illuminated continuously, it means that it is active and connected to network
• If the WIFI icon is flashing continuously, it means that it is active and trying to connect to network. You cannot connect to the product unless it is illuminated continuously.
• The connection to the product is allowed if the remote control icon is active and the WIFI icon is illuminated continuously.

Getting the HomeWhiz Application

You can get the HomeWhiz application from the application stores. You can use the below QR codes to access the applications faster.

Apple App Store for the devices with IOS operating system

Google Play Store for the devices with Android operating system

7 Maintenance and

cleaning

Read the "Safety Instructions" first!

If it is cleaned regularly, the life of the product will be extended and common problems will be reduced.

The device must not be plugged in during maintenance and cleaning operations (control panel, body, etc.).

7.1 Fibre filter /Loading Door Inner Surface

The hair and fibres that are separated from the laundry during drying process are collected by the Fibre Filter.

After each drying cycle, clean the fibre filter and the inner surface of the loading door.

You can clean the filter slot with a vacuum cleaner.

To clean the fibre filter:

1. Open the loading door.

2. Pull the fiber filter upwards to remove it and turn it on.

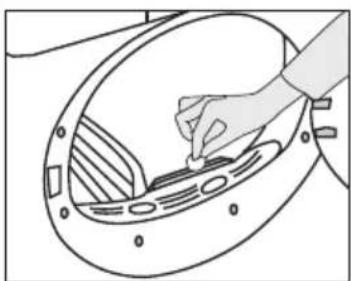

3. Clean feathers, fibers and cotton lumps by hand or with a soft cloth.

4. Turn off the fiber filter and place it in place.

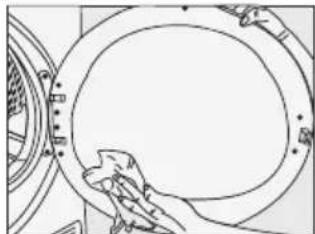

Clean the loading door interior and its washer.

7.2 Cleaning the sensors

There are moisture sensors inside the machine that detect whether the laundry is dry or not. To clean the sensors:

1. Open the loading door of the machine.

2. If the machine is still hot due after drying, wait until it cools.

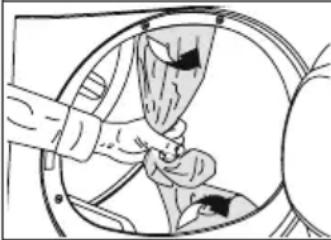

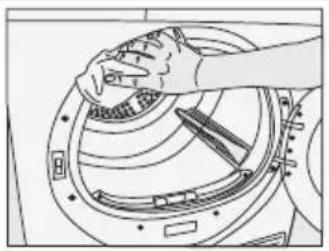

3. Clean the metal surfaces of the sensor with a soft cloth dampened with vinegar and then dry.

Clean the metal surfaces of the sensor 4 times a year. Do not use metal tools to clean the sensor's metal surfaces.

Due to fire and explosion hazard, do not use solutions, cleaning materials or similar materials to clean sensors!

7.3 Emptying the water tank

Empty the water tank after each drying session.

Condensed water is not potable water!Never remove the water tank while the program is running!

If you forget to empty the water tank, during the next drying sessions the machine will stop operating when the water tank completely fills and a Water Tank warning icon will blink. In this case empty the water tank and to continue drying operation, press the Start / Standby / Cancel button.

To drain the water tank:

1. Carefully pull the water tank out from its drawer.

2. Empty the water tank.

3. If lint builds up in the funnel on the water tank, remove it under running water.4. Place back the water tank.

7.4 Cleaning the filter drawer

Lint and fibers that cannot be caught by the fibre filter are caught in the filter drawer behind the kick plate.

Be sure to clean the filter drawer after each drying process.

To clean the filter drawer:

Open the kickplate by pulling its button

Move the latches to open the air deflector lid.

Open the filter drawer by pressing the button.

Clean the lint, fibers and cotton lumps on the filter cloth by hand or with a soft cloth.

If a layer that may cause clogging is observed on the filter cloth surface, clean the layer with your hand or the brush on the air diverter.

You can also clean the hair in the filters with a vacuum cleaner.

Close the filter drawer knob so that it locks.

Dirty fibre filters and filter drawers will result in longer drying times and more energy consumption.

7.5 Cleaning the condenser

Hair and fibres not collected by the fibre filter will build up on the metal surface of the condenser behind the air deflector. These fibres shall be cleaned regularly.

If the condenser cleaning icon is blinking, check the metal surface. Clear away any lint. It must be checked at least every 6 months.

Open the kickplate by pulling its button.

Move the latches to open the air deflector lid.

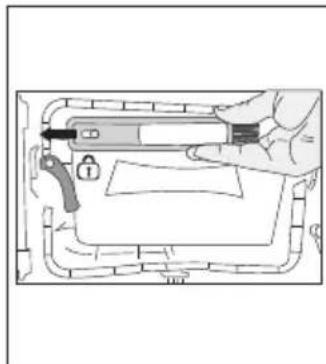

Pull the brush to the left to remove it. You can use the cleaning brush to clean filter, condensing metal surface and accumulated fibre on the door.

The cleaning brush is inside the documentation bag. Get your brush from the documentation bag and insert it to its place on the air deflector to store it.

Clean the fibre on the metal surface of the condenser with damp cloth or the brush on the air deflector in up - down direction. Do not clean in a left - right direction since it will damage the metal plates of the condenser.

You can also use a vacuum cleaner with a brush for cleaning. If the vacuum cleaner does not have a brush, it should not be used for condenser cleaning.

After cleaning the filter, door and the condenser, drag the brush to the right and lock it in its place.

After the cleaning process is completed, place the air deflector cover to its place, move the latches to close it and close the toe board.

You can clean by hand, provided you wear protective gloves. Do not try to clean with bare hands. The condenser fins may damage your hands. Cleaning from left to right may damage the condenser fins. This may lead to drying issues.

When the air deflector cover is removed, it is normal to have water at the plastic section in front of the condenser.

Do not put weight on the kickplate when it is open.

NOTICE

Do not use abrasive materials or steel wool to clean the drum

8 Troubleshooting

The drying takes too long.

Lint filter (interior and exterior filters) pores may be clogged. >>> Can be cleaned with vacuum cleaner.The front side of the condenser may be clogged. >>> Clean the front of the condenser.The ventilation grills in front of the machine might be closed. >>> Remove any object in front of the ventilation grills that blocks ventilation.Ventilation may be insufficient if the dryer is installed in a small space. Open the door or windows to prevent the room temperature from rising very high.If there is a humidity sensor;Limescale may have accumulated on the humidity sensor. >>> Clean the humidity sensor.The machine may be overloaded with laundry. >>> Do not load the drying machine excessively.The laundry may not have been spun enough. >>> Spin at a higher speed in the washing machine.

The laundry comes out damp after drying.

The right program for the type of laundry might not have been used. >>> Check the care labels on the laundry and select a program ideal for the kind of laundry or use longer programs.Lint filter (interior and exterior filters) pores may be clogged. >>> Can be cleaned with vacuum cleaner.The front side of the condenser may be clogged. >>> Clean the front of the condenser.The machine may be overloaded with laundry. >>> Do not load the drying machine excessively.The laundry may not have been spun enough. >>> Spin at a higher speed in the washing machine.

Drying machine does not turn on or program cannot be started. The dryer does not turn on when set.

The power plug may not be plugged in. >>> Make sure the power plug is plugged in.The loading door may be left open. >>> Make sure that the loading door is properly closed.The program may not have been set or the Start / Pause button may not have been pressed. >>> Make sure that the program is set and it is not in Standby position.Child lock may be activated. >>> Turn off the child lock.

The program was interrupted for no reason.

The loading door might not be closed properly. >>> Make sure that the loading door is properly closed.There might be a power outage. >>> Press the Start / Standby / Cancel button to start the program.The water tank may be full. >>> Empty the water tank.

Laundry shrunk, matted or spoiled.

The right program for the type of laundry may not have been used. Check the maintenance labels on the clothes and select a program suitable for the clothes.

Water is flowing from the loading door.

Lint might have gathered on the inner surfaces of the loading door and on the surfaces of the loading door gasket. >>> Clean the inner surfaces of the loading door and the loading door gasket surfaces.

The loading door opens by itself.

The loading door might not be closed properly. >>> Push the loading door until the closing sound is heard.

The water tank warning symbol is on/flashing.

The water tank may be full. >>> Empty the water tank.The water discharge hose might have folded. If the product is connected directly to the water drain check the water discharge hose.

The lighting inside the drying machine does not turn on. (in models with lamps)

The drying machine might not have been turned on by the On/Off button. >>> Check that the drying machine is turned on.Lamp might be broken. >>> Contact Authorized Service to replace the lamp.

Anti-Wrinkle icon or light is lit.

An anti-wrinkle program that prevents the laundry in the dryer from creasing may be activated. >>> Turn the drier off and remove the laundry.

Fiber filter cleaning icon is lit

Lint filters (interior and exterior filters) may be unclean. >>> Can be cleaned with vacuum cleaner.A layer may be formed in the lint filter pores, leading to clogging. >>> Can be cleaned with vacuum cleaner.A layer may be formed in the lint filter (inner and outer filters) pores that leads to clogging.<<Can be cleaned with vacuum cleaner.>>Lint filters might not be in place. >>> Insert the interior and exterior filters into their places.Eco-friendly filter cloth may not be installed on the plastic part, and the front of the condenser may have clogged.>>>Install the eco-friendly filter to the plastic part and place it on the filter housing.Eco-friendly filters may not have been replaced, although the warning symbol is illuminated. “Replace your filter.”

The machine gives an audible warning,

Lint filters might not be in place. >>> Insert the interior and exterior filters into their places.Filters of the machine might not have been installed.>>> Install the lint filters (internal and external) or the environmentally-friendly filter in their housing.

The condenser warning icon is flashing.

Condenser front may be clogged with fibres. >>> Clean the front of the condenser.Lint filters might not be in place. >>> Insert the interior and exterior filters into their places.

The lighting inside the drying machine turns on. (in models with lamps)

If the drying machine is plugged to the power outlet, the On/Off button is pressed and the door is open; the light turns on. >>> Unplug the drying machine or bring the On/Off button to Off position.

Wi-Fi icon flashes continuously. (HomeWhiz Function models)

>>> The product may not be connected to the wireless network. Follow the instructions to connect to the network.The device the appliance uses to connect to the network may be faulty. Check it. The appliance might not be connected to the network due to being out of wi-fi range.

Check the steps below if you see "F L t" on the screen.

The filters may be dirty. Clean the internal and external filtersIn the loading door area, if you are using the inner and outer dual filters. >>> Make sure that both filters are installed.The front side of the condenser may be dirty. >>> Open and check the kick zone and make sure it is clean.Check out the Maintenance and Cleaning section.The foreign objects, if any, should be removed from the drying machine drum,

If the problem persists after following the instructions in this section, contact your vendor or an Authorized Service. Never attempt to repair a malfunctioning product yourself.

If you experience a problem with any part of your appliance, you can request a replacement by consulting the nearest authorised service with the appliance model number.
Operating the appliance with non-genuine parts may cause it to malfunction.
The manufacturer and distributor are not responsible for malfunctions caused by non-genuine parts.

Some (simple) malfunctions can be fixed by the end-user without creating any safety issues or leading to unsafe operation provided these instructions are followed. (See the “I Want to Fix it Myself” Section.) Therefore, other than the parts in the “I Want to Fix it Myself” section that end-users are allowed to fix themselves, having the appliance fixed at an authorised service station is recommended in order to prevent safety issues and to maintain the Beko product warranty.

9.1 I want to fix it myself

The repairs made by end-users may include the following spare parts. Loading door, door seal, door handles, door locking mechanism and hinges, lint filters, air filters, peripheral plastic parts, condenser tank. (You can find a current list of spare parts at https://support.beko.com as of 1 March 2021.) Furthermore, be sure to carry out your repairs by following the instructions at https://support.beko.com to ensure product safety and prevent serious injury. For your safety, unplug the product first before making any repairs. Beko cannot be held responsible for safety issues that may arise because of repair work or attempted repairs on parts other than those on the current spare parts list or found at the https://support.beko.com address and carried out by end-users not following the instructions in the user manuals or found at the https://support.beko.com address. Such cases will void the Beko warranty. We therefore strongly advise end-users to refrain from repairing parts other than the spare parts specified above and to apply to the authorised service station when required.

These kinds of repairs carried out by end-users can lead to safety issues, damage the product, and cause fires, flooding, electrocution and serious injury. Not limited to those listed above, the following parts must be repaired by the authorised station. Motor, pump, motherboard, motor board, screen card, etc. The manufacturer/seller cannot be held responsible for any situation caused by end-users not following what is written above. The repairs made by end-users may include the following spare parts. Loading door, door seal, door handles, door locking mechanism and hinges, lint filters, air filters, peripheral plastic parts, condenser tank. (You can find a current list of spare parts at https://support.beko.com as of 1 March 2021.) Furthermore, be sure to carry out your repairs by following the instructions at https://support.beko.com to ensure product safety and prevent serious injury. For your safety, unplug the product first before making any repairs. Beko cannot be held responsible for safety issues that may arise because of repair work or attempted repairs on parts other than those on the current spare parts list or found at the https://support.beko.com address and carried out by end-users not following the instructions in the user manuals or found at the https://support.beko.com address. Such cases will void the Beko warranty. We therefore strongly advise end-users to refrain from repairing parts other than the spare parts specified above and to apply to the authorised service station when required. These kinds of repairs carried out by end-users can lead to safety issues, damage the product, and cause fires, flooding, electrocution and serious injury. Not limited to those listed above, the following parts must be repaired by the authorised station. Motor, pump, motherboard, motor board, screen card, etc. The manufacturer/seller cannot be held responsible for any situation caused by end-users not following what is written above.
