Product Type	Fridge-freezer
Brand	VESTFROST
Model	VR-FB492-3H0B
Height	1920 mm
Width	700 mm
Depth	721 mm
Power Supply	220-240 V ~ 50 Hz
Climate Class	SN, N, ST, T (10°C - 43°C)
Cooling System	No-Frost (New Generation Cooling Technology)
Defrosting	Automatic (No-Frost)
Freezer Temperature Range	-16°C to -24°C (adjustable)
Fridge Temperature Range	+2°C to +8°C (adjustable)
Super Freeze Mode	Yes
Purebeam Air Purification	Yes (removes odours)
LED Interior Lighting	Yes
Adjustable Levelling Feet	Yes
Door Shelves	Yes (adjustable)
Crisper Drawer	Yes (with humidity control)
Bottle Shelf	Yes
Egg Holder	Yes
Freezer Drawers	Yes
Spare Parts Availability	7-10 years (depending on component)
Installation Clearances	Top ≥150 mm, Sides ≥50 mm, Back ≤75 mm

Frequently Asked Questions - VR-FB492-3H0B VESTFROST

How do I set the refrigerator temperature?

Press the cooler button to adjust the fridge temperature between +2°C and +8°C. The initial value is +4°C. Each press decreases the temperature; after the lowest, it cycles back to +8°C. For the freezer, press the freezer set button to cycle between -16°C and -24°C.

How do I activate Super Freeze mode?

Press and hold the freezer temperature button for 3 seconds. The super freeze symbol will light up and the appliance will beep. This mode is used to freeze large quantities of fresh food quickly. It automatically cancels after 24 hours or when the freezer sensor reaches a low enough temperature. You cannot use economy mode while it's active.

What is Purebeam technology?

Purebeam technology uses special LEDs and a fan to break down malodour molecules in the fridge, effectively removing bad odours and keeping the air clean. It is located in the ceiling of the cooling compartment and improves the quality of air for fresh food.

How do I clean the refrigerator?

Disconnect from power. Use a solution of warm water and bicarbonate of soda, then rinse with clean water and dry. Do not use abrasive products, detergents, or allow water to enter the lamp housing. Clean the condenser with a brush at least twice a year to improve efficiency.

The refrigerator is making noises. Is this normal?

Yes, some noises are normal: cracking during defrosting or thermal expansion, clicking from the thermostat, motor noise from the compressor, bubbling from refrigerant flow, water flowing to the evaporation container, and air blowing. If you hear unusual noises, check if the appliance is level.

Why is there condensation inside the fridge?

Condensation can occur if food is not properly wrapped, the door is opened frequently (humidity from the room enters), or there is water on the rear wall after automatic defrosting (normal). Ensure all containers are dry and closed, and minimize door openings.

How do I use the freezer box?

The freezer box allows easier access to food. To remove it, pull it out as far as possible, then lift the front up and out. To refit, do the opposite. Always hold the handle while removing it.

How do I replace the interior LED light?

The LEDs should be replaced by an Authorised Service Centre. Do not attempt to replace them yourself. Contact the nearest Authorised Service Centre for assistance.

What are the error codes in the display?

Codes like E01-E07 indicate sensor warnings and require service. E08 is low voltage (supply below 170V) and is not a failure. E09 means the freezer is not cold enough, E10 fridge too warm, E11 fridge too cold. Follow the instructions in the manual for each code.

Can I install this refrigerator outdoors or in a cold room?

It is designed for indoor use. It can operate in ambient temperatures from 10°C to 43°C (depending on climate class) thanks to Freezer Shield technology, which protects frozen food even at -15°C. Do not expose it to rain or direct sunlight.

USER MANUAL VR-FB492-3H0B VESTFROST

3.5.2 Szuflada zamrażarki

Szuflada zamrażarki

Rys. 1 Rys. 2

3.5.6 Technologia Purebeam

Purebeam

Thank you for choosing this product.

This user manual contains important information on safety and instructions intended to assist you in the operation and maintenance of your appliance.

Please take the time to read this user manual before using your appliance and keep this book for future reference.

Icon Type Meaning
!	WARNING Serious injury or death risk
	RISK OF ELECTRIC SHOCK Dangerous voltage risk
	FIRE Warning; Risk of fire / flammable materials
	CAUTION Injury or property damage risk
	IMPORTANT Operating the system correctly

CONTENTS

1. BEFORE USING THE APPLIANCE 40

1.1 General warnings 40
1.2 Old and out-of-order fridges or freezer 42
1.3 Safety warnings 43
1.4 Installing and operating your fridge freezer 43
1.5 Before Using your refrigerator 44

2. THE VARIOUS FUNCTION AND POSSIBILITIES 45

2.1 Information about New Generation Cooling Technology 45

3. USING THE APPLIANCE 46

3.1 UDisplay and Control Panel 46

3.2 Operating your Fridge Freezer 46

3.3 Freezer Temperature Settings 47

3.3.1 Cooler Temperature Settings 47

3.3.2 Super Freeze Mode 47

3.4 Temperature Adjustment Warnings 49

3.5 Accessories 50

3.5.1 The Icematic (In some models) 50

3.5.2 The Freezer Box 50

3.5.3 The Chiller Shelf (In some models) 50

3.5.4 The Fresh Dial (In some models) 51

3.5.5 Adjustable Glass Shelf (In some models) 51

3.5.6 Purebeam Technology 52

3.5.7 Maxi-fresh (In some models) 52

4. ARRANGING FOOD IN THE APPLIANCE 53

4.1 Fridge compartment 53

4.2 Freezer compartmenti 55

5. CLEANING AND MAINTENANCE 60

6. TRANSPORTATION AND CHANGING OF INSTALLATION POSITION 61

6.1 Transportation and Changing Positioning 61

7. BEFORE CALLING YOUR AFTER SALES SERVICE 62

8. THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS 67

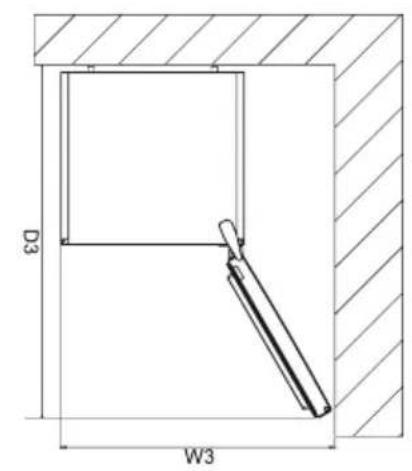

8.1 Dimensions 69

9. TECHNICAL DATA 70

10. INFORMATION FOR TEST INSTITUTES 70

11. CUSTOMER CARE AND SERVICE 70

1. BEFORE USING THE APPLIANCE

1.1 General warnings

Read this user manual carefully.

WARNING: Keep the ventilation openings of the Fridge clear from obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting ess.

WARNING: Do not use other electrical appliances inside the Fridge.

WARNING: Do not damage the refrigerant circuit.

WARNING: When positioning the appliance, ensure the supply cord is not trapped or aged.

WARNING: Do not locate multiple portable socket-outlets or portable power supplies at rear of the appliance.

WARNING: To avoid personal injury or damage this appliance must be installed in accordance the manufacturer instructions.

If your appliance uses R600a as a refrigerant (this information will be provided on the label e cooler) you should take care during transportation and installation to prevent the coolerents from being damaged. R600a is an environmentally friendly and natural gas, but it is osive. In the event of a leak due to damage of the cooler elements, move your fridge away open flames or heat sources and ventilate the room where the appliance is located for a few otes.

• While carrying and positioning the fridge, do not damage the cooler gas circuit.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
  • This appliance is intended to be used in household and domestic applications such as:
• staff kitchen areas in shops, offices and other working environments.
  – farm houses and by clients in hotels, motels and other residential type environments.
• bed and breakfast type environments;
• catering and similar non-retail applications.

- If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, a service agent or similarly qualified persons in order to avoid a hazard.

- A specially grounded plug has been connected to the power cable of your refrigerator. This plug should be used with a specially grounded socket of 16 amperes. If there is no such socket in your house, please have one installed by an authorised electrician.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. Children are not expected to perform cleaning or user maintenance of the appliance, very young children (0-3 years old) are not expected to use appliances, young children (3-8 years old) are not expected to use appliances safely unless continuous supervision is given, older children (8-14 years old) and vulnerable people can use appliances safely after they have been given appropriate supervision or instruction concerning use of the appliance. Very vulnerable people are not expected to use appliances safely unless continuous supervision is given.
• If the supply cord is damaged, it must be replaced by the manufacturer, an authorised service agent or similar qualified persons, in order to avoid a hazard.
• This appliance is not intended for use at altitudes exceeding 2000 m.

To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.
• One-, two- and three-star compartments are not suitable for the freezing of fresh food.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

1.2 Old and out-of-order fridges or freezer

Old and out-of-order fridges or freezer

• If your old fridge or freezer has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident.
• Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore, take care not to harm environment when you are discarding your old fridges.

Notes

• Please read the instruction manual carefully before installing and using your appliance. We are not responsible for the damage occurred due to misuse.
• Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.
• This appliance is produced to be used in homes and it can only be used in domestic environments and for the specified purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for the losses to be occurred.
• This appliance is produced to be used in houses and it is only suitable for cooling / storing foods. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for the losses to be occurred in the contrary case.

CE Declaration of conformity

We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced.

Disposal of your old appliance

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Packaging and the Environment

Packaging materials protect your machine from damage that may occur during transportation. The packaging materials are environmentally friendly as they are recyclable. The use of recycled material reduces raw material consumption and therefore decreases waste production.

1.3 Safety warnings

• Do not connect your fridge freezer to the mains electricity supply using an extension lead.
• Do not use damaged, torn or old plugs.
• Do not pull, bend or damage the cord.
• Do not use plug adapter.
• This appliance is designed for use by adults. Do not allow children to play with the appliance or hang off the door.
• Never touch the power cord/plug with wet hands. This may cause a short circuit or electric shock.
• Do not place glass bottles or cans in the ice-making compartment as they will burst when the contents freeze.
• Do not place explosive or flammable material in your fridge. Place drinks with high alcohol content vertically in the fridge compartment and make sure their tops are tightly closed.
• When removing ice from the ice-making compartment, do not touch it. Ice may cause frost burns and/or cuts.
• Do not touch frozen goods with wet hands. Do not eat ice-cream or ice cubes immediately after they are removed from the ice-making compartment.
• Do not re-freeze thawed frozen food. This may cause health issues such as food poisoning.

1.4 Installing and operating your fridge freezer

Before using your fridge freezer for the first time, please pay attention to the following points.

• The operating voltage for your fridge freezer is 220-240 V at 50Hz.
• The plug must be accessible after installation.
• Your refrigerator may have an odour when it is operated for the first time. This is normal and the odour will fade when your refrigerator starts to cool.
• Before connecting your fridge freezer, ensure that the information on the data plate (voltage and connected load) matches that of the mains electricity supply. If in doubt, consult a qualified electrician.
• Insert the plug into a socket with an efficient ground connection. If the socket has no ground contact or the plug does not match, we recommend you consult a qualified electrician for assistance.
• The appliance must be connected with a properly installed fused socket. The power supply (AC) and voltage at the operating point must match with the details on the name plate of the appliance (the name plate is located on the inside left of the appliance).
• We do not accept responsibility for any damages that occur due to ungrounded usage.
• Place your fridge freezer where it will not be exposed to direct sunlight.
• Your appliance must never be used outdoors or exposed to rain.
• Your appliance must be at least 50 cm away from stoves, gas ovens and heater cores, and at least 5 cm away from electrical ovens.
• If your fridge freezer is placed next to a deep freezer, there must be at least 2 cm between them to prevent humidity forming on the outer surface.

• Do not cover the body or top of fridge freezer with lace. This will affect the performance of your fridge freezer.

• Clearance of at least 150 mm is required at the top of your appliance. Do not place anything on top of your appliance.

• Do not place heavy items on the appliance.
• Use the adjustable front legs to make sure your appliance is level and stable.
• You can adjust the legs by turning them in either direction. This must be done before placing food in the appliance.
• Clean the appliance thoroughly before use (see Cleaning and Maintenance).
• Before using your fridge freezer, wipe all parts with a solution of warm water and a teaspoon of sodium bicarbonate. Then, rinse with clean water and dry. Return all parts to the fridge freezer after cleaning.
• When the product is running, high temperature can be noticed on the side panels. This situation is normal.
• In order for the product to work efficiently, there must be some gap around it for air circulation. If you are going to place the product in a recessed area on the wall, make sure that the gap should be 100 mm between top surface and ceiling, 50 mm between walls and side panels.
• The distance between the appliance and back wall must be a maximum of 75 mm.

1.5 Before Using your refrigerator

• When using your fridge for the first time, or after transportation, keep it in an upright position for at least 3 hours before plugging into the mains. This allows efficient operation and prevents damage to the compressor.
• Your fridge may have a smell when it is operated for the first time. This is normal and the smell will fade away when your fridge starts to cool.

2. THE VARIOUS FUNCTION AND POSSIBILITIES

2.1 Information about New Generation Cooling Technology

Refrigerators with new-generation cooling technology have a different operating system to static refrigerators. Other (static) refrigerators may experience a build up of ice in the freezer compartment due to door openings and humidity in the food. In such refrigerators, regular defrosting is required; the refrigerator must be switched off, the frozen food moved to a suitable container and the ice which has formed in the freezer compartment removed.

In refrigerators with new-generation cooling technology, a fan blows dry cold air evenly throughout the fridge and freezer compartments. The cold air cools your food evenly and uniformly, preventing humidity and ice build-up.

In the fridge compartment, air blown by the fan, located at the top of the fridge compartment, is cooled while passing through the gap behind the air duct. At the same time, the air is blown out through the holes in the air duct, evenly spreading cool air throughout the fridge compartment. There is no air passage between the freezer and fridge compartments, therefore preventing the mixing of odours.

As a result, your refrigerator, with new-generation cooling technology, provides you with ease of use as well as a huge volume and aesthetic appearance.

3. USING THE APPLIANCE

3.1 Display and Control Panel

1. Enables the setting of the freezer.
2. Enables the setting of the fridge.
3. Freezer set value screen.

4. Fridge set value screen.

5. Economy mode symbol.

6. Super freeze symbol.
7. Alarm symbol.

Lighting (If available)

When the product is plugged in for the first time, the interior lights may turn on 1 minute late due to opening tests.

3.2 Operating your Fridge Freezer

Once you have plugged in the product, all symbols will be displayed for 2 seconds and the initial values will be shown as -18 °C on the freezer adjustment indicator, and +4 °C on the fridge adjustment indicator.

3.3 Freezer Temperature Settings

• The initial temperature value for the freezer setting indicator is -18°C .
• Press the freezer set button once.

When you first press the button, the previous value will blink on the screen.

• Whenever you press the same button, a lower temperature will be set (-16 °C, -18 °C, -20 °C, -22 °C or -24 °C).
• If you continue to press the button, it will restart from -16 °C.

NOTE: Eco mode gets activated automatically when the temperature of the freezer compartment is set to -18° C.

3.3.1 Cooler Temperature Settings

• The initial temperature value for the cooler setting indicator is +4°C .
• Press the cooler button once.
• Whenever you press the button, a lower temperature will be set (+8 °C, +6 °C, +5 °C, +4 °C, or +2 °C).
• If you continue to press the button, it will restart from +8 °C.

3.3.2 Super Freeze Mode

Purpose

• To freeze a large quantity of food that cannot fit on the fast freeze shelf.
• To freeze prepared foods.
• To freeze fresh food quickly to retain freshness.

How to use

To enable the super freeze mode, press and hold the freezer temperature setting button for 3 seconds. Once the super freeze mode has been set, the super freeze symbol on the indicator will be lit and the machine will beep to confirm the mode has been switched on.

During Super Freeze Mode:

• The temperature of the fridge may be adjusted. In this case, Super Freeze mode will continue.
  • Economy mode cannot be selected.
• Super Freeze mode can be cancelled in the same way it is selected.

Notes:

• The maximum amount of fresh food (in kilograms) that can be frozen within 24 hours is shown on the appliance label.
• For optimal appliance performance in maximum freezer capacity, activate super freeze mode 3 hours before you put fresh food into the freezer.

Super freeze mode will automatically cancel after 24 hours, depending on the environmental temperature or when the freezer sensor reaches a sufficiently low temperature.

Recommended Settings for the Freezer and Cooler Compartment Temperature

Freezer Compartment	Cooler Compartment	Remarks
-18°C 4	°C For regular use and best performance.
-20°C, -22°C lub -24°C	4°C	Recommended when environmental temperature exceeds 30 °C.
Super Freeze mode	4°C	Must be used when you wish to freeze food in a short period of time.
-18°C, -20°C, -22°C lub -24°C	3°C	These temperature settings must be used when the environmental temperature is high or if you think the refrigerator compartment is not cool enough because the door is being opened frequently.

3.4 Temperature Adjustment Warnings

• It is not recommended that you operate your refrigerator in environments colder than 10°C in terms of its efficiency.
• Do not start another adjustment while you are already making an adjustment.
• Temperature adjustments should be made according to the frequency of door openings, the quantity of food kept inside the fridge and the ambient temperature in the location of your refrigerator.
• In order to allow your refrigerator to reach the operating temperature after being connected to mains, do not open the doors frequently or place large quantities of food in the fridge. Please note that, depending on the ambient temperature, it may take 24 hours for your fridge to reach the operating temperature.
• A 5 minute delay function is applied to prevent damage to the compressor of your refrigerator when connecting or disconnecting to mains, or when an energy breakdown occurs. Your refrigerator will begin to operate normally after 5 minutes.
• Your appliance is designed to operate in the ambient temperature (T/SN = 10°C - 43°C) intervals stated in the standards, according to the climate class displayed on the information label. We do not recommend operating your appliance out of the stated temperature limits in terms of cooling effectiveness.

Climate class and meaning:

T (tropical): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C.

ST (subtropical): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C.

N (temperate): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C.

SN (extended temperate):

This refrigerating appliance is intended to be used at ambient temperatures ranging from 10\ °C to 32\ °C .

Important installation instructions

This appliance is designed to work in difficult climate conditions and is powered with 'Freezer Shield' technology which ensures that the frozen food in the freezer will not defrost even if the ambient temperature falls as low as -15 °C. So you may then install your appliance in an unheated room without having to worry about frozen food in the freezer being spoilt. When the ambient temperature returns to normal, you may continue using the appliance as usual.

3.5 Accessories

3.5.1 The Icematic (In some models)

• Pull the lever towards you and remove the ice maker tray
- Fill with water to the marked level
- Hold the left end of the lever and set the ice-tray on the icebox
- When ice cubes have formed, twist the lever to drop the ice cubes into the icebox..

NOTE

• Do not fill the icebox with water in order to make ice. It will break..
• The movement of the ice maker may be difficult while the refrigerator is running. In such a case it should be cleaned by removing the glass shelves.

3.5.2 The Freezer Box

The freezer box allows food to be accessed more easily.

Removing the freezer box

• Pull the box out as far as possible
• Pull the front of the box up and out.

Carry out the opposite of this operation when refitting the sliding compartment.

NOTE

Always keep hold of the handle of the box while removing it.

Freezer boxes

3.5.3 The Chiller Shelf (In some models)

Keeping food in the Chiller compartment, instead of the freezer or fridge compartments, allows food to retain freshness and flavour for longer, while preserving its fresh appearance. When the Chiller tray becomes dirty, remove it and wash with water. (Water freezes at 0° C, but food containing salt or sugar freezes at temperatures lower than this). The Chiller compartment is usually used for storing foods such as raw fish, lightly pickled food, rice, and so on.

Do not put food you want to freeze or ice trays (to make ice) in the Chiller compartment.

Chiller shelf

To remove the Chiller Shelf

• Pull the chiller shelf towards you by sliding it on the rails.
• Pull the chiller shelf up from the rail and remove it from the fridge.

3.5.4 The Fresh Dial (In some models)

If the crisper is full, the fresh dial located in front of the crisper should be opened. This allows the air in the crisper and the humidity rate to be controlled, to increase the life of food within. The dial, located behind the shelf, must be opened if any condensation is seen on the glass shelf.

3.5.5 Adjustable Glass Shelf (In some models)

Adjustable glass shelf mechanism provides higher storage spaces with a simple movement. To cover the glass shelf, push it. You can load your food as you want in the resulting extra space. To bring the shelf in its original position, pull it toward you.

Fig. 1 Fig. 2

3.5.6 Purebeam Technology

The Purebeam technology effectively removes odors from inside the fridge. Thanks to this module located in the ceiling of the cooling compartment, via fan the malodor molecules that are directed to the filter are broken down by special LEDs and the cleaned air directs to the fresh foods. The quality of the air in the fridge improves and always kept clean.

Purebeam

3.5.7 Maxi-fresh (If available)

Maxi Fresh technology helps to remove ethylene gas (a bioproduct released naturally from fresh foods) and unpleasant odors from the crisper. In this way, food stays fresh for a longer time.

• Maxi Fresh must be cleaned once in a year. The filter should be waited for 2 hours at 65°C in a oven.
• To clean the filter, please remove the back cover of the filter box by pulling it in the direction of the arrow.
  • The filter should not be washed with water or any detergent.

4. ARRANGING FOOD IN THE APPLIANCE

4.1 Fridge compartment

For normal operating conditions, set the temperature of the cooler compartment to +4 or +6°C.

• To reduce humidity and avoid the consequent formation of frost, always store liquids in sealed containers in the fridge. Frost tends to concentrate in the coldest parts of the evaporating liquid and, in time, your appliance will require more frequent defrosting.
• Never place warm food in the fridge. Warm food should be allowed to cool at room temperature and should be arranged to ensure adequate air circulation in the fridge compartment.
• Make sure no items are in direct contact with the rear wall of the appliance as frost will develop and packaging will stick to it. Do not open the fridge door frequently.
  • We recommend that meat and clean fish are loosely wrapped and stored on the glass shelf just above the vegetable bin where the air is cooler, as this provides the best storage conditions.
• Store loose fruit and vegetable items in the crisper containers.
• Store loose fruit and vegetables in the crisper.
• Storing fruit and vegetables separately helps prevent ethylene-sensitive vegetables (green leaves, broccoli, carrot, etc.) being affected by ethylene-releaser fruits (banana, peach, apricot, fig etc.).
• Do not put wet vegetables into the refrigerator.
• Storage time for all food products depends on the initial quality of the food and an uninterrupted refrigeration cycle before refrigerator storage.
• To avoid cross-contamination do not store meat products with fruit and vegetables. Water leaking from meat may contaminate other products in the fridge. You should package meat products and clean any leakages on the shelves.
• Do not put food in front of the air flow passage.
• Consume packaged foods before the recommended expiry date.
• For normal working conditions, it will be sufficient to adjust the temperature setting of your fridge to +4°C .
• The temperature of the fridge compartment should be in the range of 0-8 °C, fresh foods below 0 °C are iced and rotted, bacterial load increases above 8 °C, and spoils.
• Do not put hot food in the fridge immediately, wait for the temperature to pass outside. Hot foods increase the degree of your fridge and cause food poisoning and unnecessary spoiling of the food.
• Meat, fish, etc. should be store in the chiller compartment of the food, and the vegetable compartment is preferred for vegetables. (if available)
  • To prevent cross contamination, meat products and fruit vegetables are not stored together.
• Foods should be placed in the fridge in closed containers or covered to prevent moisture and odors.

The table below is a quick guide to show you the most efficient way to store the major food groups in your fridge compartment.

Food	Maximum storage time	How and where to store
Vegetables and fruits 1 week Vegetable bin
Meat and fish 2 - 3 days		Wrap in plastic foil, bags, or in a meat container and store on the glass shelf
Fresh cheese 3 - 4 days On the designated door shelf
Butter and margarine 1 week On the designated door shelf
Bottled products e.g. milk and yoghurt	Until the expiry date recommended by the producer	On the designated door shelf
Eggs 1 month On the designated egg shelf
Cooked food 2 days All shelves

NOTE: Potatoes, onions and garlic should not be stored in the fridge.

4.2 Freezer compartment

For normal operating conditions, set the temperature of the freezer compartment to -18 or -20°C.

• The freezer is used for storing frozen food, freezing fresh food, and making ice cubes.
• To use the maximum capacity of the freezer compartment, use the glass shelves for the upper and middle section, and use the lower basket for the bottom section.
• Use the fast freezing shelf to freeze home cooking (and any other food which needs to be frozen quickly) more quickly because of the freezing shelf's greater freezing power. Fast freezing shelf is the bottom drawer of the freezer compartment.
• For freezing fresh food; wrap and seal fresh food properly, that is the packaging should be air tight and shouldn't leak. Special freezer bags, aluminum foil polythene bags and plastic containers are ideal.
• Do not store fresh food next to frozen food as it can thaw the frozen food.
• Before freezing fresh food, divide it into portions that can be consumed in one sitting.
• Consume thawed frozen food within a short period of time after defrosting
• Never place warm food in the freezer compartment as it will thaw the frozen food.
• Always follow the manufacturer's instructions on food packaging when storing frozen food. If no information is provided food, should not be stored for more than 3 months from the date of purchase.
• When purchasing frozen food, make sure that it has been stored under appropriate conditions and that the packaging is not damaged.
• Frozen food should be transported in appropriate containers and placed in the freezer as soon as possible.
• Do not purchase frozen food if the packaging shows signs of humidity and abnormal swelling. It is probable that it has been stored at an unsuitable temperature and that the contents have deteriorated.
• The storage life of frozen food depends on the room temperature, the thermostat setting, how often the door is opened, the type of food, and the length of time required to transport the product from the shop to your home. Always follow the instructions printed on the packaging and never exceed the maximum storage life indicated. The maximum amount of fresh food (in kg) that can be frozen in 24 hours is indicated on the appliance label.

IMPORTANT NOTE:

• Never refreeze thawed frozen food.
• The taste of some spices found in cooked dishes (anise, basilica, watercress, vinegar, assorted spices, ginger, garlic, onion, mustard, thyme, marjoram, black pepper, etc.) changes and they assume a strong taste when they are stored for a long period of time. Therefore, add small amounts of spices to food to be frozen, or the desired spice should be added after the food has thawed.
• The storage time of food is dependent on the type of oil used. Suitable oils are margarine, calf fat, olive oil and butter. Unsuitable oils are peanut oil and pig fat.
• Food in liquid form should be frozen in plastic cups and other food should be frozen in plastic folios or bags.

The table below is a quick guide to show you the most efficient way to store the major food

groups in your freezer compartment.

	Maximum storage time (months)	Thawing time at room temperature (hours)	Thawing time in oven (minutes)
Bread 4-62-34-5 (220-225°C)
Biscuits 3-61-1,5 5-8 (190-200°C)
Pastry 1-32-35-10 (200-225°C)
Pie 1-1,5 3-45-8 (190-200°C)
Phyllo dough 2-31-1,5 5-8 (190-200°C)
Pizza 2-32-415-20 (200°C)

Dairy products Preparation		Maximum storage time (months)	Storage conditions
Packet (Homogenized) Milk	In its own packet 2–3Pure Milk – in its own packet
Cheese - excluding white cheese	In slices 6–8		Original packaging may be used for short-term storage.Keep wrapped in foil for longer periods.
Butter, margarine	In its packaging	6

Meat and fish Preparation		Maximum storage time (months)
Steak Wrap in foil 6-8
Lamb meat Wrap in foil 6-8
Veal roast Wrap in foil 6-8
Veal cubes In small pieces 6-8
Lamb cubes In pieces 4-8
Minced meat In packaging without using spices 1-3
Giblets (pieces) In pieces 1-3
Bologna sausage/salami	Should be kept packaged even if it has a membrane
Chicken and turkey Wrap in foil 4-6
Goose and duck Wrap in foil 4-6
Deer, rabbit, wild boar	In 2.5 kg portions or as fillets	6-8
Freshwater fish (Salmon, Carp, Crane, Catfish)	After cleaning the bowels and scales of the fish, wash and dry it. If necessary, remove the tail and head.	2
Lean fish (Bass, Turbot, Flounder)		4
Fatty fishes (Tuna, Mackerel, Bluefish, Anchovy)		2-4
Shellfish	Clean and in a bag	4-6
Caviar	In its packaging, or in an aluminium or plastic container	2-3
Snails	In salty water, or in an aluminium or plastic container	3

NOTE: Thawed frozen meat should be cooked as fresh meat. If the meat is not cooked after

defrosting, it must not be re-frozen.

Vegetables and Fruits Preparation		Maximum storage time (months)
String beans and beans	Wash, cut into small pieces and boil in water	10-13
Beans Hull, wash and boil in water 12
Cabbage Clean and boil in water 6-8
Carrot Clean, cut into slices and boil in water 12
Pepper	Cut the stem, cut into two pieces, remove the core and boil in water	8-10
Spinach Wash and boil in water 6-9
Cauliflower	Remove the leaves, cut the heart into pieces and leave it in water with a little lemon juice for a while	10-12
Eggplant Cut into pieces of 2cm after washing 10-12
Corn Clean and pack with its stem or as sweet corn 12
Apple and pear Peel and slice 8-10
Apricot and Peach	Cut into two pieces and remove the stone	4-6
Strawberry and Blackberry	Wash and hull	8-12
Cooked fruits	Add 10 % of sugar to the container	12
Plum, cherry, sourberry	Wash and hull the stems	8-12

5. CLEANING AND MAINTENANCE

⚠️ Disconnect the unit from the power supply before cleaning.

Do not wash your appliance by pouring water on it.

Do not use abrasive products, detergents or soaps for cleaning the appliance. After washing, rinse with clean water and dry carefully. When you have finished cleaning, reconnect the plug to the mains supply with dry hands.

• Make sure that no water enters the lamp housing and other electrical components.
• The appliance should be cleaned regularly using a solution of bicarbonate of soda and lukewarm water.
• Clean the accessories separately by hand with soap and water. Do not wash accessories in a dish washer.
• Clean the condenser with a brush at least twice a year. This will help you to save on energy costs and increase productivity.

The power supply must be disconnected during cleaning.

Replacing LED Lighting

To replace any of the LEDs, please contact the nearest Authorised Service Centre.

NOTE: The numbers and location of the LED strips may change according to the model.

6. TRANSPORTATION AND CHANGING OF INSTALLATION POSITION

6.1 Transportation and Changing Positioning

• The original packaging and foam may be kept for re-transportation (optional).
- Fasten your appliance with thick packaging, bands or strong cords and follow the instructions for transportation on the packaging.
- Remove all movable parts or fix them into the appliance against shocks using bands when re-positioning or transporting.

Always carry your appliance in the upright position.

7. BEFORE CALLING YOUR AFTER SALES SERVICE

Errors

Your refrigerator will warn you if the temperatures for the fridge and freezer are at improper levels or if a problem occurs with the appliance. Warning codes are displayed in the freezer and fridge indicators.

ERROR TYPE MEANING WHY WHAT TO DO
E01Sensor warning		Call Service for assistance as soon as possible.
E02Sensor warning		Call Service for assistance as soon as possible.
E03Sensor warning		Call Service for assistance as soon as possible.
E06Sensor warning		Call Service for assistance as soon as possible.
E07Sensor warning		Call Service for assistance as soon as possible.
E08	“Low voltage Warning”	When the power supply gets lower than 170 V the appliance gets to steady position.	·This is not a failure. This prevents any damages on the compressor. This warning will off after the voltage gets required level.·If the warning continues, please contact with authorized technical service.
E09	Freezer comp. Not Cold enough	This caution will be seen especially after long term of power failure	Do not freeze the foods that are thaw and use in short time period.Set the freezer temperature to colder values or set the super freeze, until the compartment gets to normal temperature.Do not put fresh food until this failure is off.Please don't open the refrigerator doors frequently until the warning disappears.If the warning continues, please contact with authorized technical service.
E10	"Fridge comp. Not Cold enough"	Ideal temperature for fridge compartment is +4 oC. If you see this warning your foods have risk of spoiling. This warning becomes visible if electricity is off for a long time (most probably) or the fridge is activated for the first time or hot food is loaded to the appliance.	1. Set the fridge temperature to colder values or set the super cooling mode until the compartment gets to normal temperature.2. Do not open the door much until this failure is off.3. Please empty the location at the front area of air duct channel holes.4. Please be careful while loading the appliance in order not to avoid the ventilation at the areas which are very close to the sensor.5. Please don't open the fridge doors frequently until the warning disappears.6. If the warning continues, please contact with authorized technical service.
E11	Fridge comp. too Cold	The foods starts to freeze because of the too much cold temperature. This warning means that the temperature of the fridge compartment is very low. Therefore, this ambient condition may lead to the freezing of foods in the compartment.	1. 1. Check if the "Super cooling mode" is on.2. Decrease the fridge temperature values.3. If the warning continues, please contact with authorized technical service

If you are experiencing a problem with your appliance, please check the following before contacting the after-sales service.

Your refrigerator does not operate

Check if:

• Your appliance is plugged in and switched on
• The fuse has blown
• Is the temperature adjustment right?

- The socket is faulty. To check this, plug another working appliance into the same socket.

Your refrigerator is performing poorly

Check if:

• Is the temperature adjustment right?
- Is the door of your appliance opened frequently and left open for a long while?
• The appliance is overloaded
• The doors are closed properly
- Did you put a dish or food on your fridge so that it contacts the rear wall of your fridge so as to prevent the air circulation?
• Is your fridge filled excessively?
- There is an adequate distance between the appliance and surrounding walls
- Is the ambient temperature within the range of values specified in the operating manual?

Your refrigerator is operating noisily

The following noises can be heard during normal operation of the appliance.

Cracking noise occurs:

• During automatic defrosting
- When the appliance is cooled or warmed (due to expansion of appliance material).

Clicking noise occurs: When the thermostat switches the compressor on/off.

Motor noise: Indicates the compressor is operating normally. The compressor may cause more noise for a short time when it is first activated.

Bubbling noise and splash occurs: Due to the flow of the refrigerant in the tubes of the system.

Water flowing noise occurs: Due to water flowing to the evaporation container. This noise is normal during defrosting.

Air blowing noise occurs: In some models during normal operation of the system due to the circulation of air.

There is a build-up of humidity inside the fridge

Check if:

• All food is packed properly. Containers must be dry before being placed in the fridge.
• The fridge doors are opened frequently. Humidity of the room will enter the fridge each time the doors are opened. Humidity increases faster if the doors are opened frequently, especially if the humidity of the room is high.
• There is a build-up of water droplets on the rear wall. This is normal after automatic defrosting (in Static Models).procesu automatycznego odszraniania. (w przypadku modeli statycznych).

The doors are not opening or closing properly

Check if:

• There is food or packaging preventing the door from closing
  • The door compartments, shelves and drawers are placed properly
  • The door gaskets are broken or torn
• Your refrigerator is level.Czy chłodziarcze została ustawiona na poziomej powierzchni?

The edges of the refrigerator in contact with the door joint are warm

Especially during summer (warm weather), the surfaces in contact with the door joint may become warmer during operation of the compressor. This is normal.

IMPORTANT NOTES:

• In the case of a power failure, or if the appliance is unplugged and plugged in again, the gas in the cooling system of your refrigerator will destabilise, causing the compressor protective thermal element to open. Your refrigerator will start to operate normally after 5 minutes.
• If the appliance will not be used for a long period of time (such as during holidays), disconnect the plug. Defrost and clean the refrigerator, leaving the door open to prevent the formation of mildew and odour.
• If the problem persists after you have followed all the instructions above, please consult the nearest Authorised Service Centre.
• This appliance is designed for domestic use and for the stated purposes only. It is not suitable for commercial or common use. If the consumer uses the appliance in a way that does not comply with these instructions, we emphasise that the manufacturer and the dealer will not be responsible for any repair or failure within the guarantee period.

TIPS FOR SAVING ENERGY

1. Install the appliance in a cool, well-ventilated room, but not in direct sunlight and not near a heat source (such as a radiator or oven) otherwise an insulating plate should be used.
2. Allow warm food and drinks to cool before placing them inside the appliance.
3. Place thawing food in the fridge compartment. The low temperature of the frozen food will help cool the refrigerator compartment while the food is thawing. This will save energy. Frozen food left to thaw outside of the appliance will result in a waste of energy.
4. Drinks or other liquids should be covered when inside the appliance. If left uncovered, the humidity inside the appliance will increase, therefore the appliance uses more energy. Keeping drinks and other liquids covered helps preserve their smell and taste.
5. Avoid keeping the doors open for long periods and opening the doors too frequently as warm air will enter the appliance and cause the compressor to switch on unnecessarily often.
6. Keep the covers of the different temperature compartments (such as the crisper and chiller) closed.
7. The door gasket must be clean and pliable. In case of wear, if your gasket is detachable, replace the gasket. If not detachable, you have to replace the door.

8. THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS

This appliance is not intended to be used as a built-in appliance.

A. Fridge compartment
B. Freezer compartment

1. TThermostat box / Interior display
2. Turbo fan *
3. Refrigerator shelves
4. Wine rack *
5. Chiller *
6. Crisper cover
7. Crisper

8. Icemaker *

9. Freezer room cover * / Upper drawer

10. Freezer drawers
11. Levelling feet
12. Freezer glass shelves *
13. Bottle shelf
14. Adjustable door shelf * / Door shelf
15. Door shelves
16. Egg holder
17. Ice box tray *

Fresh Food Compartment (Fridge):

Most efficient use of energy is ensured in the configuration with the drawers in the bottom part of the appliance, and shelves evenly distributed, position of door bins does not affect energy consumption.

Freezer Compartment (Freezer)::

Most Efficient use of energy is ensured in the configuration with the drawers and bins are on stock position.

8.1 Dimensions

Overall dimensions1(mm)
H1	1920
W1	700
D1	721

Space required in use2(mm)
H2	2070
W2	800
D2	761

Overall space required in use3(mm)
W3	1014
D3	1372

¹ the height, width and depth of the appliance without the handle

² the height, width and depth of the appliance including the handle, plus the space necessary for free circulation of the cooling air

³ the height, width and depth of the appliance including the handle, plus the space necessary for free circulation of the cooling air, plus the space necessary to allow door opening to the minimum angle permitting removal of all internal equipment.

9. TECHNICAL DATA

The technical information is situated in the rating plate on the internal side of the appliance and on the energy label.

The QR code on the energy label supplied with the appliance provides a web link to the information related to the performance of the appliance in the EU EPREL database.

Keep the energy label for reference together with the user manual and all other documents provided with this appliance.

It is also possible to find the same information in EPREL using the link https://eprel.ec.europa.eu and the model name and product number that you find on the rating plate of the appliance.

See the link www.theenergylabel.eu for detailed information about the energy label.

10. INFORMATION FOR TEST INSTITUTES

Appliance for any EcoDesign verification shall be compliant with EN 62552. Ventilation requirements, recess dimensions and minimum rear clearances shall be as stated in this User Manual at Chapter 2. Please contact the manufacturer for any other further information, including loading plans.

11. CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model, Serial Number and Service Index. The information can be found on the rating plate. Subject to change without notice. The original spare parts for some specific components are available for a minimum of 7 or 10 years, based on the type of component, from the placing on the market of the last unit of the model.

Notes

4.1 Chladnička 87
4.2 Mraznička 89

5. ČIŠTĚNÍ A ÚDRŽBA 94

6. DOPRAVA A PŘEMÍSTĚNÍ 95

3.5.2 Mraznička - box

Mraznička - box

Poličky - chiller

Obr. 1 Obr. 2

3.5.6 Technologie Purebeam

Purebeam

Schránka mrazničky

Polička chladiaceho oddielu

Vybranie poličky chladiaceho oddielu

• Vytiahnite poličku chladiaceho oddielu von smerom k sebe posúvaním po kolajniciach.
- Vytiahnite poličku chladiaceho oddielu smerom hore z kolajničiek, aby ste mohli vybrat' chladiaci oddiel.

Obr. 1 Obr. 2

3.5.6 Technologia Purebeam

Purebeam
