USER MANUAL CLB13GPM Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

HYDRAULIC GEAR PUMP

MODEL: YYPMB11GPM / YYPMB13GPM / YYPMB22GPM+25 / YYPMB22GPM / CLB13GPM / CLB16GPM / CLB16+25

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

HYDRAULIC GEAR PUMP

MODEL: YYPMB11GPM / YYPMB13GPM / YYPMB22GPM+25 / YYPMB22GPM / CLB13GPM / CLB16GPM / CLB16+25

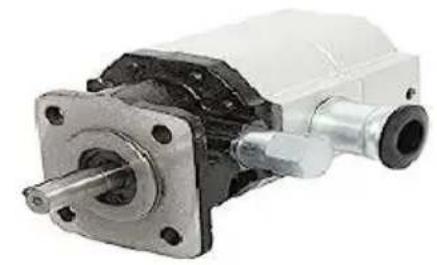

Mechanical component with metallic housing and mounting flange (no visible text or symbols)

Two mechanical components: a motor and a black housing (no visible text or symbols)

Collection of mechanical components including gears, bolts, and bolts (no text or symbols visible)

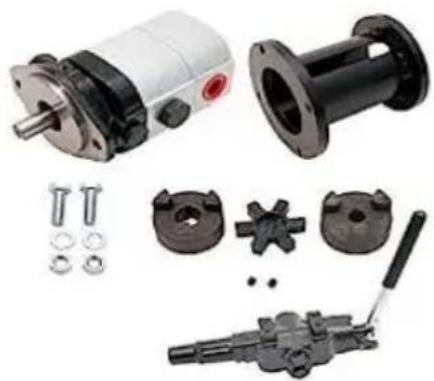

Collection of mechanical components including motor, flange, gear, and hydraulic shaft assembly (no text or symbols visible)

Mechanical assembly showing a motor and a disassembled component (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your use, there are any technology or software updates on our product.

Vevor CLB13GPM - NEED HELP? CONTACT US! - 1

Warning-To reduce the risk of injury, user must read in manual carefully.

INSTALLATION GUIDELINES

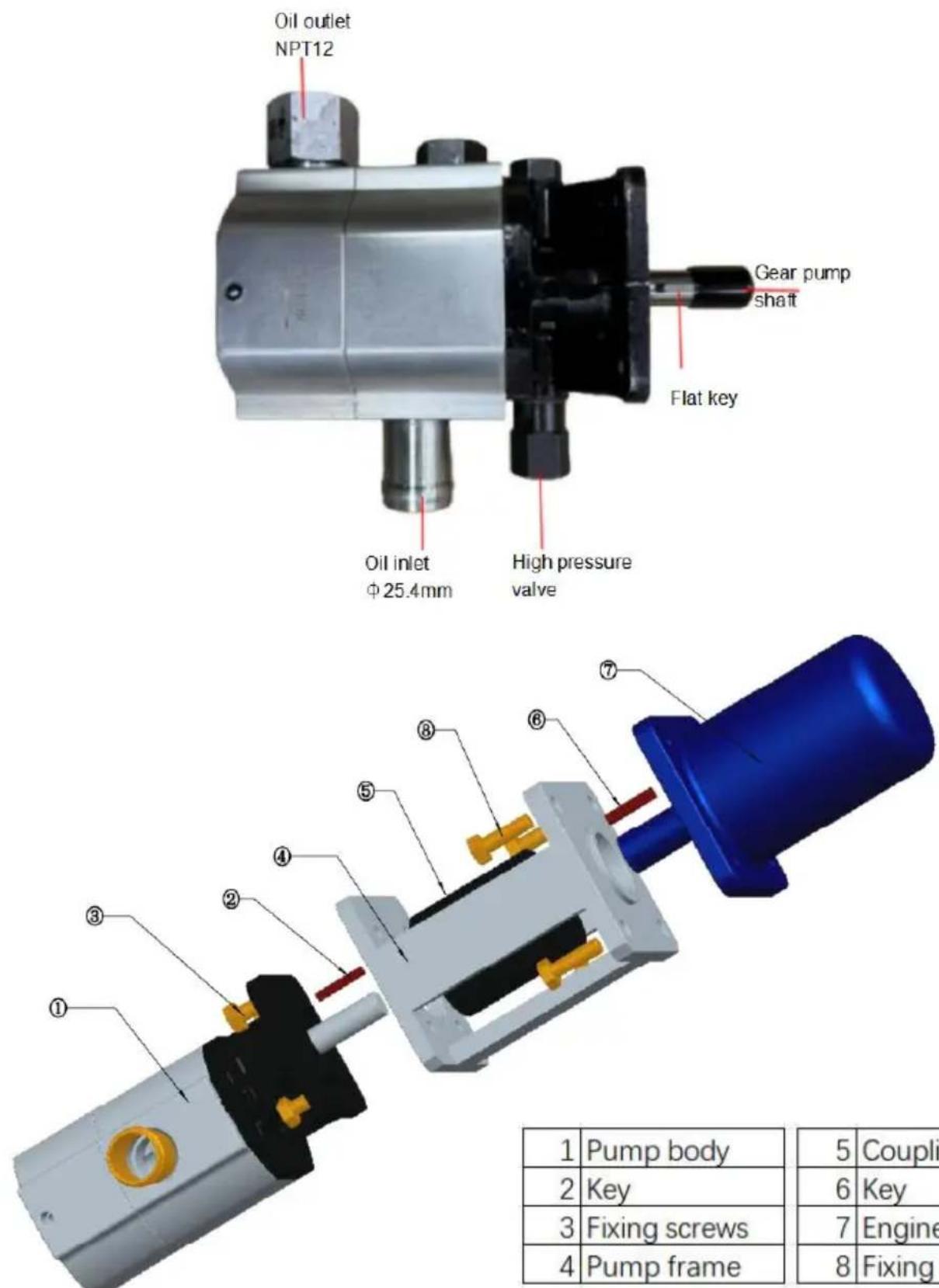

Oil outlet NPT12 Gear pump shaft Flat key Oil inlet Φ25.4mm High pressure valve ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ Pump body 5 Coupli Key 6 Key 3 Fixing screws 7 Engine 4 Pump frame 8 Fixing

3D mechanical assembly diagram showing components like hydraulic cylinder, valve, and housing (no text or labels)

Secure the coupling to the engine.
Connect the pump bracket to the engine flange.
Fix the gear pump onto the pump frame and connect it to the circle (note that the single key inside cannot fall out)
Connect the oil suction pipe to the fuel tank and secure it with a clamp.
The connection between the oil outlet and the high-pressure oil po the multi way valve is complete.

SPECIFICATIONS

Model	Flow(GPM)3600r/min	Pressure(PSI)		Displacement(cu.in/r)		Speed(rpm)	D(mm)
Model	Flow(GPM)3600r/min	Lo	Hi	Lo	Hi	Speed(rpm)	Inlet	Outlet
YYPMB11GPM	11	400 /900	3000	0.537	0.220	3600	1 in Pipe	1/2 NPT
CLB13GPM	13	400/900	3000	0.665	0.220
YYPMB13GPM	13	400/900	4000	0.665	0.256
CLB16GPM	16	400/900	4000	0.793	0.265
CLB16+25	16	400/900	4000	0.793	0.265

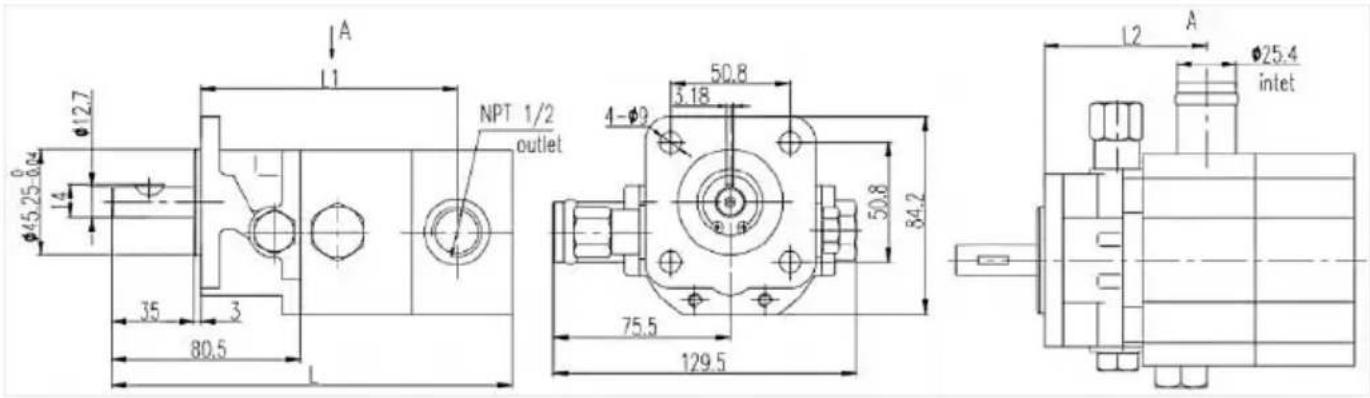

DIMENSION

A L1 Ø12.7 Ø45.25-0.04 4 35 3 80.5 NPT 1/2 outlet 50.8 3.18 4-Ø9 Ø16 50.8 84.2 75.5 129.5 L2 A Ø25.4 inlet

Model	Dimension(inches)
Model	L	L1	L2
YYPMB11GPM	6.61	4.24	2.74
CLB13GPM	6.9	4.53	3.04
YYPMB13GPM	6.9	4.53	3.04
CLB16GPM	6.9	4.53	3.04
CLB16+25	6.9	4.53	3.04

SPECIFICATIONS

Model	Flow(GPM)3600r/min	Pressure(PSI)		Displacement(cu.in/r)		Speed(rpm)	D(mm)
		Lo	Hi	Lo	Hi		Inlet	Outlet
YYPMB22GPM+25	22	400/900	3000	0.93	0.465	3600	NPTFG1	NPTF3/4 G3/4
YYPMB22GPM	22	400/900	3000	0.93	0.465

DIMENSION

Vevor CLB13GPM - DIMENSION - 1

PERFORMANCE CURVES

YYPMB22GPM
| PSI | HP | PLOW GPM | | ---- | --- | -------- | | 0 | 0 | 25 | | 500 | 2 | 7 | | 1000 | 5 | 6 | | 1500 | 8 | 6 | | 2000 | 10 | 5 | | 2500 | 12 | 5 | | 3000 | 15 | 5 |

PARTS LIST

Model	Parts List
YYPMB11GPM, YYPMB22GPM, CLB13GPM, CLB16GPM	1. Wrench * 1;2. Flat key * 1;3.Teflon tape* 1
YYPMB13GPM	1. Coupling * 1;2. Installation base * 1;3. Bolt * 4;4. Wrench * 1;5. Key * 1;6. Teflon tape* 1;
YYPMB22GPM+25	1. Coupling * 1;2. Installation base * 1;3. Bolt * 4;4. Brake valve * 15. Wrench * 1;6. Key * 1;7. Teflon tape* 1;
CLB16+25	1. Brake valve;2. Wrench * 1;3. Flat key * 1;4.Teflon tape* 1

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
