CLB16GPM - Pumps Vevor - Free user manual and instructions

Product Type	Water Transfer Pump
Model	CLB16GPM
Flow Rate	Up to 16 GPM (60 L/min)
Max Head	33 ft (10 m)
Max Suction Lift	16.4 ft (5 m)
Power Source	120V AC / 60 Hz
Motor Power	1/2 HP (370 W)
Inlet Size	1 inch NPT
Outlet Size	1 inch NPT
Pump Type	Centrifugal self-priming
Body Material	Heavy-duty cast iron
Impeller Material	Copper alloy
Max Liquid Temperature	140°F (60°C)
Max Operating Pressure	30 PSI
Self-Priming	Yes
Max Particle Size	1/8 inch
Noise Level	≤ 70 dB
Weight	14.3 lbs (6.5 kg)
Dimensions (L x W x H)	11 x 4.5 x 7.5 inches
Cable Length	3.3 ft (1 m)
Maintenance	Easy-clean filter and accessible pump head
Certifications	CE compliant
Warranty	1 year limited

Frequently Asked Questions - CLB16GPM Vevor

What liquids can the Vevor CLB16GPM pump handle?

The CLB16GPM is designed for clean water and non-corrosive liquids. It is ideal for irrigation, dewatering, and water transfer applications. Do not use with flammable, corrosive, or abrasive fluids.

Can the pump be used for rainwater harvesting?

Yes, it is well-suited for rainwater harvesting from barrels or tanks. Ensure the inlet strainer is installed to prevent debris from entering the pump.

How do I prime the pump before first use?

Fill the pump housing completely with water through the priming port before starting. The pump is self-priming, but the suction line must be filled with water to create the necessary vacuum.

What is the maximum suction lift?

The maximum suction lift is 16.4 feet (5 meters). Keep the suction hose as short as possible and use a foot valve to reduce priming time and maintain performance.

Can the pump run dry?

No, running dry can damage the mechanical seal. Always ensure there is water in the pump before operation. If the pump loses prime, stop it immediately and re-prime.

What size hoses should I use with the CLB16GPM?

Use hoses with 1-inch NPT connections for both inlet and outlet. For longer runs, use a larger diameter hose to reduce friction loss and maintain flow rate.

How do I maintain the pump after each use?

After each use, drain the water from the pump and rinse with clean water. Inspect the inlet filter and impeller for debris. Store in a dry, frost-free location.

Is the pump safe to use with drinking water?

Not recommended for potable water systems. The pump is not certified for drinking water. Use it for irrigation, washing, and non-potable transfer tasks.

What is the maximum liquid temperature?

The pump can handle liquids up to 140°F (60°C). Do not exceed this temperature as it can damage the seals and reduce the pump's lifespan.

How can I replace the impeller if it wears out?

Replacement parts like the impeller are available from Vevor. To replace it, disconnect power, remove the pump casing screws, and slide out the impeller. Note the orientation before removal. Contact Vevor support for exact part numbers.

USER MANUAL CLB16GPM Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

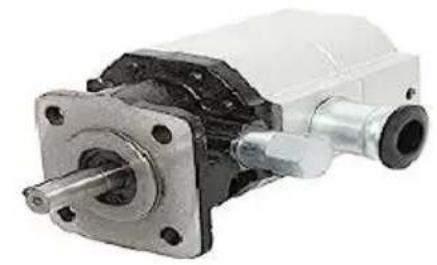

HYDRAULIC GEAR PUMP

MODEL: YYPMB11GPM / YYPMB13GPM / YYPMB22GPM+25 / YYPMB22GPM / CLB13GPM / CLB16GPM / CLB16+25

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

HYDRAULIC GEAR PUMP

MODEL: YYPMB11GPM / YYPMB13GPM / YYPMB22GPM+25 / YYPMB22GPM / CLB13GPM / CLB16GPM / CLB16+25

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must read in manual carefully.

INSTALLATION GUIDELINES

1	Pump body	5	Coupling
2	Key	6	Key
3	Fixing screws	7	Engine
4	Pump frame	8	Fixing screws

1. Secure the coupling to the engine.
2. Connect the pump bracket to the engine flange.
3. Fix the gear pump onto the pump frame and connect it to the circle (note that the single key inside cannot fall out)
4. Connect the oil suction pipe to the fuel tank and secure it with a clamp.
5. The connection between the oil outlet and the high-pressure oil po the multi way valve is complete.

SPECIFICATIONS

Model	Flow(GPM)3600r/min	Pressure(PSI)		Displacement(cu.in/r)		Speed(rpm)	D(mm)
		Lo	Hi	Lo	Hi		Inlet	Outlet
YYPMB11GPM	11	400 /900	3000	0.537	0.220	3600	1 in Pipe	1/2 NPT
CLB13GPM	13	400/900	3000	0.665	0.220
YYPMB13GPM	13	400/900	4000	0.665	0.256
CLB16GPM	16	400/900	4000	0.793	0.265
CLB16+25	16	400/900	4000	0.793	0.265

DIMENSION

Model	Dimension(inches)
	L	L1	L2
YYPMB11GPM	6.61	4.24	2.74
CLB13GPM	6.9	4.53	3.04
YYPMB13GPM	6.9	4.53	3.04
CLB16GPM	6.9	4.53	3.04
CLB16+25	6.9	4.53	3.04

SPECIFICATIONS

Model	Flow(GPM)3600r/min	Pressure(PSI)		Displacement(cu.in/r)		Speed(rpm)	D(mm)
		Lo	Hi	Lo	Hi		Inlet	Outlet
YYPMB22GPM+25	22	400/900	3000	0.93	0.465	3600	NPTFG1	NPTF3/4 G3/4
YYPMB22GPM	22	400/900	3000	0.93	0.465

DIMENSION

PERFORMANCE CURVES

YYPMB22GPM

PARTS LIST

Model	Parts List

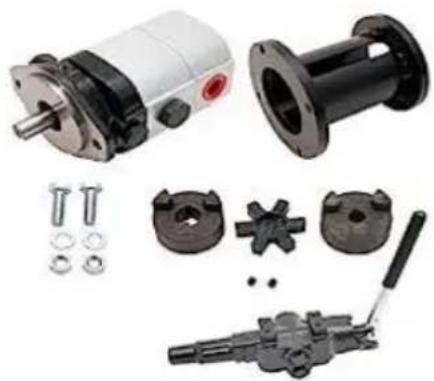

YYPMB11GPM, YYPMB22GPM, CLB13GPM, CLB16GPM	1. Wrench * 1;2. Flat key * 1;3.Teflon tape* 1
YYPMB13GPM	1. Coupling * 1;2. Installation base * 1;3. Bolt * 4;4. Wrench * 1;5. Key * 1;6. Teflon tape* 1;
YYPMB22GPM+25	1. Coupling * 1;2. Installation base * 1;3. Bolt * 4;4. Brake valve * 15. Wrench * 1;6. Key * 1;7. Teflon tape* 1;

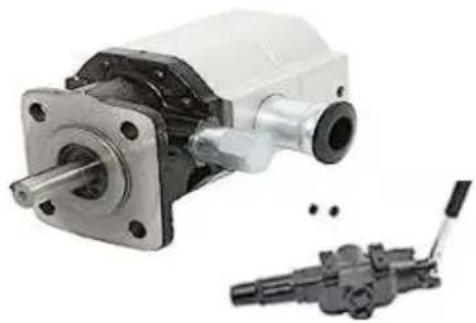

CLB16+25	1. Brake valve;2. Wrench * 1;3. Flat key * 1;4.Teflon tape* 1
