Product Type	Electric Pressure Washer
Brand	Vevor
Model	KXA1810G
Power Supply	120V AC, 60Hz, 1800W
Max Pressure	1600 PSI (110 bar)
Flow Rate	1.8 GPM (6.8 L/min)
Motor Type	Induction motor
Pump Type	Axial cam pump
Dimensions (L x W x H)	12 x 10 x 9 inches (30 x 25 x 23 cm)
Weight	13.2 lbs (6 kg)
Hose Length	16.4 ft (5 m) high-pressure hose
Spray Gun	Ergonomic pistol grip with safety lock
Nozzle	Adjustable 0°-40° jet
Detergent Tank	30 oz (900 ml) built-in detergent reservoir
Safety Features	Thermal overload protection, GFCI plug, trigger lock
Water Supply	Garden hose connection, self-priming option
Application	Cleaning cars, patios, driveways, and outdoor furniture
Maintenance	Clean filter regularly; drain water after use to avoid freezing
Repairability	Accessible pump and common replacement parts
Certification	ETL/CE certified for electrical safety

Frequently Asked Questions - KXA1810G Vevor

What type of oil should I use in the pump?

Use non-detergent pump oil (SAE 30 or specific pressure washer oil). Refer to the manual for the exact amount; typically about 8 oz.

How do I connect the high-pressure hose correctly?

Attach the hose to the gun first, then connect the other end to the pump outlet. Ensure the collar screws are finger-tight and the O-ring is seated properly to prevent leaks.

Can I use the pressure washer with a water tank instead of a garden hose?

Yes, it supports self-priming from a water source. Use a separate water inlet hose with a filter and prime the pump by running it with the nozzle open until water flows steadily.

What does the adjustable nozzle do?

The nozzle allows you to change the spray angle from a narrow 0° jet for stubborn dirt to a wider 40° fan for gentle rinsing. Rotate it to match the cleaning task.

How often should I clean the water filter?

Inspect and clean the inlet filter every month or more often if the water source is sandy. A clogged filter reduces pressure and can damage the pump.

The washer won't start—what should I check?

First ensure it's properly plugged into a working outlet and the GFCI is reset. Check the power cord, trigger lock, and that the unit is not in thermal overload after extended use.

Can I use bleach or other cleaners with this pressure washer?

Do not use bleach, solvents, or flammable liquids. Only use detergents labeled for pressure washers, and use the built-in detergent tank with the low-pressure nozzle.

How do I store the pressure washer for winter?

Flush the unit with clean water, then disconnect all hoses and drain the pump. Store in a dry, frost-free location. Add antifreeze specifically designed for pressure washers if freezing is unavoidable.

What safety gear should I wear while operating?

Always wear safety goggles and closed-toe shoes. Hearing protection is recommended for long sessions. Never point the high-pressure spray at people or pets.

Is the pressure washer self-priming?

Yes, it can draw water from a container via the self-priming function. Attach a suction hose with a filter, fill the pump chamber with water manually, and keep the suction end submerged.

USER MANUAL KXA1810G Vevor

Technical Support and E-Warranty Certificate https://www.vevor.com/support

PRESSURE WASHER PUMP USER MANUAL

MODEL: KXD1810G/KXA1810G

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and doses not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

PRESSURE WASHER PUMF

KXD1810G

KXA1810G

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

[e-mail]

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Purpose of the manual

The manufacturer has provided this manual to provide the operating instructions and the criteria to be complied with when installing, using, maintaining the pump identified by the designation on the cover.

The manufacturer supplies the original instructions in the English language.

The manufacturer may supply the original instructions in other language in response to statutory or commercial requirements.

If the pump is sold, the seller must pass on this manual to the new along with the appliance.

The instructions are intended for the skilled, suitably trained operators carry out the installation and routine maintenance procedures.

Refer to the table of contents for rapid access to the topics covered. The manufacturer reserves the right to amend the manual without not unless the amendments refer to the pump's level of safety.

The purchaser must ensure that the installation is designed in accordance with the instructions in this manual, statutory requirements, and the relevant national and local regulations.

The technical instructions in this "Use and Installation Manual" are the property of the manufacturer and must be treated as confidential.

There may be differences between the illustrations and the pump's ac conformation, but any such differences will not affect the clarity of the instructions. If in doubt, request the necessary explanations from the manufacturer.

The symbols shown and described below are used to identify safety risks or important information.

Danger-Warning

Identifies information or procedures the failure to comply with, which n constitute a serious threat to health and safety.

Identifies information or procedures the failure to comply with, which r constitute a threat to health and safety or cause damage.

Information

Identifies useful and important information or procedures that should be borne in mind.

TECHNICAL INEORMATION

Product Specifications and Packing List
Model	KXD1810G	KXA1810G
Working Pressure	3100 PSI	3100 PSI
Gun Closing Pressure	3400 PSI	3400 PSI
Factory Set Pressure	2300-2400 PSI	2300-2400 PSI
Matching Horsepower	6.5-7/HP	6.5-7/HP
Maximum Flow	2.5 GPM	2.5 GPM
Adaptive Model	196-230CC	196-230CC
Packing List	1 x Pressure Washer Pump;1 x Siphon;3 x Bolts;1 x Shaft Key;3 x Flat Pads;3 x Spring Washers;1 x Manual	1 x Pressure Washer Pump;1 x Siphon;4 x Bolts;1 x Shaft Key;4 x Flat Pads;4 x Spring Washers;1 x Manual

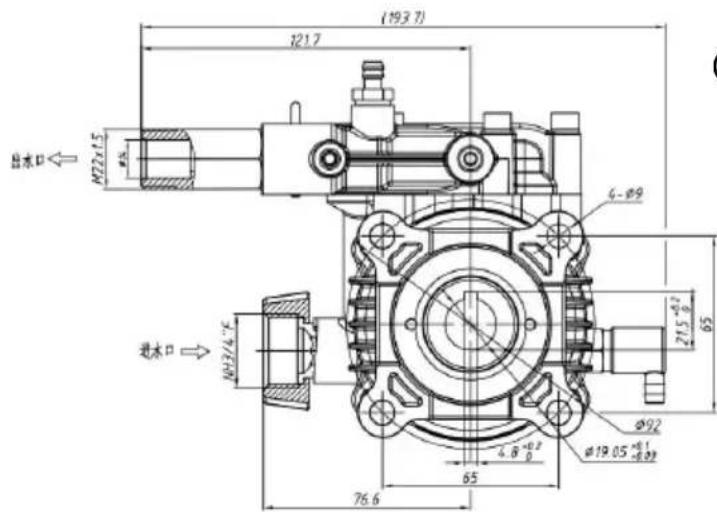

KXD1810G
(Unit:mm)

KXA1810G

(Unit:mm)

Technical Data

The technical and performance data are stated on the cover.

The pump's intake circuit must include a filter having a capacity at le twice the pump's delivery rate, which must not cause restrictions or h losses. The recommended degree of filtration is 50-80 mesh. Maximum intake vacuum-0.25 bar, measured at the pump intake.

Overall dimensions

The illustrations showing the overall dimensions are provided in the annexes.

Environmental operating limits

The pump operates correctly at an ambient temperature between 10 a 40°C, with a relative humidity of 80%.

Note: To match engines with different power, the factory set pressure will less than the rated maximum pressure. Just adjust the pressure limiting valve if you need to increase the pressure.

Note:

1. Turn clockwise to increase pressure.
2. Adjustment tools: 2.5 mm Allen wrench and 17 mm open-end wre

OPERATION NOTICE

1. Prepare

Before use, connect the matching outlet pipe, inlet pipe, water absorpt filter, etc., and check whether the fasteners and pipe joints are loose. Connect the inlet and outlet pipes of the pump, and install a filter d no less than 40 mesh/inch at the inlet end to avoid debris entering pump and affecting the normal operation of the pump.

2. Adjust the pressure

The pump has been adjusted to the rated pressure, and you do not adjust it again. If you need to adjust the low pressure, you should find on the pressure washer gun and then use the special pressure regulator tool to adjust the pressure regulating screw while spraying so that the pressure reaches the predetermined value, and you can start to work.

Danger-Warning

Do not aim the spray gun at people, animals, and equipment!

3. Precautions for use

When working, it should be noted that the pressure of the pump should exceed the maximum pressure; otherwise, the pump pressure should be lowered to avoid damage to the pump overload. The pump adopts an internal backwater structure. When the water is shut down, the operation time should not exceed 90S. If it exceeds 2 min, it is recommended down the equipment! It is normal to have drop oil or drop water during operation but the leakage does not exceed 1 ml/min (or 10 drops/mir

4. Applicable occasion

This pump is suitable for high-pressure cleaning and all kinds of commercial or civil needs high-pressure occasions.

5. Medium and temperature

The conveying medium of the KX series pump is clear water, and the highest water inlet temperature shall not exceed 40°C. Too high inlet temperature will cause damage to the pump and affect the service life the pump. For the pump group that runs continuously for a long time company suggests using the booster pump for inlet water. The rated the booster pump is at least twice the rated flow of the pump, and output of the booster pump should be about 2-3 bar. If the user del other media other than clean water or the inlet water temperature is than 40°C in actual use, please contact our relevant personnel.

6. Maximum flow rate and maximum pressure

The flow and pressure values of the pump indicated in the technical parameter table describe the maximum performance of the pump. The maximum rotational speed and pressure values used shall not exceed set value.

7. Power selection

KX series pump is driven by a gasoline engine. When choosing the the power value is higher than the set parameters to ensure the performance of the pump.

Misuses

Do not put the pump into service until the plant or machinery in which incorporated has been declared compliant with the relevant national and local legal requirements.

Do not use the pump in a potentially explosive atmosphere.

Do not use the pump for flammable, toxic, or corrosive liquids or the unsuitable density. Do not take in liquids at temperatures higher than specified in the technical data.

Do not use the pump for the supply of drinking water.

Do not use the pump on products for human consumption.

Do not use the pump on pharmaceutical products.

Residual risks

Even if the safety regulations and information provided in the manual complied with, the residual risk described below is still present during use of the pump.

- Thermal hazard: Depending on the temperature of the liquid pump, the pump may reach high temperatures when in operation. The design the installation must therefore bear this in mind and provide the appro measures and warning signs for staff.

1. Idle pumps and water pipes for long periods of time.

a. Run the pump with clean water for a few minutes.
b. After turning off the water source, run the pump for 10 seconds, empty the water in the pump and pipeline to prevent scale.
c. Blow-dry the pump with compressed air.
d. Take appropriate protective measures to avoid environmental impact.
e. Use the tap water to run for 2 min until the gun is out of water is no water, please stop to check.

* When choosing the gasoline engine as the power, check the oil of the gasoline engine before each start.

* When the pump performance is significantly reduced, it shall be maintained immediately.

* Continuous working time, water temperature, and cleanliness of water all affect the performance of the pump, so users can adjust the

maintenance time according to the actual use situation.

2. Inspection and repair

a. Often check whether the connection part is loose.
b. It is normal for the moving seal to drop oil or water during operation, but the dripping amount does not exceed 1 ml/min (or 10 drops/in) otherwise, the oil seal or water seal should be replaced.

SAFETY INEORMATION

General safety rules

Most workplace accidents and injuries are caused by carelessness and failure to comply with common sense and safety rules.

In most cases, accidents can be avoided by predicting their possible causes and proceeding with the necessary care and attention.

A careful operator who follows the rules is the best guarantee agains accidents.

Before installing and using the pump, the operators and other staff may read and understand the instructions in the manual provided and the details of the installation design.

Do not tamper with, disarm, or by-pass the safety devices, as this m cause serious threats to health and safety. Do not release pollutants the environment.

Dispose of waste in accordance with statutory requirements.

Before performing any procedure, adopt appropriate safety measures in accordance with the relevant statutory occupational safety requirements and comply with the safety regulations in the manual.

Safety recommendations for installation

Take all possible precautions to allow the pump to be installed in a risk-free manner.

All installation phases must be taken into consideration when designing machinery or plant in which the pump is to be installed.

The design must consider all mounting points, the means of transmission of the energy sources, and the protective and safety devices required the relevant regulations to prevent the risk of injury.

General guidelines on water supply connection

The pump's water supply connection can be made in one of the way below.

Connection to the mains water supply.

Connection to a tank (gravity-feed).

Connection to an external pump (force-feed).

The following requirements must be met for all types of connection.

1) The pump must be supplied by means of a crush-proof hose of diameter for the pump's intake connection (see "Technical Data").

2) There must be no restrictions or kinks in the hose.

3) A suitable filter must be installed at the pump intake (see "Techni Data").

4) All connections between the unions and the intake line must be s to prevent the pump from sucking in the air.

5) The connections and pipes must be suitable for the operating pres and the pump delivery rate and must comply with the relevant regulations.

6) To ensure operating safety install a relief valve (by-pass valve) suit for the pump's technical data and with a suitable setting downstream the pump.

7) The relief valve dump line must never be connected to the pump line.
8) Install a pressure damper downstream of the pump to minimize the water hammer effect in the delivery pipeline.

Connection to the mains water supply

The connection must comply with the recommendations provided.

The mains water system must have a flow rate twice the pump's rat delivery rate and a pressure of 2-3 bar.

INSTRUCTIONS FOR USE

Safety recommendations for use

Before start-up, the operator must perform the necessary safety checks.

In the event of leaks from the pressurized pipes, stop the pump once and remove the cause of the leak. Do not operate the pump above the limits set by the manufacturer to increase its performance. If the system is to be shut down with ambient temperatures close 0° C, run the pump without water for 10 seconds with the end of delivery pipeline open to empty the system and pump of water a prevent ice from forming.

MAINTENANCEIN STRUCTIONS

Safety recommendations for maintenance

Before doing any maintenance work, depressurize the water system and isolate the pump from all energy sources.

When the jobs are done, before restarting the pump, check that tools, rags, or other materials have been left close to moving pa in hazardous zones.

Replace any excessively worn components with original parts and use the lubricants recommended by the manufacturer.

Dispose of the worn-out components and lubricants in accordance with the relevant statutory requirements.

Carry out the routine maintenance procedures specified by the manufacturer to keep the pump safe and performing well.

MAINTENANCEIN STRUCTIONS

Inspecting the pump mounting

Check that the pump's fixing screws have not become loose.

If necessary, tighten them with the driving torque stated in the install design.

Inspecting the connections and pipes

- Inspect the connections for leaks.

Leaks can normally be dealt with by tightening the connections properly. If leaks from the intake pipeline connections are noticed, the seals m repaired.

- Inspect the hoses.

If the pipes show signs of aging, breakage, swelling, rubbing, etc., th must be replaced.

Inspecting the Filter

- Inspect the filter cartridge.

If the filter cartridge is fouled or damaged, refer to the filter manufac instructions for details on how to restore the filter cartridge to its orig filtering condition.

Warning

When replacing the main and secondary water seal, apply grease the plunger rod.

Please use the original accessories during maintenance!

DEBUGGING

Problem	Cause	Remedy
Pump does not reac the specified pressures	Pump sucking air	Restore the tightness of the intake line
	Intake flow rate insufficient	Increase the size of the intake pipelines
		Remove any kinks from the pipes
		Increase the filter capacity or clean the filter cartridge
		Increase the rpm to the rated speed
	Worn intake and delivery valves	Replace the valves(1)
	By-pass valve seat worn	Replace the valve
	Worn gaskets	Replace the gaskets(1)
	Unsuitable,worn nozzle	Replace nozzle
Irregular variations in pressure	Worn intake and delivery valves	Replace the valves(1)
	Valves blocked by dirt	Clean the valves(1)
	Air being sucked into a system	Restore the tightness of the intake pipeline connections
	Worn gaskets	Replace the gaskets(1)
Vibrations on pipes	Valves jammed	Replace the valves(1)
	By-pass valve malfunction	Replace the by-pass valve
	By-pass valve dump line is too small	Increase the size of the by-pass valve du line
	Pressure damper flat	Restore pressure damper to correct inflation pressure
	Pump sucking air	Restore the tightness of the intake line
Pressure drop	Nozzle worn	Replace nozzle
	Worn intake and/or delivery valves	Replace the valves(1)
	Valves blocked by dirt	Clean the valves(1)
	By-pass valve seat worn	Replace the valve
	Worn gaskets	Replace the gaskets (1)

(1) Operations that must be carried out at an authorized service cent

TRQUBLE SHQOTING

Problem	Cause	Remedy
Pump noisy	Air being sucked into the system	Restore the tightness of the intake pipeline connections
	Intake and/or delivery valve springs broken or collapsed	Replace the valves (1)
	Valves blocked by di	Clean the valves (1)
	Worn bearings	Replace the bearings (1)
	Intake liquid temperature too high	Reduce liquid temperature
Pump overheating	High pump operating pressure	Reduce the pressure to the rated values
	Drive belts too taut	Restore correct belt tension
	Pulley or drive coupling alignment poor	Restore the correct alignment
Water in oil	Guide piston gaskets worn	Replace the gaskets (1)
	High humidity percentage in air	Change the oil twice as o (as stated in the "Routine Maintenance" table)
	Worn gaskets	Replace the gaskets (1)
Oil leaks from dump lin underneath the pump	Worn gaskets	Replace the gaskets (1)
	Worn pistons	Replace the pistons (1)
Oil leaks from dump lin underneath the pump	Guide piston gaskets worn	Replace the gaskets (1)

(1) Operations that must be carried out at an authorized service cent

GENERAL INEORMATION

After-Sales service procedures

To request after-sales service (in the event of a pump malfunction or etc.), contact your nearest service center or the manufacturer.

When requesting after-sales services, always state the pump's data platform and the type of problem.

*There are any minor changes to the numbers included in the manual without prior notice.

Made In China

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

https://www.vevor.com/support
