Type de produit	LED-backlit LCD monitor
Screen Size	23.8 inches (60.5 cm)
Resolution	1920 x 1080 (Full HD)
Panel Type	IPS (In-Plane Switching)
Aspect Ratio	16:9
Refresh Rate	75 Hz
Brightness	250 cd/m²
Contrast Ratio	1000:1
Viewing Angles	178° horizontal / 178° vertical
Response Time	5 ms (GtG)
Connectivity	HDMI, D-Sub (VGA), Headphone-out
Tilt Adjustment	-5° to +20°
VESA Mount	100 x 100 mm
Energy Consumption	24 W (typical)
Power Supply	100-240 V AC, 50/60 Hz
Weight (net)	Approximately 3.1 kg (without stand)
Dimensions (with stand)	541 x 396 x 204 mm
Cleaning	Wipe with a dry, soft cloth
Safety	Use only the supplied power adaptor
Package Contents	Monitor, power cable, quick start guide

Frequently Asked Questions - PRO MP242 E14A MSI

How do I adjust the brightness and contrast settings on the MSI PRO MP242 E14A?

Press the joystick button on the back of the monitor to open the on-screen display (OSD) menu. Navigate to the Picture section using the joystick, then select Brightness or Contrast and adjust them with the left/right movements. Press the joystick to confirm and exit.

What is the native resolution of the PRO MP242 E14A monitor?

The native resolution is 1920 x 1080 (Full HD). For best image clarity, set your computer to this resolution. To do this, go to your operating system's display settings and select 1920 x 1080.

Can I mount the MSI PRO MP242 E14A on a VESA arm?

Yes, the monitor supports the VESA 100 x 100 mm mounting standard. Remove the stand (if attached), then attach the VESA mounting plate to the rear of the monitor using the provided screws. Follow the instructions included with your VESA arm for proper installation.

How should I clean the screen of my MSI monitor?

Turn off the monitor and unplug it. Use a soft, dry microfiber cloth to gently wipe the screen. Do not use paper towels, abrasive cloths, or chemical cleaners as they may damage the anti-glare coating. For stubborn spots, slightly dampen the cloth with water and wipe again.

How do I switch between the HDMI and VGA inputs?

Press the joystick button to open the OSD menu, then navigate to the Input Select section. Choose the desired input source (HDMI or VGA) and confirm. You can also use the shortcut key on the bottom of the monitor to cycle through inputs directly.

Why does the monitor show a 'No Signal' message

Check the cable connection between your computer and the monitor. If using HDMI, ensure the cable is securely plugged into both ends. Try a different input port or cable. Make sure your PC is powered on and outputs a signal. If necessary, test with another device.

Can I connect a USB-C laptop to this monitor?

The monitor does not have a USB-C port, but you can connect a USB-C laptop using an adapter or cable that converts USB-C to HDMI. Plug the HDMI end into the monitor and the USB-C end into your laptop. This will transmit video, but not charging.

Does the MSI PRO MP242 E14A have built-in speakers?

No, the monitor does not include built-in speakers. You can connect external speakers or headphones to the headphone-out jack located on the back or side of the monitor for audio output.

How can I set the refresh rate to 75 Hz?

Change the refresh rate from your operating system. On Windows, go to Settings > System > Display > Advanced display settings, then select the monitor and choose 75 Hz from the Refresh rate drop-down menu. Ensure your graphics card supports 75 Hz at 1080p.

How do I reset the monitor's settings to factory defaults?

Open the OSD menu by pressing the joystick button. Navigate to the Settings or Setup menu, select Reset or Factory Defaults, and confirm. This will restore all display and color settings to their original values.

USER MANUAL PRO MP242 E14A MSI

Getting Started .... 3

Package Contents 3

Installing the Monitor Stand....4

Adjusting the Monitor 5

Monitor Overview 6

Connecting the Monitor to PC 8

OSD Setup....9

Navi Key....9

Hot Key 9

OSD Menus ....10

Professional 10

Image.... 12

Input Source....13

Navi Key....13

Settings.... 14

Specifications....15

Preset Display Modes ....17

Troubleshooting....18

Safety Instructions....19

TÜV Rheinland Certification ....21

ENERGY STAR Certification ....21

Regulatory Notices....22

Revision

V1.0, 2025/09

Getting Started

This chapter provides you with the information on hardware setup procedures. While connecting devices, be careful in holding the devices and use a grounded wrist strap to avoid static electricity.

Package Contents

Monitor PRO MP242 E14A
Documentation	Quick Start Guide
Accessories	Stand
	Stand Base
	Power Cord
Cable	High Speed HDMITM Cable

• Contact your place of purchase or local distributor if any of the items is damaged or missing.
• Package contents may vary by country and model.
• The included power cord is exclusively for this monitor and should not be used with other products.

Installing the Monitor Stand

1. Leave the monitor in its protective packaging. Align and gently push the stand bracket towards the monitor groove until it locks in place.
2. Align and gently push the base towards the stand until it locks in place.
3. Make sure the stand assembly is properly installed before setting the monitor upright.

Important

• Place the monitor on a soft, protected surface to avoid scratching the display panel.
  • Do not use any sharp objects on the panel.

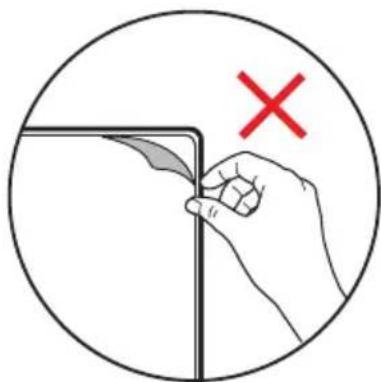

• This product comes with NO protective film to be removed by the user! Any mechanical damages to the product including removal of the polarizing film may affect the warranty!

Adjusting the Monitor

This monitor is designed to maximize your viewing comfort with its adjustment capabilities.

Avoid touching the display panel when adjusting the monitor.

Monitor Overview

1	Power LEDLit in white after the monitor is turned on. If no signal input, the LED will turn into orange. Lit in orange when the monitor is in Stand-by mode.
2	Power Button & Navi Key
3	Kensington Lock
4	Cable Organizer
5	Power Jack
6	Headphone Jack
7	DisplayPortSupports 1920x1080@144Hz as specified in DisplayPort 1.2a.
8	HDMI TM Connector HDMITM Supports HDMI TM CEC, 1920x1080@144Hz as specified in HDMI TM 1.4b.To ensure optimal performance and compatibility, please use only HDMI TM cables certified with the official HDMI TM logo when connecting this monitor. For more information, please visithttps://www.hdmi.org/resource/cables.
9	D-Sub Port

Connecting the Monitor to PC

1. Turn off your computer.
2. Connect the video cable from the monitor to your computer.
3. Connect the power cord to the monitor power jack. (Figure A)

4. Plug the power cord into the electrical outlet. (Figure B)

5. Press and hold the Navi Key for about 3 seconds to turn the monitor DC OFF, then press the Navi Key briefly again to turn DC ON. (Figure C)

6. Power on the computer and the monitor will auto detect the signal source.

OSD Setup

This chapter provides you with essential information on OSD Setup.

All information is subject to change without prior notice.

Navi Key

The monitor comes with a Navi Key, a multi-directional control that helps navigate the On-Screen Display (OSD) menu.

Up/ Down/ Left/ Right:

• selecting function menus and items
  • adjusting function values
• entering into/exiting from function menus

Middle:

• launching the On-Screen Display (OSD)
• entering submenus
  • confirming a selection or setting

Hot Key

• Users may enter into preset function menus by moving the Navi Key up, down, left or right when the OSD menu is inactive.
• Users may customize their own Hot Keys to enter into different function menus.

OSD Menus

Professional

1st Level Menu 2nd/3rd Level Menu Description
Mode Eco		·Use Up or Down Button to select and preview mode effects.·Press the Middle Button to confirm and apply your mode type.
	User
	sRGB
	Anti-Blue
	Movie
	Office
	Black-White
Response Time Normal		·Setting to Fastest will reach the shortest response time and help improve blurred images when playing very fast games.
	Fast
	Fastest
MPRT OFF		·MPRT is available when the refresh rate is over 85 Hz.·Activating MPRT will affect:
	ON
		Affected Function Function Status
		» Response Time» Brightness	Unable to select
		» HDCR» Adaptive-Sync	Set to OFF
Refresh Rate Location Left Top			Location is adjustable in OSD Menu. Press the Middle Button to confirm and apply your Refresh Rate Location.This monitor follows and works at the Operating System's preset Screen Refresh Rate.
	Right Top
	Left Bottom
	Right Bottom
	OFF
	ON
Alarm Clock Location Left Top			After setting the time, press the Middle Button to activate the timer.Users have to manually restore their preset Alarm Clock after any AC power loss and reconnection.
	Right Top
	Left Bottom
	Right Bottom
	OFF
	15:00 00:01 ~99:59
	30:00
	45:00
	60:00
Eye-Q Check OFF			Select OFF to disable Eye-Q Check.Activating Eye-Q Check will affect:
			Affected Function Function Status
			» Info. On Screen» Set to OFF
	Amsler Grid		Select Amsler Grid to check your central vision field.
	Astigmatism		Select Astigmatism to check your blurred vision.
	Posture Correction		Select Posture Correction to improve your posture when sitting.
Screen Assistance None			Users can adjust Screen Assistance in any mode.
Screen Size Auto		·Users can adjust Screen Size in any mode, any resolution and any screen refresh rate.
	4:3
	16:9
Adaptive-Sync OFF		·Adaptive-Sync prevents screen tearing.·Activating Adaptive-Sync will affect:
	ON
		Affected Function Function Status
		» MPRT Set to OFF


1st Level Menu 2nd/3rd Level Menu Description
Brightness 0-100			·Properly adjust Brightness according to the surrounding lighting.
Contrast 0-100			·Properly adjust Contrast to relax your eyes.
Sharpness 0-5			·Sharpness improves clarity and details of images.
Image Enhancement OFF			·Image Enhancement enhances image edges to improve their acutance.
Low Blue Light OFF			·Low Blue Light protects your eyes against blue light. When enabled, Low Blue Light adjusts the screen color temperature to a more yellow glow.·When Mode is set to Anti-Blue, it is mandatory to enable Low Blue Light.
	ON
HDCR OFF			·HDCR enhances image quality by increasing the contrast of images.·Activating HDCR will affect:
	ON
			Affected Function Function Status
			» Brightness Unable to select
			» MPRT Set to OFF
Color Temperature	Cool		·Use Up or Down Button to select and preview mode effects.·Press the Middle Button to confirm and apply your mode type.·Users can adjust Color Temperature in Customization mode.
	Normal
	Warm
	Customization R	(0-100)
		G (0-100)
		B (0-100)

1st Level Menu 2nd/3rd Level Menu Description
Auto Config		For D-Sub only, this setting will be grayed out when detecting other input sources.
Clock 0-100		Adjust Clock setting.For D-Sub only, this setting will be grayed out when detecting other input sources.
Phase 0-100		Adjust Phase setting.For D-Sub only, this setting will be grayed out when detecting other input sources.
H.Position 0-100		Adjust H.Position setting.For D-Sub only, this setting will be grayed out when detecting other input sources.
V.Position 0-100		Adjust V.Position setting.For D-Sub only, this setting will be grayed out when detecting other input sources.

Input Source

1st Level Menu 2nd Level Menu Description
HDMI TM		Users can adjust Input Source in any mode.
DP
D-Sub
Auto Scan OFF		Users can use the Navi Key to select Input Source at below status:While “Auto Scan” is set to “OFF” with the monitor power saving mode;While “No Signal” message box is shown on the monitor.
	ON

Navi Key

1st Level Menu 2nd Level Menu Description
UpDownLeftRight	OFF	All Navi Key items can be adjusted via OSD Menus.
	Brightness
	Mode
	Alarm Clock
	Input Source
	Refresh Rate
	Info. On Screen
	Audio Volume

Settings

1st Level Menu 2nd Level Menu Description
Language 繁體中文		Users have to press the Middle Button to confirm and apply the Language setting.Language is an independent setting. Users' own language setting will override the factory. When users set Reset to Yes, Language will not be changed.
	English
	Français
	Deutsch
	Italiano
	Español
	한국어
	日本語
	Русский
	Português
	简体中文
	Bahasa Indonesia
	Türkçe
	(More languages coming soon)
Transparency 0~5		Users can adjust Transparency in any mode.
OSD Time Out 5~30s		Users can adjust OSD Time Out in any mode.
Power Button OFF		When set to OFF, users can press the power button to turn off the monitor.
	Standby	When set to Standby, users can press the power button to turn off the panel and backlight.
Info. On Screen OFF		The information of the monitor status will be shown on the right side of the screen.Activating Info. On Screen will affect:Affected Function Function Status» Eye-Q Check Set to OFF
	ON
HDMI TM CEC OFF		HDMI TM CEC (Consumer Electronics Control) supports Sony PlayStation , Nintendo Switch TM , Xbox Series X|S consoles and various audio-visual devices that are CEC-capable.If HDMI TM CEC is set to ON:The monitor will automatically power on when the CEC device is turned on.The CEC device will enter power saving mode when the monitor is turned off.When Sony PlayStation , Nintendo Switch TM , or Xbox Series X|S console is connected, Mode will be automatically set to default mode and can be adjusted to users' preferred mode later.
	ON
Audio Volume	0-100	Users can adjust Audio Volume in any mode.
Reset	YES	Users can Reset and restore settings to original OSD Default in any mode.
	NO

Specifications*

Monitor PRO MP242 E14A
Size		23.8 inch
Curvature		Flat
Panel Type		IPS
Resolution		1920x1080 (FHD)
Aspect Ratio		16 : 9
SDR Brightness (nits)		300
Contrast Ratio		1500 : 1
Refresh Rate (Maximum)		144Hz
Response Time		GTG: 4msMPRT: 1ms
I/O		1 x DisplayPort1 x HDMITM Connector1 x D-Sub Port1 x Headphone Jack
View Angles		178°(H), 178°(V)
DCI-P3** / sRGB		90% / 120%
Surface Treatment		Anti-glare
Display Colors		16.7M, 8 bits (6 bits + FRC)
Speaker		2W x 2
Monitor Power Option		100-240V~, 50/60Hz, 1.5A Max
Power Consumption (Typical)		Power On < 33WStandby < 0.5WPower Off < 0.3W
Adjustment (Tilt)		-5° ~ 20°
Kensington Lock		Yes
VESA Mounting		Plate Type: 100 x 100 mmScrew Type: M4 x 10 mmThread Diameter: 4 mmThread Pitch: 0.7 mmThread Length: 10 mm
Dimension (W x H x D)		540.13 x 408.72 x 188.20 mm
Weight Net		3.16 kg
	Gross	4.78 kg
Operating Environment		Temperature: 0°C to 40°CHumidity: 20% to 90%, non-condensingAltitude: 0 ~ 5000m
Storage Environment		Temperature: -20°C to 60°CHumidity: 10% to 90%, non-condensing

* Some technical specifications of the device may be subject to change by the manufacturer. Please verify the specifications with the seller or the manufacturer's representative.

** Based on CIE1976 test standards.

Preset Display Modes

All information is subject to change without prior notice.

Standard Resolution HDMITM DP D-Sub
VGA 640x480 @60Hz V V V
	@67Hz V V V
	@72Hz V V V
	@75Hz V V V
Dos-Mode 720x480 @60Hz V V V
	720x576 @50Hz V V V
SVGA 800x600 @56Hz V V V
	@60Hz V V V
	@72Hz V V V
	@75Hz V V V
XGA 1024x768 @60Hz V V V
	@70Hz V V V
	@75Hz V V V
SXGA 1280x1024 @60Hz V V V
	@75Hz V V V
WXGA+ 1440x900 @60Hz V V V
WSXGA+ 1680x1050 @60Hz V V V
Full HD	1920x1080 @60Hz V V V
	@85Hz V V
	@100Hz V V
	@120Hz V V
	@144Hz V V
Video Timing Resolution	480P		V V V
	576P		V V V
	720P		V V V
	1080P	@60Hz V V V
		@120Hz V

Troubleshooting

The power LED is off.

• Press the monitor power button again.
• Check if the monitor power cable is properly connected.

No image.

- Check if the computer graphics card is properly installed.

• Check if the computer and monitor are connected to electrical outlets and are turned on.
• Check if the monitor signal cable is properly connected.
• The computer may be in Standby mode. Press any key to activate the monitor.

The screen image is not properly sized or centered.

- Refer to Preset Display Modes to set the computer to a setting suitable for the monitor to display.

No Plug & Play.

• Check if the monitor power cable is properly connected.
• Check if the monitor signal cable is properly connected.
• Check if the computer and graphics card are Plug & Play compatible.

The icons, font or screen are fuzzy, blurry or have color problems.

• Avoid using any video extension cables.
• Adjust brightness and contrast.
• Adjust RGB color or tune color temperature.
• Check if the monitor signal cable is properly connected.
• Check for bent pins on the signal cable connector.

The monitor starts flickering or shows waves.

• Change the refresh rate to match the capabilities of your monitor.
• Update your graphics card drivers.
• Keep the monitor away from electrical devices that may cause electromagnetic interference (EMI).

Safety Instructions

- Read the safety instructions carefully and thoroughly.

- All cautions and warnings on the device or User Guide should be noted.

• Refer servicing to qualified personnel only.

Power

• Make sure that the power voltage is within its safety range and has been adjusted properly to the value of 100\~240V before connecting the device to the power outlet.
• If the power cord comes with a 3-pin plug, do not disable the protective earth pin from the plug. The device must be connected to an earthed mains socket-outlet.
• Please confirm the power distribution system in the installation site shall provide the circuit breaker rated 120/240V, 20A (maximum).
• Always disconnect the power cord or switch the wall socket off if the device would be left unused for a certain time to achieve zero energy consumption.
• Place the power cord in a way that people are unlikely to step on it. Do not place anything on the power cord.
• If this device comes with an adapter, use only the MSI provided AC adapter approved for use with this device.

Environment

• To reduce the possibility of heat-related injuries or of overheating the device, do not place the device on a soft, unsteady surface or obstruct its air ventilators.
• Use this device only on a hard, flat and steady surface.
• To prevent the device from tipping over, secure the device to a desk, wall or fixed object with an anti-tip fastener that helps to properly support the device and keep it safe in place.
• To prevent fire or shock hazard, keep this device away from humidity and high temperature.
• Do not leave the device in an unconditioned environment with a storage temperature above 60° C or below -20° C, which may damage the device.
• The maximum operating temperature is around 40°C .
• When cleaning the device, be sure to remove the power plug. Use a piece of soft cloth rather than industrial chemical to clean the device. Never pour any liquid into the opening; that could damage the device or cause electric shock.
  • Always keep strong magnetic or electrical objects away from the device.

- If any of the following situations arises, get the device checked by service personnel:

• The power cord or plug is damaged.
• Liquid has penetrated into the device.
- The device has been exposed to moisture.

- The device does not work well or you can not get it working according to the User Guide.

• The device has dropped and damaged.
- The device has obvious sign of breakage.

TÜV Rheinland Certification

TÜV Rheinland Low Blue Light Certification

Blue light has been shown to cause eye fatigue and discomfort. MSI now offers monitors with TÜV Rheinland Low Blue Light certification to ensure users' eye comfort and well-being. Please follow the instructions below to reduce the symptoms from extended exposure to the screen and blue light.

Low Blue Light (Software Solution)

www.tuv.com

• Place the screen 20 – 28 inches (50 – 70 cm) away from your eyes and a little below eye level.
• Consciously blinking the eyes every now and then will help to reduce eye strain after extended screen time.

• Take breaks for 20 minutes every 2 hours.

- Look away from the screen and gaze at a distant object for at least 20 seconds during breaks.

• Make stretches to relieve body fatigue or pain during breaks.
- Turn on the optional Low Blue Light function.

TÜV Rheinland Flicker Free Certification

• TÜV Rheinland has tested this product to ascertain whether the display produces visible and invisible flicker for the human eye and therefore strains the eyes of users.
• TÜV Rheinland has defined a catalogue of tests, which sets out minimum standards at various frequency ranges. The test catalogue is based on

Flicker Free

www.tuv.com

internationally applicable standards or standards common within the industry and exceeds these requirements.

• The product has been tested in the laboratory according to these criteria.
• The keyword “Flicker Free” confirms that the device has no visible and invisible flicker defined in this standard within the range of 0 - 3000 Hz under various brightness settings.
• The display will not support Flicker Free when Anti Motion Blur/MPRT is enabled. (The availability of Anti Motion Blur/MPRT varies by products.)

ENERGY STAR Certification

ENERGY STAR is a program run by the U.S. Environmental Protection Agency (EPA) and U.S. Department of Energy (DOE) to promote energy efficiency. This product qualifies for ENERGY STAR in the “factory default” settings through which power savings will be achieved. Changing the factory default picture settings or enabling other features will increase power consumption, which could exceed the limits necessary to qualify for ENERGY STAR rating.

For more information on ENERGY STAR, refer to https://www.energystar.gov/.

Regulatory Notices

CE Conformity

This product has been tested and found to comply with the harmonized standards for Information Technology Equipment published under Directives of Official Journal of the European Union.

FCC-B Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the measures listed below:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/television technician for help.

Notice 1

The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Notice 2

Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

MSI Computer Corp.

901 Canada Court, City of Industry, CA 91748, USA

[phone]

www.msi.com

WEEE Statements

European Union: This symbol on the product indicates that this product cannot be discarded as municipal waste. Instead, it is your responsibility to dispose of your waste electrical and electronic equipment by handing it over to a designated collection point for recycling. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Chemical Substances Information

In compliance with chemical substances regulations, such as the EU REACH Regulation (Regulation EC No. 1907/2006 of the European Parliament and the Council), MSI provides the information of chemical substances in products at: https://csr.msi.com/global/index

RoHS Statement

Japan JIS C 0950 Material Declaration

A Japanese regulatory requirement, defined by specification JIS C 0950, mandates that manufacturers provide material declarations for certain categories of electronic products offered for sale after July 1, 2006.

https://csr.msi.com/global/Japan-JIS-C-0950-Material-Declarations

India RoHS

This product complies with the “India E-waste (Management and Handling) Rule 2016” and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations exceeding 0.1 weight % and 0.01 weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule.

Turkey EEE Regulation

Conforms to the EEE Regulations of the Republic Of Turkey

Ukraine Restriction of Hazardous Substances

The equipment complies with requirements of the Technical Regulation, approved by the Resolution of Cabinet of Ministry of Ukraine as of 10 March 2017, No 139, in terms of restrictions for the use of certain dangerous substances in electrical and electronic equipment.

Vietnam RoHS

As from December 1, 2012, all products manufactured by MSI comply with Circular 30/2011/TT-BCT temporarily regulating the permitted limits for a number of hazardous substances in electronic and electric products.

Green Product Features

• Reduced energy consumption during use and stand-by
• Limited use of substances harmful to the environment and health
  • Easily dismantled and recycled
• Reduced use of natural resources by encouraging recycling
• Extended product lifetime through easy upgrades
• Reduced solid waste production through take-back policy

Environmental Policy

• The product has been designed to enable proper reuse of parts and recycling and should not be thrown away at its end of life.
• Users should contact the local authorized point of collection for recycling and disposing of their end-of-life products.

- Visit the MSI website https://csr.msi.com/global/pevn_ewaste and locate a nearby distributor for further recycling information.

- Please visit https://us.msi.com/page/recycling for information regarding the recycling of your product in the US.

Warning!

Overuse of screens is likely to affect eyesight.

Recommendations:

1. Take a 10-minute break for every 30 minutes of screen time.
2. Children under 2 years of age should have no screen time. For children aged 2 years and over, screen time should be limited to less than one hour per day.

Copyright and Trademarks Notice

msi

MSI

微星

微星科技 MICROSTAR INTERNATIONAL

Copyright © Micro-Star Int’ I Co., Ltd. All rights reserved. The MSI logo used is a registered trademark of Micro-Star Int’ I Co., Ltd. All other marks and names mentioned may be trademarks of their respective owners. No warranty as to accuracy or completeness is expressed or implied. MSI reserves the right to make changes to this document without prior notice.

HDMI™

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI ^™ , HDMI ^™ High-Definition Multimedia Interface, HDMI ^™ Trade dress and the HDMI ^™ Logos are trademarks or registered trademarks of HDMI ^™ Licensing Administrator, Inc.

Technical Support

If a problem arises with your product and no solution can be obtained from the user's manual, please contact your place of purchase or local distributor. Alternatively, please visit https://www.msi.com/support/ for further guidance.
