USER MANUAL URC 8305 ONEFORALL

English UNIVERSAL ELECTRONICS INC./ONE FOR ALL warrants to the original purchaser that this product will be free from defects in materials and workmanship under normal and correct use for a period of one (1) year from the date of original purchase. This product will be replaced free of charge if it has been proven to be defective within the one (1) year warranty period. This warranty does not cover cartons, carrying cases, batteries, broken or marred cabinets or any other item used in connection with the product. Any further obligation than listed above is excluded. To obtain warranty service during the warranty period, please call us at the number mentioned on the Customer Service page. Please notice that we need your purchase receipt so that we may establish your eligibility for service. If you have bought this product for purposes which are not related to your trade, business or profession, please remind that you may have legal rights under your national legislation governing the sale of consumer goods. This guarantee does not affect those rights.

Universal Electronics BV Europe & International

P.O. Box 3332 7500 DH, Enschede The Netherlands

CBL VAC AMP TUN CAS LDP DAT DVD Use the OneForAll Web Wizard to set up your remote with the help of the Internet. This wizard tells you how to install your different devices without reading the complete manual. To use this easy set-up tool, please visit www.oneforallwebwizard.com.

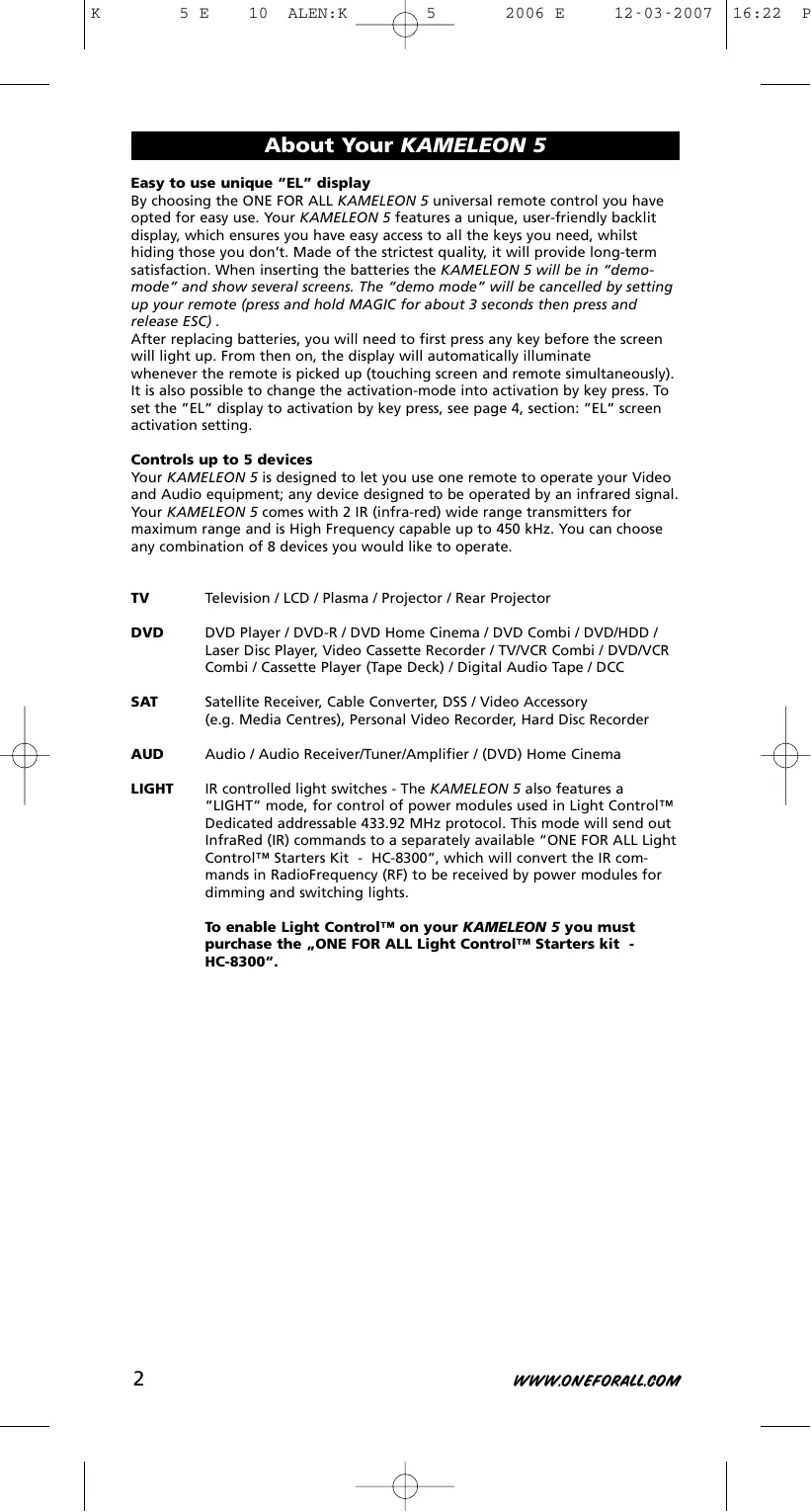

P About Your KAMELEON 5

Easy to use unique “EL” display By choosing the ONE FOR ALL KAMELEON 5 universal remote control you have opted for easy use. Your KAMELEON 5 features a unique, user-friendly backlit display, which ensures you have easy access to all the keys you need, whilst hiding those you don’t. Made of the strictest quality, it will provide long-term satisfaction. When inserting the batteries the KAMELEON 5 will be in “demomode” and show several screens. The “demo mode” will be cancelled by setting up your remote (press and hold MAGIC for about 3 seconds then press and release ESC) . After replacing batteries, you will need to first press any key before the screen will light up. From then on, the display will automatically illuminate whenever the remote is picked up (touching screen and remote simultaneously). It is also possible to change the activation-mode into activation by key press. To set the ”EL” display to activation by key press, see page 4, section: ”EL” screen activation setting. Controls up to 5 devices Your KAMELEON 5 is designed to let you use one remote to operate your Video and Audio equipment; any device designed to be operated by an infrared signal. Your KAMELEON 5 comes with 2 IR (infra-red) wide range transmitters for maximum range and is High Frequency capable up to 450 kHz. You can choose any combination of 8 devices you would like to operate.

TV Television / LCD / Plasma / Projector / Rear Projector

DVD DVD Player / DVD-R / DVD Home Cinema / DVD Combi / DVD/HDD /

Laser Disc Player, Video Cassette Recorder / TV/VCR Combi / DVD/VCR Combi / Cassette Player (Tape Deck) / Digital Audio Tape / DCC SAT Satellite Receiver, Cable Converter, DSS / Video Accessory

(e.g. Media Centres), Personal Video Recorder, Hard Disc Recorder

AUD Audio / Audio Receiver/Tuner/Amplifier / (DVD) Home Cinema

LIGHT IR controlled light switches - The KAMELEON 5 also features a

“LIGHT” mode, for control of power modules used in Light Control™ Dedicated addressable 433.92 MHz protocol. This mode will send out InfraRed (IR) commands to a separately available “ONE FOR ALL Light Control™ Starters Kit - HC-8300”, which will convert the IR commands in RadioFrequency (RF) to be received by power modules for dimming and switching lights. To enable Light Control™ on your KAMELEON 5 you must purchase the „ONE FOR ALL Light Control™ Starters kit HC-8300“.

P About Your KAMELEON 5

Learning feature The KAMELEON 5 comes equipped with the unique “learning feature”, which means that you can copy almost any function (max. ± 50) from your original (working) remote control onto your new KAMELEON 5 (See “Learning Feature” on page 15). This comes in handy, when after having setup your KAMELEON 5 you may find that some functions from your original remote are missing on your KAMELEON 5 key pad. Macros (sequence of commands) Your KAMELEON 5 comes with an easy-to-use Macro feature, allowing you to send several commands with the press of a single key (for example turning a few devices on or off). Once you programmed a macro on one of these keys, the sequence will be performed in every mode. Code upgrade technology Your ONE FOR ALL KAMELEON 5 also offers a Code upgrade technology. This technology gives you the possibility to add codes to the memory. If your device uses a particular code which is not found in the KAMELEON 5 memory (using the “Direct code set up” on page 12 or the “Search Method” on page 13) you may use the ”Code Upgrade Technology” (see page 24). Thanks to this technology your KAMELEON 5 will never become obsolete.

Note: when inserting the batteries the KAMELEON 5 will be in “demo-mode (showing several screens). The KAMELEON 5 will go out of demo-mode automatically as you set it up. Your KAMELEON 5 requires 2 AA/LR6 alkaline batteries. 1. Unscrew the battery door using a coin. 2. Insert the batteries with the positive end (+) upwards. 3. Replace the battery door back into position. Low Voltage Indicator As soon as the batteries run out of power the KAMELEON 5 will indicate this. The IR indicator will flash 5 times whenever you press a key and you cannot access programming mode. Please make sure to replace the batteries with 2 new AA/LR6 alkaline batteries.

This product features an “EL” panel (Electro Luminescence technology) which is activated by touching screen and remote simultaneously to activation by keypress. In order to save battery life, the “EL” screen will stay illuminated for 8 seconds during normal use. One of the key features of the KAMELEON 5 is the “EL” display, which changes to suit the device you are controlling. The overview on page 6 will show you all the possible functions that you may obtain.

“EL” Screen activation setting

The KAMELEON 5 features an “EL” panel which is activated by touching screen and remote simultaneously or by keypress. It is possible to lock the KAMELEON 5 to one activation setting: 1.

Press and hold the MAGIC key for about 3 seconds.

The screen will change to the setup screen.

Now press 9 8 9. The IR Indicator will blink twice (or 4 times).

-> If the animated IR Indicator blinks twice the “EL” panel will be activated only by touching screen and remote simultaneously.

-> If the animated IR Indicator blinks four times the “EL” panel will be activated only by keypress. Simply perform these steps to lock the KAMELEON 5 to the activation setting that you prefer.

“EL” Screen brightness adjustment

To increase or decrease the brightness of the KAMELEON 5 “EL” screen: 1.

Press and hold the MAGIC key for about 3 seconds.

The screen will change to the setup screen.

> To increase the brightness of the “EL” screen press and hold NEXT

> To decrease the brightness of the “EL” screen press and hold PREVIOUS.

Press ENTER to store the brightness setting and return to the setup screen OR press ESC to return to the previously set brightness level.

Increasing the brightness of the KAMELEON “EL” panel can decrease the battery life. Battery life varies from 3 - 12 months (depending on brightness setting and usage).

“EL” On time setting

To change the duration (default: 8 sec.) that the KAMELEON 5 “EL” screen will be ON, after each keypress during use of the remote (not programming mode):

Press and hold the MAGIC key for about 3 seconds.

The screen will change to the setup screen.

Press 9 7 8. The IR Indicator will blink twice.

Press 1, 2, 3, 4 or 5 (e.g. 1 = 4 seconds) depending on your choice, see table below. The animated IR Indicator will blink twice. Press ENTER to store the new EL on time setting and to return to the SETUP screen OR press ESC to return to the previously set EL on-time setting.

WWW.ONEFORALL.COM IR (infra-red) Indicator

The IR Indicator animates when IR is being “sent” or “received”. The KAMELEON 5 animated IR Indicator will show “outgoing IR” whenever a function key is pressed. When using the “Learning Procedure” or “Code Upgrade Procedure” the animated IR indicator will show “incoming IR”. Outgoing IR will be indicated by an “outside to inside” animation of the IR Indicator. Ingoing IR will be indicated by an “inside to outside” animation of the IR Indicator. The IR Indicator will give feedback when keys are pressed both during normal use and in programming mode (middle segment of the IR Indicator will blink).

The TV, DVD, AUD and LIGHT keys select the device to be controlled. After pressing a device (mode) key on your KAMELEON 5 the applicable device icon will animate, to show the currently activated mode. Pressing the device key will allow you to return to the main screen (TV and AUD modes). The KAMELEON 5 also features a “LIGHT” mode. Together with a separately available “ONE FOR ALL Light Control™ Starters Kit - HC-8300”, this allows you to dim and switch ON/OFF lights through-out your whole house.

MAGIC (in ”shifted” or ”programming” mode)

The MAGIC key is used to set up your KAMELEON 5 and to access special functions. If you press this key shortly, the screen will go into ”shifted” mode (for 10 seconds) which will give access to some secondary functions such as color, brightness and sleeptimer.

If you press the MAGIC key longer (about 3 seconds), the KAMELEON 5 will enter ”programming” mode. The screen will change to the “setup screen”.

• Mode re-assignment

• To program missing functions

• To setup a key with a Sequence of

• “EL” Screen brightness adjustment

• To copy functions from your original working remote

• Deleting learned and Key Magic functions

• Volume punch through feature

• Variable EL On time (4 sec, 8 sec, 12 sec, 16 sec, 20 sec)

• Operational Reset • KAMELEON 5 - Timer • EL screen activation setting • Code Verification • Modem Upgrade

P SCROLL The SCROLL key gives you the possibility to move through the different screens (if applicable) within a certain mode during normal use and programming mode. This only applies to TV and AUD modes.

ENTER The ENTER key allows you to confirm your choice in programming mode.

POWER (in shifted mode; Sleeptimer)

The POWER key controls the same function as on your original remote.

TV/VCR / TV/SAT / TV/DVD In DVD mode you will obtain the TV/VCR function (usefull if you programmed a VCR code). In SAT mode you will obtain the TV/SAT function. In DVD mode you will obtain the TV/DVD function.

16:9 / PVR / SP/LP In TV mode you will obtain the 16:9 (screen format) function. In SAT mode this key will activate the PVR

(Personal Video Recorder) function. In DVD mode you will obtain the SP/LP (tape speed) function (usefull if you pro grammed a VCR code).

DSP / GUIDE If available on your original remote, in AUD mode you will obtain the “DSP” function. In TV and DVD mode the

“GUIDE” key will provide you the “guide” function, if available on your original remote control. In TV mode the “GUIDE” key will change the screen to “menu mode screen”.

MENU Pressing this key will allow you to operate the Menu and in TV and AUD mode will also change the screen to the menu mode. The MENU key operates the same function it did on your original remote control.

P EXIT The EXIT key will operate the same as on your original remote. To return to the main screen (TV, SAT and AUD mode) press the device key or use the SCROLL key.

MUTE The Mute key operates the same function it did on your original remote control.

CH +/- (in shifted mode; brightness +/-)

These keys operate just as those on your original remote. In shifted TV mode (accessed by pressing MAGIC shortly and releasing it) these keys may provide you the brightness +/- function.

Directional keys (Up, Down, Left, Right)

If available on your original remote control, these keys will allow you to navigate through the menu. On some TV’s you may have to press CH+/- and VOL+/- keys OR the color keys (red, green, yellow, blue) to navigate through the menu, depending on your model of TV. In AUD main mode these keys will (if available on your original remote) allow you to adjust the CENTRE and REAR levels of your speaker(s). In AUD menu mode these keys will (if available on your original remote) allow you to navigate in the menu-screen.

OK / SURROUND In menu mode this key will confirm your choice. On some devices you can confirm your menu option simply by pressing MENU. In AUD main mode this key will allow you to access the surround mode of your device (if available on your original remote).

P VOL +/- (in shifted mode; colour +/-)

The volume keys operate just as those on your original remote. In shifted TV mode (accessed by pressing MAGIC shortly and releasing it) these keys may provide you the colour +/- function.

Number keys / INPUT (in prog. Mode; setup features)

The number (1 – 9, 0) keys provide functions just like your original remote. In AUD mode, the number (1 – 9, 0, -/—) keys may provide (if available on your original remote) an INPUT function (e.g. TUNER ). If your original remote features a “function select” or “input select” function you may find this under the AV key. When in programming mode, the digit keys will display the various setup features.

-/-- / PPV If your original remote uses one/two digit input switching

(-/-- symbol), this function can be obtained by pressing the -/-- key. In SAT (menu screen) and PVR mode you will obtain the PPV function.

AV / HELP The AV key operates the same function it did on your original remote control. If your original television or video remote uses a 20 key, this function can be found by pressing the AV key. If your original satellite or PVR remote comes with a “help” function, you can obtain this pressing the HELP key. In AUD mode you will obtain the

“input source” function.

ESC This key only appears in programming mode and is used to return to the Setup screen or to exit programming mode.

Transport keys (PLAY, STOP etc.)

These keys operate the transport functions like PLAY, FF, REW, SKIP+/- (TRACK+/-) etc.of your device. To prevent accidental recording, the RECORD key must be pressed twice to start recording.

These keys are used to operate the main teletext functions. Of course, your Television must have teletext capability. For a more detailed explanation of teletext and fastext, please refer to the manual of your television. Remember, different televisions control teletext and fastext functions in different ways. Not all of the teletext functions may be available on your particular model.

EXPAND: Shows the top half of the teletext page in larger letters.

By pressing again, you can see the bottom half of the teletext page enlarged. To return to regular teletext viewing, press the EXPAND key again, or press the TEXT ON key, depending on your television. TEXT ON: In TV mode: once in text mode, pressing this key may switch to MIX or TURN OFF text, depending on your television. This function is also available in SAT mode. HOLD/STOP: Stops changing pages. MIX: Shows both text and TV picture. TEXT OFF: In TV mode: switches the television back to regular viewing mode. On some televisions this may be done by pressing the “TEXT ON” key several times. This function is also available in SAT mode. TEXT INDEX: This key will give you access to the index function within the text mode.

Red / Green / Yellow / Blue

When accessing the text mode, the colour keys marked red, green, yellow and blue, allow you to access the fastext functions of your television. If on your original remote control these keys are used for Menu navigation, the KAMELEON 5 Fastext keys may operate the same.

P Setting up the KAMELEON 5

(How to set up the KAMELEON 5 to control your devices) Note: when inserting the batteries the KAMELEON 5 will be in “demomode (showing several screens). Just follow the next steps and the KAMELEON 5 will go out of demo-mode automatically. Example: To set up the KAMELEON 5 for your television: 1.

Make sure your television is switched ON (not on standby).

Find your device code in the codelist (pages 261 - 288). Codes are listed by device mode and brand name. The most popular code for each brand is listed first. If your brand is not listed at all in the code section, try the

Search Method on page 13.

Press and hold the MAGIC key for about 3 seconds.

The screen will change to the setup screen.

Press the DEV SET key.

Press and release the TV key to select the device type you like to setup.

Enter the first four-digit code (see codelist pages 261 288) using the number keys. The animated IR Indicator will blink twice.

Now, aim your KAMELEON 5 at your television and try the following keys to test if the KAMELEON 5 will work with your device;

CHANNEL +, CHANNELVOLUME +, VOLUME MUTE POWER.

If your device is responding, press ENTER to save the code.

If your device does not respond, just enter the next code listed under you brand. If none of the codes listed for your brand operate your device, then try the Search Method described on page 13.

Press and keep ESC pressed for about 3 seconds to return to user mode (all keys for the device mode are displayed), OR press a device key to select the next device you like to setup.

Most TV’s do not switch back on pressing the POWER key, please try pressing “CHANNEL+” key to switch your TV back on.

Some codes are quite similar. If your device does not respond or is not functioning properly with one of the codes, try another code listed under your brand. To set up your other devices, follow the same instructions above, only press the appropriate device key during step 5. Remember to press the correct device key before operating your device. Only one device can be assigned to a device key.

To set up a second TV, DVD, SAT or AUD (See page 19).

P Setting up the KAMELEON 5

Search Method --> If your device does not respond to the KAMELEON 5 after you have tried all the codes listed for your brand. --> If your brand is not listed at all. The Search Method allows you to scan through all the codes contained in the memory of the KAMELEON 5. Example: To search for your TV code: 1. Switch ON your Television (not on standby).

Press and hold the MAGIC key for about 3 seconds.

The screen will change to the setup screen.

Press and release the TV key to select the device type you like to setup.

Point the KAMELEON 5 at your Television. Now press

NEXT over and over, until your Television turns off (every time you press the NEXT key the KAMELEON 5 will send out a POWER signal from the next code contained in the memory). You may have to press NEXT many times (up to 150 times) so please be patient. Remember to keep pointing the KAMELEON 5 at your Television while pressing this key. (If you skip past a code, you can go to the previous code(s) by pressing the PREVIOUS key).

When your Television switches off, press the ENTER key to store the Code. The animated IR Indicator will light up twice.

Press ESC to return to the setup screen, or press a device key if you want to perform the Search Method for another device.

Press ESC again to return to user mode (all keys are displayed).

Turn your device (television) back on and try all the remote’s functions to ensure they are working properly. If you cannot control your Television properly, please continue the Search Method, you may be using the wrong Code.

During step 5, instead of POWER you can also press any other key displayed.

This will be the function sent for the next key presses of NEXT or PREVIOUS in step 6. If for example; during step 5 you press “2” instead of “POWER”, the KAMELEON 5 will send the “number 2” signal every time you press NEXT during step 6 (make sure your TV is switched to another channel). To search for your other devices, follow the same instructions above, only press the appropriate device key during step 4. If your Video’s original remote control does not have a POWER key, press PLAY instead of POWER during step 5. In the LIGHT-mode the Search Method does not work.

(To find out which code is currently programmed) If you have set up your KAMELEON 5 via the Search Method, you can blink back your code for future reference. Please note that the animated IR Indicator will indicate the 4 digits by animated blinks. Example: To blink out your television code: 1.

Press and hold down the MAGIC key (for about 3 seconds).

The screen will change to the setup screen.

Press 9 9 0, the animated IR Indicator will light up twice.

Press and release the TV key to select the device type you like to check the code for.

For the first digit of your four-digit code, press 1 and count the blinks of the animated IR Indicator. If there are no blinks, the digit is “0”.

For the second digit, press 2 and count the animated blinks.

If there are no blinks, the digit is “0”.

For the third digit, press 3 and count the animated blinks.

If there are no blinks, the digit is “0”.

For the fourth digit, press 4 and count the animated blinks.

If there are no blinks, the digit is “0”. Now you have found your four-digit code.

Press ENTER to return to the setup screen OR press a device key if you want to perform the blink out for another device.

Press and hold ESC (for about 3 seconds) to return to user mode.

You can perform steps 5 – 8 in any order and as many times as you want. So, if you lost count it is possible to blink back the corresponding number again

(e.g. if during step 6 you did not see exactly how many times the animated IR Indicator blinked just press “number 2” again and count again). To blink back the code for your other devices follow the instructions above, only press the appropriate device key during step 4.

Quick code Reference

Write down the codes for your devices in the boxes below for quick and easy reference.

(How to copy functions from your original working remote onto the KAMELEON 5) The KAMELEON 5 comes with a complete library of pre-programmed codes. After you have set up the KAMELEON 5 for your device, you may find that there are one or more keys that you had on the original remote control, which do not have a place on the KAMELEON 5 keypad. The KAMELEON 5 offers a special Learning feature that allows you to copy almost any function from your original remote control onto the keypad of the KAMELEON 5. Before you start: - Make sure your original remote is working correctly. - Make sure neither your KAMELEON 5, nor your original remote control is pointing at your device.

Example: To copy the “mono/stereo” function from your original TV remote control onto the ”red”-key of your KAMELEON 5. 1.

Place the KAMELEON 5 and your original remote control on a flat surface. Make sure the ends which you normally point at your device are facing each other. Point the original remote to the front of the KAMELEON 5 (see picture below). Keep the remotes at a distance of 2 to 5 cm (0.8 to 2 inches).

Press and hold down the MAGIC key (for about

3 seconds). The screen will change to the setup screen.

Press the device key (Example: TV key) on the KAMELEON 5 remote to select the mode to which you want to place the learned function.

Press the key (Example: “red” key) on the KAMELEON 5 remote where you want to place the learned function. The IR Indicator will show “incoming IR” three times and then the display will switch off.

Press and hold the key that you want to copy (Example: mono/stereo) on your original remote control. The display switches back on and you will see two blinks to indicate successful learning operation.

If you want to copy other functions within the same mode, simply repeat steps 5 and 6 pressing the next key you want to copy by learning. If you want to copy another function in a different mode, simply continue with step 4 followed by steps 5 and 6.

Press ENTER to exit the learning mode and return to the setup screen OR press and hold ESC to return to the user screen.

P As soon as the display switches off in step 5 you need to press the key (in this example: the ”mono/stereo” key) on your original remote within

15 seconds. If no key is pressed while in learning mode, the remote will return to user mode after 30 seconds. During learning, keys such as (TV) menu, (TV) guide etc. will not change screen when pressed. If you learn a function on a key, the original KAMELEON 5 function automatically becomes shifted. Press the MAGIC key then the key to access it (this excludes the POWER, Channel and Volume keys). If you learned on a digit key, access the original function by pressing magic twice and then the digit. If you want to learn a function on a key that is not in the main screen, use the SCROLL key to change the screen. The learning feature is mode specific. Therefore you can place one learned function per mode on the same key. The KAMELEON 5 can learn approximately 50 functions. The amount of keys depends on the other programmed functions and on the remote to be learned from. You can replace a learned function by placing another learned function on top. Please make sure not to use the learning procedure when in direct sunlight or under incandescent lights. Make sure you are using new batteries before following the learning instructions. Upon changing the batteries, your learned functions will be retained.

It is also possible to place a function shifted on a key to maintain the original function. Example: to place the mono/stereo function shifted on the “red” key. To place the (e.g. mono/stereo) function shifted on the red key, simply follow steps 1-8 on page 15, only press ”MAGIC” then the ”red” key during step 5. To access the e.g. ”mono/stereo” function in this example; simply press ”MAGIC” and then the ”red” key.

If a Shifted Learned function is placed on the Channel and Volume keys then the “Colour & Brightness“ features will be sacrificed.

If you place a function shifted on a digit key (0 - 9) you need to press MAGIC twice then the digit key to access this shifted function.

To delete a “Key Magic function” or “learned function” from a certain key: Example: to delete a “Key Magic function” or “learned function” from the “I” key in TV mode: 1. 2. 3. 4. 5.

Press and hold the MAGIC key for about 3 seconds. The screen will change to the setup screen.

Press IR DELETE. Press the corresponding device key (example TV). Press the corresponding function key (example “I”). Press ENTER to restore the original function OR press and hold ESC to return to the user screen. The original function (if present) of the KAMELEON 5 will be restored.

To delete a shifted “Key Magic function” or “learned function” from a certain key:

Example: To delete one single ”shifted” learned or Key Magic function, follow the steps below. Example: to delete the mono/stereo function learned shifted on the ”red” key in TV mode: 1. 2. 3. 4. 5. 6.

Press and hold the MAGIC key for about 3 seconds. The screen will change to the setup screen.

Press IR DELETE. Press the corresponding device key (example TV). Press MAGIC. Press the corresponding function key (example “Red key”). Press ENTER to restore the original function OR press and hold ESC to return to the user screen. The original function (if present) of the KAMELEON 5 will be restored.

To delete all “Key Magic functions” or “learned functions” from a certain mode:

Example: to delete all “Key Magic function” or “learned functions” from the TV mode: 1. 2. 3. 4.

Press and hold the MAGIC key for about 3 seconds. The screen will change to the setup screen.

Press IR DELETE. Press the corresponding device key (example TV). Press ENTER to restore the original function OR press and hold ESC to return to the user screen.

- The original function (if present) of the KAMELEON 5 will be restored.

The Operational Reset will erase all learned functions across all modes. It will also delete some other programmed functions like Key Magic or Macros. 1. 2. 3.

Press and hold the MAGIC key for about 3 seconds. The screen will change to the setup screen.

Press OTHER. Press 9 8 0. The IR Indicator will blink four times and the remote will return to the setup screen.

Key Magic® (How to program missing functions) Key Magic® is an exclusive ONE FOR ALL feature. The design of the KAMELEON 5 ensures that many functions of your original remote control can be operated even those that do not have their own key on the KAMELEON 5 keypad. Frequently used functions can be assigned to a key of your choice using the Key Magic® feature of your KAMELEON 5. In order to program a certain function with Key Magic® you need to know the corresponding function code. As the function codes vary with different types of devices, they cannot be found in the manual. You can request your function codes through our consumer service help-line, by letter, fax or e-mail. All we need to know is: Brand and Model number of the device in question (for verification if you • are using the correct code). The 4-digit set-up code your device is working with. • • How the function was labeled on your original remote control. You can also visit our website (www.oneforall.com) to find an answer to your questions. Once you obtain(ed) your function code(s) from customer service, programming the code is easy: 1. 2. 3. 4. 5. 6.

Press and hold the MAGIC key for about 3 seconds. The screen will change to the setup screen.

Press KEY MAGIC. Press the device key (TV, DVD, SAT or AUD). Press the MAGIC key once. Enter the 5-digit function code (provided by customer service). Press the key to which the function will be assigned (if this key is located in a different screen than the main screen, use the SCROLL key to access the screen). The IR Indicator will blink twice and the screen will return to the Setup screen. Key Magic® functions are mode specific. To access the function you have programmed, press the device key first. Key Magic® can be assigned to any key EXCEPT the following: Device keys, ESC, ENTER, MAGIC key and the SCROLL key. Please note all the extended function codes you obtain from customer service for easy future reference. Keys such as (TV) menu, (TV) guide etc. will not change screen when pressed during Key Magic® programming.

EXTENDED FUNCTION REFERENCE

(first entry is an example): DEVICE TV

Mode re-assignment (How to set up two of the same devices on the KAMELEON 5) It is possible to change the mode of any device key. This is useful if you want to set up two of the same devices on the KAMELEON 5. The modified device key will display the applicable keys for the revised mode. The code can be set up using the “Direct set up” (p. 12) or “Search method” (p. 13). To change a device key, see the two examples below. Example 1; if you like to program a second TV on the DVD key. Example 2; if you like to program a second DVD player on the SAT key.

To program a second Television on the DVD key (for example), you need to change the DVD key into a TV key, so press: (*)

The DVD key has now become a second TV key and will display the applicable keys for this mode.

Now enter the Set-Up code for your second TV by pressing:

To program a second DVD player on the SAT key (for example), you need to change the SAT key into a DVD key, so press: (*)

The SAT key has now become a second DVD key and will display the applicable keys for this mode.

Now enter the Set-Up code for your second DVD by pressing:

If you program a different device type on another key (e.g. second TV on the DVD key) the original device key icon will remain, but the displayed function keys will change to suit the new device mode. For example; if a second TV is programmed on the DVD key, TV-text functions will be displayed in DVD mode.

Resetting a Device key

Example: To reset the DVD key to its original mode, press: (*)

Press and hold the MAGIC key for about 3 seconds. The screen will change to the setup screen.

The animated IR Indicator will blink twice (the screen will change to the setup screen).

Volume Punch-Through This feature allows you to adjust the volume of a certain mode (e.g. TV mode) while being in a different mode (e.g. VCR). If for example you’re watching a programme on your Video (in DVD mode), you can adjust the volume (a TV function) without first pressing the TV key. The chart below lists some of the possibilities: Last key pressed:

DVD SAT AUD LIGHT You can control:

: TV volume up and : TV volume up and : TV volume up and : TV volume up and

down, down, down, down,

Example: To punch through to AUD volume, being in any other mode

(e.g. SAT or DVD mode): 1. 2. 3.

Press and hold the MAGIC key for about 3 seconds. The screen will change to the setup screen.

Press VOLUME. Then press the AUD key and the animated IR Indicator will blink twice and the remote will return to the setup screen.

Result: VOL+/- and MUTE wil be from AUD mode independent of the selected device mode.

To cancel the “Volume Punch Through” per mode:

Example: to cancel the “Volume Punch Through” for the VCR (in DVD mode): 1. 2. 3. 4.

Press and hold the MAGIC key for about 3 seconds. The screen will change to the setup screen.

Press VOLUME. Then press the VOL- ( ) key. Press VCR once. The IR Indicator will blink four times and the unit will return to the SETUP screen.

Result: being in DVD (VCR) mode, you will be able to control VOL+/- and MUTE functions of your VCR (provided it has volume control).

To cancel the “Volume Punch Through” for all modes:

Press and hold the MAGIC key for about 3 seconds. The screen will change to the setup screen. Press VOLUME. Then press the VOL+ ( ) key and the IR Indicator will blink four times and the screen will return to the setup screen.

Result: In all modes the VOL+, VOL- and MUTE keys will now operate the original functions again.

Device Sleeptimer If your device has a “Sleeptimer” function built in, you can access this function with your KAMELEON 5 remote. To do so: 1.

Make sure your device is switched on.

Press the device key TV (or DVD, SAT, AUD).

Point the KAMELEON 5 at your device and press and release the MAGIC key then press POWER. You should see the Sleeptimer activate on your device.

To increase the timer, simply press POWER again (within 10 seconds) until the timer gets to the desired time.

To deactivate the “Sleeptimer”, repeat steps 1 – 3 above. During step 3, continue pressing POWER again (within 10 seconds) until the timer indicates zero minutes.

Depending on how you used sleeptimer on the original remote, you might need to access sleeptimer in a different way (through menu for example).

The KAMELEON 5 – Timer function allows you to activate a <desired function> from a specific <device mode> within a <specific amount of minutes> (max. amount of timer is 60 minutes). -

The <desired function> can be an existing function within a specific mode, a

Macro, a Key Magic function or a Learned function.

Example: you want your TV to switch off after 45 minutes.

Press and hold the MAGIC key for about 3 seconds. The screen will change to the setup screen.

Press 9 8 5 to enter the KAMELEON 5 –Timer programming mode.

The animated IR Indicator will blink twice.

Press TV to select the mode where the KAMELEON 5 – Timer function will come from. The animated IR Indicator will blink twice.

Press the POWER key to select the desired function. The animated IR Indicator will blink twice.

Now press 4 5 to enter the amount of minutes after which the <Desired function> needs to be activated (e.g. for 5 min. press 05, max. up to 60).

Press ENTER. The animated IR Indicator will blink twice and the KAMELEON

5– Timer function will be activated.

Invalid key presses during the programming of KAMELEON 5 - Timer will be ignored.

The <Desired function> can be any key except for Device keys, SCROLL, ESC, ENTER and MAGIC. While the KAMELEON 5 – Timer is running, the IR animation will light every 15 seconds. The KAMELEON 5 –Timer function is cancelled by setting up a new KAMELEON 5 – Timer function. If no key is pressed while setting up a KAMELEON 5 – Timer function, the remote will return to user mode after 30 seconds. The SCROLL key can be accessed any time during programming if applicable in the current device mode.

Macros (sequence of commands) Macros (direct) You can program your KAMELEON 5 to issue a sequence of commands at the press of one button. For example, you may want to turn off your TV, DVD and Satellite at the same time. Any sequence of commands you regularly use can be reduced to one key stroke for your convenience. A key that is programmed with a Macro works through all modes (provided it’s accessible in that mode). You can install a Macro on any key (provided it’s accessible in that mode), except for the device keys (TV, DVD, SAT, AUD and LIGHT), MAGIC, ESC, ENTER and the SCROLL key. Example: To set up a Macro that switches off your TV, DVD player and SAT on the “red” key on your KAMELEON 5: 1.

Press and hold the MAGIC key for about 3 seconds. The screen will change to the setup screen.

Press the device key (e.g. TV) to display all keys of the mode.

Then press the key to which the Macro will be assigned, in this case the “red” key.

Next press TV, POWER, DVD, POWER, SAT, POWER.

6. To store the Macro, press ENTER. The screen will return to the setup screen.

Result: Whenever you press the “red” key, the KAMELEON 5 will turn off your TV, DVD player and Satellite receiver.

Each MACRO can consist of a maximum of 22 keystrokes.

To include a function from a particular screen in a mode, use the SCROLL key. Make sure that you program a Macro on a spare key that you don’t use in any mode. Once you program a Macro on a specific key, the sequence will work regardless of the mode (TV, DVD, SAT, AUD or LIGHT) you are using (if the label is the same as the label on which the Macro was programmed). This means that the function picked on that specific key will be sacrificed. To avoid accidental recordings with the KAMELEON 5, you must press the RECORD key twice to begin recording. Please note that if you assign a Macro or Shifted Macro to the RECORD key, this will deactivate the double key press. Therefore we recommend not to assign a Macro to this key. If you had to hold down a key for a few seconds on the original remote control to get a function, this function may not work in a macro on your KAMELEON 5 remote. Keys such as (TV) menu, (TV) guide etc. will not change screen when pressed during Macro programming. Upon changing the batteries your Macro(s) will be retained. If you program a Macro on a key, the original function will become shifted (excluding POWER, CH+/- and VOL+/- keys). Press MAGIC then the key to access it. If you place a Macro on a digit key, access the original function by pressing MAGIC twice and then the digit key. You can replace a Macro by placing another Macro on top.

Shifted Macros It is also possible to place a shifted Macro on a key to maintain the original function. The MAGIC key can be used as “SHIFT-function”. Example: To set up a Shifted Macro that switches off your TV, DVD and SAT on the “RED” key on your KAMELEON 5: (so that you will keep the original function on the “RED” key).

SAT, POWER ENTER Now every time you press ”MAGIC”, then the ”red” key, the KAMELEON 5 will turn off your TV, DVD player and Satellite.

If a Shifted Macro is placed on the POWER, CH+/- or VOL+/- keys, the

Sleeptimer and Colour/Brightness features will be sacrificed.

To erase a (direct) Macro from a key

Example: To erase the Macro from the “red” key, press: MAGIC*

ENTER To erase a (shifted) Macro

Example: To erase the Shifted Macro from the ”red” key press:

ENTER To erase all Macros in all modes

(*) Press and hold the MAGIC key for about 3 seconds.

The screen will change to the setup screen.

Code Upgrade Technology Your KAMELEON 5 contains a unique feature, which allows new codes to be added simply by holding it to your telephone. In a matter of seconds, our magnetic coupling technology quickly and reliably transfers information to the KAMELEON 5 without complex plugs, adapters or attachments. This means, as you buy new products in the future, the KAMELEON 5 will never become obsolete.

(Upgrade your KAMELEON 5 remote…via your PC) 1.

Visit our website “www.oneforall.com”.

Select “Product support”.

Select “Universal Remote

Select the ONE FOR ALL remote you want to upgrade:

KAMELEON 5 (URC-8305).

Now you have entered our special Online Download section. From this point just follow the instructions on the screen for easy upgrade of your remote.

(Upgrade your KAMELEON 5 remote…via your phone) Alternatively ring our consumer help-line and one of our customer service representatives will assist you through the entire process of upgrading your KAMELEON 5. To ensure the process goes smoothly, here are a few steps to follow: 1.

Write down the brand name(s) and model number(s) of your device(s) in the space provided on the Consumer Service page before you call.

Ring our consumer help-line and explain which device(s) you would like added to your KAMELEON 5.

After our customer service agent records the brand name(s) and model number(s) of your device(s), he/she will lead you through the set up procedure and then will ask you to hold the KAMELEON 5 to the speaker portion of your telephone (see diagram below). In doing this, the information needed for your device is transferred through the telephone into your

KAMELEON 5 in a matter of seconds. Please note, cordless telephones, speaker telephones and mobile telephones are not recommended.

After your KAMELEON 5 has been upgraded by telephone, stay on the line. Our customer service agent will ensure that your

KAMELEON 5 is working properly with your device(s) and will answer any other questions you may have.

Colour & Brightness Depending on the functions of your original remote control, the KAMELEON 5 can operate the colour and brightness settings of your Television. To adjust the colour: Press the MAGIC key followed by Volume + (for colour +) or Volume - (for colour -). To adjust the brightness: Press the MAGIC key followed by Channel + (for brightness +) or Channel - (for brightness -). Depending on how you used colour and brightness on the original remote, you may need to access colour and brightness in a different way (through menu for example).

Problem & Solution Problem:

Your brand is not listed in the code section?

Try the search method on page 13.

The KAMELEON 5 does not operate your device(s)?

A) Try all the codes listed for your brand.

B) Try the search method on page 13.

The KAMELEON 5 is not performing commands properly?

You may be using the wrong code. Try repeating the Direct Set-Up using another code listed under your brand or start the search method over again to locate the proper code.

Problems changing channels?

Enter the program number exactly as you would on your original remote.

The recording key on the

KAMELEON 5 does not work?

As a safety feature on your KAMELEON 5, you must press the Record key twice.

The KAMELEON 5 does not respond after pressing a key?

Make sure you are using new batteries and are aiming the KAMELEON 5 at your device.

Your original remote had a

You can find this function on the AV key.

Upon each key press, the IR indicator will blink 5 times?

Replace batteries with 4 fresh, new

“AA/LR6” alkaline batteries.

You are not able to enter programming mode?

Replace batteries with 4 fresh, new

“AA/LR6” alkaline batteries.

Customer Service If you still have questions about the operation of your ONE FOR ALL KAMELEON 8 universal remote and could not find the answer(s) in the Trouble-Shooting section (page 25), you may want to contact the customer service department for assistance. You may care to visit our Internet-site: www.oneforall.com Our internet-site has many advantages: - 24 hours access - no waiting time - page for Frequently Asked Questions - info about the ONE FOR ALL product range Before contacting us, by Fax, E-mail or Phone, make sure you have the required information available by filling in the table below. What do we need to know before you contact us: 1 That you have the ONE FOR ALL KAMELEON 5 URC-8305 (*) universal remote. 2 The date of purchase (//). 3 A list of your equipment/models: (see example below). Device

Type/model numbers can often be found in your equipment owner’s manual or on the factory plate behind the device.

Just send a blank message, you’ll get a form to be filled out as auto-reply.

P CH +, CHVOL +, VOL MUTE POWER.

SAT, POWER ENTER CHANNEL +, CHANNELVOLUME +, VOLUME MUTE POWER.

The DVD key has now become a second TV key and will display the applicable keys for this mode.

SAT, VEILLE ENTER CHANNEL +, CHANNELVOLUME +, VOLUME MUTE POWER.

SAT, POWER ENTER Seleccione “Product Support”.

CANAL +, CANALVOLUME +, VOLUME MUTE POWER.

DVD, POWER, SAT, POWER

ENTER CHANNEL +, CHANNELVOLUME +, VOLUME MUTE POWER.

Premete TV, POWER, DVD, POWER, SAT, POWER.

SAT, POWER ENTER Televisie / LCD / Plasma / Projector / Rear-projection

DVD Satellietontvanger, Cable Box, DSS / Video Accessoires

(e.g. Media Center), Personal Video Recorder, Hard Disc Recorder

• Apparaat instellen (Device Setup)

• Zoek methode (Search Method)

• Apparaatmodus veranderen (Mode re-assignment)

• Volume direct bediening

OTHER CHANNEL +, CHANNELVOLUME +, VOLUME MUTE POWER.

Daarna drukt u TV, POWER, DVD, POWER, SAT, POWER.

SAT, POWER ENTER Selecteer “Product support”.

Selecteer “Universal Remote

• Módok újrakiosztása

BE-KI, SAT, BE-KI BEVITEL

Naciśnij OTHER (INNE).

Naciśnij OTHER (INNE).

CHANNEL +, CHANNELVOLUME +, VOLUME MUTE POWER MENU

Naciśnij OTHER (INNE).

Naciśnij OTHER (INNE).

SAT, POWER ENTER TV, NAPÁJENÍ (POWER),

VCR, NAPÁJENÍ (POWER), SAT, NAPÁJENÍ (POWER)

ENTER TV A.R. Systems

Accent Acer Acoustic Research Adcom ADL Admiral Advent Adyson AEA AEG Agashi AGB Aiko

All-Tel Allstar Ambassador Amplivision

0606 1163 0264 0037 0035 0264 0412 0706 1908 0208 0433 0672 0729 0715 0480 0178 1908 1248 0009 0282

0433 0361 0556 0753 0805 1505 0371 0745 0009 0714 0602 0631 0377 0473 1935

0191 0753 0163 0556 0216 0606 0648

0556 0668 0412 0218 0282 0264 1982 1037 0418 0355 0487 1935

Anam National 0037 0556 0650

1163 1149 Andersson Anglo Anitech

Citizen City Clarivox Clatronic

CMS Cobolt Combitech Concorde Condor

Conrac Conrad Contec Continental Edison Cosmel Crosley Crown

0060 0009 0418 0102 0037 0218 0102 1163 1037 0216 0891 1908 0009 0320 0216 0418 0754 0808 0037 0216 0264

Excel Expert Exquisit Fagor FairTec Family Life Fenner Ferguson

0394 0163 1149 1037 0070 Fidelity

0556 Finlandia 0556 1259 0706 0259 0362 0370 0037 0556 0218 0411 0610 0516 0630 0102 0163 0037 0556 0264

0556 0516 0102 0163 0216 1259 0556 0163 0556 0556

0037 0556 0780 0037 0587

Deitron 0037 Denko 0264 Denver 0037 0587 DER 0193 Desmet 0320 Diamant 0037 Diamond 0264 0216 Digatron 0037 Digihome 1149 Digiline 0037 DigiLogic 0037 Digitex 0820 Digitor 0037 Digivision 0361 DigiX 0880 DiK 0037 Dixi 0009 DL 0891 0865 DMTECH 1964 Domeos 0668 Domland 0394 Dream Vision 1704 DSE 0888 DTS 0009 Dual 0343 0259 1137 Dumont 0104 Dunai 0163 Durabrand 0037 Dux 0037 DVX 0891 Dynatron 0037 e:max 0606 Easy Living 1248 Ecco 0773 Edison-Minerva 0487 Elbe 0435 0163 0191 0361 Elbe-Sharp 0516 Elcit 0516 Elekta 0009 0282 Elfunk 1208

0009 0625 0109 0035 0108 1037 0512 0371 0264 0346 0363

0560 0343 0361 1471 0363 0412 1908 0548 0287

Fortress Fraba Friac

0556 0102 0655 0610 0009 0163

H&B Haaz Haier Halifax Hammerstein Hampton Hanimex Hanseatic

0093 0037 0009 0370 Frontech 0264 Fujimaro 0865 Fujitsu 0102 0683 0259 Fujitsu General 0009 Fujitsu Siemens 1298 1163 Funai 0668 Furichi 0860 Futronic 0264 Future 0037 G-Luxon 0844 Galaxi 0102 0163 Galaxis 0370 0556 Galeria 0009 GBC 0163 0363 GE 0343 0287 Geant Casino 0163 GEC 0163 0556 Geloso 0009 General 0109 General Electric 0343 General Technic 0009 Genesis 0009 Genexxa 0218 0163 Gericom 0865 0880 Gevalt 1371 Goldfunk 0668 Goldhand 0216 Goldline 0337

0216 0060 1908 0556 0361 0634 0377

1338 1465 0556 1196 1269 0412 0037 0556 0556

JEC JMB JNC Jocel Jubilee JVC

0163 0370 0074 0556 0630 0411 0418 0556 1206 0610 0714 0163

WWW.ONEFORALL.COM ITT Mandor

Manesth Manhattan Marantz Mark

0037 0178 1265 0216 0698 1252

0370 0001 0163 0715 1423

0327 0009 0512 0556 1248

0328 0519 0655 0218 1259

Matsuviama Maxam Maxdorf Maxim MCE Mediator Medion

0668 1982 0037 0556 0259 0363 0163 0073 0037 0194 0492 0163 0631 0178 0037 0516 0516 0037 0648 0715 0264 0037 0035 0037 1037 0037 0037 0009 0499 0218 0037 0037 0177 0371 0455 0208 0335 0650 0587 0264 0773 1982 0009 0037 0037 0668 0698 1900 0880

0519 0363 0163 0411 0374 0009 0362 0037 0556 0362 0259 0361 0264 0009 1163 0361 0346

0363 0480 0208 0548 0473 1037

0102 0102 0556 0714 1289

0216 0073 0036 0780 0037 0556

0163 0876 1267 0556 0556 0714 0037 0371 0556 0556 0011 0433 0163 0045 0714

0363 0556 0163 0412 0216 0715

Korpel Korting Kosmos Kotron Koyoda Kuba Kuba Electronic Kyoshu Kyoto L&S Electronic LaSAT Lavis Leader Lecson Legend Lemair Lenco

0487 0355 0443 0516 0195 1908

0036 0363 0035 0191 1037

0556 0714 0556 1908 1248 1289

0370 0009 0037 0093 0060 0216 MTlogic 0714 Multibroadcast 0193 Multistandard 0102 Multitec 0037 1037 Multitech 0009 0370 0264 Murphy 0104 Musikland 0037 MyCom 1376 Myryad 0556 NAD 0166 Naiko 0037 Nakimura 0374

Netsat Network Neufunk New Tech New World Nfren Nicamagic Nikkai

Normerel Novak Novatronic Novita NU-TEC Nurnberg Oceanic Odeon Okano

0653 0037 0200 0418 0512 0037 0163

1371 1338 1908 0037 0337 0037 0218 0037 0218 0800 0216 0218 0035 0036 0714 0178 0482 0102 0109 0361 0492 0374 0320 0109 0560 0556 1248 0163 0037 0037 0037 1384 0455 0163 0163 0548 0264 0370 0009 1376 0264

0009 0556 0610 0282 0714 0009 0556 0343

General Mivar Monaco Morgan's Motorola MTC

0714 0178 0009 0037 0361 0447 0195 0556 1533 0037

Phonola Pilot Pioneer

0556 0760 0170 0370 0163 0370 0037

0037 0011 0679 0343 0287 0486 0556

0102 0070 0282 0009 0374 0487

0109 0361 0163 0074 0084 0535

0009 0860 0009 0698 1037 0361 0009 0009 0037 0037 0630 1376 0037 0371 0037 0264 0282 0178 0499 0714 1191 0037 0009 0218 0650 0037 0512 0036 0328 0668 0264 0036 0037

0355 0556 0556 0218 0036 0556 0361 0009 0519

0191 0556 0363 0377 0773 1183

Plantron Playsonic Policom Polytron Poppy Portland Powerpoint PrandoniPrince Premier President Prima Princess Prinston Prinz Profex Profi Profitronic Proline

0714 0200 0163 0412 0698 0001 1196 0264

1137 0418 0519 0037 0556 0418

0516 0548 0853 0411 0556 0216

0556 0556 0074 0418 0163 0037 0556 0519 0163

Scott Sears Seaway Seelver

0037 1908 0037 0548 0486 1137 0394 0371 1037 1909 0163 1189 0178 0634 0556 0037 0668 0264 0362 1909 0102 0037 0102 0556 1217 0363 0411 0346 0009 0035 0610 0093 0193 1393 0037 0037 0178 0418 0163

0556 0556 0714 0374 0037 0352 0361 0163 1908

0361 1191 0556 0259 0218 0648 1982

0556 0487 0634 0216 0714 1505 0556 0516

Ricoh Rinex Roadstar

0371 0036 0264 0435 0218 0455 1193 0516 1163 0556 0556

0216 0093 0036 0653 0200 0760

0355 0610 0865 0371 0264 0455 0037

0321 0455 0218 0037 0556 0487

0208 0805 0009 0218 0178 0335 0009 0805 1504 0216 0037 0216 0447 0367 0362 0218 1371 0036 0363 1556 0011 1371 0714 0698 1037 0455 0178 0282 1149 0009 0037 0037 1163 1189 0218 0320 1982 0650 0655 1267 0714

0556 0698 0264 0455 0037 0556 0216

0455 0361 0163 0556 0037 0556 0335 0163 0163 0361 0037 0556

Sunwatt Sunwood Superla Supersonic

Tech Lux Techica Technema Technica Technics TechniSat Technisson

Tele System Teleavia Telecor

0876 0109 0037 0259 0625 0109 0498 1504 0073 0714 0037 0037 0264 0320 0037 0009 0037 0337 0163 0320 0037 0102 0009 0037 0104 0320 0371 1037 0320 0037 0519 0037 1556 1137 0374 0320 0287 0556 0108 0225 0074 0037 0335 0374

Unic Line United Universal Universum

0486 0621 0037 0512 0418 0216 0037 0516 0264 0177 0037 0282 0556 0037 0418 0480 0102 0037 0037 0714 1908 0714 0346 0535 0370 0037 0163 0411 1505 0337 0084 1163 0037 0163

0556 0455 0587 0264 0698 0712 0009 0556 0218

Televideon Teleview Telexa Tempest Tennessee Tensai

0556 0394 0560 0698 0820 0287 0037 1556 0556 0163 0556 0037 0556 0037 0556 1037 0259 0163 0556

0486 0370 0259 0374 0556 0556 0037 1037 0037 0105 0361 0200 0512 0264 0074 0668 0177 1037 1149 0556

0473 0715 0587 0556 0195 0492 0418 0036 0104 0327 0109 0631 1437 0618 0337

0556 1982 0473 0480 0011 0070 0556 0328 0362 0009 0170 0163

Westinghouse 0320 0337 Windsor 0668 Windstar 0282 Windy Sam 0556 Wintel 0714 World-ofVision 0880 1298 Worldview 0455 X-View 1191 Xenius 0634 XLogic 0698 Xoro 1196 Xrypton 0037 Yamaha 0650 Yamishi 0282 0556

Hanseatic Harwood HCM Hinari Hisawa Hischito Hitachi Höher Hornyphon Hypson Imperial Ingersoll Inno Hit Interbuy Interfunk Internal International Intervision Irradio ITT ITT Nokia ITV JMB Joyce JVC Kaisui Kambrook Karcher Kendo Kenwood KIC Kneissel Kolster Korpel Kyoto Lenco Leyco

0037 0072 0072 0072 0352 0045 0042 0081 0278 0081 0072 0037 0000 0240 0240 0037 0081 0278 0278 0000 0072 0106 0048 0278 0352 0000 0067 0072 0037 0278 0106 0037 0038 0000 0352 0348 0072 0072 0278 0072

0048 0226 0037 0081 0072

0104 0642 0278 0352 0000 0480 0240 0278 0072 0104 0637 0037 0278 0037 0104

0037 0081 0278 0352 Dansai 0072 Dantax 0352 Daytron 0278 de Graaf 0042 0048 Decca 0000 0352 Deitron 0278 Denko 0072 Diamant 0037 Diamond 0278 Digitor 0642 DSE 0642 Dual 0081 Dumont 0000 Durabrand 0642 Elbe 0278 Elcatech 0072 Elin 0240 Elsay 0072 Elta 0072 Emerson 0072 ESC 0278 EuroLine 0348 Ferguson 0320 Fidelity 0000 0352 Finlandia 0104 0000 0106 Finlux 0000 Firstline 0072 0045 Fisher 0104 Flint 0348 Frontech 0072 Fujitsu 0000 Fujitsu General 0037 Funai 0000 Galaxi 0000 Galaxis 0278 GE 0320 GEC 0081 General Technic 0348

0048 0081 0642 0072 0081 0278 0642 0278 0348 0000 0081 0348 0000 0104 0072 0081 1562 0226 0348 0348 0000 0043 0000 0037 0000 0000 0081 0104 0642 1562 0038 0037 0081 0072 0037 0072 0104 0240 0320 0348 0000 0104 0315 0642 0072 0352 0000 0000 0072

Magnum Manesth Marantz Mark Mastec Master's Matsui Mediator Medion Melectronic Memorex Memphis Metronic Metz

Nesco Neufunk Nikkai Nokia Nordmende NU-TEC Oceanic Okano Onimax Orbit Orion Orson Osaki Osume

0742 0352 0037 0038 0000 0037 0048

0226 0067 0040 0104 0278 1137 0000 0352 0278 0106 0315 0278 0048 0042 0081 0494 0067 0048 0106 0081 0348 0072 0278

Perdio Philco Philips Phoenix Phonola Pioneer Portland

0000 0038 0072 0081 0278 0081 0067 0081 0042 0278 0637

Multitech Murphy Myryad NAD Naiko National NEC

Ultravox Unitech United United Quick Star Universum

Teletech Tenosal Tensai Tevion Texet Thomson Thorn ThornFerguson Tokai Tokiwa

0037 0072 0278 0642 0067 0206 0494 0037

WWW.ONEFORALL.COM Victor

Video Technic Watson Weltblick Wharfedale World Yamishi Yokan Yoko Yoshita Zenith ZX

0000 0081 0240 0037 0106 0348 0104 0067 0000 0081 0037 0642 0348 0072 0072 0037 0072 0637 0348

Edison Coship Crown Cryptovision Cyrus D-box Daewoo

1457 1284 0455 0200 1114 0723 1296 0713 1743 1111

Telephone Audioline Aurora Austar

0658 1672 1175 1656 1175 1662 1656

1811 1853 0853 0167 0292 1853 1339 0292 1853 1862

1232 0299 0394 0504 1075 1720

1429 0879 1259 1173 Axil 1457 Axis 1111 B@ytronic 1412 Bauckhage 1331 Beko 0455 Bentley Walker 1017 Best 0369 Big Sat 1457 Black Diamond 1284 Blaupunkt 0173 Blue Sky 0713 Blue Star 1279 Boca 0132 Boston 0132 Brainwave 1214 British Sky Broadcasting 0847 Broco 0713 BSkyB 0847 BT 1296 Bubu Sat 0713 Bush 1471 1743 Canal Digital 1622 1046 Canal+ 0853 CanalSatellite 0853 Centrex 1547 CGV 1413 Cherokee 1323 Chesley 1547 Chess 1334 Chili 1718 CityCom 1176 0818 Clatronic 1413 Colombia 0132 Columbia 0132

1323 1473 1409 1767 0713 1129 1567 0369 1659

Interstar Inverto iotronic ITT Nokia Jadeworld Jaeger Jepssen K-SAT Kamm Kaon KaTelco Kathrein

1429 1195 0292 0132 1017 1839 0132

Garnet GbSAT Gecco General Satellite GF Globo

Maspro Master's Matsui Maximum MDS Mediabox Mediacom MediaSat MediaStar Medion

0713 0394 0173 1075 1225 0292 1206 0292 1173 1232 0132 1334 0713 0200 0818 0713 1704 0173 1811 0713

0394 0713 0879 1334 1099 0262 1232

1283 1611 0292 1412 1100 0114

1175 1323 0853 1830 1375 1111 0299 0879 0847 0455 0132 1457 0200 0133 0455 1017 1339 1334 0329 0394 1296 1279 0132 0292 0853 1176 0292 1111 0455 1173 1404 0369 0299 0200 1113 1291 1214 0369 1251 0200 0713

Mega Melectronic Metronic

1075 1412 1626 0369 1928

0713 0299 1075 0713 0455 0200 0856 1695 0642 1959 1659 0200 0713 1617 1334 1322 1322 0713 1232 0713 1161 1659 1017 0713

Packard Bell Palcom Panasat Panasonic Panda Patriot peeKTON Philips

Myryad Mysat NEC Neotion Netgem Neuf TV Neuhaus Neuling Neusat Neveling Nevir NextWave Nikko Noda Electronic

Televes Telewire Tevebox Tevion Thomson

WWW.ONEFORALL.COM Austar

0276 Canal Plus 0443 Comcrypt 0443 Fastweb 1630 Filmnet 0443 Force 1798 Foxtel 1222 France Telecom 0817 freebox 1482 General Instrument 0276 Golden Channel 1110 HOT 1082 Humax 1813 HyperVision 0619 Jerrold 0276 Macab 0817 Madritel 1230 Matav 1082 MNet 0443 Mood 1386 Motorola 0276 Multichoice 0019 Nokia 1569 Noos 0817 NTL 1060 Oak 0019 Ono 1068 Optus 0276 Pace 1068 Philips 0619 Sagem 0817 Samsung 1666 Scientific Atlanta 0477 Tele Danmark 0619 Tele+1 0443 Telepiu 0443 Telewest 1068 Telsey 1630 Tevel 1082 Thomson 1110 Transact 1386 Tri-Vision 1257 Tudi 0619 UPC 1582 Visiopass 0817

XSat Xtreme Yamada YES Yess Zehnder

Zeta Technology Zinwell Zodiac

0299 1023 0820 1682 1279 1718 0713 0114 1457

1075 1413 0504 1720 1777 0369

All-Tel Amitech Amstrad Anam Arcam Arena ASCOMTEC Audiolab Audiosonic Audioworld Balanced Audio Technology 1089 Bang & Olufsen 0799 Basic Line 1554 Belson 1389 Blue Sky 1390 Bose 1229 1933

1389 0121 1258 0609 1390 1961 0744 0609 1089 1625 1389 1089 1389 1390

Soundworks Creative Curtis Mathes Denon Philips Pioneer Sansui Sony Yamaha

Packard Microsoft Philips Pinnacle Systems Pioneer

0695 1140 Alize 1151 All-Tel 0790 Amitech 0770 Amoi 0852 Amoisonic 0835 Amstrad 0713 1571 AMW 0872 Ansonic 0759 Apex Digital 0672 Arena 0852 Aria 0893 Arianet 0893 ASCOMTEC 1923 Asono 1224 Astro 1513 ATACOM 1224 Audiola 1660 Audiosonic 1923 Audioworld 0790 Audix 1104 Autovox 0713 Auvio 0843 Avious 1165 AWA 0730 Axion 0730 Base 1451 Basic Line 0713 Baze 1165 BBK 0862 Bellagio 0872 Belson 1923 Best Buy 0857 Binatone 1923 Black Diamond 0713 Blaupunkt 0717 Blu:sens 1489 Blue Sky 0713 0843

1115 0898 0713 0852 1233

1051 1367 1140 0699 0713 0723 0730 0539 0672 1051 1530 1695 1451 0835 0850

0059 0059 0059 0059 0059

DigiLogic digiRED Digital i Digitech Digitor Digitrex Digix Media DiK Dinamic DiViDo DK digital DMTECH Dragon DSE Dual

0826 0831 0788 0705 0831 0790 0831 1730 0831 0730 Durabrand 0831 DVX 0768 E-Boda 0723 E-Dem 1224 e:max 1233 EagleTec 0714 eBench 1152 Eclipse 0723 Electrohome 0770 Elfunk 0850 Elin 0770 Ellion 0850 Elta 0770 1151 Eltax 1321 Emerson 0591 Energy Sistem 1513 Enzer 0665 EuroLine 0788 0675 Ferguson 0651 0884 Finlux Fintec Firstline Funai GE Germatic Global Link

0751 0713 0869 0695 0717 1051 1224

1271 0833 1152 0713 0665 0651 0790 2007 0713 1832

Coby Codex Compacks Conia

0879 0884 1436 1419 1832

Raite RCA REC Red Star 0831 1228 0833 1104 1832

Reoc Revoy Rex Richmond Rimax Roadstar

Supratech SVA Synn T.D.E. Systems Tandberg Tangent Targa

1513 0672 0768 1156 0713 1321 0741

Thomson Tiny Tokai Tokiwa Tom-Tec Top Suxess Toshiba Trans Continens TRANScontinents

1227 1152 0893 1224 1005

WWW.ONEFORALL.COM Transonic

Tredex Trio TruVision TSM

0759 1006 0833 1227 0675

Scan 0705 ScanMagic 0730 ScanSonic 0857 SCE 0789 Schaub Lorenz 0788 Schneider 0831 0713 1367 Scientific Labs 0768 Scott 0651 1233 Seeltech 1224 SEG 0713 0872 Shanghai 0672 Sharp 0630 1256 Sherwood 0717 Shinco 0717 Siemssen 1382 Sigmatek 0857 Silva 0788 Silva Schneider 0831 SilverCrest 1152 Singer 0716 Sinudyne 1140 Sistemas 0672 Skymaster 0730 Skyworth 0898 Sliding 1115 Slim Art 0770 Slim Devices 0533 SM Electronic 0730 Smart 0705 Sonashi 0716 Soniko 0788 Sontech 1156 Sony 0533 0772 1824 Sound Color 1233 Soundmaster 0768 Soundmax 0768 Spectra 0872 Standard 0651 0898 Star Clusters 0768 StarLogic 1005 Starmedia 0818

1530 0539 1994 2021 0789 0788 1228 1832 1676 0770 1036 1382 0768 1227 0833 1347 0652 0522 0898 0788 0716

1165 0672 1165 0843 0770 0857 1451 1224

Windy Sam Wintech Woxter X-Waves XBox XLogic XMS Xoro Yakumo Yamada Yamaha Yamakawa Yukai Zenith

DVD Universal Electronics BV Europe & International

P.O. Box 3332 7500 DH, Enschede The Netherlands

UNIVERSAL ELECTRONICS INC./ONE FOR ALL warrants to the original purchaser that this product will be free from defects in materials and workmanship under normal and correct use for a period of one (1) year from the date of original purchase. This product will be replaced free of charge if it has been proven to be defective within the one (1) year warranty period. This warranty does not cover cartons, carrying cases, batteries, broken or marred cabinets or any other item used in connection with the product. Any further obligation than listed above is excluded. To obtain warranty service during the warranty period, please call us at the number mentioned on the Customer Service page. Please notice that we need your purchase receipt so that we may establish your eligibility for service. If you have bought this product for purposes which are not related to your trade, business or profession, please remind that you may have legal rights under your national legislation governing the sale of consumer goods. This guarantee does not affect those rights.

Universal Electronics BV Europe & International

P.O. Box 3332 7500 DH, Enschede The Netherlands
