USER MANUAL E2409HDS IIYAMA

USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read carefully through this brief but comprehensive manual before installing and switching on the monitor. Please keep this manual in a safe place for your future reference. ENGLISH Congratulations! The display you have just purchased carries the TCO’03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and performance product, designed with the user in focus that also minimizes the impact on our natural environment. Some of the features of the TCO’03 Display requirements: Ergonomics

• Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability. Energy
• Energy-saving mode after a certain time – beneficial both for the user and the environment
• Electrical safety Emissions
• Electromagnetic fields
• Noise emissions Ecology
• The product must be prepared for recycling and the manufacturer must have a certified environmental management system such as EMAS or ISO 14 001
• Restrictions on o chlorinated and brominated flame retardants and polymers o heavy metals such as cadmium, mercury and lead. The requirements included in this label have been developed by TCO Development in cooperation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been involved in influencing the development of IT equipment in a more user-friendly direction. Our labelling system started with displays in 1992 and is now requested by users and ITmanufacturers all over the world. For more information, please visit www.tcodevelopment.com ENGLISH environmental requirements in the world. This makes for a high

CE MARKING DECLARATION OF CONFORMITY

This LCD monitor complies with the requirements of the EC Directive 2004/108/EC “EMC Directive” , 2006/95/EC “Low Voltage Directive” and 2009/125/EC “ErP Directive”. The electro-magnetic susceptibility has been chosen at a level that gives correct operation in residential areas, business and light industrial premises and small-scale enterprises, inside as well as outside of the buildings. All places of operation are characterised by their connection to the public low voltage power supply system. ENGLISH IIYAMA CORPORATION: Breguetlaan 8, 1438BC Oude Meer The Netherlands A certified power supply cord has to be used with this equipment. The relevant national installation and/or equipment regulations shall be considered. A certified power supply cord not lighter than ordinary polyvinyl chloride flexible cord according to IEC 60227 (designation H05VV-F 3G 0.75mm2 or H05VVH2-F2 3G 0.75mm2) shall be used. Alternative a flexible cord be of synthetic rubber according to IEC 60245 (designation H05RR-F 3G 0.75mm2) shall be used. We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com You can access the Web page of different countries from there. We reserve the right to change specifications without notice. All trademarks used in this user manual are the property of their respective owners.

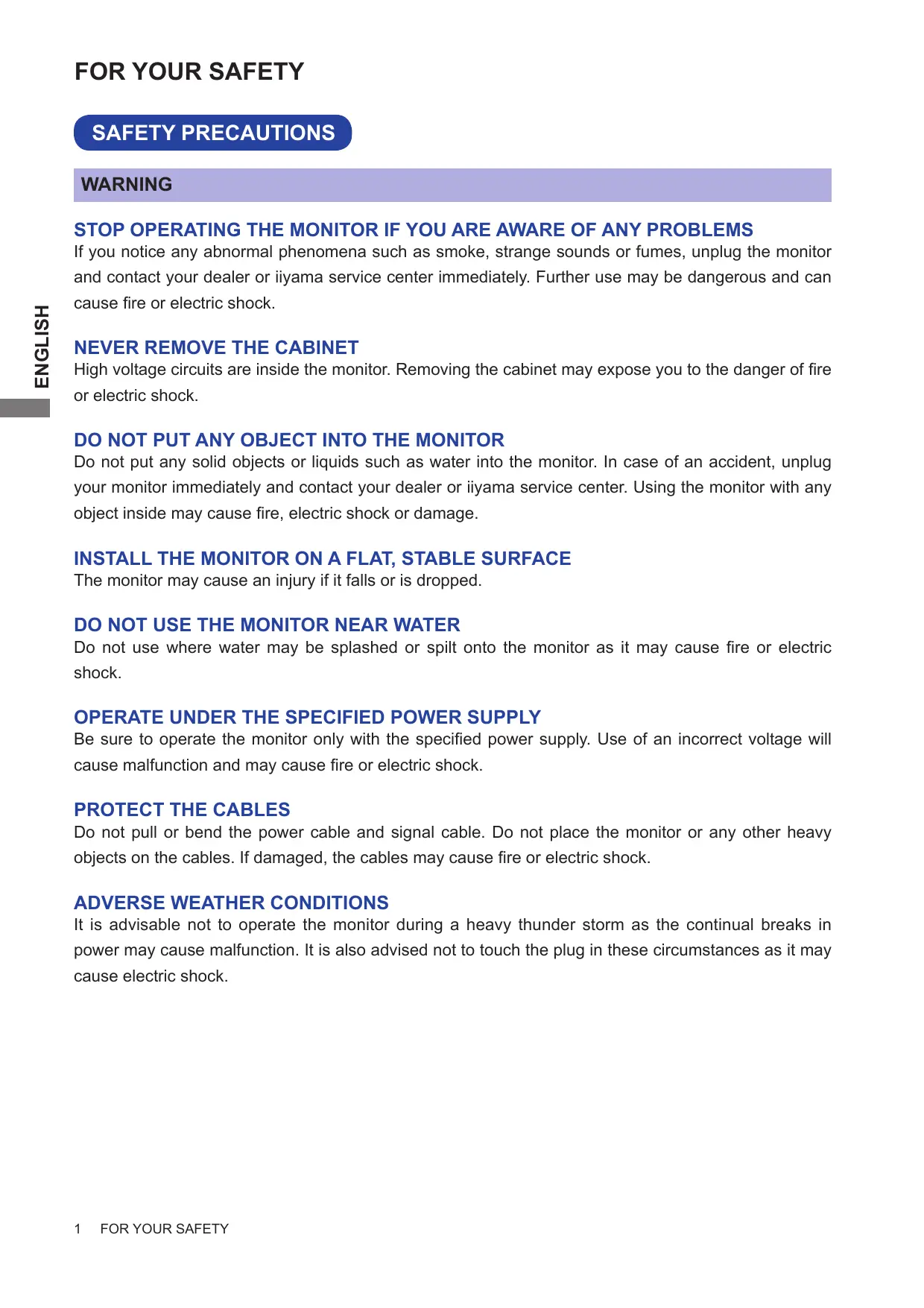

SAFETY PRECAUTIONS WARNING STOP OPERATING THE MONITOR IF YOU ARE AWARE OF ANY PROBLEMS If you notice any abnormal phenomena such as smoke, strange sounds or fumes, unplug the monitor ENGLISH and contact your dealer or iiyama service center immediately. Further use may be dangerous and can cause fire or electric shock.

NEVER REMOVE THE CABINET

High voltage circuits are inside the monitor. Removing the cabinet may expose you to the danger of fire or electric shock. DO NOT PUT ANY OBJECT INTO THE MONITOR Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug your monitor immediately and contact your dealer or iiyama service center. Using the monitor with any object inside may cause fire, electric shock or damage. INSTALL THE MONITOR ON A FLAT, STABLE SURFACE The monitor may cause an injury if it falls or is dropped. DO NOT USE THE MONITOR NEAR WATER Do not use where water may be splashed or spilt onto the monitor as it may cause fire or electric shock.

OPERATE UNDER THE SPECIFIED POWER SUPPLY

Be sure to operate the monitor only with the specified power supply. Use of an incorrect voltage will cause malfunction and may cause fire or electric shock.

Do not pull or bend the power cable and signal cable. Do not place the monitor or any other heavy objects on the cables. If damaged, the cables may cause fire or electric shock.

ADVERSE WEATHER CONDITIONS

It is advisable not to operate the monitor during a heavy thunder storm as the continual breaks in power may cause malfunction. It is also advised not to touch the plug in these circumstances as it may cause electric shock.

CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fire, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located. Please also ensure that you do not the cables and possibly cause injury.

MAINTAIN GOOD VENTILATION

Ventilation slots are provided to keep the monitor from overheating. Covering the slots may cause fire. To allow adequate air circulation, place the monitor at least 10 cm (or 4 inches) from any walls. Do not remove the tilt stand when operating the monitor. Ventilation slots on the back of the cabinet will be blocked and the monitor may overheat if the stand is removed. This may cause fire or damage. Operating the monitor on its back, side, upside down or on a carpet or any other soft material may also cause damage. DISCONNECT THE CABLES WHEN YOU MOVE THE MONITOR When you move the monitor, turn off the power switch, unplug the monitor and be sure the signal cable is disconnected. If you do not disconnect them, it may cause fire or electric shock.

If the monitor is not in use for a long period of time it is recommended that it is left unplugged to avoid accidents.

HOLD THE PLUG WHEN DISCONNECTING

To disconnect the power cable or signal cable, always pull it by the plug. Never pull on the cable itself as this may cause fire or electric shock. DO NOT TOUCH THE PLUG WITH WET HANDS Pulling or inserting the plug with wet hands may cause electric shock. WHEN YOU INSTALL THE MONITOR ON YOUR COMPUTER Be sure the computer is strong enough to hold the weight of the monitor, otherwise, you may damage your computer. OTHERS ERGONOMIC RECOMMENDATIONS To eliminate eye fatigue, do not operate the monitor against a bright background or in a dark room. For optimal viewing comfort, the monitor should be just below eye level and 40-60 cm (16-24 inches) away from your eyes. When using the monitor over a prolonged time, a ten minute break every hour is recommended as looking at the screen continuously can cause eye strain.

ENGLISH place any heavy objects on the monitor, and that all cables are routed such that children may not pull

SPECIAL NOTES ON LCD MONITORS

The following symptoms are normal with LCD monitors and do not indicate a problem. NOTE When you first turn on the LCD monitor, the picture may not fit in the display area because of the type of computer that is used. In this case, adjust the picture position to the correct position. Due to the nature of the backlight, the screen may flicker during initial use. Turn off the Power Switch and then turn it on again to make sure the flicker disappears. You may find slightly uneven brightness on the screen depending on the desktop ENGLISH pattern you use. Due to the nature of the LCD screen, an afterimage of the previous screen may remain after switching the image, when the same image is displayed for hours. In this case, the screen can be recovered slowly by changing the image or turning off the Power Switch for some hours. Contact your dealer or iiyama service center for the backlight replacement when the screen is dark, flickering or not lighting up. Never attempt to replace it by yourself. CUSTOMER SERVICE NOTE The fluorescent light used in the LCD monitor may have to be periodically replaced. For the warranty coverage on this component, please check with local iiyama service center. If you have to return your unit for service and the original packaging has been discarded, please contact your dealer or iiyama service center for advice or replacement packaging. CLEANING WARNING If you drop any materials or liquids such as water into the monitor when cleaning, unplug the power cable immediately and contact your dealer or iiyama service center. CAUTION For safety reasons, turn off the power switch and unplug the monitor before you clean it. NOTE To protect the LCD panel, do not scratch or rub the screen with a hard object. Never use any of the following strong solvents. These will damage the cabinet and the LCD screen. Thinner Spray-type cleaner Benzine Wax Abrasive cleaner Acid or Alkaline solvent Touching the cabinet with any product made from rubber or plastic for a long time may cause degeneration or loss of paint on the cabinet. CABINET Stains can be removed with a cloth lightly moistened with a mild detergent solvent. Then wipe the cabinet with a soft dry cloth. LCD Periodic cleaning with a soft dry cloth is recommended. SCREEN Don't use tissue paper etc. because these will damage the LCD screen.

The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama office. Power Cable*1 D-Sub Signal Cable Audio Cable Stand* Screw for stand fixing : 2 pieces*

DVI-D Signal Cable Stand-Base Safety Guide Quick Start Guide CAUTION *1 The rating of the Power Cable enclosed in 120V area is 10A/125V. If you are using a power supply higher than this rating, then a power cable with a rating of 10A/ 250V must be used. However, all guarantees and warranties are void for any problems or damage caused by a power cable not supplied by iiyama.

• Accessory for ProLite E2409HDS. *3 Accessory for ProLite B2409HDS.

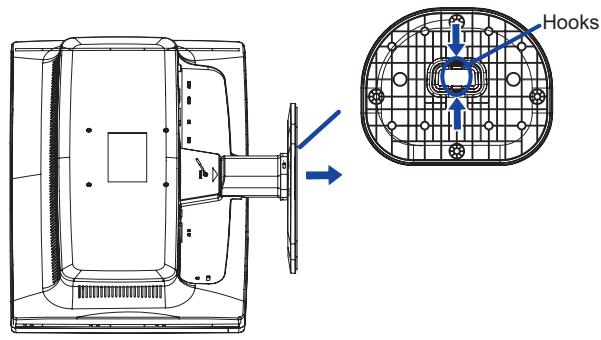

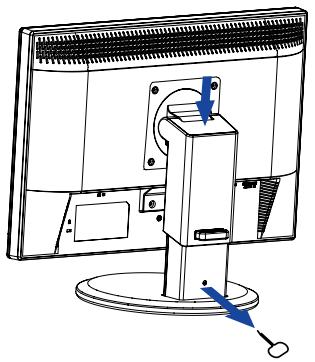

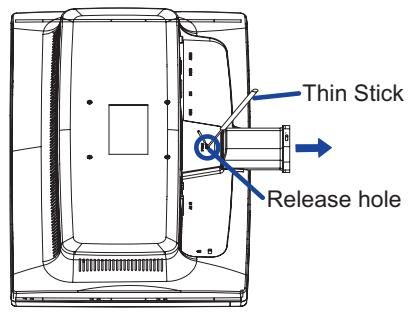

FITTING AND REMOVAL OF BASE: ProLite B2409HDS / ProLite B2409HDSD CAUTION Put the monitor on a stable surface. The monitor may cause injury or damage if it falls or is dropped. Do not give a strong impact to the monitor. It may cause damage. Unplug the monitor before removal or installation to avoid electric shock or damage. ENGLISH <Installation> A Put a piece of soft cloth on the table beforehand to prevent the monitor from being scratched. Lay the monitor flat on a table with front face down. B Install the Stand-Base to the Monitor. C Fix the Monitor to the Stand by both screws firmly and then push-down knob. Push-down knob Screws for Stand-Base fixing Stand-Base <Removal> A Put a piece of soft cloth on the table beforehand to prevent the monitor from being scratched. Lay the monitor flat on a table with front face down. B Pull the knob upwards, then remove the screws and the Stand-Base. <Stopper pin> Please stand the monitor and then remove the stopper pin on the back of the stand slowly while pushing top face of the stand before you install the monitor. Careful attention is required as the monitor is sprung loaded and may expand quickly when removing it. Stopper pin

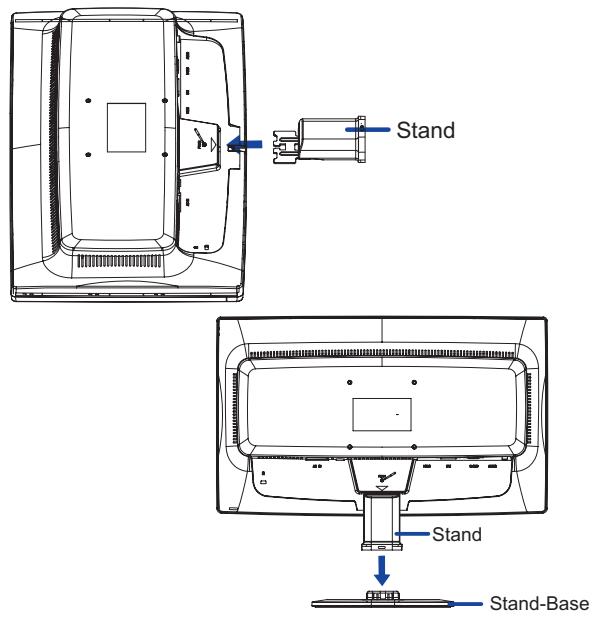

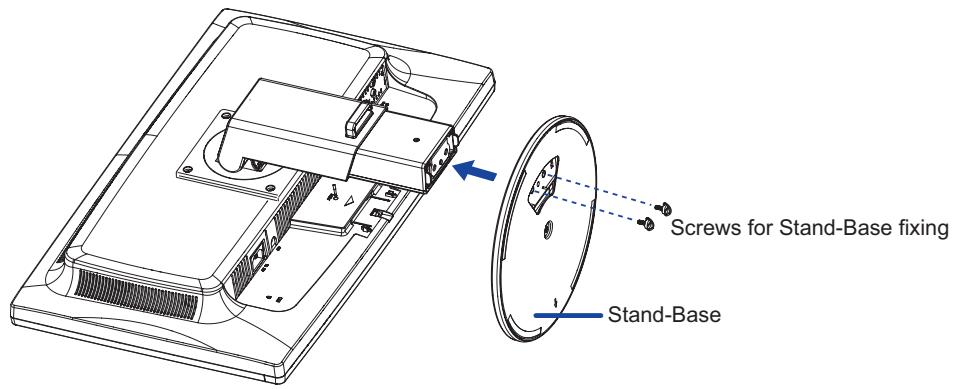

FITTING AND REMOVAL OF BASE : ProLite E2409HDS CAUTION Put the monitor on a stable surface. The monitor may cause injury or damage if it falls or is dropped. Do not give a strong impact to the monitor. It may cause damage. Unplug the monitor before removal or installation to avoid electric shock or damage. <Installation> Lay the monitor flat on a table with front face down. ENGLISH A Put a piece of soft cloth on the table beforehand to prevent the monitor from being scratched. Stand B Insert stand into the monitor as shown in figure. C Install the stand-base to the stand. Stand Stand-Base <Removal> Hooks A Put a piece of soft cloth on the table beforehand to prevent the monitor from being scratched. Lay the monitor flat on a table with front face down. B Press and hold the hooks inside, and pull the Stand-Base. C Insert thin stick into hole, push stick in whilst pulling the stand away. Thin Stick Release hole

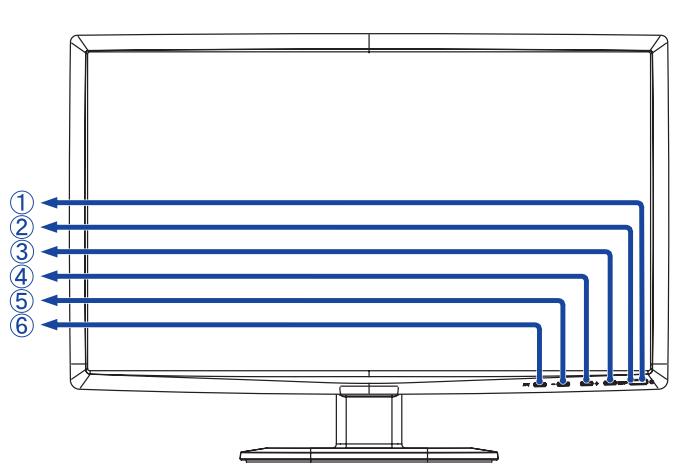

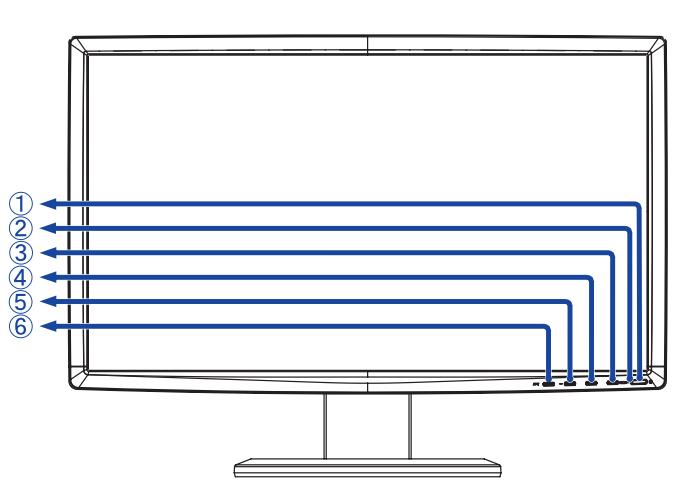

Power Indicator NOTE Blue: Normal operation Orange: Power Management The monitor enters into power management mode which reduces the power consumption to less than 1W when receiving no horizontal and/or vertical sync signal. Menu / Select Button (MENU) + / Volune Button ( + ) - / ECO Mode Button ( - ) Auto Button (AUTO) Speakers AC Connector (AC IN) Cable Holder Keyhole for Security Lock NOTE You can fasten a security lock and cable to prevent the monitor from being removed without your permission. Headphone Connector (EARPHONE) Audio Connector (AUDIO IN) D-SUB mini 15pin Connector (D-SUB) DVI-D 24pin Connector (DVI) HDMI Connector (HDMI)*

• Available for ProLite B2409HDS only.

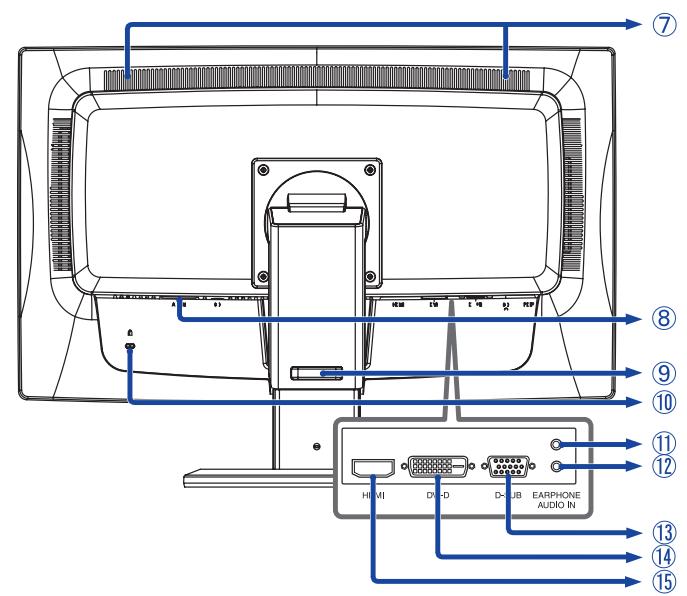

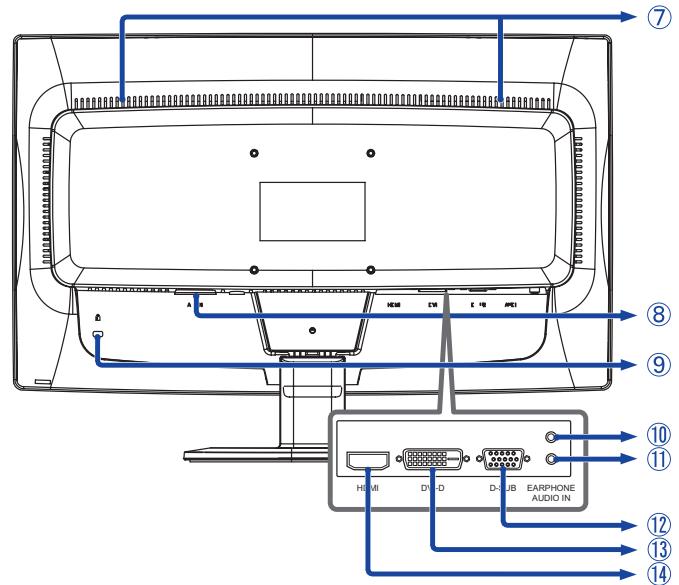

Power Indicator NOTE Blue: Normal operation Orange: Power Management The monitor enters into power management mode which reduces the power consumption to less than 1W when receiving no horizontal and/or vertical sync signal. Menu / Select Button (MENU) + / Volune Button ( + ) - / ECO Mode Button ( - ) Auto Button (AUTO) Speakers AC Connector (AC IN) Keyhole for Security Lock NOTE You can fasten a security lock and cable to prevent the monitor from being removed without your permission. Headphone Connector (EARPHONE) Audio Connector (AUDIO IN) D-SUB mini 15pin Connector (D-SUB) DVI-D 24pin Connector (DVI) HDMI Connector (HDMI)

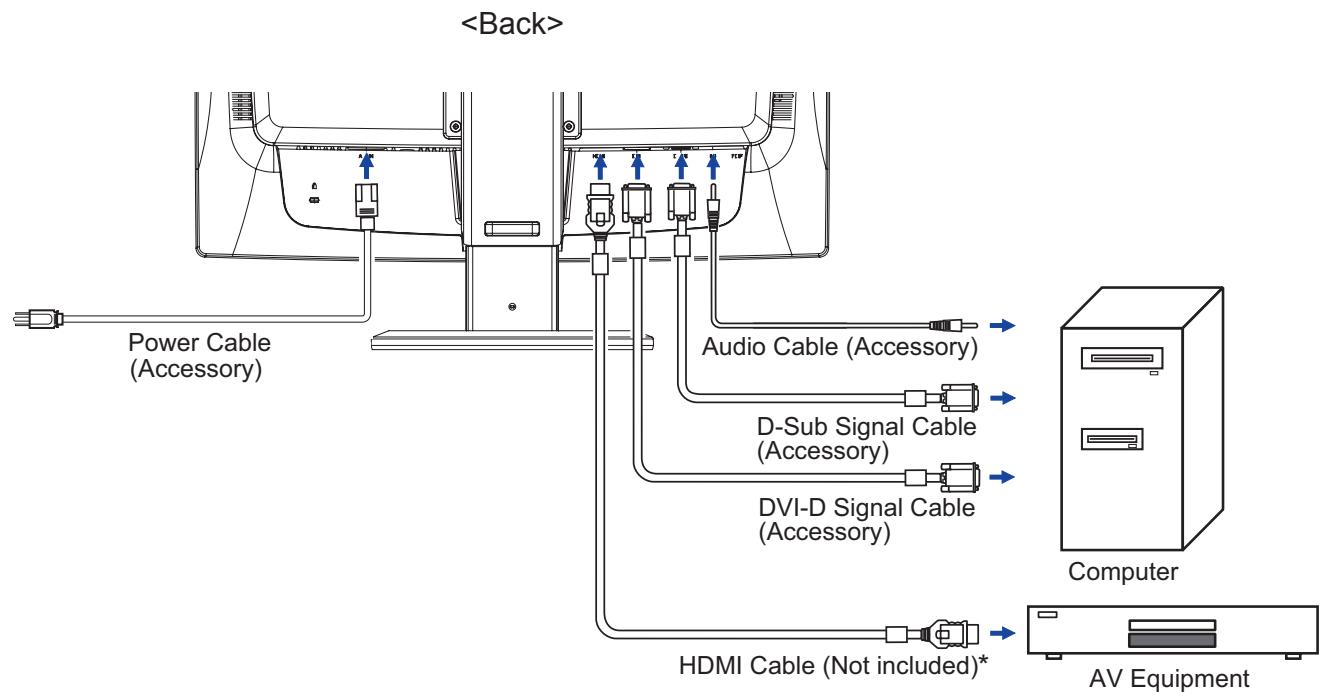

CONNECTING YOUR MONITOR : ProLite B2409HDS / ProLite B2409HDSD Ensure that both the computer and the monitor are switched off. Connect the computer to the monitor with the signal cable. Connect the monitor to the audio equipment with the Audio Cable for computer when using the audio features. Connect the Power Cable to the monitor first and then to the power supply. Turn on your monitor and computer. ENGLISH NOTE The signal cables used for connecting the computer and monitor may vary with the type of computer used. An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard 15 pin D-Sub connector. If a special cable is required please contact your local iiyama dealer or regional iiyama office. For connection to Macintosh computers, contact your local iiyama dealer or regional iiyama office for a suitable adaptor. Make sure you tighten the finger screws at each end of the signal cable. [Example of Connection] <Back> Power Cable (Accessory) Audio Cable (Accessory) D-Sub Signal Cable (Accessory) DVI-D Signal Cable (Accessory) Computer HDMI Cable (Not included)*

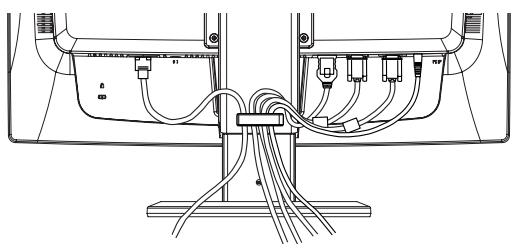

• Available for ProLite B2409HDS only. [ Collect Cables ] A Put the cables through the cable holder. B Collect cables at the back of the stand.

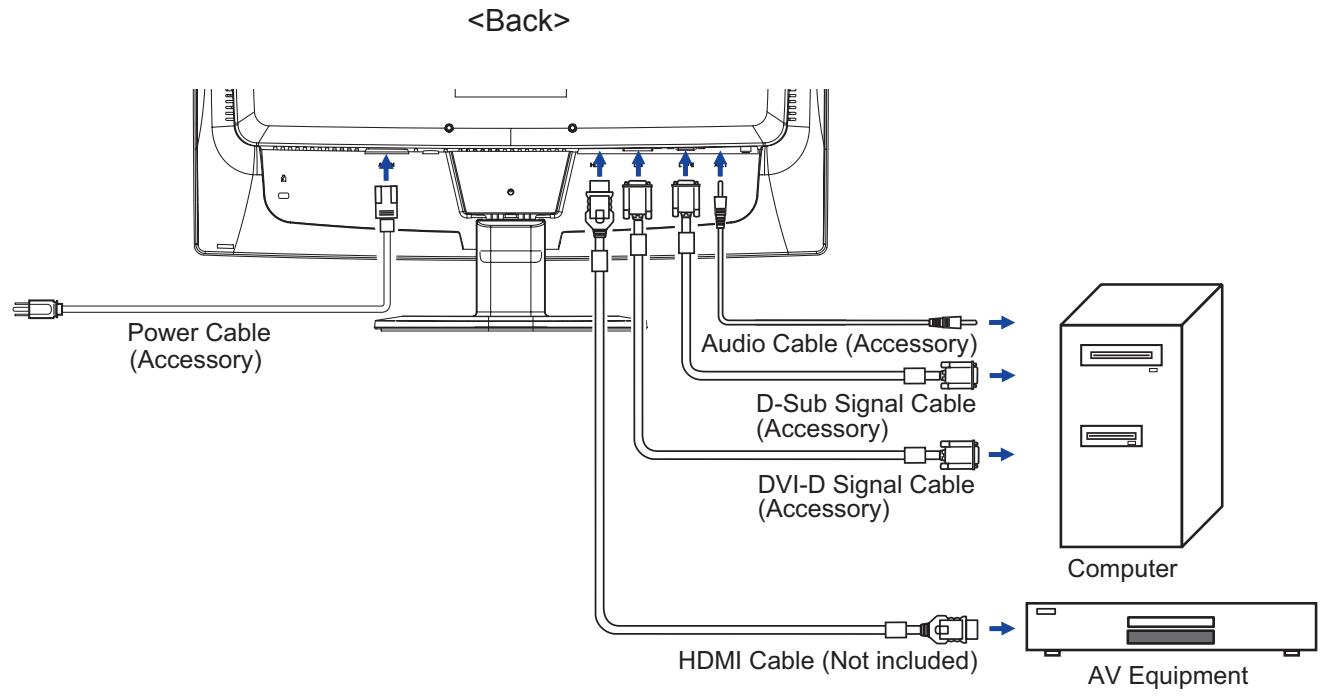

AV Equipment CONNECTING YOUR MONITOR : ProLite E2409HDS Ensure that both the computer and the monitor are switched off. Connect the computer to the monitor with the signal cable. Connect the monitor to the audio equipment with the Audio Cable for computer when using the audio features. Connect the Power Cable to the monitor first and then to the power supply. Turn on your monitor and computer. The signal cables used for connecting the computer and monitor may vary with the type of computer used. An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard 15 pin D-Sub connector. If a special cable is required please contact your local iiyama dealer or regional iiyama office. For connection to Macintosh computers, contact your local iiyama dealer or regional iiyama office for a suitable adaptor. Make sure you tighten the finger screws at each end of the signal cable. [Example of Connection] <Back> Power Cable (Accessory) Audio Cable (Accessory) D-Sub Signal Cable (Accessory) DVI-D Signal Cable (Accessory) Computer HDMI Cable (Not included) AV Equipment

ENGLISH NOTE COMPUTER SETTING Signal Timing Change to the desired signal timing listed on page 30: COMPLIANT TIMING. Windows 95/98/2000/Me/XP/Vista/7 Plug & Play The iiyama LCD monitor complies with DDC2B of VESA standard. The Plug & Play function runs on Windows 95/98/2000/Me/XP/Vista/7 by connecting the monitor to DDC2B compliant computer with the Signal Cable supplied. ENGLISH For installation on Windows 95/98/2000/Me/XP: The monitor Information File for iiyama monitors may be necessary for your computer and obtained via the Internet, using the address: http://www.iiyama.com NOTE For additional information on how to download the driver for your touch screen monitor, please access the internet site noted above. Monitor Drivers are not required in most cases for Macintosh or Unix operating systems. For further information, please contact your computer dealer first for advice.

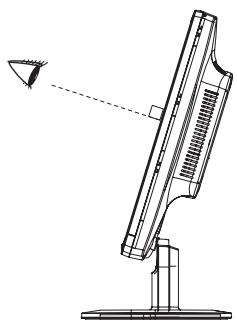

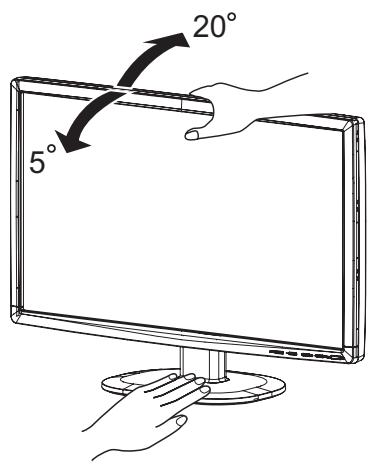

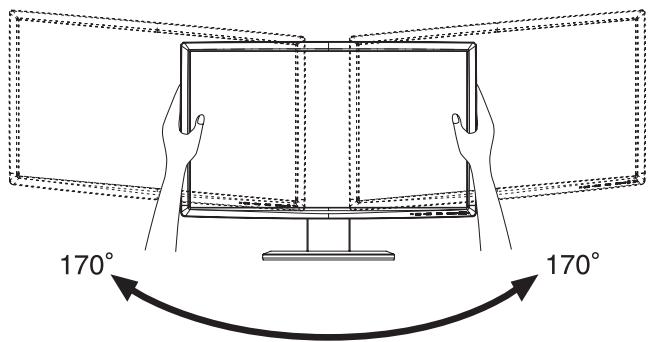

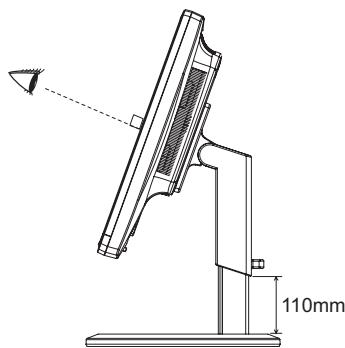

ADJUSTING THE HEIGHT AND THE VIEWING ANGLE : ProLite B2409HDS / ProLite B2409HDSD For optimal viewing it is recommended to position yourself directly opposite to the full face of the monitor, then adjust the monitor’s height and angle to your own preference. Hold the panel so that the monitor does not topple You are able to adjust the monitor's height up to 110mm 110mm, angle up to 170 degrees right and left, 20 degrees upward. NOTE Do not touch the LCD screen when you change the height or the angle. It may cause damage or break the LCD screen. Careful attention is required not to catch your fingers or hands when you change the height or the angle. ADJUSTING THE VIEWING ANGLE : ProLite E2409HDS For optimal viewing it is recommended to look at the full face of the monitor. Hold the stand so that the monitor does not topple when you change the monitor’s angle. You are able to adjust the monitor’s angle up to 20° upward, 5° downward. In order to ensure a healthy and relaxed body position when using the monitor at visual display workstations, it is recommended that the adjusted tilt angle should not exceed 10

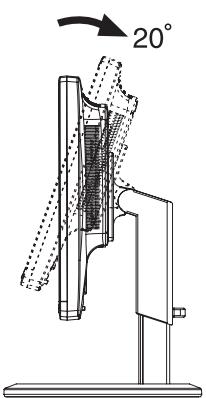

degrees. Adjust the monitor’s angle to your own preference. NOTE Do not touch the LCD screen when you change the angle. It may cause damage or break the LCD screen.

Careful attention is required not to catch your fingers or hands when you change the angle. Do not tilt the post beyond 20 degrees except when repacking the monitor in its box. To do so may cause the monitor to fall over and break.

To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 30. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 20 for SCREEN ADJUSTMENTS. Press the MENU Button to start the On Screen Display feature. There are additional Menu items which can be switched by using the + / - Buttons. ENGLISH Luminance Contrast

B Select the Menu item which contains the adjustment icon relating to the adjustment you want to make. Press the MENU Button. Then, use the + / - Buttons to highlight the desired adjustment icon. C Press the MENU Button again. Use the + / - Buttons to make the appropriate adjustment or setting. D Press the AUTO Button to leave the menu, and the settings you just made would be automatically saved. For example, to correct for vertical position, select Menu item of Image Setup and then press the MENU Button. Then, select V.Position by using the + / - Buttons. An adjustment page appears after you press the MENU Button. Then, use the + / - Buttons to change the vertical position settings. The vertical position of the overall display should be changing accordingly while you are doing this. Press the AUTO Button lastly, it ends, any changes are saved in the memory. Image Setup Clock

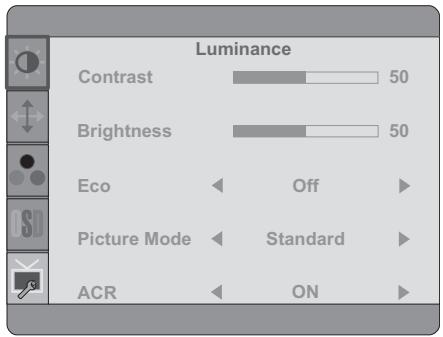

Aspect Full NOTE When button operations are aborted during adjustment, On-Screen Display disappears when the time set for the Timeout has passed. Also, the AUTO button can be used to return previous menu and turn off the On-Screen Display. Any changes are automatically saved in the memory when the On Screen Display disappears. Turning off the power should be avoided while using the Menu. Adjustments for H. / V. Position, Clock and Phase are saved for each signal timing. Except for these adjustments, all other adjustments have only one setting which applies to all signal timings.

Eco Off Picture Mode Standard Adjustment Item Problem / Option Too intense Too dark Brightness * Too bright Off Direct ACR Normal Mode1 Mode2 Mode3 Brightness of back-light is reduced. Brightness of back-light is reduced more than Mode1. Brightness of back-light is reduced more than Mode2. For general windows environment and monitor Standard default setting. Internet Game Movie Sport For text editing and viewing in a word processing environment. For internet environment. For PC game environment. For movie and video environment. For sport environment.

ACR NOTE ACR adjusts brightness according to the image, and improve the contrast ratio during move playing. Contrast, Brightness, sRGB, Eco and Picture Mode cannot be adjusted and selected while ACR is active.

Adjust the Brightness when you are using the monitor in a dark room and feel the screen is too bright. Direct You can skip the Menu items and display an adjustment scale directly by using the following button operations. Eco: Press the - Button when the Menu is not displayed.

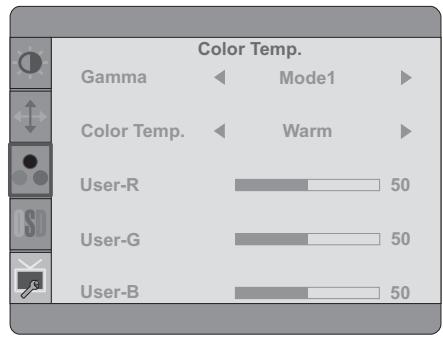

Problem / Option Mode1 Mode2 Mode3 Warm Normal Cool Color Temp. User sRGB NOTE Button to Press ENGLISH Adjustment Item Gamma Normal Dark High contrast Greenish white Yellowish white Bluish white User-R User-G User-B sRGB Too weak Too strong sRGB is an international standard which defines and unifies the difference of color appearance between equipment. You can not adjust the Brightness, Contrast, Gamma and Eco during sRGB mode because those settings are locked.

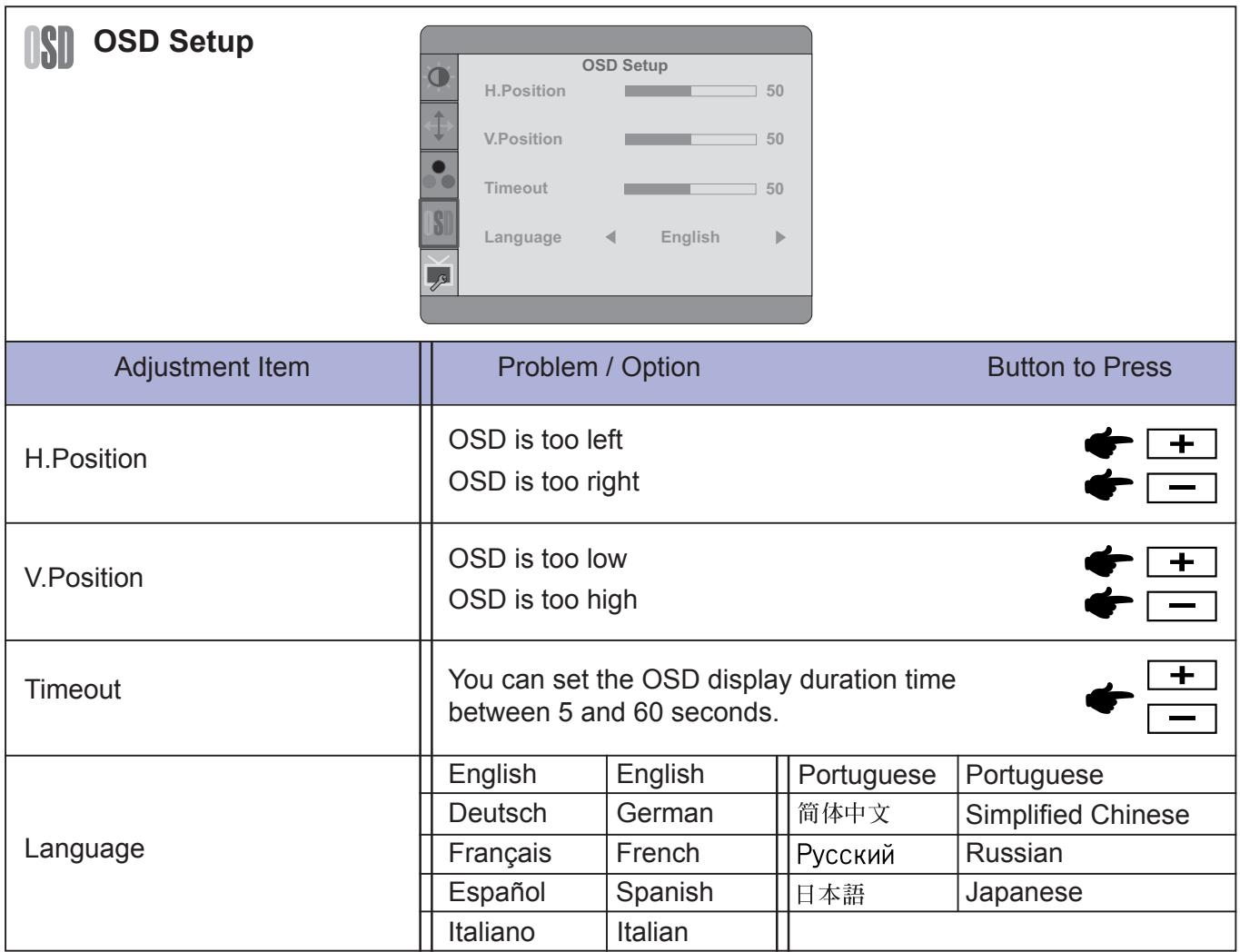

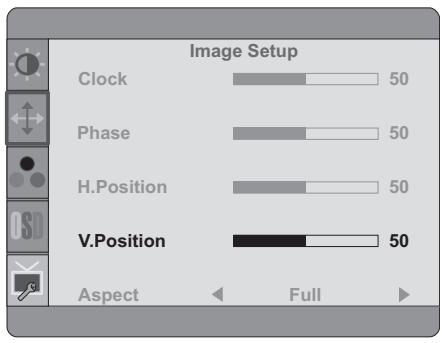

Language ENGLISH Adjustment Item H.Position V.Position English Problem / Option Button to Press OSD is too left OSD is too right OSD is too low OSD is too high Timeout You can set the OSD display duration time between 5 and 60 seconds. Language English Deutsch Français Español Italiano

English German French Spanish Italian Portuguese Portuguese Simplified Chinese Russian Japanese Others Others Input : Resolution : H.Frequency : V.Frequency : Adjustment Item Reset Signal Select NOTE Direct Yes Auto Auto HDMI 1920(H)㧖1080(V) 68KHz 60Hz Problem / Option Button to Press Yes Factory-preset data is restored.

Return to Menu. Auto Select the signal input automatically. D-sub DVI-D HDMI*1 Select the D-SUB input. Select the DVI-D input. Select the HDMI input. ENGLISH Reset Signal Select HDMI audio Information At selected Auto, you can switch the input source by pressing and holding of the AUTO Button for 1-2 seconds, However it will automatically be selected when just one source is using. In Power Management Mode input switching is disabled. Input source is fixed, not selected automatically when D-sub, DVI-D and HDMI which are selected. HDMI audio*1,2 Auto Select the audio input automatically. LINE IN Select the LINE IN input. Displays information regarding the current input signal coming from the graphic card in your computer. Information NOTE See your graphic card user guide for more information about changing the resolution and refresh. *1 Available for ProLite B2409HDS / ProLite E2409HDS only. *2 Suitable for HDMI input only. Direct You can skip the Menu items and display an adjustment scale directly by using the following button operations. Signal Select: Pressing and holding of the AUTO Button for 1-2 seconds when the Menu is not displayed.

Direct You can skip the Menu items and display an adjustment scale directly by using the following button operations. Volume: Press the + Button when the Menu is not displayed. Adjustment Item ENGLISH Volume Problem / Option Button to Press Too soft Too loud Only Analog Input Auto Adjust: Press the AUTO Button when the Menu is not displayed. Adjustment Item Auto Adjust *

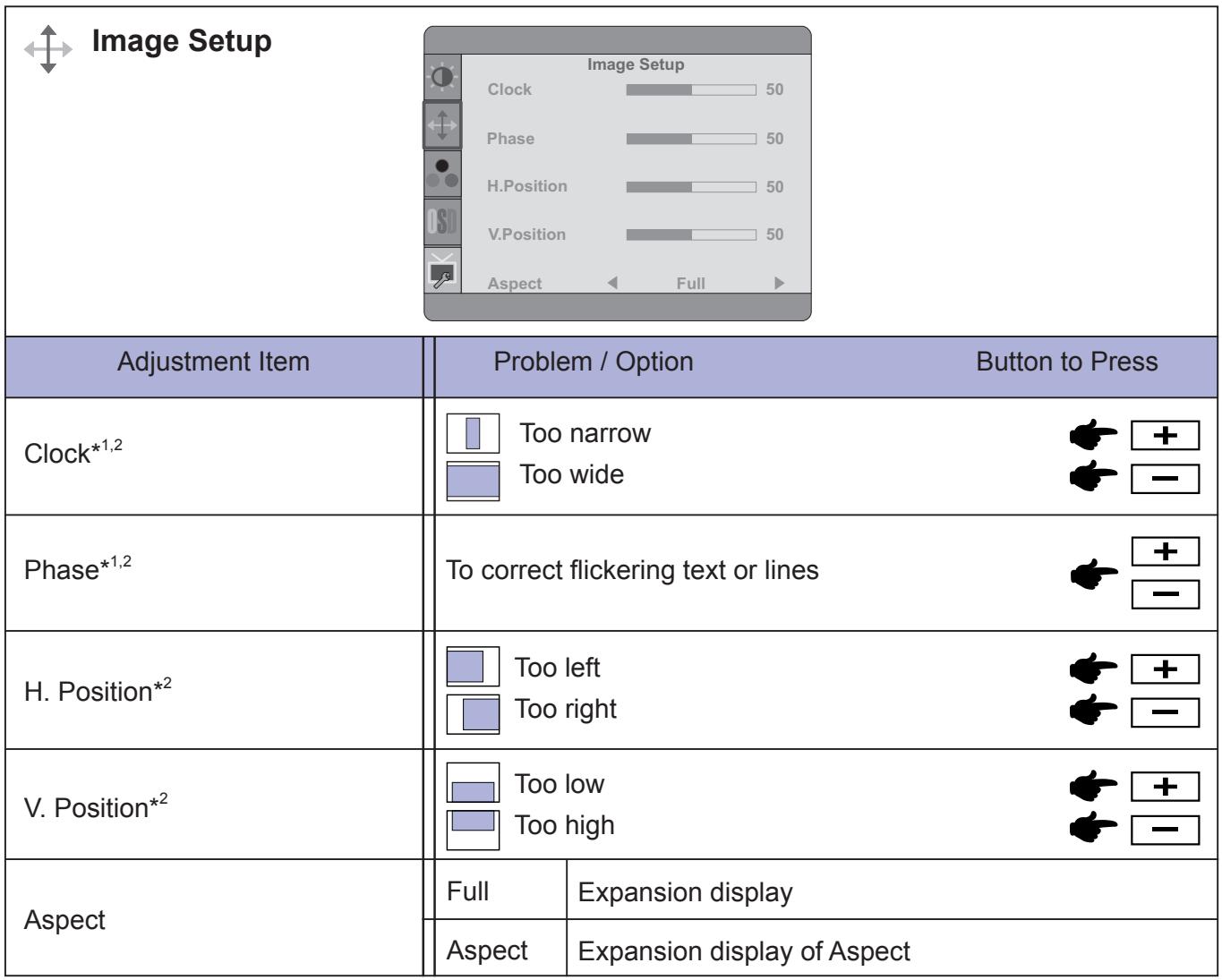

Button to Press Adjust H. / V. Position, Clock and Phase automatically. For best results, use the Auto Adjust in conjunction with the adjustment pattern. See page 20 for SCREEN ADJUSTMENTS.

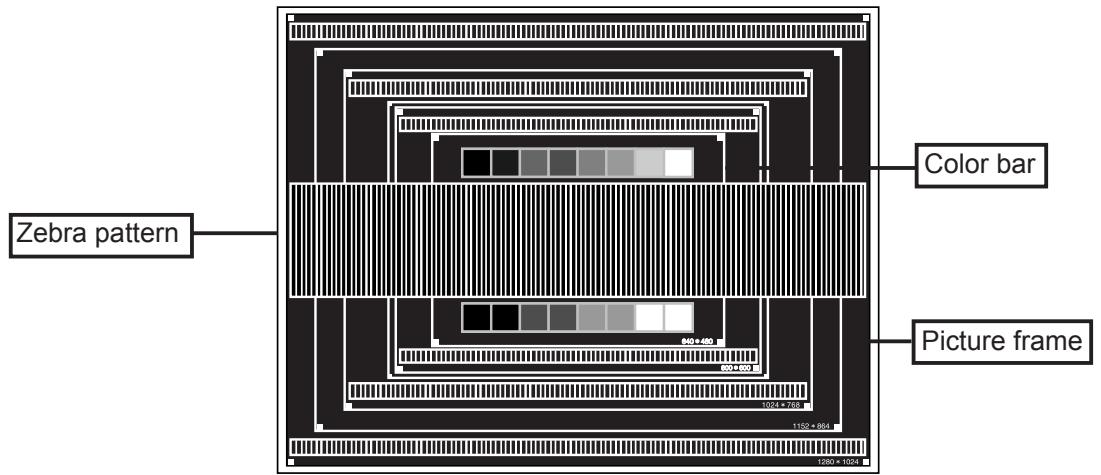

SCREEN ADJUSTMENTS Adjust the image by following the procedure below to get the desired picture when selecting Analog input. The screen adjustments described in this manual are designed to set image position and minimize flicker or blur for the particular computer in use. The monitor is designed to provide the best performance at resolution of 1920 × 1080, but can not provide the best at resolutions of less than 1920 × 1080 because the picture is automatically stretched Displayed text or lines will be blurred or irregular in thickness when the picture is stretched due to the screen enlargement process. It is preferable to adjust the image position and frequency with the monitor controls, rather than the computer software or utilities. Perform adjustments after a warm-up period of at least thirty minutes. Additional adjustments may be required after the Auto Adjust depending on the resolution or signal timing. The Auto Adjust may not work correctly when displaying the picture other than the screen adjustment pattern. In this case, manual adjustments are required. There are two ways to adjust the screen. One way is automatic adjustment for Position, Clock and Phase. The other way is performing each adjustment manually. Perform the Auto Adjust first when the monitor is connected to a new computer, or resolution is changed. If the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Adjust, manual adjustments are required. Both adjustments should be made by using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http://www.iiyama. com). Adjust the image by following the procedure below to get the desired picture. This manual explains adjustment under Windows 95/98/2000/Me/XP/Vista/7. A Display the picture at the optimum resolution. B Enter the Test.bmp (screen adjustment pattern) to wallpaper. NOTE NOTE Consult the appropriate documentation for doing this. Test.bmp is made at resolution of 1280 × 1024. Set the display position to center in the wallpaper setting dialogue box. If you use Microsoft® PLUS! 95/98 cancel the setting of “Stretch desktop wallpaper to fit the screen”. [Adjustment pattern] Color bar Zebra pattern Picture frame

ENGLISH to fit the full screen. It is recommended to operate at resolution of 1920 × 1080 in normal use. C Press the Auto Button. (Auto Adjust) D Adjust the image manually by following procedure below when the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Adjust. ENGLISH E Adjust the V.Position so that the top and bottom of the picture frame will fit to the display area. F 1) Adjust the H.Position so that the left side of the picture frame will move to the left edge of the display area.

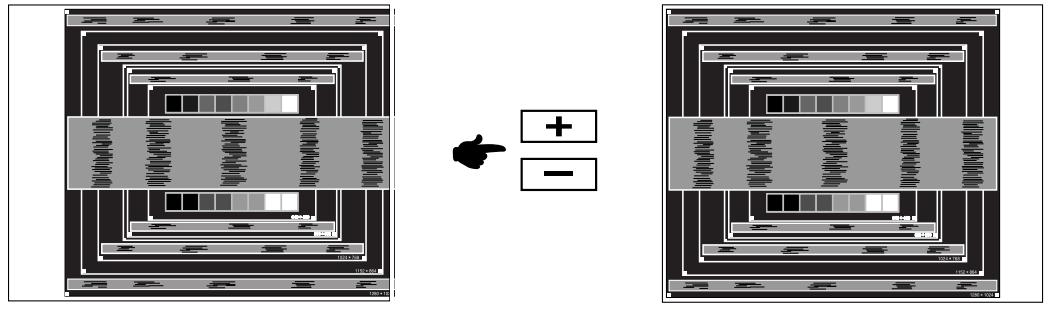

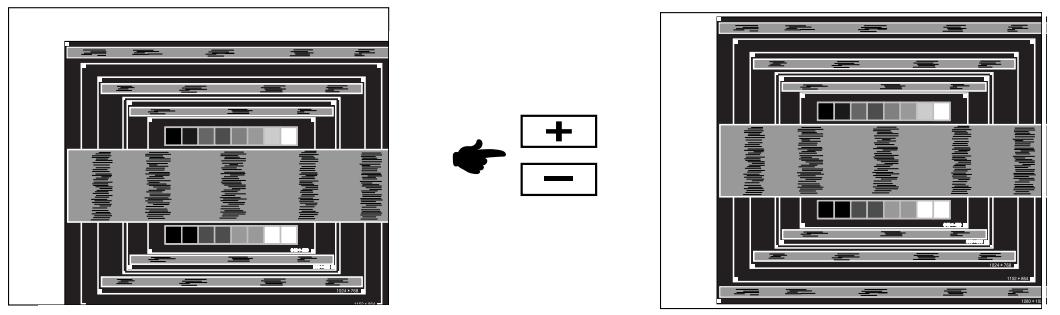

2) Stretch the right side of the picture frame to the right edge of the display area by

adjusting the Clock. NOTE NOTE When the left side of the picture frame moves apart from the left edge of the display area during the Clock adjustment, adjust steps 1) and 2). Another way to make the Clock adjustment is to correct the vertical wavy lines in the zebra pattern. The picture may flicker during the Clock, H.Position and V.Position adjustment. In case the picture frame is bigger or smaller than the data display area after the Clock adjustment, repeat steps from C.

NOTE NOTE In case the strong flicker or blurs remain on a part of the screen, repeat steps F and G because the Clock may not be adjusted correctly. If the flicker or blurs still remain, set the refresh rate of computer to low (60Hz) and repeat steps from C again. Adjust the H.Position after the Phase adjustment if the horizontal position moves during the adjustment. H Adjust the Brightness and Color to get the desired picture after you complete the Clock and Phase adjustments. Put back your favorite wallpaper.

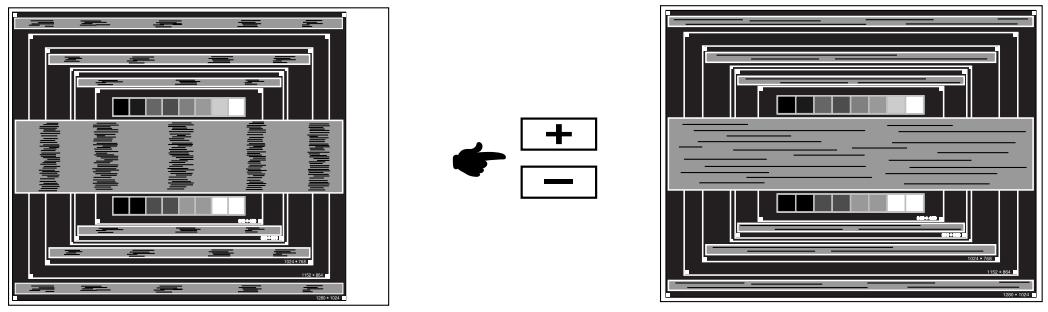

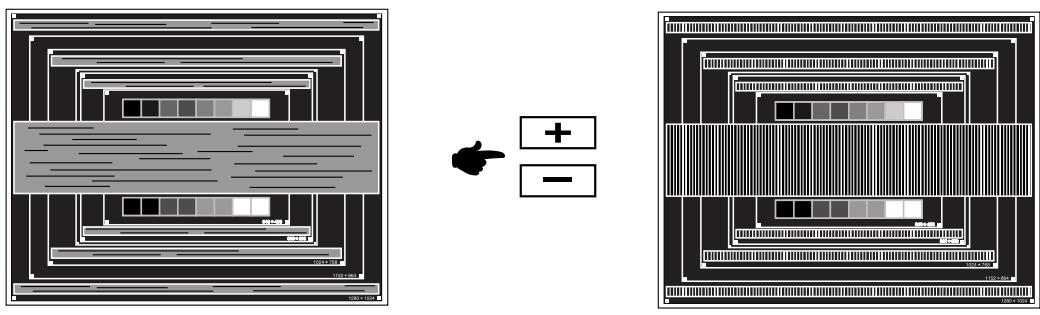

ENGLISH G Adjust the Phase to correct horizontal wavy noise, flicker or blur in the zebra pattern.

POWER MANAGEMENT FEATURE

The power management feature of this product complies with power saving requirement of VESA DPMS. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. There is a power management step the monitor takes as described below. The power management function, including any timer settings is configured by the operating system. Check your operating system manual for information on how this can be configured. ENGLISH Power Management Mode When the H-sync signal / V-sync signal / H and V sync signals from the computer are off, the monitor enters into Power Management Mode which reduces the power consumption to less than 1W. The screen becomes dark, and the power indicator turns to orange. From Power Management Mode, the image reappears in several seconds when either the keyboard or the mouse are touched again. Power Indicator NORMAL MODE

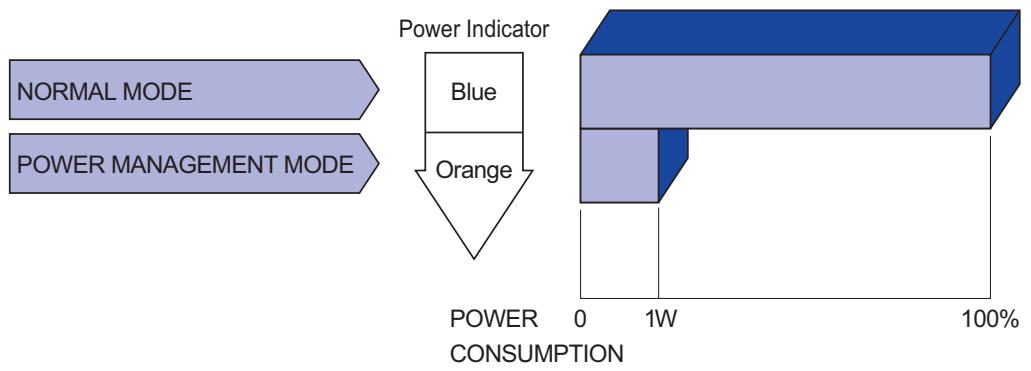

POWER MANAGEMENT MODE

Blue Orange POWER 0 CONSUMPTION NOTE 100% Even when using the power management mode, the monitor consumes electricity. Turn off the Power Switch whenever the monitor is not in use, during the night and weekends, to avoid unnecessary power consumption. It is possible that the video signal from the computer may be on while the H or V sync signal is missing. In this instance, the POWER MANAGEMENT feature may not work properly.

OPERATING THE MONITOR

TROUBLE SHOOTING If the monitor fails to operate correctly, please follow the steps below for a possible solution.

1. Perform the adjustments described in OPERATING THE MONITOR, depending on the problem you

have. If the monitor does not get a picture, skip to 2.

2. Consult the following items if you cannot find an appropriate adjustment item in OPERATING THE

MONITOR or if the problem persists.

3. If you are experiencing a problem which is not described below or you cannot correct the problem,

discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Check ENGLISH Problem The picture does not appear. (Power indicator does not light up.) The Power Cable is firmly seated in the socket. The Power Switch is turned ON. The AC socket is live. Please check with another piece of equipment. (Power indicator is blue.) If the blank screen saver is in active mode, touch the keyboard or the mouse. Increase the Contrast and/or Brightness. The computer is ON. The Signal Cable is properly connected. The signal timing of the computer is within the specification of the monitor. (Power indicator is orange.) If the monitor is in power management mode, touch the keyboard or the mouse. The computer is ON. The Signal Cable is properly connected. The signal timing of the computer is within the specification of the monitor. The screen is not synchronized. The Signal Cable is properly connected. The signal timing of the computer is within the specification of the monitor. The video output level of the computer is within the specification of the monitor. The screen position is not in the center. The signal timing of the computer is within the specification of the monitor. The screen is too bright or too dark. The video output level of the computer is within the specification of the monitor. The screen is shaking. The power voltage is within the specification of the monitor. The signal timing of the computer is within the specification of the monitor. TROUBLE SHOOTING

ENGLISH Problem Check No sound. The audio equipment (computer etc.) is ON. The Audio Cable is properly connected. The Volume is turned up. The Mute is OFF. The audio output level of the audio equipment is within the specification of the monitor. The sound is too loud or too quiet. The audio output level of the audio equipment is within the specification of the monitor. A strange noise is heard. The Audio Cable is properly connected. RECYCLING INFORMATION For better environment protection please don't dispose your monitor. Please visit our web site: www.iiyama.com/recycle for monitor recycling.

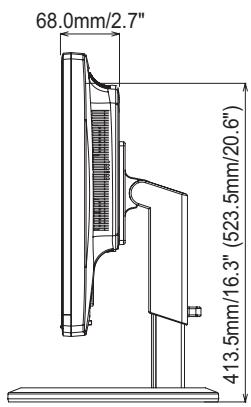

7.7kg / 17.0lbs Tilt Angle Upward: 20 degrees Right / Left : 170 degrees each 5 to 35°C / 41 to 95°F Environmental Considerations Operating: Temperature 10 to 80% (No condensation) Humidity Storage: Temperature -20 to 60°C / -4 to 140°F 5 to 85% (No condensation) Humidity Approvals NOTE

TCO ’03, CE, TÜV-GS, PSE

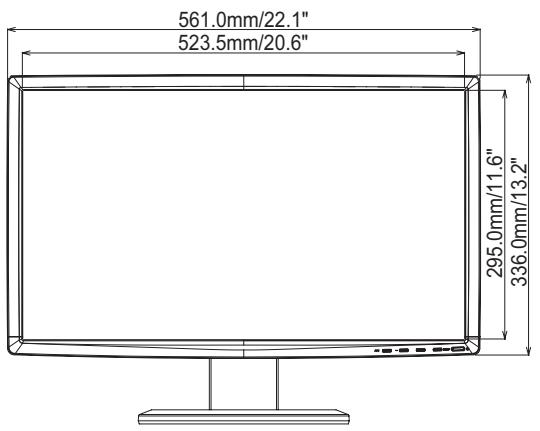

• Audio equipment is not connected. APPENDIX

7.7kg / 17.0lbs Tilt Angle Upward: 20 degrees Right / Left : 170 degrees each 5 to 35°C / 41 to 95°F Environmental Considerations Operating: Temperature 10 to 80% (No condensation) Humidity Storage: Temperature -20 to 60°C / -4 to 140°F 5 to 85% (No condensation) Humidity Approvals NOTE

5.3kg / 11.68lbs Tilt Angle Upward: 20 degrees Downward : 5 degrees each 5 to 35°C / 41 to 95°F Environmental Considerations Operating: Temperature 10 to 80% (No condensation) Humidity Storage: Temperature -20 to 60°C / -4 to 140°F 5 to 85% (No condensation) Humidity Approvals NOTE

• Audio equipment is not connected. APPENDIX
