EN • The coding in this manual is generic and applies to all code variants of the appliance.

1. PIEZAS Y COMPONENTES

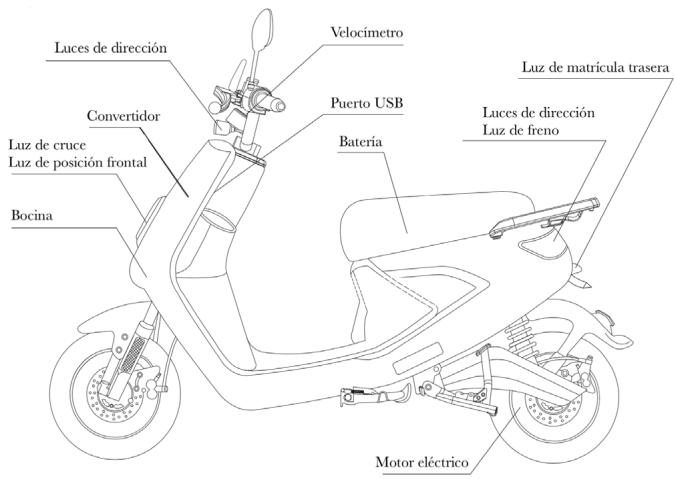

1.1. Componentes generales

Thank you for choosing the Cecotec Piazza model for your electric mobility!

Let's explore this instruction manual, designed to familiarise you with your electric moped and help you get the most out of its features during your daily commute.

Here you will find not only instructions on how to operate the vehicle, but also useful tips for operation and maintenance, all with the aim of ensuring your safety and preserving the value of your investment. In addition, we provide you with valuable tips for efficient and environmentally friendly riding.

Cecotec wants your experience to be rewarding and every journey to be full of exciting and safe moments.

Happy riding!

cecòtec

We recommend that you read this manual thoroughly, focusing especially on the safety instructions. Here you will find all relevant information on how to use your vehicle optimally.

It is important to note that the information provided in this manual reflects the most recent version of the Piazza model available at the time of publication or printing. Cecotec reserves the right to make changes at any time so we recommend that you always check the most up to date version of this manual which can be found on our website or by scanning the QR code provided in this manual. You can also access this manual in other languages by scanning the QR code. In case of discrepancies between the translated versions and this manual, the information in Spanish shall prevail. No part of this manual may be reproduced in any form without written permission from Cecotec.

The figures in this manual may show optional accessories fitted (which are not included as standard), as well as items that may differ in colour from the actual colour.

1. PARTS AND COMPONENTS

1.1. General components

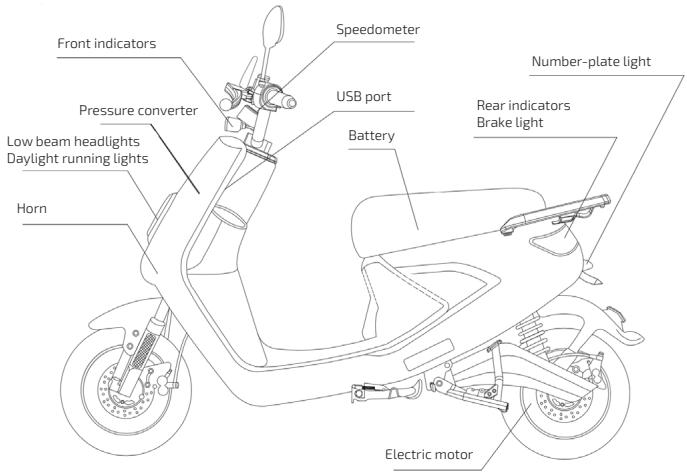

Fig. 1. Side view of the vehicle

1.2. Panel

Fig. 2. Panel (display)

ENGLISH

1. Speed indicator light
2. Riding time
3. ODO/TRIP: Total distance travelled/Single distance travelled
4. Remaining battery level
5. Current riding mode
6. Warning indicator lights (motor failure, controller failure, brake failure, throttle failure)
7. Left turn signal indicator light
8. READY indicator light: you can start riding the vehicle.
9. Low battery indicator light
10. Right turn signal indicator light
11. ON/OFF
12. Vehicle charge indicator light
13. Daylight running lights indicator light
14. High beam headlights indicator light

Indicator light	Function	Indicator light	Function
READY	On		Turn signals indicator lights
	High/low beam indicator lights		Battery charge level indicator light
	Current gear		Speedometer (kmph / mph)
[306T]	Low battery voltage indicator light		Current travel time
	Km ODO on start-up, TRIP after 30 seconds		Charge indicator light
	Controller failure warning indicator light	[DT6S]	Motor failure warning indicator light
	Brake failure warning indicator light	[4AS2]	Throttle failure warning indicator light
	Daylight running lights		High-beams indicator light
	Parking mode	[HYDT]	Low battery warning
	On/off kickstand sensor indicator light

2. VEHICLE IDENTIFICATION

The VIN number is used to identify the vehicle, as well as for ordering spare parts.

Fig. 3. VIN number

In addition, the moped also has an information label which includes data such as the maximum permissible mass, the chassis number or the revolutions per minute of the electric motor.

Fig. 4. Information label

In addition, on the rear wheel where the electric motor is located, there is the electric motor nameplate.

Fig. 5. Electric motor nameplate

3. SAFETY

3.1 General security code

1. The driver of the vehicle must have the appropriate driving licence to ride this vehicle. The vehicle must not be driven without a driving licence.
2. The correct use of helmets is basic and compulsory for both drivers and passengers. It must be approved, in good condition and correctly fastened.
3. The use of eye protection, either the helmet shield itself or suitable goggles, is recommended.
4. Do not drink alcohol or take drugs before driving: your reflexes will be reduced and so will your ability to avoid unexpected events. Do not let others drive in this situation either.
5. It is your responsibility to inspect and maintain your vehicle before riding it, following the instructions in this manual (see section 12. "Cleaning and maintenance"). Inadequate or no maintenance implies a risk factor.
6. Please read section 4. "Before use" carefully for detailed instructions. Compliance with these guidelines ensures the safety of you and your passengers while riding the moped.
7. Do not exceed the maximum load weight specified for your vehicle (see section 13. "Technical specifications"). Excess load weight can affect vehicle stability and control, increasing the risk of accidents.
8. Distribute the load weight evenly and ensure that it is securely fastened.
9. If you are taking medication that may affect your motor skills or ability to react, avoid riding the moped. Consult your doctor about the possible side effects of any medication before driving.

3.2. General warnings

3.2.1. Brakes

• If brake fluid comes into contact with the skin, wash the affected area immediately with water.

• If brake fluid comes into contact with the eyes, flush with water and seek medical attention quickly.

• Brake fluid can damage vehicle paintwork and plastic parts in the event of accidental spillage. Brake fluid can cause damage and injury if not handled properly and safely.

• If you find excessive wobbly movements in the brake lever, but the brake pads are still in good condition, please contact the official Cecotec Technical Support Service as soon as possible to have them checked. Excessive wobbly movements refer to the extra or unusual movement you may feel in the brake lever before the brakes actually start to work.

3.2.2. Using the moped

• This vehicle is NOT prepared for motorway/highway use. The vehicle is designed to run at a constant 45 km/h without causing overheating to any critical element. If the vehicle is used above these specifications it may overheat.
• Regular use shall be defined as use at least once a week for a minimum period of 10 hours. If the vehicle is not to be used in this way, it should be left fully charged if it is to be stationary for a prolonged period of time.
• A full charge should be performed every 30 days to ensure proper battery performance and maintain battery life. Failure to follow this guideline may affect the legal guarantee of the vehicle.
• The instructions given in this instruction manual have been drawn up for strictly urban use. When conditions of use differ, stricter and more frequent maintenance will have to be carried out.
• If the vehicle is affected by an accident, contact the official Cecotec Technical Support Service. They will carry out the necessary inspection and assessment to determine the condition of the vehicle.
• Always follow the instructions and recommendations provided in the manual, failure to do so could result in a serious accident.
• Make use of the instruction manual at all times and ensure that you understand all the information contained therein.
• As indicated in this instruction manual, to carry out any maintenance, cleaning or repair task on the vehicle, you must ensure that it is switched off and that the keys are removed to avoid an accident caused by any moving part of the vehicle.

Some of the moped's parts such as the motor, brakes and battery can become very hot, so avoid coming into contact with these parts.

3.2.3. Connector

Do not allow the charger connector to come into contact with any liquid under any circumstances.

3.2.4. Load (weight)

Never exceed the maximum permissible load weight of the vehicle and position it as centred as possible in a balanced way (see section 13. "Technical specifications").

ENGLISH

3.2.5. Battery

For warnings related to the use of the battery, please refer to the section: 10.5. "Battery use, precautions".

3.2.6. Spare parts

Original Cecotec parts and spare parts must always be used. The use of spare or replacement parts which are not compatible with the vehicle may affect the safety and service life of the vehicle itself.

4. BEFORE USE

Be sure to check the following items before riding your moped, which will ensure your safety on the road. Riders should ensure that the vehicle is in good condition. Any component of the moped may be damaged if exposed to long-term storage. If exposed to adverse weather conditions for a long period of time, it may cause rusting of the brake system or a decrease in tyre pressure, which seriously affects the overall performance of the vehicle. In addition to a simple surface inspection, the following checks must be carried out before use:

1. The power supply circuit, check the battery cable, and the lighting circuit, by checking if all lights switch on.
2. Condition of handlebars, front and rear wheels.
3. Tyre pressure (as indicated in section 13. "Technical specifications"). Riding the moped with tyre pressures other than those specified or excessive tyre wear can lead to an accident or damage to the vehicle itself. If necessary, make adjustments.
4. If the reflector is damaged or dirty.
5. Check if the battery needs to be charged.
6. Check the brake operating system, if you feel that the brakes are too soft, you should go to the authorised dealer for an inspection.
7. Check the state of wear of the brake pads and never reach their limit.
8. Check the brake fluid level.
9. Check the operational status of lights, turn signals, indicator lights and horn. If necessary, make adjustments.
10. Check the state of wear of the tyres and that the tread depth is sufficient (greater than 1.6 millimetres).
11. Check if the throttle grip turns smoothly and if the return is normal.
12. Check if the steering rotation is normal.
13. Check whether the kickstand can be opened and retracted without any problems.
14. Respect the maximum load weight of the vehicle (indicated in section 13. "Technical specifications").
15. Ensure that the load weight is correctly and firmly secured and that no loose objects are left behind.

If any of the above mentioned elements are not in a good condition and you cannot repair them, please contact the official Cecotec Technical Support Service.

5. PROTECTIVE EQUIPMENT AND CLOTHING

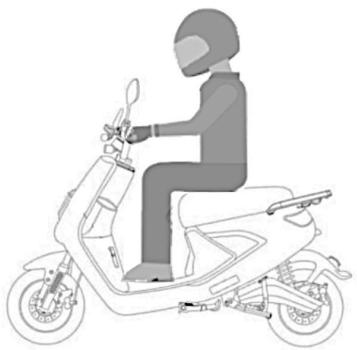

Fig. 6. Protective equipment and clothing

1. Always wear a helmet: it is essential and compulsory for both the driver and passenger to wear helmets. Ensure that it is in good condition, properly fastened and approved. Wearing a helmet significantly reduces the risk and severity of head injuries. Full-face helmets are preferable to open-face helmets, in light colours or with reflective elements, and which fit properly.
2. Protect your eyes: always wear some form of eye protection, either a helmet shield or suitable goggles.
3. Appropriate clothing: opt for brightly coloured or reflective, close-fitting and appropriately sized clothing to ensure better visibility and safety on the road.
4. Protective gloves: wear suitable gloves to protect your hands from abrasions, cuts and bruises.
5. Proper footwear: footwear should fit properly, have a low heel and protect the ankles to provide better stability and protection while driving.

6. OPERATION

6.1. Remote control

The vehicle's remote control allows you to manage key functions such as locking and unlocking the moped and switching it on and off, all conveniently and safely. By pressing the corresponding buttons, the vehicle can be secured, prepared for driving or the power supply can be switched off without the use of physical keys.

Fig. 7. Remote control

1. Unlock: press the unlock button, the power button stays on. The vehicle enters the unlocked mode.
2. Lock: when the vehicle is in a static state, press the lock button, the power button flashes. The vehicle enters the locked mode.
3. Remote keyless ignition: after unlocking the vehicle, press this button twice within two seconds, the moped will switch on without the key.
4. Search button: press this button within a radius of 50 m, it will beep when searching for the vehicle.

ATTENTION: PLEASE DO NOT PRESS THESE BUTTONS WHILE RIDING, AS A SUDDEN POWER FAILURE OF THE VEHICLE MAY CAUSE A HAZARD.

6.2. Use of the smart lock

Fig. 8. Smart lock

1. Locked mode

2. OFF: non-contact position. The vehicle is switched off and no power is supplied to the electrical system.

3. ON: contact position. Allows the vehicle's electrical system to be activated and ready to start.

Use of the smart lock

1. After the vehicle comes to a stop, turn the handlebars to the far left, insert the key into the physical lock on the handlebars, push it in and turn it to the left to lock the vehicle.
2. Insert the key into the physical lock on the handlebars and turn it to the right to unlock the vehicle.
3. Insert the key and turn it clockwise to start the moped.

6.3. Left and right lever controllers

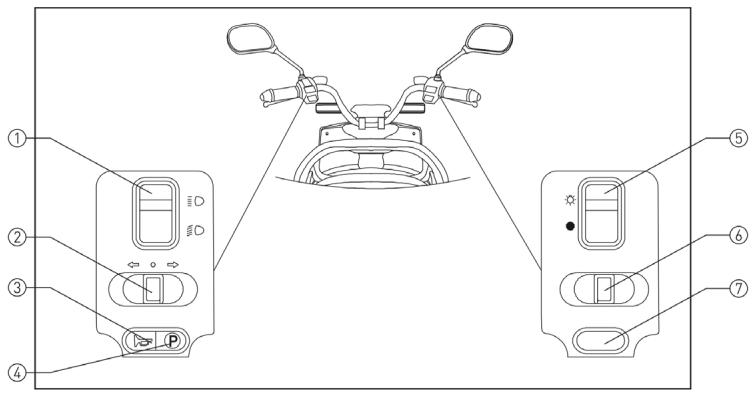

Fig. 9. Left and right lever controllers

1. Low beam headlights/high beams switch
2. Indicators switch
3. Horn button
4. Parking mode button
5. Headlights on/off switch
6. Riding modes switch
7. Recovery button: when the vehicle shows a component failure warning indicator light (motor/controller/brake/throttle), always press this button. Ride the vehicle slowly to find the nearest service area.

6.4. Riding modes

The Piazza model has three different riding modes. By sliding the riding mode switch you can alternate between the three modes: mode 1, "CITY", in the middle position, mode 2, "EFFICIENT", to the left, and mode 3, "SPORT", to the right.

ENGLISH

6.5. USB port operation

Fig. 10. USB port

You will find a USB port (1) in the glove box of your vehicle.

Power output: 5 V / 1 A / 5 W

6.6. Circuit breaker operation

Fig. 11. Circuit breaker operation

As the main power protection device of the vehicle, the circuit breaker will automatically turn off to ensure safety when the moped circuit is abnormal, or the current caused by the short-circuit exceeds the set safety value.

1. Switch on the circuit breaker. Before switching on the vehicle, switch on the circuit breaker.
2. Open the seat and plug in the battery to the vehicle.
3. Unlock and remove the battery box. Open the seat, unplug the power cable, then pull up the battery box with one hand.

7. LIGHTING

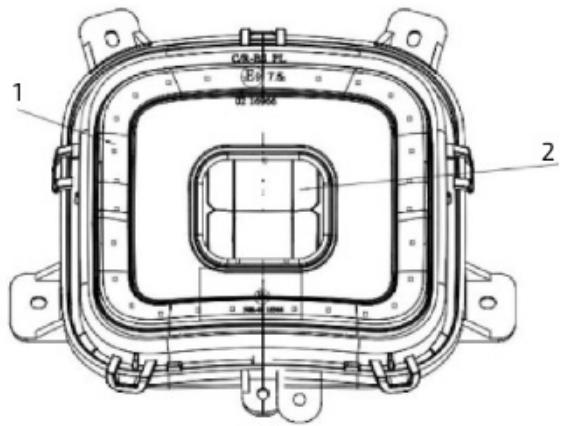

Fig. 12. Headlights and front indicators

1. Daylight running lights
2. Low beam headlights/high beams

LED technology is used for the high beam headlights, low beam headlights, brake lights and turn signals.

The headlights include the daylight running lights, high beam headlights and the low beam headlights which may be activated by means of the switch located on the left side of the handlebars, as explained in section 6.3 above. "Left lever controllers.

Fig. 13. Rear brake lights and rear indicators

ENGLISH

1. Left indicator
2. Daylight running lights
3. Brake light
4. Right indicator

Like the headlights, the tail lights feature LED technology, both brake lights and rear turn signals. They can be activated by means of the switch located on the left side of the handlebars, as explained in section 6.3 above, "Left and right lever controllers."

8. SEAT: OPENING AND CLOSING

In the case of the Piazza model, there is no storage space inside the seat, as it is occupied by the battery. To open the seat, follow the steps below:

1. Insert the key into the smart lock.
2. Turn the key clockwise until it reaches the "Open" position.
3. To close the seat again, simply perform the previous steps in reverse.

9. SIDE KICKSTAND

• The side kickstand is located on the left side of the Piazza model. To unfold, simply press down on the kickstand protruding from the left side of the vehicle. The side kickstand is used to park the vehicle.
• Please note that when this is unfolded it is impossible to ride the vehicle, as the Piazza model has a sensor that prevents the vehicle from being switched on for safety reasons.

10. BATTERY

10.1. Battery removal

To remove the battery, the following steps shall be carried out:

1. Ensure that the vehicle is disconnected from the mains and switched off completely.
2. Open the seat as described in section 8. "Seat: opening and closing."
3. Operate the tab that acts as a safety lock on the battery cover.
4. Remove the battery vertically and disconnect it from the bottom.

It is important that once the battery is removed, it is placed in a safe place out of reach of children and pets. In section 10.4. "Battery storage, maintenance and transport" the factors to be taken into account for the correct handling of the battery are explained.

To reinsert the battery or replace it with a new one, repeat the previous steps in reverse order.

10.2. Connector

- The connector for charging the Piazza model is located in the central area of the vehicle. The battery charging process is explained below in section 10.3. "Charging the battery.

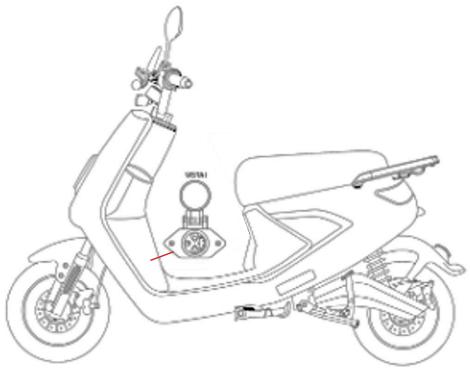

Fig. 14. Location of the charging connector.

Fig. 15. Charging connector socket

10.3. Charging the battery

1. Insert the main charger plug into the vehicle's charging port.
2. Insert the AC plug of the charger into the household socket, the battery will start charging when the charger indicator light turns red. The battery is fully charged when the indicator light on the charger changes from red to green.

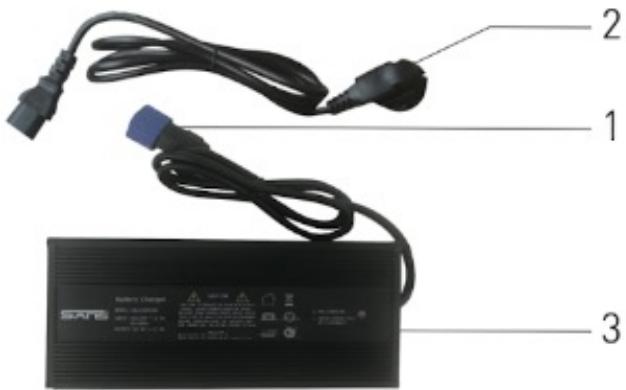

Fig. 16. Battery charger

ENGLISH

1. Charger output: connect it to the charging socket on the vehicle or the battery charging socket.
2. Charging connector input: connect it to the wall socket.
3. Status indicator light: when charging, the red indicator light will flash. The green indicator light will turn green when charging is complete. Disconnect the power cable and the charger output cable after charging is complete.

Remove the battery from the vehicle, insert the main charger plug into the battery charging socket. Insert the AC charger plug into the household socket, the battery will start charging when the charger indicator light turns red.

10.4. Battery storage, maintenance and transport

• Please charge the battery within a room temperature range of 0°C\~35 °C.
• Do not exceed 10 hours of charging time, overcharging will shorten battery life.
• It is strictly forbidden to cover the charger and battery box during charging, so as to facilitate ventilation and heat dissipation.
• Do not disassemble the charger yourself. If it needs to be replaced, please contact an authorised technician for repair or replacement.
• Store the vehicle in a flat and stable place; store it in a well-ventilated and dry place.
• Store the battery at 30%-50% charge level to ensure battery life.
• Try to avoid exposure to sunlight and rain to reduce damage or ageing of components.
• When storing the battery for a long period of time, charge it fully before use.
• For vehicles equipped with batteries stored indoors, in showrooms, warehouses or transported short distances in charging vehicles, after switching off and removing the key, remove the battery plug to eliminate possible electrical faults.

Long term storage

• When storing for a prolonged period, disconnect the battery plug after switching off and removing the key to interrupt the battery supply circuit (as detailed in section 10.1. "Battery removal"), thus avoiding over-discharging the battery.
• During long-term storage, perform a full charge/discharge cycle of the battery every month and store the battery at a 30%-50% charge level to ensure battery life.
• When using the vehicle after prolonged storage, ensure that the battery is fully charged.
• Before using the vehicle, check the different parts for faults. If you detect any problems, return the vehicle to the dealer for service or repair.

ATTENTION:

• The battery is not a user serviceable component. If there is a malfunction or the battery is not fully charged after 10 hours of charging, please stop charging and contact the official Cecotec Technical Support Service.

• The charging function is deactivated when the room temperature is below 0 °C. Charge the battery in an environment above 0 °C.

• Use of a non-original charger may cause battery leakage, heat, smoke, fire or explosion.

• Do not store the battery in an environment above 40 °C, as this may cause irreversible capacity degradation.
• At low temperatures, the capacity of the lithium battery will decrease to some extent. The specific benchmark is that the usable capacity at -10 °C is 70%, the usable capacity at 0 °C is 85%, and the usable capacity at 25 °C is 100%.
• The most suitable battery storage capacity is 30% to 50%. If the storage capacity is below 10% for a long time, it will cause an irreversible degradation of the battery capacity. If the battery is stored for a long time, please keep the battery at -10 °C \~30 °C and perform a full cycle of charging and discharging for the battery every two months to minimize the attenuation of battery storage.
• Avoid storing the battery in a location with a risk of falling, which may cause uncontrollable damage inside the battery and may cause leakage, heat, smoke, fire or explosion.

10.5. Battery use, precautions

ATTENTION

The battery can be a TREMENDOUSLY DANGEROUS (life threatening) item if not handled correctly. Please follow all the instructions in this manual carefully.

• Keep the battery away from children, fire and heat sources. It is strictly forbidden to throw it into the fire. Violent movements, blows and extrusion are prohibited. Avoid storing the battery in a location with a risk of falling, which may cause uncontrollable damage inside the battery and may cause leakage, heating, smoke, fire or explosion.
• Only the specified charger must be used, and the use of other chargers to charge the battery is prohibited. Use of a non-original charger may cause the battery to leak, heat, smoke, catch fire or explode.
• This vehicle has undergone a strict inspection before leaving the factory, and disassembly is strictly prohibited. Contact the official Cecotec Technical Support Service for any questions.
• Do not expose the vehicle to a room environment above 40 °C for a prolonged period of time, as this may cause irreversible degradation of the vehicle's performance.
• Charging temperature: 0 °C - 35 °C. The charging function is deactivated when the room temperature is below 0 °C. Please charge the battery in an environment above 0 °C.
• At low temperatures, the capacity of the lithium battery will decrease to some extent. The specific benchmark is that the usable capacity at -10 °C is 70%, the usable capacity at 0 °C is 85%, and the usable capacity at 25 °C is 100%.

ENGLISH

• The most suitable battery storage capacity is 30% to 50%. If the storage capacity is below 10% for a long time, it will cause an irreversible degradation of the battery capacity. If the battery is stored for a long time, please keep the battery at -10 °C \~30 °C and perform a full cycle of charging and discharging for the battery every two months to minimize the attenuation of battery storage.
• Only authorised and qualified personnel may handle or remove the battery from the vehicle. If the battery is to be removed for charging, please follow the instructions mentioned in section 10.1. "Battery removal" and observe the precautions to be followed in that section.
• The battery can be exchanged for an identical battery supplied by Cecotec. Only use original Cecotec batteries or batteries compatible with this model as expressly confirmed by Cecotec. Failure to do so may reduce the life of the battery and your vehicle. In the case of battery removal, be sure to handle the battery with care as indicated in this manual.
• The battery should be transported at a low speed in order to avoid strong impacts. Use both hands when transporting the battery and move carefully and slowly.
• Any damage to the battery (impacts, falls, contact with humidity, water or any other liquid, exposure to a heat source, exposure to temperatures above 35 °C) may cause the battery to catch fire.
• If you notice any signs of damage to the battery, avoid connecting the battery and contact the official Cecotec Technical Support Service.
• In the event of a battery fire, it can be extinguished using water or CO2, unless it is connected to the mains or is in the vicinity of other batteries. In such cases, it is necessary to use a CO2 extinguisher to control the fire and move it to an isolated safe area at least 20 metres away from any exposure, such as other vehicles or batteries. Once in a safe place, it is important to contact the emergency services to manage the situation.
• Opening the battery box is strictly forbidden and may represent a considerable risk and invalidate the warranty completely. Only authorised personnel are allowed to work on the battery box.
• Disassembling the battery without permission may cause battery leakage, heating, smoke, fire or explosion. If smoke is observed coming from the battery, it is of the utmost importance to call the firefighters immediately and to remove it urgently from the enclosed space in which it is located.
• The battery is not a user serviceable component. If there is a malfunction or the battery is

not fully charged after 10 hours of charging, please stop charging and contact the electric vehicles retailer or the official Cecotec Technical Support Service

Fig. 17. Warning signals

11. EMERGENCIES

11.1. First aid and self help

• In situations of battery breakage, smoke or fire, it is essential to prioritise the evacuation of personnel from the affected area and to provide adequate ventilation to disperse gases. It is recommended to seek medical attention immediately.
• On contact with eyes, rinse with plenty of water for at least 10 minutes, holding eyelids open to remove any residue.
• If the skin comes into contact with harmful substances, remove contaminated clothing and wash the affected area with soap and water for at least 20 minutes. It is important to avoid the application of ointments.
• In case of inhalation of fumes, move the person to a well-ventilated area outdoors and administer oxygen or artificial respiration as necessary.
• If there is a brake fluid leakage and it comes into contact with the skin, the affected area must be washed immediately with water. If it comes into contact with the eyes, follow the same procedure and seek medical attention immediately.

11.2. Fire safety measures

• Type D, CO2 and dry chemical extinguishers can be used to extinguish a fire in the battery.
• It is crucial to be aware of specific hazards, such as overheating of the cells due to external sources or incorrect use.

ENGLISH

12. CLEANING AND MAINTENANCE

To extend the life of the vehicle and to ensure a safe and comfortable ride, regular maintenance checks should be carried out. Even during prolonged periods of vehicle inactivity, periodic inspections should be carried out.

Before starting the vehicle each day, it is essential to carry out routine checks. The importance of these checks should never be overlooked. Before riding, be sure to complete all of the following inspection points to ensure optimum performance and safe riding.

12.1. Cleaning

FREQUENCY: DAILY
Regular cleaning	Display	Clean with a soft sponge to remove insects or dirt.
	Seat cushion	Clean with a soft sponge to remove insects or dirt.
FREQUENCY: MONTHLY
Regular cleaning	Painted parts	Clean with brightener.
	Rubber parts	Clean with special rubber protection products.
	Metal parts	Use oil to clean and grease metal parts.
	Display	Wipe off hardened dirt with a soft sponge.
	Lights	Wipe off hardened dirt with a soft sponge.
	Suspensions	Check for leaks at both fork and rear shock absorber.

Note: do not use harsh detergents, dirty cloths, hard cloths or sponges when cleaning the vehicle as these may damage its components.

12.2. User maintenance

User maintenance must be carried out before starting each run.

Parts	Checks
Handlebar	1. Smoothness.
	2. Flexible rotation.
	3. No axial displacement, no movement, no play.
Brake lever	The brake lever shall have a travel of 10 mm - 20 mm.
Tyres	1. Normal tyre pressure.
	2. Degree of wear.
	3. No cracks or cuts.
Battery	Sufficient charge for the intended travel distance.
Lights	Operate all lights: high beam headlights, low beam headlights, brake light, turn signals, etc., to check for normal operation.
Horn	Check if the horn is working normally.

12.2.1. Brakes

Brake fluid check:

(1) Position the handlebars straight and check the brake fluid in the reservoir. It must be kept between the upper and lower limit marks.
(2) When the fluid level drops to the lower limit mark, check the brake pads for wear.
(3) If the brake pads are worn within the specified limits, this usually indicates a leak; have them inspected by a repair shop.

When maintenance or repair of the braking system is required, please contact the nearest authorised repair shop or dealer for inspection. When replacing parts, it is necessary to use original parts from the authorised repair shop or dealer.

12.2.2. Tyres

1. Check and adjust the tyre pressure regularly.
2. Tyre pressure should only be checked when the tyres are cold. Normal tyre pressure for front tyres is 200 Kpa and 250 Kpa for rear tyres.
3. Periodically inspect tyres for punctures, especially if there is any sign of air leakage, immediate repair should be carried out.
4. Check for cuts or sharp objects stuck in the tyre tread. Inspect the rim for dents, indentations or deformations. If any damage is found, contact the maintenance shop for inspection.
5. When the tyre tread becomes excessively worn, the tyre must be replaced immediately.

WARNINGS:

• If the tyre pressure is too high, the tyre may burst while riding, causing accidents. When tyre pressure is too low, the contact area between the tyre and the ground increases, leading to accelerated tyre wear, increased energy consumption and even rim slippage or disengagement of the tyre from the rim.
• Using excessively worn tyres is very dangerous as it affects the grip between the tyre and the road surface, leading to riding difficulties and even accidents. When the tread depth on the centre surface of the tyre reaches the specifications, the tyres must be replaced.

ENGLISH

12.2.3. Left and right indicators and taillight

Check that the left and right indicators and the taillight are working properly. If they do not work, they must be replaced immediately.

12.2.4. Horn

Check whether the horn sounds correctly. If it does not sound or the sound is abnormal, it should be adjusted or replaced immediately.

12.2.5. Throttle

Check if the throttle is effective, accelerate gently and return to the idle position automatically.

12.3. Maintenance at repair shop

This regular maintenance will ensure that your vehicle is kept in optimum safety condition, safeguarding both the user and the vehicle.

Maintenance planning

Part to be checked	Period (km or time)
	1000/3 months	6000/6 months	10000/1 year	20000/2 years	30000/3 years
Electrical elements (display, controller, power button, alarm)	A		A
Battery/charger	A		A
Fuse or overload protection device.	A
Wiring			A
Braking system (brake lever/brake pads)			A	A
Wheel bearings			A
Side kickstand, main kickstand, seat opening system	B			B
Suspension
Screws	C				C
Duct for liquids			A		A

Key:

A: Check, clean, adjust, lubricate
B: Lubricate and check flexibility
C: Check tightness

Please note:

Once the maintenance plan is fully completed (>30,000 km) repeat the maintenance plan again from the beginning.

When riding regularly under harsh conditions, such as uneven road surfaces, it is essential to perform maintenance as often as indicated in the manual to maintain the vehicle's excellent performance.

Warning

1. If the vehicle is frequently used under full load weight, overloaded, at high speeds, on bumpy roads or on uphill and downhill terrain, carry out user maintenance on a regular basis.
2. The original parts are made of superior quality materials and have undergone rigorous validation, guaranteeing both quality and long life. When carrying out maintenance and repairs, please use original parts to ensure that the vehicle remains in optimum condition, guaranteeing safe riding, and enjoying the normal warranty services.
3. During routine maintenance and repairs, if any anomaly is detected, it is necessary to clean, inspect or replace promptly. You can consult simple repair methods or take the vehicle to the dealer for inspection and repair.

12.4. Troubleshooting

FAULT	CAUSES	SOLUTIONS
The vehicle has no power, and the READY indicator light does not light up	The battery is incorrectly connected.	Connect the battery correctly to its main socket.
	The circuit breaker is not turned on.	Turn on the circuit breaker.
When turning the throttle, the motor does not run	Low battery.	Charge the battery.
	The side kickstand is not retracted.	Remove the side kickstand.
	Brake lever does not reach the correct position.	Disable the parking mode.
	Failure of the handlebar.	Place the brake lever in the correct position. If the problem persists, please contact the official Cecotec Technical Support Service.
	The controller plug is loose.	Contact the official Cecotec Technical Support Service.
	Controller failure.	Contact the official Cecotec Technical Support Service.
Speed is slow or range is short	Low battery.	Charge the battery.
	Flat tyre.	Inflate tyres and check tyre pressure before riding.
	Excessive overloading.	Change the brake pads and check the brake system before riding.
	Brake pad interference.	Contact the official Cecotec Technical Support Service.
	Battery ageing or normal scrapping.	Check if the main plug is in the right place.
The battery cannot be charged	Bad contact of the main plug of the charger. Do not use the wrong charger.	Check the contact of the main plug again. If the problem persists, please contact the official Cecotec Technical Support Service.
	Battery ageing or normal wear and tear.	Contact the official Cecotec Technical Support Service.
	Low battery voltage protection.	Contact the official Cecotec Technical Support Service.

1. TECHNICAL SPECIFICATIONS

Reference:	04886 / 00653
Product:	CECOTEC PIAZZA
Dimensions [mm]
- A.- Wheelbase	1230 mm
- B.- Overall length	1700 mm
- C.- Total width	700 mm
-D. - Total height	1050 mm
Seat height	680 mm
Weight [kg]
Mass in running order of the vehicle (1)	57 kg
M.M.T.A. (2)	217 kg
M.M.T.A. Front axle (2)	69 kg
M.M.T.A. Rear axle (2)	148 kg
(1) Taking into account all the elements necessary for riding the vehicle, except the weight of the driver.
(2) Technically permissible maximum mass
Suspension
Front	Hydraulics
Front distance [mm]	Max. 360 (Min. 290) mm
Rear	Hydraulics
Rear distance [mm]	Max. 290 (Min. 230) mm
Motor
Type	In-wheel motor
Rated power [W]	800 W
Operating voltage [V]	48V
Serial number	BH600r120°eM *??????????????
Maximum speed [km/h]	45 km/h
Lights and turn signals
Headlight	LED
Tail light	LED
Brake light	LED
Indicators	LED
Wheels
Front wheel dimensions (2)	80/100-10 46J
Front wheel pressure (2)	200 kPa
Rear wheel dimensions (2)	80/100-10 46J
Rear wheel pressure (2)	250 kPa
Braking system
Front shaft	Disc
Front axle diameter [mm]	180 mm
Rear shaft	Disc
Rear axle diameter [mm]	180 mm
Battery
Voltage [V]	48 V
Max. charge voltage	58.8 V
Technology	Ion-Lithium
Number of cells	130
Capacity [Ah]	26h
Charging time	4-5 hrs
Weight [kg]	9 kg
Charger
Outlet	5 A
Energy efficiency
Environmental protection	Euro 5
Autonomy (km) (1)	53 Km

(1) Autonomy measured according to EU 2018/285.
(2) The recommended tyre sizes and pressures given in this manual are for guidance only. We recommend that you always check the specific information on your tyre markings or consult the tyre manufacturer to ensure accuracy and suitability for your motorbike. This ensures safety and optimum vehicle performance.

Technical specifications may change without prior notification to improve product quality.

14. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this vehicle reaches the end of its lifespan, you should remove the batteries/accumulators and take them to a collection point designated by the local authorities. For detailed information on the most appropriate way to dispose of your electrical and electronic equipment and/or batteries, consumers should contact their local authorities.

Compliance with the above guidelines will help protecting the environment.

15. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations. Notwithstanding the foregoing, Cecotec shall not be liable to the consumer when the lack of conformity of the product or any part thereof is the result of:

Improper use or maintenance.

A lack of maintenance due to a failure to carry out one of the inspections set out in the product service manual or a repair carried out by an unqualified person.

A modification or alteration of the product or its parts in a manner not authorised or permitted by the manufacturer as described in this manual.

A use other than that intended by the manufacturer, such as, but not limited to, use on rough terrain or uneven surfaces, in competitions.

Non original Cecotec parts or parts not expressly recognised by Cecotec as compatible with the product have been used.

Parts subject to wear and tear (e.g. batteries, tyres, brake discs, brake pads) may reach the end of their service life before the end of the legal warranty period. Therefore, the replacement or repair of these parts resulting from wear and tear, even if the legal warranty period has not expired, will be at the expense of the user.

ENGLISH

Batteries must be charged and maintained as described in this manual. If they are subjected to different charging cycles (in terms of frequency and duration) from those specified here, their service life may be reduced.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

16. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

1. PECES I COMPONENTS

1.1. Components generals

Figura 4. Etiqueta informativa
