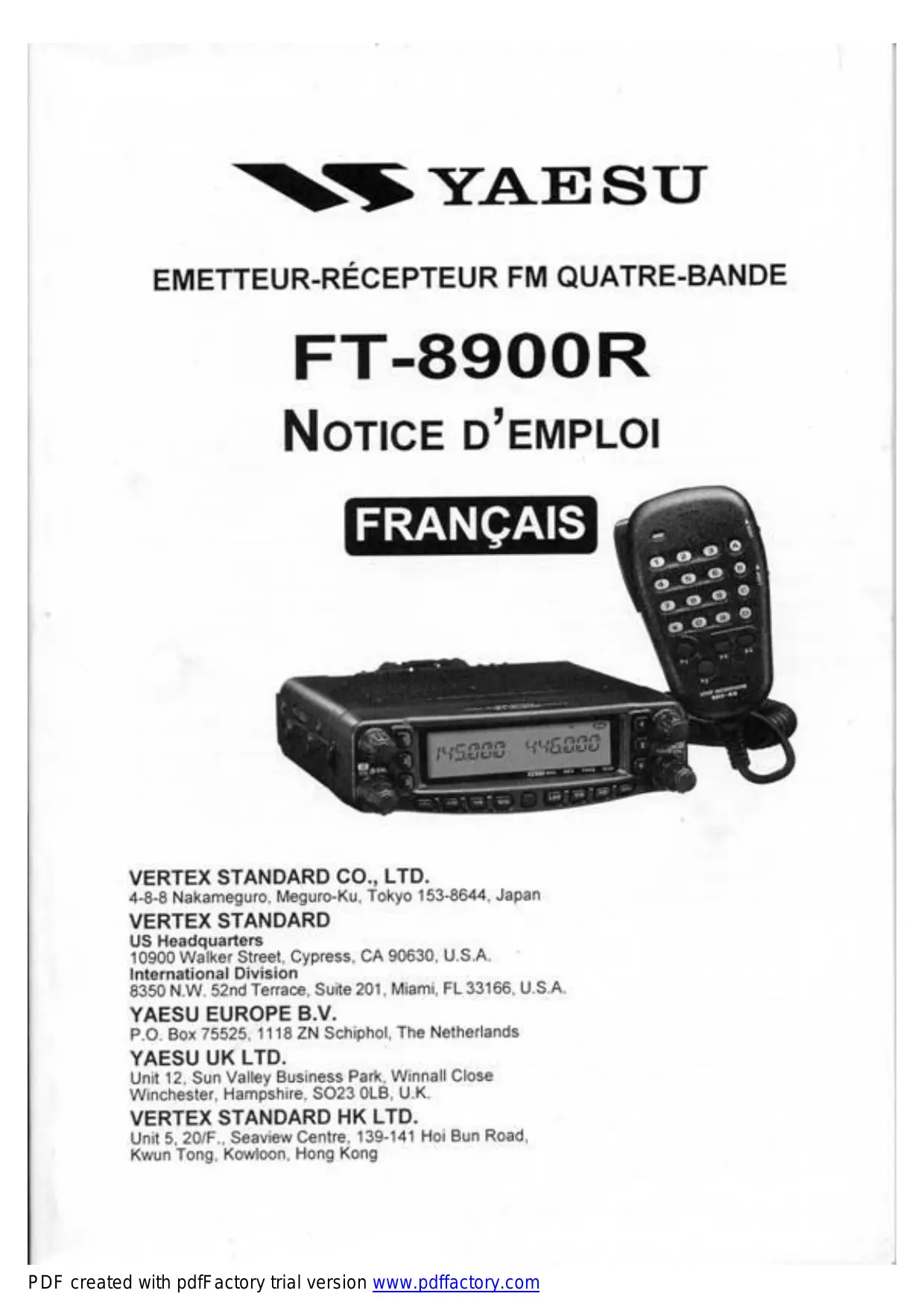

USER MANUAL FT-8900R YAESU
10900 Walker Street, Cypress, CA 90630, U.S.A.
International Division
8350 N.W. 52nd Terrace, Suite 201, Miami, FL 33166, U.S.A.
YAESU EUROPE B.V.
P.O. Box 75525, 1118 ZN Schiphol, The Netherlands
YAESU UK LTD.
Unit 12. Sun Valley Business Park, Winnall Close
Winchester, Hampshire, SO23 0LB, U.K.
VERTEX STANDARD HK LTD.
Unit 5, 20/F., Seaview Centre, 139-141 Hoi Bun Road,
Kwun Tong, Kowloon, Hong Kong
Contents
Introduction 1
Spécifications 2
Accessoires & Options 3
Accessoires Fournis 3
Accessoires en option 3
Installation 4
Inspection Préliminaire 4

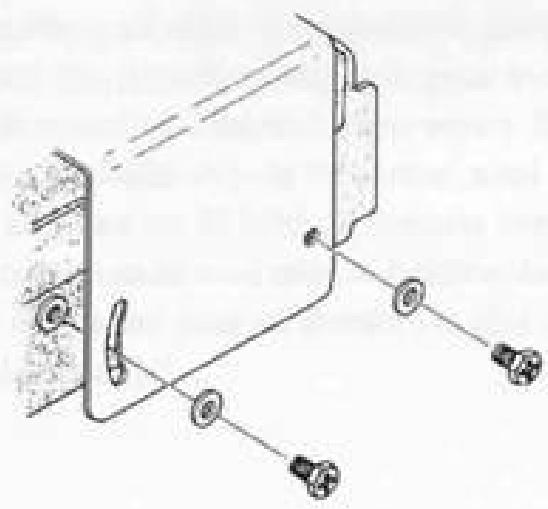

RECOMMANDATIONS D'INSTALLATION
E["Red: Positive (+)"]
F["Black: Negative (-)"]
end
subgraph Black
G["Red: Positive (+)"]
H["Black: Negative (-)"]
end
◀: Preferential Memory Channel
SKIP: Skip Memory Channel
-: Minus Shift
+: Plus Shift
- +: Odd Splits
ENC: Tone Encoder
DEC: Tone Decoder
TX: Transmission in Progress
MAIN: "Main" Band
BUSY: Busy Channel (or Squelch Off)
MT: Memory Tune Mode
MUTE: Audio Mute Active
DCS: Digital Code Squelch (DCS)
AM: AM Reception
9600: 9600 bps Packet Mode
L: Low TX Power Selected
M: Middle TX Power Selected
☐: Automatic Power-Off Active
π: Keypad/DIAL Lock Active
SET: Menu ("Set") Mode
▼KEY2 : Key Function Mode is selected to "KEY-2"


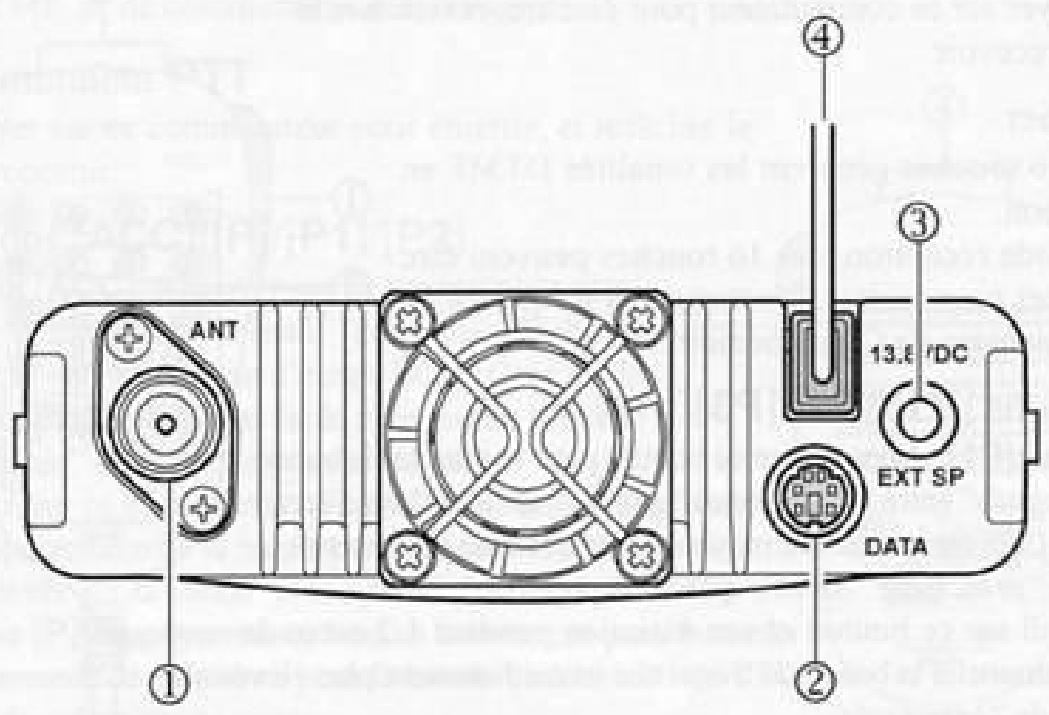

ANT ① ② ③ ④ 13.8/DC EXT SP DATA① Prise Antenne
ENC → ENC.DEC (Tone Squelch) → DCS → OFF → ENC ....
ENC → ENC.DEC (Tone Squelch) → DCS → OFF → ENC ....


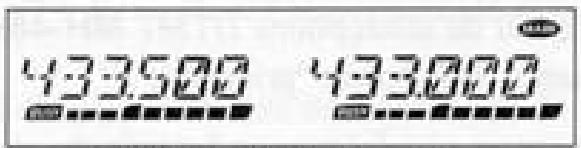

433.500 433.000UHF-UHF (U-U) Operation
Notice
ASSOCIATION DE BANDES

