Product type	Washing machine
Brand	Cecotec
Model	Bolero Dresscode 7200 Inverter
Washing capacity	7 kg
Dimensions (W × D × H)	59.5 × 49.5 × 85 cm
Net weight	61 kg
Power supply	220-240 V ~ 50 Hz, 10 A
Rated power	2050 W
Energy class	A+++
Maximum spin speed	1400 rpm
Spin efficiency class	B
Residual moisture content	53%
Annual energy consumption	174 kWh/year
Annual water consumption	9900 L/year
Noise level (wash / spin)	62 dB / 79 dB
Washing programmes	Cotton, Synthetics, Mixed, 20 °C, Express 15', Quick wash 45', Wash 60', ECO 40-60, Wool, Spin, Intensive, Hygiene mode, Delicates, Sportswear, Rinse
Special functions	Delayed start, Prewash, Extra rinse, Extra wash, Night wash, Anti-crease, Child lock, Favorites, Silence
Water pressure	0.05 MPa to 1 MPa
Protection rating	IPX4
Cleaning and maintenance	Drum cleaning, door seal, detergent drawer, water inlet filter and drain pump filter
Safety	Child lock, stop with door open, protection against overflow
Warranty	2 years

Frequently Asked Questions - Bolero Dresscode 7200 Inverter CECOTEC

How to install the Bolero Dresscode 7200 washing machine?

Remove the transit screws at the back of the appliance, level it using the adjustable feet, then connect the water inlet hose and the drain hose. Then plug it into an earthed socket.

What washing programmes are available?

The programmes include Cotton, Synthetics, Mixed, 20 °C, Express 15', Quick wash 45', Wash 60', ECO 40-60, Wool, Spin, Intensive, Hygiene mode, Delicates, Sportswear and Rinse.

How to use the delayed start function?

Select a programme, press the Delayed start button and choose the start time (from 0 to 24 hours). Finally, press Start/Pause to activate the programming.

What does the error code E30 mean?

The E30 code indicates that the door is not properly closed. Close it correctly and check that no clothing is blocking the seal.

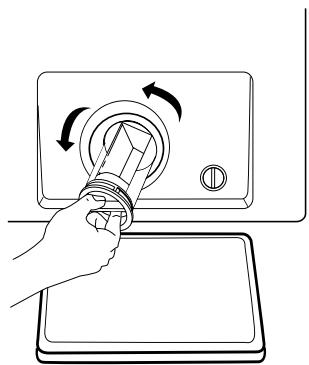

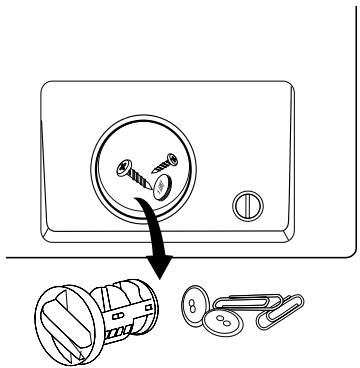

How to clean the drain pump filter?

Unplug the appliance, open the lower cover, drain the water with the emergency hose, then unscrew the filter counterclockwise. Clean it under water and put it back.

How to activate the child lock?

Press and hold the Temperature and Speed buttons for 3 seconds. A sound signal confirms activation. To deactivate, repeat the same operation.

What detergent should be used for wool?

For the Wool programme, use a special wool detergent and set a temperature of 20, 30 or 40 °C to preserve the fibres.

How to reduce the noise of the appliance?

Check that the appliance is properly levelled and that the transit screws are removed. You can also activate Silence mode to disable the audible signals.

Can the washing machine be built-in?

No, this appliance is designed to be freestanding. It must not be installed behind a locked door or in a confined space without ventilation.

What to do in case of a water leak?

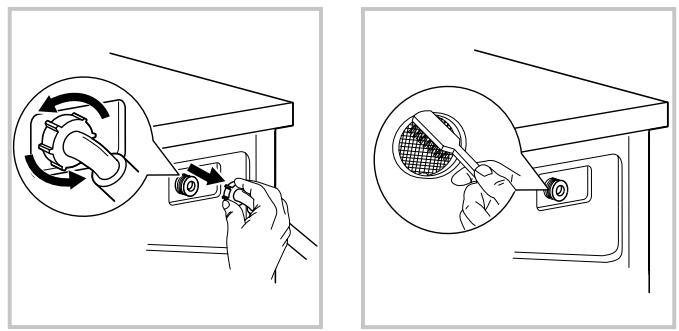

Check the hose connections, clean the water inlet filter and make sure the drain hose is not twisted. If the problem persists, contact After-Sales Service.

USER MANUAL Bolero Dresscode 7200 Inverter CECOTEC

Safety instructions 8

Cautions during the handling of the machine 11

1. Parts and components 62
2. Before use 62
3. Product installation 63
4. Operation 64
5. Cleaning and maintenance 73
6. Troubleshooting 75
7. Technical specifications 76
8. Disposal of old electrical appliances 77
9. Technical support and warranty 77
10. Technical sheets 78

SOMMAIRE

Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users.

• Make sure that the mains voltage matches the voltage stated on the rating label of the appliance and that the wall outlet is grounded.
• If the supply cord is damaged, it must be replaced by the Technical Support Service of Cecotec or by a similarly qualified person in order to avoid a hazard.
• This appliance is for indoor use only.
• Make sure the device is installed in places where temperature is above 0 °C.
• The device is not designed for built-in installation.
• The new hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused.
• Before any maintenance the device, unplug the appliance from the mains.
• Always unplug the machine and turn off the water supply after use. The max. inlet water pressure, in pascals. The min. inlet water pressure, in pascals.
• Never pull out power plug with wet hand.
• Please remember to disconnect water and power supply immediately after the clothes are washed.
• Pull out its plug from the power socket before cleaning or maintenance.
• To ensure your safety, power plug must be inserted into an earthed three-pole socket. Check carefully and make sure that your socket is properly and reliably earthed.
• Make sure that the water and electrical devices must be connected by a qualified technician in accordance with the manufacturer's instructions and local safety regulations.
• The glass door may be very hot during operation. Keep kids

and pets away from the machine during the operation.

• Do not operate the device in very wet rooms or in rooms with explosive or caustic gas.
• Adequate ventilation has to be provided to avoid the back flow of gases into the room from appliances burning other fuels, including open fires.
• Do not dry unwashed items in the appliance.
• Do not wash items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers. These should be washed in hot with an extra amount of detergent before being dried in the appliance.
• Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes, or pillows fitted with foam rubber pads should not be dried in the machine.
• Fabric softeners or similar products should be used as specified by the fabric softener instructions.
• Do not wash or dry articles that have been cleaned in, washed in, soaked in, or dabbed with combustible or explosive substances (such as wax, oil, paint, gasoline, degreasers, dry-cleaning solvents, kerosene, etc.) This may result in fire or explosion.
• When washing fabrics that contain vegetable or cooking oil or have been contaminated by hair care products, they should first be washed in hot water with extra detergent. This will reduce, but not eliminate, the hazard.
• The exhaust air must not be discharged into a flue which is for exhausting fumes from appliances burning gas or other fuels.
• The openings must not be obstructed by a carpet.
• The appliance with single inlet valve can only be connected to a cold-water supply. The appliance with double inlet

valve should be correctly connected to a hot water and cold-water supply.

• The plug must be accessible after installation.
• The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the device.
• The appliance shall not be installed in a humid place.
• The product is only for home use and is only designed for the textiles suitable for machine washing and drying.
• Do not stand on sit on the machine.
• Do not lean against machine door.
• Flammable and explosive or toxic solvents are forbidden. Gasoline, alcohol, etc. shall not be used as detergents. Use only detergents suitable for machine washing, especially for the drum.
• Never stop the device before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.
• This appliance can be used by children aged 8 and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, as long as they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Do not allow children to play with the appliance. The cleaning and maintenance of the appliance should not be carried out by children without supervision.
• Children of less than 3 years should be supervised to ensure that they do not play with appliance.
• Kids should be supervised that they do not play with the appliance.

CAUTIONS DURING THE HANDLING OF THE MACHINE

• Transport bolts shall be reinstalled on the machine by a qualified technician.
• The accumulated water shall be drained out of the machine.
• Handle the machine carefully. Never hold each protruded part on the machine while lifting. Machine door cannot be used as the handle during the conveyance.
• This appliance is heavy. Transport it with care.
• Do not insert hands into the running water extracting tub.
• Do not close the door with excessive force. If it is found difficult to close the door, please check if the clothes are put in or distributed well.
• It is forbidden to wash carpets.
• Never refill the water by hand during washing.

INSTRUCTIONS DE SÉCURITÉ

1. Top cover
2. Control panel
3. Power cord
4. Drum
5. Service filter
6. Drain hose
7. Door
8. Detergent dispenser
9. Water supply hose

Attachments

Fig. 2.

1. Transport hole plug
2. Cold water supply hose
3. Hot water supply hose (optional)
4. Drain hose support (optional)
5. Instruction manual

2. BEFORE USE

• Unpack the appliance and keep the original packaging and materials in a safe place. It will help prevent any damage if the product needs to be transported in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and accessories are present and in good conditions. If not, contact immediately the Technical Support Service of Cecotec.
• Keep all packaging materials away from children.

Note

– Before using the wash machine, the product shall be calibrated.
Before washing the clothes for the first time, the product shall be operated in one round of the whole procedures without the clothes inside.
- Make sure that all pockets are emptied. Sharp and rigid items such as coins, brooches, nails, screws or stones may cause serious damage to the machine.

3. PRODUCT INSTALLATION

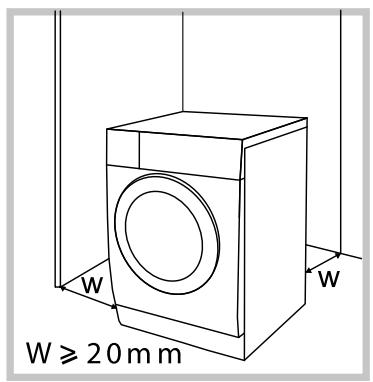

1. Place the device on a flat, stable and dry surface. Make sure the product does not stand on the power cord.
2. Avoid direct sunlight and ensure sufficient ventilation.

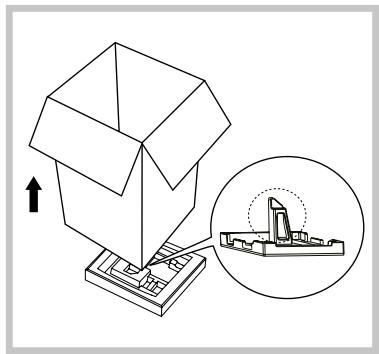

3. Remove the cardboard box and Styrofoam packing.
4. Lift the washing machine and remove the base packing. Make sure the small triangle foam is removed with the bottom one together. If not, lay the unit down with on the side surface, then remove the small foam from the unit bottom manually.
5. Remove the tape securing the power supply cord and drain hose.
6. Remove the inlet hose from the drum.

Fig. 3.

Fig. 4.

Fig. 5.

Removing the transport bolts

• The transport bolts must be removed from the backside of the device before using it.
• The transport bolts will be necessary again when moving the product, so make sure they are kept in a safe place.

In order to remove the bolts:

Fig. 6.

1. Loosen 4 bolts with a spanner and then remove them.
2. Stop the holes with transport hole plugs.
3. Keep the transport bolts properly for future use.

Levelling the washing machine

Warning

The lock nuts on all four feet must be screwed tightly against the housing.

1. Check if the legs are closely attached to the cabinet. If not, please turn them to their original position and tighten the nuts.
2. Loosen the lock nut to turn the feet until it closely contacts with the floor.
3. Adjust the legs and lock them with a spanner. Make sure the machine is steady.

Fig. 7.

Water supply hose connection

Warning

Do not kink, crush, modify or sever the water inlet hose.

For the models equipped with hot valve, connect it to a hot water tap with the hot water supply hose. Energy consumption will decrease automatically for some programs.

Connect the inlet hose following one of the below methods:

Connection between ordinary tap and inlet hose.

Fig. 8.

1. Loosen the clamp nut and four bolts.
2. Tighten the clamp nut.
3. Press slide bushing and insert inlet hose into connecting base.
4. Connection finished.

Connection between screw tap and inlet hose.

Fig. 9.

Tap with threads and inlet hose.

Special tap for washing machine.

Connect the other end of inlet hose to the inlet valve at the backside of product and fasten the pipe tightly clockwise. Fig. 10.

Drain hose

Note

• Do not kink or protract the drain hose.

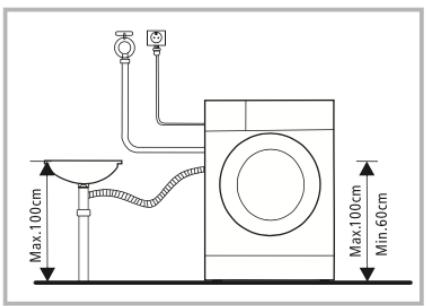

  – Position the drain hose properly, at 60-90 cm from the floor.

There are two ways to place the end of the drain hose:

• In a drainpipe. It is recommended to use a vertical tube.
• In a sink's drainpipe, over the trap.

Fig. 11.

If the machine has drain hose support, it can also be installed on a sink or a tank, like the following. Fig. 12.

Warning

When installing drain hose, fix it properly with a rope. If drain hose is too long, do not force it into washing machine as it will cause abnormal noises.

4. OPERATION

Note

- Please make sure the appliance is properly installed before operating it.

Before washing the clothes for the first time, the product shall be operated in one round of the whole procedures without the clothes inside.

QuickStart

Before washing

1. Plug the device into a power supply.
2. Open the tap.
3. Load.
4. Close the door.
5. Add detergent.

Fig. 13.

Note

Detergent must be added in "case I" only after selecting pre-washing for machines with this function.

Washing

1. Turn the device on.
2. Turn the knob to select the desired programme.
3. Select function or use the default one.
4. Press Start.

Fig. 14.

Note

If any of the default options is selected, step 3 can be skipped.

After washing

The appliance will beep, or the display will show "End".

Using the washing machine

Before each washing

• The washing machine should be operated within a temperature range of 0-40 °C. If used under 0°C, the inlet valve and draining system may be damaged. If the machine is placed or operated in rooms at 0 °C or below, it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose are not frozen before use.
• Check the labels and the product instructions when using detergent before washing. Use non-foaming or less-foaming detergent suitable for machine washing.
  – Check the label. Fig. 15.

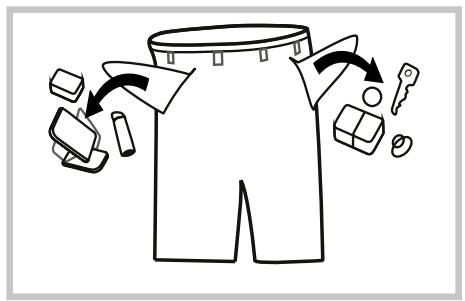

  – Empty the pockets of the clothes to be washed. Fig. 16.

ENGLISH

• Knot the long strips, close zips or tighten button. Fig. 17.
• Put small clothes inside a pillow slip. Fig. 18.

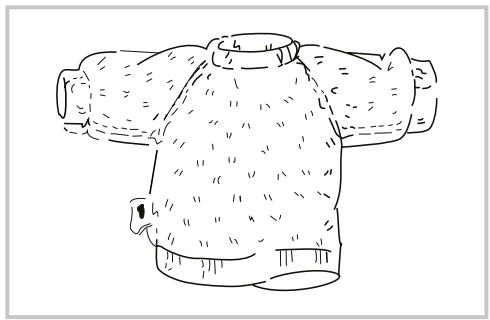

  – Turn easy-pilling and long-pile fabrics inside out. Fig. 19.
  – Separate clothes with different textures. Fig. 20.

Detergent tank

Fig. 21.

1. Pres-wash detergent
2. Main wash detergent
3. Softener
4. Pull out the dispenser to open it.

Programm	|	|||○	✿	Programm	|	|||○	✿
Cotton	○	●	○	Spin only
60 °C Wash		●	○	Wool		●	○
Intensive		●	○	Delicate		●	○
Express 15'		●	○	Wet & Dry	○	●	○
Rapid 45'		●	○	Synthetics	○	●	○
ECO 40-60'		●	○	Sport	○	●	○
Rinse & Spin			○	20 °C		●	○
Sterilization		●	○

Means must

Means Optional

Note

• When using agglomerated, ropy detergent or additives, before they are poured into the detergent box, it is suggested to use some water for dilution to prevent the inlet of detergent box from being blocked and overflowing while filling water.
• Use a suitable type of detergent for the various washing temperatures to get the best washing performance with less water and energy consumption.

Detergent must only be added in compartment I after selecting pre-wash function.

Recommended detergent	Wash cycles	Washing temp.	Type of laundry and textile
Heavy-duty detergent with bleaching agents and optical brighteners	Cotton, ECO 40-60, Mix, Intensive	40 / 60 / 90	White laundry made from boil-proof cotton or linen
Colour detergent without bleaching agent and optical brighteners	Cotton, ECO 40-60, Mix, Intensive, 20 °C	20 / 30 / 40	Coloured laundry made from cotton or linen
Colour or mild detergent without optical brighteners	20 °C, Synthetic	20 / 30 / 40	Coloured laundry made from easy care fibres or synthetic materials
Mild washing detergent	Delicate	20 / 30	Delicate textiles, silk, viscose
Special wool detergent	Wool	20 / 30 / 40	Wool

Control panel

Fig. 22.

On/off (1)

Press the On/off button to turn the device on and off.

Start/pause (2)

Press the button to start or pause the washing cycle.

Option (3)

Select an additional function, the light indicator will light when selected.

Programmes (4)

Different types of programmes for different types of laundry.

Display (5)

The display shows the settings, estimated time remaining, options, and status messages of the washing machine. The display will remain on through the cycle.

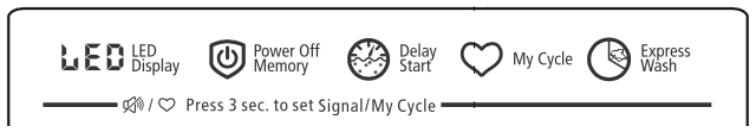

Fig. 23.

Fig. 23.1

Selectable options

Delay start (1)

To set the Delay start function:

1. Select a programme.
2. Press the Delay button to choose the time (the delaying time is 0-24 H.).
3. Press Start/Pause to activate the delay operation.

To cancel the Delay start function:

1. Press the Delay button until the display be shows OH. It should be pressed before starting the programme.
2. If the programme has already started, switch off programme to reset a new one.

Temperature (2)

Press this button to select the desired temperature (Cold, 20 °C, 30 °C, 40 °C, 60 °C, 90 °C).

Speed (3)

Press this button to select the desired speed. 0-400-800-1200-1400.

Function (4)

Use this button to select the desired option: Pre-wash, Extra-rinse, Extra-wash, Night wash or Anti-crease.

Child lock

• Hold down buttons (2) and (3) for 3 seconds, the device will beep indicating the Child lock function is activated. This function is designed to prevent children from misusing the appliance.
• When the Child lock is activated and a programme starts, the Child lock indicator will switch on, and the CL and remaining time on the display are alternately displayed.
  – Every time a button is pressed, the Child lock indicator will flash for 3 seconds.
• When a programme finishes, END will be displayed for 10 seconds. Then, the Child lock light will flash for 3 seconds.
• To cancel the Child lock function, hold down both buttons for 3 seconds again.
• The "Child Lock" will lock all buttons except for the Power button and the Child Lock button.

- Deactivate the Child lock function before selecting a programme and starting washing.

Favourites

Hold down the speed button for 3 seconds when a washing programme is running in order to save it to your favourites. The default programme is cotton.

Last saved

For the convenience of the users, this programme remembers the washing programme and function used for the last time. When this programme is selected, the device will run the programme and options saved to the memory automatically.

Silence

Select this programme to mute the washing machine. Hold down button 1 for 3 seconds, this setting will remain active until it is restarted. To activate the sound again, hold down the same button for 3 seconds.

Display settings

Fig. 24

These options will light up when selected for a washing cycle.

Pre-wash (1)

The Pre-wash function is used to perform an extra-wash before the main wash cycle. It is suitable for washing the dust on the surface of the clothes.

Extra rinse (2)

The laundry will undergo extra rinse once after you select it.

Door lock (3)

Child lock system activated (4)

Time and speed (5)

Cycle	Default temperature (°C)	Default spin speed in rpm	Additional functions
Wash cycles
Cotton	40	1000
Express 15'	Cold	800
Rapid 45'	20	800
60' Wash	30	1000
ECO 40-60	--	1400
Intensive	40	800
Rinse & spin	--	1000
Spin	--	1000
20 °C	20	1000
Wool	40	600
Delicate	30	800
Wet & Dry	40	1000
Synthetics	40	800
Sport	20	800
Sterilization mode	70	800

Note

• The table shows the cycles' options and how they can be adjusted.
  – It also shows if some settings are not compatible with some cycles.

Washing programmes

There are different programmes suitable for different types of laundry:

Bolero DressCode 7200 / Steel
Cycle	Normal capacity in kg	Cycle duration in hours and minutes	Energy consumption in kWh per operating cycle	Water consumption in litres per operating cycle	Highest temperature °C	Residual moisture in % per spin speed
Cotton (60 °C)	7.0	2:45	1.385	65	60	55 %/800
Wet & Dry	7.0	1:20	0.7	60	40	70 %/1000
20 °C	3.5	1:01	0.2	55	20	65 %/1000
Intensive	7.0	3:48	1.000	65	40	70 %/800
Express 15'	2.0	0:15	0.05	39	Cold	75 %/800
ECO 40-60	7.0	3:28	1.074	55.5	39	53 %/1400
	3.5	2:42	0.700	42	35	53 %/1400
	2.0	2:42	0.460	34.6	24	53 %/1400

Bolero DressCode 8200 / Steel
Cycle	Normal capacity in kg	Cycle duration in hours and minutes	Energy consumption in kWh per operating cycle	Water consumption in litres per operating cycle	Highest temperature °C	Residual moisture in % per spin speed
Cotton (60 °C)	8.0	2:45	1.491	70	60	55 %/800
Wet & Dry	8.0	1:20	0.8	65	40	70 %/800
20 °C	4.0	1:01	0.22	57	20	65 %/1000
Intensive	8.0	3:48	1.15	70	40	70 %/800
Express 15'	2.0	0:15	0.05	40	Cold	75 %/800
ECO 40-60	8.0	3:38	1.209	60	38	53 %/1400
	4.0	2:48	0.736	48	33	53 %/1400
	2.0	2:48	0.485	36	24	53 %/1400

Programme	Load (kg)		Display time
	7.0	8.0	7.0/8.0
Cotton	7.0	8.0	2:40
Express 15'	2.0	2.0	0:15
Rapid 45'	2.0	2.0	0:45
60' Wash	3.5	4.0	1:00
ECO 40-60	7.0	8.0	3:28/3:38
Intensive	7.0	8.0	3:48
Rinse & spin	7.0	8.0	0:20
Sterilization mode	3.5	4.0	2:27
Sport	3.5	4.0	0:45
Synthetics	3.5	4.0	2:20
Wet & Dry	7.0	8.0	1:20
Delicate	2.0	2.0	0:50
Wool	2.0	2.0	1:07
20 °C	3.5	4.0	1:01
Spin	7.0	8.0	0:12

Programmes are available according to the laundry type.

Programmes
Cotton	Hard-wearing textiles, heat-resistant textiles made of cotton or linen.
Synthetics	Wash synthetic articles, for example shirts, coats, mix. While washing the knitting textiles, detergent quantity shall be reduced due to its loose string construction and easily-forming bubbles.
Wet & Dry	Mixed load consisting of textiles made of cotton and synthetics.
20 °C	20 °C default, can choose cold water.
Express 15'	Extra-short programme, suitable for lightly soiled washing or for small amounts of laundry.
Rapid 45'	This programme is suitable for washing not very dirty clothes, saves more energy and water.
60' Wash	This programme is suitable for daily wash, for daily laundry, to achieve a good washing performance in about 60 min.
ECO 40-60	Default 40 °C, not selectable, suitable for laundry washing at about 40 °C-60 °C.
Wool	Hand or machine-washable wool or rich-wool textiles. Gentle washing programme to prevent shrinkage, longer programme pauses (textiles rest in wash liquor).
Spin	Extra spin with selectable spin speed.
Intensive	To increase the washing effects, washing time is increased.
Sterilization mode	Keeps the washing temperature above 60 °C for more than 30 minutes to effectively remove harmful bacteria.
Delicate	For delicate, washable textiles, e.g. silk, satin, synthetic fibres or blended fabrics.
Sport	This programme is suitable for washing the sportswear.
Rinse & spin	Extra-rinse with spin.

Warnings

– After a programme is completed, wait for two minutes before opening the door.
– Check whether the water inside the drum has been drained before opening its door. Do not
- Open the door if there is any water visible.
- Never stop the device before the end of the drying cycle unless all items are quickly

removed and spread out so that the heat is dissipated.

- Do not wash only one piece of clothes or garment, as these could cause great unbalance. Always introduce at least 3 or 4 clothes so that draining can be done smoothly.

5. CLEANING AND MAINTENANCE

Warning

– Before cleaning or maintaining, unplug the appliance and close the tap.
- Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. If there is any water overflow, use a cloth to wipe it off immediately.

Fig. 25.

- Do not use abrasive cleaners or scouring pads to clean the product.

Cleaning the drum

• The rusts left inside the drum by the metal articles shall be removed immediately with chlorine-free detergents.
• Do not use steel wool.

Note

Do not put laundry in the washing machine during the drum cleaning.

Cleaning the door seals and glass

• Wipe the glass and seal after each wash to remove lint and stains. If lint builds up it can cause leaks.
• Remove any coins, buttons and other objects from the seal after each wash.

Fig. 26.

Cleaning the inlet filter

Note

The inlet filter must be cleaned when there is little water.

Washing the filter in the tap

Fig. 27.

1. Close the tap.
2. Remove the water supply hose from the tap.
3. Clean the filter edge.
4. Reconnect the water supply hose.

Washing the filter in the washing machine

Fig. 28.

1. Screw off the inlet hose from the backside of the machine.
2. Pull out the filter with long nose pliers and reinstall it back after being washed.
3. Use the brush to clean the filter.
4. Reconnect the inlet hose.

Note

If the brush is not clean, pull out the filter and wash it separately. Then, reconnect it and turn on the tap.

Cleaning the detergent dispenser

1. Press down the arrow on the softener cover inside the dispenser drawer.
2. Lift the clip up and take out the softener cover and wash all grooves with water.
3. Replace the softener cover and push the drawer into position.
4. Pull out the dispenser drawer by pressing the A. Fig. 29.
5. Clean the dispenser drawer under running water. Fig. 30.
6. Clean inside the recess with an old toothbrush. Fig 31.
7. Insert the dispenser drawer. Fig. 32.

Warning

Do not use alcohol, solvents or chemical products to clean the washing machine.

Cleaning the drain pump filter

Warning

• Be careful with the hot water!
• Allow detergent solution to cool down.
  – Unplug the machine to avoid electrical shock before washing.

• The drain pump filter can filter the yarns and small foreign matters from the washing.
  – Clean the filter periodically to ensure proper operation of the washing machine.

• Open the lower cover cap. Fig. 33.

• Rotate 90 °C and pull out the emergency drain hose and take off the hose cap. Fig. 34.
• When it is fully emptied, reset the drain hose. Fig. 35.
• Open the filter by turning it counterclockwise. Fig. 36.
• Remove dust, dirt and other substances or objects. Fig. 37.
• Close the lower cover cap. Fig. 38.

Warning

- Make sure that the valve cap and emergency drain hose are reinstalled properly, cap plates should be inserted aligned to the hole plates.

*Some machines don have emergency drain hose, so step 2 and step 3 can be skipped.

• Rotate the lower cover cap directly for water to run into the basin.
• When the appliance is in use and depending on the programme selected there can be hot water in the pump. Never remove the pump cover during a wash cycle, always wait until the appliance has finished the cycle and is empty.
• When replacing the cover, ensure it is securely re-tightened.

6. TROUBLESHOOTING

Problem	Cause	Solution
The washing machine does not start up	The door is not closed properly	Restart after the door is closed.Check if there are clothes stuck.
The door does not open	The safety lock system is activated	Unplug it and restart the product.
Water leakage	Bad connection between pipes and water supply hose or drainpipe.	Check and fasten water pipes and hose.Clean up outlet hose.
Detergent residues in the box	Detergent is dampened or agglomerated	Clean and wipe the detergent box
Indicator or display does not light	The power PC board is disconnected, or harness has connection problem	Check if the power is shut down and the power plug is connected correctly.
Abnormal noise		Check if the fixing bolts have been removed.Make sure the appliance is installed on a solid, level floor.

Errors

Error	Cause	Solution
E30	Door is not closed properly	Restart after the door is closed.Check if there are clothes stuck.
E10	Water injecting problem while washing	Check if the water pressure is too low.Straighten the water pipe.Check if the inlet valve filter is blocked.
E21	Overtime water draining	Check if the drainpipe is blocked.
E12	Water overflow	Restart the appliance.
EXX	Others	Contact the official Technical Support Service of Cecotec.

7. TECHNICAL SPECIFICATIONS

Product: Bolero DressCode 7200

Product reference: 02316

Washing capacity: 7 kg

Dimension (W*D*H) cm: 59.5*49.5*85

Net weight: 61 kg

Rated power: 2050 W

220-240 V\~,50 Hz, 10 A

Standard water pressure: 0.05 MPa\~1 MPa

IPX4

Made in China | Designed in Spain

Product: Bolero DressCode 7200 Steel

Product reference: 02318

Washing capacity: 7 kg

Dimension (W*D*H) cm: 59.5*49.5*85

Net weight: 61 kg

Rated power: 2050 W

220-240 V\~,50 Hz, 10 A

Standard water pressure: 0.05 MPa\~1 MPa

IPX4

Made in China | Designed in Spain

Product: Bolero DressCode 8200

Product reference: 02321

Washing capacity: 8 kg

Dimension (W*D*H) cm: 59.5*56.5*85

Net weight:

Rated power: 2000 W

220-240 V\~,50 Hz, 10 A

Standard water pressure: 0.05 MPa\~1 MPa

IPX4

Made in China | Designed in Spain

Product: Bolero DressCode 8200 Steel

Product reference: 02323

Washing capacity: 8 kg

Dimension (W*D*H) cm: 59.5*56.5*85

Net weight:

Rated power: 2000 W

220-240 V\~,50 Hz, 10 A

Standard water pressure: 0.05 MPa\~1 MPa

IPX4

Made in China | Designed in Spain

8. DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), specifies that old household electrical appliances must not be disposed of with the normal unsorted municipal waste.

Old appliances must be collected separately, in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your

obligation to dispose of the appliance correctly.

If the product has a built-in battery or uses batteries, they should be removed from the appliance and disposed of appropriately.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

9. TECHNICAL SUPPORT AND WARRANTY

This product is under warranty for 2 years from the date of purchase, as long as the proof of purchase is submitted, the product is in perfect physical condition, and it has been given proper use, as explained in this instruction manual.

The warranty will not cover the following situations:

• The product has been used for purposes other than those intended for it, misused, beaten, exposed to moisture, immersed in liquid or corrosive substances, as well as any other fault attributable to the customer.
• The product has been disassembled, modified, or repaired by persons, not authorised by the official Technical Support Service of Cecotec.
  – Faults deriving from the normal wear and tear of its parts, due to use.

The warranty service covers every manufacturing defects of your appliance for 2 years, based on current legislation, except consumable parts.

In the event of misuse, the warranty will not apply.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact Cecotec Technical Support Service at [phone].

1. TECHNICAL SHEETS

Brand	Cecotec
Name of the model	Bolero DressCode 7200 (02316) / Bolero DressCode 7200 Steel (02318)
Capacity	7
Energy efficiency class on scale from A+++ (most efficient) to D (least efficient)	A+++
Energy consumption 174 kWh per year, based on 220 standard washing cycles for normal cotton programmes at 60 °C and 40 °C at full and partial load, and the consumption of the "off" and "left-on" modes. Actual energy consumption will depend on how the appliance is used.
Energy consumption of the intensive 60 °C programme at full load	0.91 kWh
Energy consumption of the intensive 60 °C programme at partial load	0.69 kWh
Energy consumption of the intensive 40 °C programme at partial load	0.61 kWh
Weighted power consumption of the off-mode	0.50 W
Weighted power consumption of the left-on mode	1.00 W
Water consumption 9900 litres per year, based on 220 standard washing cycle for intensive programmes at 60 °C and 40 °C at full and partial load. Actual water consumption will depend on how the appliance is used.
Spin-drying efficiency class B on a scale from G (least efficient) to A (most efficient)

Maximum spin speed	1400 rpm
Remaining moisture content	53 %
Intensive 60 °C programme and the intensive 40 °C programme are the standard washing programmes to which the information in the label and the fiche relates. These programmes are suitable to clean normally soiled cotton laundry and that they are the most efficient programmes in terms of combined energy and water consumption.
Programme time of intensive 60 °C programme at full load	240 min
Programme time of intensive 60 °C programme at half load	230 min
Programme time of intensive 40 °C programme at half load	230 min
Duration time of let-on mode	- 1 min
Airbone acoustical noise emissions during washing phase	62 dB
Airborne acoustical noise emissions during spinning phase	79 dB
Built-in washing machine	No

Energy test programme: Cotton; Speed: the highest speed; Other as the default.

Parameter	Value		Parameter	Value
Rated capacity (kg)	8.0		Dimensions in cmWidthDepth	Height	85
				Widht	60
				Depth	50
EEIW	91.0		Energy Efficiency Class	E
Washing efficiency index	1.04		Rinsing effectiveness (g/kg)	5.0
Energy consumption in kWh per cycle, based on the Eco 40-60 programme. Actual energy consumption will depend on how the appliance is used	0.784		Water consumption in litre per cycle, based on the Eco 40-60 programme. Actual water consumption will depend on how the appliance is used and on the hardness of the water	45
Maximum temperature inside the treated textile (°C)	Capacity	39	Remaining moisture content (%)	Capacity	53
	Half	35		Half	53
	Quarter	24		Quarter	53

Spin speed (rpm)	Capacity	1400	Spin-dying efficiency class	B
	Half	1400
	Quarter	1400
Programme duration (h:min)	Capacity	3:28	Type	Free-standing
	Half	2:42
	Quarter	2:42
Airbone acoustical noise emissions during spinning phase (B)	80		Airbone acoustical noise emission class (spinning phase)	C
Off-mode (W)	0.50		Standby mode (W)	NA
Delay start (W)	4.00		Networked standby (W)	NA
Minimum duration of the guarantee offered by the supplier: 2 years
Further information:

Brand	Cecotec
Name of the model	Bolero DressCode 8200 (02321) /Bolero DressCode 8200 Steel (02323)
Capacity	8
Energy efficiency class on scale from A+++ (most efficient) to D (least efficient)	A+++
Energy consumption 196 kWh per year, based on 220 standard washing cycles for normal cotton programmes at 60 °C and 40 °C at full and partial load, and the consumption of the "off" and "left-on" modes. Actual energy consumption will depend on how the appliance is used.
Energy consumption of the intensive 60 °C programme at full load	0.90 kWh
Energy consumption of the intensive 60 °C programme at partial load	0.88 kWh
Energy consumption of the intensive 40 °C programme at partial load	0.79 kWh
Weighted power consumption of the off-mode	0.50 W
Weighted power consumption of the left-on mode	1.00 W

Water consumption 11000 litres per year, based on 220 standard washing cycle for intensive programmes at 60 °C and 40 °C at full and partial load. Actual water consumption will depend on how the appliance is used.
Spin-drying efficiency class B on a scale from G (least efficient) to A (most efficient)
Maximum spin speed	1400 rpm
Remaining moisture content	53 %
Intensive 60 °C programme and the intensive 40 °C programme are the standard washing programmes to which the information in the label and the fiche relates. These programmes are suitable to clean normally soiled cotton laundry and that they are the most efficient programmes in terms of combined energy and water consumption.
Programme time of intensive 60 °C programme at full load	245 min
Programme time of intensive 60 °C programme at half load	240 min
Programme time of intensive 40 °C programme at half load	230 min
Duration time of let-on mode	- 1 min
Airbone acoustical noise emissions during washing phase	62 dB
Airbone acoustical noise emissions during spinning phase	79 dB
Built-in washing machine	No

Energy test programme: Cotton; Speed: the highest speed; Other as the default.

Parameter	Value	Parameter	Value
Rated capacity (kg)	8.0	Dimensions in cmWidthDepth	Height	85
			Width	60
			Depth	57
EEIW	90.6	Energy Efficiency Class	E
Washing efficiency index	1.04	Rinsing effectiveness (g/kg)	5.0
Energy consumption in kWh per cycle, based on the Eco 40-60 programme. Actual energy consumption will depend on how the appliance is used	0.824	Water consumption in litre per cycle, based on the Eco 40-60 programme. Actual water consumption will depend on how the appliance is used and on the hardness of the water	48

Maximum temperature inside the treated textile (°C)	Capacity	38	Remaining moisture content (%)	Capacity	53
	Half	33		Half	53
	Quarter	25		Quarter	53
Spin speed (rpm)	Capacity	1400	Spin-dying efficiency class	B
	Half	1400
	Quarter	1400
Programme duration (h:min)	Capacity	3:38	Type	Free-standing
	Half	2:48
	Quarter	3:48
Airbone acoustical noise emissions during spinning phase (B)	80		Airbone acoustical noise emission class (spinning phase)	C
Off-mode (W)	0.50		Standby mode (W)	NA
Delay start (W)	4.00		Networked standby (W)	NA
Minimum duration of the guarantee offered by the supplier: 2 years
Further information:

1. PIÈCES ET COMPOSANTS

Img. 1.

3. INSTALLATION DU PRODUIT

Made in China | Designed in Spain

Produkt: Bolero DressCode 7200 Steel

Referencja: 02318

Made in China | Designed in Spain

Produkt: Bolero DressCode 8200

Referencja: 02321

Made in China | Designed in Spain

Produkt: Bolero DressCode 8200 Steel

Referencja: 02323

Made in China | Designed in Spain

8. RECYKLING SPRZĘTU AGD

3. INSTALACE PRODUKTU

Fig. / Img. / Rys. / Obr. 3

Fig. / Img. / Rys. / Obr. 4

Fig. / Img. / Rys. / Obr. 5

Fig. / Img. / Rys. / Obr. 7

Fig. / Img. / Rys. / Obr.8

Fig. / Img. / Rys. / Obr. 9

Fig. / Img. / Rys. / Obr. 10

Fig. / Img. / Rys. / Obr. 11

Fig. / Img. / Rys. / Obr. 12

Fig. / Img. / Rys. / Obr. 13

Fig. / Img. / Rys. / Obr. 14

Fig. / Img. / Rys. / Obr. 15

Fig. / Img. / Rys. / Obr. 18

Fig. / Img. / Rys. / Obr. 16

Fig. / Img. / Rys. / Obr. 19

Fig. / Img. / Rys. / Obr. 17

Fig. / Img. / Rys. / Obr. 20

Fig. / Img. / Rys. / Obr. 21

Fig. / Img. / Rys. / Obr. 22

Fig. / Img. / Rys. / Obr. 23

Fig. / Img. / Rys. / Obr. 23.1

Fig. / Img. / Rys. / Obr. 24

Fig. / Img. / Rys. / Obr. 25

Fig. / Img. / Rys. / Obr. 27

Fig. / Img. / Rys. / Obr. 26

Fig. / Img. / Rys. / Obr. 28

Fig. / Img. / Rys. / Obr. 29

Fig. / Img. / Rys. / Obr. 30

Fig. / Img. / Rys. / Obr. 31

Fig. / Img. / Rys. / Obr. 32

Fig. / Img. / Rys. / Obr. 33

Fig. / Img. / Rys. / Obr. 34

Fig. / Img. / Rys. / Obr. 35

Fig. / Img. / Rys. / Obr. 36

Fig. / Img. / Rys. / Obr. 37

Fig. / Img. / Rys. / Obr. 38

www.cecotec.es

Quart de Poblet, Valencia (Spain)

YV_042104503
