LR7H94VAB - Washing machine AEG - Free user manual and instructions

Find the device manual for free LR7H94VAB AEG in PDF.

AEG LR7H94VAB - Washing machine
📄 48 pages English EN ⬇ Download 💬 AI Question ❓ 3 questions
Notice AEG LR7H94VAB - page 1
1 / 48
View the manual : English EN Italiano IT
Pick your language and provide your email: we'll send you a specifically translated version.

User questions about LR7H94VAB AEG

3 questions about this device. Answer the ones you know or ask your own.

Ask a new question about this device

Your email remains private: it is only used to notify you if someone answers your question.

What are the Stain Plus, Prewash, and Time Saving buttons for on the AEG LR7H94VAB?
Frequently Asked Questions - 2 d
Response Notice-Facile

Stain Plus / Prewash is a button with two distinct functions:

  • Stain Plus: adds a special anti-stain phase to the wash cycle. To be used for very dirty laundry or laundry with stubborn stains. The system applies a stain-removing treatment during the cycle.
  • Prewash: adds a pre-wash phase at 30°C before the main wash. Recommended for very soiled laundry, for a preparatory action.

Time Saving reduces the total duration of the wash program:

  • Press 1 time: reduces the time for normally soiled laundry
  • Press 2 times: creates an ultra-fast program for small amounts

These buttons allow you to customize the cycle according to the level of dirtiness and your availability of time.

Respond (be the first)
What does error code E10 mean on my AEG LR7H94VAB washing machine?
Frequently Asked Questions - 2 d
Response Notice-Facile

E10 Code: Water Inflow Problem

The E10 code on your AEG LR7H94VAB washing machine indicates a water supply issue. The machine did not receive enough water at the beginning of the cycle.

Checks to Perform:

  • Water Tap: Check that the water supply tap is fully open. This is the most common cause.
  • Supply Hoses: Ensure that the hoses are not kinked, crushed, knotted, or damaged. Also, check that they are properly connected.
  • Inlet Filters: The small filters located at the inlet of the hoses may be clogged with limescale or debris. Clean them gently.
  • Water Pressure: Check that the water pressure at the tap is sufficient (at least 0.5 bar).

If the error persists after these checks, a repair may be necessary. An AEG technician should check the flow sensor or the supply valves.

Respond (be the first)
How to unlock the blocked door of my AEG LR7H94VAB washing machine?
Frequently Asked Questions - 2 d
Response Notice-Facile

No worries - the emergency unlocking system for the door on this AEG washing machine is specifically designed for this situation and will not damage it.

How to unlock the door:

  1. Locate the pump filter: on the bottom right of your LR7H94VAB washing machine, you will find a small cylindrical plug or a small plastic handle (usually black or gray).
  2. Unscrew or pull the plug: turn it slightly to the left or pull it towards you. Do not force it - it comes out easily.
  3. Let the water drain: place a bucket or basin underneath and let the residual water drain for 1-2 minutes.
  4. Replace the plug: once the water has drained, put the plug or plastic handle back in place.
  5. Open the door: after draining, the door should open normally.

Note: This system is a standard safety mechanism on AEG washing machines. Millions of appliances around the world use exactly the same system.

Respond (be the first)

Download the instructions for your Washing machine in PDF format for free! Find your manual LR7H94VAB - AEG and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. LR7H94VAB by AEG.

USER MANUAL LR7H94VAB AEG

INDICE

  1. INFORMAZIONI DI SICUREZZA....3
  2. ISTRUZIONI DI SICUREZZA....5
  3. DESCRIZIONE DEL PRODOTTO....7
  4. DATI TECNICI....8
  5. INSTALLAZIONE......9
  6. PANNELLO DEI COMANDI....14
  7. SELETTORE E TASTI....16
  8. IMPOSTAZIONI.... 19
  9. PREPARAZIONE AL PRIMO UTILIZZO....21
  10. PROGRAMMI....21
  11. UTILIZZO QUOTIDIANO....27
  12. CONSIGLI E SUGGERIMENTI UTILI....33
  13. PULIZIA E CURA....35
  14. RISOLUZIONE DEI PROBLEMI....42
  15. VALORI DI CONSUMO....46
  16. GUIDA RAPIDA......48
  17. CONSIDERAZIONI SULL'AMBIENTE....50

PER RISULTATI PERFETTI

AEG LR7H94VAB - PER RISULTATI PERFETTI - 1

AVVERTENZA!

Line drawing of a washing machine connected to a hose, with an inset showing the pipe connection (no text or symbols)

Diagram of a mechanical device with a handle and internal structure, showing motion arrows (no text or symbols)

Two handbags with threaded ends and connectors, placed on a grid background (no text or symbols)

AEG LR7H94VAB - AVVERTENZA! - 4

ATTENZIONE!

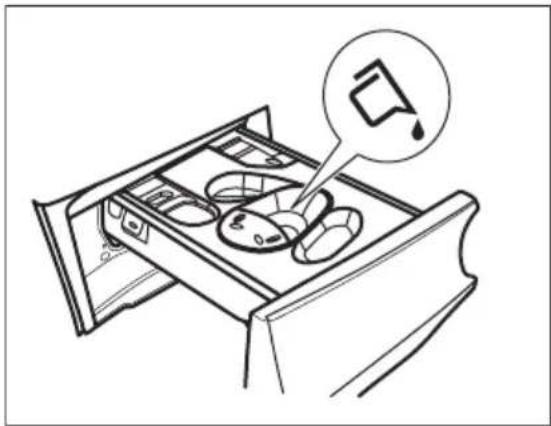

Line drawing of a drawer with plastic items and a magnified inset showing a drop (no text or symbols)

12.2 Macchie ostinate

Line drawing of a hand using a tool to insert or install a rectangular object with a textured surface (no text or symbols)

AEG LR7H94VAB - Macchie ostinate - 2

ATTENZIONE!

AEG LR7H94VAB - ATTENZIONE! - 1

CE
