USER MANUAL MB-200 REMINGTON

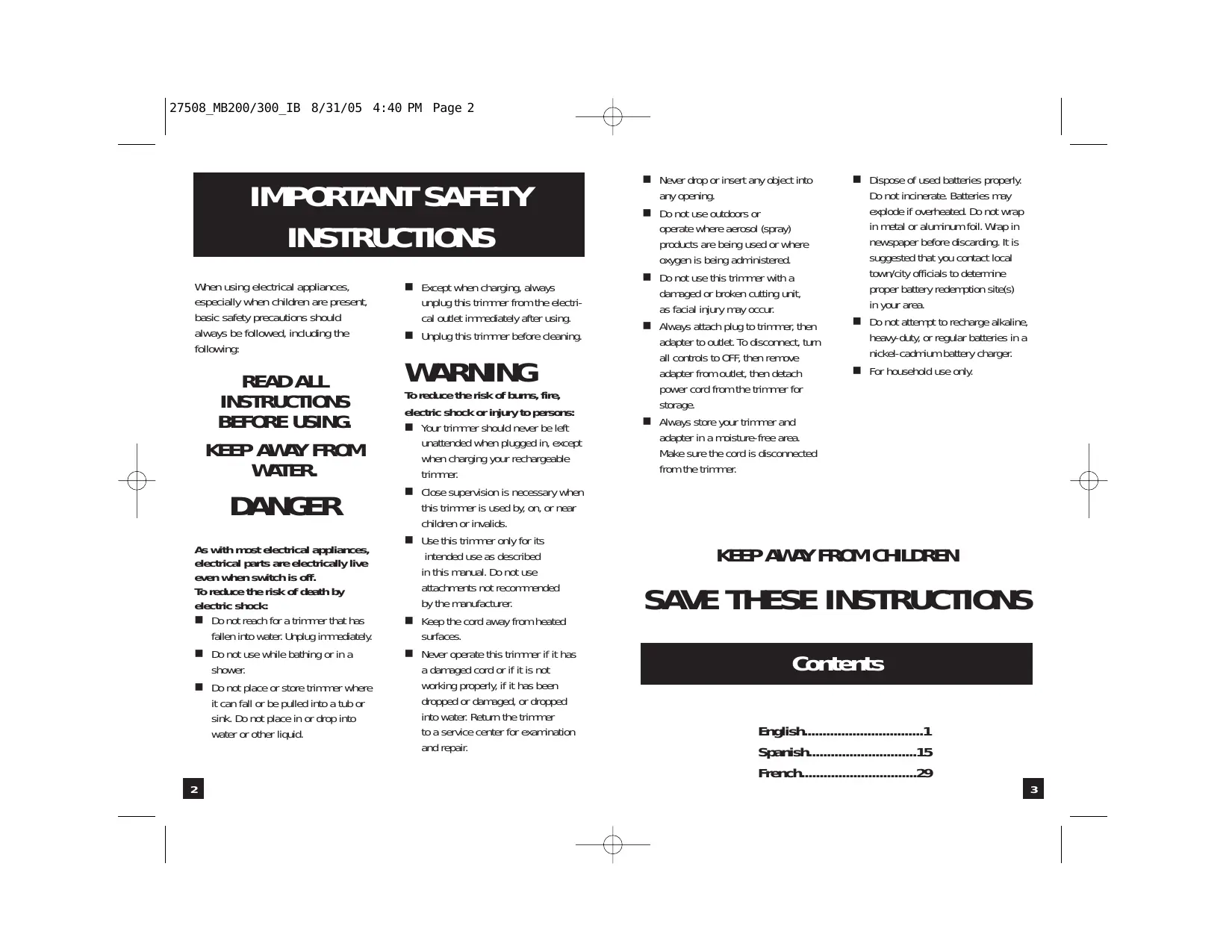

Use and Care Guide MB-200 MB-300 IMPORTANT SAFETY INSTRUCTIONS When using electrical appliances, especially when children are present, basic safety precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING.

KEEP AWAY FROM

WATER. DANGER As with most electrical appliances, electrical parts are electrically live even when switch is off. To reduce the risk of death by electric shock: " Do not reach for a trimmer that has fallen into water. Unplug immediately. " Do not use while bathing or in a shower. " Do not place or store trimmer where it can fall or be pulled into a tub or sink. Do not place in or drop into water or other liquid.

" Except when charging, always unplug this trimmer from the electrical outlet immediately after using. " Unplug this trimmer before cleaning. WARNING To reduce the risk of burns, fire, electric shock or injury to persons: " Your trimmer should never be left unattended when plugged in, except when charging your rechargeable trimmer. " Close supervision is necessary when this trimmer is used by, on, or near children or invalids. " Use this trimmer only for its intended use as described in this manual. Do not use attachments not recommended by the manufacturer. " Keep the cord away from heated surfaces. " Never operate this trimmer if it has a damaged cord or if it is not working properly, if it has been dropped or damaged, or dropped into water. Return the trimmer to a service center for examination and repair. " Never drop or insert any object into any opening. " Do not use outdoors or operate where aerosol (spray) products are being used or where oxygen is being administered. " Do not use this trimmer with a damaged or broken cutting unit, as facial injury may occur. " Always attach plug to trimmer, then adapter to outlet. To disconnect, turn all controls to OFF, then remove adapter from outlet, then detach power cord from the trimmer for storage. " Always store your trimmer and adapter in a moisture-free area. Make sure the cord is disconnected from the trimmer. " Dispose of used batteries properly. Do not incinerate. Batteries may explode if overheated. Do not wrap in metal or aluminum foil. Wrap in newspaper before discarding. It is suggested that you contact local town/city officials to determine proper battery redemption site(s) in your area. " Do not attempt to recharge alkaline, heavy-duty, or regular batteries in a nickel-cadmium battery charger. " For household use only.

KEEP AWAY FROM CHILDREN

SAVE THESE INSTRUCTIONS

• Contents English p. 1
• Spanish p. 15
• French p. 29

Product Features Before Using Your Trimmer ■ Beard, mustache, or sideburn hairs should be dry. Avoid using lotions before using your trimmer. ■ Be certain trimmer guard is at the desired setting. When first using, you may want to begin on a higher setting (#9-longest hair) to prevent trimming off too much hair initially. ■ For first-time use, or if the trimmer has not been used for a long period of time, you will need to charge the batteries for 14-16 hours to enjoy the full capacity of cordless operation. After first use, the MB-200/300 can be recharged in 1 to 3 hours. ■ Use only the adapter provided with unit. ■ Comb hairs outward so they are at their maximum height and facing in the same direction. ■ Clean cutter blades regularly (see maintenance section). ■ Never use trimmer with a damaged or broken cutter unit. Permanently lubricated cutting blades Pop-up miniature detail trimmer (MB-300 only) ON/OFF Switch 9 Position “Zoom” Wheel Cord/cordless or rechargeable adapter cord Length position indicator Removable trimmer guard attachment Styling comb Cleaning brush Adapter Socket LED charging indicator

Which model is yours? MB-300 Corded or cordless rechargeable operation. Adapter provides AC operation for corded use or recharges battery for cordless use. MB-200 Cordless rechargeable operation. Adapter recharges battery only for cordless use.

Operating Your Trimmer Charging/Recharging To recharge these models, use only the charging adapter provided. ■ Turn the trimmer off. Insert the adapter plug into the bottom of the trimmer, then plug the adapter into an electric wall outlet. The charging indicator will glow green, indicating unit is charging. A full charge will take approx. 14-16 hours. ■ Your trimmer cannot be overcharged. You may leave it plugged in between uses. However, if the trimmer is not going to be used for an extended period (2 weeks), unplug the unit and recharge when resuming use. ■ Charge the trimmer at temperatures between 40 – 90°F, to avoid adversely affecting battery life. ■ In order to preserve the life of the batteries, they should be fully discharged every six months and then fully charged for 24 hours. ■ Nickel-Cadmium batteries included (see battery removal section for proper disposal of batteries) Corded Rechargeable Operation (MB-200) Plugging in the adapter cord will not provide power to the trimmer, but only recharge the batteries. Hair Length Selector and Removable Trimmer Guard Attachment NOTE: trimmer guard must be attached to the trimmer in order to use the hair length selector. The hair length selector and trimmer guard attachment ensures precise trimming and has nine adjustable positions: Beard Style Length Setting Stubble look

1.5 mm 0.06"

2.5 mm 0.1"

5.5 mm 0.22"

Medium 7 mm 0.28" 9 mm 0.35" 11 mm 0.43" Long 14 mm 0.55" 18 mm 0.71" ■ To adjust, roll the “Zoom Wheel” toward the top of the trimmer to adjust for longer length, and toward the bottom of the trimmer for shorter length.The wheel will click into one of nine positions. ■ Begin trimming at one of the longest settings (#8 or #9 to avoid accidentally trimming hair too short). As you become familiar with the settings, you can then select your desired length setting. Trimmer Guard Attachment Remove trimmer guard attachment if you are: defining hairline edges such as sideburns, trimming the nape of your neck, trimming your beard line on front of neck, or if you want to clean cutter assembly. To remove: ■ Be sure the trimmer is in OFF position. ■ While holding trimmer in one hand, and holding the “Zoom Wheel” to prevent it from turning, gently pull the trimmer guard attachment away from the trimmer. The guard can be removed and replaced on any setting. To replace: ■ Be certain trimmer is in OFF position. ■ While holding the trimmer in one hand, and holding the “Zoom Wheel” to prevent it from turning, slide the guard over the top of the trimmer until it “clicks” into position. NOTE: the trimmer guard attachment can only be placed on the trimmer one way; if it does not fit properly, remove and reverse it.

How to Use Trimming Beards ■ Before you begin, comb your hair in the direction that it grows so that the hairs are at their maximum height and facing in the same direction. ■ Determine how much hair you want to cut and position the hair length selector accordingly. Remember, until you are familiar with using the trimmer, it’s always better to select a longer hair setting initially in order not to trim too much hair. ■ Turn the unit’s power switch to ON, and begin trimming. ■ When finished trimming, turn the unit’s power switch to OFF. To Trim the Beard’s Hair Length ■ Trimmer guard attachment is on. ■ Turn the trimmer so the front of the cutting unit (“Zoom Wheel” side) is facing away from you. ■ Start trimming under your chin and, following your jawbone line, work toward your ear and upper beard line using an upward motion. Allow the hair length selector attachment to follow the contours of your face. You may trim either against or with the direction of beard growth, whichever is preferred. To Define the Beard Line ■ Remove trimmer guard attachment. ■ Hold trimmer vertically with cutting blades facing you.

■ Start with edge of beard line. With the cutting blades resting lightly against your skin, use motions towards edge of beard line to trim it to desired location in facial area and away from beard in neck area. To Thin and Taper the Beard ■ Trimmer guard attachment is off. ■ Use the unit’s styling comb or a small comb and hold the beard hairs in place while trimming. ■ Holding the trimmer hoizontally with the cutting unit facing away from you, move the trimmer along the length of the comb. Creating the “Stubble Look” ■ Trimmer guard attachment should be on and set to position 1 (1.5 mm) or 2 (2.5 mm). ■ Hold trimmer horizontaly with the cutting unit facing either up or down. ■ Trim hairs using an upward or downward motion against or with the direction of hair growth, whichever is preferred. ■ For an even closer “stubble look,” remove the hair length selector attachment and repeat the previous two steps. However, caution must be taken not to remove too much hair, creating a “blotchy” look.

To Trim Mustache and Sideburns with the Pop-Up Trimmer (MB-300) The small size of this trimmer makes edging and defining mustaches and cutting stray hairs quick and easy. ■ Remove guard attachment ■ Comb hairs outward so they are at their maximum height. ■ Open the pop-up trimmer by sliding the trimmer switch upward. ■ Hold trimmer perpendicular, as shown, to achieve desired line above the lip. ■ Trim any stray hairs. Attention: Main cutter is still operating while popup trimmer is in use. ■ Close trimmer by sliding trimmer switch down. ■ Turn trimmer OFF. Without trimmer guard attachment ■ Remove trimmer guard attachment. ■ Place a finger on upper lip only to lift hair up, away from skin. ■ Trim hairs using an upward motion. ■ After achieving desired length, use a downward motion to blend mustache hairs. NOTE: Use slow and light pressure. Too much pressure may trim off more hair than desired. ■ Turn trimmer off. To trim sideburns ■ Comb sideburns following the direction of your hair growth. ■ Be certain trimmer guard attachment is ON. ■ Hold trimmer vertically with front of trimmer facing you. ■ Trim sideburns using a downward motion. ■ Turn trimmer OFF. Trimming the Nape of Your Neck ■ You will need a hand mirror for this operation if performing it alone. The mirror is not necessary if trimming is performed by a second person. ■ Remove the hair length selector attachment. ■ Use your fingers to lift the hair at the base of your head up off the neck. Your index finger should be covering the roots of the hairs you are lifting to prevent accidental removal by trimmer. ■ Using your other hand, hold the trimmer horizontally to the base of your neck with the cutting unit facing up, and move the trimmer along the length of the neck until the unit touches your finger covering the hair roots at the base of your head. Repeat this procedure for the entire area of the neck. Be sure to move the unit slowly when performing this operation and to keep the hair roots at the base of your head out of the way of the trimmer. ■ Use the hand mirror to inspect the results of the operation and ensure all hairs along the nape of the neck have been trimmed.

Cleaning & Maintenance Cleaning and Maintaining Your Trimmer Your trimmer is fitted with high-quality hardened steel or ceramic cutting blades that are permanently lubricated. Cleaning should only be done with a soft brush, such as the brush supplied with the unit. Clean your trimmer regularly to ensure that the unit’s operating life is not prematurely shortened. ■ Unplug adapter from wall outlet ■ Do not apply pressure or hard objects to the cutters. ■ Do not use liquid cleaners on the cutters or harsh or corrosive chemicals on the unit’s main body. Weekly Trimmer should always be shut off. Remove trimmer guard attachment from trimmer. Shake or blow out any accumulated hairs. Main trimmer

1. Flip the blades open by

pushing upward on the cutter teeth. The cutter assembly will swing up and the underside of the cutter assembly will be accessible.

2. Blow out any loose hair that has

accumulated. Brush out any remaining hair from the cutter teeth and hair pocket with the brush provided. Do not rinse the cutter assembly under water or use cleaning fluids, which could remove the lubrication. Miniature Trimmer (MB-300) ■ Flip the miniature trimmer up into operating position. ■ Brush away any hair from the trimmer blades and blow out any hairs from the recess that holds the trimmer in its retracted position. Troubleshooting The trimmer does not work when turned on: ■ Trimmer must be charged for a full 14-16 hours. Trimmer cutters do not move: ■ The cutting unit may be dirty and clogged. Clean the unit as directed in Cleaning & Maintenance section. Trimmer does not hold charge: ■ Fully discharge battery by running trimmer until it stops; then follow recharging instructions (see section on To Charge/Recharge). Battery Removal When your rechargable groomer reaches the end of its useful life, the batteries must be removed from the groomer and recycled or disposed of properly in accordance with your local and state requirements. The following procedure should be followed for battery removal:

1. Make sure your groomer is unplugged

from any outlets so you don’t risk an electric shock.

2. Remove side panels/grips

3. Remove the 4 housing screws

4. Pull or gently pry the clipper halves apart,

exposing the batteries.

5. Remove batteries from the unit.

6. Twist batteries to break wires. Wires may

CAUTION: THESE NICKEL-CADMIUM

BATTERIES MUST BE RECYCLED OR

DISPOSED OF IN ACCORDANCE WITH

STATE AND LOCAL REGULATIONS. Do not burn or mutilate, as they may burst or release toxic materials. Do not short-circuit, as this may cause burns. The EPA-certified RBRC® Battery Recycling Seal on the nickel-cadmium (Ni-Cd) battery indicates SPC Brands is voluntary participating in an industry program to collect and recycle these batteries at the end of their useful life, when taken out of service in the United States or Canada. the RBRC® program provides a convienient alternative to placing used Ni-Cd batteries into the trash or the municipal waste stream, which may be illegal in your area. Please call 1-800-8-BATTERYSM for information on Ni-Cd battery recyling and disposal bans/restriction in your area. SPC Brands involvement in this program is part of our commitment to preserving our environment and conserving our natural resources.

Performance Guarantee Full Two-Year Warranty Spectrum Brands, Inc. is a global consumer products company with a diverse portfolio of world-class brands, including Remington-branded electric shavers. Spectrum Brands, Inc. warrants this product against any defects that are due to faulty material or workmanship for a two-year period from the original date of consumer purchase. This warranty does not include damage to the product resulting from accident or misuse. If the product should become defective within the warranty period, we will repair it or elect to replace it free of charge. Return your product and sales receipt with your name, address and day time phone number to: Spectrum Brands, Inc., Attention: Consumer Services, 601 Rayovac Drive, Madison, WI 53711. For more information call 800-736-4648 in the US or 800-2680425 in Canada.

KEEP ORIGINAL SALES RECEIPT AS

PROOF OF PURCHASE FOR WARRANTY

PURPOSES. This warranty does not cover products damaged by the following: ■ Accident, misuse, abuse or alteration of the product ■ Servicing by unauthorized persons ■ Use with unauthorized accessories ■ Connecting it to incorrect current and voltage ■ Wrapping cord around appliance causing premature wear & breakage ■ Any other conditions beyond our control No responsibility, obligation, or liability is assumed for the installation or maintenance of this product.

SPECTRUM BRANDS, INC. SHALL NOT BE

RESPONSIBLE FOR ANY INCIDENTAL,

SPECIAL OR CONSEQUENTIAL DAMAGES

RESULTING FROM THE USE OF THIS

PRODUCT. ALL IMPLIED WARRANTIES,

INCLUDING BUT NOT LIMITED TO

IMPLIED WARRANTIES OF FITNESS

AND MERCHANTABILITY, ARE LIMITED

IN DURATION TO TWO YEARS FROM DATE OF ORIGINAL PURCHASE. This warranty gives you specific legal rights and you may also have other rights which vary from state to state or province to province. Some states do not allow the exclusion or limitation of incidental, special or consequential damages. Spectrum Brands, Inc. Money-back Offer If within 30 days after you have purchased your Remington® branded product, you are not satisfied and would like a refund, return it with the sales slip indicating purchase price and date of purchase to the retailer from whom it was purchased. Spectrum Brands, Inc. will reimburse all retailers who accept the product within 30 days from the date of purchase. If you have any questions concerning the money-back guarantee, please call 800-736-4648 in the US or 800-268-0425 in Canada. 120 VAC 60 Hz Questions or comments: Call 800-736-4648 in the US or 800-268-0425 in Canada. or visit www.remington-products.com Dist. by: Spectrum Brands, Inc., Madison, WI 53711 Dist. by: Rayovac Canada Inc., Mississauga, ON L4W 2T7 REMINGTON and PRECISIONPRO are trademarks of ROVCAL, INC. ©2005 ROVCAL, INC. 07/05 Job# CS27508 T2207874

MADE IN CHINA

T2207874 07/05 Travail n° CS27508 Imp./Dist. by/par: Spectrum Brands, Inc., Madison, WI 53711 Imp./Dist. by/par: Rayovac Canada Inc., Mississauga, ON L4W 2T7

FABRIQUÉ EN CHINE
