Product Type	DVD Player
Brand	SSL
Model	DD761BW
Disc Compatibility	DVD, DVD±R/RW, CD, CD-R/RW
Video Output	Composite Video, HDMI
Audio Output	Stereo Analog Audio, Coaxial Digital Output
Playback Features	Fast Forward/Reverse, Slow Motion, Zoom, Program Play
Supported File Formats	MP3, JPEG
Power Supply	AC 100-240V, 50/60Hz
Power Consumption	10W (typical)
Dimensions (W x H x D)	430 x 45 x 260 mm
Weight	1.8 kg
Remote Control	Included
USB Port	Yes, for Multimedia Playback
Care and Cleaning	Use a soft dry cloth; avoid liquid solvents
Safety Warning	Keep away from moisture and heat; do not open the casing
Ventilation	Ensure at least 10 cm of clearance on all sides
Repairability	Contact qualified service personnel; no user-serviceable parts inside
Additional Features	PAL/NTSC compatible, multiple language menus
Accessories Included	Remote control, composite AV cable, user manual

Frequently Asked Questions - DD761BW SSL

How do I connect the DVD player to my TV?

Use the included composite AV cable or an HDMI cable (if available) to connect the player's output to the corresponding input on your TV. Then select the correct AV channel on your TV to see the player's menu.

Why does the player not recognize my DVD?

Check that the disc is inserted with the label facing up and is not damaged. Ensure the disc is a compatible format (DVD, DVD±R/RW, CD) and that the region code matches your device. Clean the disc gently with a soft cloth.

Can I play MP3 files on this DVD player?

Yes, this device supports playback of MP3 and JPEG files from CD-R/RW discs and USB flash drives. Burn these files in a standard format for reliable playback.

How should I clean the DVD player's lens?

Use a cotton swab lightly moistened with a lens-cleaning solution to gently wipe the lens. Alternatively, use a dedicated lens-cleaning disc. Do not apply excessive pressure.

The remote control is not working. What can I do?

First, replace the batteries with new ones and ensure the remote is pointed directly at the player's sensor. Check for any obstructions and try to reset the player by unplugging it for a few minutes.

Does the DD761BW have a USB port?

Yes, the player includes a USB port on the front or rear panel. You can connect a USB flash drive to play media files such as MP3 and JPEG.

How do I reset the DVD player to factory settings?

You can usually reset the player by pressing and holding the Power button on the unit for about 10 seconds. If that does not work, unplug the power cord for 10 minutes and reconnect it.

What disc formats are supported?

The player supports DVD, DVD±R/RW, CD, and CD-R/RW. It does not support Blu-ray discs or HD-DVDs.

Are the necessary cables included?

The package includes a composite AV cable (yellow, white, red) and a remote control. An HDMI cable is not included and must be purchased separately if desired.

Is the player compatible with both PAL and NTSC systems?

Yes, the SSL DD761BW is multi-system and can play discs in both PAL and NTSC formats. The TV output format can usually be adjusted in the setup menu.

USER MANUAL DD761BW SSL

Unit Installation....03

Wire Connection....03

Parking Brake Connection 04

Speaker connection....05

Intro....06

Remote Control....07

Main Menu....10

Radio Operation....10

DVD Operation....11

USB /SD Operation....12

Settings Operation ....12

Bluetooth Operation....15

Aux in Operation 16

Notes of Disc....17

Troubleshooting ....18

General Specification....20

To ensure safety while driving and to comply with laws, drivers should not watch video or operate the video device while driving.

Package contains the following accessories for installation and operation of the unit.

(1) Washer, Spring Washer, M5 Nut	1		(5) Rubber Cushion	1
(2) Screw	1		(6) Screw	8
(3) Bolt 1			(7)installation bracket	1	Left
				1	Right
(4) Mounting Strap	1

Remote Control

Power Cable

Trim Ring

User Manual

1. Put the 2 brackets to the left and right side of the unit;
2. Use screws to fix the brackets to the unit.

Wire Connection

The Description of the Input/output Interface of the Rear Cabinet

Parking Brake Connection

1. In order for videos to be viewed, and to comply with federal and local laws, the parking brake wire must be connected to the power side of the parking brake switch.
2. There are 3 wires for SWC function, connect to SWC1 (white), SWC2 (Brown), GND (Black), then, you can program Steering Wheel Control function in SWC menu which in the Settings menu.

Connecting the reversing line to taillight on the car

Speaker Connection

After connecting, when you start up the reverse gear, the unit will receive the picture from car rear view camera.

Note:

• Use only with 4-8 ohm, non-chassis grounded speakers
• Always observe correct polarity
• Loudspeaker cables and/or optional external power amplifiers must always be about 30cm away from the antenna and/or antenna extension parts.

Connect the speakers according the following diagram, incorrect connections will damage the unit or your loudspeakers.

Correct connection

Left front - Right front | Left rear - Right rear

Incorrect connections

Intro

1. IR Sensor

IR Remote control signal receiving window. Max distance is 6-8 meters, 45 angels.

2. EJECT Button

Press to eject a disc. If the disc is not removed for about 10 seconds after eject, the disc is reinserted automatically.

3. DISC Slot

4. Info Display

LCD display Information when operation the unit

5. MIC

6. MODE BUTTON

Press mode button to change mode.

7. MENU BUTTON

Press it back to main menu

8. POWER / MUTE Button / VOL

Press it to turn on the unit. Press and hold for 2 seconds to turn the unit off .Press the button. briefly to mute .Please notes that the volume will be muted on all audio output connector.

Press VOL knob to power on unit, and Press and hold for 2 seconds to turn the unit off Rotate VOL knob to increase or reduce the volume.

9. USB

USB slot for Multimedia playback files only. insert a USB into this slot and the unit will automatically start reading and playback. * Supported Music File Format: MP3, WMA files.

Put the Aux plug into the AUX-IN jack which was marked on front panel.

10. SD CARD

11. AUX-IN JACK

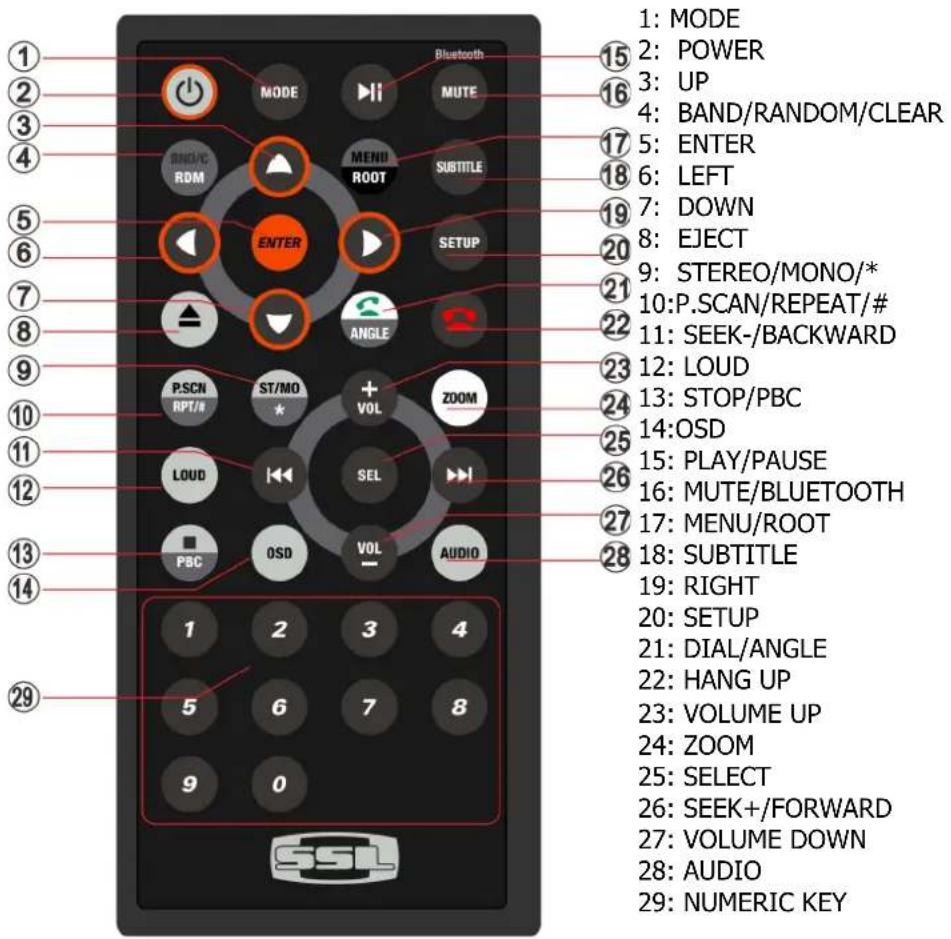

1. MODE button

Press it to select the mode: radio, disc (if there is a disc in unit), USB (if there is a USB device in the unit), SD (if there is a SD/MMC card in the unit), Bluetooth, AUX IN

2. POWER button

Power on or power off.

3. UP button

Press it to move the cursor up.

4. BAND/RDM/CLEAR button

In radio mode, press to change radio band in sequence of FM1 → FM2 → FM3 → AW1 → AW2; In DVD mode, press to play randomly; In Bluetooth mode, short press it to clear the single phone number; long press it to clear all the phone number.

5: ENTER

Press it to confirm your selection

6. LEFT button

Press it to move the cursor left

7. DOWN button

Press it to move the cursor d

8. EJECT button

Press it to eject the disc.

9. STEREO/MONO/* button

Press to switch the radio in stereo and mono sound. In Bluetooth mode, press it to make a symbol.

10. P.SCN/ RPT /# button

In DVD mode, press to repeat REP 1 => REP Title => REP ALL.

In SD /USB mode, press to repeat REP 1 => REP Dir => REP ALL.

In radio mode, PS (preset scan): Press to scan all preset stations in the memory of the current band and stay on each memory stations for about 5 seconds.

AS (Auto Save), long press to save the stations with good reception automatically.

In bluetooth mode, press it to make a # symbol.

11. SEEK-button

In DVD mode, press ▶button to skip to the previous track, press and hold button for two seconds to activate fast reverse (REW) search in a track.

In radio mode, press and hold button to select station backward automatically, touch again will stop select station. button frequency down.

12. LOUD

Press to select loudness on or off.

13. STOP/PBC button

Press to stop playback from the current position, press again to final stop from the beginning. Press play/pause button to play.

14. OSD button

In DVD mode press to show disc playing information.

15. PLAY/PAUSE button

In DVD/USB/SD mode, press it to break playback, press again to resume playback.

16. Mute button/Bluetooth button

X : Short press to mute the volume output, press again to resume volume.

Long press this button to enter into Bluetooth mode (Hands free).

17. MENU/ROOT button

Press it to show main menu, in DVD mode, long press it to enter title menu (Available only if the DVD disc with title menu).

18. SUBTITLE button

Press it to select the subtitle language (Available only if the disc with subtitle function).

19. RIGHT button

Press it to move cursor right.

20. SETUP button

In DVD mode press it to enter the setup menu, press again to resume playback.

21. Dial button/ANGLE Button

In DVD mode, press it repeatedly to change the viewing angle (Available only with a recorded DVD file or DVD disc has this function).

In Bluetooth mode, press to make a call after inputted a phone number or accept an incoming call.

22. HANG UP button

In Bluetooth mode, press to reject a coming call or hang up while calling.

23. VOLUME UP button

Press to increase volume level.

24. ZOOM button

In DVD mode Press to zoom the image in or out in the sequence of zoom 2-> zoom 3-> zoom4-> zoom 5-> zoom 1/2-> zoom 1/3-> zoom 1/4-> zoom off.

25. SELECT button

Press it to enter the EQ setting menu, and press cursor up/down button to choose an item and press cursor left/right buttons to set the item, press select button again to exit the menu.

26. ▶/ SEEK + buttons

In DVD mode, press ▶ button to skip to the next track, press and hold button for two seconds to activate fast forward (FF) search in a track.

In radio mode, press and hold ▶button to select station forward automatically, touch again will stop select station. ▶button frequency up.

27. VOLUME DOWN button

Press to decrease volume level.

28. AUDIO

In DVD mode press it to select the audio language.

29. NUMERIC KEY

In radio mode, select 1-6 the desired band; In DVD mode, select track.

In Bluetooth mode, press to input phone number , long press 0 number to make a + symbol.

Note:

■ The distance may vary according to the brightness of ambient light.
If the remote is not used for an extended period of time, remove the battery to prevent possible damage from battery leakage and corrosion.
■ Do not place any objects between the remote control unit and the sensor on the unit.
■ Do not drop the remote control onto the floor; it will damage it beyond repair.
■ Do not use the remote control unit, while simultaneously operating the remote control unit of any other equipment; they may interfere resulting in improper operation.
The battery normally last for about one year although depending how often the remote control is used. If the remote control unit isn't working even when it is operated near the unit, replace the battery with a new battery of the same make and use only a lithium cell battery type: CR2025 (3V).
■ Dispose empty batteries in accordance with your local governmental regulations.
■ Do not short-circuit, disassemble, heat or dispose of fire or flames the battery.
- Keep the battery out of reach of children, should the battery be swallowed, immediately consult a doctor.

Main Menu

The best way to discover the program is to explore each screen in detail, and to find out how to move from one to another. Read this chapter for a guided tour.

Unit starts by displaying the main menu.

This is the root of the screen hierarchy, and you can simply access all features by tapping on the touch screen buttons.

Tap the icons to enter a desired mode. Slip the screen left and right to switch between the 2 menu pages.

Page1

page 2

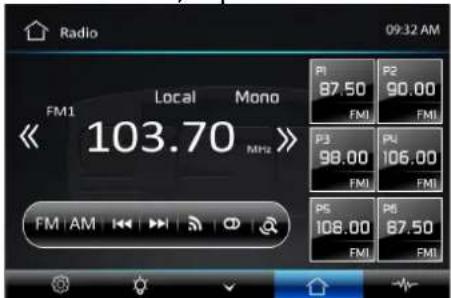

Radio Operation

To start radio, tap radio button on main menu screen.

Touch it to select station backward manually, touch and hold this icon to select station backward automatically.

Touch it to select station forward manually, touch and hold this icon to select station. forward automatically.

Touch it to select FM1—>FM2—>FM3.

Touch it to select AM1—>AM2.

Touch it to select station forward automatically. Touch again will stop select station.

Touch it to select station backward automatically. Touch again will stop select station.

Touch this button can turn on or turn off Local function.

Touch this button to select mono sound reception.

Touch this button can scan the stations from 1-6, Long Touch it to save the stations with good reception automatically and scan each station for about 5 seconds.

Touch this button go to setting mode.

Touch this button to adjust the brightness of TFT panel.

Touch this button to return to main menu.

Touch button go to EQ setting.

DVD Player

To start DVD player, tap on DVD button from main menu screen.

Touch Screen Menu

You will not see any buttons while DVD is played, buttons will appear when you tap on TFT screen. Tap the screen again to hide the buttons, slide the subtitle part of bottom screen to switch the following 2 pages.

Note:

1. DVD player will automatically start playing when you insert the DVD disc.
2. Suggest that don't watch video if the vehicle is moving for driver's safety.
3. DVD Player will not only play video, but picture and music files as well.

h it to enter to previous/next page menu.

Touch it skip to the previous track

Touch it to pause/play

Touch it skip to the next track

Touch it to select the sound track in the sequence of mono L => mono R => auto L => auto R => stereo.

Touch it choose brightness

Zoom the image in or out in the sequence of ×2×3×4×5×1/2× 1/3 ×1/4

In DVD mode, touches it chooses Repeat 1 => repeat title => repeat all. In VCD mode, touch it can choose REP 1 => REP DIR => REP ALL

Touch it to turn on / off random playback.

Touch it go to EQ mode

Select the subtitle language

Touch it setting the display brightness of TFT panel.

Touch it go to setting

Press it to select title (only the file has many files)

Press it to select file

In VCD mode touch it can choose PBC ON or OFF

When a file of USB or SD card is played (music, video, photo), the screen will show following interface:

Press it to repeat REP 1 => REP DIR => REP ALL

Press it to skip to the previous track.

Play/pause button. Press it to break the track, press again to resume playback.

Press it to skip to the next track.

0029 Press it to select file

Press it to select title (only the file has many files)

Press it to play track randomly

Rotate the image in the sequence of ×90×180×270

Zoom the image in or out in the sequence of

Change the image playback direction

Settings Operation

Setting Control

Your device has default system setting, you can customize the settings to suit your personal needs. Once you change settings, your new settings will remain until you change it again. To start setting, tap it on main menu.

General Control

OSD Language : select English

Wallpaper :select and change the wallpaper setting

Panel Adjust :calibrate the touch panel

Radio Area :select radio area, from Europe— USA— South America—Russian— Asia

Clock & Calendar :setting the clock and date

SWC : program Steering Wheel Control

Key Beep :set beep sound on or off

Standby Display :set standby display on or off

Version : just show you the firmware version

Restore Default

Tap Wallpaper button to setup wallpaper

Tap Panel Adjust button to setup panel touch

Tap center of the + and hold at least 2S, after tap five point, then it will show OK in the picture. and press OK exit calibration mode.

Tap time setting button to setup time

Tap SWC item to program SW

1) First check whether the car has steering wheel button.
2) The steering wheel and the unit must be connected on the line.
3) While holding down the button on the steering wheel and the corresponding button on the SWC interface it will display complete setting. When all the buttons on the steering wheel and the corresponding button on the SWC interface complete setting, you can use the steering wheel button to operation the unit, such as in radio mode, press ◀ button or ▶ button to search station backward or forward; In DVD mode, press ◀ button or ▶ button to select the previous or next track and activate fast reverse (REW) search or fast forward in a track, press VOL+ button or VOL - button to adjust the volume.

Note:

1. The "Enter" button and the "reset" button are not included in steering wheel, press the "enter" button to confirm the select, press the "reset" button to clear the former select.
2. The restriction of use SWC is the voltage between the adjacent buttons are above 0.2V that can be identified.

DVD Setup Menu

Audio Language : select desired language

Subtitle Language :select desired language

Menu Language :select desired language

Password

Rating

[1].Subtitle Lang setting:

With this option you can select the preferred language for the subtitles. When the selected language is recorded on the disc then this language will automatically be shown. If not, the first language recorded on the disc is displayed.

[2].Audio Lang setting:

With this option you can select the preferred language for the audio output. When the selected language is recorded on the disc (not all discs have multiple languages recorded) then this language

will automatically be played. If not, the first language recorded on the disc is played.

[3]. DVD Menu Lang setting:

With this option you can select the preferred language for the disc menu. When the selected language is recorded on the disc then this language will automatically be selected. If not, the first language recorded on the disc is displayed.

Sound Control

Sound Effect

Subwoofer

Loudness : select on/off

Loud Cut off Freq:

Tap Sound Effect button to show following interface

EQ : select User —Classic—Rock—Pop—Jazz—Electric—Flat

Reset

Rspect ratio : select 4:3PS/4:3LB /16:9

Adjust : adjust screen brightness /contrast/Hue/Saturation/Sharpness

Panel : setting backlight time

TV Type

Set TFT screen mode to the correct ratio:

Three screen ratio modes are available, Normal/PS (4:3 Pan Scan) and Normal/LB (4:3 Letterbox). Different disc formats will display different images depending this setting and the screen size used.

Note: additional wide 16:9 only for DVD player.

Bluetooth section

Auto connect: select on/off

Auto answer : select on/off

Subwoofer

Connect the subwoofer to the unit using sub output (see electrical diagram), tap menu on screen enter into main menu setting choose setting menu., choose sound and set subwoofer on to enable subwoofer.

Parking

When the car is stopped and the parking brake is working, the screen can display the video image, otherwise the screen can't display the video image.

Back View Camera

This unit is equipped with back view camera output. The camera is used to observe the situation behind the vehicle when you are backing the car.

Please connect your back view camera with the back car video input. And connect the reverse wire for back a car with the rear gear light. Rear view camera picture will be enabled when you are backing the car.

Bluetooth Operation

Warning: Driving and having a telephone conversation at the same time is dangerous, please park your car before having a telephone conversation. The supplier waves any and all liability when this warning is not followed.

To enter bluetooth mode, you can tap bluetooth icon on main menu or long press the mute/bluetooth

button on the remote control or press mode button on remote.

Tap calling button to use phone functions.

Tap music button to start bluetooth music player.

Pairing Mode

At the 1st time when using bluetooth, you need to pair the mobile phone first.

When a phone has not been paired with the unit, the BT icon and pairing mark will blink continually on the panel.

When the unit have connect with phone, the BT icon will turn on and the mobile phone name (if available) will be displayed on the panel.

According to mobile pairing device manual, after searching new device (BT friendly name: SSL DD661B) select it, input password "0000" and confirm ok, device paring is finished.

The phone name will available on the panel after the pairing is completed. It means device is connected and ready for bluetooth communication.

Auto-connect - Disconnect

When power on the unit, the last paired phone will be connected to the device via Bluetooth

automatically, it can keep five phone names in the unit. Tap will delete from the first paired phone. if you want to disconnect the bluetooth connection, turn off the mobile phone Bluetooth function or tap the phone name in the list, and tap phone name again it will be connected again.

Calling Button

Tap on calling button to enter call mode.

In call mode, the unit can be used as your phone, making and receiving calls are possible with

bluetooth, simply tap phone number and tap button to make a call, and tap button to

hang up.

1) Tap clear button shortly to delete a wrong digit, tap the clear button or press RDM/C button on remote for 3-4 seconds to delete all the numbers at once.

2) Tap the button for 3-4 seconds, the device automatically makes a call to the latest call in its call log.
3) The volume will be operated separately while calling.

Voice Transfer

During a call, you can change a call from bluetooth mode to

phone by tapping transfer button, to have a call in bluetooth mode again, tap trans button.

Note: the phonebook only supports western characters, any difference in character will be shown such as "+,* or #".

(A2DP) Music Mode

Tap music button to listen music in bluetooth mode.

Tap the button for 'music' in bluetooth main menu.

You can select the function with the key for previous, play / pause, stop, and next.

A2DP (Advanced Audio Distribution Profile) Music Player

A2DP is a function which can receive the audio frequency signal from the mobile phone, amplified by the car audio and played out by the car speakers.

Notice: your mobile phone need to support A2DP.

Tap the buttons on the screen as shown, or press corresponding buttons (pause/play, stop, previous/next) on remote control to play, pause, play previous, or next music file.

Aux in

AUX-IN MODE

To start AUX-IN Mode, tap AUX-IN icon from main menu screen. connect the external audio signal source to this unit will display "NOW PLAYING".

Note: Aux-in not support video display. So, there is "NO SINGAL DETECTED" displayed if no audio signal input. Press the Icon to be back to main menu.

Use only with 4-8 ohm, non-chassis grounded speakers
✧ Always observe correct polarity
✿ Loudspeaker cables and/or optional external power amplifiers must always be about 30cm. away from the antenna and/or antenna extension parts.
If want to display for 6.2" TFT, parking wire must be connected to ground.

Handling discs

Handling

When holding With both hands

When holding with one hand

• Do not use damaged (cracked or warped) discs.
• Do not scratch the signal surface or let it get dirty.
• Do not attach paper or seals to discs. The player may be damaged if there is any exposed glue, etc., On discs. For rental discs in particular, extra labels are often attached to the discs. Check carefully for any exposed glue before using such discs.

Cleaning discs

● Fingerprints or dust on discs may reduce sound or picture quality. Remove them by gently wiping the disc from the center toward the edges using a soft cloth.

• Do not use benzene, thinner or other volatile chemicals.
  Do not use record spray or antistatic spray either.
• We recommend using the separately sold cleaning set to clean discs.
• For tough dirt, apply some water to a soft cloth, wring out thoroughly wipe off the dirt, then wipe the disc with a dry cloth.

Irregular shaped discs Irregular shaped discs(heart-shaped discs, hexagonal discs, etc.)Cannot be played on this playeDoing so could damage the player. Never use such discs.

Storing discs

● Always place discs in their case and store them vertically.

Avoid storing discs in hot or humid places, places exposed to direct sunlight and places in which the temperature is extremely low.

- Read any cautions included with the discs carefully.

Troubleshooting

	Symptom	Cause	Remedy
General	Power does not turn on(No sound is produced)	Fuse is blown	Replace with fuse of the same amperage. If the fuse blows again, consult your store of purchase
		In correct wiring Consult your local retailer
	No sound output when operating the unit with amplifiers or power antenna attached	Power antennal lead is shorted to ground, excessive current is required or remote on the amplifiers or power antenna	1. Turn off the unit2. Remove all wires attached to the power antenna lead, check each wire for a possible short to ground using an ohm meter3. Turn on the unit4. Reconnect each amplifier remote wire to the power antenna lead one by one. If the amplifiers turn off before all wires are attached, use an external replay to provide remote-on voltage (excessive current required)
	Nothing happens when buttons are pressedDisplay is not Accurate	Unit needs to be Reset	Using a pen or toothpick, press and release the Reset button.
		Panel or main unitConnectors are dirty	Wipe the dirt off with a soft cloth moistened with cleaning alcohol
CD	Sound is bad directly after power is turned on	Compact disc is dirty Clean the compact disc without scratches
		Compact disc is heavily scratched or warped	Replace with a compact disc without scratches
	Sound is bad directly after power is turned on	Water droplets may form on the internal lens when the car is parked in a humid place	Let it dry for about 1 hour with the power on

Troubleshooting

symptom Cause Solution
No power	The car ignition is not on	If the power supply is properly connected to the car accessory switch the ignition key to "ACC"
	The fuse is blown Replace the fuse
Disc cannot be loaded	Presence of disc inside the player	Remove the disc in the player then put a new upward
Disc cannot be read	Inserting the disc in upside down	Insert the compact disc with the label facing upward
	Compact disc is extremely dirty or defective	Clean the disc or try to play a new one
	Temperature inside the car is too high	Cool off until the ambient temperature returns to normal
No sound	Volume is in minimum Adjust volume to a desired level
	Wiring is not properly connected	Check wiring connection
The operation keys do not work	The built-in microcomputer is not operating properly due to noise	Press the power button for about 10 seconds to reset the unit
	Front panel is not properly fix into its place
Sound skips	The installation angle is more than 30 degrees	Adjust the installation angle to less than 30 degrees
	The disc is extremely dirty or defective	Clean the compact disc/try to play a new one
The radio does not work, the radio station automatic selection does not work	The antenna cable is not connected the signals are too weak	Insert the antenna cable firmly select a station manually

General Specification

General
Power supply	11~16V DC
Current consumption	Max. 10 A
Maximum power output	80W x 4 channels (max)
Compatible formats	DVD/SVCD/VCD/HDCD/MP3/MP4/VIDEO/CDDA/PICTURE CD/CD-R/-RW/DVD±R/±RW PLAYBACK
Dimensions (W x D x H) / weight	65*70*39 inch /46 Pounds
Working temperature range	-20°C - +60°C
ESP function	10 sec. for Audio CD, 120 sec. for MP3
TFT display
Screen size	6.2 inch
Resolution	800*480 pixel
Aspect ration	4:3/16:9
Brightness	460 cd/m2
Contrast ratio	500:1
FM radio
Frequency range(Europe area)	FM:87.5 –108MHz(Step 50KHz)
Frequency range(America area)	FM:87.5 –107.9MHz(Step 200KHz)
Frequency range(Asia area)	FM:87.5 –108MHz(Step 100KHz)
Frequency range(South America area)	FM:87.5 –108MHz(Step 100KHz)
Frequency range(Russia area)	FM:87.5 –108MHz(Step 50KHz) 65-74MHz(Step 30KHz)
Preset memory stations	18
AM(MW)radio
Frequency range(Europe area)	AM:522-1620(Step 9KHz)
Frequency range(America area)	AM:530-1710(Step 10KHz)
Frequency range(Asia area)	AM:531-1602(Step 9KHz)
Frequency range(South America area)	AM:520-1710(Step 10KHz)
Frequency range(Russia area)	AM:522-1620(Step 9KHz)
Preset memory stations	12
Audio specification
Frequency response	20 Hz-20 KHz
TV Color System	Color system NTSC/PAL
USB interface
USB type	USB 2.0 full speed
Support format	mp3 , wma, mpeg1, mpeg2, avi

Specifications are subject to change without notice, mass and dimension are approximate.
