Product Type	Video projector
Brand	Epson
Model	PowerLite 53c
Display Technology	3LCD
Brightness	2000 ANSI lumens
Native Resolution	1024 x 768 (XGA)
Contrast Ratio	400:1
Aspect Ratio	4:3
Lamp Power	200 W UHE
Lamp Life	Up to 2000 hours
Zoom	1.2x manual zoom
Keystone Correction	Vertical: -30 to +30 degrees
Speakers	Built-in 5 W monaural
Weight	3.2 kg (7.1 lb)
Dimensions (W x D x H)	336 x 265 x 96 mm
Power Supply	100-240 V AC, 50/60 Hz
Power Consumption	260 W
Connectivity	VGA, S-Video, composite video, audio in
Security	Kensington lock slot
Maintenance	Clean air filter and lens regularly
Repairability	User-replaceable lamp

Frequently Asked Questions - PowerLite 53c EPSON

What is the native resolution of the Epson PowerLite 53c?

The native resolution of the Epson PowerLite 53c is 1024 x 768 pixels (XGA), providing clear and sharp images for presentations and videos.

How do I connect my laptop to the projector?

To connect your laptop, use a VGA cable to link the projector's VGA input to your laptop's external display port. Then select the correct input source via the projector's remote control or control panel.

How often should I replace the projector lamp?

The lamp life is rated up to 2000 hours. When the image becomes dim or the lamp indicator flashes, check the actual usage time and consider replacing the lamp with an Epson recommended replacement lamp.

How can I clean the projector lens?

To clean the lens, turn off the projector and wait for it to cool. Use a soft, dry cloth or a lens cleaning brush to gently wipe the lens surface. Avoid using liquids or harsh chemicals.

Does the projector have built-in speakers?

Yes, the projector has a built-in 5-watt monaural speaker that allows you to play audio from the connected source without external speakers for smaller venues.

How do I set up the projector for a presentation?

Place the projector on a stable, flat surface facing the screen. Connect your video and audio sources, adjust the zoom and focus rings, and use keystone correction to square the image. Then select the correct input on the projector.

What should I do if the projector overheats?

If the projector overheats, turn it off immediately and unplug it. Check that the air vents and filter are not blocked or dusty. Clean the air filter if needed, and ensure there is sufficient ventilation around the projector.

Can I mount the projector on the ceiling?

Yes, the projector is compatible with ceiling mounting using an optional ceiling mount kit. When installing, ensure the mounting surface is secure and follow the manufacturer's instructions for proper ventilation and orientation.

How do I adjust the image size and focus?

Use the zoom lever on the projector to adjust the image size, and turn the focus ring to sharpen the image. If the image is not square, use the keystone correction buttons to adjust the vertical appearance.

What is the warranty coverage for the projector?

The Epson PowerLite 53c typically comes with a limited warranty covering parts and labor for two years, and includes a 90-day lamp warranty. Refer to your specific warranty document or contact Epson support for full details.

USER MANUAL PowerLite 53c EPSON

START HERE Connect the projector to your laptop

For most setups, you'll need just these two cables:

Power cord

Computer cable

1 Make sure your projector and laptop are turned off.

2 Connect one end of the computer cable to the Computer/Component Video port on the projector.

Follow these instructions to connect the projector to your laptop. To connect other devices, such as a VCR, DVD, or desktop PC, see your User's Guide.

3 Connect the other end to your laptop's video or monitor port. If you can't connect the cable to your PowerBook, you may need to use an adapter. See your User's Guide for instructions.

Turn on your equipment

1 Remove the lens cover.

2 Connect the power cord to your projector and plug the other end into an electrical outlet.

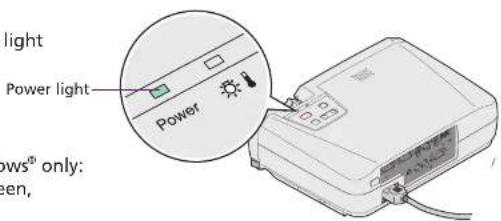

3 Press the ⏻Power button. The Power light flashes green, and then stays on.

4 Turn on or restart your laptop. (Windows® only: If you see this Add New Hardware screen, click Cancel.)

Caution: Before unplugging the projector...

To shut the projector down properly:

1. Press the ⏻ Power button twice. Let the projector cool while the Power light flashes orange (about 45 seconds).

2. Once the light stops flashing and stays on, it's safe to unplug the projector.

Never unplug the projector when the Power light is green or flashing orange.

Adjust the image

1 Rotate the focus ring to sharpen the image.

Note: If you see a blank screen, see the instructions to the right.

2 Rotate the zoom ring to reduce or enlarge the image. Turn to W (wide) to enlarge or T (tele) to reduce. (You can also move the projector closer to or farther from the screen.)

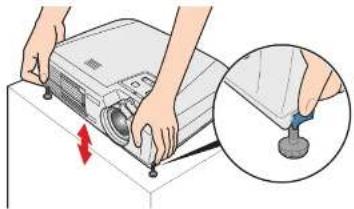

3 To raise the image, press the foot release levers inward and lift the front of the projector. Once the image is positioned where you want it, release the levers to lock the feet in position.

4 If your image looks like □ or □, you've placed the projector off to one side of the screen, at an angle. Move it directly in front of the center of the screen, facing the screen squarely.
5 If your image looks like □ or □, the Auto Keystone correction feature has been disabled. You can manually adjust the keystone correction value by pressing the □ or □ side of the Keystone button on the projector. Or, to re-enable Auto Keystone correction, refer to your User's Guide.

Where to get help

Telephone Support Services

To use the EPSON PrivateLine® Support service, call [phone] and enter the PIN on the EPSON PrivateLine Support card included in your owner's kit. This service is available 6 AM to 6 PM, Pacific Time, Monday through Friday, for the duration of your warranty period. You may also speak with a projector support specialist by dialing one of these numbers:

U.S.: [phone], 6 AM to 6 PM, Pacific Time, Monday through Friday

Canada: [phone], 6 AM to 6 PM, Pacific Time, Monday through Friday

Toll or long distance charges may apply.

Electronic Support Services

EPSON provides technical assistance through electronic support services 24 hours a day at http://support.epson.com. For tips, templates, and training for developing successful presentations go to http://www.presentersonline.com.

If you see a blank screen

If you see a blank screen or the No signal message after turning on your laptop, check the following:

• Make sure the Power light on the projector is green and not flashing and the lens cover is off.

- Try turning off the laptop and restarting it.

- If you've connected more than one computer and/or video source, you may need to press the Source button on top of the projector. (Allow a few seconds for the projector to sync up after pressing it.)

If you're using a Windows laptop:

- Hold down the Fn key and press the function key that lets you display on an external monitor. It may have an icon such as □□, or it may be labelled CRT/LCD. Allow a few seconds for the projector to sync up after pressing it.

On most systems, the △□ or CRT/LCD key lets you toggle between the LCD screen and the projector, or display on both at the same time.

- You might need to use the Display utility in the Control Panel to enable both the LCD screen and external monitor port. Check your laptop's manual or online help for details.

If you're using a Macintosh® PowerBook®:

OS 9.x or earlier:

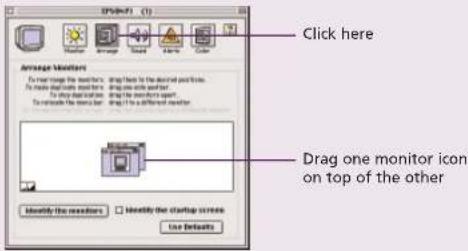

1. From the Apple ^® menu, select Control Panels, then click Monitors or Monitors and Sound.

2. Click Arrange.

1. Drag one monitor icon on top of the other. This lets you display on the projector screen as well as the LCD screen.

If the Arrange option isn't available, you may need to select one of the Simulscan resolution settings. See your User's Guide for instructions.

OS X:

1. From the Apple menu, select System Preferences, then click Displays.
2. Select VGA Display or Color LCD, click Arrange or Arrangement, and click Mirror Displays.
