USER MANUAL SDA1806 DAEWOO

DAEWOO®

ELECTRIC KNIFE

with twin durable blades

Important Safeguards

When using electrical appliances, basic safety precautions should always be followed. These instructions should be saved for future reference:

• Read and familiarise yourself with all operating instructions before using this carving knife.
• Before plugging your unit into the mains, visually check that the unit is intact and has not suffered any transit damage.
• Do not use this carving knife with an extension cable.
• Check that the voltage indicated on the data plate corresponds with that of the local network before connecting the appliance to the mains power supply.
• Close supervision is required when using this appliance near children.
• Never leave this appliance within reach of children. Keep the appliance and its cord out of reach of children.
• This appliance shall not be used by children.
• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have given supervision or instruction concerning use of the appliance in asafeway and understand the hazards involved.
  • Children shall not play with the appliance.
• Children less than 3 years should be kept away unless continuously supervised.
• Do not immerse the appliance or its cord in water or any other liquids.
• Do not leave the appliance unattended during use.
• Do not leave the appliance unattended whilst connected to the mains supply.
• Always use this appliance on a solid, level, non-flammable surface.
• Do not use this appliance outdoors.
• It is imperative to unplug the power cord after the appliance has been used, before it is cleaned and whilst being repaired.
  • Repairs to electrical appliances should only be performed

by a qualified electrician. Improper repairs may place user at serious risk.

- Do not operate this appliance with a damaged plug or cord, after a malfunction or after being dropped or damaged in any way.

- Regular, periodic checks should be carried out on the power cord to ensure no damage is evident. Should there be any signs of damage the appliance should not be used.

- If the power cord is damaged, it should only be replaced by the manufacturer or a suitable qualified after-sales-service in order to avoid a hazard.

- Do not allow the power cord to hang over sharp edges or come in contact with hot surfaces.

- Allow the unit to cool before storage.

- Always disconnect the carving knife from the supply if it is left unattended and before assembling, disassembling or cleaning.

- This appliance is intended for household use only and should not be used for industrial purposes.

- Do not use any accessories or attachments with this appliance other than those supplied or recommended by the supplier.

- Do not use this appliance for anything other than its intended use.

- Do not push objects into any openings as damage to the appliance and/or electric shock may occur.

- Switch off the appliance and disconnect from the supply before changing accessories or approaching parts that move in use.

- Grasp the plug, not the cord.

- Do not touch the blades whilst the carving knife is connected to the mains.

- Wash the blades in warm soapy water, rinse and dry thoroughly.

- CAUTION: the blades on this carving knife are very sharp; extreme caution should be taken when cleaning.

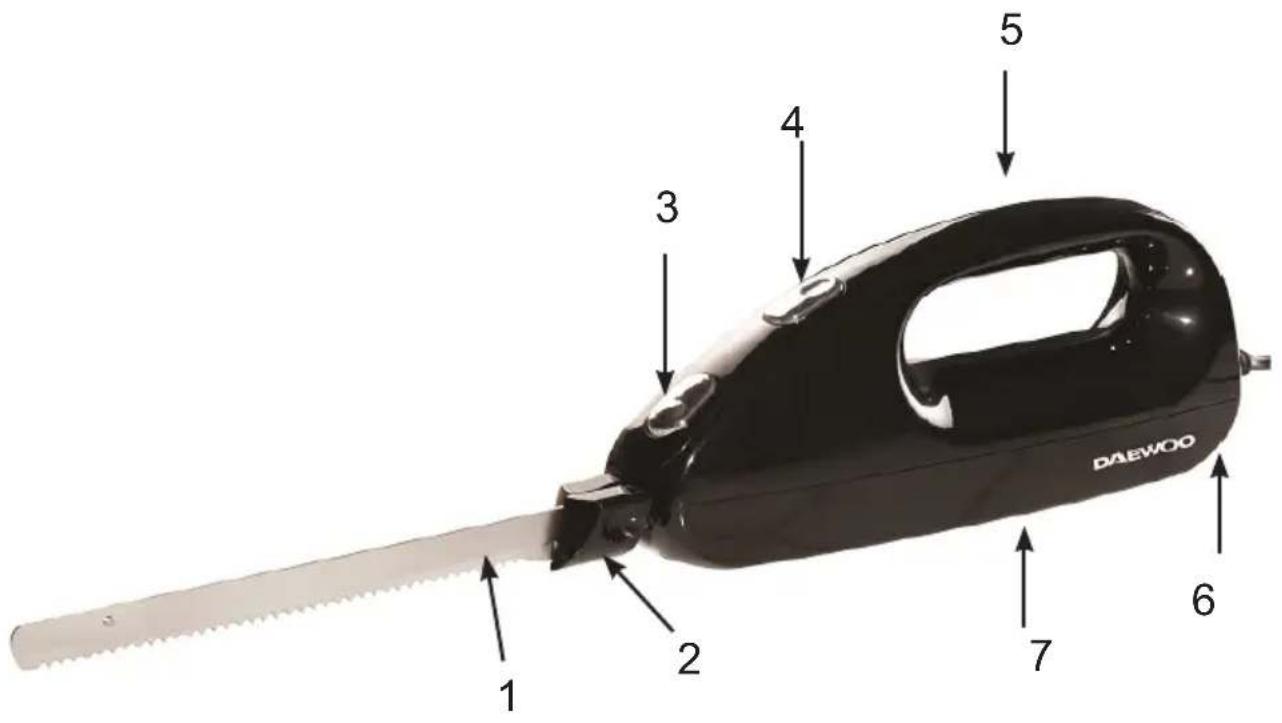

Description of parts

1. Blades
2. Blade Grip
3. Eject Button
4. On/off Button

1. Handle
2. Ventilation slots
3. Housing unit

Before first use

• Remove all the packaging (retain the blade protective cover)
• Wash the blades in warm soapy water, rinse and dry thoroughly.
• Retain the packaging for storage of your electric knife.

Using your electric carving knife

Warning: Do not plug into the mains supply before the blades are inserted. Do not use with wet hands.

Inserting the blades

1. When holding the blades, make sure that the palm of your hand is on the dull side of the blades and your fingers are away from the sharp edges. 2

2. Place both blades parallel to each other with the metal pin facing in. Holding the blade grips (2) lock the blades together.

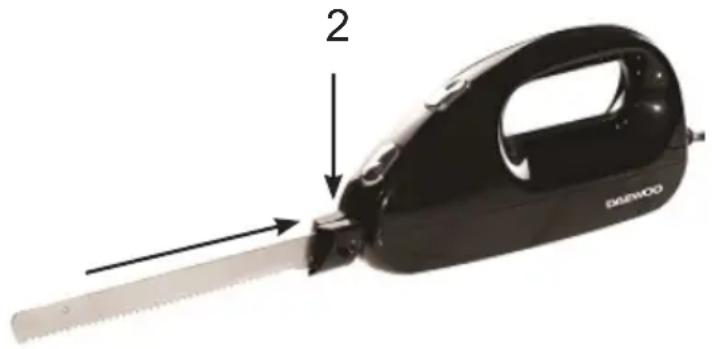

1. Grip both blades together at the blade grip (2) and glide into the the housing unit.
2. Test the blades are secure by gently pulling in the reverse direction as if you are trying to remove the blades. To avoid injury it is recommended to have the blade protection cover in place while doing this.
3. The electric carving knife is now ready to use.

Operating the carving knife

1. To use the carving knife, press the Ⓗ button (4) with your thumb.
2. To cut food, simply guide the blades through the food. It is not necessary to move the knife back and forth as the double cutting action of the two blades will slice slice through food quickly and easily.
3. To stop cutting, release your thumb from the ⊕ button (4), the carving knife will automatically stop.

Note: This carving knife is not suitable for cutting through bones as this will dull the blade.

Do not continuously operate the carving for too long as the motor may over heat. Let the knife rest for 30 seconds after 1 minute of use.

Care and use

Removing the blades

1. Unplug the the carving knife.
2. By pressing the eject button (3), the blades will automatically be released from the housing unit.

WARNING: MAKE SURE THE APPLIANCE IS NOT CONNECTED TO THE MAINS SUPPLY BEFORE REMOVING OR REPLACING THE BLADES.

WARNING: MAKE SURE THE APPLIANCE IS NOT CONNECTED TO THE MAINS SUPPLY BEFORE REMOVING OR REPLACING THE BLADES.

1. Detach the blades from the housing unit.
2. To clean the outer surface of the housing unit, use a soft damp cloth and dry thoroughly.
3. To clean the blades, wash the blades in warm soapy water, rinse and dry thoroughly.

To store the carving knife:

• Unplug from the mains supply, clean as instructed.
• Allow the carving knife to dry thoroughly.
• Place the blade protective cover over the blades and place back in the box. Store away from children.

Technical Data

Voltage :220-240V \~ 50/60Hz

Rated power :180W

Model : SDA1806

Protection : Class II

Electrical Connections

This appliance is fitted with a fused three-pin plug to BS 1363. If the plug has to be removed, it should be cut off and carefully disposed of immediately. To avoid a possible shock hazard, do not insert the discarded plug into a mains socket.

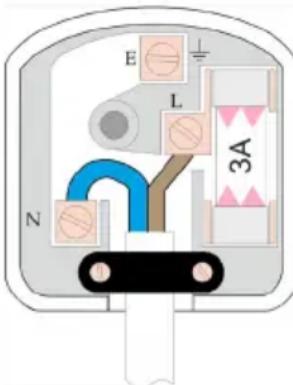

Fitting a new plug

If for any reason you need to fit a new plug, the flexible mains lead must be connected as shown below. The wires in the mains lead fitted to this appliance are coloured in accordance with the

following code:

Brown wire = Live (L)

Blue wire = Neutral (N)

Connect Blue to Neutral (N)

Connect Brown to Live (L)

Ensure the outer sheath is securely held by the cord clamp

If colours of the wires in the mains lead of this appliance do not correspond with the coloured marking identifying the terminals in your plug, proceed as follows:

The wire which is coloured Blue must be connected to the terminal which is marked with the letter N or coloured Black. The wire which is coloured Brown must be connected to the terminal which is marked with the letter L or coloured Red. Before refitting the plug cover check that there are no cut or stray strands of wire inside the plug. Use a 3 Amp BS 1362 fuse, only BSI or ASTA approved fuses should be used. If you are in any way unsure which plug or fuse to use, always refer to a qualified electrician.

DAEWOO®

GUARANTEE

This product is guaranteed for 2 years from the date of original purchase. If any defect should occur due to faulty materials or workmanship, please return it to the store it was purchase from.

You will need to have your receipt of purchase to hand. The guarantee is subject to the following provisions:

• It is only valid within boundaries of the country of purchase.
• The product must be correctly installed and operated in accordance with the instructions contained in the user manual.
  • The product must be used solely for domestic purposes.
• The guarantee will be rendered invalid if the product is re-sold or has been damaged by inexpert repair.
  • The manufacturer disclaims any liability for incidental or consequential damages.
  • The guarantee is in addition to, and does not diminish, your statutory or legal right.

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.
