USER MANUAL 42PX2RV LG

PLASMA TV OWNER'S MANUAL

Please read this manual carefully before operating your set.

Retain it for future reference.

Record model number and serial number of the set.

See the label attached on the back cover and quote this information to your dealer when you require service.

Model number :

Serial number :

Safety Instructions

- It is recommended that 42PX2RVH / 42PX3RVH / 50PX3RH model only be used at an altitude of less than 6561 feet (2000m) to get the best quality picture and sound.

LG 42PX2RV - Safety Instructions - 1

WARNING

Do not place the set in direct sunlight or near heat sources such as heat registers, stove and so on.

- This may cause a fire.

Do not use the set in damp place such as a bathroom or any place where it is likely to get wet.

- This may cause a fire or could give an electric shock.

Bend antenna cable between inside and outside building to prevent rain from flowing in.

This may cause water damaged inside the set and could give an electric shock.

Earth wire should be connected.

  • If the earth wire is not connected, there is possible a danger of electric shock caused by the current leakage.
  • If grounding methods are not possible, a separate circuit breaker should be employed and installed by a qualified electrician.

Power supplier Short-circuit breaker

- Do not connect ground to telephone wires, lightning rods or gas pipe.

Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.

Do not insert any object into the exhaust vent.

- This may cause a fire or could give an electric shock.

Do not place heavy objects on the set.

- This may cause serious injury to a child or adult.

LG 42PX2RV - Do not place heavy objects on the set. - 1

WARNING in U.K. only

* This set is supplied with a BS 1363 approved 13 amp mains plug, fused at 13 amp. When replacing the fuse always use a 13 amp BS 1362, BSI or ASTA approved type. Never use this plug with the fuse cover omitted. To obtain a replacement fuse cover contact your dealer or "LG Electronics U.K. Ltd." If the type of plug supplied is not suitable for the mains sockets in your home, then the plug should be removed and a suitable type fitted. A mains plug removed from the mains lead of this set must be destroyed. A mains plug with bared wires is hazardous if inserted in a mains socket. Do not connect either wire to the earth pin, marked with the letter E or with the earth symbol or coloured green or green and yellow. If any other plug is fitted, use a 13 amp fuse, either in the plug, or at the distribution board. The wires in this mains lead are coloured in accordance with the following codes: BLUE: NEUTRAL, BROWN: LIVE As the colours of the wires in the mains lead of this set may not correspond with the coloured marking identifying the terminals in your plug, proceed as follows: The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

Do not use water while cleaning the set.

- This may cause damaged the set or could give an electric shock.

In case of smoke or strange smell from the set, switch it off, unplug it from the wall outlet and contact your dealer or service center.

- This may cause a fire or could give an electric shock.

Do not attempt to service the set yourself. Contact your dealer or service center.

- This may cause damaged the set or could give an electric shock.

During storm activity, unplug the set from the wall outlet and don't touch an antenna cable.

- This may cause damaged the set or could give an electric shock.

DISCONNECTING DEVICE FROM MAINS

- Mains plug is the disconnecting device. The plug must remain readily operable.

* Safety instructions have two kinds of information, and each meaning of it is as below.

LG 42PX2RV - DISCONNECTING DEVICE FROM MAINS - 1

WARNING

LG 42PX2RV - DISCONNECTING DEVICE FROM MAINS - 2

NOTES

The violation of this instruction may cause serious injuries and even death.

The violation of this instruction may cause light injuries or damage of the product.

⚠️ Take care of danger that may happen under specific condition.

LG 42PX2RV - DISCONNECTING DEVICE FROM MAINS - 3

NOTES

Never touch the power plug with a wet hand.

This may cause an electric shock.

Disconnect from the mains and remove all connections before moving.

Do not place the set in a built-in installation such as a bookcase or rack.

Ventilation required.

Cartoon illustration of a computer monitor with a sad face, surrounded by grid lines and abstract dotted lines (no text or symbols)

When installing the set on a table, be careful not to place the edge of its stand on the end of the table.

- This may cause the set to fall, causing serious injury to a child or adult, and serious damage to the set.

Cartoon illustration of a person in a mask pushing a large object through a container (no text or symbols)

Do not place an outside antenna in the vicinity of overhead power lines or other electric light or power circuits.

This may cause an electric shock.

There should be enough distance between an outside antenna and power lines to keep the former from touching the latter even when the antenna falls.

This may cause an electric shock.

Do not pull the plug not the cord when disconnecting.

- This may cause a fire.

Ensure the power cord doesn't trail across any hot objects like a heater.

- This may cause a fire or an electric shock.

Do not plug in unit if power cord or plug is damaged or the connecting part of the power outlet is loose.

- This may cause a fire or an electric shock.

Dispose of used batteries carefully to prevent a child from eating them.

- In case of a child eating them, contact doctor immediately.

When moving the set assembled with speakers do not carry holding the speakers.

- This may cause the set to fall, causing serious injury to a child or adult, and serious damage to the Monitor.

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners.

- This may cause damage the set or could give an electric shock.

Contact the service center once a year to clean the internal part of the set.

- Accumulated dust can cause mechanical failure.

The distance between eyes and the screen should be approx. 5 \~ 7 times the diagonal length of the screen away.

- If not, eyes will strain.

Unplug the set from the wall outlet when it is left unattended and unused for long periods of time or occurred a state of emergency.

- Accumulated dust may cause a fire or an electric shock from deterioration through electric leakage.

Contents

Safety Warnings

Safety Instructions 2\~3

Introduction

Remote Control Key Functions .....6

Location and Function of Controls 7\~8

Installation

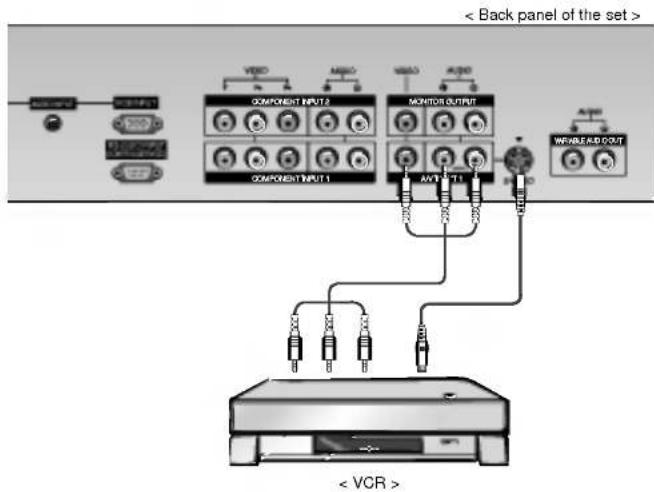

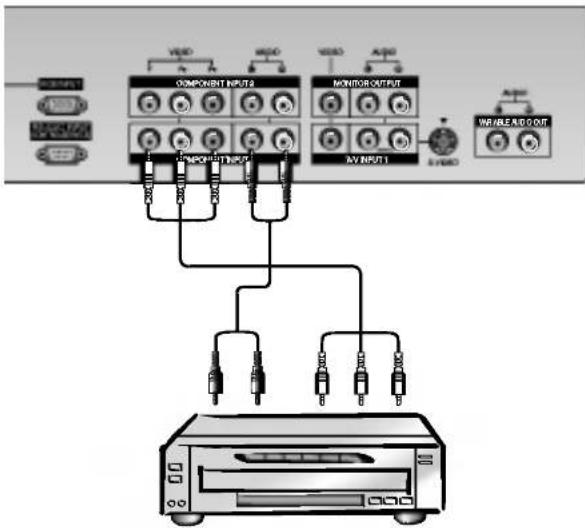

External Equipment Viewing Setups .....9\~12

Displayable Monitor Specification .....13

HDMI 14\~15

Accessories 16

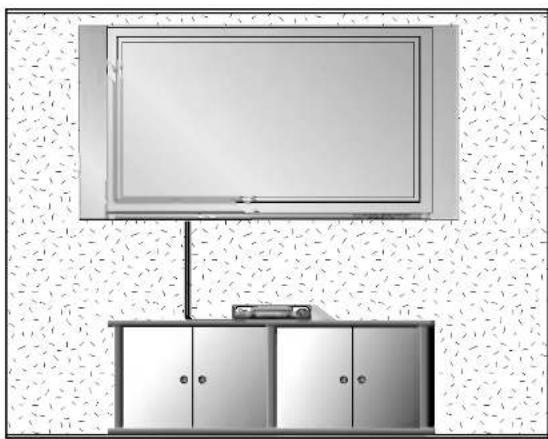

Installation Options 17

Operation

Turning on the Set 18

On-Screen Menu Language Selection (option) ...18

Channel Menu Options

Auto Programme Tuning 19

Manual Programme Tuning 19

Fine Tuning 20

Assigning a Station Name 20

Booster (option) 20

Programme Edit ....21

Favourite Programme 21

Calling up the Programme Table .....21

Picture Menu Options

PSM (Picture Status Memory) .....22

CSM (Colour Status Memory) 22

Manual Colour Temperature Control .....22

XD

sRGB 23

ACM (Active Colour Management) .....23

Manual Picture Control 23

Sound Menu Options

SSM (Sound Status Memory) 24

BBE 24

AVL (Auto Volume Leveler) 24

Adjusting Sound Control 24

TV speaker 25

Stereo/Dual Reception 25

NICAM Reception (option) 25

Time Menu Options

Setting the Clock 26

Setting the On/Off Timer 26

Auto Sleep 26

Sleep Timer 26

Special Menu Options

Child Lock 27

ISM (Image Sticking Minimization) Method .....27

Low Power 28

XD Demo 28

Screen Menu Options

Auto Configure 29

Manual Configure 29

Selecting Wide VGA/XGA mode .....29

Setting Picture Format ....30

Picture Size Zoom ....30

Screen Position 31

Cinema 31

NR (Noise Reduction) 31

Initializing (Reset to original factory value) .....31

PIP (Picture-in-Picture) Feature

Watching PIP 32

Programme Selection for Sub Picture .....32

Selecting an Input Signal Source for the PIP ....32

Moving the PIP (PIP mode only) .....32

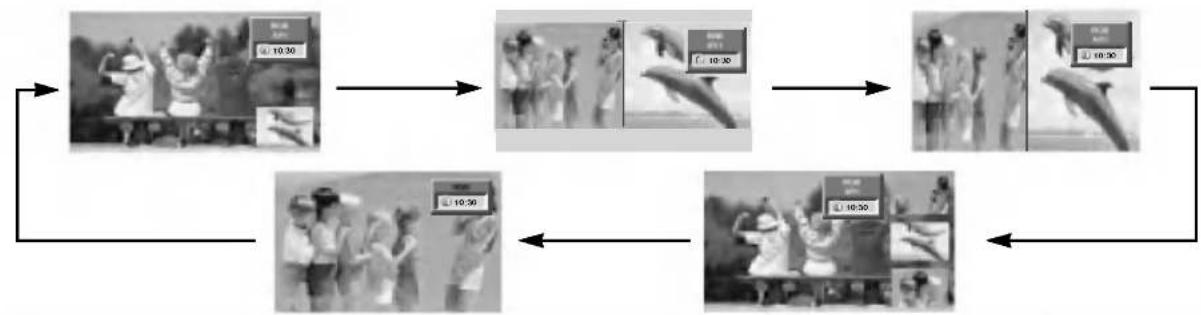

POP (Picture-out-of-Picture: Channel Scan) .....32

Picture Size 32

Adjusting the screen for the PIP .....32

Adjusting PIP Transparency (PIP mode only) ....32

Teletext (option)

Switch on/off 33

SIMPLE Text (option) 33

TOP Text (option) 33

FASTEXT 34

Special Teletext Functions 34

Miscellaneous

External Control Device Setup 35\~41

IR Code (NEC Format) 42\~43

Troubleshooting Checklist 46

Product Specifications 47

After reading this manual,

keep it in a place where

the user can refer to easily.

Introduction

What is a Plasma Display?

If voltage is inputted to gas in glass panels, ultraviolet rays are outputted and fused with a fluorescent substance. At this moment, light is emitted. A Plasma Display is a next generation flat Display using this phenomenon.

160° - Wide angle range of vision

A Plasma Display provides more than 160° angle range of vision so that you can get a picture without distortion from any direction.

Easy installation

A Plasma Display is much lighter and smaller than other same class products so that you can install the Plasma Display in the desired place.

Big screen

The screen of a Plasma Display is 42" (or 50") so that you can get vivid experience as if you are in a theater.

Multimedia Plasma Display

A Plasma Display can be connected with a computer so that you can use it as a screen for conference, game, internet and so on.

The explanation about coloured dots may be present on PDP screen

The PDP which is the display device of this product is composed of 0.9 to 2.2 million cells and a few cell defects can occur in the manufacture of the PDP. Several coloured dots visible on the screen would be acceptable, in line with other PDP manufacturers and would not mean that the PDP is faulty. We hope you will understand that the product which corresponds to this standard is regarded as acceptable. It means that it could not be changed or refunded. We promise that we'll do our best to develop our technology to minimize the cell defects.

The explanation about noise of 42" (or 50") PDP (option)

In the same way that a fan is used in a PC to keep the CPU cool, the PDP is equipped with cooling fans to improve the reliability of this product. Therefore, a certain level of noise could occur when the fan is operated. This noise doesn't have any negative effect on its efficiency and reliability and it's also determined to have no difficulty while using this product. The noise from the fans is normal in the operation of this product. We hope you will understand that a certain level of noise is acceptable. It means that it is not changeable nor refundable.

TO AVOID BURNING IMAGE INTO THE DISPLAY, DO NOT HAVE A STILL IMAGE ON SCREEN FOR EXTENDED PERIOD OF TIME. IMAGE AFTER BURN WILL NOT BE COVERED UNDER WARRANTY ie.Menus, Video games, Borders or LOGOS

WARNING

This is Class B product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

WARNING

TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

Remote Control Key Functions

  • When using the remote control aim it at the remote control sensor of the set.
  • There's maybe a defect in consecutive operation of remote control in specified brightness according to this set feature.

MUTE Switches the sound on or off. MULTIMEDIA Selects the Component, RGB or HDMI modes. switches the set on from standby. TV/AV Selects the TV, AV, Component, RGB or HDMI modes. switches the set on from standby. LIST Displays the programme table. ▲ / ▼ (Programme Up/Down) selects a programme or a me…

Installing Batteries
LG 42PX2RV - Remote Control Key Functions - 2

  • Open the battery compartment cover on the back side and insert the batteries with correct polarity.
  • Install two 1.5V alkaline batteries of AAA type. Don't mix used batteries with new batteries.

Location and Function of Controls

42PX3RV series

1 2 3 4 5 6 7 TV/W MENU OK VOL PR

  1. Remote Control Sensor
  2. Power Indicator

Illuminates red in standby mode, Illuminates green when the set is turned on.

  1. Power Button

Switches the set on from standby or off to standby.

  1. TV/AV Button

Selects the TV, AV, Component, RGB or HDMI modes. Switches the set on from standby.

  1. MENU

Displays on screen menus one by one.

Exits the current menu.

Memorizes menu changes.

  1. OK

Accepts your selection or displays the current mode.

  1. ▲ / ▼ (Programme Up/Down)

Selects a programme or a menu item.

Switches the set on from standby.

◀ / ▶ (Volume Up/Down)

Adjusts the volume.

Adjusts menu settings.

42PX2RV series

Main Power Button Remote Control Sensor Power Standby Indicator Illuminates red in standby mode, Illuminates green when the set is turned on TV/AV Button Selects the TV, AV, Component, RGB or HDMI modes. If OSD is displayed, selects menu item. MENU Displays on screen menus one by one. Exits the curr…

Location and Function of Controls

  • Shown is a simplified representation of the set.
  • What is shown here may be somewhat different from your set.
  • This manual explains the features available on the 42PX3RV series.


LG 42PX2RV - Location and Function of Controls - 1

  1. HDMI(DVI VIDEO) / AUDIO INPUT / RGB INPUT
    Connect the monitor output socket of the PERSONAL COMPUTER, DVD or STB to this socket.
    Note: If you want to use RGB/DVI audio, we strongly recommend that you use the cable that has a core, or the EMI Filter core along with separate cable.

  2. REMOTE CONTROL

  3. RS-232C INPUT(CONTROL/SERVICE) PORT

Connect to the RS-232C port on a PC.

  1. COMPONENT INPUT

Connect DVD video outputs to Y, PB, PR of COMPONENT INPUT and audio outputs to Audio sockets of AUDIO INPUT.

  1. VIDEO/AUDIO IN/OUT SOCKETS (A/V INPUT 1)

Connect the video/audio out sockets of external equipment to these sockets.

S-VIDEO/AUDIO IN SOCKETS

Connect the S-VIDEO out socket of an VCR to the S-VIDEO socket.

Connect the audio out sockets of the VCR to the audio sockets as in A/V INPUT 1.

  1. VARIABLE AUDIO OUTPUT

  2. ANTENNA INPUT

  3. POWER CORD SOCKET

This Monitor operates on AC power. The voltage is indicated on the Specifications page. Never attempt to operate the set on DC power.

  1. AUDIO/VIDEO INPUT (A/V 2)

S-VIDEO/AUDIO IN SOCKETS

External Equipment Viewing Setups

Antenna Connection

- Be careful not to bend the bronze wire when connecting to an antenna port.

Watching VCR

  • When connecting the set to external equipment, match the colours of connecting ports (Video - yellow, Audio (L) - white, Audio (R) - red).
  • Connect the VIDEO INPUT socket (yellow) of external equipment to the VIDEO INPUT on the set.
  • If you have a mono VCR, connect the audio cable from the VCR to the AUDIO (L/MONO) input on the set.
  • If you connect an S-VIDEO VCR to the S-VIDEO input, the picture quality is improved; compared to connecting a regular VCR to the Video input.
  • Use the orbiter function to avoid having a fixed image remain on the screen for a long period of time. Typically a frozen still picture from a VCR. (Refer to p. 27)
    If a 4:3 picture format is used, the fixed image may remain visible on the screen.
  • To avoid picture noise (interference), leave an adequate distance between the VCR and set.

Watching TV programmes

- Turn the set on and select the programme you want.

Watching VCR

  1. Use the TV/AV button on the remote control to select AV1 or AV2.

- If both S-VIDEO and VIDEO sockets have been connected to the S-VHS VCR simultaneously, only the S-VIDEO can be received.

  1. Insert a video tape into the VCR and press the PLAY button on the VCR. (See VCR owner's manual)

< Back panel of the set > COMPONENT INPUT 2 COMPONENT INPUT 1 MONITOR OUTPUT AVI/AT 7:11 VBR VBR WINDUARD OUT VBR VBR VCR >

External Equipment Viewing Setups

Watching Cable TV

  • After subscribing for a local cable TV station and installing a converter you can watch cable TV.
  • For further information of cable TV, contact the local cable TV station.

< Back panel of the set > COMPONENT INPUT 1 COMPONENT INPUT 2 MONITOR OUTPUT AVI P 10'1 AVI P 10'1 AVI P 10'1 AVI P 10'1 AVI P 10'1 AVI P 10'1 AVI P 10'1 AVI P 10'1 AVI P 10'1 AVI P 10'1 AVI P 10'1 AVI P 10'1

To watch cable TV

  1. Use the TV/AV button on the remote control to select AV1 or AV2.
  2. If both S-VIDEO and VIDEO sockets have been connected to the Cable box simultaneously, only the S-VIDEO can be received.
  3. Select your desired channel with the remote control for cable box.

Watching external AV source

- When connecting the set to an external source, match the colours of AUDIO/VIDEO input jacks on the set with the output jacks on the audio/video equipment: Video = yellow, Audio (Left) = white, Audio (Right) = red.

How to use

  1. Use the TV/AV button on the remote control to select AV1 or AV2.
  2. If both S-VIDEO and VIDEO sockets have been connected to the S-VHS VCR simultaneously, only the S-VIDEO can be received.
  3. Operate the corresponding external equipment. See external equipment operating guide.

< Back panel of the set > COMPONENT INPUT 3 COMPONENT INPUT 1 MONITOR OUTPUT AVT AVT AVT AVT AVT AVT AVT AVT AVT AVT AVT AVT AVT AVT AVT AVT AVT AVT AVT AVT AVT AVT AVT AVT AVT AVT AVT AVT AVT AVT AVT AVT AVT AVT

Watching DVD

How to connect

Connect DVD video outputs to Y, PB , PR of COMPONENT INPUT and audio outputs to Audio sockets of AUDIO INPUT.

How to use

  1. Turn on the DVD player, and insert a DVD.
  2. Use TV/AV or MULTIMEDIA button on the remote control to select Component 1 or Component 2. Refer to the DVD player's manual for operating instructions.

• Component Input ports

You can get better picture quality if you connect DVD player with component input ports as below.

Component ports of the setY PB PR
Video output ports of DVD playerYPbPr
YB-YR-Y
YCbCr
Y PB PR

< Back panel of the set >

VDD MDD VDD ADD COMPONENT INPUT2 MONITOR OUTPUT AV INPUT1 VIBILE/AG OUT

< DVD player >

Watching DTV (option)

To watch digitally broadcast programs, purchase and connect a digital set-top box.

How to connect

  1. Use the set's COMPONENT (Y, PB, PR) INPUT, RGB or HDMI jack for video connections, depending on your set-top box connector. Then, make the corresponding audio connections.

How to use

  1. Turn on the digital set-top box. (Refer to the owner's manual for the digital set-top box.)

  2. Use TV/AV or MULTIMEDIA on the remote control to select Component 1, Component 2, RGB or HDMI.

  3. DTV Input signal

Mode\TerminalComponentRGB (DTV)HDMI (DTV)
480ioxx
576ioxx
480pooo
576pooo
720pooo
1080iooo

< Back panel of the set > COMPONENT INPUT 2 VDD NDC AV INPUT 1 HDMI OUTPUT or (H) AUDIO (L) HDMI OUTPUT or (H) AUDIO (L) Y PS P

< Digital Set-top box >

External Equipment Viewing Setups

Connecting PC

To enjoy vivid picture and sound, connect a PC to the set.

  • Avoid keeping a fixed image on the set's screen for a long period of time. The fixed image may become permanently imprinted on the screen; use a screen saver when possible.
  • Connect PC to the RGB INPUT(PC INPUT) or HDMI INPUT(DIGITAL RGB INPUT) port of the set; change the resolution output of PC accordingly.
  • There might be noise according to some resolution, vertical pattern, contrast or brightness in PC mode. Change the PC mode into another resolution or change the refresh rate into another rate or adjust the brightness and contrast on the menu until the picture is clean. If the refresh rate of the PC graphic card can not be changed, change the PC graphic card or consult it to the manufacturer of the PC graphic card.
  • The synchronization input waveform for Horizontal and Vertical frequencies are separate.

Setup Instructions to Connect a PC to your set

  • We recommend using 1024x768, 60Hz for the PC mode, they provide the best picture quality.
    In 42PX3RV / 42PX2RV series, we recommend using 640x480, 60Hz for the PC mode, they provide the best picture quality.
  • If the resolution of PC is over UXGA, there will be no picture on the set.
  • Connect the signal cable from the monitor output port of the PC to the RGB INPUT port of the set or the signal cable from the HDMI output port of the PC to the HDMI INPUT port on the set.
  • Connect the audio cable from the PC to the Audio input on the set. (Audio cables are not included with the set).
  • If using a sound card, adjust PC sound as required.
  • This set uses a VESA Plug and Play Solution. The set provides EDID data to the PC system with a DDC protocol. The PC adjusts automatically to use this set.
  • DDC protocol is preset for RGB (Analog RGB), HDMI (Digital RGB) mode.
  • If required, adjust the settings for Plug and Play functionally.
  • If graphics card on the PC does not output analog and digital RGB simultaneously, connect only one of RGB INPUT or HDMI INPUT to display the PC on the set.

If graphic card on the PC does output analog and digital RGB simultaneously, set the set to either RGB or HDMI; (the other mode is set to Plug and Play automatically by the set.)

- DOS mode may not work depending on video card if you use a HDMI to DVI cable.

- When you use too long RGB-PC cable, there might be a noise on the screen. We recommend using under 5m of the cable. It provides the best picture quality.

< Back panel of the set >
COMPONENT INPUT2 NOMITOR OUTPUT COMPONENT INPUT1 AV INPUT1

PC Setup

  1. Turn on the PC and apply power to the set.
  2. Turn on the display by pressing the POWER button on the set's remote control.
  3. Use the TV/AV or MULTIMEDIA button on the remote control to select the RGB or HDMI input source.
  4. Set the resolution output of the PC to SXGA or under (1280 x 1024, 60Hz). (Refer to p. 13)

Displayable Monitor Specification

RGB / HDMI mode

ResolutionHorizontal Frequency(KHz)Vertical Frequency(Hz)
640x35031.46870.09
37.86185.08
720x40031.46970.08
37.92785.03
640x48031.46959.94
35.00066.66
37.86172.80
37.50075.00
43.26985.00
848x48031.50060.00
37.79970.00
39.37575.00
852x48031.50060.00
37.79970.00
39.37575.00
800x60035.15656.25
37.87960.31
48.07772.18
46.87575.00
53.67485.06
832x62449.72574.55
1024x76848.36360.00
56.47670.06
60.02375.02
68.67785.00
1152x86454.34860.05
63.99570.01
67.50075.00
1152x87068.68175.06
1280x96060.02360.02
1280x102463.98160.02

42PX3RV series 42PX2RV series

RGB / HDMI mode

ResolutionHorizontal Frequency(KHz)Vertical Frequency(Hz)
640x35031.46870.09
37.86185.08
720x40031.46970.08
37.92785.03
640x48031.46959.94
35.00066.66
37.86172.80
37.50075.00
43.26985.00
848x48031.50060.00
37.79970.00
39.37575.00
852x48031.50060.00
37.79970.00
39.37575.00
800x60035.15656.25 (RGB)
37.87960.31
48.07772.18
46.87575.00
53.67485.06
832x62449.72574.55
1024x76848.36360.00
56.47670.06
60.02375.02
68.67785.00
1360x76847.70060.00
59.62575.02
68.50085.00
1366x76847.70060.00
59.62575.02
69.50085.00
1152x86454.34860.05
63.99570.01
67.50075.00
77.48785.00
1152x87068.68175.06
1280x76847.69360.00
60.09175.00
68.50485.00
1280x96060.02360.02
1280x102463.98160.02

50PX3R series

HDMI™

HIGH DEFINITION MULTIMEDIA INTERFACE

  • HDMI™, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing.
  • This set can receive the High-Definition Multimedia Interface (HDMI) or Input of Digital Visual Interface(DVI).
  • This set supports HDCP (High-bandwidth Digital Contents Protection) Protocol for the set (480p, 720p, 1080i) modes.
  • When you connect to HDMI/DVI Source devices (DVD Player, STB or PC) that support AUTO HDMI/DVI Plug & Play, this sets the HDMI/DVI source devices automatically. (640 x 480p) (or 50PX3R series: 1280 x 720p).
    Afer reading HDMI/DVI source devices, using Display Data Channel (DDC) Protocol, Extended Display Identification Data (EDID) stored in the set is used.
    If HDMI/DVI Source devices do not support AUTO HDMI/DVI, the resolution is set manually.
  • To get the best picture quality, adjust the DVD Player or Set Top Box output resolution to 640 x 480p (or 50PX3R series: 1280 x 720p).
  • To get the best picture quality, adjust the PC graphics card to 640 x 480 (or 50PX3R series: 1024 x 768), 60Hz.
  • When Source Devices have DVI Output Connector, you must connect audio with separated cable.(Refer to )

How to connect

  1. When Source Devices (DVD Player or Set Top Box) support HDMI.
  2. If Source Devices have HDMI Output Connector, Source Devices connect to the set with HDMI Cable .(not supplied with the product).
  3. If Source Devices support Auto HDMI, automatically, Source Devices divert output resolution in 640x480p (or 50PX3R series: 1280 x 720p). But if not, resolution divert Manually Setting for reference Manual of Source Devices.
  4. To get the best picture quality, adjust the DVD Player or Set Top Box output resolution to 640x480p (or 50PX3R series: 1280 x 720p).

  5. Because HDMI sends Digital Video and Audio with one cable, there is no need for Audio Cable when using HDMI Cable.

  6. When Source Devices (DVD Player or Set Top Box) supports DVI.

- If Source Devices have DVI Output Connector, Source Devices connect to the set with HDMI to DVI Cable (not supplied with the product).

- If Source Devices support Auto DVI, automatically, Source Devices divert output resolution in 640x480p (or 50PX3R series: 1280 x 720p). But if not, resolution divert Manually Setting for reference Manual of Source Devices.

- To get the best picture quality, adjust the DVD Player or Set Top Box output resolution to 640x480p (or 50PX3R series: 1280 x 720p).

- In this case, Audio use other cable. When Source Devices have Analog Audio Output Connector, RGB/DVI Audio Input of the set connect to Audio Cable (not supplied with the product). And then you can listen to normal Audio.

  1. When PC supports DVI.

- If PC has a DVI Output Connector, Source Devices connect to the set with HDMI to DVI Cable (not supplied with the product). - To get the best picture quality, adjust the PC graphics card to 640x480 (or 50PX3R series: 1024 x 768), 60Hz.

- Use the the set's HDMI/DVI (VIDEO) for video connections, depending on your PC connector.

- If the graphics card on the PC does not output analog RGB and DVI simultaneously, connect only one of either RGB Input or HDMI/DVI Input to display the PC on the set.

- If the graphics card on the PC does output analog RGB and DVI simultaneously, the set to either RGB Input or HDMI/DVI Input; (the other mode is set to Plug and Play automatically by the set.)

- Then, make the corresponding audio connections. If using a sound card, adjust the PC sound as required.

- In this case, Audio use other cable. When PC (or sound card of PC) have Analog Audio Output Connector, RGB/DVI Audio Input of the set connect to Analog Audio Cable (not supplied with the product). And then you can listen to normal Audio.

Reference

Cable sample

Coiled black cable with connectors, no visible text or symbols

HDMI Cable
(not supplied with the product)

Coiled black cable with connectors and a small metallic connector at the end (no text or symbols visible)

Analog Audio Cable (RCA type)
(not supplied with the product)

Coiled black electrical cable with connectors and a connector terminal (no text or symbols visible)

HDMI to DVI Cable
(not supplied with the product)

Coiled black cable with connectors and a small connector at the end (no visible text or symbols)

Analog Audio Cable (Stereo to RCA type)
(not supplied with the product)

How to use

  1. Connect the HDMI/DVI Source Devices(DVD Player or Set Top Box or PC) and the set.
  2. Turn on the display by pressing the POWER button on the set and HDMI/DVI Source Devices remote control.
  3. Select HDMI/DVI Input source in Main Input option of PIP/DW menu.
  4. Check the image on your set. There may be noise associated with the resolution, vertical pattern, contrast or brightness in HDMI/DVI Source Devices. If noise is present, change the HDMI/DVI Source Devices to another resolution, change the refresh rate or adjust the brightness and contrast on the menu until the picture is clear. If the refresh rate of the PC graphics card can not change, change the PC graphics card or consult the manufacturer of the PC graphics card.

Notes:

  • Depending on the graphics card, DOS mode may not work if you use a HDMI to DVI Cable.
  • Avoid keeping a fixed image on the set screen for a long period of time. The fixed image may become permanently imprinted on the screen. Use the Orbiter screen saver when possible.
  • When Source Devices connected HDMI/DVI Input, output PC Resolution(VGA, SVGA, XGA), Position, Size may not fit to Screen. As shown the lower picture, press the MENU button to adjust the screen Position of the set and contact an PC graphics card service center.
  • When Source Devices connected HDMI/DVI Input output the set Resolution(480p, 720p, 1080i), the set Display fit EIA/CEA-861-B Specification to Screen. If not, refer to the Manual of HDMI/DVI Source Devices or contact your service center.
  • In case of HDMI/DVI Source Devices are not connected, Cable or poor cable connection, "No Signal" OSD display in HDMI/DVI Input. And In case of Video Resolution not supported when output is HDMI/DVI Source Devices, "No Signal" OSD display. Refer to the Manual of HDMI/DVI Source Devices or contact your service center.

Accessories

LG 42PX2RV - Accessories - 1
Owner's Manual

LG 42PX2RV - Accessories - 2
Remote Control handset

LG 42PX2RV - Accessories - 3
2-Eye Bolts

LG 42PX2RV - Accessories - 4
Alkaline batteries

LG 42PX2RV - Accessories - 5
Power Cord

LG 42PX2RV - Accessories - 6
2-Wall brackets

Fixing the set assembly to the wall to protect the set tumbling

- Secure the set assembly by fixing it to a wall by using the Eye Bolts/Wall brackets.

Diagram of a computer monitor with an open rear panel and a curved base, shown in 3D perspective (no text or symbols)

LG 42PX2RV - Fixing the set assembly to the wall to protect the set tumbling - 2

  • If the set is mounted on a desk top, insert the 2 Eye-Bolts and tighten them securely in the upper holes as shown.
    Insert the 2 Eye Bolts and tighten securely, in the holes on the bracket.
    Install the wall brackets on the wall with 2 bolts, (not supplied with the product), as shown.
    Match the height of the Eye Bolts and the wall brackets.
    Check to be sure the brackets are tightened securely.

- Secure the TV assembly to the wall with strong strings or wound wire cables, (not supplied with the product), as shown.

Optional Extras

  • Optional extras can be changed or modified for quality improvement. Without any notification new optional extras can be added.
  • Contract your dealer for buying these items.

LG 42PX2RV - Optional Extras - 1
Tilt wall mounting bracket

Mechanical support structure with a central column and three vertical supports (no text or symbols visible)

Ceiling mounting bracket

LG 42PX2RV - Optional Extras - 3
Video cables

LG 42PX2RV - Optional Extras - 4
Audio cables

Installation Options

  • The set can be installed in different ways such as on a wall, or on a desktop etc.
    • Install this set only in a location where adequate ventilation is available.

Wall Mount: Horizontal Installation
Interior view of a TV setup with a mounted monitor and cabinet (no visible text or symbols)

  • The set can be installed on a wall as shown above. (For further information, refer to the optional 'Wall Mounting Bracket Installation and Setup Guide').

Desktop Pedestal Installation
Illustration of a flat-screen CRT television with blank screen (no text or symbols)

• The set can be mounted on a desk as shown above.

To Mount on a Wall

Wall mount minimum allowable clearances for adequate ventilation.

70mm 70mm 70mm

To Install on a Desktop

Pedestal mount minimum allowable clearances for adequate ventilation.

10cm 10cm 10cm 2mm

Turning on the Set

42PX3RV series

- When using the remote control, aim it at its sensor on the set.

Turning on the set just after installation

  1. Connect power cord correctly, the set is switched to standby mode.

  2. Press the ⊙ / I, TV/AV or PR ▲ / ▼ button on the set or press the POWER, TV/AV, MULTIMEDIA, ▲ / ▼ or NUMBER buttons on the remote control and then the set will switch on.

Turning on the set (power cord is still connected)

If the set was turned off with the remote control power button and the ⊕ / I button on the set

- Press the ⏻ / I, TV/AV or PR ▲ / ▼ button on the set or press the POWER, TV/AV, MULTIMEDIA, ▲ / ▼ or NUMBER button on the remote control to turn the set on.

42PX2RV series

- When using the remote control, aim it at its sensor on the set.

Turning on the set just after installation

  1. Connect power cord correctly.

  2. Press the ① ON/OFF button on the set. At this moment, the set is switched to standby mode. Press the TV/AV or PR ▲ / ▼ button on the set or press the POWER, TV/AV, MULTIMEDIA, ▲ / ▼ or NUMBER buttons on the remote control and then the set will switch on.

Turning on the set (power cord is still connected)

  1. If the set was turned off with the ① ON/OFF button on the set

- Press the ① ON/OFF button on the set to turn the set on.

  1. If the set was turned off with the remote control and the ① ON/OFF button on the set

- Press the ① ON/OFF button on the set and then press the TV/AV or PR ▲ / ▼ button on the set or press the POWER, TV/AV, MULTIMEDIA, ▲ / ▼ or NUMBER button on the remote control to turn the set on.

On-Screen Menu Language Selection (option)

- The menus can be shown on the screen in the selected language. First select your language.

  1. Press the MENU button and then use ▲ / ▼ button to select the SPECIAL menu.

  2. Press the ▶ button and then use ▲ / ▼ button to select Language.

  3. Press the ▶ button and then use ▲ / ▼ button to select your desired language. From this point on, the on-screen menus will be shown in the language of your choice.

  4. Repeatedly press the MENU button to return to normal TV viewing.

Channel Menu Options

Auto Programme Tuning

- All stations that can be received are stored by this method. It is recommended that you use auto programme during installation of this set.

  1. Press the MENU button and then use ▲ / ▼ button to select the STATION menu.
  2. Press the ▶ button and then ▲ / ▼ button to select Auto programme.
  3. Press the ▶ button to select System. Select a TV system with the ◀/▶ button;

L : SECAM L/L' (option)

BG : PAL B/G, SECAM B/G (Europe / East Europe / Asia / New Zealand / M.East / Africa / Australia)

I : PAL I/II (U.K. / Ireland / Hong Kong / South Africa)

DK : PAL D/K, SECAM D/K (East Europe / China / Africa / CIS)

M : (USA / Korea / Philippines) (option)

  1. Press the ▼ button to select Storage from. Select the beginning programme number with the ◀/▶ button or NUMBER buttons on the Storage from menu.
  2. Press the ▼ button to select Start.
  3. Press the ▶ button to begin auto programming.

All receivable stations are stored.

STATION ENTER SOUND TIME SPECIAL SCREEN BODY Manual programme Programme add Famadilla programme System BG Save-Box Start Prex

Note :

a. In some models, the station name is stored for stations which broadcast VPS (Video Programme Service), PDC (Programme Delivery Control) or TELETEXT data. If no station name can be assigned to a station, the channel number is assigned and stored as C (V/UHF 01-69) or S (Cable 01-47), followed by a number.
b. In Australia, if no station name can be assigned to a station, the channel number is assigned and stored as ---- followed by a number see 'Assigning a station name' section to assign the station name.

To stop auto programming, press the MENU button.

When auto programming is completed, the Programme edit menu appears on the screen. See the 'Programme edit' section to edit the stored programme.

Manual Programme Tuning

- Manual programme lets you manually tune and arrange the stations in whatever order you desire. Also you can assign a station name with five characters to each programme number.

  1. Press the MENU button and then use ▲ / ▼ button to select the STATION menu.
  2. Press the ▶ button and then ▲ / ▼ button to select Manual programme.
  3. Press the ▶ button to select Storage. Select the desired programme number with the ◀/▶ button or NUMBER buttons on the Storage menu.
  4. Press the ▼ button to select System. Select a TV system with the ◀/▶ button;

L : SECAM L/L' (option)

BG : PAL B/G, SECAM B/G (Europe / East Europe / Asia / New Zealand / M.East / Africa / Australia)

I : PAL I/II (U.K. / Ireland / Hong Kong / South Africa)
DK : PAL D/K, SECAM D/K (East Europe / China / Africa / CIS)
M : (USA / Korea / Philippines) (option)

  1. Press the ▼ button to select Band. Press the ◀ /▶ button to select V/UHF or Cable as required.
  2. Press the ▼ button to select Channel. You can select the desired channel number with the ◀/▶ button or NUMBER buttons. If possible, select the channel number directly with the number buttons.
  3. Press the ▼ button to select Search. Press the ◀/▶ button to commence searching. If a station is found the search will stop.
  4. Press the OK button to store it.
  5. To store another station, repeat steps 3 to 8.

STATION PROTURE SOUND TIME SPECIAL SCREEN AVRON Auto programme New programme Programme edit Features programme Prev Storage System Band Channel First Search Name G or Browser or

Channel Menu Options

Fine Tuning

- Normally fine tuning is only necessary if reception is poor.

  1. Repeat the 'Manual programme tuning' steps 1 to 2.
  2. Press the ▶ button and then ▲ / ▼ button to select Fine.
  3. Press the ◀ /▶ button to fine tune for the best picture and sound.
  4. Press the OK button.
  5. Repeatedly press the MENU button to return to normal TV viewing.

The finely tuned programme will be indicated by a yellow number during programme selection.

STATION PICTURE BOUND TREE SPECIAL SCREEN PLOW Auto programming New programming Programme edit Favourite programma Storage System Band Channel Fine Search Name: C in Create on Store

Assigning a Station Name

  1. Repeat the 'Manual programme tuning' steps 1 to 2.
  2. Press the ▶ button and then ▲ / ▼ button to select Name.
  3. Press the ▶ button to display the Name menu.
  4. Press the ▲ button. You can use a blank, +, -, the alphabet A to Z and the numeric 0 to 9.
    With the ▼ button you can select in the opposite direction.
  5. Select the next position by pressing the ▶ button and then make your choice of the second character, and so on.
  6. Press the OK button in twice.
  7. Repeatedly press the MENU button to return to normal TV viewing.

STATION PICTURE SOUND TRE SPECIAL SCREEN PFDW Auto programme Programme dot Favourite programme Storage System Band Channel Fins Search Name Scotier Play

Booster (option)

In some models, Booster is an optional function. Only a set with Booster can perform this function. If the reception is poor at the fringe area of TV signal, select Booster to On.

  1. Repeat the 'Manual programme tuning' steps 1 to 2.
  2. Press the ▶ button and then ▲ / ▼ button to select Booster.
  3. Press the ◀/▶ button to select On or Off.
  4. Press the OK button.
  5. Repeatedly press the MENU button to return to normal TV viewing.

STATION PICTURE SOUND TIME SPECIAL SCREEN AUTO PROGRAMME New programme Programme edit Favourite programme Storage 2 System GO Band Your Channel 1 File Season Name: C m Booster → cm Stroke

Programme Edit

- This function enables you to delete or skip the stored programmes. Also you can move some stations to other programme numbers or copy a blank station data into the selected programme number.

  1. Press the MENU button and then use ▲ /▼ button to select the STATION menu.
  2. Press the ▶ button and then ▲ / ▼ button to select Programme edit.
  3. Press the ▶ button to display the Programme edit menu.

Deleting a programme

  1. Select a programme to be deleted with the ▲ / ▼ or ◀ / ▶ button.
  2. Press the RED button twice.
    The selected programme is deleted, all the following programmes are shifted up one position.

Copying a programme

  1. Select a programme to be copied with the ▲ / ▼ or ◀ / ▶ button.

  2. Press the GREEN button.

All the following programmes are shifted down one position.

Moving a programme

  1. Select a programme to be moved with the ▲ / ▼ or ◀ / ▶ button.
  2. Press the YELLOW button.
  3. Move the programme to the desired programme number with the ▲ / ▼ or ◀ / ▶ button.
  4. Press the YELLOW button again to release this function.

Skipping a programme number

  1. Select a programme number to be skipped with the ▲ / ▼ or ◀ / ▶ button.
  2. Press the BLUE button. The skipped programme turns to blue.
  3. Press the BLUE button again to release the skipped programme.
    When a programme number is skipped it means that you will be unable to select it using the ▲ /▼ button during normal TV viewing. If you want to select the skipped programme, directly enter the programme number with the NUMBER buttons or select it in the programme edit or table menu.

Programme edit 0 - - - - - 5 C 05 1 3 LN 2 6 C 57 7 C 4 7 C 55 9 C 04 8 S 27 4 C 05 9 B 23 Delete iCopy Move iSkip iPrev

Favourite Programme

- This function lets you select your favourite programmes directly.

  1. Press the MENU button and then use ▲ / ▼ button to select the STATION menu.
  2. Press the ▶ button and then ▲ / ▼ button to select Favourite programme.
  3. Press the ▶ button and then ▲ / ▼ button to select On.
  4. Press the ▶ button to display the Favourite programme menu.
  5. Press the ▲ /▼ button to select -- ----
  6. Select a desired programme with the ◀ /▶ button or NUMBER buttons. Any number under 10 is entered with a numeric '0' in front of it, i.e. '05' for 5.
  7. To store another programme, repeat steps 5 to 6. You can store up to 8 programmes.

  8. Press the OK button.

  9. Repeatedly press the MENU button to return to normal TV viewing.

Repeatedly press the SWAP button to select stored favourite programmes.

STATION Picture Sound TIME SPECIAL SCREEN PRISY Auto programme Manual programme Programme edit On CH 0.000 0.0 0.000 0.0 0.000 0.0 0.000 0.0 0.000 0.0 0.000 0.0 0.000 0.0 0.000 0.0 0.000 0.0 0.000 0.0 0.000 0.1 0.000 0.1 0.000 0.1 0.000 0.1 0.000 0.1 0.000 0.1 0.000 0.1 0.000 0.1 Play by program

Calling up the Programme Table

- You can check the programmes stored in the memory by displaying the programme table.

Displaying programme table

Press the LIST button to display the Programme table menu. The programme table appears on the screen.

  • You may find some blue highlighted programmes shown. They have been set up in the programme edit mode.
  • Some programmes with the channel number shown in the programme table indicate there is no station name assigned.

Selecting a programme in the programme table

Select a programme with the ▲ /▼ or ◀ /► button. Then press the OK button.

The Plasma Display switches to the chosen programme number.

0 - - - - - 5 C 05 1 S N 2 6 C 07 I C 04 7 C 05 2 C 04 8 S 27 4 C 05 9 S 23 → + + →

Paging through a programme table

There are 10 programme table pages in which contain 100 programmes. Pressing the ▲ / ▼ or ◀ / ▶ button repeatedly turns the pages.

Press the LIST button to return to normal TV viewing.

Picture Menu Options

PSM (Picture Status Memory)

- This function adjusts the set to the best picture appearance. - When adjusting picture options (contrast, brightness, colour, sharpness and tint (NTSC input only)) manually, PSM is automatically changed to User.

  1. Press the PSM button

• Each press of the PSM button changes the screen display as shown below.

- You can also select Dynamic, Standard, Mild or User in the PICTURE menu

• Picture options Dynamic, Standard and Mild are preset and programmed for good picture quality at the factory and cannot be changed.

CSM (Colour Status Memory)

- To initialize values (reset to default settings), select the Normal option.

  1. Press the MENU button and then use ▲ / ▼ button to select the PICTURE menu.

  2. Press the ▶ button and then use ▲ / ▼ button to select CSM.

  3. Press the ▶ button and then use ▲ / ▼ button to select the desired colour temperature.

  4. Repeatedly press the MENU button to return to normal TV viewing.

• Each press of ▲ / ▼ button changes the screen display as shown below.

STATION PUM COM X10 ACM Contrast 100 Brightness 60 Colour 50 Sharpness 50 CAD ✓ Name Warm User Red 0 Close 0 Blue 0 SPECIAL SPEED SCREEN PLOW Preview

Manual Colour Temperature Control

- You can adjust red, green, or blue to any colour temperature you prefer.

  1. Press the MENU button and then use ▲ / ▼ button to select the PICTURE menu.

  2. Press the ▶ button and then use ▲ / ▼ button to select CSM.

  3. Press the ▶ button and then use ▲ / ▼ button to select User.

  4. Press the ▶ button and then use ▲ / ▼ / ◀ / ▶ button to make appropriate adjustments.

  5. Repeatedly press the MENU button to return to normal TV viewing.

STATION PICTURE SOUND TIME SPECIAL SCREEN PPOK PSM CM XM ACM Contrast 100 Brightness 60 Color 50 Sharpness 50 Cyan Normal Warm User Red 4 Green 9 Blue 10

XD

- You can enjoy the vivid and hi-definition picture with LG's Excellent Digital Reality processor technology.

- It's not available to use this function in RGB[PC], HDMI[PC] mode.

- When selecting picture options (Dynamic, Standard and Mild) in PICTURE menu, XD is automatically changed to On.

  1. Press the MENU button and then use ▲ / ▼ button to select the PICTURE menu.

  2. Press the ▶ button and then use ▲ / ▼ button to select XD.

  3. Press the ▶ button and then use ▲ / ▼ button to select On or Off.

  4. Repeatedly press the MENU button to return to normal TV viewing.

STATION PSM CSM ACM Contrast 100 Brightness 60 Colour 50 Sharpness 50 SOUND TIME SPCUM SCREEN PROM Play iPlay

sRGB

  • When the set was connected to external equipment with sRGB function, It's adjusted a colour difference to display the equal image each other.

  • This function works in the following mode: RGB[PC], HDMI[PC].

  • Press the MENU button and then use ▲ / ▼ button to select the PICTURE menu.

  • Press the ▶ button and then use ▲ / ▼ button to select sRGB.
  • Press the ▶ button and then use ▲ / ▼ button to select On or Off.
  • Repeatedly press the MENU button to return to normal TV viewing.

STATION PSM CSM XCD SOUND TIME SPECIAL SCREEN RGB Contrast 100 Brightness 60 Preview

ACM (Active Colour Management)

  • Adjust the ACM to select the desired skin colour option.
  • This function works in the following mode:
    TV, AV1, AV2, COMPONENT1/2, RGB[DTV], HDMI[DTV].

  • It's not available to use this function in XD Off mode.

  • Press the MENU button and then use ▲ / ▼ button to select the PICTURE menu.

  • Press the ▶ button and then use ▲ / ▼ button to select ACM.
  • Press the ▶ button and then use ◀ / ▶ button to make appropriate adjustments.
  • Repeatedly press the MENU button to return to normal TV viewing.

STATION PSM CSM XO FACTURE SOUND TIME SPECIAL SCREEN RGBM Contrast 100 Brightness 60 Colour 50 Sharpness 50 Flatten: 0 Greets: 0 Bluegrain: 0 iPlay

Manual Picture Control

  • You can adjust picture contrast, brightness, colour, sharpness and tint (NTSC input only) to the levels you prefer.
  • It's not available to use colour, sharpness function in RGB[PC], HDMI[PC] mode.

  • In the broadcasting system PAL/SECAM, the picture item Tint doesn't work.

  • Press the MENU button and then use ▲ / ▼ button to select the PICTURE menu.

  • Press the ▶ button and then use ▲ / ▼ button to select the desired picture option.
  • Press the ▶ button and then use ◀ / ▶ button to make appropriate adjustments.
  • Repeatedly press the MENU button to return to normal TV viewing.

STATION PICTURE SOUND TIME RISKUM SCREEN PLOW PSM CSM XO ACM SIGHTNESS 00 Colour 50 Shrinkness 50 Preview

Sound Menu Options

SSM (Sound Status Memory)

  • This function lets you enjoy the best sound without any special adjustment because the set automatically selects the appropriate sound option based on the program content.

  • When adjusting sound options (treble and bass) manually, SSM is automatically changed to User.

  • Press the SSM button.

  • Press the SSM button to select your desired sound.

  • You can also select SRS TSXT, Flat, Music, Movie, Sports or User in the SOUND menu.

  • The sound SRS TSXT, Flat, Music, Movie and Sports are programmed for good sound reproduction at the factory and cannot be changed.

  • SRS(●) is a trademark of SRS Labs, Inc.

- TruSurround XT technology is incorporated under license from SRS Labs, Inc.

BBE

- BBE High Definition Sound restores clarity and presence for better speech intelligibility and musical realism.

  1. Press the MENU button and then use ▲ / ▼ button to select the SOUND menu.
  2. Press the ▶ button and then use ▲ / ▼ button to select BBE.
  3. Press the ▶ button and then use ▲ / ▼ button to select On or Off.
  4. Repeatedly press the MENU button to return to normal TV viewing.

STATION PICTURE SOUND TIME SPECIAL SCREEN PPOW SSM AVL Balance 0 Treats 50 Base 50 TV Sounder Prev

BBE. Manufactured under license from BBE Sound, Inc.

AVL (Auto Volume Leveler)

- This feature maintains an equal volume level; even if you change channels.

  1. Press the MENU button and then use ▲ / ▼ button to select the SOUND menu.
  2. Press the ▶ button and then use ▲ / ▼ button to select AVL.
  3. Press the ▶ button and then use ▲ / ▼ button to select On or Off.
  4. Repeatedly press the MENU button to return to normal TV viewing.

STATION SSM BRE BALANCE 0 Treble 50 Base 50 TV Speaker PIFOW iPrev

Adjusting Sound Control

  1. Press the MENU button and then use ▲ / ▼ button to select the SOUND menu.
  2. Press the ▶ button and then use ▲ / ▼ button to select the desired sound item.
  3. Press the ▶ button and then use ◀ / ▶ button to make appropriate adjustments.
  4. Repeatedly press the MENU button to return to normal TV viewing.

Note : Treble, Bass or BBE aren't suitable to use SRS TSXT.

STATION PICTURE SOM BDE AVL Balance 0 SOUND TIME SPECIAL SCREEN DETAIL Base 20 TV Speaker Play

TV Speaker

  • You can adjust internal speaker status.
  • In COMPONENT 1/2, RGB[PC] and HDMI[PC] mode, TV speaker/variable audio can be output even though there is no video signal.

  • If you want to use your external hi-fi stereo system, turn off the internal speakers of the set.

  • Press the MENU button and then use ▲ / ▼ button to select the SOUND menu.

  • Press the ▶ button and then use ▲ / ▼ button to select TV Speaker.
  • Press the ▶ button and then use ▲ / ▼ button to select On or Off.
  • Repeatedly press the MENU button to return to normal TV viewing.

STATION SSM BRE AVL BALCS 0 Treatie CO Pays 50 TIME TS Spender SPECIAL SCREEN PPOY OK Preview

Stereo / Dual Reception

- When a programme is selected, the sound information for the station appears after the programme number and station name disappear.

On Screen Display

Press the I/II button to received broadcast state.

Broadcast

Mono

Stereo

Dual

On screen Display

MONO

STEREO

DUAL I

Mono Sound Selection

In stereo reception if the stereo signal is weak, you can switch to mono by pressing the I/II button twice. In mono reception the depth of sound is improved. To switch back to stereo, press the I/II button twice again.

Language Selection for Dual Language Broadcast

If a programme received in two languages (dual language), you can switch to DUAL I,

DUAL II or DUAL I + II by pressing the I/II button repeatedly.

• DUALI sends the primary broadcast language to the loudspeakers.
• DUAL II sends the secondary broadcast language to the loudspeakers.
• DUAL I + II sends a separate language to each loudspeaker.

NICAM Reception (option)

- If your Plasma Display is equipped with the PDP Tuner for NICAM reception, the high quality NICAM (Near Instantaneous Companding Audio Multiplex) digital sound can be received.

Sound output can be selected according to the type of received broadcast as follows by pressing the I/II button repeatedly.

  • When NICAM mono is received, you can select NICAM MONO or FM MONO.
  • When NICAM stereo is received, you can select NICAM STEREO or FM MONO. If the stereo signal is weak, switch to FM mono.
  • When NICAM dual is received, you can select NICAM DUAL I, NICAM DUAL II, NICAM DUAL I + II, or MONO. When FM mono is selected the display MONO appears on the screen.

Sound output selection

In AV, Component, RGB or HDMI mode, you can select output sound for the left and right loudspeakers.

Repeatedly press the I/II button to select the sound output.

  • L+R: Audio signal from audio L input is sent to left loud-speaker and audio signal from audio R input is sent to right loud-speaker.
  • L+L : Audio signal from audio L input is sent to left and right loud-speakers.
  • R+R: Audio signal from audio R input is sent to left and right loud-speakers.

Time Menu Options

Setting the Clock

- If current time setting is erased by a power failure or the set is unplugged, reset the clock.

  1. Press the MENU button and then use ▲ / ▼ button to select the TIME menu.
  2. Press the ▶ button and then use ▲ / ▼ button to select Clock.
  3. Press the ▶ button and then use ▲ / ▼ button to adjust the hour.
  4. Press the ▶ button and then use ▲ / ▼ button to adjust the minute.
  5. Repeatedly press the MENU button to return to normal TV viewing.

STATION PICTURE COUNT TIME SPECIAL SCREEN PITOW On time On time Auto sleep Up to 1Prev

Setting the On/Off Timer

  • Timer function operates only if current time has been already set.
  • Off Timer function overrides on Timer function if they are set to the same time.

  • The set must be in standby mode for the On Timer to work.

  • Press the MENU button and then use ▲ / ▼ button to select the TIME menu.

  • Press the ▶ button and then use ▲ / ▼ button to select Off time or On time.
  • Press the ▶ button and then use ▲ / ▼ button to select On.
  • Press the ▶ button and then use ▲ / ▼ button to adjust the hour.
  • Press the ▶ button and then use ▲ / ▼ button to adjust the minute.
  • Only On time function; Press the ▶ button and then use ▲ / ▼ button to adjust programme number or volume level.
  • Repeatedly press the MENU button to return to normal TV viewing.

STATION PICTURE SOUND TIME SPECIAL SCREEN PPDM Clock Off time On time Auto steps On Off 12 : 00 Volume : 30 Programme : 1 Show: Prev

  • To cancel Off/On time function Press the ▲ / ▼ button to select Off in step 3.
  • Two hours after the set is switched on by the on time function it will automatically switch back to standby mode unless a button has been pressed.

Auto Sleep

- If there is no input signal, the monitor turn off automatically after 10 minutes.

  1. Press the MENU button and then use ▲ / ▼ button to select the TIME menu.
  2. Press the ▶ button and then use ▲ / ▼ button to select Auto sleep.
  3. Press the ▶ button and then use ▲ / ▼ button to select On or Off.
  4. Repeatedly press the MENU button to return to normal TV viewing.

STATION PICTURE SOUND TIME SPECIAL SCREEN UPPUM Clock On time On time Show drag Show Prev

Sleep Timer

  • Sleep timer turns the set off at the preset time.
  • Press the SLEEP button to select the number of minutes. The display L2 -- Min will appear on the screen, followed by 10, 20, 30, 60, 90, 120, 180 and 240 minutes. The timer begins to count down from the number of minutes selected.

a. To check the remaining sleep time, press the SLEEP button once.
b. To cancel the sleep time, repeatedly press the SLEEP button until the display Ⓛ 22 ---Min appears.
c. If you turn the set off after setting the sleep timer, the setting will be erased.

Special Menu Options

Child Lock

- The set can be set up so that it can only be used with the remote control.

  1. Press the MENU button and then ▲ / ▼ button to select the SPECIAL menu.
  2. Press the ▶ button and then ▲ / ▼ button to select Child lock.
  3. Press the ▶ button and then ▲ / ▼ button to select On or Off.
  4. Repeatedly press the MENU button to return to normal TV viewing.

STATION Picture Sound TIME SPECIAL SCREEN RROW Language S.M Method Low power Set ID XO Demo Prev

  • This set programmed to remember which option it was last set to even if you turn the set off.
  • In Child lock 'On', if the set is turned off, press the TV/AV, PR ▲ /▼ button on the set or POWER, TV/AV, MULTIMEDIA, ▲ /▼ or NUMBER buttons on the remote control.
  • With the Child lock On, the display '⚠️ Child lock on' appears on the screen if any button on the front panel is pressed while viewing the set.

ISM (Image Sticking Minimization) Method

- Frozen still picture from a PC/video game displayed on the screen for prolonged periods will result in an ghost image remaining even when you change the image. Avoid allowing a fixed image to remain on the set's screen for a long period of time.

  1. Press the MENU button and then use ▲ / ▼ button to select the SPECIAL menu.
  2. Press the ▶ button and then ▲ / ▼ button to select ISM Method.
  3. Press the ▶ button and then ▲ / ▼ button to select either Normal, White wash, Orbiter or Inversion. If you unnecessary to set this function, set Normal.

- White Wash

White Wash removes permanent images from the screen.

Note: An excessive permanent image may be impossible to clear entirely with White Wash.

• Orbiter

Orbiter may help prevent ghost images. However, it is best not to allow any fixed image to remain on the screen. To avoid a permanent image on the screen, the screen will move every 2 minutes.

- Inversion

This is the function to invert the panel colour of the screen. The panel colour is automatically inverted every 30 minutes.

  1. Repeatedly press the MENU button to return to normal TV viewing.

STATION PICTURE SPRING TIME SPECIAL SCREEN PLOW Language Child lock Low power Set ID Normal White wash Outer Inversion Prev

Special Menu Options

Low Power

- This is the function to reduce the power consumption of the set.

  1. Press the MENU button and then use ▲ / ▼ button to select the SPECIAL menu.
  2. Press the ▶ button and then use ▲ / ▼ button to select Low power.
  3. Press the ▶ button and then use ▲ / ▼ button to select On or Off.
  4. Repeatedly press the MENU button to return to normal TV viewing.

STATION PICTURE SOUND TIME SPECIAL SCREEN BELOW Language Clock lock SIM Method Set 0 XO Demo Play

XD Demo

  • Use it to see the difference between XD demo on and XD Demo off.

  • It's not available to use this function in RGB[PC], HDMI[PC] mode.

  • Press the MENU button and then use ▲ / ▼ button to select the SPECIAL menu.

  • Press the ▶ button and then use ▲ / ▼ button to select XD Demo.

  • Press the ▶ button to begin XD Demo.

  • To stop XD Demo, press the MENU button.

STATION PICTURE SOUND TIME SPECIAL SCREEN PINE Language Child lock SM Method LOW COWA Set It Child Prey

Screen Menu Options

Auto Configure

  • Automatically adjusts picture position and minimizes image shaking.

  • This function works in the following mode : RGB[PC].

  • Press the MENU button and then use ▲ / ▼ button to select the SCREEN menu.

  • Press the ▶ button and then use ▲ / ▼ button to select Auto config.
  • Press the ▶ button to start Auto config..
  • When Auto config. has finished, Ok will be shown on screen.
  • If the position of the image is still not correct, try Auto adjustment again.
  • If picture needs to be adjusted more after Auto adjustment in RGB (PC), you can adjust the Manual Config.
  • Repeatedly press the MENU button to return to normal TV viewing.

- Although the image is still not correct, your set is functioning properly but needs further adjustment. - The Auto config. functions don't need to be run for HDMI mode.

STATION Picture Sound TIME SPECIAL SCREEN BODY Auto config Manual config Auto Model ARC Zoom 0- Zoom 1- Chrome M1 Reset Prex

Manual Configure

  • If the picture isn't clear after auto adjustment and especially that characters are still trembling, adjust the picture phase manually.
  • To correct the screen size, adjust Clock.
  • This function works in the following mode: RGB[PC], RGB[DTV], COMPONENT (480p/576p/720p/1080i), HDMI (480p/576p/720p/1080i).

  • It's not available to use Phase, Clock function in RGB[DTV], COMPONENT (480p/576p/720p/1080i), HDMI (480p/576p/720p/1080i) mode.

  • Press the MENU button and then ▲ / ▼ button to select the SCREEN menu.

  • Press the ▶ button and then ▲ / ▼ button to select Manual config.
  • Press the ▶ button and then ▲ / ▼ button to select Phase, Clock, H-Position or V-Position.
  • Press the ◀ / ▶ button to make appropriate adjustments.
  • Repeatedly press the MENU button to return to normal TV viewing.

STATION Picture SOUND TIME SPECIAL SCREEN PICKER Auto zolo Auto zolo VIA Mio AVI Zoom +1 Crews N1 Reset Prese Clock H-Position V-Position 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 Prev

Selecting Wide VGA/XGA mode

  • To see a normal picture, match the resolution of RGB mode and selection of VGA/XGA mode.
  • In some models, it's not available to selection of XGA mode.

  • This function works in the following mode : RGB[PC].

  • Press the MENU button and then use ▲ / ▼ button to select the SCREEN menu.

  • Press the ▶ button and then use ▲ / ▼ button to select VGA Mode (or XGA Mode).
  • Press the ▶ button and then use ▲ / ▼ button to select the desired VGA/XGA resolution.
  • Repeatedly press the MENU button to return to normal TV viewing.

STATION PICTURE SOUND TIME SPECIAL SCREEN AUTO Auto config. Manual config. Auto Zoom +1 Fusion Gamma A3 Reset Prev

Screen Menu Options

Setting Picture Format

- You can watch the screen in various picture formats; Spectacle, Full (option), Original, 4:3, 16:9 (Wide), 14:9 and Zoom.

  1. Press the MENU button and then use ▲ / ▼ button to select the SCREEN menu.
  2. Press the ▶ button and then use ▲ / ▼ button to select ARC.
  3. Press the ▶ button and then use ▲ / ▼ button to select Spectacle, Full (option), Original, 4:3, 16:9, 14:9 or Zoom.

- Spectacle

When your TV receives the wide screen signal, following selection will lead you to adjust the picture horizontally, in non-linear proportion, to fill the entire screen.

• Full (option)

When your TV receives the wide screen signal, following selection will lead you to adjust the picture horizontally or vertically, in a linear proportion, to fill the entire screen fully.

• Original

When your TV receives the wide screen signal, it will be automatically changed to the picture format to be sent.

· 4:3

Following selection will lead you to view a picture with an original 4:3 aspect ratio, with gray bars appearing at both the left and right sides.

• 16:9 (Wide)

Following selection will lead you to adjust the picture horizontally, in a linear proportion, to fill the entire screen (useful for viewing 4:3 formatted DVDs).

• 14:9

You can enjoy the picture format of 14:9 or general TV programme through the 14:9 mode. The screen 14:9 is viewed just like that the screen 4:3 is magnified to the left / right.

• Zoom

Following selection will lead you to view the picture without any alternation, while filling the entire screen. However, the top and bottom portions of the picture will be cropped.

  1. Repeatedly press the MENU button to return to normal TV viewing.

STATION Auto copy Manus copy MOS Mode AVOC Sound Zoom 4x Cinema NR Reset P/ROW Preview

  • You can only select 4:3 and 16:9 (Wide) in RGB[PC], HDMI[PC] mode only.
  • You can only select 4:3, 16:9 (Wide) and Zoom in RGB[DTV], HDMI[DTV], Component [DTV] mode only.
  • You can only select Spectacle, Full (option), 4:3, 16:9 (Wide), 14:9 and Zoom in Component [480i/576i] mode only.
  • There might be uncomfortable in full mode. Then change into other mode.

Picture Size Zoom

- When enlarging or reducing the picture, the screen may be display unnatural picture.

  1. Press the MENU button and then ▲ / ▼ button to select the SCREEN menu.
  2. Press the ▶ button and then ▲ / ▼ button to select Zoom +/-
  3. Press the ▶ button and then ◀ / ▶ button to make appropriate adjustments.
  4. Repeatedly press the MENU button to return to normal TV viewing.

STATION Picture Sound TREE SPECIAL SCREEN PDM Auto comp Manual comp AVI M in ARC Position Chassis NE Free 100 Up 17Rev

Screen Position

- You are available to this function after adjusting Zoom In/Out.

  1. Press the MENU button and then ▲ / ▼ button to select the SCREEN menu.
  2. Press the ▶ button and then ▲ / ▼ button to select Position.
  3. Press the ▶ button and then ▲ / ▼ or ◀ / ▶ button to adjust the position.
  4. Repeatedly press the MENU button to return to normal TV viewing.

STATION Picture SHORT TIME SPECIAL SCREEN RIPON Auto config Manual Config VGA Mouse AVCS Zoom-up Zoom-up Other AI Reset Play

Cinema

  • When you watch the movie, this function adjusts the set to the best picture appearance.
  • This function works in the following mode:
  1. Press the MENU button and then use ▲ / ▼ button to select the SCREEN menu.
  2. Press the ▶ button and then use ▲ / ▼ button to select Cinema.
  3. Press the ▶ button and then use ▲ / ▼ button to select On or Off.
  4. Repeatedly press the MENU button to return to normal TV viewing.

STATION Picture Sound TIME SPECIAL SCREEN BODY Auto design Manual setting VLA Mode AVCS Zoomed Standard NR Reset Prev

NR (Noise Reduction)

  • You can select 3D NR or MPEG NR to reduce the picture noise which may appear on the screen during watching the TV.
  • This function is not available for use in RGB[PC[, HDMI[PC] mode.

  • 3D NR is not available for use in RGB, HDMI, Component[DTV] mode.

  • Press the MENU button and then use ▲ / ▼ button to select the SCREEN menu.

  • Press the ▶ button and then use ▲ / ▼ button to select NR.
  • Press the ▶ button and then use ▲ / ▼ button to select 3D NR or MPEG NR.
  • Press the ◀ / ▶ button to make appropriate adjustments.
  • Repeatedly press the MENU button to return to normal TV viewing.

STATION Picture Sound TIME SPECIAL SCREEN BODY Auto setting Manual setting Multi-Milan AFC Zoom++ Bubble Concrete Reset 3D N1 0 MFES N1 0

Initializing (Reset to original factory value)

This function operates in current mode.

To initialize the adjusted value

  1. Press the MENU button and then ▲ / ▼ button to select the SCREEN menu.
  2. Press the ▶ button and then ▲ / ▼ button to select Reset.
  3. Press the ▶ button.

- You can initialize Phase, Clock, H-Position, V-Position, Position, Zoom +/-, PIP size, PIP position, PIP Transparency and sub picture size of twin picture.

STATION Picture Sound TIME SPECIAL SCREEN PROCT Auto body Manual spring Web Mouse AIDS Zoom-up Balance Cinema Alt FLOOR To set

PIP (Picture-in-Picture) Feature

  • PIP lets you view 2 different inputs (sources) on your set screen at the same time.
  • It's not available to use this function in TELETEXT mode.

Watching PIP

Press the PIP/DW button to show the sub picture.

• Each press of PIP/DW button changes the screen display as shown below.

Note :

a. When the sub picture size is 1/2 of the main picture, the picture quality might get poor.
b. The motion of the sub picture can be unnatural because the set displays full screen by synchronizing the main picture source when the refresh rate between the main picture source and the sub picture source is different in PIP mode.

Programme Selection for Sub Picture

Press the PIP PR + /- button to select a programme for the sub picture.

Selecting an Input Signal Source for the PIP

Press the PIP INPUT button to select the input source for the sub picture.

In some models, when the sub picture quality get poor for sub picture, select Auto, PAL, SECAM or NTSC in PIP System menu.

Two cartoon figures sitting on a bench outdoors, one holding a device, with a small inset image showing a hand near the bottom (no visible text or symbols)

POP (Picture-out-of-Picture: Channel Scan)

Use POP to search the programmes of all the memorized channels one-by-one on the 3 PIP screen display, (while the main picture source remains the current channel). The pictures of all the programmed channels are searched with the 3 POP screen.

Moving the PIP (PIP mode only)

Press the POSITION button.

Repeatedly press the ▲ / ▼ or ◀ / ▶ button until desired position is achieved. The sub picture moves up/down or left/right.

Win. position

Picture Size

Press the WIN.SIZE button and then ◀ / ▶ button to adjust the sub picture size.

With WIN.SIZE button in DW1, DW2 modes, main and sub picture is adjusted simultaneously. With WIN.SIZE button in PIP mode, sub picture is adjusted.

Black-and-white photo of a person celebrating outdoors with arms raised, no visible text or symbols

Adjusting PIP Transparency (PIP mode only)

  1. Press the MENU button and then ▲ / ▼ button to select the PIP/DW menu.
  2. Press the ▶ button and then ▲ / ▼ button to select PIP Transparency.
  3. Press the ▶ button and then ◀ / ▶ button to adjust PIP transparency.
  4. Repeatedly press the MENU button to return to normal TV viewing.

Adjusting the screen for the PIP

  • In TV or AV modes for the main picture and RGB[PC] for the sub picture, you can use Auto config and Manual config to adjust the screen of the sub picture.
  • In TV or AV modes for main picture and HDMI[DTV] or Component 480p, 576p, 720p, 1080i for the sub picture, you can use Manual config to adjust the screen of the sub picture.

Teletext (option)

  • Teletext (or TOP text) is an optional function, therefore only the set with the teletext system can receive the teletext broadcast.
  • Teletext is a free service broadcast by most TV stations which gives up-to-the-minute information on news, weather, television programmes, share prices and many other topics.
  • The teletext decoder of this set can support the SIMPLE, TOP and FASTEXT systems. SIMPLE (standard teletext) consists of a number of pages which are selected by directly entering the corresponding page number. TOP and FASTEXT are more modern methods allowing quick and easy selection of teletext information.

Switch on/off

Press the TEXT/* button to switch to teletext.

• The initial page or last page appears on the screen.

Two page numbers, TV station name, date and time are displayed on the screen headline. The first page number indicates your selection, while the second shows the current page displayed.

Press the TEXT/* button to switch off teletext.

SIMPLE Text (option)

Page selection

  1. Enter the desired page number as a three digit number with the NUMBER buttons. If during selection you press a wrong number, you must complete the three digit number and then reenter the correct page number.
  2. The ▲ / ▼ button can also be used to select the preceding or following page.

TOP Text (option)

The user guide displays four fields-red, green, yellow and blue at the bottom of the screen. The yellow field denotes the next group and the blue field indicates the next block.

Block / group / page selection

  1. With the blue button you can progress from block to block.
  2. Use the yellow button to proceed to the next group with automatic overflow to the next block.
  3. With the green button you can proceed to the next existing page with automatic overflow to the next group. (Alternatively the ▲ button can be used.)
  4. The red button permits to return to previous selection. (Alternatively the ▼ button can be used.)

Direct page selection

Corresponding to the SIMPLE text mode, you can select a page by entering it as a three digit number using the NUMBER buttons in TOP mode.

FASTEXT

The teletext pages are colour coded along the bottom of the screen and are selected by pressing the corresponding coloured button.

Page selection

  1. Press the ☐ button to select the index page.
  2. You can select the pages which are colour coded along the bottom line with the same coloured buttons.
  3. Corresponding to the SIMPLE text mode, you can select a page by entering its three digit page number with the NUMBER buttons in FASTEXT mode.
  4. The ▲ / ▼ button can also be used to select the preceding or following page.

Special Teletext Functions

LG 42PX2RV - Special Teletext Functions - 1

REVEAL

Press this button to display concealed information, such as solutions of riddles or puzzles. Press this button again to remove the information from the display.

LG 42PX2RV - REVEAL - 1

SIZE

Selects double height text. Press this button to enlarge the top half of the page. Press this button again to enlarge the bottom half of the page. Press this button again to return to the normal display.

LG 42PX2RV - SIZE - 1

UPDATE

Displays the TV picture on the screen while waiting for the new teletext page. Press this button to view the updated teletext page.

LG 42PX2RV - UPDATE - 1

HOLD

Stops the automatic page change which will occur if a teletext page consists of 2 or more sub pages. The number of sub pages and the sub page displayed is, usually, shown on the screen below the time. When this button is pressed the stop symbol is displayed at the top left-hand corner of the screen and the automatic page change is inhibited. To continue press this button again.

LG 42PX2RV - HOLD - 1

MIX

Displays the teletext pages superimposed on the TV picture. To switch the TV picture off press this button again.

LG 42PX2RV - MIX - 1

TIME

This button has two functions: a) When viewing a TV programme, press this button to display the time at the top right hand corner of the screen. Press this button again to remove the display. b) In teletext mode, press this button to select a sub page number. The sub page number is displayed at the bottom of the screen. To hold or change the sub page, press the RED/ GREEN or ▲ /▼ buttons. Press this button again to exit this function.

External Control Device Setup

- Connect the RS-232C input jack to an external control device (such as a computer or an A/V control system) and control the set's functions externally.

How to connect external control equipment

  • Connect the serial port of the control device to the RS-232C jack on the Monitor back panel.
    • RS-232C connection cables are not supplied with the set.
  • The set remote control and front panel controls (except main power) will not be functional if the Monitor is controlled by a PC computer or other external device.

< Back panel of the set >

COMPONENT INPUT 1 COMPONENT INPUT 2 MONITOR OUTPUT AV INPUT 1

Type of connector; D-Sub 9-pin male

No.Pin name
1No connection
2RXD (Receive data)
3TXD (Transmit data)
4DTR (DTE side ready)
5GND
6DSR (DCE side ready)
7RTS (Ready to send)
8CTS (Clear to send)
9No Connection

1 5 9 6

RS-232C configurations
7-wire configuration (Standard RS-232C cable) PC PDP RXD 2 3 TXD TXD 3 2 RXD GND 5 5 GND DTR 4 6 DSL DSR 6 4 DTR RTS 7 8 CTS CTS 8 7 RTS D-Sub 9 D-Sub 9

3-wire configuration (Not standard) PC PDP RXD 2 3 TXD TXD 3 2 RXD GND 5 5 GND DTR 4 4 DTR DSR 6 6 DSR RTS 7 7 RTS CTS 8 8 CTS D-Sub 9 D-Sub 9

Set ID

  • Use this function to specify a set ID number.

  • Refer to 'Real Data Mapping 1'. See page 40.

  • Press the MENU button and then use the ▲ / ▼ button to select the SPECIAL menu.

  • Press the ▶ button and then use ▲ / ▼ button to select Set ID.
  • Press the ▶ button and then use ◀ /▶ button to adjust Set ID to choose the desired monitor ID number.

• The adjustment range of Set ID is 1 \~ 99.

  1. Repeatedly press the MENU button to return to normal TV viewing.

LANGUAGE CHILD LOOK SM Method LOW SHOW XO Demo PRETAY

Communication Parameters

• Baud rate : 9600 bps (UART)
• Data length : 8 bits
- Parity: None
* Use a crossed (reverse) cable.

  • Stop bit : 1 bit
  • Communication code : ASCII code

Command Reference List

COMMAND 1COMMAND 2DATA (Hexadecimal)
01. Powerka0 ~ 1
02. Input Selectkb0 ~ 6
03. Aspect RatiokcRefer to p. 37
04. Screen Mutekd0 ~ 1
05. Volume Muteke0 ~ 1
06. Volume Controlkf0 ~ 64
07. Contrastkg0 ~ 64
08. Brightnesskh0 ~ 64
09. Colourki0 ~ 64
10. Tint (option)kj0 ~ 64
11. Sharpnesskk0 ~ 64
12. OSD Selectkl0 ~ 1
13. Remote control lock modekm0 ~ 1
14. PIP/DWknRefer to p. 38
15. PIP Positionkq0 ~ 3
16. Treblekr0 ~ 64
17. Bassks0 ~ 64
18. Balancekt0 ~ 64
19. Colour Temperature (CSM)ku0 ~ 3
20. Red Adjustmentkv0 ~ 50
21. Green Adjustmentkw0 ~ 50
22. Blue Adjustmentk$0 ~ 50
23. PIP input Sourceky0 ~ 6
24. Abnormal Statuskz0 ~ a
25. ISM Methodjp0 ~ 3
26. Low Powerjq0 ~ 1
27. Orbiter Time Settingjr1 ~ FE
28. Orbiter Pixel Settingjs1 ~ 3
29. Picture Sizejt0 ~ 20
30. Auto Configureju1
31. Programme selectionma0~63
32. KeymcKey Code
33. Input select (Main)xbRefer to p. 41
34. Input select (PIP)xyRefer to p. 41
  • When setting the 23 \~ 32, a menu doesn't display on screen.

Transmission / Receiving Protocol

Transmission

[Command1][Command2][ ][Set ID][ ][Data][Cr]

* [Command 1] : First command to control PDP set. (j or k)

* [Command 2] : Second command to control PDP set.

* [Set ID] : You can adjust the set ID to choose desired monitor ID number in special menu.

Adjustment range is 1 \~ 99.

When selecting Set ID '0', every

connected PDP set is controlled.

Set ID is indicated as decimal (1\~99) on

menu and as Hexa decimal (0x0\~0x63)

on transmission/receiving protocol.

* [DATA] : To transmit command data.

Transmit 'FF' data to read status of command.

* [Cr] : Carriage Return

ASCII code '0x0D'

* [ ] : ASCII code 'space (0x20)'

OK Acknowledgement

[Command2][ ][Set ID][ ][OK][Data][x]

* The Monitor transmits ACK (acknowledgement) based on this format when receiving normal data. At this time, if the data is data read mode, it indicates present status data. If the data is data write mode, it returns the data of the PC computer.

Error Acknowledgement

[Command2][ ][Set ID][ ][NG][Data][x]

* The Monitor transmits ACK (acknowledgement) based on this format when receiving abnormal data from non-viable functions or communication errors.

Data 1: Illegal Code

2: not support function
3: Wait more time

01. Power (Command 2 : a)

▶ To control Power On/Off of the TV.

Transmission

[k][a][ ][Set ID][ ][Data][Cr]

Data 0 : Power Off

1 : Power On

Ack

[a][ ][Set ID][ ][OK][Data][x]

▶ To show Power On/Off.

Transmission

[k][a][ ][Set ID][ ][FF][Cr]

Ack

[a][ ][Set ID][ ][OK][Data][x]

* In like manner, if other functions transmit '0xFF' data based on this format, Acknowledgement data feed back presents status about each function.

02. Input Select (Command 2 : b)

▶ To select input source for the TV. You can also select an input source using the INPUT SELECT button on the Monitor's remote control.

Transmission

[k][b][ ][Set ID][ ][Data][Cr]

▶ To adjust the screen format. (Main picture format) You can also adjust the screen format using the ARC (Aspect Ratio Control) button on remote control or in the SCREEN menu.

Transmission

[k][c][ ][Set ID][ ][Data][Cr]

Data 1 : Normal screen (4:3)6 : Original
2 : Wide screen (16:9)7 : Wide screen (14:9)
3 : Spectacle8 : Full (Option)
4 : Full screen (Zoom)

Ack

[c][ ][Set ID][ ][OK][Data][x]

* Using the PC input, you select either 16:9 or 4:3 screen aspect ratio.

04. Screen Mute (Command 2 : d)

▶ To select screen mute on/off.

Transmission

[k][d][ ][Set ID][ ][Data][Cr]

Data 0 : Screen mute off (Picture on) 1 : Screen mute on (Picture off)

Ack

[d][ ][Set ID][ ][OK][Data][x]

05. Volume Mute (Command 2 : e)

▶ To control volume mute on/off. You can also adjust mute using the MUTE button on remote control.

Transmission

[k][e][ ][Set ID][ ][Data][Cr]

Data 0 : Volume mute off (Volume on) 1 : Volume mute on (Volume off)

Ack

[e][ ][Set ID][ ][OK][Data][x]

06. Volume Control (Command 2 : f)

▶ To adjust volume. You can also adjust volume with the volume buttons on remote control.

Transmission

[k][f][ ][Set ID][ ][Data][Cr]

Data Min : 0 \~ Max : 64 * Refer to 'Real data mapping 1'. See page 40.

Ack

[f][ ][Set ID][ ][OK][Data][x]

07. Contrast (Command 2 : g)

▶ To adjust screen contrast. You can also adjust contrast in the PICTURE menu.

Transmission

[k][g][ ][Set ID][ ][Data][Cr]

Data Min : 0 \~ Max : 64 * Refer to 'Real data mapping 1'. See page 40.

Ack

[g][ ][Set ID][ ][OK][Data][x]

08. Brightness (Command 2 : h)

▶ To adjust screen brightness. You can also adjust brightness in the PICTURE menu.

Transmission

[k][h][ ][Set ID][ ][Data][Cr]

Data Min : 0 \~ Max : 64 * Refer to 'Real data mapping 1'. See page 40.

Ack

[h][ ][Set ID][ ][OK][Data][x]

09. Colour (Command 2 : i)

▶ To adjust the screen colour.

You can also adjust colour in the PICTURE menu.

Transmission

[k][i][ ][Set ID][ ][Data][Cr]

▶ To adjust the screen tint.

You can also adjust tint in the PICTURE menu.

Transmission

[k][j][ ][Set ID][ ][Data][Cr]

Data Red: 0 \~ Green: 64

* Refer to 'Real data mapping 1'. See page 40.

Ack

[i][ ][Set ID][ ][OK][Data][x]

11. Sharpness (Command 2 : k)

▶ To adjust the screen sharpness.

You can also adjust sharpness in the PICTURE menu.

Transmission

[k][k][ ][Set ID][ ][Data][Cr]

▶ To select OSD (On Screen Display) on/off when controlling remotely.

Transmission

[k][l][ ][Set ID][ ][Data][Cr]

Data 0 : OSD off

1: OSD on

Ack

[1][ ][Set ID][ ][OK][Data][x]

13. Remote control lock mode (Command 2 : m)

▶ To lock the front panel controls on the monitor and remote control.

Transmission

[k][m][ ][Set ID][ ][Data][Cr]

Data 0 : Lock off

1:Lock on

Ack

[m][ ][Set ID][ ][OK][Data][x]

* If you're not using the remote control, use this mode. When main power is on/off, external control lock is released.

14. PIP / DW (Command 2 : n)

▶ To control the PIP (Picture In picture)/DW.

You can also control the PIP/DW using the PIP button on the remote control or in the PIP/DW menu.

Transmission

[k][n][ ][Set ID][ ][Data][Cr]

Data 0: PIP/DW off

1: PIP

3: DW2

5: POP

2: DW1

Açk

[n][ ][Set ID][ ][OK][Data][x]

15. PIP Position (Command 2 : q)

▶ To select sub picture position for PIP.

You can also adjust the sub picture position using POSITION button on the remote control or in the PIP/DW menu.

Transmission

[k][q][ ][Set ID][ ][Data][Cr]

Data 0 : Right down on screen

1 : Left down on screen

2 : Left up on screen

3 : Right up on screen

Ack

[q][ ][Set ID][ ][OK][Data][x]

16. Treble (Command 2 :r)

▶ To adjust treble.

You can also adjust treble in the SOUND menu.

Transmission

[k][r][ ][Set ID][ ][Data][Cr]

You can also adjust bass in the SOUND menu.

Transmission

[k][s][ ][Set ID][ ][Data][Cr]

▶ To adjust balance.

You can also adjust balance in the SOUND menu.

Transmission

[k][t][ ][Set ID][ ][Data][Cr]

▶ To adjust colour temperature.

You can also adjust CSM in the PICTURE menu.

Transmission

[k][u][ ][Set ID][ ][Data][Cr]

Data 0: Cool 1: Normal 2: Warm

3: User

Ack

[u][ ][Set ID][ ][OK][Data][x]

20. Red Adjustment (Command 2 : v)

▶ To adjust red in colour temperature.

Transmission

[k][v][ ][Set ID][ ][Data][Cr]

21. Green Adjustment (Command 2 : w)

▶ To adjust green in colour temperature.

Transmission

[k][w][ ][Set ID][ ][Data][Cr]

22. Blue Adjustment (Command 2 : \$)

▶ To adjust blue in colour temperature.

Transmission

[k][\$][ ][Set ID][ ][Data][Cr]

To select input source for sub picture in PIP/DW picture mode. You can also adjust input source for sub picture using PIP INPUT button on remote control.

Transmission

[k][y][ ][Set ID][ ][Data][Cr]

Data 0 : TV

1 : AV1

4 : Component2

2 : AV2

5 : RGB

3 : Component1

6 : HDMI

Ack

[y][ ][Set ID][ ][OK][Data][x]

24. Abnormal State (Command 2 : z)

▶ To recognize an abnormal state.

Transmission

[k][z][ ][Set ID][ ][FF][ ][Cr]

Data FF : Read

Ack

[z][ ][Set ID][ ][OK][Data][x]

Data 0: Normal (Power on and signal exist)

1: No signal (Power on)

2: Turn the TV off by remote control

3: Turn the TV off by sleep time function

4: Turn the TV off by RS-232C function

5: 5V down

6: AC down

7: Turn the TV off by Fan Alarm function (option)

8: Turn the TV off by Off time function

9: Turn the TV off by Auto sleep function

a: Turn the TV off by AV board detect

* This function is "read only".

25. ISM Method

▶ To control the ISM method. You can also adjust ISM Method in SPECIAL menu.

Transmission

[j][p][ ][Set ID][ ][Data][Cr]

Data 0 : Normal Mode

1 : White Wash

2 : Orbiter

3 : Inversion

Ack

[p][ ][Set ID][ ][OK][Data][x]

26. Low Power

(Command 1 : j, Command 2 : q)

▶ To reduce the power consumption of the TV. You can also adjust Low Power in SPECIAL menu.

Transmission

[j][q][ ][Set ID][ ][Data][ ][Cr]

Data 0 : Off

1 : On

Ack

[q][ ][Set ID][ ][OK][Data][x]

27. Orbiter Time Setting

▶ To adjust orbiter operation time term.

Transmission

[j][r][ ][Set ID][ ][Data][ ][Cr]

Data Min: 1 \~ Max: FE

* Refer to 'Real data mapping 1'.

Ack

[r][ ][Set ID][ ][OK][Data][x]

28. Orbiter Pixel Setting

▶ To adjust pixel number in orbiter function.

Transmission

[j][s][ ][Set ID][ ][Data][Cr]

Data Min: 1 \~ Max: 3

* Refer to 'Real data mapping 1'.

Ack

[s][ ][Set ID][ ][OK][Data][x]

29. Picture Size Setting for DW Mode

You can also select the DW picture format using the WIN.SIZE on the remote control.

Transmission

[j][t][ ][Set ID][ ][Data][Cr]

Data Min: 0 \~ Max: 20

* Refer to 'Real data mapping 1'.

Ack

[t][ ][Set ID][ ][OK][Data][x]

30. Auto Configure

▶ To adjust picture position and minimize image shaking automatically. It works only in RGB (PC) mode.

Transmission

[j][u][ ][Set ID][ ][Data][Cr]

Data 1: To set

Ack

[u][ ][Set ID][ ][OK][Data][x]

31. Programme selection

▶ To select a programme for the main picture.

Transmission

[m][a][ ][Set ID][ ][Data0][ ][Data1][ ][Data2][Cr]

Data0 Min: 0 \~ Max: 63 (0 \~ C7, 200Pr is on)

* Refer to 'Real data mapping 1'.

Data1 Don't care

Data2 0:Main

1:Sub

Ack

[a][ ][Set ID][ ][OK][Data0][x]

* Real data mapping 1

0 : Step 0

• • •

A : Step 10 (Set ID 10)

•

F : Step 15 (Set ID 15)

10:Step 16(Set ID 16)

• • •

64:Step100

:

6E:Step110

• • •

73:Step115

74:Step116

• • •

C7:Step199

:

FE:Step254

FF:Step255

* Real data mapping 2

0 : -40

1 : -39

2 : -38

:

28:0

•

4E: +38

4F: +39

50: +40

32. Key

▶ To send IR remote key code.

Transmission

[m][c][ ][Set ID][ ][Data][Cr]

Data Key code - Refer to page 43.

Ack

[c][ ][Set ID][ ][OK][Data][x]

33. Input select (Command 1 : x, Command 2 : b) (Main Picture Input)

▶ To select input source for TV.

Transmission

[x][b][ ][Set ID][ ][Data][Cr]

Data Structure

MSB
LSB

00000000
External InputInput Number
External InputData
0001Analog
0010AV
0100Component
0101RGB-DTV
0110RGB-PC
1001HDMI
Input NumberData
0000Input1
0001Input2

Ack

[b][ ][Set ID][ ][OK][Data][x]

34. Input select (Command 1 : x, Command 2 : y)

▶ To adjust input source for sub picture in PIP mode.

Transmission

[x][y][ ][Set ID][ ][Data][Cr]

Data Structure

MSB
LSB

00000000
External InputInput Number
External InputData
0001Analog
0010AV
0100Component
0101RGB-DTV
0110RGB-PC
1001HDMI
Input NumberData
0000Input1
0001Input2

Ack

[y][ ][Set ID][ ][OK][Data][x]

IR Code (NEC Format)

How to connect

▶ Connect your wired remote control to the Remote Control port on the Monitor.

Remote Control IR Code (NEC Format)

▶ Output waveform

Single pulse, modulated with 37.917KHz signal at 455KHz

Carrier frequency FCAR = 1/Tc = fosc/12 Duty ratio = T1/Tc = 1/3

▶ Configuration of frame

- 1st frame

Lead code Low custom code High custom code Data code Data code C0 C1 C2 C3 C4 C5 C6 C7 C0 C1 C2 C3 C4 C5 C6 C7 D0 D1 D2 D3 D4 D5 D6 D7 D0 D1 D2 D3 D4 D5 D6 D7

- Repeat frame

Repeat code Tf

▶ Lead code

9 ms 4.5 ms

▶ Repeat code

Repeat code 0.55 ms 9 ms 2.25 ms

▶ Bit description

• Bit "0" 0.56 ms 1.12 ms

• Bit "1" 0.56 ms 2.24 ms

▶ Frame interval : Tf

The waveform is transmitted as long as a key is depressed.

Tf Tf

Tf=108ms @455KHz

LG 42PX2RV - ▶ Frame interval : Tf - 2

Code (Hexa)FunctionNote
00PR (▲)R/C Button
01PR (▼)R/C Button
02VOL (▶)R/C Button
03VOL (◀)R/C Button
08POWERR/C Button (Power On/Off)
C4POWER ONDiscrete IR Code (Only Power On)
C5POWER OFFDiscrete IR Code (Only Power Off)
09MUTER/C Button
10Number Key 0R/C Button
11Number Key 1R/C Button
12Number Key 2R/C Button
13Number Key 3R/C Button
14Number Key 4R/C Button
15Number Key 5R/C Button
16Number Key 6R/C Button
17Number Key 7R/C Button
18Number Key 8R/C Button
19Number Key 9R/C Button
0BTV/AVR/C Button
98MULTIMEDIAR/C Button
BFCOMPONENT1Discrete IR Code (Input COMPONENT1 Selection)
D4COMPONENT2Discrete IR Code (Input COMPONENT2 Selection)
C6HDMIDiscrete IR Code (Input HDMI Selection)
D5RGBDiscrete IR Code (Input RGB Selection)
D6TVDiscrete IR Code (Input TV Selection)
5AAV1Discrete IR Code (Input AV1 Selection)
D0AV2Discrete IR Code (Input AV2 Selection)
1AQ.VIEWR/C Button
0AI/IIR/C Button
0ESLEEPR/C Button
43MENUR/C Button
44OK(◎)R/C Button
4DPSMR/C Button
52SSMR/C Button
53LISTR/C Button
20TEXT/*R/C Button
2AREVEALR/C Button
22MODER/C Button
24MIXR/C Button
26TIMER/C Button
62UPDATE / POSITIONR/C Button
64SIZE / WIN.SIZER/C Button
65HOLDR/C Button
70INDEXR/C Button
60PIP/DWR/C Button
61PIP INPUTR/C Button
63SWAPR/C Button
71PIP PR+R/C Button
72PIP PR-R/C Button
5CZoom +R/C Button
5DZoom -R/C Button
79ARCR/C Button
76ARC (4:3)Discrete IR Code (Only 4:3 mode)
77ARC (16:9)Discrete IR Code (Only 16:9 mode)
AFARC (Zoom)Discrete IR Code (Only Zoom mode)

Notes

Notes

Troubleshooting Checklist

No picture & No sound·Check whether the set is turned on.·Power cord inserted into wall outlet?·Plug another product's power cord into the wall outlet where the set's power cord was plugged in.
Picture OK & No sound·Press the VOLUME (▶) button.·Sound muted? Press MUTE button.·Check whether the TV speaker is "on" in the SOUND menu.
The remote control doesn't work·Check to see if there is any object between the set and the remote control causing obstruction.·Check to see if the batteries are installed with the correct polarities. (Refer to p.6)·Check if the remote control handset is set up to correct mode.·Install new batteries. (Refer to p.6)
Picture appears slowly, after switching on·This is normal as the image is muted during the startup process of the set. Please contact your service centre, if the picture has not appeared after five minutes.
No or Poor colour or Poor picture·Select Colour in the PICTURE menu and press the VOLUME (▶) button. (Refer to p.23)·Keep a certain distance between the set and the VCR.·Activate any function to restore the brightness of the picture. (If still picture is on the screen for more than 5 minutes, the screen gets dark.)
Horizontal/vertical bars or picture shaking·Check for local interference such as an electrical appliance or power tool.
No output from one of the speakers·Adjust Balance in the SOUND menu. (Refer to p.24)
Unusual sound from inside the set·A change in ambient humidity or temperature may result in an unusual noise at the time of switching off or on of the set and does not indicate a fault with the set.

Product Specifications

MODEL42PX3RV 42PX3RVB 42PX3RVC 42PX3RVH 42PX3RV-TA 42PX3RVB-TA 42PX3RVC-TA 42PX3RVH-TA42PX2RV 42PX2RVH 42PX2RV-TA 42PX2RVH-TA
Width (inches / mm)47.64 / 121047.7 / 1210
Height (inches / mm)27.60 / 70127.4 / 696
Depth (inches / mm)11.61 / 29510.7 / 270
Weight (pounds / kg)66.14 / 3077.2 / 35
Power requirementAC100-240V, 50/60Hz
Operating Temperature Range32 ~ 104°F (0 ~ 40°C)
Operating Humidity RangeLess than 80%
MODEL50PX3R50PX3R-TA50PX3RH50PX3RH-TA
Width (inches / mm)55.1 / 1400
Height (inches / mm)32.3 / 821
Depth (inches / mm)3.9 / 99
Weight (pounds / kg)115 / 52.15
Power requirementAC100-240V, 50/60Hz
Operating Temperature Range32 ~ 104°F (0 ~ 40°C)
Operating Humidity RangeLess than 80%

• The specifications shown above may be changed without notice for quality improvement.

LG

Table of contents Click a title to access it
Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : LG

Model : 42PX2RV

Category : Soundbar
