Product Type	Battery Heater
Brand	DJI
Model	Phantom 3 Intelligent Flight Battery Heater
Compatible Battery	DJI Phantom 3 Intelligent Flight Battery (15.2 V, 4480 mAh)
Main Function	Preheats the battery to optimal operating temperature in cold environments
Heating Method	Contact heating via insulated heating pad
Target Temperature	Approximately 20°C (68°F)
Power Source	12 V DC adapter (not included)
Cable Length	1 m (approximately)
Dimensions (L × W × H)	150 × 90 × 20 mm (approximately)
Weight	100 g (approximately)
Material	Silicone and heat-resistant fabric
Color	Black
Operating Temperature	-10°C to 40°C (ambient)
Storage Temperature	-20°C to 45°C
Safety Features	Overheat protection, short-circuit protection
Installation	Quick attachment with hook-and-loop straps
Maintenance	Wipe with a soft dry cloth; do not immerse in water
Package Contents	Heater unit, power cable, user manual
Certifications	CE, FCC, RoHS

Frequently Asked Questions - Phantom 3 Intelligent Flight Battery Heater DJI

How does the Phantom 3 Intelligent Flight Battery Heater work?

The heater uses a resistive heating element to warm the battery to an optimal temperature before flight. It wraps around the battery and is powered by a 12 V DC source.

Can this heater be used with other DJI batteries?

No, it is specifically designed for the DJI Phantom 3 Intelligent Flight Battery. Using it with other batteries may damage the battery or the heater.

How long does it take to fully heat the battery?

The heating time depends on ambient temperature and battery starting temperature. Typically, it takes about 15-25 minutes to reach the target temperature of approximately 20°C.

Is it safe to charge the battery while the heater is attached?

You should not charge the battery while the heater is connected to the power source. Disconnect the heater and let the battery settle before charging.

What are the safety protections built into the heater?

The heater includes overheat protection and short-circuit protection, which automatically cut off power if a fault is detected.

Can I use the heater with a power bank?

It depends on the power bank's output voltage and current. The heater requires a 12 V DC power source. Most power banks provide 5 V USB, so unless your power bank has a 12 V output, it won't work.

How do I clean and maintain the heater?

Use a soft, dry cloth to wipe the surface. Do not use water or solvents. Store it in a cool, dry place when not in use.

Is the heater waterproof?

No, it is not waterproof. Keep it away from rain and moisture to avoid electrical hazards.

What is the purpose of preheating the drone battery?

In cold conditions, battery performance drops significantly. Preheating helps maintain voltage stability and extends flight time.

Can I leave the heater plugged in overnight?

It is not recommended to leave it unattended for long periods. Once the battery reaches the desired temperature, disconnect the heater.

USER MANUAL Phantom 3 Intelligent Flight Battery Heater DJI

Intelligent Flight Battery Heater

User Manual V1.0

2016.02

Disclaimer

Thank you for purchasing the Phantom 3 Intelligent Flight Battery Heater (hereafter referred to as “product”). Read this disclaimer carefully before using this product. By using this product, you hereby agree to this disclaimer and signify that you have read it fully. Please use this product in strict accordance with the manual and be sure to pay attention to the warnings. SZ DJI Technology Co., Ltd. and its affiliated companies assume no liability for damage(s) or injuries incurred directly or indirectly from improper use of this product. Refer to the User Manual for applicable information not herein contained.

This device complies with Part 15 of the FCC Rules.

DJI is the registered trademark of SZ DJI Technology Co., Ltd. (abbreviated as “DJI”). Names of product, brand, etc., appearing in this manual are trademarks or registered trademarks of their respective owner companies. This product and manual are copyrighted by DJI with all rights reserved. No part of this product or manual shall be reproduced in any form without the prior written consent or authorization of DJI.

This disclaimer is produced in various languages. In the event of divergence among different versions, the Chinese version shall prevail when the product in question is purchased in Mainland China, and English version shall prevail when the product in question is purchased in any other region.

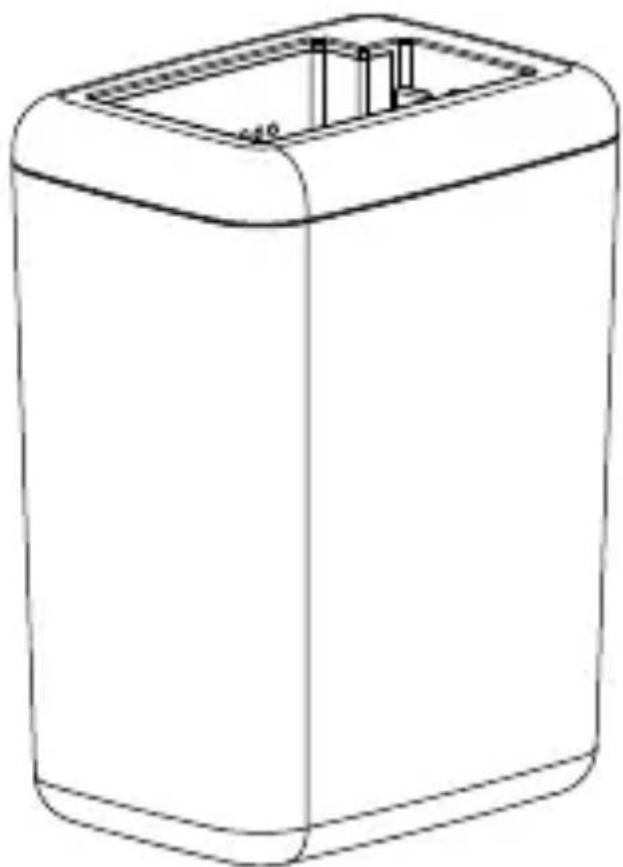

Profile

The Phantom 3 Intelligent Battery Heater is used to preheat the aircraft battery in air temperatures between -4° and 41° F (-20° and 5°C). It uses the battery's power to raise the battery temperature to the optimal operating range: 41° to 95° F (5° to 35°C). Using the battery heater ensures the safety and performance of your aircraft.

Usage

1. Place a fully charged, powered off battery into the battery heater.
2. Power on the battery and allow it to warm for 5-10 minutes (time will vary depending on temperature). Be sure to monitor the battery at all times.

3. Power off the battery while it is still in the battery heater and leave an additional 3 minutes to ensure even heating.

4. 1. 3


Power on for 5–10 minutes

Leave for 3 minutes Insert the ba

• Around 3 % to 7 % of battery power will be used for heating.
• A 3-stage overheat protection mechanism prevents the battery from overheating. The battery heater will automatically deactivate at temperatures exceeding 95° F (35°C), with additional failsafe barriers at 122° and 208° F (50° and 98° C ).
• Once the desired temperature is reached, power off the battery to avoid draining it. Use immediately after removing it from the battery heater.

Specifications

Intended Battery PH3-4480mAh-15.2V

Operating Air Temperature -20° to 5°C

Cutoff Temperature 35 ± 5° C

Power Rating <30 W

Input Voltage 12-17.4 VDC

Input Current <1.72 A

Dimensions 61 × 83 × 113 mm
