Energysilence 520 Power - Ceiling fan CECOTEC - Free user manual and instructions

Product type	Ceiling fan
Brand	Cecotec
Model	Energysilence 520 Power
Blade diameter	132 cm (52 inches)
Blade material	ABS (durable plastic)
Color	White (as shown)
Power supply	220-240 V ~ 50 Hz
Motor power	60 W
Motor type	Silent DC motor
Number of speeds	3 speeds
Reversible function	Yes (summer/winter)
Control	Infrared remote control
Net weight	5.5 kg
Casing dimensions (LxWxH)	55 x 55 x 35 cm
Minimum mounting height	2.5 meters
Tilt angle	12°
Noise level	< 35 dB (at low speed)
Warranty	2 years
Maintenance	Clean with soft, dry cloth
Safety	Use only with a protected circuit
Reparability	Parts available from Cecotec customer service

Frequently Asked Questions - Energysilence 520 Power CECOTEC

How to install the Energysilence 520 Power ceiling fan?

Follow the included mounting guide. Make sure the bracket is securely fastened to a beam or suitable electrical box. Connect the wires according to the color code (live, neutral, ground). Refer to the manual for detailed steps.

How to use the remote control?

Insert AAA batteries into the remote. Point it at the fan to change speed or reverse rotation direction. If it doesn't respond, check the batteries or re-pair it according to the instructions.

How to reverse the rotation direction for winter?

Press the reverse button on the remote (usually a circular arrow icon). In winter mode, the blades rotate clockwise to redistribute heat.

The fan makes abnormal noise, what should I do?

Check that all screws are tight and the blades are balanced. If the noise persists, clean the blades and motor. A slight hum is normal, but any grinding or clicking noise requires inspection.

How to clean the fan?

Unplug the appliance. Use a soft, dry cloth to dust the blades and motor. Do not use chemicals or water directly on the motor. Regular cleaning extends its lifespan.

What to do if the fan doesn't turn on?

Check the power supply (switch and fuse). Make sure the remote has working batteries and is in direct line of sight. If nothing works, contact customer service.

The fan wobbles or vibrates, how to fix?

Use the supplied balancing kit (small weights) to balance the blades. Also check that the bracket is securely fastened to the ceiling. If vibrations persist, disassemble and reassemble the blades.

Can the fan be used without the remote control?

No, the Energysilence 520 Power fan requires the remote to operate. If lost, you can order a replacement remote from Cecotec.

What is the recommended ceiling height?

The fan must be installed at least 2.5 meters from the floor for safety. For high ceilings, use an extension rod (not included) to lower the fan.

How to contact Cecotec customer service?

You can contact customer service by phone at the number on the official website or by email. Have your model number and proof of purchase handy. The warranty covers manufacturing defects.

USER MANUAL Energysilence 520 Power CECOTEC

1. Parts and components 26
2. Before use 26
3. Product assembly 26
4. Operation 27
5. Cleaning and maintenance 27
6. Technical specifications 27
7. Disposal of old electrical appliances 28
8. Technical support and warranty 28
9. Copyright 29

SOMMAIRE

Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users.

- Make sure that the mains voltage matches the voltage stat-

ed on the rating label of the appliance and that the wall outlet is grounded.

• Check the power cord regularly for visible damage. If the cord is damaged, it must be replaced by the official Technical Support Service of Cecotec in order to avoid any type of danger.
• Do not immerse the cord, plug or any part of the appliance in water or any other liquid, nor expose electrical connections to water. Make sure your hands are completely dry before handling the plug or switching on the appliance.
• If the appliance falls accidentally into water, unplug it immediately. Do not reach into the water!
• Do not operate the device if any fault or unusual sign is detected.
• Keep hair, loose clothing, fingers, and other parts of the body away from the openings and moving parts of the appliance.
• Make sure the appliance is placed on a flat and stable surface during operation.
• Do not use the appliance near window or other places where it could get wet or next to heat sources.
• Do not operate the product below or next to curtains.
• Do not cover the grids and do not place the product's cord under carpets or other objects during operating.
• Keep a minimum safety distance from the appliance to any object or wall on each side, back and front.
• Do not leave the appliance unattended while in use.
• Do not use the appliance with accessories or spare parts that are not provided by Cecotec, this could case danger to people and damage to the product.
• Always turn off and unplug the appliance when not in use and before assembling, disassembling or moving it. Pull

from the plug, not the cord, to disconnect it from the outlet.

• This product is designed only for household use. It is not suitable for commercial or industrial use. Do not operate it outdoors.
• Cleaning and maintenance tasks should be carried out according to this manual to ensure correct operation of the device.
• This appliance can be used by children aged 8 and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, as long as they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. The cleaning and maintenance of the appliance should not be carried out by children without supervision.
• Keep this appliance and its power cord out of reach of children under the age of 8.

INSTRUCTIONS DE SÉCURITÉ

1. Control panel
2. Height-adjustment bar
3. Support
4. Base
5. Base fixing screw
6. Back grid
7. Back grid fixing nut
8. Blades
9. Blade-fixing nut
10. Front grid
11. Grid ring fastener
12. Adjusting wing screw
13. Height-adjustment nut

(*) The graphics in this manual are schematic representations and may not exactly match the product.

2. BEFORE USE

• Take the product out of the box.
• Remove all packaging material and labels before connecting the device. Keep the original box.
• Make sure all parts and components are included and in good conditions. If any sign of visible damage is observed, immediately contact with the official Technical Support Service of Cecotec.

3. PRODUCT ASSEMBLY

• Step 1: Assembly the base and fan support (Fig. 2). Use the base-fixing nut to assemble the base to the fan support (Fig. 3).
• Step 2: Loosen the height-adjustment nut and lift the height-adjustment bar to the desired level. Use the adjustment wing screw to fix the bar's height. Fig. 4

• Step 3: Place the fan's head on the height-adjustment bar and fix it with the adjusting wing screw provided. Fig. 5

• Step 4: Remove the blade-fixing nut from the motor shaft by turning it clockwise and unscrew the back grid fixing nut anticlockwise from the fan's head. Fig. 6

• Aligning the position holes, place the back grid in the fan's head and tighten it with the back-grid fixing nut. Do not over screw the nut. Fig. 6
• Step 5: Align the grooves on the blades center with the fan shaft and introduce them. Make sure that they match correctly and screw the blade fixing nut anticlockwise to fix them tightly to the motor shaft's end. Fig. 7

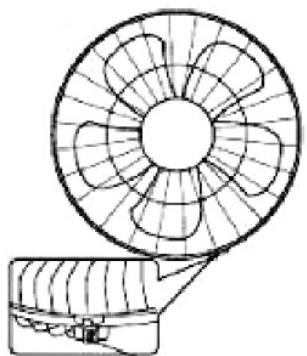

• Step 6: Install the front grid in its position with the ring making sure the last groove is facing upwards and that the grid ring fastener is facing downwards. Once both grids are fixed and kept together, lock them with the screw. Fig. 8

4. OPERATION

• Place the fan on a flat and dry surface and plug its cord in a power outlet.
• Select the desired speed: 0-Off, 1-Eco, 2-Medium, 3-High, 4-Turbo.
• Press the oscillation knob to activate the oscillation function. To deactivate it, pull it out.
• To adjust the fan head's tilt angle, loosen the adjusting wing screw and press the fan front grid and screw it back to tighten it.
• Set the desired operating time by turning the timer anticlockwise, the timer can be set from 0 to 120 minutes. After the selected time, the fan will turn automatically off.
• Warning: Make sure the fan is turned off before assembling, disassembling or adjusting it.

5. CLEANING AND MAINTENANCE

• Always turn the device off and unplug it from the power supply before carrying out cleaning and maintenance tasks.
• Use a soft, damp cloth to clean the device surface.
• Keep the air vents at the rear of the main body free from dust or fluff– use a vacuum cleaner to remove these when necessary.

6. TECHNICAL SPECIFICATIONS

Models: EnergySilence 520 Power/Black

Product references: 05902/05903

Power: 50 W

Voltage and frequency: 220-240 V\~, 50/60 Hz

Description	Symbol	Value	Unit
Fan maximum flow	F	37,7	m3/min
Fan power consumption	P	38,2	W
Service value	SV	1.0	(m3/min)/W
Power consumption on standby mode	PSB	0	W
Fan sound power level	LWA	52	dB (A)
Maximum air speed	C	2.3	m/seg
Service value measurement standard	IEC 60879
Contact details to obtain more information	Cecotec Innovaciones S.L.C/ de la Pinadeta s/n, 46930Quart de Poblet, Valencia (Spain)

(*) Technical specifications may change without prior notification to improve product quality.

Manufactured in China | Designed in Spain

7. DISPOSAL OF OLD ELECTRICAL APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or battery must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help to protect the environment.

8. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact Cecotec official Technical Support Service at [phone].

9. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

1. PIÈCES ET COMPOSANTS

Img. 1

Fig./Img./Abb./Afb./Rys./Obr.1

Fig./Img./Abb./Afb./Rys./Obr. 2

Fig./Img./Abb./Afb./Rys./Obr. 3

Fig./Img./Abb./Afb./Rys./Obr. 4

Fig./Img./Abb./Afb./Rys./Obr. 5

Fig./Img./Abb./Afb./Rys./Obr. 6

Fig./Img./Abb./Afb./Rys./Obr. 7

Fig./Img./Abb./Afb./Rys./Obr. 8
