Energysilence 515 Maxflow A90 Eu01 008297 - Ceiling fan CECOTEC - Free user manual and instructions

Product type	Ceiling fan
Brand	Cecotec
Model	Energysilence 515 Maxflow A90 Eu01 008297
Blade diameter	132 cm (52 inches)
Number of blades	5
Blade material	ABS
Motor	DC motor
Rated power	50 W
Voltage	220-240 V ~ 50 Hz
Number of speeds	6 speeds
Remote control included	Yes
Summer/Winter reverse function	Yes
Minimum sound level	20 dB (A)
Maximum airflow	200 m³/min
Box dimensions (L x W x H)	132 x 132 x 45 cm
Net weight	7.5 kg
Color	White
Box material	Plastic and metal
Installation	On ceiling
Cleaning	Soft, damp cloth
Warranty	2 years

Frequently Asked Questions - Energysilence 515 Maxflow A90 Eu01 008297 CECOTEC

How to install the Cecotec Energysilence 515 Maxflow ceiling fan?

Installation must be carried out by a qualified professional. Ensure the ceiling mount is secure and the power supply is turned off before starting. Follow the instructions in the provided manual.

How to use the remote control?

The remote control allows you to adjust the speed (6 levels), activate the summer/winter reverse function, and turn off the fan. Insert the batteries, point towards the receiver, and press the desired button.

How to reverse the rotation direction for winter?

Use the remote control or the reversing button on the housing. In summer, the blades rotate counterclockwise to create a cooling breeze. In winter, reverse the direction (clockwise) to redistribute heat.

What is the noise level of this fan?

The Cecotec Energysilence 515 Maxflow fan is designed to be quiet. The sound level is approximately 20 dB at the lowest speed, equivalent to a whisper.

How to clean the fan?

Unplug the device. Use a soft, slightly damp cloth to wipe the blades and housing. Do not use abrasive products or solvents. Ensure electrical parts remain dry.

What to do if the remote control does not work?

Check the batteries and their polarity. Make sure no obstacles block the signal between the remote and receiver. If the problem persists, check the electrical connections or contact after-sales service.

Does the fan come with an adjustable suspension rod?

Yes, the Energysilence 515 Maxflow model comes with a suspension rod that allows height adjustment. The manual indicates the available lengths.

What is the electrical power of the motor?

The DC motor has a rated power of 50 W, making it energy-efficient while providing high airflow.

Can I install this fan outdoors?

No, this fan is designed for indoor use only. Do not expose it to moisture or weather.

Is there a warranty and how to use it?

The fan comes with a 2-year warranty. For any claims, keep the invoice and contact Cecotec support or an authorized dealer.

USER MANUAL Energysilence 515 Maxflow A90 Eu01 008297 CECOTEC

1. Parts and components 36
2. Before use 36
3. Assembling the appliance 37
4. Operation 38
5. Cleaning and maintenance 38
6. Technical specifications 39
7. Disposal of old electrical and electronic appliances 39
8. Technical support and warranty 40
9. Copyright 40

SOMMAIRE

Read these instructions thoroughly before using the device. Keep this instruction manual for future reference or new users.

• All safety instructions must be closely followed when using the appliance.
• This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.
• This device is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• Make sure that the mains voltage matches the voltage stated on the appliance marking and that the wall outlet is earthed.
• Check the power cable regularly for visible damage. If the cable is damaged, it must be repaired by the official Cecotec Technical Support Service in order to avoid any type of danger.
• Do not immerse the cable, plug, or any other non-removable part of the device in water or any other liquid or expose electrical connections to water. Make sure your hands are dry before handling the plug or switching on the device.
• If the appliance falls accidentally into water, unplug it immediately. Do not touch the water!

• Do not operate the device if any fault or unusual sign is detected.

• Do not operate the product next to combustible or explosive gas.

• The appliance must not be placed immediately below a socket.
• Keep hair, loose clothing, fingers, and other parts of the body away from the openings and moving parts of the device.
• Make sure the appliance is placed on a flat and stable surface and do not move it during operation.
• Do not use the appliance near a window or places where it could get wet (at least 2 metres away), as water could cause an electric shock.
• Do not operate the product under or next to curtains.
• Do not cover the air inlet and outlet and do not place the product's cord under carpets or other objects during operation. Keep the front, back, and sides of appliance at a minimum safety distance from walls and other objects.
• Do not leave the appliance unattended while in use.
• It is not recommended to use the product with an extension lead.
• Always switch off and unplug the appliance when not in use and before assembling, disassembling, or moving it. Pull from the plug, not the cable, to disconnect it from the outlet.
• Cleaning and maintenance tasks should be carried out according to this manual to ensure the correct operation of the device.
• Supervise children to prevent them from playing with the appliance. Close supervision is necessary when the appliance is being used by or near children.

Instructions on batteries

- Do not burn or expose the batteries to high temperatures, as they may explode.

• Leaks from the batteries can occur under extreme conditions.
• Do not touch any liquid that leaks from the batteries. If the liquid gets into contact with skin, wash immediately with soap and water. If the liquid gets into the eyes, wash them immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of it immediately in accordance with local regulations.
• Avoid contact between the batteries and small metal objects such as paper clips, coins, keys, nails, or screws.
• Do not tamper with the batteries in any way.
• The batteries must be removed for safe disposal of the machine.
• Keep the batteries out of the reach of children when there is a risk of ingestion.
• Battery ingestion can cause burns, soft-tissue perforation, and death. It can cause severe burns within two hours of the ingestion.
• In case of battery ingestion, please seek medical help immediately.
• The batteries' power supply terminals must not be short-circuited.
• If the machine is to be stored for a long period of time, it is advisable to remove the batteries.
• The batteries must be inserted in the correct position. When replacing batteries, check the polarity.

INSTRUCTIONS DE SÉCURITÉ

1. Front grille
2. Fan-blade fixing cap
3. Blades
4. Fixing nut
5. Rear grille
6. Motor shaft
7. Motor
8. Oscillation knob
9. Control panel
10. Height adjustment knob
11. Tubes
12. Base
13. Tilting knob

NOTE:

The graphics in this manual are schematic representations and may not exactly match the device.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent damage to the appliance when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

Box content

• Pedestal fan
• Instruction manual

3. ASSEMBLING THE APPLIANCE

The only tool required to assemble this appliance is a screwdriver.

Assembling the tubes and base

1. Turn the height-adjustment knob counterclockwise and pull out the tube. Next, turn the height-adjustment knob clockwise to fix the tube.
2. Insert the tube into the hole in the base.
3. Press the tube firmly to ensure that it fits correctly into the base.
4. To completely fix the tube to the base, tighten the nut at the bottom of the base.
5. Finally, adjust the height-adjustment knob according to your needs.

Assembling the rear grille

Fig. 2

1. Turn the fan-blade fixing cap (2) clockwise to remove it. Turn the fixing nut (4) counterclockwise to remove it. Then, fit the rear grille by aligning it with the motor shaft (6).
2. Secure the rear grille by screwing it clockwise.

Assembling the blades

1. Insert the blades into the motor shaft. Make sure that the rear hole of the blades is aligned with the pin on the motor shaft.
2. Next, place the fixing nut (4) by screwing it into the motor shaft counterclockwise, and place the pin (a) into the corresponding slot (b) (Fig. 3).

Assembling the front grille

Fig. 4

1. Place the grille fastening ring into the front grille. Afterwards, join both pieces to the rear grille.
2. Check that the front and rear grilles are properly aligned and completely connected by the ring.

NOTE: at the ends of the ring there is a fixing screw. Screw it in firmly with a screwdriver, making sure that it does not come out.

Finally, to finish assembling the pedestal fan correctly, join the top part and the blades with the previously assembled tube. Once both parts are assembled, use the nut located at the rear of the fan to secure both parts firmly. Figure 5 shows the location of the nut.

4. OPERATION

Control panel

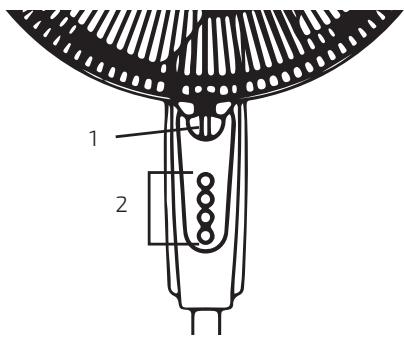

Figure 6

1. Timer knob
2. Speed buttons

- To switch the fan on/off and select the desired speed, use the buttons corresponding to the speed (2). The speeds are:

0-Off
1- Low speed
2- Medium speed
3- High speed

- The fan has a timer. To activate it, just turn the knob until selecting the desired time. The maximum non-stop operating time is 120 minutes. After the chosen time has elapsed, the fan will stop completely.

Oscillation function

To make the fan oscillate and thus facilitate air distribution in the room, press the oscillation knob at the top of the motor housing.

To deactivate this function, return it to the initial upward position.

Tilting settings

To adjust the tilt of the fan, unscrew the tilting knob. Move the fan to the desired position and then retighten the knob. Fig. 7

Protection against overheating system

The fan motor has a built-in thermostat. The fuse will automatically switch off when the motor temperature exceeds the limit. In this way, the plastic parts will not be burnt or deformed.

5. CLEANING AND MAINTENANCE

The fan requires little maintenance.

If it is damaged or the power cord is damaged, do not attempt to repair it yourself. Contact the official Cecotec Technical Support Service.

1. Before cleaning or assembling the fan, make sure that it is disconnected from the mains.
2. To ensure adequate air circulation to the motor, prevent dust or lint from accumulating in the ventilation grilles, located at the back of the motor housing.

NOTE: do not disassemble the fan to remove lint.

1. Clean the outside of the fan with a soft damp cloth and some mild soap.

NOTE: do not use abrasive products or solvents. Doing so may scratch the surface of the fan.

1. Prevent water or any other liquid from entering the motor housing or internal parts.

6. TECHNICAL SPECIFICATIONS

Product reference: 08297 / 08299

Product:

EnergySilence 515 MaxFlow White

EnergySilence 515 MaxFlow Black

Voltage: 220-240 V

Frequency: 50 Hz

Power: 45 W

DESCRIPTION	SYMBOL	VALUE	UNIT
Fan maximum flow	F		m^3/min
Fan power consumption	P		W
Service value	SV		(m^3/min)/W
Power consumption on standby mode	P_SB		W
Fan sound power level	L_WA		dB (A)
Maximum air speed	C		m/seg
Service value measurement standard	IEC 60879
Contact details to obtain more information	Cecotec Innovaciones SL.Av. Reyes Católicos, No 60, 46910,Alfafar (Valencia, Spain)

Technical specifications may change without prior notification to improve product quality. Made in China | Designed in Spain

7. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life,

you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

8. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

9. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

1. PIÈCES ET COMPOSANTS

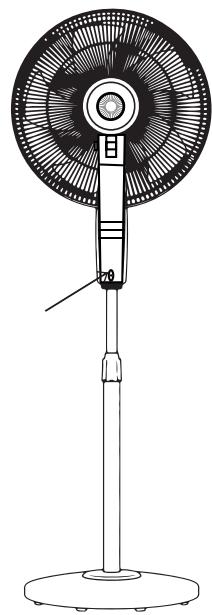

Image 1

Fig./Img./Abb./Afb./Rys./Obr. 2

Fig./Img./Abb./Afb./Rys./Obr. 3

Fig./Img./Abb./Afb./Rys./Obr. 4

Fig./Img./Abb./Afb./ Rys./Obr. 5

Fig./Img./Abb./Afb./Rys./Obr. 6

Fig./Img./Abb./Afb./Rys./Obr. 7

www.cecotec.es
