Energysilence 250 Classicstyle - Ceiling fan CECOTEC - Free user manual and instructions

Product type	Pedestal fan
Brand	Cecotec
Model	EnergySilence 250 ClassicStyle
References	08204 (Pink), 08205 (Beige), 08206 (Green)
Rated voltage	220-240 V
Frequency	50 Hz
Rated power	25 W
Power consumption (max)	21.0 W
Maximum air flow	13.5 m³/min
Sound level	43 dB(A)
Maximum air velocity	2.7 m/s
Service value	0.6 (m³/min)/W
Standby consumption	0.0 W
Number of speeds	2 (low and high)
Control type	Rotary switch
Adjustable height	Yes (telescopic tube)
Adjustable tilt	Yes
Protective grille	Yes, removable for cleaning
Maintenance	Soft cloth and non-corrosive cleaning product
Origin	Made in China, designed in Spain

Frequently Asked Questions - Energysilence 250 Classicstyle CECOTEC

How to assemble the fan?

Insert the telescopic tube into the base, then mount the inner part and secure it. Next, insert the main unit into the tube and tighten the fixing knobs.

How to adjust the fan height?

Loosen the fixing knob slightly, raise or lower the tube to the desired height, then tighten the knob.

How to use the different speeds?

Turn the selector to the desired position: 0 (off), I (low speed) or II (high speed).

How to clean the fan?

Unplug the appliance, carefully remove the grille and the blades. Clean with a soft cloth and a non-corrosive product, then dry. Put the parts back in place before plugging back in.

What to do in case of malfunction?

Check that the socket works and the cable is not damaged. If the problem persists, contact the official After-Sales Service of Cecotec at [phone].

Is the fan quiet?

Yes, the EnergySilence 250 ClassicStyle model has a sound level of 43 dB(A), making it particularly discreet.

What is the power consumption?

The rated power is 25 W, and the power consumption during operation is 21.0 W. Standby consumption is 0.0 W.

How to recycle the appliance at end of life?

Do not dispose of the appliance with household waste. Take it to a collection point for electrical and electronic equipment in accordance with local regulations.

What are the important safety instructions?

Do not immerse in water, keep hair and clothing away from moving parts, do not use near windows or curtains, and unplug before any maintenance.

Where to contact after-sales service?

For any incident or problem, contact the official Cecotec After-Sales Service at [phone] or via their website.

USER MANUAL Energysilence 250 Classicstyle CECOTEC

1. Parts and components 23
2. Before use 23
3. Assembly 23
4. Operation 24
5. Cleaning and maintenance 24
6. Technical specifications 24
7. Disposal of old electrical and electronic appliances 25
8. Technical support and warranty 25
9. Copyright 26

SOMMAIRE

Read these instructions thoroughly before using the device. Keep this instruction manual for future reference or new users.

• All safety instructions must be closely followed when using the appliance.
• This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user

maintenance should not be carried out by unsupervised children.

• This device is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• Make sure that the mains voltage matches the voltage stated on the appliance marking and that the wall outlet is earthed.
• Check the power cable regularly for visible damage. If the cable is damaged, it must be repaired by the official Cecotec Technical Support Service to avoid any type of danger.
• Do not immerse the cable, plug, or any other non-removable part of the device in water or any other liquid or expose electrical connections to water. Make sure your hands are completely dry before handling the plug or switching on the appliance.
• If the appliance falls accidentally into water, unplug it immediately. Do not touch the water!
• Do not operate the device if any fault or unusual sign is detected.
• Keep hair, loose clothing, fingers, and other parts of the body away from the openings and moving parts of the device.
• Make sure the appliance is placed on a flat and stable surface during operation.
• Do not use the device next to windows, as exposure to rain could cause electric shock.
• Do not operate the product under or next to curtains.
• Do not cover the grilles and do not place the product cable under carpets or other objects during operation. Keep the sides, front, and back of the appliance at a minimum safety distance of 20 cm from any object or wall.
• Always turn off and unplug the device when not in use and

before moving it to a new location. Pull from the plug, not the cable, to disconnect it from the outlet.

INSTRUCTIONS DE SÉCURITÉ

The graphics in this manual are schematic representations and may not exactly match the device.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the device out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent damage to the device when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

Box content

• Fan
• Instruction manual

3. ASSEMBLY

Fig. 2

1. Insert the telescopic tube into the base.
2. Fit the inner part of the base and secure it as shown in figure 2.
3. Make sure it is securely fixed.

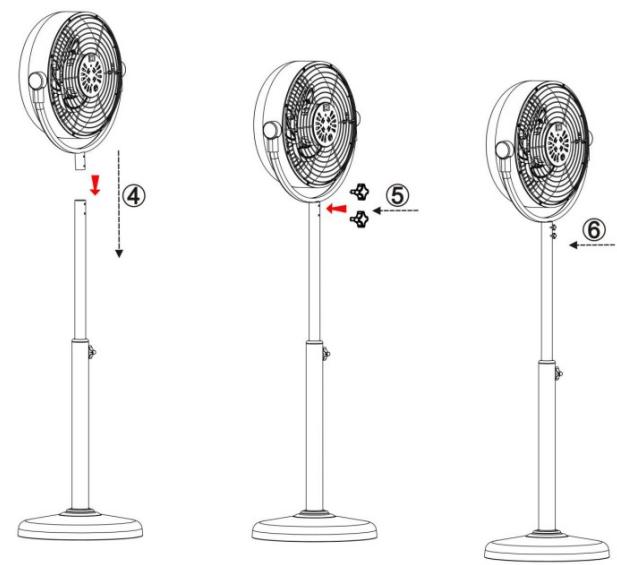

Fig. 3

1. Insert the main body into the telescopic tube.
2. Fix both parts by using the fixing nuts as shown in Figure 3.

4. OPERATION

1. Put the switch to the desired position:

2. 0: Off

3. I: Low speed

4. II: High speed

5. Adjust the fan tilt by tilting the main body.

6. To adjust the height, loosen the fixing nut slightly and raise or lower the tube to the desired height. Then, retighten the fixing nut.

5. CLEANING AND MAINTENANCE

1. Unplug the cord from the power supply.
2. Remove the grille and blades carefully. Do not drop the blades.
3. Use a soft soapy cloth to clean the fan. Never use polishes or corrosive liquids that could damage the paint or the fan structure.
4. Afterwards, dry it with another cloth.
5. When you have finished cleaning, replace the blades and grille.

WARNING: before removing the grille, make sure that the fan is disconnected from the mains. Before restarting the fan, you must ensure that the grille and blades are correctly positioned.

6. TECHNICAL SPECIFICATIONS

Product reference: 08204 / 08205 / 08206

Product: EnergySilence 250 ClassicStyle Pink / EnergySilence 250 ClassicStyle Beige / EnergySilence 250 ClassicStyle Green

Rated voltage: 220 - 240 V

Frequency: 50 Hz

Power: 25 W

Description	Symbol	Value	Unit
Fan maximum flow	F	13.5	m^3/min
Fan power consumption	P	21.0	W
Service value	SV	0.6	(m^3/min)/W
Power consumption on standby mode	P_SB	0.0	W
Fan sound power level	L_WA	43	dB (A)
Maximum air speed	C	2.7	m/seg
Service value measurement standard	IEC 60879
Contact details to obtain more information	Cecotec Innovaciones SL.Av. Reyes Católicos n°60, 46910,Alfafar (Valencia, Spain)

Technical specifications may change without prior notification to improve product quality.

Made in China | Designed in Spain

7. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

8. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

9. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

1. PIÈCES ET COMPOSANTS

Image 1

Fig./Img./Abb./Afb./Rys./Obr.2

Fig./Img./Abb./Afb./ Rys./Obr. 3
