Energysilence Aero 3600 Invisible Natural Design - Ceiling fan CECOTEC - Free user manual and instructions

Product Type	Ceiling Fan
Brand	Cecotec
Model	Energysilence Aero 3600 Invisible Natural Design
Blade Diameter	132 cm (52 inches)
Appliance Weight	8.5 kg
Power Supply	220-240 V, 50 Hz
Maximum Power	60 W
Number of Speeds	3 adjustable speeds
Summer/Winter Reverse Function	Yes (reversible rotation)
Remote Control Included	Yes, with 10 m range
Blade Design	Retractable blades (invisible when off)
Blade Material	Composite wood with natural look
Noise Level	35 dB(A) (at minimum speed)
Motor Housing Diameter	30 cm
Minimum Mounting Height	2.3 m from floor
Mounting Angle for Sloped Ceiling	Up to 15°
Warranty	2 years
Care and Cleaning	Clean with a soft damp cloth; do not use solvents
Spare Parts Available	Blade set, remote control, mounting kit
Protection Class	IP20 (indoor use)

Frequently Asked Questions - Energysilence Aero 3600 Invisible Natural Design CECOTEC

How to install the Cecotec Energysilence Aero 3600 ceiling fan?

Installation must be carried out by a qualified professional. Fix the mounting plate to the ceiling (solid junction box), connect the wires (phase, neutral, ground) according to the provided diagram, then assemble the retractable blades. Respect a minimum height of 2.3 m from the floor and a maximum ceiling slope of 15°.

Can this fan be used in winter?

Yes, thanks to the summer/winter reverse function. In summer, the blades rotate counterclockwise to create a cool breeze. In winter, activate the reverse via the remote control to rotate the blades clockwise and redistribute heat from the ceiling.

How does the remote control work?

The infrared (or RF depending on version) remote control allows control of speed (3 levels), stop, rotation direction and a timer. Range about 10 m. Batteries included (CR2032 type).
Make sure no obstacle blocks the signal.

How to clean the fan?

Turn off the appliance and wait for it to stop completely. Use a soft, slightly damp cloth (clean water) to wipe the blades and housing. Do not use chemical products, solvents or abrasives. Dry with a clean cloth.

What to do if the fan does not start?

First check the power supply (circuit breaker, outlet). Make sure the remote control has working batteries. If the fan is new, check the wiring. A hum without rotation may indicate a defective capacitor; contact customer service.

The fan makes an abnormal noise, is it serious?

A slight hum is normal. If the noise is loud or squeaking, check that all blade screws are tight, that the blades are not warped and that the motor housing is properly fixed. A clicking noise may come from a foreign object. If the problem persists, contact customer service.

Can I mount this fan on a sloped ceiling?

Yes, the mounting kit allows a slope up to 15 degrees. For steeper slopes, an angled mounting rod is available as an option. Check compatibility in the manual.

How to adjust the fan speed?

Use the remote control: press the speed keys (usually marked 1 to 3 or with symbols). A beep confirms the change. The fan automatically switches to the selected speed. There is no compatible wall dimmer.

Is there a programmable timer?

Yes, the remote control includes a timer (timer) adjustable to 1 h, 2 h, 4 h or 8 h. The fan will automatically turn off at the end of the programmed delay. Ideal for night.

Can I add lighting to this fan?

This 'Invisible Natural Design' model does not include a light kit and is not designed to receive lighting. Adding a lamp is not supported. For integrated lighting, see the Energysilence Aero 3600 Light range.

USER MANUAL Energysilence Aero 3600 Invisible Natural Design CECOTEC

Safety instructions 7

1. Parts and components 46

2. Before use 46

3. Assembling the appliance 47

4. Operation 49

5. Cleaning and maintenance 51

6. Troubleshooting 52

7. Technical specifications 53

8. Disposal of old electrical and electronic appliances 54

9. Technical support and warranty 54

10. Copyright 54

SOMMAIRE

Read these instructions thoroughly before using the device. Keep this instruction manual for future reference or new users.

- This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.

• Keep a minimum distance of 2.3 cm between the fan blades and the floor.
• Keep a minimum distance of 76 cm between the fan blades and the wall or any other object.
• Make sure the appliance is unplugged from the power supply before cleaning or user maintenance.
• This device is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• Make sure that the mains voltage matches the voltage stated on the appliance marking and that the wall outlet is earthed.
• If the power cord is damaged, it must be replaced by the official Cecotec Technical Support Service to avoid any type of danger.
• Do not use the appliance if its cord or housing are damaged, nor after it malfunctions or has been dropped or damaged in any way.
• The appliance must be installed in accordance with national wiring regulations.
• Never insert objects or body parts between the rotating fan blades.
• To reduce the risk of injury, attach the fan directly to the support structure of the building as indicated in this manual and use only parts and components provided and recommended by Cecotec.
• Cut off the power completely before installing or repairing the fan to avoid the risk of electric shock.
• The electrical wiring must be in accordance with the local regulations.
• The cable must be properly earthed to avoid possible accidents.
• The appliance must be installed in accordance with national

wiring regulations.

• Never install the fan in a damp or wet room.
• Be careful when near the rotating fan blades.
• To adjust the speed of the fan blades, only use the means for speed control provided by Cecotec.
• Do not bend the blade-attachment system during the installation or cleaning process.
• Cleaning and maintenance must be carried out according to this instruction manual to make sure the appliance works properly. Turn off and unplug the appliance before cleaning it.
• Make sure the fan is not placed close to curtains or other objects it may become entangled with.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene, etc.) out of their reach.
• It is recommended that two people install the appliance.
• This appliance is designed for indoor use.

Instructions on batteries

• Battery ingestion can cause burns, soft-tissue perforation, and death. It can cause severe burns within two hours of the ingestion.
• In case of battery ingestion, please seek medical attention immediately.
• Do not allow children to replace batteries without adult supervision.
• Do not disassemble, open, or damage the batteries.
• Keep the batteries out of the reach of children. Pay particular attention to small batteries. In case of battery ingestion, please seek medical attention immediately.

• Do not expose batteries to heat or fire. Avoid storage in direct sunlight.

• Do not short-circuit an element or a battery. Do not store batteries in an untidy manner, in a box, or drawer where they can short-circuit each other or be short-circuited by other metal objects.

• Both batteries and cells can leak under extreme conditions. In the event of a battery leak, keep your skin and eyes away from the liquid. If the liquid gets into contact with skin, wash immediately with soap and water. If the liquid gets into the eyes, wash them immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of it immediately in accordance with local regulations.
• Pay attention to the positive (+) and negative (-) marks on the batteries and the remote-control compartment to ensure they are inserted correctly.
• Do not use any batteries that are not designed for use with the appliance.
• Do not mix batteries of different manufacture, capacity, or size. Children should be allowed to handle the batteries only under adult supervision.
• Always buy recommended batteries.
• Keep the batteries clean and dry. Wipe the battery terminals with a clean, dry cloth if they become dirty.
• Keep the original instruction manual for future reference.
• Whenever possible, remove the batteries when not in use.

INSTRUCTIONS DE SÉCURITÉ

Number	Description	Quantity
1	Mounting bracket	1
2	Hanging ball	1
3	Downrod	1
4	Canopy	1
5	Canopy screws	2
6	Clevis pin	1
7	Stop pin clip	1
8	Downrod cover	1
9	Motor assembly	1
10	Lamp bracket	1
11	Lampshade	1
12	Remote control	1
13	Receiver	2

NOTE:

The graphics in this manual are schematic representations and may not exactly match the device.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the device out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent damage to the device when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

ENGLISH

Box content

• Fan
• Remote control
• Assembly kit
• Batteries 2 x AAA
• Instruction manual

3. ASSEMBLING THE APPLIANCE

Fig. 2 key:

• Wood screws x4
• Mounting bracket

Fig. 3 key:

• Expansion bolt
• Screw hook
• Drilling diagram

Wooden ceiling

Secure the mounting bracket firmly to the wooden ceiling beam with a drill bit (Figure 2).

Concrete ceiling

You can enlarge the holes in the mounting bracket with a medium 8 mm drill bit. Use the M6 expansion bolts to attach the mounting bracket to the side of the screw hook.

The distance between the screw hooks and the mounting bracket must be between 8 and 10 mm. The installation of the screw hook must not interfere with the mounting bracket and must not affect the positioning of the receiver (Figure 3).

Safety rope installation

1. Loosen the screw on the locking side of the wire rope, place the wire rope ring on the hook of the expansion bolt, tension the wire rope, and then tighten the wire rope locking screw. (Fig. 4).
2. Connect the cable according to the wiring instructions in the wiring diagram.

Fig. 5 key:

L: Live wire

N: Neutral

Earth wire

Fan installation

1. Unpack the ceiling fan carefully, remove all parts and components and place it on a cloth or soft surface to prevent damage. Do not lay the motor housing on its sides to avoid damage to the housing. Before starting the installation, check that no parts are missing.

Warning: to avoid electric shock, all electrical operations should only be carried out after disconnecting the power by removing the fuses or turning off the circuit breaker.

NOTE: in case of installing the ceiling fan to a wooden beam, 4 self-tapping screws should be enough to support the weight (Fig. 6).

1. Screw the mounting bracket to the ceiling and make sure all connections are secure to prevent the fan from falling. Loosen the two canopy screws from the mounting bracket.

Warning: self-tapping screws are only suitable for wooden ceilings. In case of installing the ceiling fan to concrete ceilings or joists, use a drill for making the holes and stoppers or expansion bolts (not included).

1. Loosen the hanging ball screws until the ball slides down the downrod. Remove the downrod pin (Fig. 7).

Fig. 7 key

1. Hanging ball
2. Pin
3. Loosen screw
4. Remove the pin and the pin clip from the downrod. Slide the downrod through the canopy and the downrod cover (Fig. 8).
5. Loosen the screws of the mounting bracket and then place the downrod in the mounting bracket

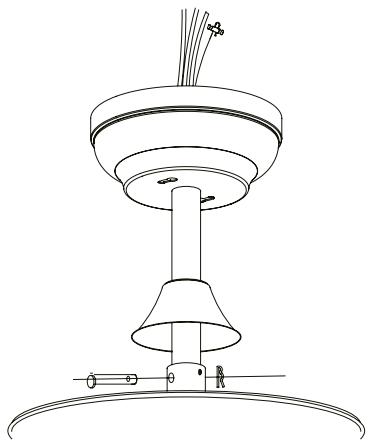

6. Pass the fan wires and the earth wire through the downrod. (Fig. 9) Align the holes in the clevis pin of the downrod with the holes in the bracket.
7. Make sure to insert the straight part of the clevis pin through the hole in the end of the clevis pin and press until the crimped part snaps into position. Finally, retighten the screws.

Warning: It is very important that the mounting bracket pin is correctly installed and that the screws are tightened securely. If the pin, clevis, or screws are not correctly positioned, the fan may fall down.

1. Hang the fan on the mounting bracket (Fig. 10).
2. Fix the lamp bracket to the motor with 3 screws and then fix the lampshade with 4 screws (Fig. 11).

Please note: before fitting the bulb (not included), make sure that the fan is not connected to the mains.

ENGLISH

1. Connect the cables.
2. Mount the canopy as shown above (Fig. 12).

4. OPERATION

Remote control

Fig. 13

Fig. 13 key

1. Power button (used to pair the remote control)
2. Clockwise rotation
3. Switch off the fan only
4. Light button
5. Counterclockwise rotation
6. Natural-breeze mode
7. Setting the speed
8. Timer

2H: the fan will automatically switch off after two hours of operation.
4H: the fan will automatically switch off after four hours of operation.
8H: the fan will automatically switch off after eight hours of operation.

Note:

• The remote control is powered by two AAA 1.5 V batteries.
• If the fan is not to be used for a long period of time, store the remote control in a dry place where it will not be exposed to heat or direct sunlight. Also remove the batteries.
• The remote-control buttons control the speed and light of the fan.

To start the fan, use the remote control

• Use the speed buttons to select the air power level.
• Use the timer buttons to select the fan operating time. The fan will switch off once the selected time has elapsed.
• Press the light button to turn the fan's lamp on and off.

Winter Function

Press button 2 to activate the winter function. The fan will make air flow from the bottom upwards, bringing cold air to the top of the room.

Summer Function

Press button 5 to activate the summer function. The fan will make air flow from the top

downwards, bringing cold air to the bottom of the room.

Natural breeze

Activate this mode by pressing button 6. The fan will progressively vary the power level in cycles, providing a feeling of fresh air.

Pairing between remote control and receiver

To operate the remote control, reconnect the mains power supply from the electrical switchboard in the house.

1. Press the power button for 5 seconds and then you will hear a beep, which means that the pairing has been completed successfully and you can use the remote control normally.

NOTE: be sure to press the power button for 30 seconds before pairing the remote control, otherwise you will not be able to pair it.

1. If you notice that the transmitter does not control the receiver, check that the batteries are inserted correctly and that they are not dead.
2. This may also be due to the proximity of similar products that also operate with a remote control, which, if they use the same frequency, could cause interference.
3. If the batteries in the remote control are dead, replace them so that you can continue to use it normally.
4. Remove the batteries from the remote control if you are not going to use it for a long period of time.
5. Make sure that the earth wire is properly connected.
6. When positioning the fan, make sure that no wires are pinched. If this happens, a short-circuit may occur.

Reminder:

• The receiver must be correctly installed in the fan mounting bracket.
• Remove the batteries from the remote control if you are not going to use it for a long period of time.
• The isolation switch must be switched on.
• If the power is cut off (e.g. due to a blackout) the light will go out. When the power is restored, the light will switch on again.

Receiver protection functions

• The DC motor has a built-in safety feature against blade or motor obstruction during operation.
• During operation: if something obstructs the fan blades or motor, the motor will keep trying to run and then stop operation after about 30 seconds of interruption. Remove obstructions and restart the motor. To restart it: switch the fan off from the remote control

ENGLISH

and then switch it on again.

- The device will limit the maximum current output from the receiver/drive if the fan load has increased abnormally.

Tips

1. If your fan runs automatically when you switch it on for the first time after installation, it has memorised the previous factory setting.
2. If the fan or light does not work, reset the fan. To do this, turn it off for at least 5 seconds and then turn it on again.
3. It is not possible to control more than one fan in the same room if they share the same power supply.
4. If you want to separately control more than one fan in the same room, you must use separate power supplies.
5. When the fan is switched on and starts running in either direction (clockwise or counterclockwise), it will stop and change direction several times. This is normal. The fan will take some time to perform the selected function and to start up regularly.

5. CLEANING AND MAINTENANCE

1. Clean your fan periodically.
2. To clean, only use a soft brush or lint-free cloth to avoid scratching the finish.
3. Abrasive cleaning agents are not necessary and should be avoided in order not to damage the finish.

Warning. do not use solvents to clean the fan. Doing so may result in electric shock.

RECOMMENDATION: periodically check that the blades are securely fastened to the motor with the screws.

6. TROUBLESHOOTING

Note that not all ceiling fans are the same (not even those that are the same model), some move more than others.

The fact that the fan moves a couple of centimetres does not indicate that it will fall over.

Even if all blades are ballasted and grouped by weight, it is impossible to completely avoid wobble. This is not a problem. Ceiling fans tend to move during operation.

To reduce wobble, try the following:

1. Check that all of the blade mounting screws are tightened and secure.
2. Fan wobble may be caused by the unevenness of the fan blades. To check the blade level, measure the distance from each blade tip to the ceiling.

Note: if measurements are irregular:

Be sure the blade mount screws are not too tight or too loose, which may cause wobbling due to an unlevelled blade tip.
o A deformed blade can cause wobbling. Check by removing the blade and placing on a flat surface.

1. Blade tracking may be checked simply by use of a household ruler. Place the ruler vertically against the ceiling and even with the outside leading edge of a blade. Note the distance of the edge of a blade compared to the others. Turn the blade slowly by hand to check the remaining blades.

2. If a blade is not in alignment, the blade is either out of shape, warped or the blade screws are not evenly tightened or either loose.

7. TECHNICAL SPECIFICATIONS

Product reference: 08625

Product: EnergySilence Aero 3600 Invisible Natural Design

Voltage: 220-240 V

Frequency: 50/60 Hz

Power: 25 W

*3 E27 (Max 36 W)

Description	Symbol	Value	Unit
Fan maximum flow	F	94.96	m^3/min
Fan power consumption	P	24.73	W
Service value	SV	3.84	(m^3/min)/W
Power consumption on standby mode	P_SB	0.49	W
Fan sound power level	L_WA	43.6	dB (A)
Maximum air speed	C	2.794	m/seg
Service value measurement standard	IEC 60789:2019
Contact details to obtain more information	Cecotec Innovaciones S.L.Av. Reyes Católicos n°60, 46910, Alfajar (Valencia, Spain)

The power consumption in standby mode is 0.49 W using the guidelines of EN 50564:2011 and the European regulations 1275/2008/EC and 801/2013/EC. For this purpose, the device is connected to the mains without performing any function, waiting for the standby mode to be activated.

Technical specifications may change without prior notification to improve product quality. Made in China | Designed in Spain

8. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

9. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

10. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

1. PIÈCES ET COMPOSANTS

Image 1

3. HET APPARAAT MONTEREN

Legende figuur 2:

• Houten tandschroeven (4 stuks)
• Montage-ondersteuning

Legende figuur 3:

• Expansiebout
• Schroefhaak
• Boorschema

Houten plafond:

6. PROBLEEMOPLOSSING

Fig./Img./Abb./Afb./Rys. 4

Fig./Img./Abb./Afb./ Rys. 5

Fig./Img./Abb./Afb./Rys. 6

Fig./Img./Abb./Afb./Rys. 7

Fig./Img./Abb./Afb./Rys. 8

Fig./Img./Abb./Afb./Rys. 9

Fig./Img./Abb./Afb./Rys.10

Fig./Img./Abb./Afb./Rys.11

Fig./Img./Abb./Afb./Rys. 12

Fig./Img./Abb./Afb./Rys. 13

www.cecotec.es
