Product Type	Heavy-Duty Stapler
Model	BE55T-HB
Brand	Samsung
Dimensions (L x W x H)	250 x 80 x 120 mm
Weight	1.2 kg
Power Source	Manual (hand-operated)
Staple Type	24/6 or 26/6 standard staples
Stapling Capacity	Up to 50 sheets of 80 gsm paper
Loading Mechanism	Top-loading magazine
Staple Capacity	150 staples per load
Body Material	Reinforced metal and high-impact plastic
Color	Black with blue accents
Maintenance	Clean with dry cloth; lubricate pivot points occasionally
Safety Features	Non-slip base, safety lock for storage
Spare Parts & Repairability	Replacement staple magazines and springs available; designed for easy disassembly
General Information	Ideal for offices, schools, and home use; ergonomic handle reduces fatigue

Frequently Asked Questions - BE55T-HB SAMSUNG

How do I load staples into the Samsung BE55T-HB stapler?

Open the top-loading magazine by pulling the release lever. Insert a strip of standard 24/6 or 26/6 staples, then close the magazine until it clicks. Always ensure staples are aligned correctly.

What is the maximum number of sheets the BE55T-HB can staple?

The BE55T-HB can staple up to 50 sheets of 80 gsm paper. For thicker stacks, reduce the number or use a heavier-duty stapler.

How do I clear a staple jam?

First, remove the staple strip. Use a small screwdriver or tweezers to lift the jammed staple from the anvil area. Avoid forcing the stapler. Regular maintenance prevents jams.

Does the BE55T-HB require electricity?

No, it is a manual stapler operated by hand pressure. No batteries or power cords are needed.

What size staples does the BE55T-HB use?

It uses 24/6 (24 gauge, 6 mm leg length) or 26/6 staples. Standard office staples fit most applications.

How do I clean and maintain the stapler?

Wipe the exterior with a dry, soft cloth. For sticky residue, use a damp cloth and mild soap. Lubricate pivot points with a drop of light machine oil every few months. Keep the magazine free of dust.

Is the BE55T-HB suitable for heavy-duty use?

Yes, it is designed for heavy-duty tasks, stapling up to 50 sheets repeatedly. The metal body and ergonomic handle ensure durability and comfort.

Where can I purchase replacement parts for the BE55T-HB?

Replacement staple magazines and springs can be ordered through Samsung's parts website or authorized dealers. Use only genuine Samsung parts for best performance.

Can I use the BE55T-HB for crafting or stapling cardboard?

It can staple light cardboard up to a thickness equivalent to 50 sheets. For thicker materials, consider a long-reach or staple gun. Test on a scrap first.

How do I store the stapler safely?

Engage the safety lock by sliding the lock switch before storing. Keep in a dry place away from extreme temperatures. This prevents accidental actuation and damage.

USER MANUAL BE55T-HB SAMSUNG

Thank you for purchasing this Samsung product.

To receive more complete service, please register your product at

www.samsung.com

Model Serial No.

To directly go to the page that provides instructions on how to use the manual for visually impaired users, select the Learn the Menu Screen link below.

"Learn the Menu Screen" Link

Contents

Guide

Connections

5 Connection Guide

6 Connecting an Antenna

7 Connecting to the Internet

10 Connection Cables for External Devices

12 Switching between external devices connected to the TV

14 Connection Notes

Peripherals

16 Controlling External Devices with a Samsung Remote Control - Using the Universal Remote

17 Using Anynet+ (HDMI-CEC)

18 Controlling the TV with a Keyboard, Mouse, or Gamepad

20 Entering Text using the On-Screen Virtual Keyboard

Smart Features

22 Using Smart Hub

30 Using a Samsung account

32 Using Remote Access

36 Using the Apps Service

40 Using the Gallery App

41 Using the SmartThings App

42 Using the e-Manual

45 Using the Internet

46 Playing pictures/video/music

TV Viewing

51 Using the Guide

52 Setting Up a Schedule Viewing

54 Using the Channel List

55 Editing channels

56 Using a Personal Favorites List

57 TV-Viewing Support Functions

Picture and Sound

60 Adjusting the Picture Quality

62 Setting the Viewing Environment for External Devices

64 Changing the Picture Size and Position

65 Configuring a Sound Mode and Expert Settings

67 Using the Sound Support Functions

System and Support

69 Using the Time Functions and the Timers

72 Using the Auto Protection Time and Energy Saving Functions

73 Updating the TV's Software

74 Audio and Video Functions for the Visually or Hearing Impaired

78 Using Other Functions

80 Running Data Service Automatically

Precautions and Notes

81 Read Before Using Apps

82 Read Before Using the Internet Function

84 Read Before Playing Photo, Video, or Music Files

91 Read After Installing the TV

92 Supported Resolutions for UHD Input Signals

93 Read Before Connecting a Computer (Supported Resolutions)

96 Supported Resolutions for Video Signals

98 Read Before Using Bluetooth Devices

99 Licenses

Troubleshooting

Picture Issues

100 Testing the picture

Sound and Noise Issues

104 Testing the sound

Channel and Broadcast Issues

External Device Connectivity Issues

Network Issues

Data Service

Anynet+ (HDMI-CEC) Issues

Remote Control Issues

Apps

Media Files

Other issues

Diagnosing TV operational issues

Getting Support

120 Getting support through Remote Management

120 Finding the contact information for service

120 Requesting service

FAQ

The TV Screen does not Display Properly

121 When the TV screen does not display properly

The TV does not Turn On

128 When your TV does not turn on

The Picture is Distorted, or No Sound Comes Out of the Sound Bar

134 When the TV does not connect with an external device properly

Internet Access is not Available

139 When the TV can't connect to the Internet

There is No Sound or the Speakers are Making an Odd Sound

144 When no sound comes out of the TV, or the sound is breaking up

The Remote Control does not Work

151 When the remote control does not work

Updating the Software

156 Updating to the latest TV software

Accessibility Guidance

Learn Menu Screen

163 Using the accessibility menu
167 Using the TV with Voice Guide on
170 Using the guide
173 Using Schedule Viewing
174 Using the Channel List
176 Using Smart Hub
180 Launching the e-Manual

Guide

Learn how to use various features.

Connections

You can watch live broadcasts by connecting an antenna cable to your TV and can get access to the Internet by using a LAN cable or wireless access point. Using various connectors, you can also connect external devices.

Connection Guide

You can view detailed information about external devices that can be connected to the TV.

Source Connection Guide

Now

It shows you how to connect various external devices such as video devices, game consoles, and PCs using pictures. If you select the connection method and an external device, the connection details appear.

• Audio Device: HDMI (ARC), Optical, Bluetooth, Wi-Fi, Wi-Fi Speaker Surround Setup
HDMI (ARC) is supported by some models. Check the HDMI port name of the purchased product's model.
• Video Device: HDMI
• Smartphone: Screen Sharing (Smart View), SmartThings, Apple AirPlay
• PC: HDMI, Screen Sharing (Wireless), Apple AirPlay
- Input Device: Keyboard, Mouse, USB Gamepad, Bluetooth Device
• Game Console: HDMI
• External Storage: USB Flash Drive, Hard Disk Drive (HDD)

The connection method and available external devices may differ depending on the model.

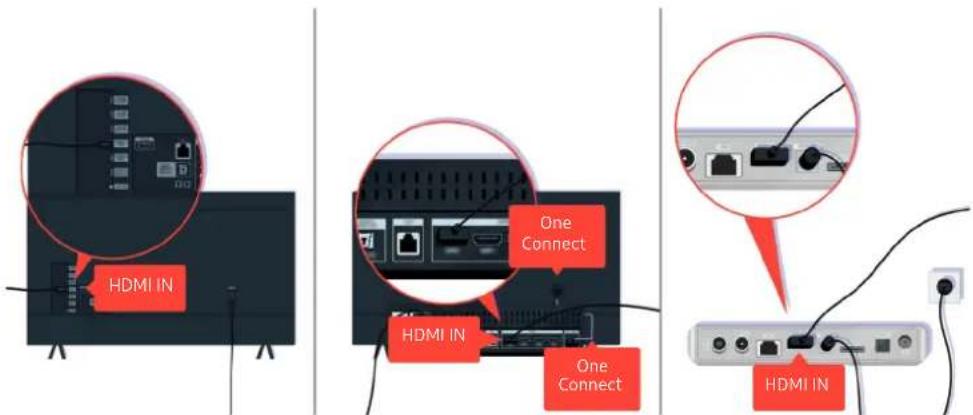

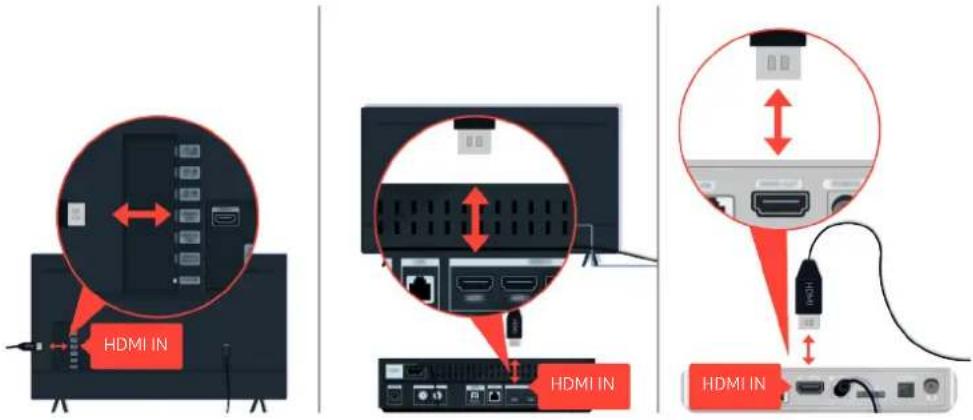

Using HDMI Troubleshooting, you can check the connection to HDMI cable and external devices (takes approximately 2 minutes).

The image on your TV may differ from the image above depending on the model and geographical area.

Connecting an Antenna

You can connect an antenna cable to your TV.

An antenna connection is not necessary if you connect a cable box or satellite box.

Connecting to the Internet

You can get access to the Internet through your TV.

Settings > General > Network > Open Network Settings Try Now

Configure network settings to connect to an available network.

Establishing a wired Internet connection

Settings General Network Open Network Settings Wired >

If you connect a LAN cable, the TV automatically accesses the Internet.

If the TV does not automatically connect to the network, refer to "Network Issues" in "Troubleshooting."
Use a CAT 7 (*STP type) cable for the connection.

* Shielded Twisted Pair

The TV will not be able to connect to the Internet if your network speed is below 10 Mbps.

Establishing a wireless Internet connection

> Settings General Network Open Network Settings Wireless

Make sure that you have the wireless access point's SSID (name) and password settings before attempting to connect. The network name (SSID) and security key are available on the wireless access point's configuration screen. See the wireless access point's user manual for more information.

The image on your TV may differ from the image above depending on the model and geographical area.
If no wireless access point is found, select Add Network at the bottom of the list and enter the network name (SSID).
If your wireless access point has a WPS or PBC button, select Use WPS at the bottom of the list, and then push the WPS or PBC button on your access point within 2 minutes. The TV will connect automatically.
To view or delete previously connected network names (SSIDs), move the focus to Manage Saved Networks, and then press the Select button.

Checking the Internet connection status

Settings > General > Network > Network Status Try Now

View the current network and Internet status.

Resetting Your Network

Settings > General > Network > Reset Network Try Now

Restore the network settings to the factory default.

Turning on the TV with a mobile device

Settings General Network Expert Settings PowerOn with Mobile

You can turn on the TV using a mobile device connected to the same network as the TV.

This function may not be supported depending on the model or geographical area.
This function is available with a mobile device connected to the TV through the SmartThings app on your mobile device or the Apple AirPlay function.

Connecting an IP control device to the TV

Settings General Network Expert Settings IP Remote

You can connect an IP control device to the TV remotely to manage your IP device.

To use this function, Power On with Mobile must be turned on.
This function may not be supported depending on the model or geographical area.

Turning this feature on may allow other IP control devices to control your TV. We recommend turning this feature on only if an authorized third-party custom controller is installed and configured specifically for a Samsung TV and if your Wi-Fi network is password protected.

Changing the name of the TV

Settings > General > System Manager > Device Name Try Now

You can change the name of the TV on the network. Select User Input at the bottom of the list and change the name.

Connection Cables for External Devices

You can view detailed information about the connection cables for external devices that can be connected to the TV.

Cable name Image Description
HDMI to HDMI		Each cable simultaneously transmits digital video and audio signals from an external device to the HDMI port on the TV.Cables are divided into various types according to the types of input/output ports on external devices.
HDMI to MINI HDMI
HDMI to Micro HDMI
HDMI to USB Type-C
HDMI to DisplayPort
Mini DisplayPort to HDMI
DVI to HDMI		DVI to HDMI cables can transmit only digital video signals and not audio signals. We recommend that you use HDMI to HDMI cables.
Optical		Optical cables are used to transmit audio signals to external speakers with low signal loss.Optical cables do not transmit video signals.
Component		Component cables transmit analogue signals.The video signal is separated and transmitted to the red, green, and blue terminals to provide HD (1080i) pictures. The audio signal is transmitted to the red and white terminals.
Composite		Composite cables transmit analogue signals.The video signal is transmitted to the yellow terminal, and the audio signal is transmitted to the red and white terminals.

Available connection cables may differ depending on the model or geographical area.

Switching between external devices connected to the TV

You can switch between TV programs and the content of external devices.

> Source

When you select a connected external device on the Source screen, the output of the selected device is displayed on the TV's screen.

You can also start this function by pressing the SOURCE button.
To control a device (Blu-ray player, game console, etc.) that supports universal remote control with the TV's remote control, connect the device to an HDMI port on the TV, and then turn on the device. The output displayed on the TV is automatically switched to the output of the device or you can configure universal remote control for the device automatically. For more information, refer to "Controlling External Devices with a Samsung Remote Control - Using the Universal Remote."
When a USB device is connected to the USB port, a pop-up message appears that lets you switch easily to the media content listed on the device.
This function may not be supported depending on the device and geographical area.

Editing the name and icon of an external device

Source

You can change the port name for a connected external device or add it to the Home Screen.

The image on your TV may differ from the image above depending on the model and geographical area.

1. Move the focus to a connected external device.
2. Press the up directional button. The following functions become available.

Available functions may differ depending on the port type.

1 Universal Remote

You can control external devices connected to the TV using a Samsung remote control. To control external devices, register them by following the instructions on the screen.

This function may not be supported depending on the model or geographical area.
For more information, refer to "Controlling External Devices with a Samsung Remote Control - Using the Universal Remote."

2 Edit

You can rename the input ports and change the device icons.

3 Information

You can view detailed information about an external device.

4 Add to Home

You can add the port of an external device to the Home Screen for quick switching.

Using additional functions

You can use the following features on the Source screen.

- Remote Access

Use the TV to access your PC via remote PC or Screen Sharing (Wireless).

For more information, refer to "Using Remote Access."

- Connection Guide

Displays device connection instructions.

For more information about the Connection Guide, refer to "Connection Guide."

- Universal Remote

Lets you register external devices to your Samsung remote control and control them using the Remote.

This function may not be supported depending on the model or geographical area.
For more information, refer to "Controlling External Devices with a Samsung Remote Control - Using the Universal Remote."

Connection Notes

When connecting an external device, note the following.

The number of connectors and their names and locations may differ with the model.
Refer to the external device's operating manual when connecting it to the TV. The number of external device connectors and their names and locations may differ with the manufacturer.

Connection notes for HDMI

- The following types of HDMI cables are recommended:

– High Speed HDMI Cable
– High Speed HDMI Cable with Ethernet
– Premium High Speed HDMI Cable
– Premium High Speed HDMI Cable with Ethernet
– Ultra High Speed HDMI Cable

• Use an HDMI cable with a thickness of 17 mm or less.
• Using a non-certified HDMI cable may result in a blank screen or a connection error.
• Some HDMI cables and devices may not be compatible with the TV due to different HDMI specifications.
• This TV does not support HDMI Ethernet Channel. Ethernet is a Local Area Network (LAN) built with coaxial cables standardized by the IEEE.
• Use a cable shorter than 3 m to get the best UHD viewing quality.
• Many computer graphics adaptors do not have HDMI ports, but have DVI or DisplayPort ports instead. If your PC does not support HDMI video out, connect your PC with a DVI to HDMI or HDMI to DisplayPort cable.
• When the TV is connected to an external device such as a DVD/BD player or a set-top box via HDMI, power sync mode will be automatically activated. In the power sync mode, the TV continues to detect and connect external devices via HDMI cable. This function can be deactivated by removing the HDMI cable of the connected device.

This function may not be supported depending on the model.

Connection notes for computers

• For the resolutions supported by the TV, refer to "Read Before Connecting a Computer (Supported Resolutions)."
• If you want to connect your PC and TV wirelessly, both of them must be connected to each other on the same network.
• When sharing content with other network-based devices such as those in an IP (Internet Protocol) storage system, sharing may not be supported due to the network's configuration, quality, or functionality, for example, if the network has an NAS (Network-Attached Storage) device.

Connection notes for mobile devices

- To use the Smart View function, the mobile device must support a mirroring function such as Screen Mirroring or Smart View. To check whether your mobile device supports the mirroring function, refer to the mobile device's user manual.

- To use Wi-Fi Direct, the mobile device must support the Wi-Fi Direct function. To check whether your mobile device supports Wi-Fi Direct function, refer to the mobile device's user manual.

- The mobile device and your Smart TV must be connected to each other on the same network.

- Use AirPlay if you are an iPhone or iPad user. For more information, refer to 📋 > ➤ Source > Connection Guide > Smartphone Apple AirPlay.

This function may not be supported depending on the model.

- The video or audio may stop intermittently, depending on network conditions.

- When sharing content with other network-based devices such as those in an IP (Internet Protocol) storage system, sharing may not be supported due to the network's configuration, quality, or functionality, for example, if the network has an NAS (Network-Attached Storage) device.

Peripherals

Connect external devices such as a keyboard for ease of use.

Controlling External Devices with a Samsung Remote Control - Using the Universal Remote

Control the TV and connected external devices with a Samsung remote control.

Source Universal Remote

You can control external devices connected to the TV using a Samsung remote control. To control external devices, register them by following the instructions on the screen.

You can also use the Anynet+ (HDMI-CEC) function to operate external Samsung devices with your TV's remote control without any additional setup. For more information, refer to "Using Anynet+ (HDMI-CEC)."
Specific external devices connected to the TV may not support the universal remote feature.
Do not place any obstacles in front of an external device and TV's logo. It may cause signals from the remote control to be transmitted improperly.
The TV memorizes both the external device and its connection port (HDMI 1, HDMI 2, etc.).
If you have difficulty controlling external devices with the Universal Remote, try adjusting the positions of the external devices.
This function may not operate properly depending on the TV installation environment and the features of external devices.

Using Anynet+ (HDMI-CEC)

Control an external device connected via Anynet+ (HDMI-CEC) with the remote control.

You can use the TV's remote control to control external devices that are connected to the TV by an HDMI cable and that support Anynet+ (HDMI-CEC). Note that you can only set up and operate Anynet+ (HDMI-CEC) with the remote control.

Connecting an external device through Anynet+ and using their menus

Settings > General > External Device Manager > Anynet+ (HDMI-CEC) Try Now

1. Set Anynet+ (HDMI-CEC) to On.
2. Connect an HDMI-CEC-compliant device to the TV.
3. Turn on the connected external device.

The device is automatically connected to the TV. After the connection process is finished, you can access the menu of the connected device using your TV remote and control the device.

The connecting process can take up to 2 minutes to complete.

Read before connecting an Anynet+ (HDMI-CEC) device

Anynet+ (HDMI-CEC)-enabled devices must be connected to the TV with an HDMI cable. Note that some HDMI cables may not support Anynet+ (HDMI-CEC).
You can configure the TV's Universal Remote to control third-party cable boxes, Blu-ray players, and home theaters that do not support HDMI-CEC. For more information, refer to "Controlling External Devices with a Samsung Remote Control - Using the Universal Remote."
Anynet+ cannot be used to control external devices that do not support HDMI-CEC.
The TV remote control may not work under certain circumstances. If this occurs, set up the device as an Anynet+ (HDMI-CEC)-enabled device again.
Anynet+ (HDMI-CEC) works only with external devices that support HDMI-CEC and only when those devices are either in standby mode or turned on.
Anynet+ (HDMI-CEC) can control up to 12 compliant external devices (up to 3 of the same type) except for home theaters. Anynet+ (HDMI-CEC) can control only one home theater system.
To listen to 5.1 channel audio from an external device, connect the device to the TV via an HDMI cable and connect a 5.1 home theater system directly to the external device's digital audio output connector.
If an external device has been set up for both Anynet+ and a universal remote control, the device can be controlled only with the universal remote control.

Controlling the TV with a Keyboard, Mouse, or Gamepad

Connecting a keyboard, mouse or gamepad to make it easier to control the TV.

Settings > General > External Device Manager > Input Device Manager Try Now

You can connect a keyboard, mouse or gamepad to make it easier to control the TV.

Connecting a USB keyboard, mouse, or gamepad

Plug the keyboard, mouse or gamepad cable into the USB port.

If you connect a mouse, it is available only in the Internet app and Remote Access function.

XInput USB gamepads are supported.

For more information, refer to Input Device in Connection Guide (图标 > Source > Connection Guide > Input Device).

Connecting a Bluetooth keyboard, mouse, or gamepad

Settings General External Device Manager Input Device Manager Bluetooth Device List

If your device was not detected, position the keyboard close to the TV, and then select Refresh. The TV scans for available devices again.
If you connect a mouse, it is available only in the Internet app.
For more information about how to connect a Bluetooth device, refer to the Bluetooth device's user manual.

Using the keyboard and mouse

Button Description
Directional keys Use to navigate the menu, or move the focus to highlight items on the Home Screen.
Windows key Displays the TV settings
Enter key Selects or runs a focused item
ESC key Returns to the previous screen
F1 / F2 / F3 / F4 key Color buttons — / / / [IMAGE]
F5 key Displays the Home Screen
F6 key Displays theSourcescreen
F7 key Displays theChannel List
F8 key Mutes the sound
F9 / F10 key Adjusts the volume
F11 / F12 key Changes the channel
Page Up / Page Down Scrolls a web page displayed by theInternetapp.
Left-click	Available only in theInternetapp. You can click a menu or link to start a function as you do on a PC.
Right-click	Available only in theInternetapp. You can use the following functions:The options displayed in the menu may differ depending on the selected item.OpenOpen Link in New TabEnable Scroll Mode

The key operation may differ depending on some apps or the keyboard.

Setting up the input devices

> Settings General External Device Manager Input Device Manager

- Keyboard Settings

You can set up the keyboard with the Keyboard Language and Keyboard Type functions.

- Mouse Settings

You can set up the mouse with the Primary Button and Pointer Speed functions.

Entering Text using the On-Screen Virtual Keyboard

Use the virtual keyboard to enter text on your TV.

The image on your TV may differ from the image above depending on the model and geographical area.

1 Recommended text

When you type a word you want to use as a search term, this function displays related suggestions from which you can choose one.

Options

Select on the virtual keyboard screen. The following options are available:

The options available may differ depending on the function running currently.

• Recommended text
• Reset Recommended Text Memory
  • Accented Character Preview
• Predict Next Character (when using direction buttons)
• Language

Predict Next Character

Each time you type a character on the virtual keyboard, the next characters predicted to be typed are displayed. You can use the directional buttons on the remote control to select one.

Smart Features

You can enjoy various apps with Smart Hub.

Using Smart Hub

View descriptions of Smart Hub's basic functions.

From Smart Hub, you can use the Internet search function, install and use various apps, view photos and videos, or listen to music stored on external storage devices, and perform more functions.

Some Smart Hub services are paid services.
To use Smart Hub, the TV must be connected to the Internet.
Some Smart Hub features may not be supported depending on the service provider, language, or geographical area.
Smart Hub service outages can be caused by disruptions in your Internet service.
To use Smart Hub, you must agree to the Smart Hub service agreement and the collection and use of personal information. Without giving consent, you cannot use the additional features and services. You can view the entire text of the Terms & Privacy by navigating to > Settings > Terms & Privacy. Try Now
If you want to stop using Smart Hub, you can cancel the agreement. To cancel the Smart Hub service agreement, select Reset Smart Hub ( ⓗ > Settings > Support > Device Care > Self Diagnosis > Reset Smart Hub).

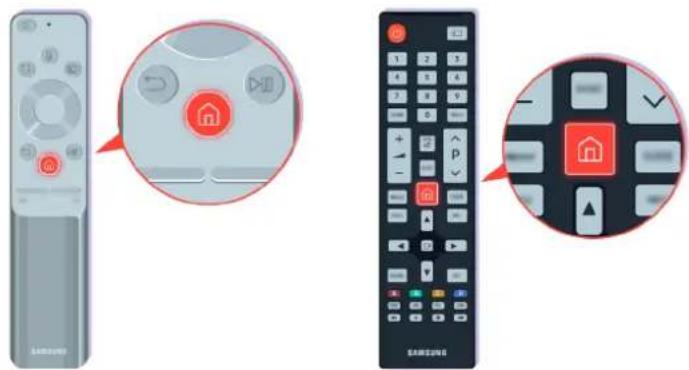

Displaying the Home Screen

Press the button.

The image on your TV may differ from the image above depending on the model and geographical area.

On the Home Screen, you can easily run the apps you have used previously or frequently. The apps can also be moved or deleted from the screen.

1 Settings

When the focus is moved to Settings, a list of quick settings icons appears above the top of the menu. You can quickly set frequently used functions by clicking the icons.

• e-Manual

You can open the user manual embedded in your TV.

- Picture Mode

You can select the picture mode that provides the best viewing experience. To change the picture mode, press the Select button. To make fine adjustments, press the up directional button, and then select Picture Setup.

- Sound Mode

You can select a sound mode to optimize your listening experience. To change the sound mode, press the Select button. To make fine adjustments, press the up directional button, and then select Equalizer Setup.

- Sound Output

You can select which speakers the TV uses for audio output. To change the audio output, press the Select button. To connect to a Bluetooth speaker, press the up directional button, and then select Bluetooth Speaker List.

Connecting Bluetooth speaker may not be supported depending on the model or geographical area.

- Game Mode

You can enable game mode to optimize the TV's settings for playing video games with a gaming console, such as a PlayStation™, Xbox™ or Nintendo Switch™. To turn Game Mode on or off, press the Select button.

For more information about Game Mode, refer to "Setting the Viewing Environment for External Devices."

This function is only available when an external input source is being used.

This function is supported by TU7 series.

- Audio Language

You can select a audio language. To set the detailed options, press the up directional button, and then select Go to Audio Options.

This function may not be supported depending on the model or geographical area.

- Caption

You can watch TV broadcasts with captions. To activate/deactivate the Caption function, press the Select button. To run Accessibility Shortcuts, press the up directional button, and then select Accessibility Shortcuts.

This function may not be supported depending on the model or geographical area.

- Sleep Timer

You can have the TV automatically turn off at a specific time. To change the sleep time, press the Select button. To set the specific time at which the TV turns off automatically, press the up directional button, and then select Set Up Off Timer.

- Network

You can view the current network and Internet status. Press the up directional button, and then select Network Status or Network Settings.

- Color Tone

You can select a color tone suitable for your viewing preferences. To change to a color tone that you want, press the Select button.

This function may not be supported depending on the model or geographical area.

- Picture Clarity

You can optimize pictures that contain a lot of motions. To turn this function on or off, press the Select button. To set the detailed options, press the up directional button, and then select Picture Clarity Settings.

This function may not be supported depending on the model or geographical area.

• Digital Output Audio Format

You can select an output format for digital audio. Note that the Dolby Digital+ option is only available via HDMI (ARC) for external devices that support the Dolby Digital+ format.

The HDMI (ARC) port may support eARC in some models.
This function may not be supported depending on the model or geographical area.

- Device Care

You can run Device Care to diagnose and optimize your TV. Device Care can also check and optimize the TV's storage. If any problem is found, it can call for technical support.

- All Settings

Display the Settings menu.

This function may not be supported depending on the model or geographical area.

2 → Source

You can select an external device connected to the TV.

For more information, refer to "Switching between external devices connected to the TV."

3 Search

You can search for channels, programs, movie titles, and apps from Smart Hub.

To use this feature, the TV must be connected to the Internet.

4 Apps

You can enjoy a wide range of content including news, sports, weather, and games by installing the corresponding apps on your TV.

To use this feature, the TV must be connected to the Internet.
For more information, refer to "Using the Apps Service."

5

Home

This menu appears first when you press the Ⓜ button. Then you can quickly access Samsung Account, Notification or Privacy Choices.

- Samsung Account

Go to the Samsung Account screen to create a new account or sign out of your account.

For more information about the Samsung Account, refer to "Using a Samsung account."

- Notification

You can view a list of notifications for all events that occur on your TV. A notification appears on the screen when it is time to broadcast a scheduled program or when an event occurs on a registered device.

If you move the focus to Notification, and then press the Select button, a notification window appears on the right and the following functions are available:

- Delete All

You can delete all your notifications.

- Settings

You can select services you want to be notified about.

When you select Allow sound, notifications are displayed with a notification sound.

- Privacy Choices

You can view and set the privacy policy for Smart Hub and various other services.

6 Universal Guide

Universal Guide is an app that allows you to search for and enjoy various content such as TV shows, dramas, and movies in one place. Universal Guide can recommend content tailored to your preferences.

You can use this feature on your mobile device with the Samsung SmartThings app.

To enjoy the content from these apps on your TV, they must be installed on the TV.
When you watch some paid content, you may need to make a payment using their associated app.
Some content may be restricted depending on your network conditions and your subscriptions to paid channels.
Parental control is necessary when children use this service.
Images may look blurry depending on the service provider's circumstances.
This function may not be supported depending on the geographical area.

The image on your TV may differ from the image above depending on the model and geographical area.

7 Moving an item on the Home Screen

Move the focus to the app you want to move, press and hold the Select button on the remote control, and then select Move in option menu. Move the app to the desired position by pressing the left or right directional button, and then press the Select button. The selected app is moved on the Home screen.

In the region that does not support the Universal Guide, press the down directional button on the remote control.

8 Removing an item on the Home Screen

Move the focus to the app you want to delete, press and hold the Select button on the remote control, and then select Remove in option menu. The selected app is deleted.

You can add the apps you want to use often to the Home Screen using Apps. To add your favorite apps to the Home Screen, refer to "Managing installed apps."

Launching Smart Hub automatically

Settings General Smart Features Autorun Smart Hub

When you set Autorun Smart Hub to on, the TV displays the Home Screen automatically when you turn the TV on.

You can also turn this function on or off. Press the Select button at the current menu.

Launching the last used app automatically

Settings General Smart Features Autorun Last App

If Autorun Last App is set to on, the last used app is automatically run when you turn on the TV. You can also turn this function on or off. Press the Select button at the current menu.

This function may not be supported depending on the app.

Testing Smart Hub connections

Settings Support Device Care Self Diagnosis Smart Hub Connection Test

Resetting Smart Hub

Settings Support Device Care Self Diagnosis Reset Smart Hub

You can reset the Smart Hub settings. To reset Smart Hub, enter the PIN. The default PIN is "0000." You can set the PIN in Settings General System Manager Change PIN.

Using a Samsung account

Create and manage your own Samsung account.

Settings > General > System Manager > Samsung Account Try Now

You can view the entire text of the Terms & Policy in 📄 > Settings > General > System Manager > Samsung Account > My Account Terms & Conditions, Privacy Policy after logging in to your Samsung account.

You can create a Samsung account at http://account.samsung.com. Once you have an account, you can use the same ID on both the TV and the Samsung website.

Signing in to a Samsung account

Settings General System Manager Samsung Account Sign In

Creating a new account

Settings General System Manager Samsung Account Create>Account

Sign up for a Samsung account on your mobile or PC. Visit : https://account.samsung.com

Managing your Samsung account

Settings General System Manager Samsung Account My Account

When you sign in to your Samsung account, you can use the following functions:

- Sign Out

When multiple people share the TV, you can sign out of your account to prevent others from seeing it.

To sign out of your Samsung Account (图标 > Settings > General > System Manager > Samsung Account), move the focus to your account's icon, and then press theSelect button. When a pop-up window appears, select Sign Out.

- Edit Profile

You can edit your account information.

To protect personal information, enter Edit Profile and then Sign-in Method is set to Profile image selection and password entry (High security).
If you want the TV to log you into your account automatically whenever you turn on the TV, click Stay Signed In.

- Payment Info

You can view or manage your payment information.

- Back up

You can back up the TV settings to your Samsung Cloud storage. When resetting or replacing the TV, you can also restore its settings with the backed-up settings.

- Sync Internet

Once you sign in to your Samsung account and configure the Sync Internet settings, you can share the favorites and website bookmarks that you registered on other devices.

- Remove Account

You can delete an account from the TV. Although you have deleted your Samsung account from the TV, you are not unsubscribed. To unsubscribe from your Samsung Account, visit the Samsung Accounts website (http://account.samsung.com).

- Terms & Conditions, Privacy Policy

You can view the user agreement and privacy policy.

For more information about the terms and conditions, privacy policy, select View Details.

Using Remote Access

Use the TV to access your PC via Remote PC, Screen Sharing (Wireless) or Cloud Service.

Source Remote Access

You can use the TV to access your PC via Remote PC, Screen Sharing (Wireless) or Cloud Service.

For smooth use as in a computer, connect a keyboard and a mouse to your TV in advance.

Connecting a Remote PC

Provides Remote Desktop Connection (RDP) for remotely connecting to a PC running on Windows and Virtual Network Computing (VNC) for a PC running on Mac. To remotely connect to a PC, you must enter the IP address of the remote PC or select a saved profile. Enter a correct user name and password and select a correct protocol. If there is any computer that can be accessed via the same network, the found IP and protocol are displayed.

To register a frequently used PC, move the focus to Manage User Profiles, and then press the Select button. When a pop-up window appears, select Add, and then enter the PC information.
To use this function, you must select Allow remote connections to this computer in advance on the Windows PC you want the TV to connect to.
When your PC enters in power saving mode, connection is not available. It is recommended to cancel the power saving mode.
- Windows OS:

1. Right-click the My Computer icon on Desktop or Windows Explorer and then click Properties.
2. Click Advanced System Settings. The System Properties window appears.
3. Click the Remote tab and then select the Allow Remote Assistance connections to this computer.

- Mac OS:

1. Select Menu > System Preferences and then click Sharing.
2. Select the Screen Sharing check box.
3. Run the resolution changing app downloaded from App Store and then change the resolution to 1440 x 900 or lower.

If you do not change the resolution in Mac OS, the previous image may appear while connecting a remote computer.

Remote connection to a PC running on Windows via the RDP protocol is only supported for Windows 7 or later. And the operating system must be a Professional or higher edition.

Remote connection to a PC running on Mac via the VNC protocol is only supported for Mac OS X 10.5 or later.

It is recommended to connect the wired network because the screen or sound may be interrupted depending on the network condition.

Playing Multimedia Content on a Remote PC

When you move the mouse cursor to the top of the screen after accessing a remote computer, the top bar appears. When the sharing folder icon is clicked in the top bar, the folders shared on Windows or Mac OS appear. You can play back any media content in a folder.

For more information about playing multimedia content, refer to "Playing pictures/video/music."

To use this function, the folder sharing option on the computer to access must have been enabled as shown below:

- Windows OS:

1. Run Windows Explorer and then move to the folder to share.
2. Right-click the folder and then click Properties.
3. After the Properties window appears, click the Sharing tab and then click Advanced Sharing.
4. After the Advanced Sharing window appears, select the Share this folder check box.

- Mac OS:

1. Select Menu > System Preferences and then click Sharing.
2. Select the File Sharing check box.
3. To add a folder to share, click the Add+ button at the bottom.
4. Select a folder and then click Add+.

It is recommended to connect the wired network because the screen or sound may be interrupted depending on the network condition.

Using Screen Sharing (Wireless)

Follow the instructions on the screen to adjust the PC settings and wirelessly connect the TV to the PC.

This function is only available for PCs that support wireless screen sharing.
This function is supported by Windows 10.

Using Office 365

You can read or create a document after accessing the Office 365 website.

Run the browser in full screen mode.

URL modification is impossible in the Office 365 page.

Adding the Cloud Service

Select the Add Cloud Service icon. User the bookmarking function of the browser, you can add or delete the cloud service link to or from Remote Access.

To add the cloud service, you must be signed in to your Samsung account.

The number of cloud services that can be added to Remote Access is limited.

Using Cloud Service

You can access the cloud service by selecting the cloud service icon added to Remote Access.

The screen on the web page may differ from that of a computer.

You can copy or paste any text. Some image formats are supported.

For easy and secured login in Cloud Service, Remote Access Pass is additionally supported as well as Samsung Pass.

Setting Samsung Pass or Remote Access Pass.

Set Samsung Pass or Remote Access Pass to Use in 📄 > ➤ Source > Remote Access > Run the Remote Access browser (Additionally select Office 365 or Add Cloud Service) > Internet Menu > Settings.

Remote Access Pass allows you to easily manage the cloud service ID and password without biometric authentication on mobile devices. For this purpose, you must be signed in to your Samsung account. The password is encrypted to be safely stored on your TV.

However, the log in to Remote Access Pass may not work depending on the site policy.

To securely access the cloud service, you can use the browser's automatic shutdown or clear the history logs.

Before accessing the cloud service, refer to "Read Before Using the Internet Function."

The cloud service supports the following keyboard shortcuts:

• F1: Returns to Remote Access's Home screen.

• F8: Mutes the sound.

• F9/F10: Adjusts the volume.

• F11: Switches between full screen or default screen.

Using the Apps Service

Download and run various apps from Smart Hub.

> Apps

You can enjoy a wide range of content including news, sports, weather, and games by installing the corresponding apps on your TV.

To use this feature, the TV must be connected to the Internet.
When Smart Hub is launched for the first time, the default apps are automatically installed. The default apps may differ depending on the geographical area.

The image on your TV may differ from the image above depending on the model and geographical area.

1 Samsung Account

Go to the Samsung Account screen to create a new account or sign out of your account.

If you are signed out of your Samsung account, select Sign In to sign in.
If you want to download new apps using Apps, first sign in to your Samsung account.

2 App Search

You can search for available apps.

3 Settings

You can manage the installed apps.

Installing an app

1. Move to the app you want to install, and then press the Select button. The detailed information screen appears.
2. Select Install. When the installation is complete, the Open menu appears.
3. Select Open to run the app immediately.

You can view installed apps on the Settings screen.
If the TV's internal memory is insufficient, you can install some specific apps on a USB device.
You can run an app installed on a USB device only when the USB device is connected to the TV. If the USB device is disconnected while an app is running, the app is terminated.
You cannot run an app installed on a USB device on a PC or another TV.

Launching an app

You can run the app desired from Downloaded App.

The icons below appear within the selected app's icon and indicate the following:

• : The app is installed on a USB device.
• : The app is locked.
• : The app needs to be updated.
• : The app supports the mirroring function.

Managing installed apps

Select Settings on Apps. You can manage installed apps.

The image on your TV may differ from the image above depending on the model and geographical area.

1 Removing an app

1. Select an app to delete.
2. Select Delete.

The selected app is deleted.

Ensure that the related app data is also removed when you remove an app.
Standard apps cannot be uninstalled.

2 Adding apps to the Home Screen

1. Select an app to add.
2. Select Add to Home.
3. After the Home screen appears, move the selected app to the desired location.
4. Press the Select button.

The selected app is added to the Home Screen.

If the selected app is already added to the Home Screen, this function is disabled.

3 Locking and unlocking apps

1. Select an app to lock or unlock.
2. Select Lock/Unlock.

The selected app is locked or unlocked.

To lock or unlock an app, enter the PIN. The default PIN is "0000." You can set the PIN in > Settings > General > System Manager Change PIN.

4 Moving apps

1. Select an app to move.
2. Select Move.
3. Move the app to the desired location.
4. Press the Select button.

The selected app is moved.

This function may not be supported depending on the model or geographical area.

5 Reinstalling an app

1. Select the app to install again.
2. Select Reinstall.

Reinstallation starts.

6 Checking the app information details

1. Select the app to check.
2. Select View Details.

The app information screen appears.

You can rate an app on the View Details screen.

7 Automatically updating apps

To automatically update the installed apps, set Auto Update to ON.

Automatic update is enabled only when the TV is connected to the Internet.

Using the Gallery App

View photos and videos synchronized with the Samsung Cloud.

> Gallery

The image on your TV may differ from the image above depending on the model and geographical area.

You can enjoy various content synchronized with a mobile device that supports the Samsung Cloud. The available content types are photos, videos, stories, and other content shared through your groups.

If you have shared content from your groups, you can access them in notifications.

To use the Gallery app, you must be signed in to your Samsung account that uses the Samsung Cloud.

To use this function, the PIN number is required.

1 ≡ Open category

Move to ≈at the top left of the screen using the directional buttons on the remote control to view by category the content synchronized with the Samsung Cloud.

2 View: Daily / View: Monthly

Sort the content by day or month.

3 Samsung Account

Go to the Samsung Account screen to create a new account or sign out of your account.

If you are signed out of your Samsung account, select Sign In to sign in.

4 Gallery Settings

Set a PIN for screen lock to restrict access to the Gallery app, or view the terms and condition.

Using the SmartThings App

Monitor and configure the smart devices you have connected to the SmartThings service.

> SmartThings

The image on your TV may differ from the image above depending on the model and geographical area.

From your TV, you can monitor and configure smart devices you connected to the SmartThings service via the SmartThings app installed on them. You can receive notifications about the statuses of your connected devices.

To use this function, you must be logged in to your Samsung account.
This function may not be supported depending on the model or geographical area.

1 Location selection list

Press the Select button to identify all connected devices or the devices specific to a location.

2 Samsung Account

Go to the Samsung Account screen to create a new account or sign out of your account.

If you are signed out of your Samsung account, select Sign In to sign in.

3 Settings

Turn notifications on or off for the connected smart devices.

4 Scenes

Control multiple devices with one command after setting scenes via the SmartThings app on your mobile device.

5 Device list

View a list of the connected smart devices and their statuses.

You can add and control new devices through the SmartThings app on your mobile device. You can check and control various devices such as speaker, smart devices (IoT devices), and home appliances registered on the server. Please refer to the user guide of the SmartThings app on your mobile device for more details.

Controlling your TV with the mobile SmartThings app

You can register your TV and use some features of the TV through the SmartThings app on your mobile device.

Using the e-Manual

Control and read the manual embedded in your TV.

Launching the e-Manual

> Settings Support Open e-Manual

You can view the embedded e-Manual that contains information about your TV's key features.

You can download a copy of the e-Manual from Samsung's website to view or print on your PC or mobile device (http://www.samsung.com).
Some menu screens cannot be accessed from the e-Manual.

Using the buttons in the e-Manual

The image on your TV may differ from the image above depending on the model and geographical area.

1 Q (Search)

Select an item from the search results to load the corresponding page.

2 (Sitemap)

It displays the lists for each item in e-Manual.

3 A-Z (Index)

Select a keyword to navigate to the relevant page.

This function may not be supported depending on the model or geographical area.

4 Moving to FAQ

You can find the troubleshooting of the selected symptom.

5 (Recently Viewed Topics)

Select a topic from the list of recently viewed topics.

Words in blue (e.g., Internet) indicate a menu item.
The image on your TV may differ from the image above depending on the model and geographical area.

6 (Try Now)

Allows you to access the corresponding menu item and try out the feature right away.

7 (Link)

Access an underlined topic referred to on an e-Manual page immediately.

Using the Internet

Surf the Internet on your TV.

> Internet

When you run Internet, you can see recently viewed web sites or featured recommendations. When you select a desired web site, you can get immediate access to it.

You can use the Internet function more easily after connecting a keyboard and mouse.
You can scroll web pages with the directional button on the Samsung Smart Remote.
The web pages may differ from those on a PC.
Before using the Internet, refer to "Read Before Using the Internet Function."
The Internet app has an embedded Samsung Pass ( Internet > Internet Menu > Samsung Pass Settings ). With Samsung Pass, you can log into the website easily and securely. When you visit the website again, you can log in with Samsung Pass Biometrics Authentication on your mobile device without entering your ID and password. However, this Samsung Pass login may not work depending on the website policy. For this purpose, you must have been logged in the mobile device with a Samsung account registered in Samsung Pass.

Playing pictures/video/music

Play media content stored on your TV, USB devices, mobile devices, cameras, PCs, etc.

Source Connected Device

Now

The image on your TV may differ from the image above depending on the model and geographical area.

You can play media content saved on storage devices, such as USB devices, mobile devices, and cameras on the TV.

You cannot play media content if the content or the storage device is not supported by the TV. For more information, refer to "Read Before Playing Photo, Video, or Music Files."
Backup important files before connecting a USB device. Samsung is not responsible for damaged or lost files.

You can use the following functions on the media content list screen of a storage device.

Filter By

Filters the media content by type of media.

2 Sort By

Sorts the content list by Title, Date or Channel.

This function may not be supported depending on the type of external device.

3 Options

Deletes or plays the selected media content in the media content list. When you select Refresh, the content list is reloaded.

Playing multimedia content on a PC or mobile device

1. Select a device with media content in 📋 > ➤ Source. The media content list in the device appears.
2. Select a media content item from the list.

The selected content is played.

The content may not be played depending on the encoding method or file format. Furthermore, several functions may be restricted.
Content on devices connected to the TV via your network may not play smoothly due to network communication problems. If this occurs, use a USB device.

Playing multimedia content on a USB device

1. Connect a USB device to the USB port.
2. When a pop up message appears on the screen, select Browse to easily move to the list of multimedia content stored on the device.

If a USB device that contains the content you want to play is already connected to the TV, select the USB device in the Source screen.

1. Select a content item to play from the list.

The selected content is played.

Listening to your mobile device sound through the TV speaker using Sound Mirroring

1. Search for and connect to your TV from the Bluetooth device list on your mobile device.
2. Select media content to play on your mobile device.

The selected contents media is played through the TV speaker.

This function may not be supported depending on the model or geographical area.
If the TV and the sound bar are connected wirelessly, the operation may be restricted.

Buttons and functions available while playing multimedia content

Press the Select button while playing any video, or photo contents. The following buttons appear.

The provided buttons and functions may not be supported depending on the model or geographical area.
The available buttons and functions may differ with the content you are viewing or playing.

- Pause / Play

Pauses or plays the multimedia content.

- Jump Backward / Jump Forward

Press the up directional button to move the focus to the playback control bar, and then select the left or right directional button in the playback control bar to move backward or forward by 10 seconds in the video.

- Move to a specific playback section, move up the focus on the playback bar, and then select one of the five thumbnails.

This function may not be supported depending on the file format.

- Stop

Stop the contents being played.

- Previous / Next

Displays the previous or the next multimedia content file.

- Rewind / Fast Forward

Rewinds or fast forwards the multimedia content. To increase the rewind or fast forward speed up to 3 times faster than normal, select the button repeatedly. To return to normal speed, select the option or press the button.

You can use the following functions when the video is paused. Note that with the video paused, the TV does not play audio.

- Slow Rewind or Slow Forward: Allows you to play a video slowly backward or forward by selecting the 📄 or ➕ option. There are 3 playback speeds. To change the playback speed, press the option repeatedly. To return to normal speed, select the ➕ option or press the ➕ button.

- Repeat

Plays the current multimedia content repeatedly or all multimedia content files in the same folder repeatedly.

- Shuffle

Plays music files in random order.

• Picture Off
  Plays music files with the screen off.

- Screen Fit

Fits a photo to the screen.

- Rotate left / Rotate right

Rotates a photo left or right.

- Zoom

Zooms in a photo.

- Background Music

Pauses or resumes the background music while the TV displays photos.

This function is available after enabling the Background Music option.

- Options

The available options may differ with the model and content.

Function Description
Slideshow Speed	Sets the slideshow speed.If there is only one image file in the USB device, the slide show is not played.
Slideshow Effect	Applies transition effects to the slide show.If there is only one image file in the USB device, the slide show is not played.
Background Music	Plays background music as you set in the pop-up window while the TV displays photos.The music files must be saved in the same USB device as the photo files.To pause the background music, selectBackground Musicon the playback screen bottom.
Subtitles	You can set the detailed subtitle options such as the language, sync, size, and color.If subtitles are not displayed correctly, check the encoding setting.
Rotate Rotates the video.
Audio Language	Changes the audio language.This function is only available if the video supports multi-track sound.
Information Displays detailed information about the current multimedia content.

TV Viewing

You can use convenient features while watching TV. Additionally, you can edit the channel list or create favorite channel lists.

Using the Guide

See an overview of each channel's program lineup.

Live TV Guide

Now

The image on your TV may differ from the image above depending on the model and geographical area.

In the Guide, you can see the daily program schedules for each broadcaster, see program information, choose a program to watch, and set up a schedule viewing.

To view the Guide while watching TV, press the ∧/∨ (Channel) button on the Samsung Smart Remote or press the GUIDE button on the standard remote control.
To see information about analog channels and use the analog channel functions of the Guide, you must finish the service provider settings in initial setup.
Service provider settings in initial setup may not be supported on geographical area.
To view the Guide, you must first set the TV's clock ( Ⓜ > ⚙ Settings > General > System Manager > Time > Clock).

Move the focus to the program you want in the Guide, and then press and hold the Select button. You can use the following functions:

- Cancel Scheduled Viewing

You can cancel scheduled viewings.

- View Details

You can see detailed information about the selected program. The information may differ or may not be provided depending on the broadcast signal.

Setting Up a Schedule Viewing

Configure the TV to show a specific channel or program at a specific time and date.

The ☐ appears next to programs that have been configured for a scheduled viewing.

To set up a schedule viewing, you must first set the TV's clock ( 📄 > Settings > General > System Manager > Time > Clock).

Using the schedule viewing options from the guide screen

On the Guide screen, select a program you would like to view, press and hold the Select button, and then select Schedule Viewing in the pop-up menu that appears.

Using the schedule viewing options while watching a program

Press the Select button while watching TV. The Program Info window appears. Select a program that will be broadcast using the left or right directional buttons. Press the Select button, and then select Schedule Viewing to schedule viewing of that program.

Using schedule viewing to view programs at a specified time on a specified date

> Live TV Schedule Manager Add Viewing

To schedule a viewing, set the values for Antenna, Channel, Repeat, Date, and Start Time of the broadcast program to view, and then select Save.

Check the current time in Settings General System Manager Time Clock.

The menus may differ depending on the model or geographical area.

Setting the schedule Viewing Time

> Live TV Schedule Manager

You can change scheduled viewing information or cancel scheduled viewings.

You can set up a maximum total of 30 Schedule Viewing entries.

The menus may differ depending on the model or geographical area.

- Edit

You can set the start time of a scheduled viewing. If you choose a program from the Guide, the Start Time can be set to up to 10 minutes before the program.

- Delete

You can delete scheduled viewings.

- View Details

You can view detailed information about scheduled viewings.

Using the Channel List

Change the channel or check programs on other digital channels.

> Live TV Channel List

Using the Channel List, you can change the channel or check programs on other digital channels while watching TV.

The Channel List screen contains the following icons:

The Channel List categories may vary depending on the incoming broadcast signals.

- : A favorite channel.

- : A locked channel.

If you press the left directional button when viewing the Channel List screen, you can use the following functions:

- Air or Cable

To select Air or Cable, move the focus to Air or Cable, and then press the Select button. Air is suitable for homes equipped with separate, over-the-air antennas. Cable is suitable for homes that subscribe to a local cable-service, but do not have a cable box. You do not need to use this function if your TV is connected to a cable box or satellite box.

This function may not be supported depending on the incoming broadcast signal.

- All Channels

Displays the channels that the TV found during the Auto Program or Auto Tuning channel search.

These are the channels your TV will receive either over the air if your TV is set to Air or over cable if your TV is set to Cable. See Air or Cable above.

- Favorites

Displays Favorites 1 to Favorites 5.

It displays only the favorites list that includes the favorite channel.

- Channel Type

Sorts the list so that it includes channels of a selected type. However, Channel Type can only be used channels contain the type information.

This function may not be supported depending on the incoming broadcast signal.

- Samsung TV Plus

While the TV is connected to the Internet, you can watch popular programs or highlights for each theme through a virtual channel at any time. As with regular channels, the TV provides the daily program schedules for Samsung TV Plus.

This function may not be supported depending on the model or geographical area.

Editing channels

Edit the channels stored on your TV.

> Live TV Channel List Edit Channels

The Edit Channels screen contains the following icons:

- : A favorite channel.

- : A locked channel.

On the Edit Channels screen, you can select channels and use the following functions:

- Delete

After selecting a target channel to remove in Edit Channels, select Delete. Removed channels are not displayed in the Channel List.

- Lock / Unlock

After selecting a target channel in Edit Channels, select Lock or Unlock. Then the channel is locked or unlocked.

A locked channel cannot be viewed.

If you want to use this function or set the password, set 📋 > ⚙️ Settings > Broadcasting > Apply Channel Lock to On.

For more information about how to set your password, refer to "Setting up a password."

- Rename Channel

After selecting a channel to change in Edit Channels, select Rename Channel to change the channel name.

You can rename only one channel at a time.

This function is only available for analog channels.

- Change Number

After selecting a channel to change in Edit Channels, select Change Number to change the channel number.

This function may not be supported depending on the model or geographical area.

When a channel number is changed, its channel information is not updated automatically.

- Restore Samsung TV Plus

You can restore the deleted Samsung TV Plus channels.

This function may not be supported depending on the model or geographical area.

- Save and Exit

Saves and closes the Edit Channels screen.

Using a Personal Favorites List

Designate frequently watched channels as favorite channels.

Favorite channels are highlighted in the Edit Channels and Channel List screens with the ♥ symbol. You can create up to five favorites lists so that your family members can create their own personal favorites list.

Create a favorites list

> Live TV Channel List Edit Channels

1. Press the left directional button on the remote control to select the desired Favorites list.
2. Press the right directional button to select Add Channels.
3. Select the desired channel in the list on the screen.
4. Press Add Channels to add the selected channel in the Favorites list.

Select Favorites 1 - Favorites 5 on the Edit Channels screen and the following functions are available:

- Add Channels

In the channel list, select one or more channels to add in the favorite list and then select Add Channels.

- Remove

Removes one or more channels from a favorites list.

- Change order

Changes the order of one or more channels selected in a favorites list.

- Rename Favorites

Renames a favorites list.

- Save and Exit

Saves and closes the Edit Channels screen.

TV-Viewing Support Functions

Use the functions that are available while watching TV.

Changing the broadcast signal

> Live TV Channel List

Press the directional button on your remote control, move the focus to Air or Cable, or Service Provider and then press the Select button.

You do not need to use this function if your TV is connected to a cable box or satellite box.

Scanning for available channels

Settings > Broadcasting > Auto Program or Auto Tuning Try Now

Do not use this function if your TV is connected to a cable box or satellite box.
If the TV has saved channels, Auto Program or Auto Tuning deletes the existing list, and then saves the newly scanned channels.
This function may not be supported depending on the model or geographical area.
The actual name may differ with specific geographical area.

Using Program Rating Lock

Settings Broadcasting Program Rating Lock

This function is useful for controlling what programs children can watch on the TV based on their ratings. Program Rating Lock does not, however, block programs originating from external sources, such as Blu-ray players, DVD players, or USB files.

Every time you access Program Rating Lock, you must enter the security PIN. You must also enter this PIN to watch a blocked program. The default PIN is "0000." To change the PIN, go to 📋 > Settings > General > System Manager Change PIN.

Program Rating Lock may not be supported depending on your input signal.
For more information about how to set your password, refer to "Setting up a password."
This function may not be supported depending on the model or geographical area.

Watching blocked / restricted programs

To watch a blocked program, enter the PIN when requested.

When initially showing a restricted program or movie, the screen is blank because the Program Rating Lock blocks it. Enter the PIN to unblock the program when a message appears requesting the code.

Restricting Viewing to Specific Channels

Settings > Broadcasting > Apply Channel Lock Try Now

By selecting the menu, you can turn on or off the Apply Channel Lock function.

Lock specific channels to prevent children from watching adult content.

To use this function, the PIN number is required.

Configuring advanced broadcasting settings

Settings > Broadcasting > Expert Settings Try Now

Scanning all digital channels

Settings Broadcasting Expert Settings Digital Manual Tuning

This function may not be supported depending on the model or geographical area.

This function is available only when the Antenna is set to Air.

If a channel is locked using the Edit Channels function, the PIN input window appears.

Fine-tuning analog broadcasts

Settings > Broadcasting > Expert Settings > Fine Tune Try Now

This function is only available for analog broadcasts.

Choosing an appropriate video input color

Settings Broadcasting Expert Settings Color System

This function is only available for analog broadcasts.

Configuring advanced broadcasting audio settings

Settings Broadcasting Expert Settings Audio Options

Configure your preferred audio options for viewing broadcasted content. Audio Options functions differently for analog and digital channels.

• Audio Language or Audio Language Settings

This is the language you will hear while watching TV if the language is included in the broadcast signal.

- Audio Format

You can change the audio format you want to hear.

The supported audio format may differ with the broadcast program.

- Multi-Track Sound

You can select the multi-track sound function depending on broadcasting signal.

This function may not be supported depending on the model or geographical area.

This function may not be supported depending on the incoming broadcast signal.

Showing TVkey Interface menu

Settings Broadcasting Expert Settings TVkey Interface

You can use the following functions:

• TVkey Menu: Show TVkey Interface menu.
- Delete TVkey Operator Profile: Show the TVkey operator list to delete.
This function may not be supported depending on the model or geographical area.

Checking digital channel signal info and strength

Settings > Support > Device Care > Self Diagnosis > Signal Information Try Now

If your TV is attached to a separate, over-the-air antenna, you can use the signal strength information to adjust the antenna for increased signal strength and improved HD channel reception.
This function is only available for digital channels.
This function may not be supported depending on the geographical area.

Picture and Sound

You can change the settings for the picture and the sound according to your preference.

Adjusting the Picture Quality

Change the Picture Mode and adjust Expert Settings.

Choosing a picture mode

> Settings Picture Picture Mode

OW

You can select the Picture Mode that provides the best viewing experience.

- Dynamic

Makes the picture brighter and clearer in bright viewing environments.

- Standard

Is the default mode suitable for general viewing environments.

- Natural

Reduces eye strain for a comfortable viewing experience.

- Movie

Is suitable for watching TV or movies in a dark room.

• FILMMAKER MODE

You can watch the source content (e.g. movie) as it is. The image defined as FILMMAKER MODE automatically switches to FILMMAKER MODE while watching.

This function is supported by TU7 series.
This function is activated only upon inputs defined as FILMMAKER MODE.
You can change FILMMAKER MODE to a different Picture Mode. However, the changed Picture Mode will be maintained even after watching the picture defined by FILMMAKER MODE.
FILMMAKER MODE™ logo is a trademark of UHD Alliance, Inc.

Configuring advanced picture settings

Settings > Picture > Expert Settings Try Now

Configure the screen settings to your taste by using the following functions:

• Brightness y Now
• Contrast y Now
• Sharpness y Now
• Color y Now
• Tint (G/R) Now

- Apply Picture Settings Now

• Picture Clarity Settings Try Now

This function is supported by TU7 series.
When LED Clear Motion is set to On, the screen appears darker than when it is Off.

- Contrast Enhancer Now

- Film Mode y Now

This function is only available when the input signal is TV, AV, Component (480i, 576i, 1080i), or HDMI (1080i).

• Color Tone y Now

• White Balance y Now

- Gamma Now

• Shadow Detail Now

- RGB Only Mode Now

This function is supported by TU7 series.

• Color Space Settings y Now

- Reset Picture Now

Setting the Viewing Environment for External Devices

You can optimize the TV for viewing specific video formats.

Playing games on an optimized screen

Settings General External Device Manager Game Mode

You can enable game mode to optimize the TV's settings for playing video games with a gaming console, such as a PlayStation™, Xbox™ or Nintendo Switch™.

This function is supported by TU7 series.
The game mode is not available for normal TV viewing.
The screen may shake somewhat.
When Game Mode is enabled, Picture Mode and Sound Mode are switched to Game automatically. Sound Mode may not be automatically switched depending on the selected audio device on the Sound Output menu.
When Game Mode is set to On, some functions are not available.
To use a different external device on the same port, remove the game console connection, set Game Mode to Off, and then connect the external device to the port.
The Game Mode functions used for Nintendo Switch™ are subject to change without prior notice.

Using Input Signal Plus

Settings > General > External Device Manager > Input Signal Plus Try Now

Expands the input signal range for HDMI connections.

When you select the HDMI connector you want to use for Input Signal Plus, and then press the Select button to set the Input Signal Plus function to On, the TV screen may flicker.
When you connect the TV to an external device that supports only the UHD 24 Hz or UHD 30 Hz frequency, or any FHD frequency, the Input Signal Plus function may not be available. In this case, turn off the Input Signal Plus function.
For more information about the supported UHD resolutions, refer to "Supported Resolutions for UHD Input Signals."
This function is supported by TU7 series.

Using HDMI black level

Settings > General > External Device Manager > HDMI Black Level Try Now

Use HDMI Black Level to adjust the black level to compensate for low black levels, low contrast, or dull colors generated by external devices connected to the TV via an HDMI cable.

This function is only available when the input signal connected to the TV via an HDMI connector is set to RGB444.

Changing the Picture Size and Position

Change the picture size and position for your TV.

Changing the picture size settings

> Settings Picture Picture Size Settings

• Picture Size Now

You can change the size of the picture displayed on the TV screen to 16:9 Standard, Custom, or 4:3.

Supported picture sizes differ with the input signal. For more information about supported picture sizes, refer to "Picture sizes and input signals."

• Fit to Screen Now

Fitting the picture to the screen.

This function may not be supported depending on the Picture Size setting.
This function may not be supported depending on the broadcast signals.

- Zoom and Position Now

Adjusting the picture size and/or position.

This function is available only if Picture Size is set to Custom.
To change the picture position on analog channels, first enlarge the picture and then change the position.

These functions may not be available on Samsung TV Plus and some applications.

Configuring a Sound Mode and Expert Settings

Change the Sound Mode and adjust Expert Settings.

Choosing a sound mode

> Settings Sound Sound Mode

OW

You can select the available sound mode that you prefer for a content type or your listening environment.

When an external device is connected, Sound Mode may change accordingly.
This function may not be supported depending on the model.

Configuring advanced sound settings

Settings > Sound > Expert Settings Try Now

You can personalize the sound quality by adjusting the following settings.

• Balance

y Now

- Equalizer

y Now

This function is not available when the Sound Mode function is set to Adaptive Sound or Amplify.
The name and properties of this function may appear differently depending on the connected external device.

- HDMI-eARC Mode

You can connect an audio device that supports eARC via HDMI-eARC. Muting occurs temporarily during device connection.

The HDMI (ARC) port may support eARC in some models.
This function is supported by TU7 series.

• Digital Output Audio Format Try Now

Select the digital audio output format. If you select the Auto option, the audio device outputs automatically in a supported format.

If you select the Pass-Through option, audio data is output with no processing.

• Digital Output Audio Delay Try Now

HDMI (ARC) is supported by some models. Check the HDMI port name of the purchased product's model.
This feature is only available when the external device is connected via HDMI (ARC) and SPDIF (Sony Philips Digital Interface).

• Dolby Atmos Compatibility Try Now

You can set the TV to allow Dolby Digital+ with Atmos streams that are input from external devices.

Set to On if the audio device connected via HDMI (ARC) supports Dolby Atmos. The TV screen may flicker when this function is turned on or off.

If this function is on, set Digital Output Audio Format to Auto.
The HDMI (ARC) port may support eARC in some models.

• Auto Volume y Now

Automatically adjusts the sound to a certain level when changing channels or switching to another external input.

• Sound Feedback y Now
- Reset Sound y Now

Standard audio signals are sampled at 48 kHz while HD audio signals are sampled at 96 kHz.

Some SPDIF receivers may not be compatible with HD audio format.

Using the Sound Support Functions

Configure the sound settings for your TV.

Selecting speakers

> Settings Sound Sound Output

OW

You can select which speakers the TV uses for audio output.

External speakers may not be controlled with the Samsung remote control. When an external speaker is enabled, some sound menus are not supported.
Refer to the sound bar's user manual when connecting it to the TV.

Listening to the TV through Bluetooth devices

Settings Sound Sound Output Bluetooth Speaker List

You can connect Bluetooth audio devices to the TV. They must be paired using the TV's Bluetooth function. Refer to the user manual for your audio device such as Bluetooth speaker, sound bar, and headphones for detailed connection and usage.

If the TV fails to find a Bluetooth audio device, place the device closer to the TV, and then select Refresh.
When you turn on a paired Bluetooth audio device, the TV detects it automatically, and then displays a pop-up window. Use this pop-up window to activate/deactivate the Bluetooth audio device.
The sound quality may be affected by the condition of the Bluetooth connection.
Before using a Bluetooth audio device, refer to "Read Before Using Bluetooth Devices."
This function is supported by TU7 series.

Listening to the TV through a Samsung audio device that supports the Wi-Fi function

For more information about how to connect and use a Samsung audio device that supports the Wi-Fi function, refer to its user manual.

Settings > Sound > Wi-Fi Speaker Surround Setup Try Now

If you've connected one or more Samsung wireless audio devices that support the Wi-Fi function to the TV, you can create an optimal sound set up by configuring the surround effect settings. You can select any of the surround sound configurations, with or without a sound bar.

A surround sound configuration can be used if all of the following conditions are met:

• Two or more Samsung wireless speakers of the same type must be connected to the same wireless network.
• The Samsung audio devices that support the Wi-Fi function must be connected to the same wireless network as the TV.

Surround sound configurations with a sound bar may not be supported depending on the product.

If you activate the Screen Mirroring function while using Samsung audio devices that support the Wi-Fi function, the Wi-Fi connection is disconnected.

Mismatched video and audio lip-syncing may occur depending on the device type.

System and Support

You can configure system and support settings such as clock, timers, energy usage and software updates.

Using the Time Functions and the Timers

Set the current time and use the timer function.

Settings > General > System Manager > Time Try Now

You can set the Clock manually or automatically. Once the Clock is set, you can view the current time on the TV anytime.

You must set the clock in the following cases:

• The power cable is disconnected and then connected.
  • The Clock Mode is changed from Auto to Manual.
• The TV is not connected to the Internet.
• No broadcast signals are received.

Setting the clock automatically

> Settings General System Manager Time Clock Clock Mode Auto

This function works only when the TV is connected to the Internet or is receiving digital broadcasts through a connected antenna.
The accuracy of the time information received may differ with the channel and signal.
If you get your TV signal from a cable broadcast receiver/set-top box or a satellite receiver/satellite set-top box connected to an HDMI or Component port, you must set the current time manually.

Adjusting the clock for time zone

Settings General System Manager Time Clock Time Zone

Selects your time zone.

This function is only available when the Clock Mode is set to Auto.

This function may not be supported depending on the model or geographical area.

Changing the current time

Settings General System Manager Time Clock Time Offset

Time Offset adjusts the time through a network connection.

This function is available only when Clock Mode is set to Auto, the TV fails to receive time information through normal broadcast signals, and the TV is connected to the Internet through a local area network.

Setting the clock manually

Settings General System Manager Time Clock Clock Mode Manual

When Clock Mode is set to Manual, you can directly enter the current date and time. Select the Date and Time by using the directional buttons on the remote control.

Using the sleep timer

Settings General System Manager Time Sleep Timer

You can use this function to automatically shut off the TV after a pre-set period of time. You can set the sleep timer for up to 180 minutes after which it will turn off the TV.

This function may not be supported in some viewing modes.

Turning off the TV using the off timer

Settings General System Manager Time Off Timer

You can set Off Timer to shut off the TV automatically at a specific time. Off Timer is only available if the Clock has been set.

To use this function, first set the Clock (图标 > Settings > General > System Manager > Time > Clock).

This function may not be supported in some viewing modes.

Using the Auto Protection Time and Energy Saving Functions

Set the Auto Protection Time and reduce the TV's energy consumption.

Setting the Auto Protection Time

Settings > General > System Manager > Auto Protection Time Try Now

Activate a screensaver when your TV displays a still image for two hours or more.

This function may not be supported in some viewing modes.

Reducing the energy consumption of the TV

Settings General Eco Solution

OW

You can adjust the brightness level of the TV, reduce overall power consumption, and prevent overheating.

This function is supported by TU7 series.

• Ambient Light Detection Try Now

Automatically adjusts the brightness level of the TV, according to the ambient light level, to reduce power consumption. If Ambient Light Detection has adjusted the screen brightness to a too bright or dark level, you can select Minimum Brightness to manually adjust the minimum screen brightness.

• Minimum Brightness Now

When Ambient Light Detection is turned on, you can manually adjust the minimum brightness of the TV screen. This function acts only when the value is less than the setting in Ⓜ > ⚙️ Settings > Picture > Expert Settings > Brightness.

• Power Saving Mode y Now

Adjust the brightness settings to reduce the TV's power consumption.

- Motion Lighting y Now

Adjusts the brightness in response to on-screen movements to reduce power consumption.

• Auto Power Off y Now

Automatically turns off the TV to reduce unnecessary power consumption if the TV Controller and the remote control are not used for the set period of time.

Updating the TV's Software

View your TV's software version and update it if necessary.

DO NOT turn off the TV's power until the update is complete. The TV will turn off and on automatically after completing the software update. Video and audio settings may be reset to their defaults after a software update.

Settings > Support > Software Update Try Now

Updating through the Internet

Settings > Support > Software Update > Update Now Try Now

Updating from the Internet requires an active Internet connection.

Updating through a USB device

Settings Support Software Update Update Now

After downloading the update file from the Samsung website and storing it on a USB device, connect the USB device to the TV to update.

To update using a USB device, download the update package from Samsung.com to your computer. Then, save the update package in the USB device's top-level folder. Otherwise, the TV will not be able to locate the update package.

Updating the TV automatically

Settings > Support > Software Update > Auto Update Try Now

If the TV is connected to the Internet, you can have the TV's software update itself automatically while you are watching the TV. When the background update is completed, it is applied the next time the TV is turned on.

If you agree to the Smart Hub terms and conditions, Auto Update is set to On automatically. If you want this function disabled, use the Select button to turn it off.

This function may take a longer time if another network function is running concurrently.

This function requires an Internet connection.

Audio and Video Functions for the Visually or Hearing Impaired

You can configure the functions for the visually or hearing impaired.

Running the accessibility functions

Settings > General > Accessibility Try Now

Running Accessibility Shortcuts

The Accessibility Shortcuts provide easy access to the accessibility functions. To display the Accessibility Shortcuts, press and hold the Volume button for 1 second or more. You can easily turn on or turn off the functions such as Voice Guide, Picture Off, Caption, High Contrast, Enlarge, Learn TV Remote, Learn Menu Screen, Multi-output Audio, Slow Button Repeat, Accessibility Settings, etc.

On the standard remote control, press the CC button or press and hold the MUTE button.
Even if the Voice Guide is set to Off or muted, the voice guide for Accessibility Shortcuts is enabled.
The shortcut menus may not appear depending on the model or geographical area.

Enabling voice guides for the visually impaired

Settings > General > Accessibility > Voice Guide Settings Try Now

You can activate voice guides that describe the menu options aloud to aid the visually impaired. To activate this function, set Voice Guide to On. With Voice Guide on, the TV provides voice guides for channel change, volume adjust, information on current and upcoming programs, schedule viewing, other TV functions, and various content in the Internet, and in Search.

You can go to Voice Guide, and then press the Select button to turn the function on or off.

The Voice Guide is provided in the language that is specified on the TV Language. However, some languages are not supported by Voice Guide even though they are listed in the TV Language. English is always supported.
For more information about the TV Language settings, refer to "Changing the menu language."

Changing the volume, speed, and pitch and the TV background volume of the Voice Guide

You can configure the volume, speed, pitch and the TV background volume of the voice guide.

The TV screen is turned off but audio continues

Settings General Accessibility Picture Off

Turn off the TV screen and provide only sound to reduce overall power consumption. When you press a button on the remote control other than Volume and Power while the screen is off, the TV screen turns back on.

This function may not be supported depending on the geographical area.

White text on black background (high contrast)

Settings > General > Accessibility > High Contrast Try Now

You can change Smart Hub and setting menu screens to white text on a black background and change the transparent TV menus to opaque automatically so that text can be more easily read.

If High Contrast is on, some Accessibility menus are not available.

Enlarging the font (for the visually impaired)

Settings > General > Accessibility > Enlarge Try Now

You can enlarge the size of the font on the screen. To activate, set Enlarge to On.

Learning about the remote control (for the visually impaired)

Settings > General > Accessibility > Learn TV Remote Try Now

This function helps individuals with a visual impairment to learn the positions of the buttons on the remote control. When this function is activated, you can press a button on the remote control and the TV will tell you its name. Press the button twice to exit Learn TV Remote.

On the standard remote control, press the RETURN button twice to exit Learn TV Remote.

This function is only available when Voice Guide is enabled.

Learning about the TV menu

Settings > General > Accessibility > Learn Menu Screen Try Now

Learn the menus on the TV screen. Once enabled, your TV will tell you the structure and features of the menus you select.

This function is only available when Voice Guide is enabled.

Showing captions

Settings > General > Accessibility > Caption Settings Try Now

Set Caption to On to watch programs with the captions displayed.

Captions are not displayed by programs that do not support captions.
This function has no relationship with the features for controlling sub-titles of DVD or Blu-ray players. To control DVD or Blu-ray subtitles, use the sub-title feature of the DVD or Blu-ray player and the player's remote control.

Selecting the caption language

Settings General Accessibility Caption Settings Caption Mode

- Default / CC1 \~ CC4 / Text1 \~ Text4

(Analog channels only) Operates in either analog TV channel mode or when a signal is supplied from an external device to the TV. (Depending on the broadcast signal, the analog caption function may or may not work with digital channels.)

- Default / Service1 \~ Service6 / CC1 \~ CC4 / Text1 \~ Text4

(Digital channels only) Works with digital channels. These functions may not be available in digital caption mode depending on the broadcast.

Listening to the TV through Bluetooth devices (for the hearing impaired)

Settings General Accessibility Multi-output Audio

You can turn on both the TV speaker and Bluetooth headphone at the same time. When this function is active, you can set the volume of the Bluetooth headphone higher than the volume of the TV speaker.

This function is supported by TU7 series.

When you connect the Bluetooth headphone to the TV, Multi-output Audio is activated. For more information about connecting Bluetooth devices to the TV, refer to "Listening to the TV through Bluetooth devices."

Configuring the repeat settings for remote control buttons

> Settings > General > Accessibility > Remote Button Repeat Settings Try Now

You can configure the operation speed of the remote control buttons so that they slow down when you continually press and hold them. First, set Slow Button Repeat to On, and then adjust the operation speed in Repeat Interval.

Using Other Functions

You can view other functions.

Changing the menu language

Settings > General > System Manager > Language Try Now

Setting up a password

Settings > General > System Manager > Change PIN Try Now

The PIN input window appears. Enter a PIN. Enter it again to confirm it. The default PIN is "0000."

If you forget your PIN, you can reset it with your remote control. With the TV turned on, press the following buttons on the remote control in the order shown to reset the PIN to "0000."

On the Samsung Smart Remote: Press (Volume) button. Volume Up Volume Down Volume Up > 5 >

On the remote control: Press Button. () (Volume Up) Select RETURN button. () (Volume Down) Select RETURN button. () (Volume Up) Select RETURN button.

Enabling the AV Color System

Settings General System Manager AV Color System

Normally the TV can receive image and sound with good quality when the AV Color System mode set to Auto. This mode detects the signal color system automatically. In case of some signal reception with color unsatisfactory, select the AV Color System mode to PAL-M, PAL-N or NTSC.

Available only in AV input mode.

Selecting Usage or Retail Mode

Settings > General > System Manager > Usage Mode Try Now

You can set the TV for retail environments by setting Usage Mode to Retail Mode.

For all other uses, select Home Mode.

Use Retail Mode only in a store. With Retail Mode, some functions are disabled, and the TV settings automatically reset after a preset amount of time.

Managing External Devices

Settings > General > External Device Manager > Device Connect Manager Try Now

When you connect external devices such as mobile devices or tablets connected to the same network as the TV so you can share content, you can view the list of allowed devices and connected devices.

- Access Notification

Set whether to display a notification when an external device such as a mobile device or tablet attempts to connect to the TV.

- Device List

Manage a list of external devices registered to the TV.

Using AirPlay

Settings General Apple AirPlay Settings

You can use AirPlay to view content from your iPhone, iPad, or Mac on the TV screen.

This function is supported by TU7 series.

This function may not be supported depending on the model or geographical area.

Restoring the TV to the factory settings

Settings General Reset ow

You can restore all TV settings to the factory defaults.

1. Select Reset. The security PIN entry window appears.

2. Enter the security PIN, and then select Reset. All settings are then reset. The TV turns off and on again automatically and displays the Initial Setup screen.

For more information on Reset, refer to the user manual that came with the TV.

If you skipped some steps in the initial setup, run Set Up TV ( [icon] > Source > up directional button > TV > up directional button > Set Up TV), and then configure the settings in the steps you skipped.

Running Data Service Automatically

Allows the user to use information (text, still images, graphics, documents, software, etc.) transmitted via broadcast media.

Settings Broadcasting Expert Settings Auto Run Data Service

You can set whether or not to automatically run data service. If the channel you are currently watching provides data service, you can enjoy a variety of data services by selecting the red color button.

This function may not be supported depending on the model or geographical area.
This function is not available when any other secondary function is under way.
Provided data service information may vary depending on the broadcast.
Changing the channel with the numeric keys while using data service may not be available, depending on the service.
If Auto Run Data Service is On, the loading screen is displayed and the function is not available temporarily.

Precautions and Notes

You can get instructions and information that you must read after installation.

Read Before Using Apps

Read this information before using Apps.

• If you want to download new apps using Apps, first sign in to your Samsung account.
• Due to the product characteristics featured on Samsung Smart Hub, as well as limitations in available content, certain features, applications, and services may not be available on all devices or in all territories. Visit http://www.samsung.com for more information on specific device information and content availability. Services and content availability are subject to change without prior notice.
• Samsung Electronics takes no legal responsibility whatsoever for any interruption of app services caused by the service provider for any reason.
• Application services may be provided in English only and available content may differ with the geographical area.
• For more information about applications, visit the applicable service provider's website.
• An unstable Internet connection may cause delays or interruptions. In addition, applications may terminate automatically depending on the network environment. If this occurs, check your Internet connection and try again.
• Application services and updates may become unavailable.
• Application content is subject to change by the service provider without prior notice.
• Specific services may differ with the version of the application installed on the TV.
• An application's functionality may change in future versions of the application. If this occurs, run the application's tutorial or visit the service provider's website.
• Depending on the service provider's policies, certain applications may not support multitasking.

Read Before Using the Internet Function

Read this information before using the Internet function.

• File download is not supported.
• The Internet function may not be able to access certain websites, including websites operated by certain companies.
• The TV does not support playback of flash videos.
  • E-commerce for online purchases is not supported.
  • ActiveX is not supported.

- Only a limited number of fonts are supported. Certain symbols and characters may not be displayed properly.

- The response to remote commands and the resulting on-screen display may be delayed while a web page is loading.

- Loading a web page may be delayed or suspended completely depending on the status of the participating systems.

- Copy and paste operations are not supported.

- When composing an email or a simple message, certain functions such as the font size and color selection may not be available.

- There is a limit to the number of bookmarks and the size of the log file that can be saved.

- The number of windows that can be opened concurrently is limited.

- Web browsing speed will differ with the network environment.

- Browsing history is saved from latest to oldest, with the oldest entries being overwritten first.

- Depending on the types of video/audio codecs supported, you may not be able to play certain HTML5 video and audio files.

- Video sources from PC-optimized streaming service providers may not play properly on our proprietary Internet browser.

Read before setting up a wireless Internet connection

Precautions for wireless Internet

• This TV supports the IEEE 802.11 a /b /g /n /ac communication protocols. Samsung recommends using IEEE 802.11n. Video files stored on a device connected to the TV via a Home Network may not play back smoothly.
  Some of the IEEE 802.11 communication protocols may not be supported depending on the model or geographical area.
• To use wireless Internet, the TV must be connected to a wireless access point or modem. If the wireless access point supports DHCP, the TV can use a DHCP or static IP address to connect to the wireless network.
• Select a channel that is not currently being used by the wireless access point. If the channel set is currently being used by the wireless access point to communicate with another device, the result is usually interference and/or a communications failure.
• Most wireless networks have an optional security system. To enable a wireless network's security system, you need to create a password using characters and numbers. This password is then needed to connect to a security-enabled access point.

Wireless security protocols

The TV only supports the following wireless network security protocols. The TV cannot connect to non-certified wireless access point.

– Authentication Modes: WEP, WPAPSK, WPA2PSK
– Encryption Types: WEP, TKIP, AES

In compliance with the Wi-Fi certification specifications, Samsung TVs do not support WEP or TKIP security encryption in networks running in the 802.11n mode. If the wireless access point supports WPS (Wi-Fi Protected Setup), you can connect the TV to your network using PBC (Push Button Configuration) or a PIN (Personal Identification Number). WPS automatically configures the SSID and WPA key settings.

Read Before Playing Photo, Video, or Music Files

Read this information before playing media content.

Limitations to the use of photo, video, and music files

Try Now

• The TV supports MSC (Mass Storage Class) USB devices only. MSC is a class designation for mass storage devices. Types of MSC devices include external hard drives, flash card readers, and digital cameras. (USB hubs are not supported.) These kinds of devices must be connected directly to the USB port. The TV may not be able to recognize a USB device or read the files on the device if it is connected with a USB extension cable. Do not disconnect USB devices while they are transferring files.
• When connecting an external hard drive, use the USB (5V 0.5A) port. We recommend that you use an external hard drive with its own power adapter.
• Certain digital cameras and audio devices may not be compatible with the TV.
• If there are multiple USB devices connected to the TV, the TV might not be able to recognize some or all the devices. USB devices that use high-power input should be connect to the USB (5V 0.5A) port.
• The TV supports the FAT, exFAT, and NTFS file systems.
• In the media contents list, the TV can display up to 1,000 files per folder. If the USB device contains more than 8,000 files and folders, however, some files and folders might not be accessible.
• Certain files, depending on how they are encoded, may not play on the TV.
• Certain files are not supported on all models.
• The DivX and DTS codecs are not supported by the Samsung TV models released in 2020.

Supported subtitles

Subtitle formats

Name Format
MPEG-4 Timed text .ttxt
SAMI .smi
SubRip .srt
SubViewer .sub
Micro DVD .sub or .txt
SubStation Alpha .ssa
Advanced SubStation Alpha .ass
SMPTE-TT Text .xml

Video formats with subtitles

Name Container
Xsub AVI
SubStation Alpha MKV
Advanced SubStation Alpha MKV
SubRip MKV
VobSub MKV
MPEG-4 Timed text MP4
TTML in smooth streaming MP4
SMPTE-TT TEXT MP4
SMPTE-TT PNG	MP4

Supported image formats and resolutions

File extension Format Resolution
*.jpg	JPEG 15360 x 8640
*.png PNG 4096 x 4096
*.bmp BMP 4096 x 4096
*.mpo MPO 15360 x 8640

The MPO format is supported partly.

Supported music formats and codecs

File extension Format Codec Note
*.mp3 MPEG MPEG1 Audio Layer 3
*.m4a*.mpa*.aac	MPEG4 AAC
*.flacFLAC FLAC	Supports up to 2 channels
*.ogg	OGG	Vorbis	Supports up to 2 channels
*.wma	WMA WMA		WMA is supported up to 10 Pro 5.1 channels.WMA lossless audio is not supported.
*.wav	wav	wav
*.mid*.midi	midi	midi	Supports type 0 and type 1.Seek is not supported.Supports USB device only.
*.ape	ape	ape
*.aif*.aiff	AIFF	AIFF
*.m4a ALAC	ALAC

Supported video codecs (TU7 series)

File format	Container	Video codecs Resolution	Frame rate (fps)		Bitrate (Mbps)	Audio codecs
*.avi		H.264 BP/MP/HP	3840 x 2160	3840 x 2160: 30	50	Dolby DigitalLPCMADPCM(IMA, MS)AACHE-AACWMADolby Digital+MPEG(MP3)AC-4G.711(A-Law, μ-Law)OPUS
*.mkv				1920 x 1080: 60
*.asf		HEVC (H.265 - Main, Main10)		60 50
*.wmv	AVI
*.mp4	MKV	Motion JPEG	1920 x 1080	60	20
*.mov	ASF	MVC
*.3gp	MP4	MPEG4 SP/ASP
*.vro	3GP	Window Media Video v9 (VC1)
*.mpg	MOV	MPEG2
*.mpeg	FLV	MPEG1
*.ts	VRO	Microsoft MPEG-4 v1, v2, v3		30
*.tp	VOB
*.trp	PS	Window Media Video v7 (WMV1), v8 (WMV2)
*.flv	TS
*.vob	SVAF	H.263 Sorrenson
*.svi		VP6
*.m2ts		AV1 3840 x 2160 60 40
*.mts
*.webm WebM		VP8 1920 x 1080 60 20				Vorbis
		VP9 (Profile 0, profile 2 supported)	3840 x 2160 60 50
		AV1 3840 x 2160 60 40
*.rmvb RMVB RV8/9/10 (RV30/40) 1920 x 1080 60 20 RealAudio 6

Other restrictions

• Codecs may not function properly if there is a problem with the content.
• Video content does not play or does not play correctly if there is an error in the content or container.
• Sound or video may not work if they have standard bit rates/frame rates above the TV's compatibility ratings.
• If the Index Table is has an error, the Seek (Jump) function will not work.
• When playing video over a network connection, the video may not play smoothly because of data transmission speeds.
• Some USB/digital camera devices may not be compatible with the TV.
  • HEVC codec is only available in MKV / MP4 / TS containers.
• The MVC codec is supported partly.

Video decoders

• H.264 UHD is supported up to Level 5.1, and H.264 FHD is supported up to Level 4.1. (TV does not support FMO / ASO / RS)
  • HEVC UHD is supported up to Level 5.1, and HEVC FHD is supported up to Level 4.1.
  • VC1 AP L4 is not supported.
  • GMC 2 or above is not supported.

Audio decoders

• WMA is supported up to 10 Pro 5.1 channels, M2 profile.
• WMA1, WMA lossless / Voice are not supported.
  • QCELP and AMR NB/WB are not supported.
  • Vorbis is supported for up to 5.1 channels.
• Dolby Digital+ is supported for up to 5.1 channels.
• The supported sample rates are 8, 11.025, 12, 16, 22.05, 24, 32, 44.1, and 48 KHz, and differ with the codec.

Supported video codecs (T5 series or lower)

File format	Container	Video codecs Resolution	Frame rate (fps)		Bitrate (Mbps)	Audio codecs
*.avi		H.264 BP/MP/HP	1920 x 1080	60 20		Dolby DigitalLPCMADPCM(IMA, MS)AACHE-AACWMADolby Digital+MPEG(MP3)G.711(A-Law, μ-Law)OPUS
*.mkv		HEVC (H.265 - Main, Main10)
*.asf		Motion JPEG 30
*.wmv	AVI	MVC		60
*.mp4	MKV	MPEG4 SP/ASP
*.mov	ASF	Window Media Video
*.3gp	MP4	v9 (VC1)
*.vro	3GP	MPEG2
*.mpg	MOV	MPEG1
*.mpeg	FLV	Microsoft MPEG-4 v1, v2, v3		30
*.ts	VRO	Window Media Video
*.tp	VOB	v7 (WMV1), v8 (WMV2)
*.trp	PS	H.263 Sorrenson
*.flv	TS	VP6
*.vob	SVAF
*.svi
*.m2ts
*.mts
*.webm	WebM VP8 1920 x 1080 60 20 Vorbis
*.rmvb	RMVB RV8/9/10 (RV30/40) 1920 x 1080 60 20 RealAudio 6

Other restrictions

• Codecs may not function properly if there is a problem with the content.
• Video content does not play or does not play correctly if there is an error in the content or container.
• Sound or video may not work if they have standard bit rates/frame rates above the TV's compatibility ratings.
• If the Index Table is has an error, the Seek (Jump) function will not work.
• When playing video over a network connection, the video may not play smoothly because of data transmission speeds.
• Some USB/digital camera devices may not be compatible with the TV.
  • HEVC codec is only available in MKV / MP4 / TS containers.
  • The MVC codec is supported partly.

Video decoders

• H.264 is supported up to Level 4.1. (TV does not support FMO / ASO / RS)
• VC1 AP L4 is not supported.
• GMC 2 or above is not supported.

Audio decoders

• WMA is supported up to 10 Pro 5.1 channels, M2 profile.
• WMA1, WMA lossless / Voice are not supported.
  • QCELP and AMR NB/WB are not supported.
  • Vorbis is supported for up to 5.1 channels.
• Dolby Digital+ is supported for up to 5.1 channels.
• The supported sample rates are 8, 11.025, 12, 16, 22.05, 24, 32, 44.1, and 48 KHz, and differ with the codec.

Read After Installing the TV

Read this information after installing the TV.

Picture sizes and input signals

The Picture Size is applied to the current source. The applied Picture Size will remain in effect whenever you select that source unless you change them.

Input signal Picture size
Component	16:9 Standard, Custom, 4:3
Digital channel (720p)	16:9 Standard, Custom, 4:3
Digital channel (1080i, 1080p)	16:9 Standard, Custom, 4:3
*Digital channel (3840 x 2160p @ 24/30 Hz)	16:9 Standard, Custom
*Digital channel (3840 x 2160p @ 50/60 Hz)	16:9 Standard, Custom
*Digital channel (4096 x 2160p)	16:9 Standard, Custom
HDMI (720p)	16:9 Standard, Custom, 4:3
*HDMI (1080i, 1080p)	16:9 Standard, Custom, 4:3
*HDMI (3840 x 2160p)	16:9 Standard, Custom
*HDMI (4096 x 2160p)	16:9 Standard, Custom
USB (720p)	16:9 Standard, Custom, 4:3
USB (1080i/p @ 60 Hz)	16:9 Standard, Custom, 4:3
*USB (3840 x 2160p @ 24/30 Hz)	16:9 Standard, Custom
*USB (3840 x 2160p @ 60 Hz)*USB (4096 x 2160p @ 24/30/60 Hz)	16:9 Standard, Custom

*: This input signal is supported by TU7 series.
The input ports for external devices may differ depending on the model and geographical area.

Installing an anti-theft lock

An anti-theft lock is a physical device that can be used to protect the TV against theft. Look for the lock slot on the back of the TV. The slot has a @con next to it. To use the lock, wrap the lock cable around an object that is too heavy to carry and then thread it through the TV's lock slot. The lock is sold separately. The method of using an anti-theft lock may differ for each model. Refer to the lock's user manual for more information.

This function may not be supported depending on the model or geographical area.

Supported Resolutions for UHD Input Signals

Check the supported resolution for UHD input signals.

• Resolution: 3840 x 2160p, 4096 x 2160p

This function is supported by TU7 series.

If Input Signal Plus is set to Off

Frame rate (fps)	Color Depth / Chroma Sampling	RGB 4:4:4	YCbCr 4:4:4	YCbCr 4:2:2	YCbCr 4:2:0
50 / 60 8 bit - - - O

If Input Signal Plus is set to On

Frame rate (fps)	Color Depth / Chroma Sampling	RGB 4:4:4	YCbCr 4:4:4	YCbCr 4:2:2	YCbCr 4:2:0
	8 bit 0 0 0 0
50 / 60	10 bit -- 0 0
	12 bit -- 0 0

Read Before Connecting a Computer (Supported Resolutions)

Check the resolutions supported for PC input signals.

When you connect your TV to a computer, set the computer's video card to one of the standard resolutions listed in the tables below or on the next pages. The TV will automatically adjust to the resolution you choose. Note that the optimal and recommended resolutions are 3840 x 2160 at 60 Hz (TU7 series) and 1920 x 1080 at 60 Hz (T5 series or lower). Choosing a resolution not included in the tables can result in a blank screen or just the remote control sensor turning on. Refer to the user manual of your graphics card for compatible resolutions.

The native resolution is 3840 x 2160 at 60 Hz with the Input Signal Plus set to On. The native resolution is 3840 x 2160 at 30 Hz with the Input Signal Plus set to Off.

IBM

Resolution(Dots x lines)	Display format	Horizontal frequency(KHz)	Vertical frequency(Hz)	Clock frequency(MHz)	Polarity(horizontal / vertical)
720 x 400 70 Hz	31.469 70.087 28.322	-/+

MAC

Resolution(Dots x lines)	Display format	Horizontal frequency(KHz)	Vertical frequency(Hz)	Clock frequency(MHz)	Polarity(horizontal / vertical)
640 x 480 67 Hz	35.000 66.667 30.240 - / -
832 x 624 75 Hz	49.726 74.551 57.284 - / -
1152 x 870 75 Hz	68.681 75.062 100.000 - / -

VESA DMT

Resolution(Dots x lines)	Display format	Horizontal frequency(KHz)	Vertical frequency(Hz)	Clock frequency(MHz)	Polarity(horizontal / vertical)
640 x 480 60 Hz	31.469 59.940 25.175	-/-
640 x 480 72 Hz	37.861 72.809 31.500	-/-
640 x 480 75 Hz	37.500 75.000 31.500	-/-
800 x 600 60 Hz	37.879 60.317 40.000	+/+
800 x 600 72 Hz	48.077 72.188 50.000	+/+
800 x 600 75 Hz	46.875 75.000 49.500	+/+
1024 x 768	60 Hz	48.363	60.004	65.000	-/-
1024 x 768	70 Hz	56.476 70.069 75.000	-/-
1024 x 768	75 Hz	60.023	75.029	78.750	+/+
1152 x 864 75 Hz	67.500 75.000 108.000	+/+
1280 x 720	60 Hz	45.000	60.000	74.250	+/+
1280 x 800	60 Hz	49.702	59.810	83.500	-/+
1280 x 1024	60 Hz	63.981 60.020 108.000	+/+
1280 x 1024	75 Hz	79.976	75.025	135.000	+/+
1440 x 900	60 Hz	55.935	59.887	106.500	-/+
1600 x 900	60 Hz	60.000	108.000	+/+
1680 x 1050	60 Hz	65.290	59.954	146.250	-/+
1920 x 1080	60 Hz	67.500	60.000	148.500	+/+

VESA CVT

Resolution(Dots x lines)	Display format	Horizontal frequency(KHz)	Vertical frequency(Hz)	Clock frequency(MHz)	Polarity(horizontal / vertical)
2560 x 1440 60 Hz	88.787 59.951 241.500 + / -
2560 x 1440 120 Hz	192.996 119.998 497.750 + / -

The resolution may not be supported depending on the model.

CTA-861

Resolution(Dots x lines)	Display format	Horizontal frequency(KHz)	Vertical frequency(Hz)	Clock frequency(MHz)	Polarity(horizontal / vertical)
*1920 x 1080 100	Hz 112.500 100.000	297.000 + / +
*1920 x 1080 120	Hz 135.000 120.003	297.000 + / +
3840 x 2160 30	Hz 67.500 30.000	297.000 - / -
*3840 x 2160	60 Hz	135.000	60.000	594.000	- / -
*3840 x 2160	100 Hz	225.000	100.000	1188.000	+ / +
*3840 x 2160	120 Hz	270.000	120.000	1188.000	+ / +
4096 x 2160	24 Hz 54.000	24.000 297.000 + / +
4096 x 2160	25 Hz 56.250	25.000	297.000 + / +
4096 x 2160 30 Hz	67.500 30.000		297.000 + / +
*4096 x 2160	50 Hz	112.500	50.000	594.000	+ / +
*4096 x 2160	60 Hz	135.000	60.000	594.000	+ / +
*4096 x 2160	100 Hz	225.000	100.000	1188.000	+ / +
*4096 x 2160	120 Hz	270.000	120.000	1188.000	+ / +
*7680 x 4320	24 Hz	108.000	24.000	1188.000	+ / +
*7680 x 4320	30 Hz	132.000	30.000	1188.000	+ / +
*7680 x 4320	50 Hz	220.000	50.000	2376.000	+ / +
*7680 x 4320	60 Hz	264.000	60.000	2376.000	+ / +

*: The resolution may not be supported depending on the model.

Supported Resolutions for Video Signals

Check the resolutions supported for video signals.

CTA-861

Resolution(Dots x lines)	Display format	Horizontal frequency(KHz)	Vertical frequency(Hz)	Clock frequency(MHz)	Polarity(horizontal / vertical)
720 (1440) x 576i 50 Hz 15.625 50.000 27.000 - / -
720 (1440) x 480i 60 Hz 15.734 59.940 27.000 - / -
720 x 576 50 Hz 31.250 50.000 27.000 - / -
720 x 480 60 Hz 31.469 59.940 27.000 - / -
1280 x 720 50 Hz 37.500 50.000 74.250 + / +
1280 x 720 60 Hz 45.000	60.000 74.250 + / +
1920 x 1080i	50 Hz 28.125 50.000 74.250 + / +
1920 x 1080i	60 Hz 33.750 60.000	74.250 + / +
1920 x 1080	24 Hz 27.000	24.000 74.250 + / +
1920 x 1080	25 Hz	28.125 25.000 74.250 + / +
1920 x 1080	30 Hz 33.750 30.000	74.250 + / +
1920 x 1080	50 Hz	56.250	50.000	148.500	+ / +
*1920 x 1080	100 Hz	112.500	100.000	297.000	+ / +
*1920 x 1080	120 Hz	135.000	120.003	297.000	+ / +
1920 x 1080	60 Hz	67.500	60.000	148.500	+ / +
3840 x 2160	24 Hz	54.000	24.000	297.000	+ / +
3840 x 2160	25 Hz	56.250	25.000	297.000	+ / +
3840 x 2160	30 Hz 67.500 30.000 297.000	+ / +
*3840 x 2160	50 Hz 112.500 50.000	594.000 + / +
*3840 x 2160	60 Hz 135.000 60.000	594.000 + / +
*3840 x 2160	100 Hz	225.000	100.000	1188.000	+ / +
*3840 x 2160	120 Hz	270.000	120.000	1188.000	+ / +
4096 x 2160 24 Hz	54.000 24.000 297.000 + / +
4096 x 2160 25 Hz	56.250 25.000 297.000 + / +
4096 x 2160 30 Hz	67.500 30.000 297.000 + / +
*4096 x 2160 50 Hz	112.500 50.000 594.000 + / +
*4096 x 2160 60 Hz	135.000 60.000 594.000 + / +
*4096 x 2160 100 Hz	225.000	100.000 1188.000 + / +
*4096 x 2160	120 Hz	270.000	120.000	1188.000	+ / +

*: The resolution may not be supported depending on the model.

VESA CVT

Resolution(Dots x lines)	Display format	Horizontal frequency(KHz)	Vertical frequency(Hz)	Clock frequency(MHz)	Polarity(horizontal / vertical)
2560 x 1440 60 Hz	88.787	59.951	241.500 + / -
2560 x 1440	120 Hz	192.996	119.998	497.750	+ / -

The resolution may not be supported depending on the model.

Read Before Using Bluetooth Devices

Read this information before using a Bluetooth device.

This function may not be supported depending on the model or geographical area.

Restrictions on using Bluetooth

• You can't use Bluetooth devices and the Wi-Fi Speaker Surround Setup feature simultaneously.
• Compatibility issues may occur, depending on the Bluetooth device. (A Mobile exclusive headphone may not be available, depending on the environment.)
• Lip-sync errors may occur.
• The TV and Bluetooth device may disconnect, depending on the distance between them.

• A Bluetooth device may hum or malfunction:

• When a part of your body is in contact with the receiving/transmitting system of the Bluetooth device or the TV.

• When the device is subject to electrical variation from obstructions caused by a wall, corner, or office partitioning.
• When the device is exposed to electrical interference from same frequency-band devices including medical equipment, microwave ovens, and wireless LANs.

- If the problem persists, we recommend you use a wired connection.

• DIGITAL AUDIO OUT (OPTICAL) port
• HDMI (eARC) port

HDMI (ARC) is supported by some models. Check the HDMI port name of the purchased product's model.

Licenses

Check the license information and trademarks applied in your TV.

DOLBY AUDIO™

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Open Source License Notice

Open Source used in this product can be found on the following webpage. (http://opensource.samsung.com)

This license may not be supported depending on the model or geographical area.

HEVC Advance™ Covered by Patents at patentlist.hevcadvance.com

Troubleshooting

If you have a problem with your TV, you can access various solutions while watching TV. If your problem is not addressed in the Troubleshooting section, view the FAQ section or contact the Samsung Call Center.

Picture Issues

When the TV has trouble with the picture, these steps may help resolve the problem.

Testing the picture

Settings > Support > Device Care > Self Diagnosis > Picture Test Try Now

Before you review the list of problems and solutions below, use Picture Test to determine if the problem is caused by the TV. Picture Test displays a high definition picture you can examine for flaws or faults.

The problem Try this!
Flickering and Dimming	If your TV is flickering or dimming sporadically, you may need to disable some of the energy efficiency features.Disable Ambient Light Detection, Power Saving Mode, Motion Lighting, or Contrast Enhancer.Settings General Eco Solution Ambient Light DetectionSettings General Eco Solution Power Saving ModeSettings General Eco Solution Motion Lighting >Settings Picture Expert Settings Contrast EnhancerRun Picture Test. When the tested image quality is normal, check the signal of the connected device.Settings Support Device Care Self Diagnosis Picture Test >
Component Connections and Screen Color	If the color on your TV screen is not correct or the black and white colors are off, run Picture Test.Settings Support Device Care Self Diagnosis Picture Test >If the test results indicate that the problem is not caused by the TV, do the following:When using the component cable, confirm that the green (Y), blue (Pb), and red (Pr) jacks are plugged into their proper connectors.For more information about how to connect an external device, run Connection Guide.Source Connection Guide
Screen Brightness	If the colors on your TV are correct but just a little too dark or bright, try adjusting the following settings first.Settings Picture Expert Settings Brightness >Settings Picture Expert Settings ContrastSettings Picture Expert Settings Sharpness >Settings Picture Expert Settings Color >Settings Picture Expert Settings Tint (G/R) >
Blurring, or Juddering	If you notice blurring or juddering on the screen, use thePicture Clarity Settingsfunction to resolve the issue.Settings Picture Expert Settings Picture Clarity Settings
Unwanted Powering Off	If your TV appears to turn off by itself, try disabling some of the TV's energy efficiency functions.See ifSleep Timerhas been enabled. TheSleep Timerautomatically turns the TV off after a specified period of time.Settings General System Manager Time Sleep Tim> >If theSleep Timerhas not been enabled, see ifAuto Power Off or Off Timerhas been enabled and disable it.Settings General Eco Solution Auto Power Off >Settings General System Manager Time Off Timer > >
Problems Powering On	If you are having problems powering on your TV, there are a number of things to check before calling the service department.Confirm that the TV's power cord is connected correctly at both ends and that the remote control is operating normally.Make sure that the antenna cable or cable TV cable is firmly connected.If you have a cable box or satellite box, confirm that it is plugged in and turned on.
Unable to find a Channel	If your TV is not connected to a cable box or satellite box, runAuto Program or Auto Tuning.< img src="">Settings >Broadcasting >Auto Program or Auto TuningWhen using a broadcast receiver such as set-top box and IPTV, check the connection to the TV!< img src="">Service Connection GuideWhen the symptom persists, contact your service provider.
The TV image does not look as good as it did in the store.	Store displays are tuned to a digital UHD channel or HD channel.Change the output resolution of your devices such as digital broadcast receiver, IPTV, and set-top box to UHD or HD.Be sure to use an HDMI cable to enjoy high quality videos.Source Connection Guide Video Device HDMITo connect the TV with your PC, make sure that your PC's graphic card supports UHD resolutions.For more information about the supported UHD resolutions, refer to "Supported Resolutions for UHD Input Signals."Make sure that the set-top box or cable box supports the content or broadcast for UHD and set the resolution. For more information, contact your service provider.When using a Samsung TV Plus channel, check the network connection. When the network speed is slow, the app may not work or the image quality may be poor.
The picture is distorted.	The compression of video content may cause picture distortions, especially in fast moving pictures from sports programs and action movies.If the signal reception is weak or poor, screen distortion may be visible but it is not a malfunction.Mobile phones used close to the TV 1 m may cause noise on analog and digital channels.
The color is wrong or missing.	If you're using a Component connection, make sure that the Component cables are connected to the correct jacks.Incorrect or loose connections may cause color problems or a blank screen.
The color is poor or the picture is not bright enough.	Go to Picture and then adjust the Picture Mode, Brightness, Sharpness, and Color settings----------Settings Picture Mode >Settings Picture Expert Settings Brightness >Settings Picture Expert Settings Sharpness >Settings Picture Expert Settings Color >See if Power Saving Mode has been enabled----------Settings General Eco Solution Power Saving ModeTry resetting the picture----------Settings Picture Expert Settings Reset Picture >
There is a dotted line on the edge of the screen.	Change Picture Size Settings to 16:9 Standard----------Settings Picture Picture Size Settings 16:9 Standard >
The picture is black and white.	Use a composite cable when you connect AV equipment to the TV.If you are using the composite cable, connect the video cable (Yellow) to the VIDEO (Yellow / Green) input port.The COMPONENT IN port may not be supported depending on the model or geographical area.
The picture won’t display in full screen.	HD channels will have black bars on either side of the screen when displaying upscaled SD (4:3) content.Black bars will appear at the top and bottom of the screen when you watch movies that have aspect ratios different from your TV.Adjust the picture size options on your external device or set the TV to full screen.Settings Picture Picture Size Settings Picture Size >
The Caption function in the TV menu is deactivated.	When an external device is connected with an HDMI or Component cable, the Caption function is unavailable. Adjust the caption setting on the external device.
Captions appear on the TV screen.	Turn off the Caption function in Caption Settings.Settings General Accessibility Caption Settings Caption >
The HDR of the connected external device turns off.	Expand the reception range of the corresponding HDMI input signal in Input Signal Plus.Settings General External Device Manager Input Signal Plus>

If the test picture does not appear or there is noise or distortion, the TV may have a problem. Contact Samsung's Call Center for assistance.
If the test picture is displayed properly, there may be a problem with an external device. Please check the connections.
If the problem persists, check the Signal Information or refer to the external device's user manual.

Sound and Noise Issues

When the TV has difficulties with sound, these steps may help resolve the problem.

Testing the sound

Settings > Support > Device Care > Self Diagnosis > Sound Test Try Now

If the TV plays the Sound Test melody without distortion, there may be a problem with an external device or the broadcast signal's strength.

The problem Try this!
How can I connect an audio device to the TV?	The connection method may differ depending on the audio device such as HDMI (eARC), Optical, Bluetooth, and Wi-Fi.HDMI (ARC) is supported by some models. Check the HDMI port name of the purchased product's model.For more information about how to connect an audio device, runConnection Guide.Sonce Connection Guide Audio Device>
There is no sound or the sound is too low at maximum volume.	Check the volume control of your TV, and then check the volume control of the external device (cable box or satellite box, DVD, Blu-ray, etc.) connected to your TV.Check the cable connection between an external device and the TV and then try cable connection again.
The picture is good but there is no sound.	SetSound Outputto TV Speaker.SoningsSound Sound Output>If you are using an external device, check the device's audio output option.For example, you may need to change your cable box's audio option to HDMI if the box connected to your TV is using an HDMI cable.To listen to computer sound, connect an external speaker to the computer's audio output connector.If your TV has a headphone jack, make sure there is nothing plugged into it.Reboot the connected device by disconnecting and then reconnecting the device's power cable.With a set-top box or cable box, check the cable connection and reboot the external device. When the symptom persists, contact your service provider.
No sound is heard.	Check whetherDigital Output Audio Formatis set toPass-Through.If you select thePass-Throughoption to use an AV receiver that does not supportDolby Digital+, no sound is output withDolby Digital+content.It is recommended to setDigital Output Audio Format toAutowhen the connected receiver supports only the limited audio formats.SoningsSound Expert Settings Digital Output Audio FormatAuto>
The speakers are making an odd sound.	Run Sound Test.• Settings Support Device Care Self Diagnosis Sound Test >Make sure that the audio cable is connected to the correct audio output connector on the external device.For antenna or cable connections, check the Signal Information. A low signal level may cause sound distortions.• Settings Support Device Care Self Diagnosis Signal Information >
The sound is interrupted.	The sound may frequently be interrupted when a Bluetooth speaker is used. Make sure that the Bluetooth speaker and the wireless access point are on a straight line, and the Bluetooth speaker is placed as close as possible to the TV.To minimize interruptions, we recommend a wireless access point that uses a 5 GHz frequency.When the symptom persists, it is recommended to use wired connection such as HDMI-eARC and Optical.HDMI (ARC) is supported by some models. Check the HDMI port name of the purchased product's model.
Whenever a function is used on the TV or the channel is changed, the TV voices the activity.The TV explains in voice-over the video scenes displayed on the screen.	Turn off the Voice Guide function in Voice Guide Settings.• Settings General Accessibility Voice Guide Settings Voice Guide >
The TV audio is not being played through the AV receiver.	Check the A/V receiver's power supply and its settings.When connecting the optical cable between the TV and A/V receiver, make sure that the sound output is setOpticalon your TV.In case of HDMI-eARC connection, make sure that it is connected to the eARC dedicated HDMI port on your TV. However, the eARC can be used only when the A/V receiver supports the eARC feature.HDMI (ARC) is supported by some models. Check the HDMI port name of the purchased product's model.
The sound is not heard clearly.	Change to an appropriate sound mode.• Settings Sound Sound Mode >
The volume of the external device cannot be adjusted.	Check the cable connection between the TV and the external device.When connecting an external speaker such as home theater via HDMI, make sure it is connected to the HDMI (eARC) port on the TV. Make sure that the > General External Device Manager Anynet+ (HDMI-CEC) is active on your TV.HDMI (ARC) is supported by some models. Check the HDMI port name of the purchased product's model.
I want to turn off and on the TV and audio device at the same time.	When you connect the Samsung Soundbar to the TV via Bluetooth, the power turns off and on together. It may not be supported depending on the Samsung Soundbar model.When you connect an audio device that supports HDMI-eARC to the HDMI (eARC) port on the TV, the power turns off and on together.HDMI (ARC) is supported by some models. Check the HDMI port name of the purchased product's model.

Channel and Broadcast Issues

When the TV has difficulties receiving broadcasts, these steps may help resolve the problem.

The problem Try this!
"Weak or No Signal" displayed in TV mode or cannot find channel.	Make sure that the external device is connected securely and turned on. Move to Sources to switch to other input sources.• Service Sources >When using a set-top box or cable box, check the broadcast signals or the network that is connected to the external device.
The TV is not receiving all channels.	Confirm that the coaxial cable is securely connected to the TV.Run Reset or Auto Program or Auto Tuning.• Settings General Reset >• Settings > Broadcasting > Auto Program or Auto Tuning
The captions are not provided on a digital channel.I want to turn off the captions.	When watching channels with the antenna cable connected, run Caption Settings.• Settings General Accessibility Caption Settings>Some channels may not have caption data.When watching a channel on an external device such as set-top box and cable box, turn on the caption function on the device. For more information, contact your service provider.
Broadcasting is deactivated.	Broadcasting is only available when Source is set to TV.Broadcasting cannot be accessed while you watch TV using a cable box or satellite box.

External Device Connectivity Issues

When the TV has difficulties connecting to external devices such as a PC, game console, or mobile device, these steps may help resolve the problem.

The problem Try this!
The "Mode Not Supported" message appears.	Adjust the output resolution of the external device to a resolution supported by the TV.
The video is OK but there is no audio.	If you are using an HDMI connection, check the audio output setting on your PC.If you are using a DVI to HDMI cable, a separate audio cable is required.To listen to the computer sound, connect external speakers to the audio output connection of the computer.
I want to connect to a PC and mobile device via screen mirroring.	To wirelessly connect the TV to your PC, read the instructions atPC Screen Sharing (Wireless) inConnection Guide, and then try to connect.Source Connection Guide PC Screen Sharing (Wireless)Confirm that the TV and your PC are connected to the same network.To wirelessly connect the TV to your mobile device, read the instructions atSmartphone >Screen Sharing (Smart View) inConnection Guide, and then try to connect.Source >Source Connection Guide Smartphone Screen Sharing (Smart View)If the TV has difficulties connecting to your PC or mobile device due to surrounding radio interferences, change the frequency of the wireless access band, and then try to connect.
No screen appears when connecting the TV to an external device.	For more information about how to connect an external device, runConnection Guide.Source Connection GuideMake sure that the external device is connected securely and turned on. Move toSources to switch to other input sources.Source SourcesUsingHDMI Troubleshooting, you can check the connection to HDMI cable and external devices (takes approximately 2 minutes).Source Connection Guide Video Device HDMITroubleshootingWhen using a set-top box or cable box, check the broadcast signals or the network that is connected to the external device.
The PC screen does not appear or it flickers.	When the PC screen does not appear or the PC is not recognized, check the power supply of the PC and then reconnect the HDMI cable between the PC and TV. When the symptom persists, check that the PC is in Sleep mode.When the set resolution is not matched, the screen may flicker. For the PC supported resolution, see 'Read Before Connecting a Computer (Supported Resolutions).'

Network Issues

When the TV has difficulties connecting to the Internet, these steps may help resolve the problem.

Settings > Support > Device Care > Self Diagnosis > Smart Hub Connection Test Try Now

If the TV has trouble with network connection or TV services, check the Smart Hub connection status.

The problem Try this!
Wireless network connection failed. Unable to connect to a wireless access point.	Make sure that no items that can generate electromagnetic interferences are placed between the TV and the wireless/wired access point.Check if the access point is turned on. If it is on, turn it off, wait 1 or 2 minutes, and then turn it on.Enter the correct password if required.If the wireless connection fails, connect the TV to the access point via a LAN cable.If the TV can connect to the Internet normally via the wired connection, there might be a problem with the access point. In this case, try using a different access point.
Wired network connection failed.	Check if the LAN cable is plugged in on both ends. If it is plugged in, check if the access point is turned on. If it is on, turn it off, wait 1 or 2 minutes, and then turn it on.
Auto IP configuration failed. Unable to connect to the network.	Check if the LAN cable is plugged in on both ends. If it is plugged in, check if the access point is turned on.If the access point is on, turn it off, wait 1 or 2 minutes, and then turn it on.Disconnect and then reconnect the power cable of the TV, or press and hold the power button for 3 seconds.
Connected to a local network, but not to the Internet.	1. Check if the Internet LAN cable is connected to the access point's external LAN port.2. Check the DNS setting inIP Settings.- Settings General Network Network Status IP >Settings
Network setup is completed, but unable to connect to the Internet.	If the problem persists, contact your Internet service provider.

Wired networks are not supported by some models.

Data Service

When the TV has difficulties using Data Service, these steps may help resolve the problem.

Settings Broadcasting Expert Settings Auto Run Data Service

This function may not be supported depending on the model or geographical area.
This function is not available when any other secondary function is under way.
Provided data service information may vary depending on the broadcast.

The problem Try this!
Why am I getting on-screen messages when I haven't selected the Data Service option?	IfAuto Run Data Serviceis set toOn, messages will automatically appear on the screen when you watch a broadcast that supports the Data Service. If the broadcast doesn't support the Data Service, no messages will appear on the screen.If you do not wish to receive Data Service messages, disableAuto Run Data Service.
How do I hide Data Service messages?	If you do not wish to receive Data Service messages, setAuto Run Data Serviceto Off.•Settings Broadcasting Expert Settings Auto Run Data >Service
How do I use the Data Service?	Enabling theAuto Run Data Serviceoption automatically displays messages on the screen whenever you watch a broadcast that supports the Data Service. You can press the corresponding buttons shown on the screen to access additional features and functions offered by that broadcast.
What is an interactive service and how does it work?	Interactive services include viewer surveys, quizzes, ticket requests, product purchases, and other interactions between the viewer and the TV station. Generally, you will need to set up an account with the broadcaster and log in to the account in order to enjoy the interactive services they offer. Note that interactive services are only available when your TV is connected to the Internet. In addition, T-Commerce requires that you have a certificate.Copy your certificate from the computer to a USB device and connect that device to the TV. (Interactive services are not being offered yet. The actual service launch date varies depending on the broadcaster.)
A message displays "Receiving" but no change happens.	This indicates an error has occurred while receiving data. An execution error message will also appear on the screen. If this happens, try again.
Nothing appears on the screen after the Data Service is launched.	The Data Service may be initializing or the signal may have been severed by the broadcaster
What is Blur Reduction?	The Data Service can cause the same screen to appear and create a blur. Blur Reduction prevents this blurring effect.The Blur Reduction function may not be supported depending on the model.
Why is the Data Service closed automatically?	The Data Service keeps running during Auto Protection Time.SetAuto Protection Timeto Offto keep the Data Service running.Senings General System Manager Auto Protection Time

Anynet+ (HDMI-CEC) Issues

When Anynet+ (HDMI-CEC) isn't working, these steps may help resolve the problem.

The problem Try this!
What is Anynet+?	You can use the TV's remote control to control external devices that support Anynet+(HDMI-CEC) and that are connected to the TV via an HDMI cable. For example, if a connected external device supports Anynet+, you can have the connected device turn on or off when you turn the TV on or off.
Anynet+ does not work.	Confirm that the device is an Anynet+ device. The Anynet+ system supports Anynet+ devices only.Check if the power cord of the Anynet+ device is properly connected.Check the cable connections of the Anynet+ device.Go to Anynet+ (HDMI-CEC) and see if Anynet+ (HDMI-CEC) has been set to On.• Settings General External Device Manager Anynet+ (HDMI-CEC)Anynet+ may not function when some other functions are active, including Channel Search, Smart Hub, Initial Setup, etc.If you have disconnected and then reconnected the HDMI cable, scan for devices again or turn your TV off and on.
I want to start Anynet+.I also want the connected devices to turn on when the TV is turned on.	Move the focus to the Anynet+ device at source press the up directional button to move to Anynet+ (HDMI-CEC), and then press the Select button.Check if the Anynet+ device is properly connected to the TV, and then select Anynet+(HDMI-CEC) menu to see if Anynet+ (HDMI-CEC) is set to On.• Settings General External Device Manager Anynet+ (HDMI-CEC)
I want to exit Anynet+.It is inconvenient to turn on other devices because the TV also turns on. It is inconvenient because the connected devices (e.g. set-top box) turn off together.	To turn off the Anynet+ function of a device connected to the TV, turn off the Anynet+(HDMI-CEC) function of the device.• Settings General External Device Manager Anynet+ (HDMI-CEC)When Anynet+ (HDMI-CEC) is turned off, the sound bar connected via HDMI ARC does not turn off and on together with the TV. To prevent a specific device connected to the TV from turning off automatically, turn off the HDMI-CEC function on a specific device connected to the TV.
The message "Connecting to Anynet+ device..." or "Disconnecting from Anynet+ device" appears on the screen.	You cannot use the remote control when the TV is configuring Anynet+ or switching to the TV viewing screen.Use the remote control after the TV has completed the Anynet+ configuration or has switched to the TV viewing screen.
The Anynet+ device won't play.	You cannot use the play function when Reset is in progress.
The connected device is not displayed.	Check whether the device supports Anynet+.Anynet+ devices must be connected to the TV using an HDMI cable. Make sure the device is connected to your TV with an HDMI cable. Some HDMI cables may not support Anynet+.Check whether the HDMI cable is properly connected.Go to Anynet+ (HDMI-CEC) and see if Anynet+ (HDMI-CEC) has been set to On.• Settings General External Device Manager Anynet+ (HDMI-CEC)Scan for Anynet+ devices again.If the connection is terminated because there has been a power failure or the HDMI cable has been disconnected, please scan for the device again.

Remote Control Issues

When the remote control isn't working, these steps may help resolve the problem.

The problem Try this!
The remote control does not work.	The connection between the remote control and the TV may be lost.Point the Samsung Smart Remote at the front of the TV, and then press and hold the ▶nd▶buttons simultaneously for 3 seconds or more.Also, if the remote control is not working or slow, the batteries might be low or dead. If this is the case, replace the batteries. Alkaline batteries are recommended for longer battery life.
External devices cannot be operated with the TV remote control.	Check the cable connection between the TV and external devices.When the symptom persists, set it manually in Source Universal Remote Universal Remote Setup.

Apps

When apps aren't working, these steps may help resolve the problem.

The problem Try this!
I launched an app, but it's in a different language. How can I change the language?	Languages supported by an app may be different from the TVLanguageset in the menu.The ability to change the language depends on the app's provider.
The app does not work properly.Its image quality is poor.	Check the network connection. When the network speed is slow, the app may not work or its image quality may be poor.The services of your application are not provided by the TV but by the application service provider.Refer to the Help section on the application service provider's website.

Media Files

When files don't play, this may help resolve the problem.

The problem Try this!
Some files are interrupted during playback.	This problem may occur with unsupported files or high-bitrate files. Most files can be played back, but some files may not play smoothly.
Some files can't be played.	Some files that use an unsupported codec may not be played back.Make sure that the codec is supported by the TV. For more information about the supported codecs, refer to "Read Before Playing Photo, Video, or Music Files."

Other issues

Use these procedures to resolve other issues that may occur in relation to the product.

The problem Try this!
The TV is hot.	Watching TV for an extended period of time causes the panel to generate heat.The heat from the panel is dissipated through internal vents running along the top of the TV.The bottom, however, may feel hot to the touch after extended use.Children watching TV need constant adult supervision to prevent them from touching the TV.This heat, however, is not a defect and does not affect the TV's functionality.
The TV smells of plastic. This smell is normal and will dissipate over time.
The settings are lost after 5 minutes or every time the TV is turned off.	IfUsage Modeis set toRetail Mode,the TV's audio and video settings are automatically reset every 5 minutes.ChangeUsage Metode toHome Mode.•SettingsGeneral System Manager Usage Mode>
The TV is tilted to the side. Remove the base stand from the TV and reassemble it.
The stand is wobbly or crooked.	Refer to the Quick Setup Guide and make sure that the stand is assembled correctly.
A POP (TV's internal banner ad) appears on the screen.	ChangeUsage Metode toHome Mode.•SettingsGeneral System Manager Usage Mode>
The TV is making a popping noise.	The expansion and contraction of the TV's outer casing may cause a popping noise.This does not indicate a product malfunction.The TV is safe to use.
The TV is making a humming noise.	Your TV utilizes high-speed switching circuits and high levels of electrical current. Depending on the TV's brightness level, the TV may seem slightly noisier than a conventional TV.Your TV has undergone strict quality control procedures that meet our demanding performance and reliability requirements.Some noise coming from the TV is considered normal and is not an acceptable cause for an exchange or refund.
The software update over the Internet has failed.	Check the network connection status.Settings General Network Network Status >If the TV is not connected to a network, connect it to a network.The upgrade stops if you already have the latest software version.
The TV narrates the screen events in voice-over.	To turn off Voice Guide, move the focus from Accessibility Shortcuts to Voice Guide and then press the Select button. You can turn on or off Voice Guide. To run Accessibility Shortcuts, see the following:Press and hold the (Volume) button on your Samsung Smart Remote.Press the CC button or press and hold the MUTE button on your standard remote control.Settings General Accessibility Voice Guide Settings Voice Guide >

Diagnosing TV operational issues

You can diagnose issues with your TV and Smart Hub and run reset functions.

Settings > Support > Device Care > Self Diagnosis Try Now

You can use the Picture Test to help diagnose video issues and the Sound Test to diagnose sound issues. You can also view signal strength information for over-the-air digital signals, test the Smart Hub Internet connection, and run the Smart Hub and TV factory reset functions.

• Picture Test
• Sound Test
  • HDMI Troubleshooting
  • Signal Information
  • Smart Hub Connection Test
• Reset Smart Hub

The problem Try this!
Cannot selectSignal Information in Self Diagnosis.	Verify that the current channel is a digital channel.Signal Informationis only available for digital channels.• SettingsSupport Device Care Self Diagnosis Signal Information>
Reset Smart Hub	Resets all Smart Hub settings to their factory defaults and deletes all information related to Samsung accounts, linked service accounts, Smart Hub service agreements, and Smart Hub applications.• SettingsSupport Device Care Self Diagnosis Reset Smart Hub>
Reset picture	Resets current picture settings to the default settings.• SettingsPicture Expert Settings Reset Picture>
Reset sound	Resets current sound settings to the default settings.• SettingsSound Expert Settings Reset Sound>

Getting Support

Get help directly from Samsung if you have a problem with your TV.

Getting support through Remote Management

Settings > Support > Remote Management Try Now

After consenting to our service agreement, you can use Remote Management to access Remote Support and have a Samsung service technician diagnose your TV, correct problems, and update your TV's software remotely via the web. You can also turn Remote Management on and off.

This function requires an Internet connection.

Finding the contact information for service

Settings > Support > About This TV Try Now

You can view the address of the Samsung website, the call center phone number, your TV's model number, your TV's software version, Open Source License and other information you may need to get service support from a Samsung call agent or the Samsung website.

You can also view information by scanning the QR code of your TV.
You can also start this function by pressing and holding the ▶ button for 5 or more seconds. For the standard remote control, press and hold the ▶ (Play) button for 5 or more seconds. Continue holding the button until the customer information pop-up window appears.

Requesting service

Settings > Support > Device Care > Request Support Try Now

You can request service when you encounter a problem with the TV. Select the item matching the problem that you encountered, enter the required item, move the focus to Next, and then press the Select button. Select Request Now > Send or Schedule Appointment > Request > Send. Your service request will be registered. The Samsung Contact Center will contact you to set up or confirm your service appointment.

You must agree to the terms and conditions for the service request.
This function may not be supported depending on the geographical area.
This function requires an Internet connection.

FAQ

In this section, you'll find the answers to the e-Manual questions we get asked about most often.

The TV Screen does not Display Properly

When the TV screen does not look right, let's find out how to check whether the issue is caused by the product or the broadcasting signals and cables.

When the TV screen does not display properly

The color and design, accessories (including the remote control) and features may differ depending on the model or geographical area.

Check the antenna and input cable connections.

Check the antenna and input cable connections.

Check the antenna and HDMI cable connections.

If the issue persists, define exactly what is wrong with the display. For example, mosaics and blocks, multiple lines or white dots, or fixed horizontal or vertical lines.

Try changing channels using the remote control.

Press the button, select Source, choose another input source.

If the same problem persists, run a diagnostic test. On the remote control, press the button.

Select > Settings > Support > Device Care > Self Diagnosis > Picture Test.

Select > Settings > Support > Device Care > Self Diagnosis > Picture Test.

When a message appears, select OK and follow the on-screen instructions to complete the test.

When a message appears, select OK and follow the on-screen instructions to complete the test.

When a message appears, select Close and follow the on-screen instructions to complete the test.

If the problem disappears during the test, check your TV signal. On the remote control, press the button.

Select > Settings > Support > Device Care > Self Diagnosis > Signal Information to check the signal strength.

Select > Settings > Support > Device Care > Self Diagnosis > Signal Information to check the signal strength.

Check whether the signal strength is too weak or not.

Related menu path

Settings > Support > Device Care > Self Diagnosis > Picture Test Try Now

Settings > Support > Device Care > Self Diagnosis > Signal Information Try Now

The TV does not Turn On

If the TV screen is black, it is often caused because the power cord is loose or the peripheral device is turned off.

When your TV does not turn on

The color and design of the TV and its accessories and the features may differ depending on the model or geographical area.

If your TV does not turn on, check whether the remote control sensor is on.

By holding a reflective object like mirror under the TV, you can easily find the remote control sensor.

If the remote control sensor is not turned on, unplug the power cable and plug it back in.

Disconnect and reconnect the One Connect cable between the TV and the One Connect (OC) Box. Make sure that the One Connect cable is not pinched or bent sharply.

Check the remote control sensor again. If the LED is turned on, press the power button on your remote control to turn on your TV.

If the remote control sensor turns off when you press the power button, your TV is correctly connected to the power supply.

If the TV screen is still blank, softly tap it with your finger. If the part of the screen you tapped on blinks, your TV is correctly connected to the power supply.

On the remote control, press the button. When the Home Screen appears, the TV is turned on but the connected external device does not work or any connection problem occurs.

Check the connection of the HDMI cable to your TV or One Connect Box.

Make sure that the external device is turned on.

If it does not turn on, make sure the power cable is properly connected to the device and to the wall outlet.

If it does not turn on, make sure the power cable is properly connected to the device and to the wall outlet.

Check the connection of the HDMI cable to your TV or One Connect Box.

Make sure that the cables between your TV and the external devices are properly connected.

The COMPONENT IN port may not be supported depending on the model or geographical area.

Also make sure that the correct source is selected on the Home Screen (→ Source).

If the same problem continues, try connecting another external device to the TV using an HDMI cable. If the display is correct, your external device may be faulty.

The Picture is Distorted, or No Sound Comes Out of the Sound Bar

No TV sound from the sound bar, or distorted TV picture are often caused by loose cable connections.

When the TV does not connect with an external device properly

The color and design of the TV and its accessories and the features may differ depending on the model or geographical area.

When the picture looks distorted,

First disconnect and reconnect the power cables and HDMI cables on the back of your TV or the One Connect (OC) Box, then unplug the power cord and plug it back into the wall outlet.

First disconnect and reconnect the power cables and HDMI cables on the back of your TV or the One Connect (OC) Box, then unplug the power cord and plug it back into the wall outlet.

If the external device support 4K UHD or 8K UHD videos, use a dedicated HDMI cable for each resolution.

If a component cable is used, make sure that the colored connectors are connected to the matching connectors on the external device and the TV.

The COMPONENT IN port may not be supported depending on the model or geographical area.

For better video quality, use an HDMI cable if your external device supports it.

If you are using a set-top box, check the cable connection. The cable you need to check depends on the type of set-top box.

Make sure that your access point is connected to the Internet. If not, disconnecting and reconnecting its power cable may be required.

If the problem persists, check the video output settings in the settings menu of the external device, and ensure that your TV supports the video output mode.

FHD TVs support up to 1080p video output, and UHD TVs support up to 2160p video output.

If the problem persists, and if your TV uses the One Connect, disconnect and reconnect the One Connect to the TV and the One Connect (OC) Box. Ensure that the One Connect is not pinched or bent sharply.

If no sound comes out of your Sound Bar, and if it is connected to the TV with an HDMI cable, check the HDMI (ARC) connector on the back of the TV.

The HDMI (ARC) port may support eARC in some models.

If your Sound Bar is connected to a receiver, and the receiver is connected to the TV using an HDMI cable, check the HDMI connector on the back of the TV. The cable must be connected to the HDMI (ARC) port on your TV.

The HDMI (ARC) port may support eARC in some models.

Internet Access is not Available

When the TV has difficulties connecting to the Internet, these steps may help resolve the problem.

When the TV can't connect to the Internet

The color and design of the TV and its accessories and the features may differ depending on the model or geographical area.

If your TV is not connected to the internet, check the network and the status of your access point.

On the remote control, press the ⏻ button and move to ⚙ Settings using the directional button.

Select > Settings > General > Network > Network Status to check the network status.

Select > Settings > General > Network > Network Status to check the network status.

If the network isn't connected, a network reset may be required.

Make sure that your access point is working properly. Check the LED indicators on your access point to make sure it is operating normally.

If you are using a wireless access point, check the access point location. If the access point is too far from the TV, move it closer.

Try rebooting the access point by disconnecting and reconnecting the power connector. It may take 1 to 2 minutes until the access point comes back online after a reboot.

If the same problem continues, select Ⓜ > ⚙️ Settings > General > Network > Network Status > IP Settings to change to a different DNS server. If a test occurs, cancel it and select IP Settings.

If the same problem continues, select 📋 > Settings > General > Network > Network Status > IP Settings to change to a different DNS server. If a test occurs, cancel it and select IP Settings.

If the same problem continues, select 📄 > Settings > General > Network > Network Status > IP Settings to change to a different DNS server. If a test occurs, cancel it and select IP Settings.

Select DNS Setting Enter manually.

Select DNS Server, enter 8.8.8.8, then select OK.

If the same problem continues, a software update or factory reset may be required.

Related menu path

Settings > General > Network > Network Status Try Now

Settings > General > Network > Reset Network Try Now

Settings > Support > Software Update Try Now

Settings General Reset

OW

There is No Sound or the Speakers are Making an Odd Sound

When the sound has an issue, you can simply check if the problem is caused by the product or the broadcast signals and cables.

When no sound comes out of the TV, or the sound is breaking up

The color and design of the TV and its accessories and the features may differ depending on the model or geographical area.

If your TV does not produce any sound, press the Volume + button to increase the volume.

If your TV is connected to an external device, check the volume of the external device.

Check the volume on the screen. If a number for the TV volume is not displayed, select 📷 > Settings > Sound > Sound Output. Then, select TV Speaker.

Check the volume on the screen. If a number for the TV volume is not displayed, select 📂 > ⚙️ Settings > Sound > Sound Output. Then, select TV Speaker.

Check the volume on the screen. If a number for the TV volume is not displayed, select 📂 > ⚙️ Settings > Sound > Sound Output. Then, select TV Speaker.

To check sound output, select Ⓜ > ⚙️ Settings > Support > Device Care > Self Diagnosis > Sound Test.

If the same problem continues, a software update or factory reset may be required.

If there is sound but it is not clear, run a diagnostic test. On the remote control, press the button.

Go to > Settings > Support > Device Care > Self Diagnosis > Sound Test to check the sound.

Go to > Settings > Support > Device Care > Self Diagnosis > Sound Test to check the sound.

If the test reveals a problem, select 📂 > ⚙️ Settings > Sound > Expert Settings > Reset Sound.

If the test reveals a problem, select 📄 > Settings > Sound > Expert Settings > Reset Sound.

If the test shows no problems, select Settings Support Device Care Self Diagnosis Signal Information.

If the test shows no problems, select Settings Support Device Care Self Diagnosis Signal Information.

Check whether the signal strength is too weak or not.

If the same problem continues, a software update or factory reset may be required.

Related menu path

Settings > Sound > Sound Output Try Now

Settings > Support > Device Care > Self Diagnosis > Sound Test Try Now
Settings > Sound > Expert Settings > Reset Sound Try Now
Settings > Support > Device Care > Self Diagnosis > Signal Information Try Now
Settings > Support > Software Update Try Now
Settings General Reset

The Remote Control does not Work

If the remote control is not working, the battery is weakened or the Samsung Smart Remote is not paired.

When the remote control does not work

The color and design of the TV and its accessories and the features may differ depending on the model or geographical area.

Verify that the infrared remote control signal is being transmitted and received.

Make sure the remote control sensor on the TV is blinking.

Remove any obstruction covering the receiver on your TV.

Make sure the remote control works properly.

You can check whether the signal is being transmitted by pressing the power button and observing the front tip of the remote control through the camera on your smartphone.

If you don't see any infrared signal, replace the batteries of the remote control.

If you don't see any infrared signal, replace the batteries of the remote control.

The remote control will work more effectively if you point it at the remote control sensor.

If the same problem continues, try using the appropriate SAMSUNG remote control for your TV model.

If you use an Multi-Brand Remote (MBR) or universal remote and your remote cannot operate an external device, move the external device closer to the One Connect Box.

Updating the Software

If you want to keep the TV in its best condition, or if you have an intermittent issue, please update it to the latest version.

Updating to the latest TV software

The color and design of the TV and its accessories and the features may differ depending on the model or geographical area.

If your TV is connected to the Internet, you can set it to receive periodic updates automatically. On the remote control, press the Ⓜ button and move to ⚙ Settings using the directional button.

To enable automatic updates, select 📋 > Settings > Support > Software Update > Auto Update.

If your TV is not connected to the Internet, you can update the software using a USB drive.

Select > Settings > Support > About This TV and check the model code and software version.

Select > Settings > Support > About This TV and check the model code and software version.

Select > Settings > Support > About This TV and check the model code and software version.

Using a computer, connect to www.samsung.com.

Find your TV model and download the firmware file.

Find your TV model and download the firmware file.

Click Download to download the firmware.

Unzip the downloaded file and store it in your USB drive top folder.

Unzip the downloaded file and store it in your USB drive top folder.

Insert the USB device into the USB slot on the back of your TV or the side of the One Connect Box.

The firmware update begins automatically. Your TV will be automatically reset when the firmware update is completed. Do not turn off your TV while the firmware update is in progress.

After your TV has been reset, select Ⓜ > ⚙️ Settings > Support > About This TV and check the new firmware version.

After your TV has been reset, select Ⓜ > ⚙️ Settings > Support > About This TV and check the new firmware version.

After your TV has been reset, select Ⓜ > ⚙ Settings > Support > About This TV and check the new firmware version.

Related menu path

Settings > Support > Software Update > Auto Update Try Now

Settings > Support > About This TV Try Now

Accessibility Guidance

Provides a menu and a remote control guide that aid the visually impaired.

Learn Menu Screen

Learn the menus on the TV screen. Once enabled, your TV will tell you the structure and features of the menus you select.

Using the accessibility menu

View how to running the Accessibility menu functions and description of its functions.

This function may not be supported depending on the model or geographical area.

Running the Accessibility Shortcuts menu

You can turn on or turn off the accessibility functions such as Voice Guide, Picture Off, Subtitle, High Contrast, Enlarge, Learn TV Remote, Learn Menu Screen, Multi-output Audio, Slow Button Repeat, Accessibility Settings, and you can move to the Learn TV Remote and Learn Menu Screen pages.

• Samsung Smart Remote

On the Samsung Smart Remote, there are two thin horizontal rocker buttons next to each other located slightly below the middle of the remote. The one on the left is the volume button. Press and hold the volume button to open the Accessibility Shortcuts menu.

- Standard remote control

Press the CC button or press and hold the MUTE button to open the Accessibility Shortcuts menu.

Even if the Voice Guide is set to Off or muted, the voice guide for Accessibility Shortcuts is enabled.

Learn TV Remote and Learn Menu Screen are only available when Voice Guide is set to On.

Running the Accessibility menu functions using the General menu

> Settings General Accessibility

You can also go to the Accessibility menu from the TV settings menu. This provides more options, for example, to change the speed of Voice Guide.

The TV will not verbalize this menu unless Voice Guide is already turned on.

1. Press the button.
2. Press the left directional button until you reach Settings.
3. Press the Select button to open the TV's Settings menu.
4. Press the down directional button to reach General, and then press the Select button to open this menu.
5. Use the directional buttons to go to the Accessibility menu, and then press the Select button to open this menu.
6. The menu will appear with Voice Guide Settings as the first selection. Highlight Voice Guide Settings, and then press the Select button.
7. A menu appears with the options to change Voice Guide and Volume, Speed, Pitch, TV Background Volume.
8. Select the menu using the directional buttons, and then press the Select button.

Learning about the Accessibility menu functions

• Voice Guide Settings

This function works on every screen on the TV and when turned on verbally tells you what the TV's current settings are and verbally provides details about the program you are watching. For example, it tells you the selected volume and the current channel and gives you program information. It also reads out the program information from the Guide screen.

- Picture Off

Turn off the TV screen and provide only sound to reduce overall power consumption. When you press a button on the remote control other than Volume and Power while the screen is off, the TV screen turns back on.

- High Contrast

To display all menus with an opaque black background and a white font, providing maximum contrast.

If High Contrast is on, some Accessibility menus are not available.

- Enlarge

You can enlarge important elements on the menu such as the names of programs.

- Learn TV Remote

Learn the names and functions of the buttons on remote control. On this screen, pressing the power button (top left button) will turn off the TV, but when any other button is pressed the TV will say the button name and briefly tell what that button does. This teaching mode helps you to learn the location and operation of the buttons on the remote without affecting normal TV operation. Press the 📋 button twice to exit Learn TV Remote.

On the standard remote control, press the RETURN button twice to exit Learn TV Remote.

- Learn Menu Screen

Learn the menus on the TV screen. Once enabled, your TV will tell you the structure and features of the menus you select.

- Caption Settings

You can view the caption in programs that provide broadcast captions.

In programs that provide broadcast captions, the Position function is activated so that you can change the caption position.
When watching a channel on an external device such as set-top box and cable box, turn on the caption function on the device. For more information, contact your service provider.

- Multi-output Audio

You can turn on both the TV speaker and Bluetooth headphone designed for the hearing impaired at the same time. The hearing impaired can then set the volume of their Bluetooth headphone higher than the volume of the TV speaker without affecting the volume of the TV speaker, allowing both the hearing impaired and their families to listen to the TV at comfortable sound levels.

When you connect the Bluetooth headphone to the TV, Multi-output Audio is activated.
This function is supported by TU7 series.

- Remote Button Repeat Settings

You can configure the operation speed of the remote control buttons so that they slow down when you continually press and hold them.

Using the TV with Voice Guide on

Turn on Voice Guide that describes the menu options aloud to aid the visually impaired.

Changing channel

You can change the channel in three of ways. Every time you change channels, the new channel details will be announced. The ways to change the channel are below.

• Channel List ( > Live TV > Channel List )

Press the button. The Smart Hub home screen appears. Use the left or right directional buttons to move to Live TV, press the up directional button to move to the top row, press the directional buttons to move to Channel List, and then press the Select button. When Channel List is displayed, use the up or down directional buttons to move to the desired channel, and then press the Select button.

- (Channel) button

Of the two buttons that protrude from the center of the Samsung Smart Remote, the right one is the^(/√) (Channel) button. Push up or pull down the^(Channel) button to change the channel. Press the up or down of CH button on the standard remote control to change the channel.

- Number button

Use the Button on the Samsung Smart Remote to open the virtual numeric pad, enter a number, and then select Done. On the standard remote control, press the numeric buttons to enter a channel number.

Using on-screen number entry via the Samsung Smart Remote

Use the virtual numeric pad to enter numbers e.g. to enter a channel number or to enter a PIN.

Press the 115 button on the Samsung Smart Remote and the virtual numeric pad with 2 rows appears on screen. Voice Guide speaks "virtual numeric pad, 6" which indicates that the number strip is on screen and the focus is on the number 6. This strip has the following buttons:

- The top row has one option, Done.

- Press the 123 button: On the bottom row: From the far left: 1, 2, 3, 4, 5, 6, 7, 8, 9, 0, -, Delete, Move to the top (Move to the bottom)

The options that you can select in the virtual numeric pad may vary depending on the viewing mode.

Use the left and right directional buttons to move along the row, and then press the Select button to choose the numeric pad. When you have finished selecting all the numbers you need (for example, 123), press the up directional button to move to the Done option, and then press the Select button to finish.

When entering a channel number, you can enter the number, and then select the Done option on the top row or you can enter the channel number and wait. After a short while, the channel will change and the virtual numeric pad will disappear from the screen.

Changing volume

Use the (Volume) button on the left to change the volume. Every time you change the volume, the new volume level will be announced.

• Samsung Smart Remote
Of the two buttons that protrude from the center of the Samsung Smart Remote, the left one is the +/- (Volume) button. Push up or pull down the +(Volume) button to change the volume.

- Standard remote control

Press the up or down of the VOL button on the remote control to adjust the volume.

Using program information

When watching TV, press the Select button to view program information which then appears at the top of the screen. Voice Guide will say program subtitles or audio descriptions if they are available. To view more detailed program information, press and hold the Select button. Voice Guide will say more details such as a synopsis of the program.

Press the left or right directional button to see what you can watch next on the same channel. Press the up or down directional button to move to other channels and see which programs are currently being broadcast on them.

Press to go back or close the program details.

On standard remote control, press the RETURN button.
This function may not be supported depending on the geographical area.

Using the guide

See an overview of each channel's program lineup.

When you want to know the program information for each channel while watching a broadcast program, press the ^/√ (Channel) button on the Samsung Smart Remote. Use the directional buttons to view the program information.

On standard remote control, press the GUIDE button.

> Live TV Guide

You can see the daily program schedules for each broadcaster and program information in the Guide. You can select programs to schedule for viewing.

This function may not be supported depending on the model or geographical area.
The information in the Guide is for digital channels only. Analog channels are not supported.
If the Clock is not set, the Guide is not provided. Set the Clock first. ( Ⓜ > ⚙Settings > General > System Manager > Time Clock)

If you need to set the clock again, follow the instructions below.

1. Press the button to open Smart Hub.
2. Press the left directional button to move to Settings.
3. Press the Select button to open the TV's Settings menu.
4. Use the up and down directional buttons to move to the General menu, and then press the Select button.
5. Use the up and down directional buttons to move to the System Manager menu, and then press the Select button.
6. Select the Time menu, and then press the Select button.
7. Select the Clock menu, and then press the Select button.
8. Select the Clock Mode menu, press the Select button, and then select Auto or Manual.

If you select Manual, you can move to the Date or Time menu below to set the time or date.

When you open the Guide, a table grid of channels and programs is displayed. The top row displays Filter By : All then the day and times. Each row has a channel name on the left and programs on that channel on the right.

In the Guide, use the up and down directional buttons to move between channels and use the left and right directional buttons to move between programs at different times within a channel.

You can also use the button to enter a channel number and go to that channel directly. For the standard remote, use the numeric button to enter a channel number and go to that channel directly. You can use the button to move to the program currently broadcasting. For the standard remote control, use the (Play) button to move to the program currently broadcasting.

When you move the focus to a program, you will hear the detailed information about the selected program. When you move the focus to a different channel, you will hear the channel name and number, and the program details. If you move to a different day, you will hear the day announced for the first program you reach on that day. The day is not repeated, so if you are not sure what the day is, you can move forwards and backwards 24 hours and then the day will be announced.

To view a program on now

In the Guide, move to the program currently broadcasting, and then press the Select button to go to live TV on the selected channel and program.

Other options in the guide

In the Guide, move to a broadcast scheduled program, and then press the Select button. A pop-up menu listing the functions below appears.

Use the up and down directional buttons to move within this menu, and then press the Select button to choose an item. Press 📋 to close the menu and go back to the Guide.

On standard remote control, press the RETURN button.

For the program you are currently watching, press and hold the Select button.

- Schedule Viewing

You can schedule the viewing of a broadcast scheduled program.

- Cancel Scheduled Viewing

You can cancel your scheduled viewings.

- View Details

You can see the detailed information on the selected program. The information may differ with the broadcast signal. If the information is not provided with the program, nothing appears.

Press the Select button on the View Details option. This will open the details pop-up window for that program which will display a synopsis. The details pop-up window contains detailed information and the OK option. After reading the detailed information, press the Select button on the remote control to close the pop-up window.

Using Schedule Viewing

Configure the TV to show a specific channel or program at a specific time and date.

The Icon appears next to programs that have been configured for a schedule viewing.

To set up a schedule viewing, you must first set the TV's clock ( Ⓜ > ⚙Settings > General > System Manager > Time > Clock).

Setting up a schedule viewing

You can set up a schedule viewing on two screens.

• The Guide Screen

On the Guide screen, select a program you would like to view, and then press and hold the Select button. Select Schedule Viewing on the pop-up menu that appears.

• The Program Info Screen

Press the Select button while watching the TV. The Program Info window appears. Select a broadcast scheduled program by using the left or right directional buttons, and then press the Select button. You can schedule watching the program by selecting Schedule Viewing.

Cancelling a scheduled viewing

You have two ways to cancel a scheduled viewing.

- Cancelling a scheduled viewing from the Guide

In the Guide (Live TV > Guide), move to the program you want to cancel scheduled viewing, and then press the Select button. Move to Cancel Scheduled Viewing, and then press the Select button. When a pop-up message asking you to cancel the selected scheduled viewing appears, select Yes. The selected scheduled viewing is canceled and the screen returns to the Guide screen.

- Cancelling a scheduled viewing from Smart Hub

1. Press the 📋 button to open Smart Hub, and then press the left or right directional button to move to Live TV. Press the up directional button to move to the top row, and then press the left or right directional button to move to Schedule Manager.
2. Press the Select button to open Schedule Manager.
3. Use the down directional button to move to the list of programs scheduled to view.
4. Use the right directional button to move to the Delete option, and then press the Select button to delete the selected item.
   This function may not be supported depending on the model or geographical area.

Using the Channel List

See how to list the channels available on your TV.

> Live TV Channel List

Using Channel List, you can change the channel or check programs on other digital channels while watching TV.

Press the 📋 button. The Smart Hub home screen appears. Use the left or right directional buttons to move to Live TV, press the up directional button to move to the top row, press the directional buttons to move to Channel List, and then press the Select button. This shows a list of the channels and the program currently on. The focus will be on the channel you are currently watching, showing channel name, channel number, and program title.

Use the up and down directional buttons to move within the channel list (or use the Channel) button to go up and down a page at a time). You can also use the button to enter a channel number and go to that channel directly. For the standard remote, use the numeric button.

Press the directional button in the Channel List to move to the Category List. Use the up and down directional buttons to move within this list. Press the Select button to choose a category you want from the Category List. The Category List contains All Channels, Favorites, Samsung TV Plus and Air or Cable. Use the up and down directional buttons to move to a channel you want to view, and then press the Select button.

This function may not be supported depending on the model or geographical area.

- All Channels

Displays the channels that have been automatically searched.

These are the channels your TV will receive either over the air if your TV is set to Air or over cable if your TV is set to Cable. See Air or Cable below.

- Favorites

Displays Favorites 1 to Favorites 5. Use the up and down directional buttons to move between the lists of favorites. Highlight the one you want, and then press the Select button. The channel list will now show only the channels in this list.

- Air or Cable

To select Air or Cable, move the focus to Air or Cable, and then press the Select button. Air is suitable for homes equipped with separate, over-the-air antennas. Cable is suitable for homes that subscribe to a local cable-service, but do not have a cable box. You do not need to use this function if your TV is connected to a cable box or satellite box.

This function may not be supported depending on the incoming broadcast signal.

- Channel Type

Sorts the list so that it includes channels of a selected type. However, Channel Type can only be used channels contain the type information.

This function may not be supported depending on the incoming broadcast signal.

- Samsung TV Plus

While the TV is connected to the Internet, you can watch popular programs or highlights for each theme through a virtual channel at any time. As with regular channels, the TV provides the daily program schedules for Samsung TV Plus.

This function may not be supported depending on the model or geographical area.

Using Smart Hub

Learn how to open Smart Hub to access apps, games, movies, and more.

Smart Hub

After pressing the button on your remote control, you can surf the web and download apps with Smart Hub.

Some Smart Hub services are for pay services.
To use Smart Hub, the TV must be connected to the Internet.
Some Smart Hub features may not be supported depending on the service provider, language, or geographical area.
Smart Hub service outages can be caused by disruptions in your Internet service.
To use Smart Hub, you must agree to the Smart Hub service agreement and the collection and use of personal information. Without giving consent, you cannot use the additional features and services. You can view the entire text of the Terms & Privacy by navigating to Settings Terms & Privacy.
If you want to stop using Smart Hub, you can cancel the agreement. To cancel the Smart Hub service agreement, select Reset Smart Hub (图标 > Settings > Support > Device Care > Self Diagnosis > Reset Smart Hub).

Press the 📋 button on your remote. This will bring up a display with 2 rows. Try moving the focus to Live TV or another item on the bottom row. The options on the top row change depending on the item selected in the bottom row.

The buttons to the right of Live TV provide quick access to apps such as Netflix and Prime Video.

Use the left and right directional buttons to move between a menu or apps on a row and the up and down directional buttons to move between rows. Press the Select button to access a menu or apps.

When the Smart Hub home screen appears, use the left or right directional button to move the focus to Live TV or Samsung TV Plus. Press the up directional button to move to the top row. You will be on the Guide item. The items in this row may include Guide, Channel List, Schedule Manager, and others.

Samsung TV Plus may not be supported depending on the model or geographical area.

Using the Smart Hub Home Screen

On the leftmost part of the Smart Hub home screen is the static menu listed below. You can quickly and easily use the listed menu items to access the main TV settings or external devices, search, and apps.

- Settings

When the focus is moved to Settings, a list of quick settings icons appears above the top of the menu. You can quickly set frequently used functions by clicking the icons. You can set e-Manual, Picture Mode, Sound Mode, Sound Output, Game Mode, Audio Language, Caption, Sleep Timer, Network, Color Tone, Picture Clarity, Digital Output Audio Format, Device Care, and All Settings.

This function may not be supported depending on the model or geographical area.

- Source

You can select an external device connected to the TV.

For more information, refer to "Switching between external devices connected to the TV."

- Search

A virtual keyboard appears on the screen, and you can search for channels, programs, titles of movies, or apps provided by the Smart Hub service.

To use this feature, the TV must be connected to the Internet.

- Apps

You can enjoy a wide range of content including news, sports, weather, and games by installing the corresponding apps on your TV.

To use this feature, the TV must be connected to the Internet.

For more information, refer to "Using the Apps Service."

• Home

This menu appears first when you press the Ⓜ button. Then you can quickly access Samsung Account, Notification or Privacy Choices.

- Samsung Account

Go to the Samsung Account screen to create a new account or sign out of your account.

For more information about the Samsung Account, refer to "Using a Samsung account."

- Notification

You can view a list of notifications for all events that occur on your TV. A notification appears on the screen when it is time to broadcast a scheduled program or when an event occurs on a registered device.

If you move the focus to Notification, and then press the Select button, a notification window appears on the right containing the following functions, Delete All and Settings.

- Privacy Choices

You can view and set the privacy policy for Smart Hub and various other services.

- Universal Guide

Universal Guide is an app that allows you to search for and enjoy various content such as TV shows, dramas, and movies in one place. Universal Guide can recommend content tailored to your preferences.

You can use this feature on your mobile device with the Samsung SmartThings app.

To enjoy the content from these apps on your TV, they must be installed on the TV.
When you watch some paid content, you may need to make a payment using their associated app.
Some content may be restricted depending on your network conditions and your subscriptions to paid channels.
Parental control is necessary when children use this service.
Images may look blurry depending on the service provider's circumstances.
This function may not be supported depending on the model or geographical area.

Launching the e-Manual

Open the user manual embedded in your TV.

Press the ⏻ button to open Smart Hub, press the left directional button to move to ⚙ Settings, and then press the Select button.

Use the up and down directional buttons to move to Support, and then select Open e-Manual to open the e-Manual.

> Settings Support Open e-Manual

You can view the embedded e-Manual containing information about your TV's key features.

Alternatively, you can download a copy of the e-Manual from Samsung's website (http://www.samsung.com).

Words in blue (e.g., Internet) indicate a menu item.

The e-Manual contains 2 rows of menu icons. Use the up and down directional buttons to move between rows and the left and right directional buttons to move within a row. Press the Select button to open the section you want to read.

The e-Manual contains a section called "Learn TV Remote" in "Accessibility Guidance." This is particularly useful for people who cannot easily see the buttons on the control or who are not clear what each button does. When you are viewing this section of the e-Manual, pressing the buttons on the remote control will not affect the TV. Note that the "Accessibility Guidance" item is only available when Voice Guide (img > Settings > General > Accessibility > Voice Guide Settings Voice Guide) is enabled.
