Product type	Combined refrigerator (bottom freezer)
Brand	Cecotec
Model	Bolero Coolmarket Combi Bi D Flw 267 E
Total capacity	267 liters
Refrigerator capacity	Approximately 190 liters
Freezer capacity	Approximately 77 liters
Energy class	E
Annual energy consumption	Approximately 260 kWh
Dimensions (H x W x D)	185 x 60 x 65 cm
Net weight	Approximately 65 kg
Power supply	220-240 V ~ 50 Hz
Rated current	1.2 A
Lighting power	LED (max 5 W)
Noise level	40 dB(A)
Climate class	N/ST (temperate to subtropical)
Defrost type	Automatic (refrigerator), manual (freezer)
Cooling type	Static (refrigerator), ventilated (freezer)
Main features	Refrigeration, freezing, LED lighting, thermostat control
Maintenance and cleaning	Unplug before cleaning; use a damp cloth; avoid abrasives
Safety	Child lock (on some models); door open alarm
Spare parts and repairability	Parts available through after-sales service; repairability index available online

Frequently Asked Questions - Bolero Coolmarket Combi Bi D Flw 267 E CECOTEC

How to adjust the refrigerator temperature?

Use the adjustment knob located in the upper part of the refrigerator compartment. Turn it to a higher number for more cold. The recommended temperature is 4°C.

Why is my refrigerator not cooling properly?

Check that the ambient temperature is within the indicated range, that the doors close properly, and that the ventilation grilles are not blocked. If the problem persists, contact after-sales service.

How to defrost the freezer?

Unplug the appliance and remove the food. Leave the freezer door open to allow the ice to melt. Do not use sharp tools to speed up the process.

What is the annual power consumption?

The annual consumption is approximately 260 kWh, which corresponds to energy class E. This figure may vary depending on usage and environment.

How to clean the inside of the refrigerator?

Unplug the appliance, remove the shelves and bins. Clean with a soft cloth soaked in soapy water, then rinse with clean water. Dry before replacing.

What to do in case of a power outage?

Keep the doors closed. Food will stay cold for about 4 hours. Do not refreeze thawed food without cooking it first.

How to change the interior light bulb?

Unplug the appliance. Remove the LED light cover. Replace the bulb with one of the same type (max 5 W). Replace the cover and plug back in.

Where to find spare parts?

Contact Cecotec after-sales service or visit the official website. The repairability index is available online for each model.

What is the total capacity of the appliance?

The combined refrigerator has a total capacity of 267 liters, split between the refrigerator (approx. 190 L) and the freezer (approx. 77 L).

How to save energy with this appliance?

Place the appliance in a cool location, away from sunlight and heat sources. Do not put hot food inside and defrost regularly.

USER MANUAL Bolero Coolmarket Combi Bi D Flw 267 E CECOTEC

Safety instructions 11

1. Parts and components 125

2. Before use 125

3. Installation 126

4. Laundry preparation 128

5. Operation 129

6. Cleaning and maintenance 135

7. Troubleshooting 137

8. Technical specifications 139

9. Disposal of old electrical and electronic appliances 140

10. Technical support and warranty 140

11. Copyright 140

SOMMAIRE

EU01_100090 Bolero CoolMarket Combi BI-D FLW 265 E

EN • The coding in this manual is generic and applies to all code variants of the appliance.

Read these instructions thoroughly before using the device. Keep this instruction manual for future reference or new users.

• It is important to make sure all users are familiar with the operation and safety features of the appliance to prevent faults and unnecessary accidents.
• Make sure that the mains voltage in your house matches the voltage stated on the rating label of the appliance.
• This appliance can be used by children aged 8 and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge, as long as they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. The cleaning and maintenance of the appliance should not be carried out by children without supervision.
• Keep the packaging material away from children, as there is a risk of suffocation.
  WARNING: if the interior light is damaged, contact the official Cecotec Technical Support Service. Do not try to repair it on your own.
• WARNING: when positioning the appliance, make sure the power cable does not get trapped or damaged. A crushed or damaged connector may heat up and cause a fire.
• Make sure the appliance plug is accessible after installation.

• Do not place food directly against the air outlet on the interior of the appliance.

• Keep the ventilation openings clear from obstructions.

• Do not place carbonated or fizzy drinks in the freezer compartment, as this creates pressure in the container, which could explode and damage the appliance.
• WARNING: do not use mechanical appliances or other means to accelerate the defrosting process other than those recommended by Cecotec.
• WARNING: do not damage the refrigeration circuit.
• If the cable is damaged, it must be replaced by the manufacturer, the supplier, or qualified personnel to avoid hazards.
• WARNING: do not use electrical appliances inside the refrigerator.
• We recommend you check the power cable regularly to detect any sign of possible damage. Do not use the appliance if the cable is damaged.
• To avoid injuries or death caused by electric shock, do not use the appliance with your hands wet or over a wet surface.
• You should never use this refrigerator with an extension cable or a multi-socket adaptor. Make sure the appliance is plugged in directly to a power supply.
• When positioning the appliance, make sure there is enough free space at the rear, as it is the main heat outlet. This will allow for adequate ventilation.
• Do not place hot food or drinks in the refrigerator. Allow them to cool down to room temperature beforehand.
• Do not place any other appliance on the refrigerator and do not wet it.
• Do not store explosive substances such as aerosols or flammable propellants in this appliance.

• This appliance is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels and offices.

• WARNING: to avoid any risk due to the instability of the refrigerator, you must install it according to the instructions.

• This appliance has a built-in earthed plug. Make sure the power supply in your house is properly earthed.
• Wait 5 minutes after a power failure before turning the appliance back on. Otherwise, the compressor may get damaged.
• This appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Always handle the appliance carefully to avoid any damage on it.
• Frozen food can cause frostbites if consumed right after removing it from the freezer compartment.
• Do not remove or touch items in the freezer compartment with your hands wet, as it could cause skin abrasions or frost/freeze burns.
• Never use the base, drawers, or door as support.
• Do not overload the door shelves or place too much food on the drawers to prevent items from falling off and damaging the appliance.
• WARNING: do not attach multi-socket adaptors or multiple power supplies to the rear part of the appliance.

• To avoid food contamination, please follow the instructions below:

• Opening the door for a long period of time may cause a significant increase in temperature in the appliance compartments.
  o Regularly clean the surfaces that come into contact with food and with the accessible draining systems.
  o Clean the water tank if it has not been used for 48 hours.
  o Store raw meat and fish in proper containers in the freezer, so they do not come into contact with or leak on

other food.

o The two-star compartments are suitable for storing pre-frozen food, storing or making ice cream, and making ice cubes.
o Compartments with one, two, or three stars are not suitable for freezing fresh food.
o If the appliance is not going to be used or be empty for a long period of time, switch it off, allow it to defrost, clean it, dry it, and leave the doors open to prevent interior mould growth.

- Before carrying out any maintenance and cleaning task, turn off the appliance and unplug it.

- It is advisable to wait for at least four hours before connecting the appliance to allow oil to flow through the compressor.

- Air must flow around the appliance. Lack of air leads to overheating. To achieve good ventilation, follow the installation instructions.

- Whenever possible, the rear part of the appliance should not be too close to the wall to prevent it from touching or reaching the hot parts (the compressor and the condenser). To avoid risk of fire, follow the installation instructions.

- Make sure that the plug is accessible after installation of the appliance.

- All electrical work required to maintain this appliance must be carried out by a qualified electrician.

- Use the appliance only for the purposes described in this manual. Incorrect or improper use can damage the device and be dangerous for the user.

Temperature range

- The appliance temperature range information can be found on its marking. Indicates the optimum room temperature for proper operation of the appliance.

Climate range	Optimum room temperature
SN	From +10 °C to +32 °C
N	From +16 °C to +32 °C
ST	From +16 °C to +38 °C
T	From +16 °C to +43 °C

Note:

• Taking into account the limiting values of the room temperature range for the climates for which the appliance is designed and that internal temperatures may be affected by factors such as the location of the appliance, room temperature and frequency of door opening, it may be necessary to modify the setting of any temperature control device according to these factors.
• If the appliance is operated in an environment other than the specified climate type (i.e. beyond the rated ambient temperature range), it may not be able to maintain the desired indoor temperatures.

Refrigerant

• Isobutane refrigerant (R600a), contained within the refrigeration circuit of the appliance, is a natural gas with a high level of environmental compatibility; however, it is flammable. Make sure that no components of the refrigeration circuit have been damaged during the transport and installation of the appliance.

• WARNING: the refrigerant and the insulator gas are flammable. When disposing of the appliance, only dispose of it at an authorised waste-disposal facility. Do not expose it to flames.

• WARNING: the appliance contains refrigerant and gases in the insulation. The appliance and gases must be disposed of professionally, as they may cause injuries to eyes or ignition. Make sure the refrigeration-circuit pipe is not damaged before disposing of it correctly.

• This symbol means: warning, risk of fire/flammable materials.
• If the refrigeration circuit is damaged:

o Avoid open flames and sources of ignition.

o Fully ventilate the room where the appliance is located.

INSTRUCTIONS DE SÉCURITÉ

1. Door shelf
2. Door shelf
3. Door shelf
4. Refrigerator compartment shelf
5. Refrigerator compartment shelf
6. Refrigerator-compartment drawer
7. Refrigerator-compartment drawer
8. Freezer compartment drawers

NOTE:

The graphics in this manual are schematic representations and may not exactly match the device.

To optimise energy savings, position the drawers and shelves in the refrigerator as shown in figure 1.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent damage to the machine when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.
• Once installed, allow the refrigerator to stand for at least four hours before switching it on.
• It is recommended to clean the inside of the appliance before starting it up. To do this, use a solution of baking soda and warm water and then dry the inside of the refrigerator thoroughly. The refrigerator may give off a peculiar smell when it is opened for the first time. This smell will disappear as the appliance cools down.
• The first time you start the appliance, the refrigerator compartment and freezer compartment will operate at an initial temperature of 5 °C and -18 °C respectively, until it is lowered to the desired temperature.

• If the appliance is switched off, wait five minutes before switching it on again to avoid unnecessary damage to the compressor.

• Never store flammable or explosive objects, acids or corrosive alkaline substances in the appliance.

• The appliance preserves food by cooling the bottom wall of the refrigerator. It is therefore normal for ice or frost to accumulate on this surface. After a while, this adhering layer of frost melts and is drained out through a small drain hole at the back of the refrigerator. The presence of frost on the rear does not mean that the refrigerator is not working properly.

Box content

• Refrigerator
• Instruction manual

3. INSTALLATION

Installation preparation

• Never install the appliance near heat sources, such as heaters or cookers, or in damp places.
• At least two people are required to transport and install the appliance safely.
• When lifting the appliance, the edges may be somewhat sharp. Use appropriate protective equipment for transport and installation.
• To ensure that the refrigerator is leveled, adjust the front adjustable feet to the desired height.
• Make sure that the cooling system at the rear of the appliance does not touch the wall. The greater the separation distance, the better.
• The appliance must be installed in a well-ventilated place. Be sure to leave enough space at the top of the appliance to allow air to escape and to maintain an adequate depth distance between the back of the appliance and the wall.
• In figure 2, you can see the dimensions required for the installation.

Ventilation

When installing any refrigeration appliance that can be built into a kitchen unit, it is essential to take ventilation into account. Good ventilation around the appliance is essential for the heat generated by the refrigerator to dissipate properly. Lack of ventilation can lead to premature compressor failure, excessive power consumption, total system failure and may void the product warranty. When installing this type of built-in appliances in the kitchen furniture, please observe the following instructions:

• Leave some ventilation openings at the rear of the cabinet to allow air to enter.
• Drill a hole in the plinth at the bottom of the refrigerator and fit a ventilation grille. Another option is to cut a small part of the plinth to allow air to enter the appliance. Recommended dimensions: 500 x 40 mm.
• The top of the cabinet shall be provided with a ventilation opening to the room.

Recommended size of ventilation opening: 500 x 40 mm. If the cabinet does not allow air to enter around the appliance, a ventilation grille in the plinth or other ventilation system must be installed to ensure that air can circulate naturally. Fig. 3

• Sufficient space must also be left between the rear of the cabinet and the appliance so that cold air can circulate to the condenser. Recommended dimensions: 500 x 40 mm.
• For the appliance to work properly, it is important that the top of the refrigerator is not completely blocked. For most appliances it is advisable to leave a distance of 40-50 mm.
• To allow air to enter the compressor and heat exchanger, a ventilation opening must be made in the base of the cabinet.
• As a general rule, the more air that can flow in and out, the more efficiently the appliance will work.

Installation instructions

The necessary parts and tools are shown in figure 4.

Fig. 4 key:

1. Hinge protector A
2. Hinge protector B
3. Hinge cover
4. Cross-head screw 3.9x12, T20 3.9x16, T20
5. Spanner
6. Control panel left side protector
7. Control panel right side protector

8. Trim profile

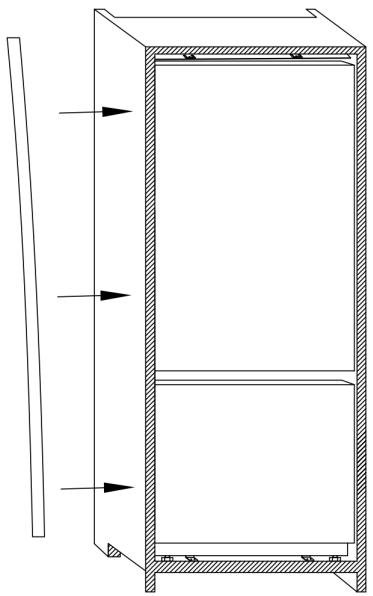

9. Insert the appliance into the cabinet opening, sticking it as far as possible to the left side to make it easier to open the door. Fig. 5.

10. Adjust the position of the appliance until it has fitted snugly into the cabinet and screw the top and bottom of the refrigerator to the cabinet, as shown in figures 6 and 7.

Note: Once the stop is in place between the recess of the appliance and the furniture, remove the flange.

1. Screw the hinges to the cabinet and fit the trim profile on the left side of the appliance. Fig. 8-9

Note: Fit the hinge protector.

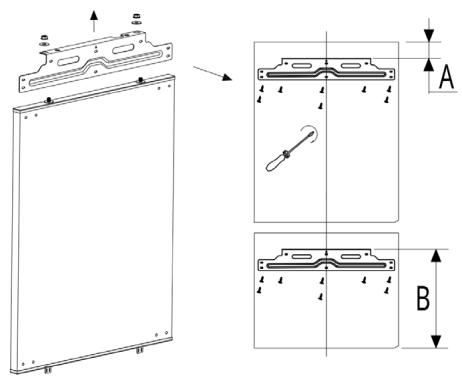

1. Measure the size of A and B shown in figure 10. Before taking measurements, remove the trim cover.

2. Remove the metal connection plate and install it on the cabinet door. Fig. 11

3. Follow the steps below to integrate the refrigerator door with the cabinet door:

Use the T20 screwdriver to tighten the screws and adjust the distance between the top and bottom of the refrigerator door and the cabinet door. Fig. 12

Use spanner #13 to tighten the nut and adjust the distance between the left and right, front and back of the refrigerator door and the cabinet door. Fig. 12

Changing the opening direction of the doors.

During this process, the help of another person is required to hold the doors.

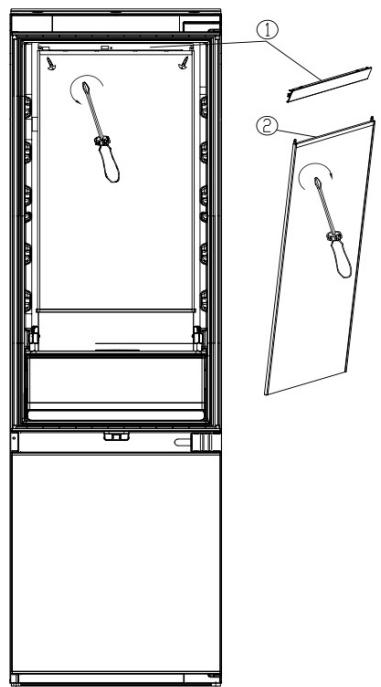

Step 1: remove the left and right covers, removing the corresponding spare covers from the accessory bag.

Step 2: remove the white plugs from the door, the centre rail plate and the bottom rail plate.

Step 3: remove the screws securing the doors and hinges from top to bottom, allowing the doors to be removed.

Step 4: remove the screws holding the door and hinges, then replace the screws on the opposite side of the door. It is crucial to leave 1/3 of the screw out.

Step 5: fix the doors and hinges on the left side first.

Step 6: after step 5, you must attach the doors to the body of the appliance. It is important that two people perform this step to ensure that the door is fixed evenly.

Step 7: fit the covers (included in the accessory bag) according to the instructions.

Step 8: fit all screws into the corresponding holes.

Step 9: the change of the opening direction of the doors has been carried out successfully.

Refrigerator door does not close properly

After changing the opening direction of the door, it is normal for the gasket to be compressed and a little harder. With the door closed, use a hairdryer to apply a little heat to the gasket. The heat will, little by little, expand the rubber until it has reached the required shape, filling the space between the door and the body of the refrigerator. Avoid using the hair dryer too close to the appliance, as this may damage the gasket. A distance of about 10 cm is enough. When finished, allow the gasket and door to cool before touching them. Once this is done, the gasket will return to its original shape.

4. OPERATION

Control panel. Fig. 13

1. Fresh Zone icon
2. Fast Cooling mode icon
3. Holiday mode icon
4. Refrigerator compartment settings icon
5. Refrigerator compartment temperature indicator light
6. Freezer compartment temperature indicator light
7. Freezer compartment settings icon
8. Smart mode icon
9. Fast Freezing mode icon

10. Power icon

11. The first time you switch on the refrigerator it will operate with the following default temperature settings:

12. Refrigerator compartment: +5 °C.
13. Fresh Zone drawer: 0 °C.
14. Freezer compartment: -18°C.
15. If you wish to adjust the temperature or functions manually, press the corresponding icons.
16. Setting the refrigerator compartment temperature: Press the refrigerator compartment settings icon ⏻ on the left side of the control panel to set the desired temperature from 2 °C to 8 °C.
17. Setting the freezer compartment temperature: Press the freezer compartment settings icon ⏻ on the right side of the control panel to set the desired temperature from 2 °C to 8°C.
18. Setting the Fresh Zone drawer temperature: Press the Fresh Zone icon to set the desired temperature from -3^ to +3^ . Press and hold the Fresh Zone icon for 3 seconds to activate/deactivate this zone. The display will show "ON/OFF".
19. Fast Cooling function: To activate this function, press the Fast Cooling mode icon and the corresponding indicator will light up. Once activated, the refrigerator compartment temperature will be automatically set to 2 °C. After 24 hours, the function will be automatically deactivated and the corresponding indicator light will switch off.
20. Holiday mode: To activate this mode, press the Holiday mode icon ☐, the holiday mode indicator light will light up. Once activated, the refrigerator compartment temperature will be automatically set to 17 °C, and that of the freezer compartment to -18 °C.

21. Smart mode: To activate this mode, press the Smart mode icon and the corresponding indicator light will light up. Once activated, the refrigerator compartment temperature will be automatically set to 5 °C, that of the freezer compartment to -18 °C, and that of the Fresh Zone drawer to 3 °C.

22. Fast Freezing function: To activate this function, press the Fast Freezing mode icon and the corresponding indicator will light up. Once activated, the freezer compartment temperature will be automatically set to -25^ . After 24 hours, the function will be automatically deactivated and the corresponding indicator light will switch off.

23. To switch off the refrigerator, press and hold the power icon ⏻ for 3 seconds, the corresponding indicator light will switch off. The inner LED light will switch off and the compressor will stop working. To turn the refrigerator back on, press and hold the icon again for 3 seconds and the corresponding indicator light will light up.
24. Models with "Total No Frost" system include an automatic defrost function. This function prevents the formation of ice in the freezer compartment. To activate this function, press and hold the freezer compartment settings icon ⏻ and the power icon ⏻ for 5 seconds, the freezer compartment temperature indicator light will light up. To deactivate this function, press and hold both icons again for 3 seconds, the freezer compartment temperature indicator will switch off.

5. INSTRUCTIONS ON FOOD STORAGE

Refrigerator compartment

• Close bottles and liquid containers tightly.
• Do not put hot or freshly cooked food directly into the refrigerator. Let hot food cool down to room temperature before putting it in the refrigerator compartment.
• Make sure that food is not in contact with the back wall of the refrigerator, as this can lead to frost formation and possible condensation problems.
• Be sure to wash the food and dry it thoroughly before placing it in the refrigerator.
• Wrap or cover food before placing it in the refrigerator. This will help prevent moisture loss, keep food fresh and prevent odors.
• When storing foods in the refrigerator, sort them according to their expiration day. Place foods that will be expiring soon at the front of the shelves to prevent them from spoiling if the door is left open by accident for an extended time period.
• Do not overload the refrigerator with food. Make sure to leave enough space between the different foods so that cold air can circulate properly.
• Defrosting frozen foods in the refrigerator compartment will help maintain a low temperature and save energy.
• Separate raw meats from cooked products by using different shelves. This will prevent cross-contamination caused by the contact of raw meat juices with other foods.

Fresh Zone drawer

The temperature of the Fresh Zone drawer can be adjusted from +3 °C to -3 °C. It is the ideal area for storing meat and fish.

Freezer compartment

• The freezer compartment is designed for freezing fresh food, storing deep-frozen products and making ice cubes.
• Do not put hot or warm foods directly into the freezer. Allow them to cool to room temperature before storing.
• When storing frozen foods, follow the storage instructions on the package. If it does not contain any specific information, the food must be consumed within three months from the date of purchase.
• Divide food into small portions and package them separately (ideally not exceeding 1 kg). This will reduce freezing time and improve food quality after thawing.
• Wrap or cover food properly before placing it in the refrigerator. To prevent the film wrappings from sticking together, make sure they are completely dry.
• Before freezing food, label it indicating the type of product, freezing date and expiration date.
• Defrosted food cannot be refrozen. Thaw only the necessary amount of food to avoid wastage.
• Do not place bottled or canned beverages in the freezer, as they may explode.
• Do not exceed the maximum amount of food to be frozen.

Food storage

The refrigerator compartment is used to store food that will be consumed soon. Although this compartment can maintain very low temperatures, it is not recommended for long-term food storage. When distributing food in the refrigerator, keep in mind that the temperature tends to vary between the different zones. Therefore, each type of food must be stored in a specific zone.

Figure 1 shows where the following foods are best stored:

1. Butter, cheese, etc.
2. Canned and bottled foods.
3. Drinks such as milk.
4. Cooked foods, yogurts, canned foods, etc.
5. 75 cl bottles, precooked dishes, etc.
6. Fruits and vegetables.
7. Fresh meat and fish, fruits and vegetables.

The refrigerator shelves can be rearranged according to the storage conditions of each food:

• To remove a shelf, hold it on both sides with your hands and lift the back slightly. Then pull it out.
• To reposition the shelf, slide it back into the guide until it fits into place.

6. CLEANING AND MAINTENANCE

• Always unplug the appliance from the mains socket before performing any cleaning or maintenance task.
• Use a solution of baking soda and warm water to clean the inside of the refrigerator. Do not use detergents or abrasive cleaning products. Then rinse and dry the inside of the refrigerator thoroughly.
• Remove the compartment shelves and door shelves and clean them with soap and water. Do not wash them in the dishwasher.
• If the unit is not to be used for an extended period of time, unplug it and clean it. Leave doors slightly ajar to prevent mold growth and development of unpleasant smells.

Note: If you notice a lot of ice or puddles of water forming in the freezer compartment, the door is probably not sealed properly. Check that the gasket is not damaged and that the door is properly installed. For more information, see the "Troubleshooting" section.

Replacing the inner LED light Fig. 14

Note: Only a qualified technician can change the 12 V LED light inside.

1. Unplug the refrigerator from the electrical outlet.
2. To replace the LED light, remove the aluminum trim profile on the top of the refrigerator and then unscrew both screws.
3. Replace the LED light with a new one.
4. Put the trim profile back in place.

7. TROUBLESHOOTING

Before contacting the official Cecotec Technical Support Service, please refer to the following section.

The appliance does not work	Check that the plug is properly connected to the socket.
	Make sure that the fuses are not blown.
	Check that the refrigerator is turned on.
	Check that the socket is working properly. To do this, plug another electrical appliance into the socket.

The device does not work normally	Make sure that you have not overload the refrigerator with food.
	Check that the thermostat is set to a suitable temperature.
	Make sure the door is properly closed.
	Make sure that the cooling system at the rear of the appliance has not accumulated dust and is not touching the wall.
	Make sure that you leave enough space around the appliance for good ventilation.
The device vibrates or makes noise	Make sure that the appliance is levelled and installed on a stable surface.
	Check that there is sufficient clearance between the walls and the appliance and that nothing is resting on it.
	It is normal for the refrigerant gas in the refrigerator to emit a slight bubbling or gurgling sound, even when the compressor is not running.
The warning alarm has been activated	Check that the doors are properly closed. The alarm will be activated if the door remains open for more than 60 seconds.
A layer of ice has formed on the bottom of the refrigerator wall	A layer of ice has formed on the bottom of the refrigerator wall. This does not affect the correct functioning of the device.
	Make sure that no food touches the back wall of the refrigerator.
	Check that there is some resistance when opening the appliance door. If it opens easily, the door gasket may need to be replaced.
	Check that the door gasket is not deformed, dirty or damaged. If you notice a malfunction and are unable to fix it yourself, please contact Cecotec's official Cecotec Service Center to have the gasket replaced.
	This may also be due to improperly installed doors.
Too much ice has formed in the freezer	Check that there is some resistance when opening the appliance door. If it opens easily, the door gasket may need to be replaced.
	Check that the door gasket is not deformed, dirty or damaged. If you notice a malfunction and are unable to fix it yourself, please contact Cecotec's official Cecotec Service Center to have the gasket replaced.
	This may also be due to improperly installed doors.
Interior LED light does not work	Contact the official Cecotec Technical Support Service.

Error codes

This appliance beeps when the refrigerator is not working properly. When the sensors detect a fault, the corresponding error code is shown on the temperature display. Even if the appliance continues to cool, it is advisable to contact the official Cecotec Technical Support Service.

Error code	Error
F2	Fresh Zone sensor fault
F3	Refrigerator compartment sensor fault
F4	Freezer compartment sensor fault
F5	Defrost sensor fault
2E	Freezer fan/motor fault
CE	Communication error between PCB and control panel

When any of the above error codes appears, no beeping will be emitted by the appliance, but will only be shown on the display.

High freezer temperature alarm

If the refrigerator detects that the freezer compartment temperature is above -1^ , the alarm will be activated automatically and the compartment temperature display will start flashing. Press any icon to turn the alarm off. The temperature display will remain lit until the freezer reaches a temperature below -1^ .

Note: The PCB is located in the compressor compartment.

RECOMMENDED TEMPERATURE	CLIMATIC CONDITIONS
5 °C/-18 °C	Summer or room temperature between 25-35 °C.
5 °C/-18 °C	Spring, autumn or ambient temperatures between 15-25 °C.
5 °C/-18 °C	Winter or room temperature between 5-15 °C.
Fast Freezing function	Ultra-fast freezing
Fast Cooling function	Ultra-fast cooling

8. TECHNICAL SPECIFICATIONS

Appliance	Bolero CoolMarket Combi BI-D FLW 267 E
Reference	EU01_100090
QR code
Voltage	220 - 240 V~
Rated frequency	50 Hz
Rated current	0.8 A
Climate class (*)	N/ST/T
Refrigerant	R600a (53 g)
Insulator	Cyclopentane

This appliance features a light source with an energy efficiency grade G.

(*) Refrigerator intended for use at room temperatures between 16 °C and 43 °C.

Technical specifications may change without prior notification to improve product quality. Made in China | Designed in Spain

9. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its service life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

10. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions and deadlines established by the applicable regulations.

Repairs should be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

11. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

1. PIÈCES ET COMPOSANTS

Image 1

7. PROBLEEMOPLOSSING

Fig./Img./Abb./Afb./Rys. 4

Fig./Img./Abb./Afb./Rys. 3

Fig./Img./Abb./Afb./Rys. 5

Fig./Img./Abb./Afb./Rys. 6

Fig./Img./Abb./Afb./Rys. 7

Fig./Img./Abb./Afb./Rys. 9

Fig./Img./Abb./Afb./Rys. 10

Fig./Img./Abb./Afb./Rys. 11

Fig./Img./Abb./Afb./Rys. 12

Fig./Img./Abb./Afb./Rys. 13

Fig./Img./Abb./Afb./Rys. 14

www.cecotec.es
