Product type	Ceiling fan with light
Brand	Cecotec
Model	Energysilence 4800 Light Goldwhite
Blade diameter	122 cm (48 inches)
Weight	6.2 kg
Power supply	220-240 V ~ 50 Hz
Motor power	55 W
Motor type	Silent DC motor
Number of speeds	6 speeds
Reversible function	Yes (summer/winter)
Remote control	Yes, included
Integrated lighting	Yes, LED bulb (not included)
Blade material	ABS
Color	Goldwhite (white gold)
Installation	Ceiling mounting, kit included
Noise level	≤ 35 dB (at minimum speed)
Maintenance and cleaning	Clean with a soft, dry cloth. Do not use abrasive products.
Safety	Automatic shutdown in case of overheating. Balanced blades.
Spare parts and repairability	Available through Cecotec after-sales service.

Frequently Asked Questions - Energysilence 4800 Light Goldwhite CECOTEC

How to install the Energysilence 4800 ceiling fan?

Installation must be carried out by a qualified electrician. Attach the bracket to the ceiling using the included anchors, then assemble the blades and connect the wires according to the color code (phase, neutral, ground). Finally, attach the motor unit and check the balance.

How to use the remote control?

The remote control allows you to adjust the speed (6 levels), activate the reversible function, turn the light on/off, and set a delayed shutdown. Insert batteries (not included) and point towards the receiver.

What is the difference between summer and winter mode?

In summer mode, the blades rotate counterclockwise to create a cooling breeze. In winter mode, clockwise rotation redistributes warm air accumulated at the ceiling to the floor, improving heating.

The fan is noisy, what should I do?

Check that the blades are properly attached and balanced. Ensure the bracket is securely screwed to the ceiling. Slight noise at startup is normal. If the noise persists, contact after-sales service.

What bulb should I use for the light?

The integrated light accepts an E27 LED bulb (not included). Maximum power: 40 W. Use an A60 type bulb or equivalent.

How to clean the fan?

Clean the blades and housing with a soft, dry or slightly damp cloth. Never use chemical or abrasive products that could damage the finish.

What is the weight of the fan?

The fan weighs approximately 6.2 kg, requiring a solid ceiling capable of supporting this weight.

Is the fan suitable for sloped ceilings?

Yes, the installation kit includes a suspension rod suitable for sloped ceilings up to 15°. For larger angles, a specific adapter may be required.

What is the product warranty?

The Cecotec warranty is 2 years from the purchase date, covering manufacturing defects. Wear parts such as batteries or bulbs are not covered.

Where to find spare parts?

Spare parts (blades, remote control, mounting kit) are available from Cecotec customer service or on their official website. Keep your purchase receipt.

USER MANUAL Energysilence 4800 Light Goldwhite CECOTEC

Safety instructions 7

1. Parts and components 44

2. Before use 44

3. Assembling the appliance 45

4. Operation 47

5. Cleaning and maintenance 48

6. Troubleshooting 48

7. Technical specifications 49

8. Disposal of old electrical and electronic appliances 50

9. Technical support and warranty 50

10. Copyright 50

SOMMAIRE

Read these instructions thoroughly before using the device. Keep this instruction manual for future reference or new users.

• This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.
• Keep a minimum distance of 2.3 cm between the fan blades and the floor.

• Keep a minimum distance of 76 cm between the fan blades and the wall or any other object.

• Make sure the appliance is unplugged from the power supply before cleaning or user maintenance.

• This device is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• Make sure that the mains voltage matches the voltage stated on the appliance marking and that the wall outlet is earthed.
• If the power cord is damaged, it must be replaced by the official Cecotec Technical Support Service to avoid any type of danger.
• Do not use the appliance if its cord or housing are damaged, nor after it malfunctions or has been dropped or damaged in any way.
• The appliance must be installed in accordance with national wiring regulations.
• Never insert objects or body parts between the rotating fan blades.
• To reduce the risk of injury, attach the fan directly to the support structure of the building as indicated in this manual and use only parts and components provided and recommended by Cecotec.
• Cut off the power completely before installing or repairing the fan to avoid the risk of electric shock.
• The electrical wiring must be in accordance with the local regulations.
• The cable must be properly earthed to avoid possible accidents.
• Never install the fan in a damp or wet room.
• Be careful when near the rotating fan blades.

• To adjust the speed of the fan blades, only use the means for speed control provided by Cecotec.

• Do not bend the blade-attachment system during the installation or cleaning process.

• Cleaning and maintenance must be carried out according to this instruction manual to make sure the appliance works properly. Turn off and unplug the appliance before cleaning it.
• Make sure the fan is not placed close to curtains or other objects it may become entangled with.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene, etc.) out of their reach.
• It is recommended that two people install the appliance.
• This appliance is designed for indoor use.

Instructions on batteries

• Battery ingestion can cause burns, soft-tissue perforation, and death. It can cause severe burns within two hours of the ingestion.
• In case of battery ingestion, please seek medical attention immediately.
• Do not allow children to replace batteries without adult supervision.
• Do not disassemble, open, or damage the batteries.
• Keep the batteries out of the reach of children. Pay particular attention to small batteries. In case of battery ingestion, please seek medical attention immediately.
• Do not expose batteries to heat or fire. Avoid storage in direct sunlight.

• Do not short-circuit an element or a battery. Do not store batteries in an untidy manner, in a box, or drawer where they can short-circuit each other or be short-circuited by other metal objects.

• Both batteries and cells can leak under extreme conditions. In the event of a battery leak, keep your skin and eyes away from the liquid. If the liquid gets into contact with skin, wash immediately with soap and water. If the liquid gets into the eyes, wash them immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of it immediately in accordance with local regulations.

• Pay attention to the positive (+) and negative (-) marks on the batteries and the remote-control compartment to ensure they are inserted correctly.
• Do not use any batteries that are not designed for use with the appliance.
• Do not mix batteries of different manufacture, capacity, or size. Children should be allowed to handle the batteries only under adult supervision.
• Always buy recommended batteries.
• Keep the batteries clean and dry. Wipe the battery terminals with a clean, dry cloth if they become dirty.
• Keep the original instruction manual for future reference.
• Whenever possible, remove the batteries when not in use.

INSTRUCTIONS DE SÉCURITÉ

1. Canopy
2. Mounting bracket
3. Downrod
4. Trim
5. Motor
6. LED light
7. Lampshade
8. Blade
9. Remote control
10. Assembly kit

NOTE:

The graphics in this manual are schematic representations and may not exactly match the device.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent damage to the appliance when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

Box content

• Fan
• Assembly kit
• Batteries 2 x AAA
• Instruction manual
• Remote control

3. ASSEMBLING THE APPLIANCE

NOTE:

Tools needed for installation: insulating tape, 14 mm fixed spanner, straight screwdriver, Phillips screwdriver, ladder, pliers, etc.

Note

A. The fan must be placed at a distance of 2.3 m from the floor. The clearance between the blades and the wall must be 0.76 metres. Fig. 2
B. Do not install on a vaulted ceiling. Fig. 3

Installing the mounting bracket

Fig. 4

NOTE: the mounting bracket is required to install the fan on a wooden ceiling or on a sloped ceiling.

- If the fan is to be installed in a concrete ceiling, drill a hole with an 8 mm drill bit, considering the length of the expansion screws. Then, fix the mounting bracket to the ceiling with the expansion screws.

NOTE: drill an 8 mm hole before fitting the M6 expansion screws.

- You will need different screws/dowels depending on the type of ceiling on which you are installing the fan. If you are installing the fan on a wooden ceiling, it is important that you install the mounting bracket. Once it is in place, make sure that it can support a weight of more than 60 kg.

Installation

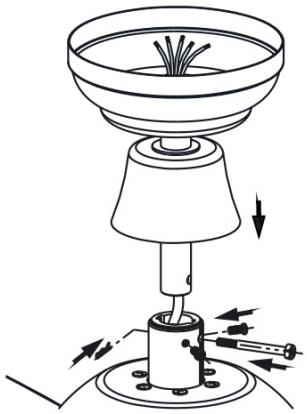

1. Insert the downrod into the canopy and the trim. Pass the fan power cable through the downrod. Then, insert the downrod into the hanging ball and align the holes of both parts. Next, fit the bolt and pin. Finally, tighten the two fixing screws securing the downrod to the trim. Fig. 5
2. Place the fan in the bracket and rotate the downrod slowly so that the tabs of the mounting bracket are inserted into the slots of the hanging ball. Fig. 6.

Fig. 6 key

1. Slot
2. Tab

NOTE: make sure all tabs are correctly inserted into the slots.

ENGLISH

Installing the blades

1. Remove the motor screws as shown in Fig. 7.
2. Then, remove the blades from the box and check that their holes match those of the motor as shown in Fig. 8.

Installing the LED light

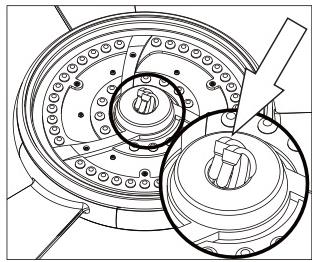

1. Remove the screws from the motor light, Fig. 9.
2. Afterwards, take out the LED light from the box, align its holes with the holes of the motor as shown in figure 10 and tighten the screws.

Connecting the lighting wires

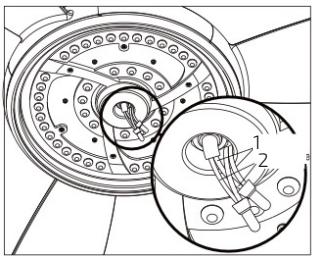

1. Connect the phase wire to the light wire using the terminal located in the mounting kit bag. Then connect the neutral wire of the fan to the neutral wire of the light, also with a terminal as shown in Fig. 11.

Fig. 11 key

1. Phase wire
2. Neutral wire

NOTE: when the wires are connected, use the heat shrink sleeve (found in the mounting kit bag) to join the two terminals together. Shrink the sleeve with the help of a heat gun.

1. Once you have connected the light wires, insert the two terminals into the hole in the lamp panel as shown in Fig. 12.

Installing the lampshade

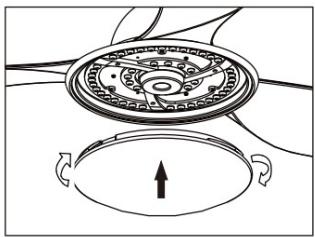

Fig. 13

1. Take out the lampshade from the box. Fit the three tabs of the lampshade with the slots of the LED light panel.

2. Next, turn the lampshade clockwise.

Power cord connection

Fig. 14

NOTE: the wiring must be disconnected from the power supply. It must be connected to a plug with a minimum spacing of 3 millimetres per pole.

The wall switch can be used to turn the light on or off. The remote control can also be used to switch the light on and off and to adjust the speed.

Installation

- Connect the blue wire from the remote-control receiver to the blue wire from the fan.

• Connect the white wire from the remote-control receiver to the white wire from the fan. Connect the red wire from the remote-control receiver to the red wire from the fan.
• Connect the yellow wire from the remote-control receiver to the yellow wire from the fan. Connect the grey wire from the remote control receiver to the grey wire from the fan. Connect the yellow-green ground wire to the earth wire through the terminal block.
• Connect the neutral wire to the white neutral wire of the remote-control receiver via the terminal block. Connect the power cable to the black wire of the remote-control receiver via the terminal block.

NOTE: before connecting any cables, make sure that you have disconnected the power.

- When you have finished connecting all the cables, place the remote-control receiver in the recess provided for this purpose and follow the steps shown in Fig. 15.

Installing the canopy

1. Once the fan has been hung up, fit the canopy cover.
2. Turn it to the correct position and screw it into place. Fig. 16

Fan balancing method

NOTE: if the fan wobbles when operating, check that all screws on all parts are properly tightened. If screws are not the problem, try the following options:

1. Change the position of the blades. Fig. 17
   a. Interchange the position of blades 1 and 2.
   b. If, after doing this, you do not notice that the problem is solved, swap the position of blades 2 and 3.

4. OPERATION

This ceiling fan is operated through the use of the remote control.

Remote control

Fig. 18

Fig. 18 key

1. Receiver operation indicator light.
2. Buttons for switching on the fan at the desired speed. 6 speeds available to regulate the intensity of the air flow.
3. Off button.
4. Reverse rotation button. A motor reversing system is available to provide the summer/winter function. Rotating in one direction, you can enjoy a pleasant breeze in summer,

ENGLISH

and, in the opposite direction, the fan will blow warm air to the floor and complement your heating system in winter.

1. Natural mode button. The 6 speeds will be randomly interchanged.
2. Light button. Light on/off to achieve the perfect atmosphere by selecting from the 3 available shades.
3. Timer button. Up to 8 hours of operation can be selected, after which the fan will switch off.

NOTE: once you press the timer button, do not press any other button. Otherwise, the function will be cancelled.

5. CLEANING AND MAINTENANCE

WARNING:

• Before cleaning or repairing the fan, disconnect it from the mains.

• To avoid risk of fire and electric shock, only use the switch provided with this fan.

• It is recommended to check at least once a year the connecting parts of the fan, such as the fastening screws and blades, to ensure that they are completely fixed.

• Clean the ceiling fan regularly. To remove dust from the surface, use a soft brush or cloth.
• If the fan has grease on it, wipe it off with a slightly damp cloth. Do not rinse the fan directly with water.
• The motor bearing is already greased, do not add lubricating oil.

6. TROUBLESHOOTING

Troubleshooting
Problem	Solution
The fan does not switch on	1. Check if the fan fuses are blown or if the automatic protection system has tripped, causing a fault in the circuit.2. Check if the voltage is much lower than the nominal voltage of the fan (the fan will only start if the voltage exceeds 176 V).3. Check the internal wiring of the fan for loose or faulty contacts.Note: if the problem persists after performing the above three checks, please contact the Official Cecotec Technical Support Service.
Fan makes noise	1. Before mounting the fan, make sure that it is not damaged.2. Make sure that the downrod bolt is correctly positioned and that the screws are tightened securely.3. Some new ceiling fans make noise for the first 24 hours, after which they stop making noise.4. It is not recommended to install this fan on wooden ceilings, steel structures or prefabricated slabs, as they amplify the sound of the fan.
Fan light does not turn on	1. Check if the lamp cable connection is loose.2. Check that the light switch contact is not damaged or loose.3. Check if the bulb is blown.

7. TECHNICAL SPECIFICATIONS

Product reference: 08561 / 08562 / 08563 / 08564

Product:

EnergySilence 4800 Light White

EnergySilence 4800 Light Black

EnergySilence 4800 Light GoldWhite

EnergySilence 4800 Light GoldBlack

Voltage: 200-240 V

Frequency: 50/60 Hz

Power: 36 W

LED: 36 W

Description	Symbol	Value	Unit
Fan maximum flow	F		m^3/min
Fan power consumption	P		W
Service value	S_v		(m^3/min)/W
Power consumption on standby mode	P_SB		W
Fan sound power level	L_WA		dB (A)
Maximum air speed	C		m/seg
Service value measurement standard	IEC 60879:2019
Contact details to obtain more information	Cecotec Innovaciones SL.Av. Reyes Católicos, No 60. 46910Alfafar, Valencia (Spain)

ENGLISH

Technical specifications may change without prior notification to improve product quality. Made in China | Designed in Spain

8. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries. Compliance with the above guidelines will help protecting the

environment.

9. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

10. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

1. PIÈCES ET COMPOSANTS

Image 1

6. PROBLEEMOPLOSSING

6

7

8

9

10

Fig./Img./Abb./Afb./Rys./Obr.1

Fig./Img./Abb./Afb./Rys./Obr. 2

Fig./Img./Abb./Afb./ Rys./Obr. 3

Fig./Img./Abb./Afb./ Rys./Obr. 4

Fig./Img./Abb./Afb./Rys./Obr. 5

Fig./Img./Abb./Afb./ Rys./Obr. 6

Fig./Img./Abb./Afb./Rys./Obr. 7

Fig./Img./Abb./Afb./Rys./Obr. 8

Fig./Img./Abb./Afb./ Rys./Obr. 9

Fig./Img./Abb./Afb./ Rys./Obr. 10

Fig./Img./Abb./Afb./Rys./Obr. 11

Fig./Img./Abb./Afb./Rys./Obr. 12

Fig./Img./Abb./Afb./Rys./Obr. 13

Fig./Img./Abb./Afb./ Rys./Obr. 14

Fig./Img./Abb./Afb./ Rys./Obr. 15

Fig./Img./Abb./Afb./ Rys./Obr. 16

Fig./Img./Abb./Afb./ Rys./Obr. 17

Fig./Img./Abb./Afb./Rys./Obr. 18

www.cecotec.es
