Forcesilence Aero 540 - Ceiling fan CECOTEC - Free user manual and instructions

Product Type	Ceiling fan
Brand	Cecotec
Model	Forcesilence Aero 540
Blade diameter	132 cm (52 inches)
Number of blades	5
Blade material	ABS
Motor type	Silent DC motor
Motor power	35 W
Supply voltage	220-240 V ~ 50 Hz
Fan speeds	6 adjustable speeds
Reversible function	Yes (summer/winter)
Remote control included	Yes, with RF transmitter
Integrated lighting	No
Maximum noise level	35 dB (A)
Maximum airflow	150 m³/min
Blade pitch angle	12°
Net weight	6.5 kg
Housing dimensions (L x W x H)	132 x 132 x 35 cm
Recommended mounting height	2.4 to 3 m
Maintenance and cleaning	Wipe the blades with a soft damp cloth. Do not use abrasive products.
Safety	Use the included fixing rod. Disconnect before maintenance.
Spare parts and repairability	Blades and remote control available from Cecotec after-sales service.
Warranty	2 years

Frequently Asked Questions - Forcesilence Aero 540 CECOTEC

How to install the Forcesilence Aero 540 ceiling fan?

Follow the provided installation guide. First, attach the mounting plate to the ceiling with appropriate plugs and screws (not included). Connect the electrical wires (phase, neutral, ground) according to color codes. Mount the motor, then the blades. Finally, install the remote control and test.

The remote control does not work, what to do?

Check the remote control batteries (type CR2032). Make sure the receiver is properly connected to the motor. If the problem persists, reset the pairing by turning off the power for 10 seconds, then turn it back on and press the 'ON' button on the remote control within 30 seconds.

How to reverse the rotation direction for winter?

Use the reversibility button on the remote control (circular arrow icon). Make sure the fan is running. Clockwise (downward airflow) for summer, counterclockwise (upward airflow) for winter.

What regular maintenance is required?

Clean the blades with a slightly damp soft cloth every 3 months. Check the fixing screws every year. Do not use harsh detergents.

The fan makes an abnormal noise, what to check?

Check that all screws are tight. Make sure the blades are balanced (a balancing kit may be needed). If the noise persists, the motor may be defective; contact after-sales service.

Can I use the fan without the remote control?

No, the Forcesilence Aero 540 requires the remote control for all functions (on/off, speed, reversibility). Without the remote control, the device cannot be operated.

What is the recommended ceiling height?

The minimum height between the floor and the blades should be at least 2.3 m. The recommended ceiling height is 2.4 to 3 m for optimal airflow.

Can the fan be mounted on a sloped ceiling?

Yes, thanks to the included mounting ball joint, the fan can be installed on sloped ceilings up to 30 degrees.

How to clean the remote control?

Use a dry, soft cloth. Do not use liquid. If the contacts are dirty, a little isopropyl alcohol on a cotton swab can be used, but let dry before reinserting batteries.

Where can I buy spare parts?

Contact Cecotec customer service or visit the official website. Replacement blades and remote controls are available. Always use original parts.

USER MANUAL Forcesilence Aero 540 CECOTEC

1. Parts and components 30
2. Before use 30
3. Product assembly 30
4. Operation 33
5. Cleaning and maintenance 34
6. Technical specifications 34
7. Disposal of old electrical and electronic appliances 35
8. Technical support and warranty 35
9. Copyright 36

SOMMAIRE

Read these instructions thoroughly before using the device. Keep this instruction manual for future reference or new users.

• This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.
• Keep a minimum distance of 2.3 cm between the fan blades and the floor.
• Keep a minimum distance of 76 cm between the fan blades and the wall or any other object.
• Make sure the appliance is unplugged from the power supply before cleaning or user maintenance.
• This device is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• Make sure that the mains voltage matches the voltage stated on the appliance marking and that the wall outlet is earthed.
• If the power cord is damaged, it must be replaced by the official Cecotec Technical Support Service to avoid any type of danger.
• Do not use the appliance if its cord or housing are damaged, nor after it malfunctions or has been dropped or damaged in any way.

• The appliance must be installed in accordance with national wiring regulations.

• Never insert objects or body parts between the rotating fan blades.

• To reduce the risk of injury, attach the fan directly to the support structure of the building as indicated in this manual and use only parts and components provided and recommended by Cecotec.
• Cut off the power completely before installing or repairing the fan to avoid the risk of electric shock.
• The electrical wiring must be in accordance with the local regulations.
• The cable must be properly earthed to avoid possible accidents.
• Never install the fan in a damp or wet room.
• Be careful when near the rotating fan blades.
• To adjust the speed of the fan blades, only use the means for speed control provided by Cecotec.
• Do not bend the blade-attachment system during the installation or cleaning process.
• Cleaning and maintenance must be carried out according to this instruction manual to make sure the appliance works properly. Turn off and unplug the appliance before cleaning it.
• Make sure the fan is not placed close to curtains or other objects it may become entangled with.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene, etc.) out of their reach.
• It is recommended that two people install the appliance.
• This appliance is designed for indoor use.

INSTRUCTIONS DE SÉCURITÉ

1. Canopy
2. Downrod and hanging ball
3. Downrod
4. Mounting bracket
5. Decorative cover
6. Motor
7. Blade and clip
8. Lamp support
9. Glass shade
10. Screws set
11. LED light

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the device out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent damage to the device when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

Box content

• Fan main body
• Assembly kit
• Instruction manual

3. PRODUCT ASSEMBLY

The following tools are required to carry out the installation: screwdriver, flat-head screwdriver, adjustable pliers or wrench, stepladder, wire cutter, epoxy resin, and rated electrical tape.

General assembly instructions

• If you hang the fan on a hook, the latter must withstand at least 100 kg. Fig. 2.
• Make sure that the building structure can hold the full weight of the fan.

- This fan can be installed on a normal or vaulted ceiling with a downrod. The hanging length can be extended by using a longer downrod.

Fig. 3.

1. Standard assembly where the device hangs from a straight flat ceiling.
2. Standard assembly
3. Bracket
4. Angled assembly where the device hangs from a vaulted or angled ceiling.
5. Angled assembly
6. Bracket

Mounting bracket assembly

Wooden ceiling

Fig. 4.

Use the 4 self-tapping screws provided and their 4 corresponding washers to fix the mounting plate to the ceiling.

Brick/ concrete ceiling

Fig. 5.

1. Drill 2 8-mm holes on the concrete ceiling.
2. Cover the surface of the bolt with epoxy resin and insert them in the drilled holes.
3. Let them sit for the time indicated on the product's box.
4. Then, introduce the visible part of the bolts in the mounting plate's holes.
5. Fix the mounting plate to the bolts first by screwing the regular washers, then the lock washers, and finally the nuts.

Hanging the fan

Fig. 6.

1. Electric wiring
2. Canopy
3. Decorative cover
4. Hanging ball slot
5. Spring pin
6. Stop pin clip
7. Adapter
8. Screws

Note

If you wish to extend the fan hanging length, remove the hanging ball from the downrod provided and use the extended downrod (included).

ENGLISH

1. Remove the hanging ball from the downrod by loosening the screws in it and remove the stop pin clip and the stop pin.
2. Slide down the hanging ball from the original downrod to remove it.
3. Pass the desired downrod through the decorative cover's centre hole and then introduce it in the hanging ball again. Make sure the hanging ball is placed in the end with 2 pin holes and 1 screw hole.
4. Use the screws provided to tighten back the hanging ball to the rod and insert the stop pin and stop pin's clip again.

Note

Make sure the stop pin is aligned with the slots inside the hanging ball.

1. Loosen the screws and nuts on the top part of the motor housing and remove the pin and clip from the downrod.
2. Slide the downrod through the canopy.
3. Pass the cables through the downrod. To do it more easily, it is recommended to apply some rated electrical tape on the end in order to keep them together while passing through the downrod. Carefully pull from the cables to ensure there is enough cable length to continue with the assembly.
4. Introduce the downrod in the motor housing hole and reinsert the stop pin and stop pin clip that were previously removed.
5. Use 2 screws to fix the canopy to the motor housing.

Warning

The important safety precautions and instructions stated in this manual are not meant to cover all possible conditions and situations that may occur. Bear in mind that common sense and caution are necessary factors in the installation and operation of this fan.

Cable connection

• The connection cables coming out from the downrod and hanging ball must be connected as stated below:
• Black > motor (live)
• Blue > light (live)
• White > neutral
• Green/Yellow > ground

Warning

2 people are needed to carry out the cable connection step. It is suggested that 1 person holds the assembled device while the other one connects the cables.

Canopy assembly

Fig. 7.

1. Raise the canopy to the mounting bracket, aligning the loosened screws in the mounting bracket with the holes in the canopy.
2. Twist the canopy until both screws safely hold the device, reinsert the screws, and tighten them with a screwdriver.

Note

For safety reasons, it is suggested that somebody holds the ladder during this step.

Blade assembly

Fig. 8.

1. Remove the 15 blade-fastening screws from the motor housing's lower part.
2. Introduce the blades in their respective slots, make sure the holes on the blade's ends match the screw holes and use the screws with washers in place to tighten them.
3. Make sure they are completely and safely screwed.

LED lamp support

Fig. 9. Fig. 10.

1. Remove the 3 screws located on the centre of the motor housing's lower part.
2. Pass the LED panel cables through the LED lamp support's centre hole and connect them. The LED panel will attach automatically as its screws are magnetic.
3. Use 3 screws to fix the LED lamp support to the rest of the unit.

Glass shade assembly

Fig. 11.

Introduce the glass shade in the LED lamp support and screw it clockwise.

4. OPERATION

Fig. 12.

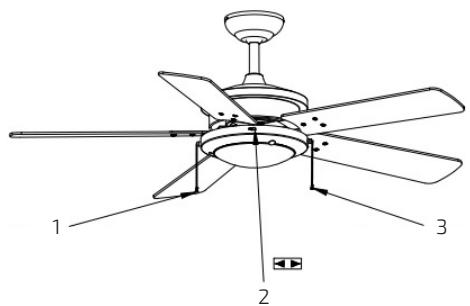

1. Speed control (low-medium-high)
2. Summer-winter switch (change blade rotation direction)
3. Light setting

To switch the fan on or off:

• When it is switched off (OFF position), pull from the switch chain until the fan switches on. To switch it off, pull from the chain again.
• Function sequence from OFF position:
• Pull 1 time for high speed.

ENGLISH

• Pull 2 times for medium speed.
• Pull 3 times for low speed.
• Pull 4 times: OFF.

The switch on the fan body is a switch that moves to the left or right depending on the mode, it is used to change the direction of rotation (clockwise or counterclockwise) of the fan blades.

Winter/Summer function

• Winter function: move the switch to the clockwise position, then the blades will start to rotate clockwise causing the warm air to be distributed throughout the room.
• Summer function: move the switch to the counterclockwise position, then the blades will start to rotate counterclockwise causing a cool breeze.

Warning

Before using the commutator, turn the fan off and make sure it has completely stopped moving to avoid personal and product damage.

LED lights

• Pull on the light control chain to turn the light on.
• Pull repeatedly on the chain to select one of the 3 available light colours and to turn the light off.

5. CLEANING AND MAINTENANCE

• Make sure to disconnect the fan before cleaning it.
• Do not immerse any of the parts of the appliance in water or splash them with any other liquid.
• Do not use solvents or any other chemical products for cleaning.
  – Use a soft, damp cloth to clean the surface of the device.

6. TECHNICAL SPECIFICATIONS

Model: EnergySilence Aero 540

Product reference: 05941

60 W, 220-240 V \~ 50 Hz

12 W (max.) LED

DESCRIPTION	SYMBOL	VALUE	UNIT
Fan maximum flow	F	132,93	m^3/min
Fan power consumption	P	60,24	W
Service value	SV	2,21	(m^3/min)/W
Power consumption on standby mode	P_SB	0	W
Fan sound power level	L_WA	51.6	dB (A)
Maximum air speed	C	1.80	m/seg
Service value measurement standard	IEC 60879
Contact details to obtain more information	Cecotec Innovaciones SL.Av. Reyes Católicos, 60, 46910, Alfafar (Valencia) SPAIN

This product features a light source with an energy efficiency grade F.

Technical specifications may change without prior notification to improve product quality.

Made in China | Designed in Spain

7. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or battery must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

8. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

ENGLISH

9. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

1. PIÈCES ET COMPOSANTS

Img 1.

Fig./Img./Abb./Afb./Rys. 3

Fig./Img./Abb./Afb./Rys. 4

Fig./Img./Abb./Afb./Rys. 5

Fig./Img./Abb./Afb./Rys. 6

①

③

Fig./Img./Abb./Afb./Rys. 7

①

②
Fig./Img./Abb./Afb./Rys. 8

→

Fig./Img./Abb./Afb./Rys. 9

Fig./Img./Abb./Afb./Rys. 10

Fig./Img./Abb./Afb./ Rys. 11

Fig./Img./Abb./Afb./Rys. 12

www.cecotec.es
