Product type	Ceiling fan with integrated LED lighting
Brand	Cecotec
Model	Energysilence Lampaero 670 Flowlight
Blade diameter	132 cm (52 inches)
Total height	Approximately 30 cm (without suspension rod)
Net weight	5.8 kg
Power supply	220-240 V ~ 50/60 Hz
Motor power	55 W
LED lighting power	24 W
Luminous flux	1800 lumens
Color temperature	3000K - 6000K (adjustable)
Number of speeds	6
Reversible function (summer/winter)	Yes
Programmable timer	Yes (1, 2, 4, 8 hours)
Control type	Infrared remote control included
Maximum noise level	35 dB(A)
Maximum airflow	150 m³/min
Blade material	ABS (durable plastic)
Blade pitch angle	14°
Maintenance and cleaning	Dust regularly with a soft, dry cloth. Do not use chemicals.
Safety	Automatic shut-off in case of overheating; ceiling mounting with locking system.
Spare parts and repairability	Blades, remote control, LED module available via Cecotec customer service. Repairability ensured.
Warranty	2 years

Frequently Asked Questions - Energysilence Lampaero 670 Flowlight CECOTEC

How to install the Cecotec Energysilence Lampaero 670 Flowlight ceiling fan?

Installation must be performed by a qualified electrician. Attach the mounting plate to the ceiling respecting the maximum load (30 kg). Connect the electrical wires (phase, neutral, ground) according to the provided diagram. Then mount the fan body and blades. For more details, consult the complete manual.

How to use the fan remote control?

The infrared remote control allows you to control speed, blade direction (summer/winter), LED lighting, and timer. Insert two AAA batteries (not included) and point the remote toward the receiver on the fan. The range is about 8 meters.

How to reverse the rotation direction for winter?

Press the Reverse button on the remote or the switch on the fan body. In summer, the blades rotate counterclockwise to create a cooling breeze. In winter, clockwise to redistribute warm air from the ceiling to the floor.

What is the noise level of this fan?

The Cecotec Energysilence Lampaero 670 Flowlight fan is designed to be quiet. The stated noise level is 35 dB(A) at maximum speed, equivalent to a whisper. At minimum speed, it is nearly inaudible (25 dB).

How to clean the fan and LED lighting?

Always unplug the appliance before cleaning. Use a soft, dry cloth to dust the blades and body. For the LED optic, a slightly damp microfiber cloth can be used. Avoid solvents and abrasive products. Never spray liquid directly onto the fan.

Can the LED light be changed or is it integrated?

The LED module is integrated and not designed to be changed by the user. In case of failure, contact Cecotec customer service to obtain a replacement module. The LED lifespan is estimated at 30,000 hours.

What are the exact dimensions of the fan?

The blade diameter is 132 cm (52 inches). The body height without the suspension rod is approximately 30 cm. The suspension rod measures 25 cm. The total height depends on the ceiling height. The net weight is 5.8 kg.

How to set the timer?

On the remote, press the Timer button to select options 1, 2, 4, or 8 hours. The fan will automatically turn off after the chosen time. A beep confirms the programming. You can cancel at any time by pressing the Off button.

What to do if the remote control stops working?

First check the batteries (replace if necessary). Ensure there is no obstacle between the remote and the receiver. If the problem persists, you can use the on/off button on the fan. Contact customer service for a remote replacement.

Is this fan suitable for humid rooms like the bathroom?

No, this model is designed for indoor use in dry rooms. It is not certified for exposure to moisture (IP20). For a bathroom, choose a fan with an appropriate protection rating (at least IP44).

USER MANUAL Energysilence Lampaero 670 Flowlight CECOTEC

Safety instructions 8

1. Parts and components 45

2. Before use 45

3. Assembly 45

4. Operation 47

5. Cleaning and maintenance 48

6. Technical specifications 48

7. Disposal of old electrical and electronic appliances 49

8. Technical support and warranty 50

9. Copyright 50

SOMMAIRE

Read these instructions thoroughly before using the device. Keep this instruction manual for future reference or new users.

• This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.
• Keep a minimum distance of 2.3 cm between the fan blades and the floor.
• Keep a minimum distance of 76 cm between the fan blades and the wall or any other object.
• Make sure the appliance is unplugged from the power supply before cleaning or user maintenance.
• This device is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• Make sure that the mains voltage matches the voltage stated on the appliance marking and that the wall outlet is earthed.
• If the power cord is damaged, it must be replaced by the official Cecotec Technical Support Service to avoid any type of danger.
• Do not use the appliance if its cord or housing are damaged, nor after it malfunctions or has been dropped or damaged in any way.

• The appliance must be installed in accordance with national wiring regulations.

• Never insert objects or body parts between the rotating fan blades.

• To reduce the risk of injury, attach the fan directly to the support structure of the building as indicated in this manual and use only parts and components provided and recommended by Cecotec.
• Cut off the power completely before installing or repairing the fan to avoid the risk of electric shock.
• The electrical wiring must be in accordance with the local regulations.
• The cable must be properly earthed to avoid possible accidents.
• The appliance must be installed in accordance with national wiring regulations.
• Never install the fan in a damp or wet room.
• Be careful when near the rotating fan blades.
• To adjust the speed of the fan blades, only use the means for speed control provided by Cecotec.
• Do not bend the blade-attachment system during the installation or cleaning process.
• Cleaning and maintenance must be carried out according to this instruction manual to make sure the appliance works properly. Turn off and unplug the appliance before cleaning it.
• Make sure the fan is not placed close to curtains or other objects it may become entangled with.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene, etc.) out of their reach.
• It is recommended that two people install the appliance.
• This appliance is designed for indoor use.

Instructions on batteries

• Battery ingestion can cause burns, soft-tissue perforation, and death. It can cause severe burns within two hours of the ingestion.
• In case of battery ingestion, please seek medical attention immediately.
• Do not allow children to replace batteries without adult supervision.
• Do not disassemble, open, or damage the batteries.
• Keep the batteries out of the reach of children. Pay particular attention to small batteries. In case of battery ingestion, please seek medical attention immediately.
• Do not expose batteries to heat or fire. Avoid storage in direct sunlight.
• Do not short-circuit an element or a battery. Do not store batteries in an untidy manner, in a box, or drawer where they can short-circuit each other or be short-circuited by other metal objects.
• Both batteries and cells can leak under extreme conditions. In the event of a battery leak, keep your skin and eyes away from the liquid. If the liquid gets into contact with skin, wash immediately with soap and water. If the liquid gets into the eyes, wash them immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of it immediately in accordance with local regulations.
• Pay attention to the positive (+) and negative (-) marks on the batteries and the remote-control compartment to ensure they are inserted correctly.
• Do not use any batteries that are not designed for use with the appliance.
• Do not mix batteries of different manufacture, capacity, or

size. Children should be allowed to handle the batteries only under adult supervision.

• Always buy recommended batteries.
• Keep the batteries clean and dry. Wipe the battery terminals with a clean, dry cloth if they become dirty.
• Keep the original instruction manual for future reference.
• Whenever possible, remove the batteries when not in use.

INSTRUCTIONS DE SÉCURITÉ

1. Hanging bracket. Fig.1A or Fig.1B
2. Fan main body. Fig.2 (A, B and C)
3. Remote control. Fig. 3
4. Installation kit. Fig 4.

*The fan is fully assembled

NOTE:

The graphics in this manual are schematic representations and may not exactly match the device.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent damage to the appliance when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

Box content

• Hanging bracket. Fig.1A or Fig.1B
• Fan main body. Fig. 2 (A, B and C)
• Remote control
• Installation kit
• Instruction manual

3. ASSEMBLY

NOTE: assistance should be provided by another person to install the fan safely.

Unpack the ceiling fan carefully, remove all parts and components and place it on a cloth or soft surface to avoid damage. Do not lay the motor housing on its sides to avoid damage to the housing. Before starting the installation, check that no parts are missing.

Warning: to avoid electric shock, all electrical operations should only be carried out after disconnecting the power by removing the fuses or turning off the circuit breaker.

WARNING

To avoid personal injury and damage, make sure that the place to hang the blades leaves a clearance of 2.3 metres from the floor and 76 centimetres from any wall or obstacle. Ensure that the hanging bracket is securely fastened to the building structure and can support the full weight of the fan. Do not attach the mounting bracket directly to ceilings with a thickness of less than 10 mm to avoid the risk of the screw loosening. In addition, make sure that when drilling the holes, there are no gas pipes, vents, gas, or other wiring that could cause damage.

The fan is fully assembled, you only need to install the hanging bracket and then attach the fan body to it.

1. Mark the correct position where you want to install your fan.

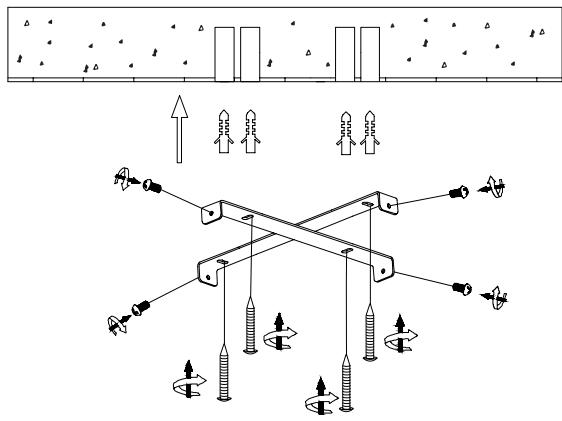

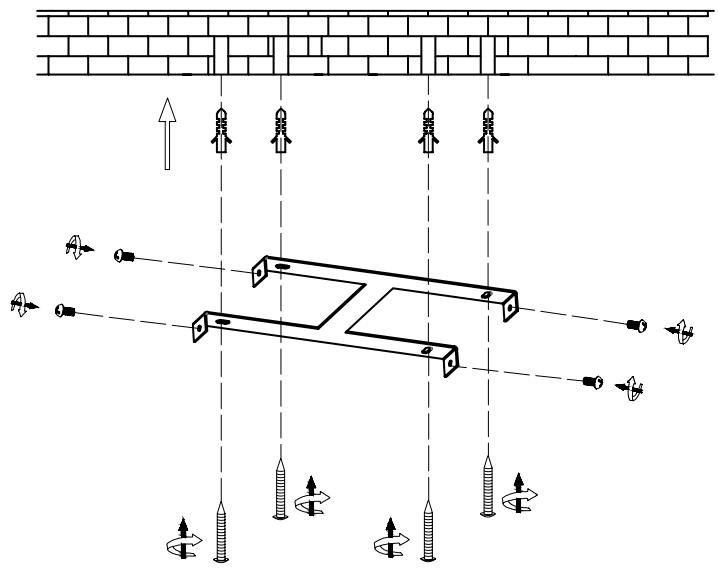

2. Adjust, mark, and drill the holes of the hanging bracket. Fig. 1A or Fig. 1B.
3. Secure the mounting bracket using screws with expansion plugs or screws and washers suitable for the chosen ceiling type. Fig 6. Fig. 7
4. Check the correct installation of the hanging bracket before hanging the fan. The bracket must bear the full weight of the fan.

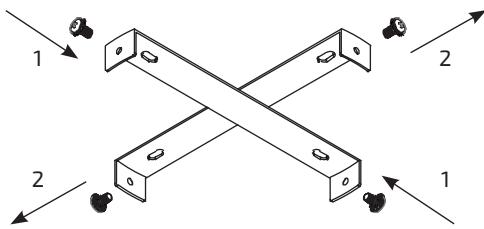

5. For models 08545 and 08650 (Fig. 8A) slightly tighten the screws numbered 1 and remove the screws numbered 2 and keep them until step 9.

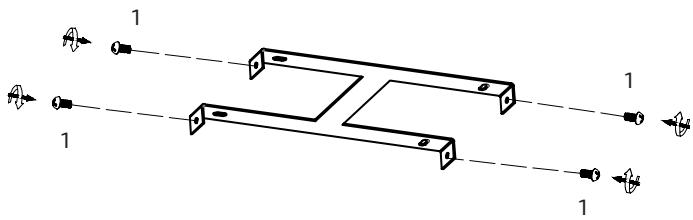

6. For model 08651: Fig. (8B) Slightly screw in the four screws (1).

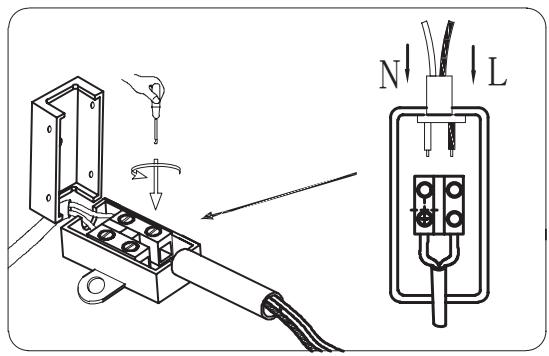

7. Open the junction box and make the wiring connections as shown in the figure. (Line and neutral) Fig. 5. Make sure that the connections are secure and close the junction box.

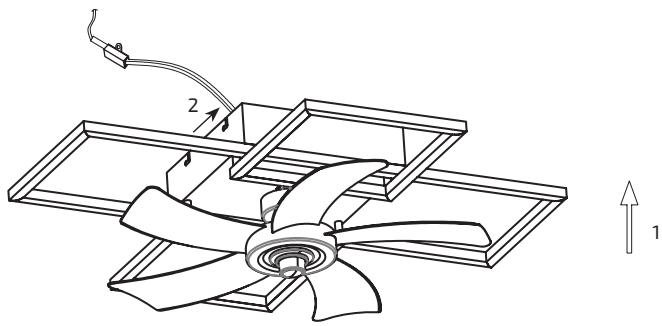

8. For model 08650: Fig. 9A. Align the holes in the mounting bracket with the holes in the fan body (2) and use the two screws that were left lightly tightened before to join both parts. Then, tighten these screws securely.
9. For model 08645: Fig. 9B. Insert the fan body so that it matches the hanging bracket (1) and screw two opposing screws to the fan body (2).
10. For model 08651; Fig. 9C. Insert the fan body through the four pre-tightened screws and then slide the fan body so that it hangs on the hanging bracket. Tighten the four screws securely.
11. For models 08545 and 08650: Insert the screws left aside in step 5 into the remaining holes in the fan body and tighten them securely.
12. Before starting the fan and switching on the power, check that the fan is firmly fastened.
13. Installation is complete.

ENGLISH

4. OPERATION

Fig. 3 key:

1. Light on/off button
2. Fan on/off button
3. Speeds button
4. Light tone increase button (power)
5. Light temperature increase button
6. Light tone decrease button (power)
7. Light temperature decrease button
8. Timer buttons
9. Sleep mode for light
10. Winter/summer mode

11. Quick change of light temperature

12. Use the speed buttons ⏻ ⏻ ⏱ to select the air power level from 1 to 3.

13. Use the timer buttons 0.5H 1H 2H to select the fan operating time: 0.5h - 1h - 2h. The fan will switch off once the selected time has elapsed.
14. Press the light on/off button ⚙️ to turn the fan's light on and off.
15. Press the sleep mode button Ⓜ to switch the light on at 5% power.

Winter Function: press button ⏻ to activate the winter function. The fan will make air flow from the bottom upwards, bringing cold air to the top of the room.

Summer Function: press button ⏻ to activate the summer function. The fan will make air flow from the top downwards, bringing cold air to the bottom of the room.

NOTE:

• If you notice that the transmitter does not control the receiver, check that the batteries are inserted correctly and that they are not dead.
• This may also be due to the proximity of similar products that also operate with a remote control, which, if they use the same frequency, could cause interference.
• If the batteries in the remote control are dead, replace them so that you can continue to use it normally.
• Remove the batteries from the remote control if you are not going to use it for a long period of time.
• When positioning the fan, make sure that no wires are pinched. If this happens, a short-circuit may occur.

Recommendations

- If your fan runs automatically when you switch it on for the first time after installation, it has memorised the previous factory setting.

• If the fan or light does not work, reset the fan. To do this, turn it off for at least 5 seconds and then turn it on again.
• When the fan is switched on and starts running in either direction (clockwise or counterclockwise), it will stop and change direction several times. This is normal. The fan will take some time to perform the selected function and to start up regularly.

Reconnect the mains supply from the electrical switchboard in the house.

Remove the battery-compartment cover of the remote control, insert the batteries, and replace the cover.

Note:

• The remote control is powered by two AAA 1.5 V batteries.
• The remote control operates within a maximum range of 6 metres from the transmitter to the receiver.
• If the fan is not to be used for a long period of time, store the remote control in a dry place where it will not be exposed to heat or direct sunlight. Also remove the battery.

5. CLEANING AND MAINTENANCE

• Clean the fan regularly.
• When cleaning, only use a soft brush or lint-free cloth to avoid scratching the finish.
• Abrasive cleaning agents are not necessary and should be avoided in order not to damage the finish.

RECOMMENDATION:

Periodically check that the blades are securely fixed to the motor.

WARNING: do not use solvents to clean the fan. Doing so may result in a risk of electric shock.

• Make sure to disconnect the fan before cleaning it.
• Do not immerse any of the parts of the appliance in water or splash them with any other liquid.
• Do not use solvents or any other chemical products for cleaning.
• Use a soft, damp cloth to clean the surface of the device.

6. TECHNICAL SPECIFICATIONS

Product reference: 8645/8650/8651

Product: EnergySilence LampAero 600 FlowLight / EnergySilence LampAero 670 FlowLight / EnergySilence LampAero 690 FlowLight

ENGLISH

Power: 20 W

LED: 40W

Voltage: 220-240 V

Frequency: 50 Hz

Description	Symbol	Value	Unit
Fan maximum flow	F	52.34	m^3/min
Fan power consumption	P	16.2	W
Service value	SV	3.231	(m^3/min)/W
Power consumption on standby mode	P_SB	N/A	W
Fan sound power level	L_WA	59.5	dB (A)
Maximum air speed	C	3.0	m/seg
Service value measurement standard	IEC 60879
Contact details to obtain more information	Cecotec Innovaciones SL.Av. Reyes Católicos, No 60, 46910,Alfafar (Valencia, Spain)

Technical specifications may change without prior notification to improve product quality. Made in China | Designed in Spain

7. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

9. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

FRANÇAIS

1. PIÈCES ET COMPOSANTS

Fig./Img./Abb./Afb./Rys. 1A

Fig./Img./Abb./Afb./Rys. 1B

Fig./Img./Abb./Afb./Rys. 2

Fig./Img./Abb./Afb./Rys. 3

Fig./Img./Abb./Afb./Rys. 4

Fig./Img./Abb./Afb./Rys. 5

Fig./Img./Abb./Afb./Rys. 6

Fig./Img./Abb./Afb./Rys. 7

Fig./Img./Abb./Afb./Rys. 8A

Fig./Img./Abb./Afb./Rys. 8B

Fig./Img./Abb./Afb./ Rys. 9A

Fig./Img./Abb./Afb./ Rys. 9B

Fig./Img./Abb./Afb./Rys. 9C
