Product type	Ceiling fan with light fixture
Brand	Cecotec
Model	Energysilence Lampaero 650 Design M
Blade diameter	132 cm (52 inches)
Number of blades	5
Total height	35 cm (without rod)
Net weight	5.2 kg
Power supply	220-240 V ~ 50/60 Hz
Motor power	50 W
Lighting power	24 W (integrated LED)
Speeds	3 (low, medium, high)
Summer/winter function	Yes (rotation direction reverse)
Control	Infrared remote control and wall switch
Mounting type	Sloped ceiling up to 15°
Material	Metal and ABS
Maximum noise level	< 45 dB(A)
Insulation class	II
Protection rating	IP20
Operating temperature	-10 °C to 40 °C
Maintenance and cleaning	Clean with a soft, dry cloth. Do not use abrasive products.
Safety	Do not use without blades. Disconnect before maintenance.
Spare parts	Remote control, LED bulb, mounting kit, blades
Repairability	Repairability index: 7.8 / 10

Frequently Asked Questions - Energysilence Lampaero 650 Design M CECOTEC

How to install the Energysilence Lampaero 650 ceiling fan?

Installation must be carried out by a qualified professional. Follow the steps in the manual: fix the bracket to the ceiling, connect the electrical wires (phase, neutral, ground), mount the blades and the light fixture, then test operation.

How to use the remote control?

The infrared remote control allows you to adjust the speed (3 levels), turn the light on/off, and reverse the rotation direction (summer/winter). Point the remote at the fan's receiver.

How to reverse the rotation direction for winter?

Press the reverse button on the remote control or the wall switch. In winter, the blades rotate clockwise (viewed from below) to redistribute warm air.

How to clean the fan?

Unplug the device. Use a soft, dry cloth to wipe the blades and housing. Never use water or chemicals. For LED parts, use a microfiber cloth.

What to do if the fan does not turn on?

Check that the wall switch is on and the remote control has batteries. Ensure the circuit breaker has not tripped. If the problem persists, contact customer service.

What is the light output of the integrated light?

The integrated LED light has a power of 24 W and a color temperature of 3000 K (warm white). It is not user-replaceable.

Can this fan be installed on a sloped ceiling?

Yes, the fan is compatible with sloped ceilings up to 15° thanks to the included mounting ball joint.

What is the warranty of the product?

Cecotec offers a 2-year warranty from the date of purchase. Keep the invoice and follow the installation instructions to benefit from the warranty.

Where to find spare parts?

Spare parts (remote control, mounting kit, blades) are available on the official Cecotec website or from authorized dealers.

How to fix the remote control if it does not work?

Replace the batteries (AAA 1.5 V). Check that no obstacles block the signal. If necessary, resynchronize the remote by turning the fan off and on using the wall switch.

USER MANUAL Energysilence Lampaero 650 Design M CECOTEC

Safety instructions 8

1. Parts and components 45

2. Before use 45

3. Assembly 45

4. Operation 46

5. Cleaning and maintenance 48

6. Technical specifications 48

7. Disposal of old electrical and electronic appliances 49

8. Technical support and warranty 49

9. Copyright 50

SOMMAIRE

Read these instructions thoroughly before using the device. Keep this instruction manual for future reference or new users.

• This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.
• Keep a minimum distance of 2.3 cm between the fan blades and the floor.
• Keep a minimum distance of 76 cm between the fan blades and the wall or any other object.
• Make sure the appliance is unplugged from the power supply before cleaning or user maintenance.
• This device is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• Make sure that the mains voltage matches the voltage stated on the appliance marking and that the wall outlet is earthed.
• If the power cord is damaged, it must be replaced by the official Cecotec Technical Support Service to avoid any type of danger.
• Do not use the appliance if its cord or housing are damaged, nor after it malfunctions or has been dropped or damaged in any way.

• The appliance must be installed in accordance with national wiring regulations.

• Never insert objects or body parts between the rotating fan blades.

• To reduce the risk of injury, attach the fan directly to the support structure of the building as indicated in this manual and use only parts and components provided and recommended by Cecotec.
• Cut off the power completely before installing or repairing the fan to avoid the risk of electric shock.
• The electrical wiring must be in accordance with the local regulations.
• The cable must be properly earthed to avoid possible accidents.
• Never install the fan in a damp or wet room.
• Be careful when near the rotating fan blades.
• To adjust the speed of the fan blades, only use the means for speed control provided by Cecotec.
• Do not bend the blade-attachment system during the installation or cleaning process.
• Cleaning and maintenance must be carried out according to this instruction manual to make sure the appliance works properly. Turn off and unplug the appliance before cleaning it.
• Make sure the fan is not placed close to curtains or other objects it may become entangled with.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene, etc.) out of their reach.
• It is recommended that two people install the appliance.
• This appliance is designed for indoor use.

Instructions on batteries

- Battery ingestion can cause burns, soft-tissue perforation, and death. It can cause severe burns within two hours of the ingestion.

• In case of battery ingestion, please seek medical attention immediately.
• Do not allow children to replace batteries without adult supervision.
• Do not disassemble, open, or damage the batteries.
• Keep the batteries out of the reach of children. Pay particular attention to small batteries. In case of battery ingestion, please seek medical attention immediately.
• Do not expose batteries to heat or fire. Avoid storage in direct sunlight.
• Do not short-circuit an element or a battery. Do not store batteries in an untidy manner, in a box, or drawer where they can short-circuit each other or be short-circuited by other metal objects.
• Both batteries and cells can leak under extreme conditions. In the event of a battery leak, keep your skin and eyes away from the liquid. If the liquid gets into contact with skin, wash immediately with soap and water. If the liquid gets into the eyes, wash them immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of it immediately in accordance with local regulations.
• Pay attention to the positive (+) and negative (-) marks on the batteries and the remote-control compartment to ensure they are inserted correctly.
• Do not use any batteries that are not designed for use with the appliance.
• Do not mix batteries of different manufacture, capacity, or size. Children should be allowed to handle the batteries only under adult supervision.
• Always buy recommended batteries.

• Keep the batteries clean and dry. Wipe the battery terminals with a clean, dry cloth if they become dirty.

• Keep the original instruction manual for future reference.

• Whenever possible, remove the batteries when not in use.

INSTRUCTIONS DE SÉCURITÉ

1. Mounting bracket. Fig. 1

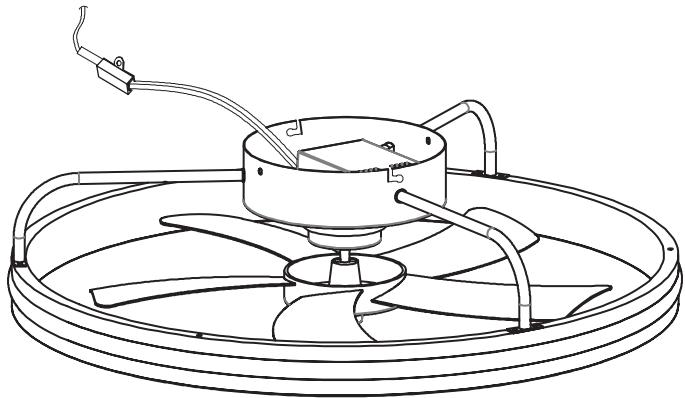

2. Fan main body. Fig. 2
3. Lampshade. Fig. 3 (except for model 08646)
4. Remote control. Fig 4.
5. Installation kit Fig. 5

The fan is fully assembled with the lampshade attached to the fan body.

NOTE:

The graphics in this manual are schematic representations and may not exactly match the device.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent damage to the appliance when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

Box content

• Mounting bracket
• Fan main body
• Remote control
• Installation kit
• Instruction manual

3. ASSEMBLY

NOTE: assistance should be provided by another person to install the fan safely.

Unpack the ceiling fan carefully, remove all parts and components and place it on a cloth or soft surface to prevent damage. Do not lay the motor housing on its sides to avoid damage to the housing. Before starting the installation, check that no parts are missing.

ENGLISH

Warning: to avoid electric shock, all electrical operations should only be carried out after disconnecting the power by removing the fuses or turning off the circuit breaker.

WARNING

To avoid personal injury and damage, make sure that the place to hang the blades leaves a clearance of 2.3 metres from the floor and 76 centimetres from any wall or obstacle. Ensure that the mounting bracket is securely fastened to the building structure and can support the full weight of the fan. Do not attach the mounting bracket directly to ceilings with a thickness of less than 10 mm to avoid the risk of the screw loosening.

The fan is fully assembled, you only need to install the mounting bracket and then attach the fan body to it.

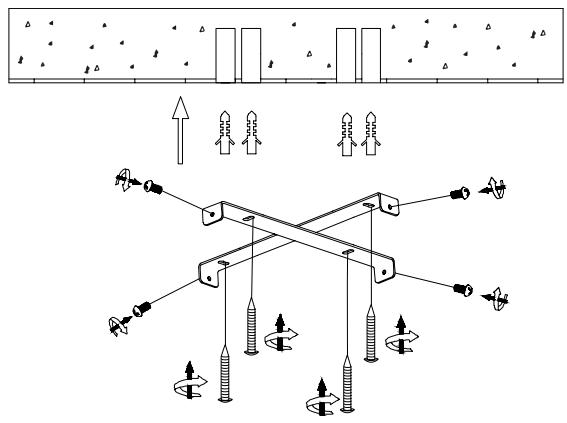

1. Mark the correct position where you want to install your fan.
2. Adjust, mark, and drill the holes of the mounting bracket.
3. Secure the mounting bracket using screws with expansion plugs or screws and washers suitable for the chosen ceiling type. Fig 6. Fig. 7
4. Check the correct installation of the mounting bracket before hanging the fan. The bracket must bear the full weight of the fan.

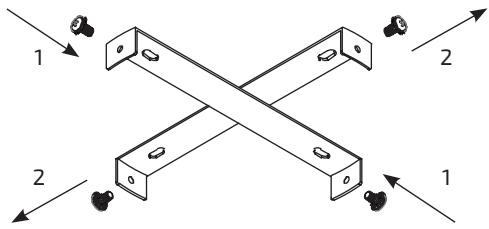

5. As shown in the figure, lightly tighten the screws numbered 1 and then remove the screws numbered 2 and keep them until step 8. Fig. 8
6. Open the junction box and make the wiring connections as shown in the figure (line and neutral) Fig. 9. Make sure that the connections are secure and close the junction box.

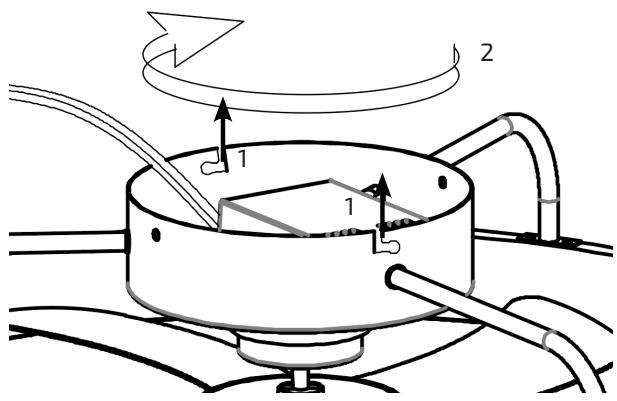

7. Align the holes in the mounting bracket with the holes in the fan body (2) and use the two screws that were left lightly tightened before to join both parts. Then, tighten these screws securely. Fig. 10
8. Insert the screws left aside in step 5 into the remaining holes in the fan body and tighten them securely.
9. Before starting the fan and switching on the power, check that the fan is firmly fastened.

4. OPERATION

Fig. 4 key:

1. Power button (both for the fan and light)
2. Sleep mode button
3. Light power button
4. Light shade reduction
5. Speed buttons (1 to 6)
6. Fan power button

7. Winter/summer function button

8. Light shade increase

9. Light shade increase
10. Light shade reduction

11. Timer buttons

12. Use the speed buttons to select the air power level from 1 to 6.

13. Use the timer buttons to select the fan operating time: 1 h, 2 h, 4 h, and 8 h. The fan will switch off once the selected time has elapsed.
14. Press the light power button to turn the fan's light on and off.
15. Press the sleep mode button to switch the light on at 5% power.

Winter Function

Press button 7 to activate the winter function. The fan will make air flow from the bottom upwards, bringing cold air to the top of the room.

Summer Function

Press button 7 to activate the summer function. The fan will make air flow from the top downwards, bringing cold air to the bottom of the room.

NOTE

• If you notice that the transmitter does not control the receiver, check that the batteries are inserted correctly and that they are not dead.
• This may also be due to the proximity of similar products that also operate with a remote control, which, if they use the same frequency, could cause interference.
• If the batteries in the remote control are dead, replace them so that you can continue to use it normally.
• Remove the batteries from the remote control if you are not going to use it for a long period of time.
• When positioning the fan, make sure that no wires are pinched. If this happens, a short-circuit may occur.

Recommendations

• If your fan runs automatically when you switch it on for the first time after installation, it has memorised the previous factory setting.
• If the fan or light does not work, reset the fan. To do this, turn it off for at least 5 seconds and then turn it on again.
• When the fan is switched on and starts running in either direction (clockwise or counterclockwise), it will stop and change direction several times. This is normal. The fan will take some time to perform the selected function and to start up regularly.

ENGLISH

• Reconnect the mains supply from the electrical switchboard in the house.
• Remove the battery-compartment cover of the remote control, insert the batteries, and replace the cover.

Note:

• The remote control is powered by two AAA 1.5 V batteries.
• The remote control operates within a maximum range of 6 metres from the transmitter to the receiver.
• If the fan is not to be used for a long period of time, store the remote control in a dry place where it will not be exposed to heat or direct sunlight. Also remove the battery.

5. CLEANING AND MAINTENANCE

• Clean the fan regularly.
• When cleaning, only use a soft brush or lint-free cloth to avoid scratching the finish.
• Abrasive cleaning agents are not necessary and should be avoided in order not to damage the finish.

RECOMMENDATION:

Periodically check that the blades are securely fixed to the motor.

WARNING: do not use solvents to clean the fan. Doing so may result in a risk of electric shock.

• Make sure to disconnect the fan before cleaning it.
• Do not immerse any of the parts of the appliance in water or splash them with any other liquid.
• Do not use solvents or any other chemical products for cleaning.
• Use a soft, damp cloth to clean the surface of the device.

6. TECHNICAL SPECIFICATIONS

Product reference: 08629 / 08630 / 08631 / 08632 / 08633 / 08634 / 08635 / 08636 / 08637 / 08646

Product: EnergySilence LampAero 600 Natural Design / EnergySilence LampAero 610 Natural Design / EnergySilence LampAero 620 Natural Design / EnergySilence LampAero 600 Black Design / EnergySilence LampAero 600 Green Design / EnergySilence LampAero 600 Beige Design / EnergySilence LampAero 650 Black Design / EnergySilence LampAero 650 Beige Design / EnergySilence LampAero 650 White Design / EnergySilence LampAero 650 FlowLight

Power: 20 W

LED: 45 W

Voltage: 220-240 V

Frequency: 50 Hz

Description	Symbol	Value	Unit
Fan maximum flow	F		m^3/min
Fan power consumption	P		W
Service value	SV		(m^3/min)/W
Power consumption on standby mode	P_SB		W
Fan sound power level	L_WA		dB (A)
Maximum air speed	C		m/seg
Service value measurement standard	IEC 60879
Contact details to obtain more information	Cecotec Innovaciones SL.Av. Reyes Católicos, No 60, 46910,Alfafar (Valencia, Spain)

Technical specifications may change without prior notification to improve product quality. Made in China | Designed in Spain

7. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

8. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

ENGLISH

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

9. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

1. PIÈCES ET COMPOSANTS

Fig./Img./Abb./Afb./Rys.1

Fig./Img./Abb./Afb./Rys. 2

Fig./Img./Abb./Afb./Rys. 3

Fig./Img./Abb./Afb./Rys. 4

Fig./Img./Abb./Afb./ Rys. 5

Fig./Img./Abb./Afb./Rys. 6

Fig./Img./Abb./Afb./Rys. 7

Fig./Img./Abb./Afb./Rys. 8

Fig./Img./Abb./Afb./Rys. 9

Fig./Img./Abb./Afb./Rys. 10
