USER MANUAL Energysilence Aero 7000 Light Pro CECOTEC

Safety instructions 7

1. Parts and components 44

2. Before use 44

3. Assembly 45

4. Operation 46

5. Cleaning and maintenance 47

6. Technical specifications 48

7. Disposal of old electrical and electronic appliances 49

8. Technical support and warranty 49

9. Copyright 49

SOMMAIRE

Read these instructions thoroughly before using the device. Keep this instruction manual for future reference or new users.

• This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.
• Keep a minimum distance of 2.3 cm between the fan blades and the floor.

• Keep a minimum distance of 76 cm between the fan blades and the wall or any other object.

• Make sure the appliance is unplugged from the power supply before cleaning or user maintenance.

• This device is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• Make sure that the mains voltage matches the voltage stated on the appliance marking and that the wall outlet is earthed.
• If the power cord is damaged, it must be replaced by the official Cecotec Technical Support Service to avoid any type of danger.
• Do not use the appliance if its cord or housing are damaged, nor after it malfunctions or has been dropped or damaged in any way.
• The appliance must be installed in accordance with national wiring regulations.
• Never insert objects or body parts between the rotating fan blades.
• To reduce the risk of injury, attach the fan directly to the support structure of the building as indicated in this manual and use only parts and components provided and recommended by Cecotec.
• Cut off the power completely before installing or repairing the fan to avoid the risk of electric shock.
• The electrical wiring must be in accordance with the local regulations.
• The cable must be properly earthed to avoid possible accidents.
• The appliance must be installed in accordance with national wiring regulations.
• Never install the fan in a damp or wet room.

• Be careful when near the rotating fan blades.

• To adjust the speed of the fan blades, only use the means for speed control provided by Cecotec.

• Do not bend the blade-attachment system during the installation or cleaning process.
• Cleaning and maintenance must be carried out according to this instruction manual to make sure the appliance works properly. Turn off and unplug the appliance before cleaning it.
• Make sure the fan is not placed close to curtains or other objects it may become entangled with.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene, etc.) out of their reach.
• It is recommended that two people install the appliance.
• This appliance is designed for indoor use.

Instructions on batteries

• Battery ingestion can cause burns, soft-tissue perforation, and death. It can cause severe burns within two hours of the ingestion.
• In case of battery ingestion, please seek medical attention immediately.
• Do not allow children to replace batteries without adult supervision.
• Do not disassemble, open, or damage the batteries.
• Keep the batteries out of the reach of children. Pay particular attention to small batteries. In case of battery ingestion, please seek medical attention immediately.
• Do not expose batteries to heat or fire. Avoid storage in direct sunlight.
• Do not short-circuit an element or a battery. Do not store batteries in an untidy manner, in a box, or drawer where they

can short-circuit each other or be short-circuited by other metal objects.

• Both batteries and cells can leak under extreme conditions. In the event of a battery leak, keep your skin and eyes away from the liquid. If the liquid gets into contact with skin, wash immediately with soap and water. If the liquid gets into the eyes, wash them immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of it immediately in accordance with local regulations.
• Pay attention to the positive (+) and negative (-) marks on the batteries and the remote-control compartment to ensure they are inserted correctly.
• Do not use any batteries that are not designed for use with the appliance.
• Do not mix batteries of different manufacture, capacity, or size. Children should be allowed to handle the batteries only under adult supervision.
• Always buy recommended batteries.
• Keep the batteries clean and dry. Wipe the battery terminals with a clean, dry cloth if they become dirty.
• Keep the original instruction manual for future reference.
• Whenever possible, remove the batteries when not in use.

INSTRUCTIONS DE SÉCURITÉ

Mounting bracket. Fig. 1

Canopy. Fig. 2

Downrods. Fig. 3

Trim. Fig. 4

Motor. Fig. 5

9 blades. Fig. 6.

Light bracket. Fig. 7

Lampshade. Fig. 8

Remote control receiver. Fig. 9

Anti-sway kit. Fig. 10

Expansion plugs Fig. 11A

Installation kit Fig. 11B

LED light. Fig. 12

Remote control. Fig. 13

NOTE:

The graphics in this manual are schematic representations and may not exactly match the device.

2. BEFORE USE

- This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent damage to the appliance when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.

- Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

Box content

• Mounting bracket
• Canopy
• Downrods
• Trim
• Motor
• 9 blades

• Light bracket

• Lampshade

• Remote control receiver
• Anti-sway kit
• Installation kit
• LED light
• Remote control

3. ASSEMBLY

NOTE: assistance should be provided by another person to install the fan safely.

Unpack the ceiling fan carefully, remove all parts and components and place it on a cloth or soft surface to prevent damage. Do not lay the motor housing on its sides to avoid damage to the housing. Before starting the installation, check that no parts are missing.

Warning: to avoid electric shock, all electrical operations should only be carried out after disconnecting the power by removing the fuses or turning off the circuit breaker.

WARNING

To avoid personal injury and damage, make sure that the place to hang the blades leaves a clearance of 2.3 metres from the floor and 76 centimetres from any wall or obstacle. Ensure that the hanging bracket is securely fastened to the building structure and can support the full weight of the fan. Do not attach the mounting bracket directly to ceilings with a thickness of less than 10 mm to avoid the risk of the screw loosening, i.e. make sure that the ceiling joists are strong enough and of the right size to support a weight of about 35 kg. In addition, make sure that when drilling the holes, there are no gas pipes, vents, gas, or other wiring that could cause damage.

1. Mark the correct position where you want to install your fan.

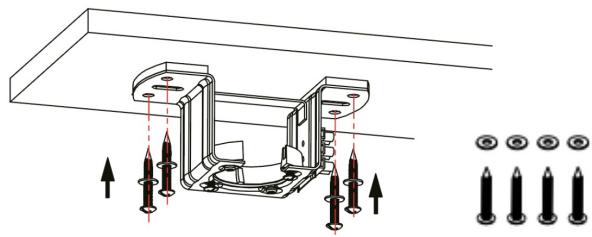

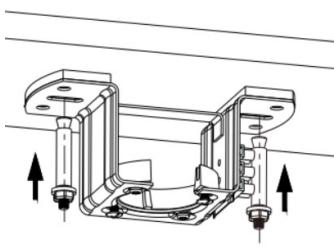

2. Adjust, mark and drill holes in the mounting bracket Fig. 1. Fix the mounting bracket, as shown in Fig. 14. In the case of a wooden ceiling, carry out as in Fig. 16 and in the case of a concrete ceiling, carry out as in Fig. 17
3. Before proceeding with the installation of the fan, check the correct installation of the mounting bracket and make sure that it will support the weight of the fan.
4. Now once mounted, make sure that the electricity is completely disconnected.
5. Connect the house wiring to the power socket.
6. Make the neutral input wiring connections (blue wire).
7. Connect the earth input wiring (yellow and green).
8. Make the line input wiring connections (black or brown).
9. Connect the receiver wire to the terminal block according to the shape of the connector.
10. Choose the downrod length according to your needs.

ENGLISH

1. If you have chosen the pre-installed downrod, remove the pin and continue from step 15. If you have chosen the extension downrod continue with the following steps.
2. Remove the pin, the hanging ball screw together with the downrod and the other pin.
3. Place the hanging ball, secure it with the pin and screw it in place. Do not put the pin that is not in the hanging ball yet.
4. Pass the canopy and the downrod cover through the downrod you have chosen to use, Fig. 15
5. Loosen the motor screws to connect the fan body to the downrod.
6. Route the motor cables inside the downrod.
7. Screw the motor back onto the downrod.
8. Slide the downrod cover towards the motor body.
9. Hang the fan body from the hanging ball to the bracket, make sure it fits snugly and connect the receiver plugs together with the motor plugs.
10. Place the receiver of the remote control on the mounting bracket Fig. 18
11. Now place the blades into the side holes of the motor and screw them tightly Fig. 19

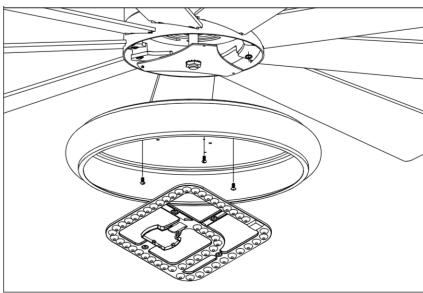

12. Screw the light bracket onto the bottom of the engine Fig. 20
13. Place the LED light inside the bracket which is held in place by magnets.
14. Place the lampshade and turn it until it is secure.
15. Before starting the fan, it is important to make sure that the fan blades are secure.

4. OPERATION

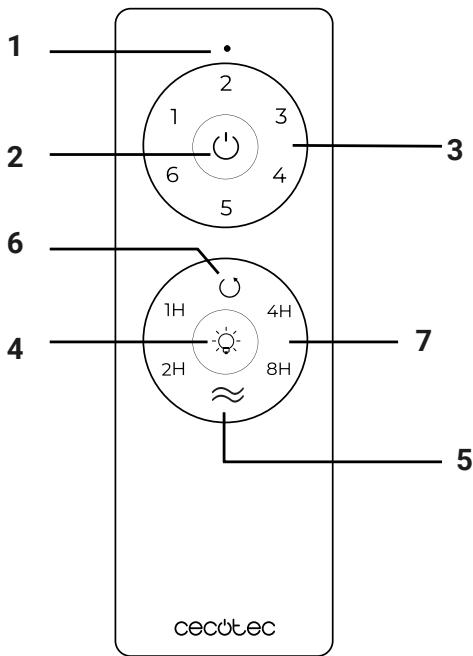

Fig. 13 key:

1. Operation indicator light
2. Fan off button ⏻
3. Fan on and speed buttons (1 to 6). You can switch on the fan at the desired speed 123456.
4. Light on/off button -
5. Natural breeze button. The fan chooses speeds from 1 to 6 randomly ≈.
6. Winter/summer button.

7. Timer buttons 1H 2H 4H 8H.

8. Only use the button to select Natural Breeze ≈ when the fan is in operation.

9. If you press any timer button 1H 2H 4H 8H, do not press any other button, otherwise the function will be cancelled.
10. For light operation ⚡, pressing the button successively will turn the light on and off. It will also change the temperature of the light in a cyclical manner.

NOTE

- If you notice that the transmitter does not control the receiver, check that the batteries are inserted correctly and that they are not dead.

• This may also be due to the proximity of similar products that also operate with a remote control, which, if they use the same frequency, could cause interference.
• If the batteries in the remote control are dead, replace them so that you can continue to use it normally.
• Remove the batteries from the remote control if you are not going to use it for a long period of time.
• When positioning the fan, make sure that no wires are pinched. If this happens, a short-circuit may occur.

Recommendations

• If your fan runs automatically when you switch it on for the first time after installation, it has memorised the previous factory setting.
• If the fan or light does not work, reset the fan. To do this, turn it off for at least 5 seconds and then turn it on again.
• When the fan is switched on and starts running in either direction (clockwise or counterclockwise), it will stop and change direction several times. This is normal. The fan will take some time to perform the selected function and to start up regularly.

Reconnect the mains supply from the electrical switchboard in the house.

Remove the battery-compartment cover of the remote control, insert the batteries, and replace the cover.

Note

• The remote control is powered by two AAA 1.5 V batteries.
• The remote control operates within a maximum range of 6 metres from the transmitter to the receiver.
• If the fan is not to be used for a long period of time, store the remote control in a dry place where it will not be exposed to heat or direct sunlight. Also remove the battery.

5. CLEANING AND MAINTENANCE

• Clean the fan regularly.
• When cleaning, only use a soft brush or lint-free cloth to avoid scratching the finish.
• Abrasive cleaning agents are not necessary and should be avoided in order not to damage the finish.

RECOMMENDATION

Periodically check that the blades are securely fastened to the motor with the screws.

WARNING: do not use solvents to clean the fan. Doing so may result in a risk of electric shock.

ENGLISH

• Make sure to disconnect the fan before cleaning it.
• Do not immerse any of the parts of the appliance in water or splash them with any other liquid.
• Do not use solvents or any other chemical products for cleaning.
• Use a soft, damp cloth to clean the surface of the device.

6. TECHNICAL SPECIFICATIONS

Product reference: 08567

Product: EnergySilence Aero 7000 Light Pro

Power: 50 W

LED: 32 W

Voltage: 200-240 V

Frequency: 50/60 Hz

Description	Symbol	Value	Unit
Fan maximum flow	F		m^3/min
Fan power consumption	P		W
Service value	SV		(m^3/min)/W
Power consumption on standby mode	P_SB		W
Fan sound power level	L_WA		dB (A)
Maximum air speed	C		m/seg
Service value measurement standard	IEC 60879
Contact details to obtain more information	Cecotec Innovaciones SL.Av. Reyes Católicos, No 60, 46910,Alfafar (Valencia, Spain)

Technical specifications may change without prior notification to improve product quality. Made in China | Designed in Spain

7. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities. Consumers must contact their local authorities or retailer for information

concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

8. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

9. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

FRANÇAIS

1. PIÈCES ET COMPOSANTS

Support de suspension. Img. 1

Couvercle de protection. Img. 2

Product: EnergySilence Aero 7000 Light Pro

Vermogen: 50 W

LED: 32 W

Voltage: 200-240 V

Frequentie: 50/60 Hz

Fig./Img./Abb./Afb./ Rys./Obr. 1

Fig./Img./Abb./Afb./ Rys./Obr. 2

Fig./Img./Abb./Afb./ Rys./Obr. 3

Fig./Img./Abb./Afb./Rys./Obr. 4

Fig./Img./Abb./Afb./Rys./Obr. 5

Fig./Img./Abb./Afb./ Rys./Obr. 6

Fig./Img./Abb./Afb./ Rys./Obr. 7

Fig./Img./Abb./Afb./Rys./Obr. 8

Fig./Img./Abb./Afb./ Rys./Obr. 9

Fig./Img./Abb./Afb./ Rys./Obr. 10

Fig./Img./Abb./Afb./ Rys./Obr. 11A

Fig./Img./Abb./Afb./ Rys./Obr. 11B

Fig./Img./Abb./Afb./ Rys./Obr. 12

Fig./Img./Abb./Afb./ Rys./Obr. 13

Fig./Img./Abb./Afb./Rys./Obr. 14

Fig./Img./Abb./Afb./Rys./Obr. 15

Fig./Img./Abb./Afb./Rys./Obr. 16

Fig./Img./Abb./Afb./Rys./Obr. 17

Fig./Img./Abb./Afb./ Rys./Obr. 18

Fig./Img./Abb./Afb./ Rys./Obr. 19

Fig./Img./Abb./Afb./Rys./Obr. 20

www.cecotec.es
