Product type	Combined refrigerator
Brand	Cecotec
Model	Bolero Coolmarket Combi 356i Dark E
Total capacity	356 liters
Refrigerator capacity	250 liters
Freezer capacity	106 liters
Dimensions (H x W x D)	185 x 60 x 65 cm
Net weight	70 kg
Power supply	220-240 V ~ 50 Hz
Climate class	N-ST (16°C to 38°C)
Noise level	40 dB
Cooling technology	No Frost (frost-free) in the freezer
Compressor	Inverter (variable)
Lighting	LED
Controls	Electronic with digital display
Special functions	Quick cooling, quick freezing, vacation mode, open door alarm
Door reversibility	Yes
Defrost	Automatic for the refrigerator, manual for the freezer (depending on model)
Maintenance and cleaning	Clean with a soft cloth and warm water, do not use abrasive products
Spare parts and repairability	Repairability index: 7-8/10 (estimated), parts available through after-sales service
Warranty	2 years

Frequently Asked Questions - Bolero Coolmarket Combi 356i Dark E CECOTEC

What is the total capacity of the Bolero Coolmarket Combi 356i Dark E refrigerator?

The total capacity is 356 liters, divided into approximately 250 liters for the refrigerator and 106 liters for the freezer.

How to adjust the temperature of the refrigerator and freezer?

Use the electronic control panel. For the refrigerator, the recommended temperature is between 2 and 5 °C. For the freezer, set between -18 and -20 °C. Refer to the manual for the exact procedure.

Do I need to defrost the freezer?

Yes, the freezer requires manual defrosting when the frost layer exceeds 3 mm. The refrigerator is equipped with automatic defrosting.

How to reverse the door opening direction?

The doors are reversible. You must disassemble the hinges, handle, and stops, then reassemble them on the other side. A key and instructions are provided in the manual.

What to do if the appliance is not cooling enough?

Check that the temperature is set correctly, that the ventilation grilles are not obstructed, and that the door closes properly. Clean the condenser if necessary. If the problem persists, contact after-sales service.

The appliance makes an abnormal noise, is that normal?

Some noises are normal (compressor, gas circulation). A clicking sound may come from automatic defrosting. If the noise is loud or continuous, check that the appliance is level and not touching a wall.

How to clean the interior of the refrigerator?

Unplug the appliance, remove food and shelves. Clean with a soft cloth dampened with warm water and baking soda. Rinse and dry. Never use abrasive cleaners or solvents.

What is the climate class of this appliance?

The climate class is N-ST, meaning the appliance can operate in an ambient temperature range of 16 °C to 38 °C.

Can I install the appliance in an unheated garage?

No, because the ambient temperature must be between 16 °C and 38 °C. Below 16 °C, the compressor may not start correctly.

How to save energy with this refrigerator?

Place the appliance in a cool, well-ventilated area away from heat sources. Do not leave the door open too long. Set the temperature to the minimum necessary (4 °C for the fridge, -18 °C for the freezer). Activate vacation mode if you are away.

USER MANUAL Bolero Coolmarket Combi 356i Dark E CECOTEC

1. Parts and components 114
2. Before use 114
3. Installation 115
4. Operation 118
5. Food storage instructions 121
6. Cleaning and maintenance 123
7. Troubleshooting 125
8. Recycling of electrical and electronic equipment 127
9. Technical support and warranty 127
10. Copyright 127
11. Simplified Declaration of Conformity 128

SOMMAIRE

EU01_111275_Bolero CoolMarket Combi 356i White E

EU01_111276_Bolero CoolMarket Combi 356i Inox E

EU01_120293_Bolero CoolMarket Combi 356i Dark E

EU01_120294_Bolero CoolMarket Combi 356i White Glass E

EU01_120295_Bolero CoolMarket Combi 356i Grey Glass E

EU01_120296_Bolero CoolMarket Combi 356i Black Glass E

EU01_119902_Bolero CoolMarket Combi 356i White D

EU01_119903_Bolero CoolMarket Combi 356i Inox D

EU01_119904_Bolero CoolMarket Combi 356i Dark D

EU01_119905_Bolero CoolMarket Combi 356i White Glass D

EU01_119906_Bolero CoolMarket Combi 356i Grey Glass D

EU01_119907_Bolero CoolMarket Combi 356i Black Glass D

EN • The coding in this manual is generic and applies to all code variants of the appliance.

Read the instructions carefully before using the appliance for the first time and keep this instruction manual for future reference or new users.

• It is important to make sure all users are familiar with the appliance's operation and safety features to prevent faults and unnecessary accidents.
• Make sure that the mains voltage in your house matches the voltage stated on the rating label of the appliance.
• This appliance can be used by children aged 8 and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge, as long as they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and maintenance should not be carried out by children without supervision.
• To avoid the risk of suffocation, keep the packaging material away from children.

- WARNING: If the interior lighting is damaged, please contact Cecotec's Official Technical Support Service. Do not try to repair it yourself.

- WARNING: when positioning the appliance, make sure the power cord does not get trapped or damaged. A crushed or damaged plug may heat up and cause a fire.

- WARNING: keep the ventilation grilles on the appliance body unobstructed.

- Make sure the appliance plug is accessible after installation.

- Do not place food directly against the air outlet on the interior of the appliance.

- Keep the ventilation openings clear from obstructions.

• Do not place carbonated or soft drinks in the freezer compartment, as this creates pressure in the can, which could explode and damage the appliance.
• WARNING: do not use mechanical devices or other means to speed up the defrosting process other than those recommended by Cecotec.
• WARNING: do not damage the cooling circuit.
• If the cord is damaged, it must be replaced by the manufacturer, the supplier, or qualified personnel to avoid hazards.
• WARNING: do not use electrical appliances inside the refrigerator.
• It is recommended to regularly check the power cord for any signs of damage. Do not use the appliance if the cord is damaged.
• To avoid injuries or death caused by electric shock, do not use the appliance with your hands wet or over a wet surface.
• Do not use the appliance with an extension cable or a multi-socket adaptor. Make sure the appliance is plugged in directly to a power supply.
• When positioning the appliance, make sure there is enough free space at the rear, as it is the main heat outlet. This will allow for adequate ventilation.
• Do not place hot food or drinks in the refrigerator, allow them to cool down to room temperature beforehand.
• Do not place any other appliance on the refrigerator and do not wet it.
• Do not store explosive substances such as aerosols or flammable propellants in this appliance.

• This appliance is intended for domestic use only and is not suitable for use in commercial establishments such as bars, restaurants, farms, hotels, motels, and offices.

• WARNING: to avoid any risk due to the instability of the refrigerator, you must install it according to the instructions.

• This appliance has a built-in earthed plug. Make sure the power supply in your house is properly earthed.
• Wait 5 minutes after a power failure before turning the appliance back on. Otherwise, the compressor may get damaged.
• This appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Always handle the appliance carefully to avoid damaging it.
• Frozen food can cause frostbites if consumed right after removing it from the freezer compartment.
• Do not remove or touch items in the freezer compartment with your hands wet, as it could cause skin abrasions or frost/freeze burns.
• Never use the base, drawers, or door as support.
• Do not overload the door shelves or place too much food on the drawers to prevent items from falling off and damaging the appliance.
• WARNING: do not attach multi-socket adaptors or multiple power supplies to the rear part of the appliance.
• To avoid food contamination, please follow the instructions below:
• Opening the door for a long period of time may cause a significant increase in temperature in the appliance compartments.
• Regularly clean the surfaces that come into contact with food and with the accessible draining systems.
• Clean the water tank if it has not been used for 48 hours.
• Store raw meat and fish in proper containers in the freezer, so they do not come into contact with or leak on other food.
• The two-star compartments are suitable for storing

pre-frozen food, storing or making ice cream, and making ice cubes.

• Compartments with one, two, or three stars are not suitable for freezing fresh food.
• Before carrying out any maintenance and cleaning task, turn off the appliance and unplug it.
• It is advisable to wait for at least four hours before connecting the appliance to allow oil to flow through the compressor.
• Air must flow around the appliance. Lack of air leads to overheating. To achieve good ventilation, follow the installation instructions.
• Whenever possible, the rear part of the appliance should not be too close to the wall to prevent it from touching or reaching the hot parts (the compressor and the condenser). To avoid risk of fire, follow the installation instructions.
• Make sure that the plug is accessible after installation of the appliance.
• All electrical work required to maintain this appliance must be carried out by a qualified electrician.
• To avoid food contamination, please follow the instructions below:

A Opening the door for a long period of time may cause a significant increase in temperature in the appliance's compartments.
B Regularly clean the surfaces that might be in contact with food and accessible evacuation systems.
C If the appliance remains empty for a long period of time, unplug it, defrost it, clean it, dry it, and leave the door open to prevent interior mould formation.
D Store raw meat and fish in suitable containers so that they do not come into contact with or drip onto other food items.

E The two-star frozen food compartments are suitable for storing pre-frozen food, ice cream and ice cubes*.
F The 1, 2 and 3 star compartments are not suitable for freezing fresh food*.
G For appliances without a 4-star compartment: not suitable for freezing foodstuffs*.

*Please verify the applicability based on your product's compartment type. This feature varies according to the model purchased.

"4-star" symbol: Freezer compartment at -18°C or below, capable of fast-freezing a specified quantity of food.

"3-star" symbol: Freezer compartment at -18°C

"2-star" symbol: Freezer compartment at -12^ or below.

"1-star" symbol: Freezer compartment with target temperature and storage conditions of -6^ .

Refrigerant

• Isobutane refrigerant (R600a), contained within the refrigeration circuit of the appliance, is a natural gas with a high level of environmental compatibility; however, it is flammable. Make sure that no components of the refrigeration circuit have been damaged during the transport and installation of the appliance.

• WARNING: the refrigerant and the insulator gas are flammable. When disposing of the appliance, only dispose of it at an authorised waste-disposal facility. Do not expose it to flames.

• WARNING: the appliance contains refrigerant and gases in the insulation. The appliance and gases must be disposed of professionally, as they may cause injuries to eyes or ignition. Make sure the refrigeration-circuit pipe is not damaged before disposing of it correctly.

• WARNING: risk of fire. If the refrigeration circuit is damaged:
• Avoid open flames and sources of ignition.
• Fully ventilate the room where the appliance is located.

Temperature range

- The appliance temperature range information can be found on its marking. Indicates the optimum room temperature for proper operation of the appliance.

Climate class	Optimal room temperature
SN	From +10 °C to +32 °C
N	From +16 °C to +32 °C
ST	From +16 °C to +38 °C
T	From +16°C to +43°C

Notes:

• Taking into account the limiting values of the ambient temperature range for the climates for which the freezer is designed and that internal temperatures may be affected by factors such as freezer location, ambient temperature and frequency of door opening, it may be necessary to modify the setting of any temperature control device according to these factors.
• If the appliance is operated in an environment other than

the specified climate type (i.e. beyond the rated room temperature range), it may not be able to maintain the desired compartment temperatures.

INSTRUCTIONS DE SÉCURITÉ

EU01_111275_Bolero CoolMarket Combi 356i White E EU01_111276_Bolero CoolMarket Combi 356i Inox E EU01_120293_Bolero CoolMarket Combi 356i Dark E EU01_120294_Bolero CoolMarket Combi 356i White Glass E EU01_120295_Bolero CoolMarket Combi 356i Grey Glass E EU01_120296_Bolero CoolMarket Combi 356i Black Glass E

EU01_119902_Bolero CoolMarket Combi 356i White D
EU01_119903_Bolero CoolMarket Combi 356i Inox D
EU01_119904_Bolero CoolMarket Combi 356i Dark D
EU01_119905_Bolero CoolMarket Combi 356i White Glass D
EU01_119906_Bolero CoolMarket Combi 356i Grey Glass D
EU01_119907_Bolero CoolMarket Combi 356i Black Glass D

1. Refrigerator compartment shelves
2. Drawer cover
3. Crisper box/Humidity box
4. Freezer-compartment drawers
5. Adjustable feet
6. Door shelves

Note:

• The graphics in this manual are schematic representations and may not exactly match the device.
• To improve quality, our products are constantly updated and their appearance and specifications may change.
• To ensure the most efficient energy usage, maintain all internal components such as trays, drawers, shelves, etc. in the position specified in this manual.
• Accessories may vary depending on the refrigerator model.

2. BEFORE USE

• This appliance comes in a packaging designed to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging materials in a safe place to prevent damage to the appliance if you need to transport it in the future. If you wish to dispose of the original packaging, make sure all items are recycled properly.
• Check that all parts and components are included and in good condition. If any of them are missing or damaged, please contact Cecotec's Official Technical Support Service immediately.

Box content

• Refrigerator
• Instruction manual

- Do not remove the product's serial number in order to keep proper traceability if technical assistance is required.

Levelling\*

• Make sure you level your refrigerator with the front levelling feet. If it is not levelled, the refrigerator performance will be affected, or it can even cause a malfunction.
• After installing the refrigerator, wait 4 hours before using it to allow the refrigerant to stabilise.
  *Availability depends on refrigerator model.

3. INSTALLATION

Place of installation

Ventilation condition

• The location you choose for the installation of the refrigerator must be properly ventilated and away from heat sources. Do not place the refrigerator near heat sources, like a cooker or pot, and avoid direct sunlight to ensure the cooling effect and save on energy consumption. Do not place the refrigerator in a damp place to avoid rust or loss of power. The result of dividing the total space of the room in which the refrigerator is installed by the amount of refrigerant load in the refrigerator must not be less than 8g / m^3 .
• Note: The amount of refrigerant used by the refrigerator is specified on the rating plate.

Heat dissipation space

During operation, the refrigerator releases heat into the environment. Therefore, you should leave at least 30 mm of free space at the top, more than 100 mm on both sides, and more than 50 mm at the rear of the refrigerator. Fig. 2

Width (mm)	Depth (mm)	Height (mm)	A (mm)	B (mm)	C(°)	E (mm)	F (mm)
595	635	2000	966	1202	130	50	100

Note: figure 2 only illustrates the space required for the product.

Stable surface

Place the refrigerator on a solid, flat surface (the floor) to keep it stable, otherwise vibrations and noises will occur. When the refrigerator is placed on a carpet, straw mat, or polyvinyl chloride, solid support plates should be placed under the refrigerator to avoid colour change due to heat dissipation.

Preparing for use

Waiting time

Once the refrigerator is properly installed and cleaned, do not switch it on immediately. Be sure to wait at least one hour before switching the refrigerator on to ensure normal operation.

Cleaning

Check the placement of the interior accessory parts and clean the inside with a soft cloth.

Switching on

Connect the plug into a power socket to switch on the compressor. After one hour, open the freezer door: if the temperature inside the freezer compartment has dropped, the cooling system is running normally.

Food storage

After the refrigerator has been in operation for some time, the user may adjust its internal temperature. Once the refrigerator has reached a suitable interior temperature, put in the food. These will take 2 to 3 hours to cool down completely. In summer, when the temperature is high, it may take more than 4 hours for food to cool down completely (try to open the refrigerator

As rarely as possible). If the refrigerator is installed in a wet place, be sure to check if the earthed cord and the leakage breaker are working normally. If vibration noises occur due to contact of the refrigerator with the wall or if the wall turns black due to air convection around the compressor, keep the refrigerator further away from the wall. The installation of the refrigerator may cause noise interference or image problems in mobile phones, landline phones, radio receivers, or televisions near the device, so in this case, keep the refrigerator as far away from these objects as possible.

Changing the opening direction of the door

If desired, you can change the direction in which the door opens, from the right side (by default) to the left side.

Warning

• The refrigerator must not be connected to the power socket when you change the opening direction of the door. Make sure to disconnect the plug from the power socket.
• It is advisable that two people change the opening direction of the door.

Step 1

A.- Unscrew and remove the door hinge cover (Figure 3).
B.- Disconnect the cable. Loosen the 4 screws securing the upper hinge and remove it. Remove the earth cable connector from the hinge. Insert the cable connection into the opening at the top of the appliance. Remove the door connector and the small terminal plug covers (Figure 4).
C.- Place the door connector and cable connector in the door opening, then fit the small terminal plugs (Figure 5).
D.- Loosen the screw as shown in Figure 6 to remove the slot cover at the top of the appliance. Remove the small terminal plug cover from the door and extract the door and cable connector.
E.- Place the door connector in the round door opening and secure the small terminal plug cover (Figure 7).
F.- Lift the refrigerator compartment door approximately 50 mm to remove it (Figure 8).

Step 2

A.- Loosen the 3 screws securing the middle hinge and remove it (Figure 9).
B.- Lift the freezer compartment door approximately 50 mm to remove it (Figure 10).
C.- Remove the adjustable front supports from beneath the lower hinge. Then, loosen the 4 screws securing the lower hinge and remove it from the appliance (Figure 11).

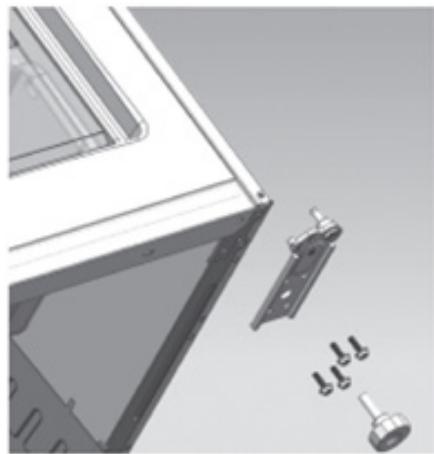

Door disassembly is now complete (Figure 12).

Step 3

A.- Install the removed parts on the opposite side of the appliance. Pull out the door connector as shown in Figure 13, and install it in the corresponding position on the other side.
B.- Remove the stopper screws as shown in Figure 14, and install them on the opposite side of the door.
C.- Remove the shaft and both stoppers from the lower hinge in the position shown in Figure 15.

Step 4

Install the refrigerator and freezer compartment doors on the opposite side.

A.- Remove the adjustable front support as shown in Figure 16. Then, install the lower hinge on the other side of the refrigerator and tighten the screws.
B.- Install the shorter adjustable support at the front, on the side where the lower hinge is located. By rotating the support, you can adjust the height of this side of the appliance until it is level (Figure 17).

Step 5

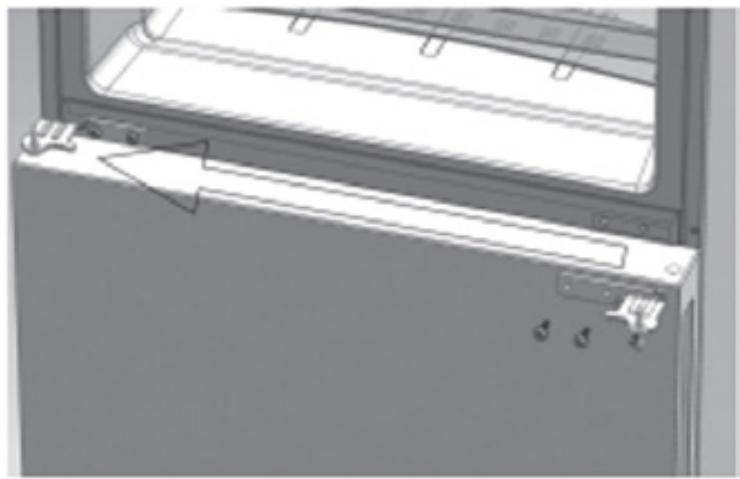

A.- Position the freezer compartment door, rotate the middle hinge 180^ and install it on the opposite side of the appliance. Secure the middle hinge with its 3 corresponding screws (Figure 18).

B.- Position the refrigerator compartment door and install the upper hinge on the opposite side of the appliance. Secure the upper hinge with the 4 corresponding screws. Also secure the earth cable connector with one of the 4 screws. Then, connect the cable link. Secure the upper hinge cover with a screw.
C.- Install the slot cover on the opposite side of the appliance and tighten the screw (Figure 19).

Finally, check that the doors are properly aligned and close correctly on all sides. If necessary, adjust the front supports to ensure the appliance is completely level.

If you have tilted the appliance more than 30^ , wait 4 hours before connecting it to the mains power supply.

4. OPERATION

4.1 Operation of the following models:

EU01_111275_Bolero CoolMarket Combi 356i White E

EU01_111276_Bolero CoolMarket Combi 356i Inox E

EU01_120293_Bolero CoolMarket Combi 356i Dark E

EU01_120294_Bolero CoolMarket Combi 356i White Glass E

EU01_120295_Bolero CoolMarket Combi 356i Grey Glass E

EU01_120296_Bolero CoolMarket Combi 356i Black Glass E

The control panel is located inside the refrigerator, at the top (Figure 20 A).

Fig. 20 A key:

1. Refrigerator compartment temperature selector knob
2. Refrigerator compartment temperature indicator
3. Fast Freezing function button
4. Freezer compartment temperature indicator
5. Freezer compartment temperature selector knob

- When connecting the refrigerator to the mains for the first time, all icons on the display light up for 2 seconds.

Temperature settings

• Press buttons (1) and (5) on the control panel to select the temperature range of the refrigerator and freezer compartment respectively.
• When pressed once, the current temperature indicator on the control panel will turn off and the next temperature setting will illuminate and flash. If no operation is performed within

5 seconds, the temperature adjustment setting is confirmed and the selected temperature indicator will remain steady; otherwise, the operation will be considered invalid.

- The sequence of selectable temperatures is as follows:

Refrigerator compartment: 4^ 6^ 8^ 2^ 4^

Freezer compartment: -18^ -16^ -24^ -20^ -18^

Switching off the refrigerator compartment

• Press and hold the refrigerator compartment temperature knob (1) for about 3 seconds to deactivate the refrigerator compartment operation.
• Repeat the same operation to reactivate the refrigerator compartment.
• The "OFF" light icon indicates the "Off" state.
• IMPORTANT: Make sure to remove all food from the refrigerator compartment before switching it off.

Fast Freezing function

• When you activate the Fast Freezing function, the freezer compartment temperature will automatically drop. If after 26 hours of operation no temperature is manually set, the "Fast Freezing" function will be deactivated, returning to the previously selected temperature. The Fast Freezing function is used to prevent loss of nutritional quality and to preserve food freshness.
• Pressing and holding the freezer compartment temperature knob (5) for about 3 seconds will activate the "Fast Freezing" function.
• Repeat the same operation to deactivate the "Fast Freezing" function.

Fault alarm

- If temperature indicators '4', '8', '-20' or '-16' flash continuously, this indicates an appliance malfunction. In this case, please contact Cecotec's Official Technical Support Service.

4.2 Operation of the following models:

EU01_119902_Bolero CoolMarket Combi 356i White D

EU01_119903_Bolero CoolMarket Combi 356i Inox D

EU01_119904_Bolero CoolMarket Combi 356i Dark D

EU01_119905_Bolero CoolMarket Combi 356i White Glass D

EU01_119906_Bolero CoolMarket Combi 356i Grey Glass D

EU01_119907_Bolero CoolMarket Combi 356i Black Glass D

The control panel is located inside the refrigerator, at the top (Figure 20 B).

Fig. 20 B key:

1. Refrigerator compartment temperature indicator
2. Freezer compartment temperature indicator

3. Temperature selection switch

4. Each time the temperature selection button (3) is pressed, the current temperature level indicator light will turn off and the next temperature indicator will illuminate and flash.

5. If no button is pressed within 5 seconds, the temperature level setting will be validated; otherwise, it will be invalid.
6. Once the temperature level setting is applied, the control system will respond immediately, with the current temperature level indicator light remaining steady.
7. Only one indicator light flashes when adjusting either the refrigerator or freezer compartment temperature level.
8. Temperature levels will alternate as follows:

Refrigerator compartment: Coolest - Medium - Cool - Coolest

Freezer compartment: Coolest - Medium - Cool - Fast Freezing - Coolest

• Additionally, pressing and holding the temperature selection button (3) for approximately 3 seconds switches between the two zones (refrigerator compartment and freezer compartment).
• After confirming the temperature level, pressing the temperature selection button (3) will initiate the refrigerator compartment temperature adjustment by default.

Fast Freezing function

• When the "Fast Freezing" function is selected, the freezer compartment temperature will decrease automatically and rapidly.
• If the temperature selection button (3) is pressed while this function is active, it will immediately deactivate and the appliance will return to its previous settings.
• This function can remain active for up to 26 hours, after this time, it will automatically deactivate and the appliance will return to its previous settings.

Fault alarm

- If the "Coolest" or "Cool" indicator light flashes, this indicates an appliance malfunction. In this case, please contact Cecotec's Official Technical Support Service.

4.3 Common functions for all refrigerators\*

Function memory after power failure

- In the event of a power failure, the refrigerator will save the functions set before the power failure and will activate them when the power is restored.

Delayed start after power failure

• To prevent damage to the refrigerator compressor in the event of a short power failure (i.e. less than 5 minutes), the compressor will not start immediately after switch-on.
• The control panel will reset by pressing any button or after 10 seconds of inactivity.

Open door alarm

- If the door stays open for more than 3 minutes, the refrigerator will emit an alarm sound, which can be shut off by pressing any button, but will be reset 3 minutes later if the door is still open. The alarm sound will not stop until the door is closed.

Adjusting the refrigerator air (humidity) regulator

- The flow of cold air entering the fresh food storage compartment (fruits and vegetables) will gradually increase as the air regulator is adjusted from the MIN. position to the MAX. position (Figure 21).

*These functions may vary depending on the specific model.

5. FOOD STORAGE INSTRUCTIONS

Use precautions

• The refrigerator may not operate consistently (there may be some defrosting of the contents or the temperature may become too hot in the freezer compartment) if placed in locations with a temperature outside of the temperature range for which it's designed for a long period of time.
• The internal temperature may be affected by factors such as the location of the refrigerator, room temperature, and door opening frequency, etc., and you should take these factors into account if you decide to use any temperature-control device.
• Effervescent or carbonated drinks should not be stored in the freezer compartment or drawer of the refrigerator.

Food location

• Due to the circulation of cold air in the refrigerator, the temperature in each zone is different, so food must be placed in different zones.
• The refrigerator compartment is suitable to store food that does not need to be frozen, cooked food, beer, eggs, some seasonings that need to be kept cold, milk, fruit juice, etc. The crisper box is the best place to store fruit and vegetables.
• The freezer compartment is suitable to store ice cream, frozen foods, and foods that need to be kept for a long time.

Using the refrigerator compartment (Crisper Box/Humidity Box)

• Shelves: To remove the shelves, first lift them up and then pull them out; to put them back, put them into their position before lowering them. (For the two-section shelf, push the first section towards the rear end and pull the second section out). Keep the rear edge of the shelf facing upwards to prevent food from coming into contact with the wall. When removing and fitting shelves, hold them firmly and handle them carefully to avoid damage.
• Crisper drawer: Pull out the crisper drawer to access the food. After using or cleaning the bottom shelf of the refrigerator (the drawer cover), put it back in place so that the internal temperature of the drawer is not affected.

Humidity control of the drawer

• The humidity regulator of the drawer is designed to keep moisture steady and the vegetable freshness.
• If you slide the humidity regulator to the right, more gaps will be exposed and the drawer will have a lower humidity level.
• If you slide the humidity regulator to the left, less gaps will be exposed and the drawer will have a higher humidity level.

Using the ice cube tray

Place the ice cube tray in the upper part of the freezer compartment so that it freezes as quickly as possible.

Care for food storage

• Clean and dry food completely before storing it in the refrigerator. Before introducing food in the refrigerator, it is advisable to seal it to prevent water evaporation and thus keep fruit and vegetables fresh on the one hand, and to prevent odours on the other.
  Leave enough space between the food; if they are too close together, they will block the flow of cold air, which will affect the cooling effect. Do not store too much or too heavy food to prevent the shelves from bending. When storing food, leave a distance from the interior wall; do not place water-rich food too close to the inner wall of the refrigerator to prevent it from freezing on the interior wall.
• Food storage by category: place daily food items at the front of the shelf so that you can reduce the door opening time and avoid food spoilage due to expiry.
• Energy saving tips: let hot food cool down to room temperature before putting it in the refrigerator. Place frozen food in the refrigerator compartment to defrost it.

Storing fruits and vegetables

Please note that some types of fresh vegetables and fruits are sensitive to cold and therefore not suitable for storage in the refrigerator crisper box.

Using the freezer compartment

• The freezer compartment temperature is kept at low temperatures, so it is advisable to store food that you wish to keep for a long period of time in the freezer compartment, always respecting the storage time indicated on the food packaging.
• The freezer-compartment drawers are suitable to store food which needs to be frozen. Large fish and meat should be cut into small pieces and placed in freezer bags before placing them in the freezer-compartment drawers.
• Let hot food cool down to room temperature before putting it in the freezer compartment.
• Do not place a glass container with liquid or sealed canned liquid in the freezer compartment to prevent them from exploding due to volume expansion after freezing the liquid.
• Divide food into small portions.
• Food should be packed or covered with suitable materials that are firm, tasteless, impermeable to air and water, non-toxic, and non-polluting to avoid cross-contamination and odour transfer.

6. CLEANING AND MAINTENANCE

If the refrigerator will not be used for a long period of time:

• Turn off the refrigerator and unplug it from the power supply.
• Remove all the food.
• Clean and dry the interior completely. To prevent mould or unpleasant odours, leave the door slightly open: lock it open or remove it if necessary.
• Store the appliance in a ventilated and dry place, away from heat sources; place the appliance carefully and do not place heavy objects on it.
• The unit must be kept out of the reach of children to prevent them from playing with it.
• Before cleaning, disconnect the power plug; do not connect or disconnect the power plug with your hands wet, as there is a risk of electric shock and injury. Do not spill water directly on the refrigerator to avoid rust, electrical leakage and accidents. Do not reach into the bottom of the refrigerator, as you may get scratched by the sharp metal corners.

Cleaning the interior and exterior

• Food residues in the refrigerator can cause undesired odours, so you should clean the refrigerator regularly. The refrigerator compartment should be cleaned once a month.
• Remove all shelves, the crisper box, etc., and clean them with a soft cloth or sponge dampened with warm water or neutral detergent.
• Clean the dust that accumulates on the rear panel and side plates of the refrigerator regularly.

ENGLISH

• After using detergent, make sure you rinse it with clean water, and then dry it with a cloth.
• Do not use bristle brushes, steel wire brushes, detergent, soap powder, alkaline detergent, benzine, petrol, acid, hot water, or other corrosive elements to clean the refrigerator surface, door gasket, plastic decorative parts, etc. to avoid damage.
• Carefully dry the door gasket and clean the slot with a wooden stick wrapped with cotton. After cleaning, fix the four corners of the door gasket and then gradually push it into the slot in the door.

Power failure or cooling system fault

• If you receive an early power failure warning
• Activate the Fast Freeze function, so that food is completely frozen. Set the temperature back to the original setting when the power supply returns to normal.

Note:

It is advisable to run the refrigerator uninterruptedly once you start using it.

Defrosting

- This refrigerator includes an automatic defrost function, so there is no need to defrost it manually. - Although your appliance defrosts automatically, over time, a layer of frost may form on the inside walls of the freezer compartment if the door is opened frequently or kept open too long. If frost build-up becomes excessive, choose a time when food storage levels are low and proceed as follows:

1.- Disconnect the appliance from the mains.
2. Remove all food items and internal accessories, leaving the doors open. Ventilate the room well to speed up the defrosting process.
3.- After defrosting is complete, clean the freezer compartment as described above.
4. Thoroughly dry the interior before replacing accessories and food items.

CAUTION! Do not use sharp objects to remove frost from the freezer compartment. Do not reconnect the appliance to the mains until the interior is completely dry.

Replacing the bulb\*

- The refrigerator has a LED light with low consumption and a long shelf life. In the event of an anomaly, please contact the technical support service. Lights or other parts of the appliance may only be replaced by the manufacturer.

*Availability depends on refrigerator model.

Removing the shelves\*

• Hold the shelves with both hands and push them upwards to remove the bottle shelf.
• Grasp one end of the shelf and lift it up while pulling it outward to remove the shelf. (Fig. 22)
  *Availability depends on refrigerator model.

7. TROUBLESHOOTING

For the following minor malfunctions, please try to solve the problem yourself before contacting the official Cecotec Technical Support Service.

Fault	Possible causes	Possible solutions
The refrigerator does not work	The refrigerator is not connected to the mains.The circuit breakers or fuses are damaged.There is no power or the fuse trips.	Plug the refrigerator into the mains.Open the door and check the light is on.
Abnormal noise	The refrigerator is not stable.The refrigerator is in contact with the wall.	Set the adjustable feet of the refrigerator.Separate the refrigerator from the wall.
Low cooling efficiency.	The food inside is hot or there is too much food.You open the door too often.The door gasket has objects that do not allow to close it completely.The refrigerator receives direct sunlight or is close to a heat source.The refrigerator is not well ventilated.The selected temperature is too high.	Store food in the refrigerator when at room temperature.Check and close the door.Remove the refrigerator from the heat source.Keep the recommended distances in the installation section so the refrigerator is well ventilated.Set a suitable temperature.
Unpleasant smells in the refrigerator.	There is spoiled food inside.The refrigerator is dirty.Food with a strong odour stored inside the refrigerator.	Dispose of food which is spoiled.Clean the refrigerator.Pack food, especially if it has a strong smell.
The LED light flashes.	The door has been open for more than 10 minutes.	Close the refrigerator door, open it again within 2 seconds, checking if the LED light is working normally.
The temperature cannot be adjusted	Check that the “Fast Freezing” function is not activated or that the refrigerator compartment is not set to “OFF”.	Deactivate the “Fast Freezing” function or turn on the refrigerator compartment.

Note: If none of these situations match your problem, do not attempt to disassemble or repair the device by yourself. Repairs carried out by unqualified people may result in injury or serious malfunctions. Please contact the local store where you made your purchase. Repairs must be carried out by an authorised technician using only original spare parts.

When the appliance is not to be used for a long period of time, disconnect it from the mains, remove all food and clean it. Leave the door ajar to avoid unpleasant odours.

These instructions are intended for qualified technicians, do not attempt to carry them out if you do not have the necessary training and knowledge, as any damage caused by an incorrect repair will void the warranty.

Unauthorised self-maintenance or maintenance will affect the safe use of the product and the application of the warranty policy.

NOTE:

• Certain sounds during normal operation are expected and do not affect proper operation.
• Avoidable sounds:

Noise from unlevelled appliance: adjust position using front adjustable feet (not available on all models).
Noise from contact with adjacent furniture or cabinet: move appliance away.
➢ Creaking from drawers or shelves: remove and reinsert.
➢ Clinking bottle sounds: separate bottles.

• Normal operating sounds are primarily due to compressor operation (start-up) and the cooling system (thermal expansion and contraction caused by refrigerant flow).
• When operating the appliance for the first time, it will run at high speed to cool quickly and the compressor noise may seem louder. When the internal temperature drops below a certain level, the noise will decrease.
• Normal sounds will occur when the compressor starts up or shuts down, when various components expand or contract, when control devices are operating, when temperature changes occur within the refrigerator.
• During operation, the compressor's external temperature exceeds 80°C. Do not touch it, as

this could cause serious injury.

- If room temperature is too high, compressor start-up time may be extended. This is a normal phenomenon.

8. RECYCLING OF ELECTRICAL AND ELECTRONIC EQUIPMENT

This symbol indicates that, according to the applicable regulations, the product and/or battery must be disposed of separately from household waste. When this product reaches the end of its useful life, you should remove the batteries/accumulators and take them to a collection point designated by local authorities.

For detailed information on how to properly dispose of electrical and electronic equipment and/or the corresponding batteries, consumers

should contact their local authorities.

Compliance with the above guidelines will help to protect the environment.

9. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs are carried out by qualified personnel.

If you detect any incident with the product or have any query, please contact Cecotec's Official Technical Support Service on [phone].

10. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The content of this publication may not, either in part or in its entirety, be reproduced, stored in a retrieval system, transmitted or distributed by any means (electronic, mechanical, photocopying, recording or similar) without prior authorisation from CECOTEC INNOVACIONES, S.L.

11. SIMPLIFIED DECLARATION OF CONFORMITY

Cecotec Innovaciones hereby declares that this appliance complies with the essential requirements and other relevant provisions of the regulations applicable in the European Union. This appliance has been designed, manufactured and tested in compliance with required safety and quality standards. The full text of the EU Declaration of Conformity can be found on

the following website: https://cecotec.es/es/information/declaration-of-conformity

1. PIÈCES ET COMPOSANTS

Img. 1

EU01_111275_Bolero CoolMarket Combi 356i White E
EU01_111276_Bolero CoolMarket Combi 356i Inox E
EU01_120293_Bolero CoolMarket Combi 356i Dark E
EU01_120294_Bolero CoolMarket Combi 356i White Glass E
EU01_120295_Bolero CoolMarket Combi 356i Grey Glass E
EU01_120296_Bolero CoolMarket Combi 356i Black Glass E

EU01_119902_Bolero CoolMarket Combi 356i White D
EU01_119903_Bolero CoolMarket Combi 356i Inox D
EU01_119904_Bolero CoolMarket Combi 356i Dark D
EU01_119905_Bolero CoolMarket Combi 356i White Glass D
EU01_119906_Bolero CoolMarket Combi 356i Grey Glass D
EU01_119907_Bolero CoolMarket Combi 356i Black Glass D

EU01_111275_Bolero CoolMarket Combi 356i White E
EU01_111276_Bolero CoolMarket Combi 356i Inox E
EU01_120293_Bolero CoolMarket Combi 356i Dark E
EU01_120294_Bolero CoolMarket Combi 356i White Glass E
EU01_120295_Bolero CoolMarket Combi 356i Grey Glass E
EU01_120296_Bolero CoolMarket Combi 356i Black Glass E

EU01_119902_Bolero CoolMarket Combi 356i White D

EU01_119903_Bolero CoolMarket Combi 356i Inox D

EU01_119904_Bolero CoolMarket Combi 356i Dark D

EU01_119905_Bolero CoolMarket Combi 356i White Glass D

EU01_119906_Bolero CoolMarket Combi 356i Grey Glass D

EU01_119907_Bolero CoolMarket Combi 356i Black Glass D

EU01_111275_Bolero CoolMarket Combi 356i White E

EU01_111276_Bolero CoolMarket Combi 356i Inox E

EU01_120293_Bolero CoolMarket Combi 356i Dark E

EU01_120294_Bolero CoolMarket Combi 356i White Glass E

EU01_120295_Bolero CoolMarket Combi 356i Grey Glass E

EU01_120296_Bolero CoolMarket Combi 356i Black Glass E

EU01_119902_Bolero CoolMarket Combi 356i White D
EU01_119903_Bolero CoolMarket Combi 356i Inox D
EU01_119904_Bolero CoolMarket Combi 356i Dark D
EU01_119905_Bolero CoolMarket Combi 356i White Glass D
EU01_119906_Bolero CoolMarket Combi 356i Grey Glass D
EU01_119907_Bolero CoolMarket Combi 356i Black Glass D

EU01_111275_Bolero CoolMarket Combi 356i White E

EU01_111276_Bolero CoolMarket Combi 356i Inox E

EU01_120293_Bolero CoolMarket Combi 356i Dark E

EU01_120294_Bolero CoolMarket Combi 356i White Glass E

EU01_120295_Bolero CoolMarket Combi 356i Grey Glass E

EU01_120296_Bolero CoolMarket Combi 356i Black Glass E

EU01_119902_Bolero CoolMarket Combi 356i White D

EU01_119903_Bolero CoolMarket Combi 356i Inox D

EU01_119904_Bolero CoolMarket Combi 356i Dark D

EU01_119905_Bolero CoolMarket Combi 356i White Glass D

EU01_119906_Bolero CoolMarket Combi 356i Grey Glass D

EU01_119907_Bolero CoolMarket Combi 356i Black Glass D

EU01_111275_Bolero CoolMarket Combi 356i White E

EU01_111276_Bolero CoolMarket Combi 356i Inox E

EU01_120293_Bolero CoolMarket Combi 356i Dark E

EU01_120294_Bolero CoolMarket Combi 356i White Glass E

EU01_120295_Bolero CoolMarket Combi 356i Grey Glass E

EU01_120296_Bolero CoolMarket Combi 356i Black Glass E

EU01_119902_Bolero CoolMarket Combi 356i White D

EU01_119903_Bolero CoolMarket Combi 356i Inox D

EU01_119904_Bolero CoolMarket Combi 356i Dark D

EU01_119905_Bolero CoolMarket Combi 356i White Glass D

EU01_119906_Bolero CoolMarket Combi 356i Grey Glass D

EU01_119907_Bolero CoolMarket Combi 356i Black Glass D

7. PROBLEEMOPLOSSING

EU01_111275_Bolero CoolMarket Combi 356i White E

EU01_111276_Bolero CoolMarket Combi 356i Inox E

EU01_120293_Bolero CoolMarket Combi 356i Dark E

EU01_120294_Bolero CoolMarket Combi 356i White Glass E

EU01_120295_Bolero CoolMarket Combi 356i Grey Glass E

EU01_120296_Bolero CoolMarket Combi 356i Black Glass E

EU01_119902_Bolero CoolMarket Combi 356i White D

EU01_119903_Bolero CoolMarket Combi 356i Inox D

EU01_119904_Bolero CoolMarket Combi 356i Dark D

EU01_119905_Bolero CoolMarket Combi 356i White Glass D

EU01_119906_Bolero CoolMarket Combi 356i Grey Glass D

EU01_119907_Bolero CoolMarket Combi 356i Black Glass D

EU01_111275_Bolero CoolMarket Combi 356i White E

EU01_111276_Bolero CoolMarket Combi 356i Inox E

EU01_120293_Bolero CoolMarket Combi 356i Dark E

EU01_120294_Bolero CoolMarket Combi 356i Bílé sklo E

EU01_120295_Bolero CoolMarket Combi 356i Šedé sklo E

EU01_120296_Bolero CoolMarket Combi 356i Černé sklo E

EU01_119902_Bolero CoolMarket Combi 356i Bílá D

EU01_119903_Bolero CoolMarket Combi 356i Inox D

EU01_119904_Bolero CoolMarket Combi 356i Tmavě modrá D

EU01_119905_Bolero CoolMarket Combi 356i Bílé sklo D

EU01_119906_Bolero CoolMarket Combi 356i Šedé sklo D

EU01_ 119907 _Bolero CoolMarket Combi 356i Černé sklo D

EU01_111275_Bolero CoolMarket Kombi 356i Beyaz E

EU01_111276_Bolero CoolMarket Kombi 356i Inox E

EU01_120293_Bolero CoolMarket Kombi 356i Koyu E

EU01_120294_Bolero CoolMarket Combi 356i Beyaz Cam E

EU01_120295_Bolero CoolMarket Combi 356i Gri Cam E

EU01_120296_Bolero CoolMarket Combi 356i Siyah Cam E

EU01_119902_Bolero CoolMarket Combi 356i Beyaz D

EU01_119903_Bolero CoolMarket Combi 356i Inox D

EU01_119904_Bolero CoolMarket Combi 356i Koyu D

EU01_119905_Bolero CoolMarket Combi 356i Beyaz Cam D

EU01_119906_Bolero CoolMarket Combi 356i Gri Cam D

EU01_119907_Bolero CoolMarket Combi 356i Siyah Cam D

information/declaration-of-conformity

1. MEPH KAI EΞAPTHMATA

Σχήμα 1

EU01_119903_Bolero CoolMarket Combi 356i Inox D

EU01_119904_Bolero CoolMarket Combi 356i Σκούρο D

EU01_111275_Bolero CoolMarket Combi 356i White E

EU01_111276_Bolero CoolMarket Combi 356i Inox E

EU01_120293_Bolero CoolMarket Combi 356i Dark E

EU01_120294_Bolero CoolMarket Combi 356i White Glass E

EU01_120295_Bolero CoolMarket Combi 356i Grey Glass E

EU01_120296_Bolero CoolMarket Combi 356i Black Glass E

EU01_119902_Bolero CoolMarket Combi 356i White D
EU01_119903_Bolero CoolMarket Combi 356i Inox D
EU01_119904_Bolero CoolMarket Combi 356i Dark D
EU01_119905_Bolero CoolMarket Combi 356i White Glass D
EU01_119906_Bolero CoolMarket Combi 356i Grey Glass D
EU01_119907_Boler CoolMarket Combi 356i Black Glass D

EU01_111275_Bolero CoolMarket Combi 356i White E

EU01_111276_Bolero CoolMarket Combi 356i Inox E

EU01_120293_Bolero CoolMarket Combi 356i Dark E

EU01_120294_Bolero CoolMarket Combi 356i White Glass E

EU01_120295_Bolero CoolMarket Combi 356i Grey Glass E

EU01_120296_Bolero CoolMarket Combi 356i Black Glass E

EU01_119902_Bolero CoolMarket Combi 356i White D

EU01_119903_Bolero CoolMarket Combi 356i Inox D

EU01_119904_Bolero CoolMarket Combi 356i Dark D

EU01_119905_Bolero CoolMarket Combi 356i White Glass D

EU01_119906_Bolero CoolMarket Combi 356i Grey Glass D EU01_119907_Bolero CoolMarket Combi 356i Black Glass D

Fig./Img./Abb./Afb./ Rys. 1

Fig./Img./Abb./Afb./Rys. 2

Fig./Img./Abb./Afb./Rys. 3

Fig./Img./Abb./Afb./Rys. 4

Fig./Img./Abb./Afb./Rys. 5

Fig./Img./Abb./Afb./Rys. 6

Fig./Img./Abb./Afb./Rys. 7

Fig./Img./Abb./Afb./ Rys. 8

Fig./Img./Abb./Afb./Rys. 8

Fig./Img./Abb./Afb./Rys. 9

Fig./Img./Abb./Afb./Rys. 10

Fig./Img./Abb./Afb./Rys. 11

Fig./Img./Abb./Afb./Rys. 12

Fig./Img./Abb./Afb./Rys. 13

Fig./Img./Abb./Afb./Rys. 14

Fig./Img./Abb./Afb./ Rys. 15

Fig./Img./Abb./Afb./Rys. 16

Fig./Img./Abb./Afb./ Rys. 18

Fig./Img./Abb./Afb./Rys. 17

Fig./Img./Abb./Afb./ Rys. 19

Fig./Img./Abb./Afb./Rys. 20 A

Fig./Img./Abb./Afb./Rys. 20 B

Fig./Img./Abb./Afb./Rys. 21

Fig./Img./Abb./Afb./Rys. 22

www.cecotec.es
