Bolero Coolmarket Combi 356 Glass D - Refrigerator CECOTEC - Free user manual and instructions

Product type	Combined refrigerator
Brand	Cecotec
Model	Bolero Coolmarket Combi 356 Glass D
Total capacity	356 liters
Refrigerator volume	246 liters
Freezer volume	110 liters
Energy class	A+
Annual consumption	approximately 280 kWh
Dimensions (H x W x D)	185 x 60 x 65 cm
Net weight	62 kg
Power supply	220-240 V, 50 Hz
Cooling type	Ventilated (No Frost) in refrigerator, static in freezer
Lighting	LED
Shelves	Tempered glass
Number of refrigerator shelves	4
Number of door balconies	4
Number of freezer drawers	3
Quick freezing function	Yes
Door reversibility	Yes
Climate class	N-ST
Noise level	40 dB(A)
Cleaning	With a soft cloth and soapy water
Defrosting	Automatic (No Frost)
Child safety	Control lock
Spare parts	Available on the Cecotec website

Frequently Asked Questions - Bolero Coolmarket Combi 356 Glass D CECOTEC

How to adjust the refrigerator temperature?

Use the control panel located inside or on the door. Press the Temp button and select the desired temperature between 2°C and 8°C.

Why is the appliance making noise?

A slight hum is normal due to the compressor. If the noise is excessive, check that the appliance is level and not in contact with a wall.

How to defrost the freezer?

The model is equipped with No Frost, defrosting is automatic. No manual intervention is necessary.

The door does not close properly, what to do?

Check that the appliance is level. Clean the door seals with warm water and ensure there is no obstruction.

How to reverse the door opening direction?

Unscrew the hinges and covers according to the instructions in the manual. Reinstall the door on the other side with the provided parts.

What does the audible alarm mean?

The alarm sounds if the door is left open too long or if the internal temperature is too high. Close the door or wait for it to return to normal.

How to clean the interior?

Unplug the appliance. Use a soft cloth soaked in soapy water. Rinse and dry. Avoid abrasive products.

What is the energy class?

This model is rated A+, ensuring reduced consumption.

How to activate the quick freezing function?

Press the Super Freeze button on the control panel. The freezer will operate at full power for 24 hours.

Where to find spare parts?

You can order spare parts directly from the official Cecotec website or through authorized dealers.

USER MANUAL Bolero Coolmarket Combi 356 Glass D CECOTEC

Instrucciones de seguridad	4
Safety instructions	8
Instructions de sécurité	11
Sicherheitshinweise	16
Istruzioni di sicurezza	20
Instruções de segurança	24
Veiligheidsinstructies	28
Instrukcje bezpieczeństwa	32
Bezpečnostní pokyny	36

ÍNDICE

1. Parts and components 57
2. Before use 57
3. Installation 58
4. Operation 63
5. Instructions on food storage 66
6. Cleaning and maintenance 68
7. Troubleshooting 69
8. Technical specifications 70
9. Disposal of old electrical and electronic appliances 72
10. Technical support and warranty 72
11. Copyright 72

SOMMAIRE

Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users.

• This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.
• Do not store explosive substances such as aerosol cans with flammable propellant in this appliance.
• This appliance is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• To avoid food contamination, please follow the below instructions:
• The door openings for a long period of time may cause a significant increase in temperature in the appliance's compartments.
• Clean regularly the surfaces that might be in contact with food and accessible evacuation systems.
• Store raw meat and fish in appropriate refrigerator compartments so that they do not touch or drip on each other.

• The two-star compartments are suitable for storing pre-frozen food, storing or making ice cream, and making ice cubes.

• Compartments with one, two, or three stars are not suitable for freezing fresh food.

• If the refrigerator appliance remains empty for a long period of time, unplug it by defrosting, cleaning, drying and leaving the door open to prevent the development of mould inside the appliance.
• WARNING: when positioning the appliance, make sure that the power cable is not trapped or damaged.
• WARNING: do not place multiple mobile sockets or mobile power supplies on the rear of the appliance.
• WARNING: keep all ventilation grilles clear of obstructions.
• WARNING: do not use mechanical devices or similar to accelerate the defrosting process other than those recommended by the manufacturer.
• WARNING: do not use electrical devices inside the food-preservation compartment unless they're of a type recommended by the manufacturer.
• WARNING: do not damage the refrigeration circuit.
• Check the power cable regularly for visible damage. If the cable is damaged, it must be replaced by the manufacturer, the supplier, or qualified personnel to avoid hazards.
• WARNING! It is dangerous for anyone other than authorised personnel to carry out maintenance or repairs involving the removal of covers. To prevent the electric shock risk do not attempt to repair the appliance yourself.
• Do not place carbonated beverages in the freezer compartment. Ice cream can cause "freezer burns". This can happen if they are ingested after removal from the freezer.

• Do not remove items from the refrigerator or freezer with wet/moist hands, as this may cause skin abrasions or "freeze burns". Bottles and cans should not be placed in the freezer compartment, as they may burst when their contents freeze.

• See the storage times recommended by the manufacturer.

• Do not allow children to play with the controls or the refrigerator. The refrigerator is a heavy household appliance. Caution must be taken when moving the appliance. It is dangerous to alter specifications or attempt to modify this appliance in any way.
• This refrigeration appliance is not suitable for built-in installation.
• WARNING: doors or covers fitted with locks and keys must be kept out of the reach of children and not in the vicinity of the refrigeration appliance to prevent children from being locked inside.
• WARNING: the refrigerant used in your appliance and the insulation materials must be disposed of correctly.

Temperature range

The temperature range information of the appliance can be found on its marking. Indicates the optimum room temperature (at which the appliance operates) for proper operation of the appliance.

Climate range	Optimum room temperature
SN	from 10 °C to 32 °C
N	from 16 °C to 32 °C
ST	from 16 °C to 38 °C
T	from 16 °C to 43 °C

Notes:

- Bearing in mind the limiting values of the room temperature range for the climates for which the cooling appliance is

designed and that internal temperatures may be affected by factors such as the location of the cooling appliance, room temperature and frequency of door opening, it may be necessary to modify the setting of any temperature-control device according to these factors.

- If the appliance is operated in an environment other than the specified climate type (i.e., beyond the rated ambient temperature range), it may not be able to maintain the desired compartment temperatures.

Free of Freon

- This refrigerator uses freon-free refrigerant (R600a) and foaming insulation material (cyclopentane), which are environmentally friendly, do not cause damage to the ozone layer, and have a very low impact on global warming. R600a is flammable and does not leak during normal use when sealed in a refrigeration system. In the event of refrigerant leakage due to damage to the refrigerant circuit, be sure to keep the appliance away from open flames and open the windows to ventilate as soon as possible.

- This symbol means: Warning: Risk of fire/flammable materials

INSTRUCTIONS DE SÉCURITÉ

1. Refrigerator compartment shelves
2. Drawer cover
3. Crisper drawer
4. Freezer compartment drawers
5. Adjustable feet
6. Door shelves

Note:

The graphics in this manual are schematic representations and may not exactly match the appliance.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent damage to the appliance when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

Box content

• Bolero CoolMarket Combi 356 White D / Inox D / Dark D / White Glass D / Black Glass D / Glass Grey D refrigerator.
• Instruction manual.

Levelling

• Make sure you level your refrigerator with the front levelling feet. If it is not levelled, the refrigerator performance will be affected, or it can even cause a malfunction.
• After installing the refrigerator, wait 4 hours before using it to allow the refrigerant to stabilise.

3. INSTALLATION

Place of installation

Ventilation condition

The location you choose for the installation of the refrigerator must be properly ventilated and away from heat sources. Do not place the refrigerator near heat sources, like a cooker or pot, and avoid direct sunlight to ensure the cooling effect and save on energy consumption. Do not place the refrigerator in a damp place to avoid rust or loss of power. The result of dividing the total space of the room in which the refrigerator is installed by the amount of refrigerant load in the refrigerator must not be less than 8 g/m³ .

Note:

The amount of refrigerant used by the refrigerator is specified on the rating plate.

Heat dissipation space

During operation, the refrigerator releases heat into the environment. Therefore, you should leave at least 30 mm of free space at the top chamber, more than 100 mm on both sides, and more than 50 mm at the rear of the refrigerator. Fig. 2

W (mm)	D (mm)	H (mm)	A (mm)	B (mm)	C (°)	E (mm)	F (mm)
595	635	2000	966	1202	130	50	100

Note:

Figure 2 only illustrates the space required for the appliance.

Stable surface

Place the refrigerator on a solid, flat surface (the floor) to keep it stable, otherwise vibrations and noises will occur. When the refrigerator is placed on a carpet, straw mat, or polyvinyl chloride, solid support plates should be placed under the refrigerator to avoid colour change due to heat dissipation.

Preparing for use

Waiting time

Once the refrigerator is properly installed and cleaned, do not switch it on immediately. Be sure to wait at least one hour before switching the refrigerator on to ensure normal operation.

Cleaning

Check the placement of the interior accessory parts and clean the inside of the refrigerator with a soft cloth.

Switch-on

Connect the plug into a power socket to switch on the compressor. After one hour, open the freezer door: if the temperature inside the freezer compartment has dropped, the cooling system is running normally.

Food storage

• After the refrigerator has been in operation for some time, the user may adjust its internal temperature. Once the refrigerator has reached a suitable interior temperature, put in the food. These will take 2 to 3 hours to cool down completely. In summer, when the temperature is high, it may take more than 4 hours for food to cool down completely (try to open the refrigerator door as rarely as possible).
• If the refrigerator is installed in a wet place, be sure to check if the earth wire and the leakage circuit breaker are working normally. If vibration noises occur due to contact of the refrigerator with the wall or if the wall turns black due to air convection around the compressor, keep the refrigerator further away from the wall. The installation of the refrigerator may cause noise interference or image problems in mobile phones, landline phones, radio receivers, or TVs near the appliance, so in this case, keep the latter as far away from these objects as possible.

Changing the opening direction of the door

If desired, you can change the direction in which the door opens, from the right side (by default) to the left side.

Warnings:

• The refrigerator must not be connected to the power socket when you change the opening direction of the door. Make sure to disconnect the plug from the power socket.
• Check figure 5 to check the tools you need.
• It is advisable that two people change the opening direction of the door.

Fig. 5

A. Tools not supplied

1. 8-mm tube wrench
2. Flat-head screwdriver
3. Spatula
4. Crosshead screwdriver
5. Spanner
6. 8-mm wrench

B. Additional parts (included in the plastic bag)

1. Upper-left hinge

2. Upper-left hinge cover

3. Right-hand screw gap cover

4. Middle-left hinge
5. Left unblocker *2
6. Left door stop *2
7. Allen key (4 mm)

Fig. 7

1. Self-tapping screw
2. Upper-right hinge cover
3. Electrical connector
4. Door switch

Fig. 8

1. Upper-left hinge cover

Fig. 9

1. Screws
2. Upper-right hinge
3. Electrical connector

Fig. 11

1. Right-hand screw gap cover
2. Left-hand screw gap cover

Fig. 12

1. Upper-left side door cover
2. Left-hand door connector
3. Upper-right side door cover
4. Right-hand door connector

Fig. 13

1. Right-hand upper door stop
2. Right-hand upper door dowel
3. Self-tapping screw
4. Left-hand upper door stop
5. Left-hand upper door dowel

Fig. 15

1. Right-hand lower door stop
2. Right-hand lower door dowel

3. Self-tapping screw

4. Left-hand lower door stop

5. Left-hand lower door dowel

Fig. 17

1. Lower hinge
2. Special flange screw
3. Adjustable lower legs

Fig. 18

1. Lower hinge pin

Fig. 21

1. Upper door's upper-left hinge

Fig. 22

1. Upper door connector
2. Refrigerator connector
3. Refrigerator connector

Fig. 23

1. Self-tapping screw

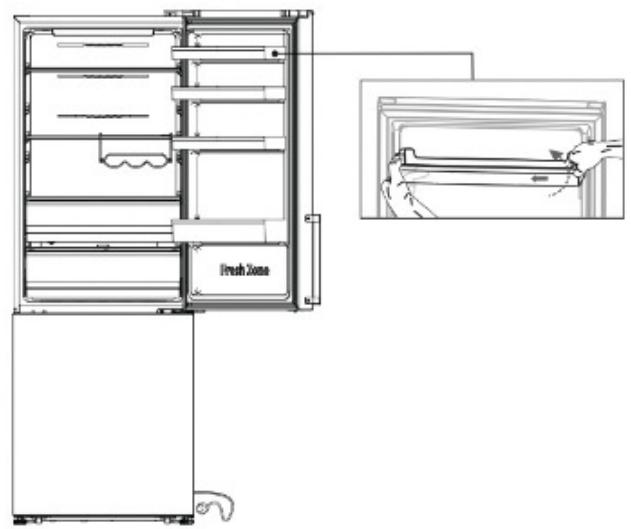

2. Open the door, remove the door shelves (to prevent any damage) and then close the door. To remove the shelves, slightly press the shelf and move it upwards. Fig. 6

3. Unscrew the screw on the upper-right hinge (1), then remove the upper hinge cover (2). Carefully unplug the electrical connector (3) underneath. Fig. 7
4. Press the side of the door switch (4) and pull it upwards to separate it from the upper-right hinge cover (2). Insert the door switch (4) into the upper-left hinge cover (5) (included in the plastic bag). Keep the upper-right hinge cover (2). Fig. 8

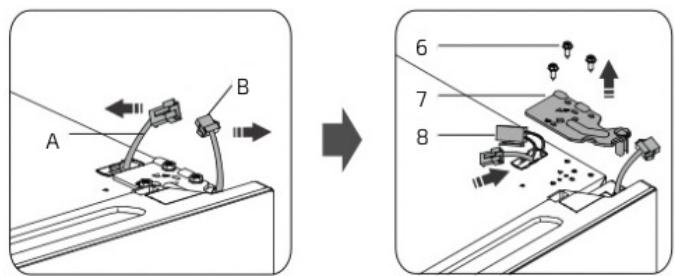

5. Unplug connectors (A) and (B). Then unscrew the screws (6) with an 8 mm drill or a spanner and remove the upper-right hinge (7). Then fit the connectors (A) and (B) into the hole as shown in figure 9. After this process, the refrigerator door will be unstable. Be sure to hold it in place so as not to damage it. Fig. 9
6. Carefully lift the upper door to remove it from the middle hinge. Then place the upper door on a soft surface with the inside facing upwards. Fig. 10
7. Insert the right-hand screw gap cover (9) (included in the plastic bag) into the upper-right side where the upper-right hinge was located. Then, remove the left screw gap cover (10) from the upper-left side of the refrigerator and put it away. Fig. 11

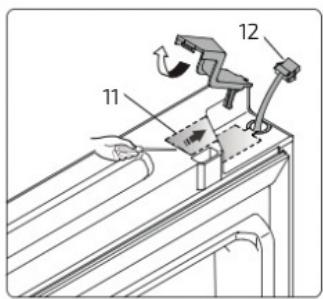

8. Remove the upper-left side door cover (11) and remove the connector (12). Remove the upper-right side door cover (13) and place the connector (14) inside. Replace the upper side door covers (11 and 13) Fig. 12

9. On the upper door's right side, unscrew the screw (15) and remove the dowel (16) from the door stop (17). On the upper door's left side, insert the left door stop (18) and the left dowel (19) (included in the plastic bag) and secure it with the screw (15). Keep the right door stop and dowel. Fig. 13

10. Use the Allen key (included in the plastic bag) and a Phillips screwdriver to loosen the screws and remove the upper-right hinge from the lower door. Then carefully lift the door up and remove it. Then carefully lift the door up and remove it. Fig. 14
11. Place the lower door on a soft surface with the inside facing up. On the lower door's right side, unscrew the screw (22) and remove the dowel (21) from the door stop (20). On the lower door's left side, insert the left door stop (23) and the left dowel (19) (included in the plastic bag) and secure it with the screw (15). Keep the right door stop and dowel Fig. 15
12. Replace the screw gap covers and screw the centre plate to the right. Fig. 16
13. Tilt the refrigerator carefully to gain access to its base. Remove the two adjustable lower legs (27), then remove the lower hinge (25) by unscrewing the screws (26). Fig. 17
14. Loosen the lower hinge pin and remove it. Rotate the hinge and reinsert the lower hinge pin (28), then tighten it. Fig. 18
15. Place the lower hinge on the left side of the refrigerator base and secure it with the screws (26). Replace the adjustable lower legs and partially secure them. Fig. 19
16. Place the refrigerator in an upright position and carefully insert the lower door into the upper hinge of the lower door. At this point, the door will not be attached to the refrigerator. Hold it firmly so that it does not fall off. Install the left hinge (in the plastic bag) making sure that the lower door is secured in place. Fig. 20

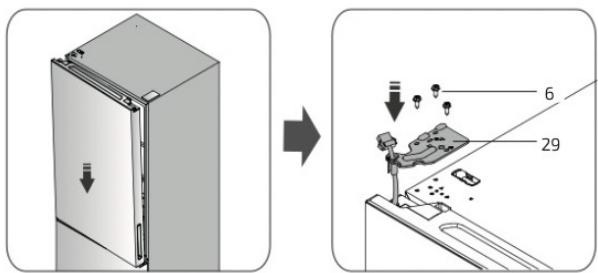

17. Position the upper door on the left side and place the middle hinge shaft in the upper door's bottom hole. Install the upper-left hinge (29) (included in the plastic bag) and screw it with the screws removed in step 9 (6). At this point, the door will not be attached to the refrigerator, but hold it firmly so that it does not fall off. Fig. 21

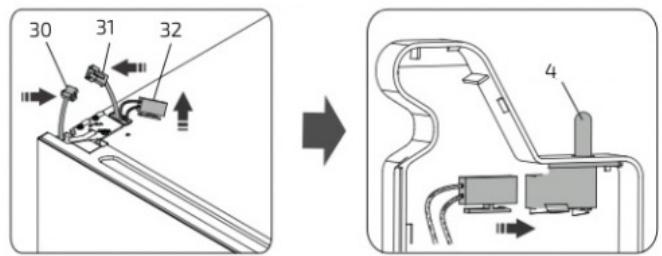

18. Remove connectors 31 and 32 from the top left side of the refrigerator. Connect 30 to 31. Then plug connector 32 to the door switch located on the upper-left hinge cover. Fig. 22
19. Install the upper left hinge cover (5) using the screw (33) as shown in figure 23, on the top of the refrigerator. Fig. 23
20. Open the upper door, reinstall the shelves, and close the door.

Note:

If the refrigerator has a handle, you must reverse its position by following these instructions: Remove the covers from the handle screws and then loosen the screws. Pull the handle to remove it and replace it on the right side. Screw the screws back in and place the covers. Fig. 24

Fig. 24

1. Handle covers
2. Special screws
3. Door handle
4. Screw gap

4. OPERATION

The display panel is located on the refrigerator door, as shown in the figure below.

Fig. 3

1. Digital refrigerator-compartment temperature indicator
2. Digital freezer-compartment temperature indicator
3. Fast Cool icon
4. Fast Freeze icon
5. Smart icon (ECO mode)
6. Holiday icon
7. Refrigerator button
8. Freezer button
9. Function button

10. OK Confirm button

11. When connecting the refrigerator to the mains for the first time, all icons on the display light up for 2 seconds.

12. When all doors are closed, the display will automatically switch off if no button is pressed within 3 minutes (approx.).
13. If the display is off, it will light up upon opening a door or pressing a button.

The following functions can be performed when keys are unlocked and light up on the display.

Temperature settings

1. Setting the refrigerator compartment temperature
2. Press the Refrigerator button for the refrigerator temperature digits to start flashing and press it again to set the temperature, then press OK to confirm the temperature setting.
3. The refrigerator temperature setting functions are as follows:
4. 5°C → 6°C → 7°C → 8°C → 0FF → 2°C → 3°C → 4°C → 5°C
5. OFF refers to switching off the refrigerator. When this function is activated, the refrigerator will stop cooling.
6. Setting the freezer compartment temperature
7. Press the Freezer button until the freezer temperature digits start flashing. Press it again to set the temperature and finally press OK to confirm the temperature setting.
8. The freezing temperature setting cycles are as follows:
9. -18 °C → -17 °C → -16 °C → -24 °C → -23 °C → -22 °C → -21 °C → -20 °C → -19 °C → -18 °C

Smart function (ECO mode)

- When you activate the Smart function, the temperature in the refrigerator compartment will be set to 4 °C and the freezer-compartment temperature will be set to -18 °C, so that food will be preserved in the best possible conditions and the refrigerator will operate as efficiently as possible.

• With the Smart function active, you cannot modify the temperature of any compartment.
• Activating the Smart function
• Press the Function button until the corresponding icon starts flashing, then press the OK Confirm button within the next 5 seconds to confirm your choice. If you do not press the OK Confirm button within the next 5 seconds, the function will not be activated.
• Deactivating the Smart function
• With the Smart function activated, press the Function button until the Smart icon (ECO mode) starts flashing, then press the OK Confirm button for 5 seconds to confirm your choice. The Smart function will be deactivated.
• If you activate the Holiday, Fast Freeze, or Fast Cool function, the Smart function deactivates automatically.

Fast Cool

• When this function is activated, the refrigerator temperature is automatically set to 2 °C, lowering the temperature quickly to preserve the freshness and nutritional properties of food.
• If the Fast Cool function is activated, the refrigerator-compartment temperature cannot be adjusted.
• Activating the Fast Cool function
• Press the Function button until the corresponding icon starts flashing, then press the OK Confirm button within the next 5 seconds to confirm your choice. If you do not press the OK Confirm button within the next 5 seconds, the function will not be activated.
• Deactivating the Fast Cool function
• With the Fast Cool function active, press the Function button until the Fast Cool icon starts flashing, then press the OK Confirm button for 5 seconds to confirm your choice. The Smart function will be deactivated.
• If you activate the Holiday, or Smart (ECO mode) function, the Fast Cool function deactivates automatically.

Fast freezing

• When you activate the Fast Freeze function, the freezer-compartment temperature will drop to -32 °C automatically, and will deactivate after 26 hours of operation. The Fast Freeze function is used to prevent loss of nutritional quality and to preserve food freshness.
• If the Fast Freeze function is activated, the freezer compartment temperature cannot be adjusted.
• Activating the Fast Freeze function
• Press the Function button until the corresponding icon starts flashing, then press the OK Confirm button within the next 5 seconds to confirm your choice. If you do not press the OK Confirm button within the next 5 seconds, the function will not be activated.

• Deactivating the Fast Freeze function

• After 26 hours of operation, the Fast Freeze function will deactivate automatically.

• With the Fast Freeze function active, press the "Function" button until the Fast Freeze icon starts flashing, then press the OK Confirm button to confirm and deactivate the Fast Freeze function.
• If you activate the Smart function, the Fast Freeze function deactivates automatically.

Holiday

• When you activate the Holiday function, the refrigerator-compartment temperature is set to 14 °C.
• When you are away for an extended period of time, you can activate the Holiday function to keep the refrigerator compartment running on low energy consumption, while preventing undesirable odours and ensuring a correct operation of the freezer compartment.
• Make sure you remove all the food from the refrigerator compartment before activating this function.

• If the Holiday function is active, the refrigerator-compartment temperature cannot be adjusted.

• Activating the Holiday function

• Press the Function button until the corresponding icon starts flashing, then press the OK Confirm button within the next 5 seconds to confirm your choice. If you do not press the OK Confirm button within the next 5 seconds, the function will not be activated.

• Deactivating the Holiday function
• With the Holiday function activated, press the Function button until the Holiday icon starts flashing, then press the OK button within 5 seconds to confirm your choice. The Holiday function will deactivate.
• If you activate the Smart or Fast Cool function, the Holiday function deactivates automatically.

Function memory after a power failure

In the event of a power failure, the refrigerator will save the functions set before the power failure and will activate them when the power is restored.

Delayed start after power failure

To prevent damage to the refrigerator compressor in the event of a short power failure (i.e., less than 5 minutes), the compressor will not start immediately after switch-on.

Overheating warning (only after a power failure)

When the refrigerator cooling system is on, if the freezer-compartment temperature is above -10 °C, the freezer-compartment temperature digits will flash on the display. The display will show the freezer-compartment temperature when you press any button, and it will return to its usual state when you press any button again or after 10 seconds.

Open door alarm

If the door stays open for more than 3 minutes, the refrigerator will emit an alarm sound, which can be shut off by pressing any key, but will sound again if the door is still open 3 minutes later. The alarm sound will not stop until the door is closed.

Fault alarm

If the display shows E0, E1, E2, EH, or EC, it means there's a fault in the refrigerator. Contact the Technical Support Service of Cecotec.

Adjusting the refrigerator air (humidity) regulator

The cold air entering the fresh-food storage compartment will gradually increase as the air regulator is adjusted from the MIN. to the MAX. position.

Fig. 4

5. INSTRUCTIONS ON FOOD STORAGE

Use precautions

• The refrigerator may not operate consistently (there may be some defrosting of the contents or the temperature may become too hot in the freezer compartment) if placed in locations with a temperature outside of the temperature range for which it's designed for a long period of time.
• The internal temperature may be affected by factors such as the location of the refrigerator, room temperature, and door opening frequency, etc., and you should take these factors into account if you decide to use any temperature-control device.
• Effervescent or carbonated drinks should not be stored in the freezer compartment or drawer of the refrigerator.

Food location

• Due to the circulation of cold air in the refrigerator, the temperature in each zone is different, so food must be placed in different zones.
• The refrigerator compartment is suitable to store food that does not need to be frozen, cooked food, beer, eggs, some seasonings that need to be kept cold, milk, fruit juice, etc. The crisper drawer is the best place to store fruit and vegetables.
• The freezer compartment is suitable to store ice cream, frozen foods, and foods that need to be kept for a long time.

Using the refrigerator compartment (Crisper Box/Humidity Box)

- Shelves: To remove the shelves, first lift them up and then pull them out; to put them back, put them into their position before lowering them. (For the two-section shelf, push the first section towards the rear end and pull the second section out). Keep the rear edge of

the shelf facing upwards to prevent food from coming into contact with the wall. When removing and fitting shelves, hold them firmly and handle them carefully to avoid damage.

- Crisper drawer: Pull out the crisper drawer to access the food. After using or cleaning the bottom shelf of the refrigerator (the drawer cover), put it back in place so that the internal temperature of the drawer is not affected.

Humidity control of the drawer

• The humidity regulator of the drawer is designed to keep moisture steady and the vegetable freshness.
• If you slide the humidity regulator to the right, more gaps will be exposed and the drawer will have a lower humidity level.
• If you slide the humidity regulator to the left, less gaps will be exposed and the drawer will have a higher humidity level.

Using the ice cube tray

Place the ice cube tray in the upper part of the freezer compartment so that it freezes as quickly as possible.

Care for food storage

• Clean and dry food completely before storing it in the refrigerator. Before introducing food in the refrigerator, it is advisable to seal it to prevent water evaporation and thus keep fruit and vegetables fresh on the one hand, and to prevent odours on the other.
• Leave enough space between the food; if they are too close together, they will block the flow of cold air, which will affect the cooling effect. Do not store too much or too heavy food to prevent the shelves from bending. When storing food, leave a distance from the interior wall; do not place water-rich food too close to the inner wall of the refrigerator to prevent it from freezing on the interior wall.
• Food storage by category: place daily food items at the front of the shelf so that you can reduce the door opening time and avoid food spoilage due to expiry.
• Energy saving tips: let hot food cool down to room temperature before putting it in the refrigerator. Place frozen food in the refrigerator compartment to defrost it.

Storing fruits and vegetables

Please note that some types of fresh vegetables and fruits are sensitive to cold and therefore not suitable for storage in the refrigerator crisper drawer.

Using the freezer compartment

• The freezer-compartment temperature is kept at -18 °C, so it is advisable to store food that you wish to keep for a long period of time in the freezer compartment, always respecting the storage time indicated on the food packaging.
• The freezer-compartment drawers are suitable to store food which needs to be frozen.

Large fish and meat should be cut into small pieces and placed in freezer bags before placing them in the freezer-compartment drawers.

• Let hot food cool down to room temperature before putting it in the freezer compartment.
• Do not place a glass container with liquid or sealed canned liquid in the freezer compartment to prevent them from exploding due to volume expansion after freezing the liquid.
• Divide food into small portions.
• Food should be packed or covered with suitable materials that are firm, tasteless, impermeable to air and water, non-toxic, and non-polluting to avoid cross-contamination and odour transfer.

6. CLEANING AND MAINTENANCE

If the refrigerator will not be used for a long period of time:

• Turn off the refrigerator and unplug it from the power supply.
• Remove all the food.
• Clean and dry the interior completely. To prevent mould or unpleasant odours, leave the door slightly open: lock it open or remove it if necessary.
• Store the appliance in a ventilated and dry place, away from heat sources; place the appliance carefully and do not place heavy objects on it.
• The unit must be kept out of the reach of children to prevent them from playing with it.
• Before cleaning, disconnect the power plug; do not connect or disconnect the power plug with your hands wet, as there is a risk of electric shock and injury. Do not spill water directly on the refrigerator to avoid rust, electrical leakage and accidents. Do not reach into the bottom of the refrigerator, as you may get scratched by the sharp metal corners.

Cleaning the interior and exterior

• Food residues in the refrigerator can cause undesired odours, so you should clean the refrigerator regularly. The refrigerator compartment should be cleaned once a month.
• Remove all shelves, the crisper drawer, etc., and clean them with a soft cloth or sponge dampened with warm water or neutral detergent.
• Clean the dust that accumulates on the rear panel and side plates of the refrigerator regularly.
• After using detergent, make sure you rinse it with clean water, and then dry it with a cloth.
• Do not use bristle brushes, steel wire brushes, detergent, soap powder, alkaline detergent, benzine, petrol, acid, hot water, or other corrosive elements to clean the refrigerator surface, door gasket, plastic decorative parts, etc. to avoid damage.
• Carefully dry the door gasket and clean the slot with a wooden stick wrapped with cotton. After cleaning, fix the four corners of the door gasket and then gradually push it into the slot in the door.

Power failure or cooling system fault

• If you receive an early power failure warning:
• Activate the fast freeze function, so that food is completely frozen. Set the temperature back to the original setting when the power supply returns to normal.

Note:

It is advisable to run the refrigerator uninterruptedly once you start using it.

Defrosting

This refrigerator includes an automatic defrost function, so there is no need to defrost it manually.

Replacing the light bulb

• The refrigerator has a LED light with low consumption and a long shelf life. In the event of an anomaly, please contact the technical support service. Lights or other parts of the appliance may only be replaced by the manufacturer.
• Energy efficiency level: G

Removing the shelves

• Hold the shelves with both hands and push them upwards.
• Hold one end of the shelf and lift it up while pulling it out. (Fig. 25)

7. TROUBLESHOOTING

For the following minor malfunctions, please try to solve the problem yourself before contacting the official Cecotec Technical Support Service.

Fault	Possible causes	Possible solutions
The refrigerator does not work.	The refrigerator is not connected to the mains.The circuit breakers or fuses are damaged.There is no power or the fuse trips.	Plug the refrigerator into the mains.Open the door and check the light is on.
Abnormal noise.	The refrigerator is not stable.The refrigerator is in contact with the wall.	Set the adjustable feet of the refrigerator.Separate the refrigerator from the wall.
Low cooling efficiency.	The food inside is hot or there is too much food.You open the door too often.The door gasket has objects that do not allow to close it completely.The refrigerator receives direct sunlight or is close to a heat source.The refrigerator is not well ventilated.The selected temperature is too high.	Store food in the refrigerator when at room temperature.Check and close the door.Remove the refrigerator from the heat source.Keep the recommended distances in the installation section so the refrigerator is well ventilated.Set a suitable temperature.
Unpleasant smells in the refrigerator.	There is spoiled food inside.The refrigerator is dirty.Food with a strong odour stored inside the refrigerator.	Dispose of food which is spoiled.Clean the refrigerator.Pack food, especially if it has a strong smell.
You cannot set the temperature.	Check if the Smart or fast freeze functions are not active on the control panel.	Deactivate the special functions and then set the temperature (for more details, check the Functions section).
The freezer-compartment temperature is shown on the panel, but it flashes.	Check that the power supply has not been cut off before.	Press any button to activate the alarm (check the overheating warning section) and check that the food inside the refrigerator is not spoiled.

Note:
If none of these situations match your problem, do not attempt to disassemble or repair the appliance by yourself. Repairs carried out by unqualified persons may result in injury or serious malfunctions. Please contact the local store where you made your purchase. The repair must be carried out by an authorised technician and you must use only original spare parts.

8. TECHNICAL SPECIFICATIONS

Product	Bolero CoolMarketCombi 356 White D	Bolero CoolMarketCombi 356 Inox D	Bolero CoolMarketCombi 356 Dark D
Reference:	02417	02418	02419
QR code

Voltage	220-240 V~
Rated frequency	50/60 Hz
Rated current	2 A
Climate class	SN/N/ST/T*
Refrigerant	R600a/48 g
Insulation	Cyclopentane

Product	Bolero CoolMarket Combi 356 White Glass D	Bolero CoolMarket Combi 356 Black Glass D	Bolero CoolMarket Combi 356 Glass Grey D
Reference:	02420	02421	02725
QR code
Voltage	220-240 V~
Rated frequency	50/60 Hz
Rated current	2 A
Climate class	SN/N/ST/T*
Refrigerant	R600a/48 g
Insulation	Cyclopentane

(*) Refrigerator intended for use at room temperatures between 10 °C and 43 °C.
This product features a light source with an energy efficiency grade G.
Technical specifications may change without prior notice to improve product quality.
Made in China | Designed in Spain

9. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

10. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs are carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

11. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

1. PIÈCES ET COMPOSANTS

Img. 1

7. PROBLEEMOPLOSSING

Fig./Img./Abb./Afb./ Rys./Obr. 1

Fig./Img./Abb./Afb./Rys./Obr. 2

Fig./Img./Abb./Afb./ Rys./Obr. 3

COOLING AIR FLOW

MIN

MAX

Fig./Img./Abb./Afb./Rys./Obr. 4

Fig./Img./Abb./Afb./Rys./Obr. 5

Fig./Img./Abb./Afb./Rys./Obr. 6

Fig./Img./Abb./Afb./ Rys./Obr. 7

Fig./Img./Abb./Afb./Rys./Obr. 8

Fig./Img./Abb./Afb./Rys./Obr. 9

Fig./Img./Abb./Afb./Rys./Obr. 10

Fig./Img./Abb./Afb./Rys./Obr. 11

Fig./Img./Abb./Afb./Rys./Obr. 12

Fig./Img./Abb./Afb./ Rys./Obr. 13

Fig./Img./Abb./Afb./ Rys./Obr. 14

Fig./Img./Abb./Afb./ Rys./Obr. 15

Fig./Img./Abb./Afb./ Rys./Obr. 16

Fig./Img./Abb./Afb./ Rys./Obr. 17

Fig./Img./Abb./Afb./Rys./Obr. 18

Fig./Img./Abb./Afb./Rys./Obr. 19

Fig./Img./Abb./Afb./Rys./Obr. 20

Fig./Img./Abb./Afb./ Rys./Obr. 21

Fig./Img./Abb./Afb./Rys./Obr. 22

Fig./Img./Abb./Afb./Rys./Obr. 23

www.cecotec.es
